1. General Instructions
2
A publication of HUSSMANN®Chino
13770 Ramona Avenue • Chino, California 91710
[phone] FAX
[phone]
[phone]
www.hussmann.com
This Booklet Contains Information on:
TY3W COLD ISLAND SELF SERVICE CASE
A Multi-deck, spot merchandisers designed for medium temperature applications such
as: Deli/Dairy/Beverage. They are available as either remote type models, which require
separate condensing unit connections, or self-contained models. Each self-contained
model will have it’s own condensing unit, factory installed beneath the display area of
the case ready for operation on when electrical service is connected.
Shipping Damage
All equipment should be thoroughly examined for shipping damage before and during
unloading.
This equipment has been carefully inspected at our factory and the carrier has assumed
responsibility for safe arrival. If damaged, either apparent or concealed, claim must
be made to the carrier.
Apparent Loss or Damage
If there is an obvious loss or damage, it must be noted on the freight bill or express
receipt and signed by the carrier’s agent; otherwise, carrier may refuse claim. The
carrier will supply necessary claim forms.
Concealed Loss or Damage
When loss or damage is not apparent until after equipment is uncrated,aclaimfor
concealed damage is made. Make request in writing to carrier for inspection within 15
days, and retain all packaging. The carrier will supply inspection report and required
claim forms.
Shortages
Check your shipment for any possible shortages of material. If a shortage should exist
and is found to be the responsibility of Hussmann Chino, notify Hussmann Chino.If
such a shortage involves the carrier, notify the carrier immediately, and request an
inspection. Hussmann Chino will acknowledge shortages within ten days from receipt
of equipment.
Hussmann Chino Product Control
The serial number and shipping date of all equipment has been recorded in Hussmann’s
files for warranty and replacement part purposes. All correspondence pertaining to
warranty or parts ordering must include the serial number of each piece of equipment
involved, in order to provide the customer with the correct parts.
Keep this booklet with the case at all times for future reference.

2.Table of Contents
1. General Instructions...............................................................2
2. Table of Contents ...................................................................3
3. Warning ...................................................................................4
4. Cut and Plan View ..................................................................5
5. Notice.......................................................................................6
6. Installation...............................................................................7
7. Electrical …………………………………………………………12
8. Wiring Diagram Index............................................................13
9. Wiring Diagrams ………………………………………………..15
10. Spec Sheet ...........................................................................56
11. Parameter Report ................................................................58
12. Danfoss Controller…….......................................................60
13. Dixell Controller …………………………………………….…61
14. Troubleshooting Guide .......................................................62
15. Maintenance..........................................................................66
16. Appendices ..........................................................................67
3

3. Warning
Please read these instructions completely
before beginning case installation

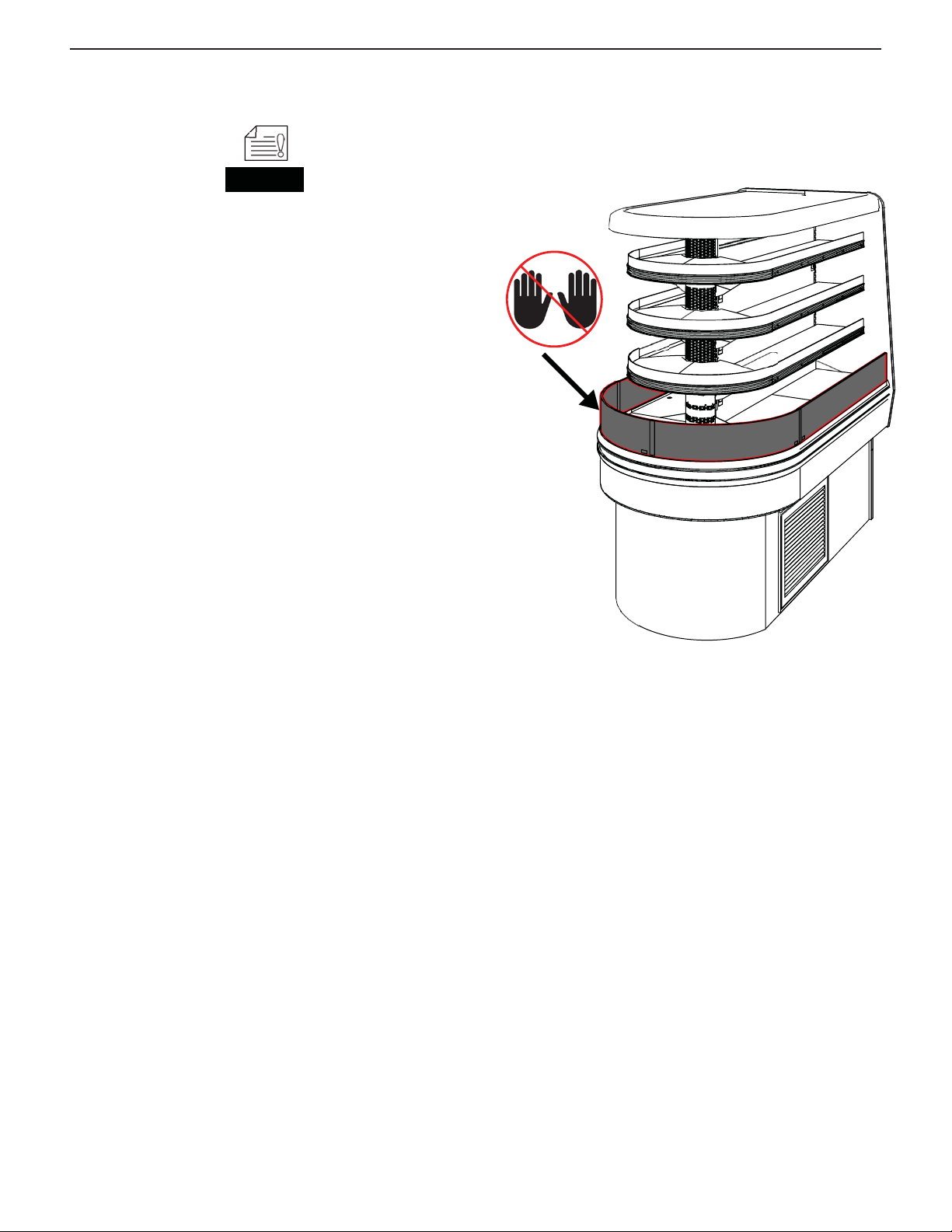

1. Do not push, pull, adjust or manipulate the merchandiser
by any glass component.
• Doing so will result in severe damage to such compo-
nents.
• Glass or acrylic breakage may result in serious
injury.
• See lifting and transport instructions for proper
moving technique ref. pg 10.
2. Never stand on the merchandiser top, deck, or any
shelves for any reason. These surfaces are not steps and
are not designed to support such loads.
• Misusing these surfaces as steps will result in dam
age to the case and or serious injury to the user
• These surfaces are intended for the storage and
merchandising of food products
• Use a ladder or designed structure to work above
the case (Do not lean on case)
IMPORTANT
INFORMATION
4

Shelves - optional
Angled Shelf Insert
-optional
321/2 (826)
281/2 (724)
361/8 (918)
381/8 (968)
10 (254)
10 (254)
113/4
(298)
241/4
(616)
201/4
(514)
575/8
(1464)
273/8
(695)
291/8
(740)
Shelves - optional
Angled Shelf Insert
-optional
321/2 (826)
281/2 (724)
361/8 (918)
381/8 (968)
10 (254)
10 (254)
10 (254)
113/4
(298)
341/4
(870)
201/4
(514)
675/8
(1718)
273/8
(695)
291/8
(740)
base close-off
34 (864)
max
46 (1168)
max
6min
(152)
19 max
(483) 661/2 (1689)
“B”
“B”
“A”
“A” 541/2 (1384)
4.5' 5.5'
1
(25)
281/2
(724)
361/8
(918)
381/8
(968)
open to floor
4. Cut and Plan Views
5

5. Notice
NOTICE
Do NOT remove Foam Blocks from shelves
and glass until the merchandisers are
positioned for installation. Shelves or
merchandising glass may be damaged.
Loose
Items
Warning
Labels
Foam Blocks
in place Boards
fastened
6
Case is to arrive at store as was shipped form factory. See
reference above for proper shipment referencing. (Not
actual case)
Receiving Case
Upon receiving your new Hussmann Case all equipment
should be thoroughly examined for shipping damage be-
fore and during unloading. This equipment has been care-
fully inspected at our factory. Any claim for loss or damage
must be made to the carrier. The carrier will provide any
necessary inspection reports or claim form.
If there is obvious loss or damage, it must be noted on the
freight bill or express receipt and signed by the carrier’s
agent; otherwise carrier may refuse claim.

6. Installation
Do Not Install the Vented Panels of the
self-contained model against a wall or
other storage fixture.
Located in the lower front and rear of the self-contained
models are vented panels. These panels allow air circulation
to the condensing unit. Blocking or restricting air circulation
through these panels can cause poor performance and
damage the refrigeration system.
Exterior Loading
These models have not been structurally designed to support
excessive external loading. Do not walk on their tops;
This could cause serious personal injury and damage to
the fixture.
It is the contractor’s responsibility to install
case(s) according to local construction and
health codes.
ATTENTION
INSTALLER
Levelling
A LEVEL CASE IS NECESSARY TO INSURE
PROPER OPERATION AND WATER DRAINAGE.
Note: To avoid removing concrete flooring, begin
lineup leveling from the highest point of the store
floor.
Store Conditions
• Case is designed to operate at temperatures at either
75°F at 55% relative humidity or 80°F at 55% relative
humidity. Case must be kept in that environment to
ensure case performance and product safety.
• Do not position the case near an HVAC vent.
• Do not position the case near an entrance door. Outside
ambient conditions may have an adverse affect on the
refrigeration performance, a minimum of 15’ clearance is
required from doors.
• Do not position the case tight against a ceiling or soffit.
A minimum clearance 10” above the unit is required for
proper compressor discharge air flow.
• Do not block case front panel vent (supplies critical
intake air flow to the compressor)
BEFORE SERVICING
ALWAYS DISCONNECT ELECTRICAL
POWER AT THE MAIN DISCONNECT
WHEN SERVICING OR REPLACING ANY
ELECTRICAL COMPONENT.
This includes (but not limited to) Fans, Heaters
Thermostats, and Lights.
7
Uncrating the Stand
Place the fixture as close to its permanent position as
possible. Remove the top of the crate. Detach the walls from
each other and remove from the skid. Unbolt the case from
the skid. The fixture can now be lifted off the crate skid. Lift
only at base of stand!

Minimum Clearances for Self-Contained cases are to be
followed as instructed for proper placement inside store
locations.
• Intake and exhaust clearances are to be a minimum of
8’ when placed next to a solid wall.
• Height clearance measured from floor follows as a
minimum of 10’ vertically.
• Minimum of 36” clearance if near an open aisle is
required for proper cycle ventilation. (Assumed 8’
clearance from solid wall)
8’ clearance
8’ clearance
Installation (Cont’d)
Condensate Pan Setup and Maintenance Clearances
Setup:
There are two condensate evaporator pans on this unit. The
drain pipes from the case feed into the Condensate Pan.
This condensate pan will turn on when the float switch level
is triggered. If the volume of water is above the capacity of
this pan, excess water will flow into the “Secondary Con-
densate Pan”. Both the Primary and Secondary conden-
sate pans are placed into a metal receiver. The metal
receiver is there to collect excess water that may overspill
in case of (a) failure of the condensate pans or (b) store
conditions being above design specification causing more
condensate water to be formed than expected.
Maintenance:
Care must be taken to ensure that the condensate pans
operate properly at the store. These units are designed to
operate at either 75°F ambient and 55% RH or 80°F ambi-
ent and 55% RH. If stores are operating above this condi-
tion, case performance will be severely affected. If such a
condition is noted, the metal receiver under the condensate
pans must be checked periodically to see if excess water is
being collected. If water has accumulated, water must be
siphoned out of the receiver. Care must be taken while per-
forming this step. Unit power should be shut off for electrical
safety. Once water has been removed and metal receiver is
dried out, unit power can be turned back on.
Condensate Pan
8

Close-off Removal
The side close-off panels are held in place by upper and
lower tabs located on the underside of the tub and bottom
base channel near the bottom of the case. See image
below for exact close-off tab locations.
Closeoff Tabs
Slide bottom of close-off in upward motion to remove
close-off panel slots from lower close-off tabs.
Step 2
Pull Close-off in outward then downward motion to com-
pletely remove side panel close-off
1
2
BEFORE SERVICING
ALWAYS DISCONNECT ELECTRICAL
POWER AT THE MAIN DISCONNECT
WHEN SERVICING OR REPLACING ANY
ELECTRICAL COMPONENT.
This includes (but not limited to) Fans, Heaters
Thermostats, and Lights.
Once Close-off panel is removes, this now provides ac-
cess to internals such as condensing unit, evap pan and
electrical junctions.
To replace close-off panels, simply reverse the listed steps.
Installation (Cont’d)
Step 1
9

Installation (Cont’d)

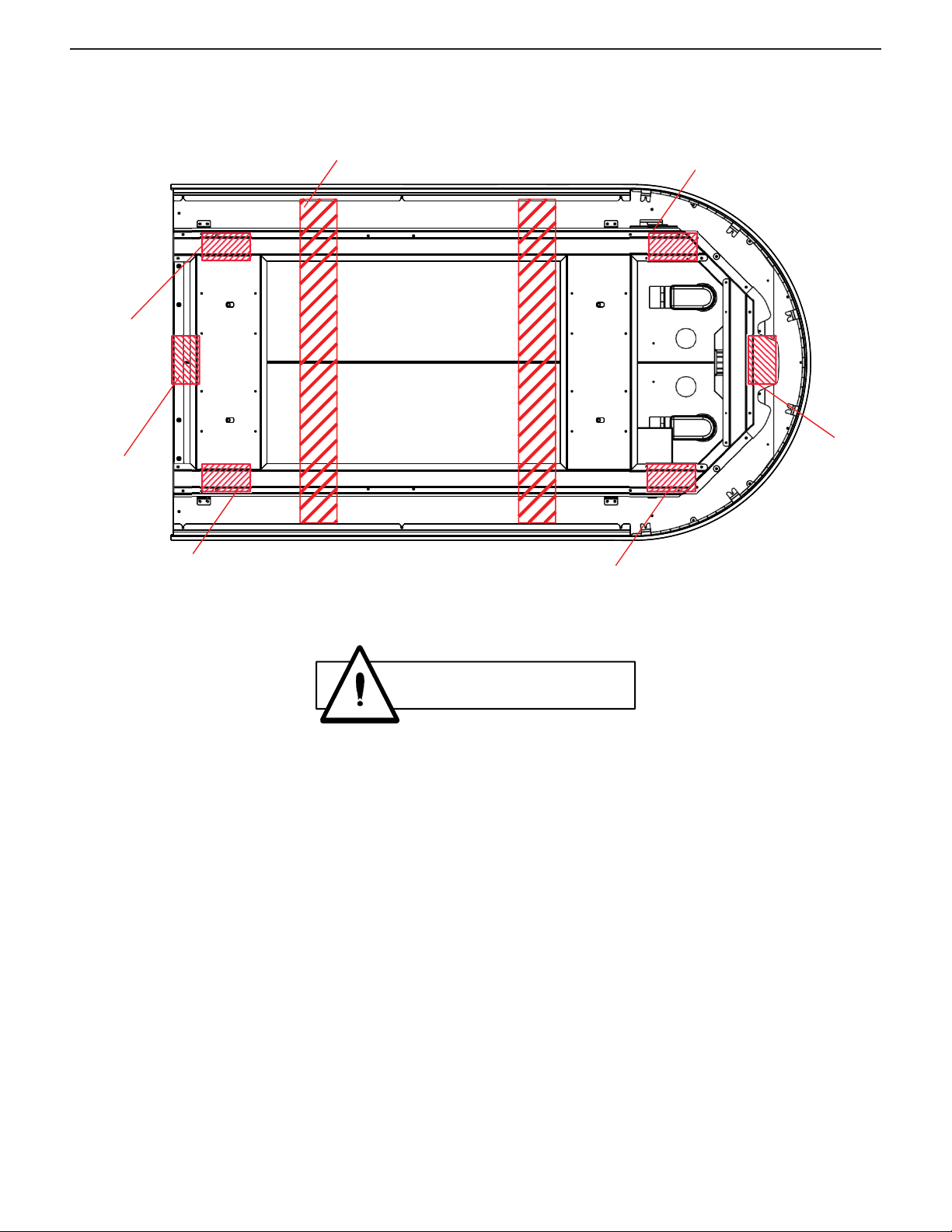

Entyce Lifting and Transporting Instructions
Lift Zone (Approximate)
J-Bar
Lift Point
J-Bar
Lift Point
J-Bar
Lift Point
J-Bar
Lift Point
J-Bar
Lift Point
J-Bar
Lift Point
1. The Entyce can be lifted by a forklift only at the specified location in the diagram
Improper placement of forks may damage
drainage piping. Use a spotter when placing forks.
Make sure that piping will not be damaged.
Use J-Bars or Jacks if Forks cannot be used safely
2. Remove close-offs and lower body panels before lifting with a fork. Serious damage will occur if the body panels are not
removed.
• Remove the end case lower and bottom panels first
• Then remove the side case lower and bottom panels
3. Make sure that fork spacing and width will not damage drain, piping, or electrical lines.
4. Be sure that the forks are long enough to support beyond the center of the case. Check for proper balance before
moving. A minimum fork length of 36” is recommended for 68” wide cases.
5. The Entyce can be raised at one end with a forklift to allow the placement of rollers or dollies.
6. Never drag or push the Entyce by ANY COMPONENT including ANY GLASS COMPONENT. This will result in damage
to the base, and possibly damage to other components.
7. Evenly support the entire base structure on rollers or dollies before attempting to move. Each Base Leg must have its
own dollie to properly support the case.
10
WARNING

Installation (Cont’d)

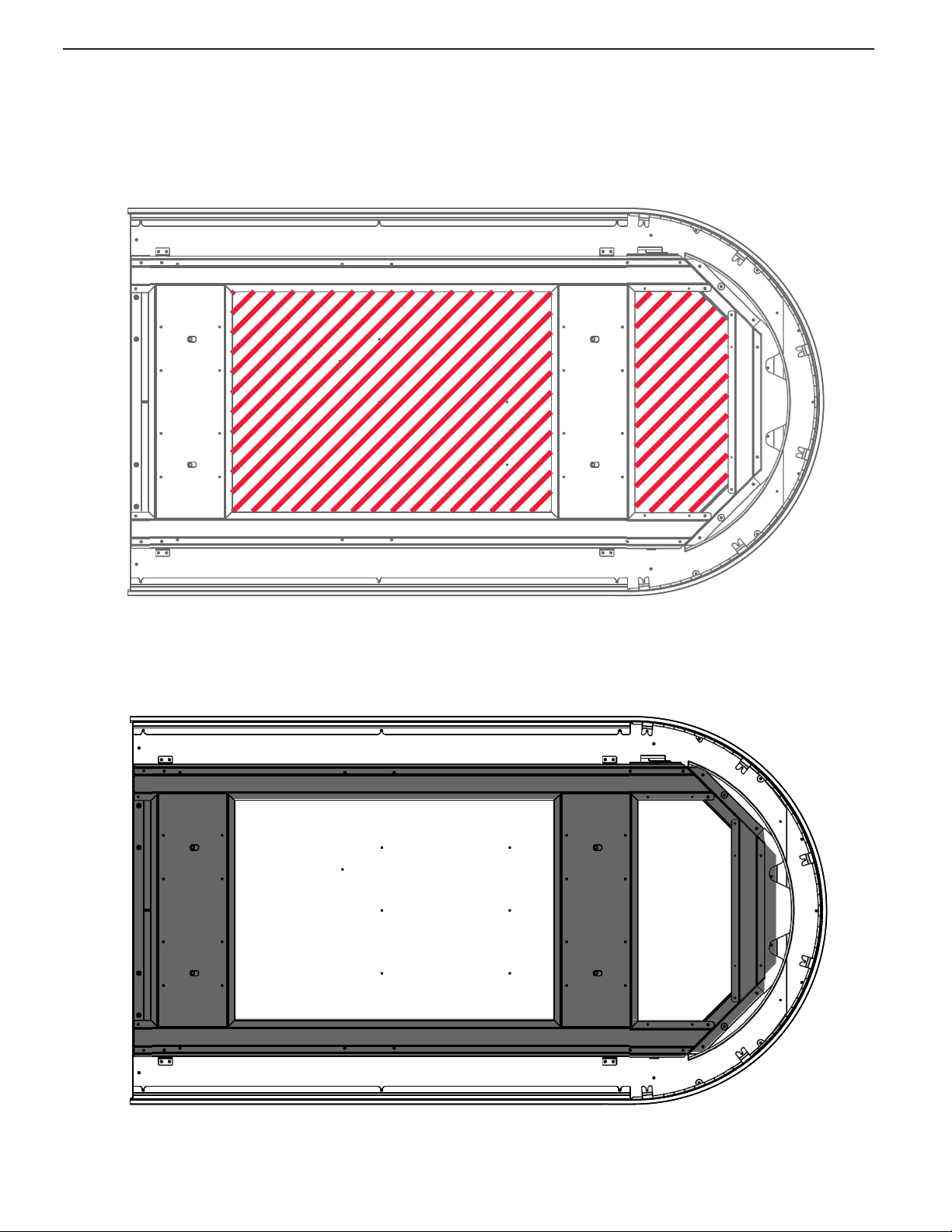

8. Do not lift in marked areas
• Lifting in the prohibited areas can cause serious damage to merchandiser and critical components such as
refrigeration and electrical components.
• Damage to critical components will affect case performance.
9. For optimal lifting of merchandiser support case along highlighted channels shown above.
• Lifting the merchandiser in the area highlighted will ensure most support to the structure of the merchandiser without
abrupting any case components.
11

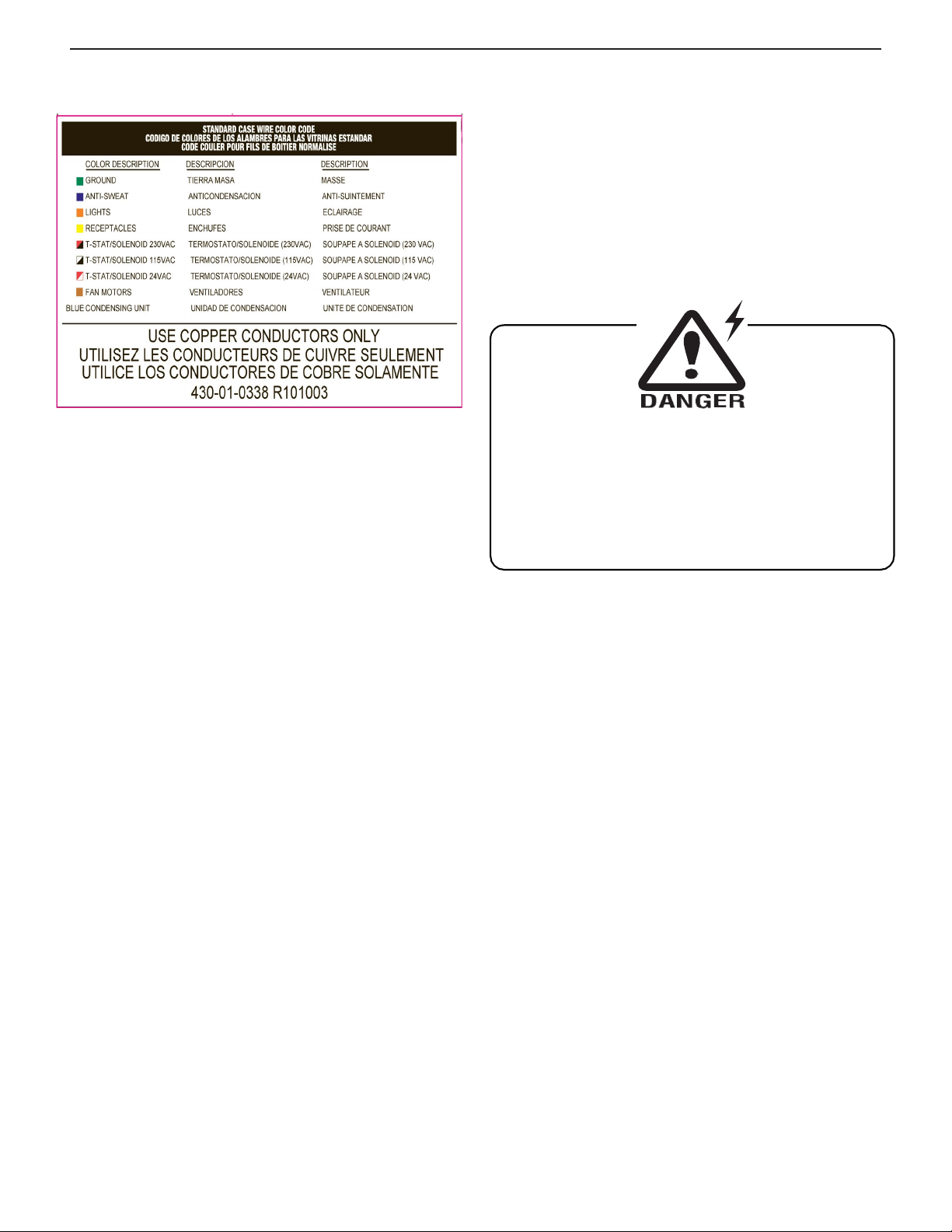

7. Electrical
Field Wiring and Serial Plate Amperage
Field Wiring must be sized for component amperes printed
on the serial plate. Actual ampere draw may be less
than specified. Field wiring from the refrigeration control
panel to the merchandisers is required for refrigeration
thermostats. Case amperes are listed on the wiring
diagram, but always check the serial plate.
BEFORE SERVICING
ALWAYS DISCONNECT ELECTRICAL
POWER AT THE MAIN DISCONNECT
WHEN SERVICING OR REPLACING ANY
ELECTRICAL COMPONENT.
This includes (but not limited to) Fans, Heaters
Thermostats, and Lights.
CASE MUST BE GROUNDED
NOTE: Refer to label affixed to case to determine the actual
configuration as checked in the “TYPE INSTALLED” boxes.
Standard lighting for all refrigerated models will be full length
LED Lights located within the case at the top.
12

8. Wiring Diagram Index
13
TY3 3X4.5E-R 4.5' 3047019
3X5.5E-R 5.5' 3067255
4X4E-R 4' 1H96214
4X6E-R 6' 1H85148
5X9.5E-R 9.5' 3025698
6X8E-R 8' 1H87790
6X10E-R 10' 3047529
5X11.5E-R 11.5' 3025699
6X12E-R 12' 1H93263
TY4 3X4.5E-R 4.5" 3147394
3X5.5E-R 5.5" 3105086
4X4E-R 4' 3047020
4X6E-R 6' 1H93523
4X8E-R 8' 3047526
4X10E-R 10' 3047527
5X7.5E-R 8", 12", 14" SHELVES 7.5' 3068286
5X13E-R 13' 3145421
6X8E-R 8' 3013477
6X10E-R 10' 1H85192
TY4ECRC-6X10E-R W/10",12",14" & LEDGE LT 10' 3067655
6X12E-R 12' 3016190
TY4ECRC-6X12E-R 10", 12", 14" SHELVES 12' 3058530
TY3-SELF
CONTAINED TY3-3X4.5E-S 4.5' 3043372
DAN FOSS TY3EC-3X4.5E-S 4.5' 3047158
TY3EC-3X5.5E-S 5.5' 3058910
TY3-3X4.5E-S 4.5' 3062195
TY3-4X4E-S HARRIS TEETER ONLY 4' 3043374
TY3-4X4E-S W/PARKING LOT 4' 3070437
TY3-4X6E-S 6' 3043375
TY3-4 X 8E-S 8' 3102623

Wiring Diagram Index (cont’d)
14
TY4-
PRESSURE
CONTROL TY4-4X4E-S R-404A/448A 4' 3129624
TY4-4X6E-S R-404A/448A 6' 3129626
TY4-4X8E-S R-448A 8' 3129628
TY4-SELF
CONTAINED TY4-4X4E-S 4' 3042639
DAN FOSS TY4-3X5.5E-S 5.5' 3042640
TY4-4X6E-S 6' 3042642
TY4-4X8E-S 8' 3071170
DIXELL CTRL TY3EC-3X4.5E-S W/XR75 CTLR 4.5' 3168381
TY3ECRC-4X6E-S W/XR75 CTLR 6' 3157152
TY3-4X4E-S W/XR75 CTLR 4' 3160998
TY4-4X6E-S W/XR75 CTLR 6' 3157267
TY4-4X8E-S W/XR75 CTLR 8' 3160098

HUSSMANN_GDF_1.1 SHEET SIZE D
THIRD
ANGL
E
PROJECTION
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES.
APPROVED BY - CRAIG BOOREY
TOLERANCES ARE:
DECIMALS .XX u.03, .XXX u.010
ANGLES u2v
MATERIAL - N/A
DATE DRAWN - 10-13-17 DRAWN BY -CRAIG BOOREY REVIEWED BY -CRAIG BOOREY
ECN-CAP-0009957
REF -
3047019
DIAGRAM-TY3-3X4.5 E-R
REV ECN REV BY CHKD BY APPR BY
A ECN-CAP-0009957
DATE
2017/10/13 CB CB CB
REVISION HISTORY
REVISION DESCRIPTION
RELEASED TO PRODUCTION
NOTES: CASE MUST BE GROUNDED WHEN PASSING WIRES THROUGH METAL HOLES A GROMMET MUST BE USED
A
SHEET 1 OF 1

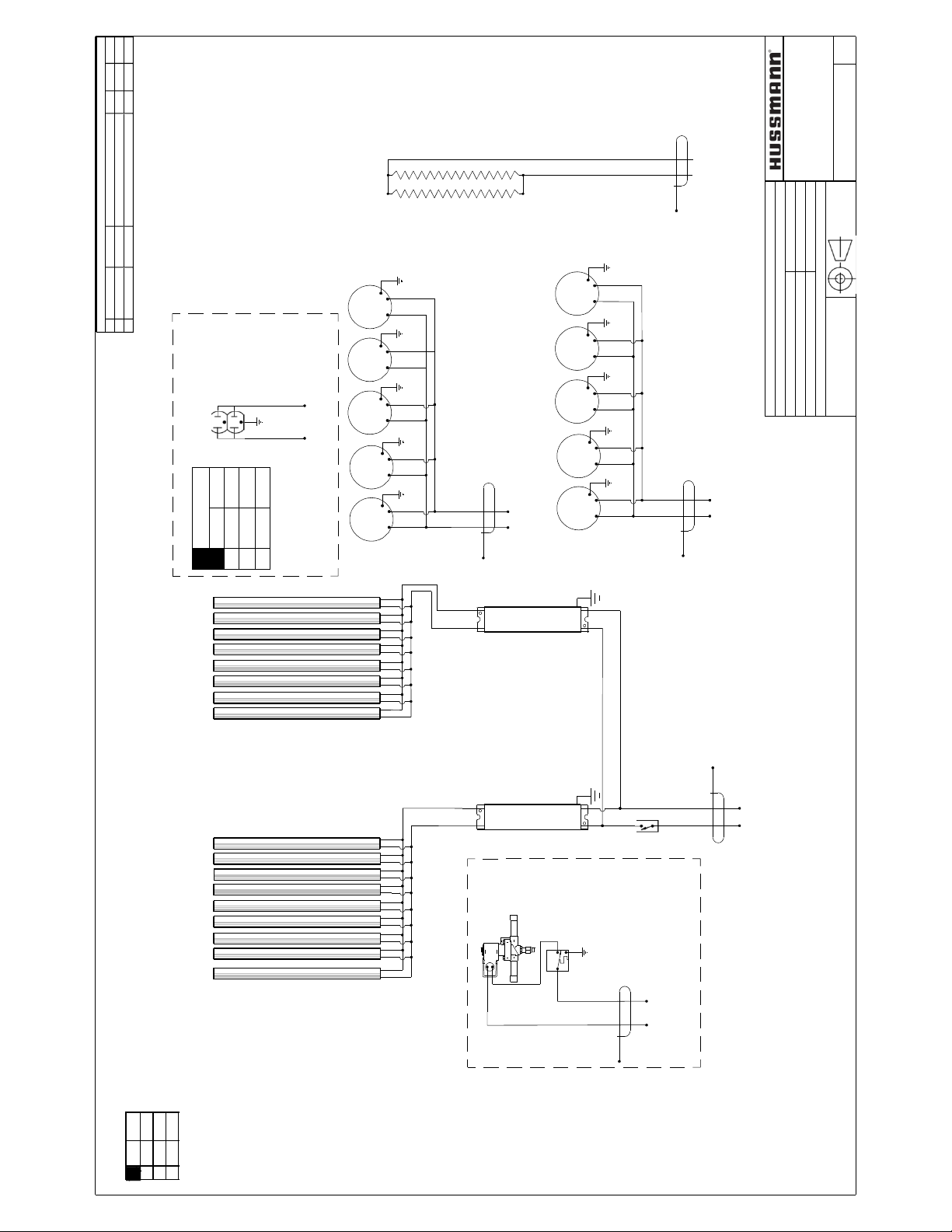

CIRCUIT #1
LOADING
120V
2.1L1
BUNDL E ORANGE
EVAPORATOR FAN 12W 0.30A @ 120VAC (4) 0477655
LIGHT SWITCH 125-01-0307
L1
N
N
G
L1
Black 14G.
White 14 G.
Green 14 G.
BLK#14
WHT#14
LIGHT CIRCUIT .43A 46.6W @ 120V
MMM
BUNDL E BROWN
M
LED-DRIVER
RED +
BLUE -
ANTI-SWEAT HEATER 50W .46A@ 120 VAC 0497590
L1 N
BUNDL E PURPLE
3' L.E.D. LIGHT
1' L.E.D. LIGHT
1' L.E.D. LIGHT
CIRCUI T#2 ~120 VAC - 1Ø -60 Hz
CIRCUIT #2
LOADING
120 V
L1 15.0 L2 L3
NOTE:
CASE MUST BE
GROUNDED
GFCI DUPLEX 125-01-3178
WGBK
3' L.E.D. LIGHT
3' L.E.D. LIGHT
3' L.E.D. LIGHT
1.5' L.E.D. LIGHT
1.5' L.E.D. LIGHT
3' L.E.D. LIGHT
3' L.E.D. LIGHT

HUSSMANN_GDF_1.1 SHEET SIZE D
THIRD
ANGL
E
PROJECTION
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES.
APPROVED BY - CRAIG BOOREY
TOLERANCES ARE:
DECIMALS .XX
u
.03, .XXX
u
.010 ANGLES
u
2
v
MATERIAL - N/A
DATE DRAWN -6-27-18 DRAWN BY -CRAIG BOOREY REVIEWED BY -CRAIG BOOREY
ECN-CAP-0013268
REF -
3067255
DIAGRAM-TY3EC- 3X 5.5E-R
REV
A B
ECN
ECN-CAP-0013268
ECN-CAP-0016794
DATE
2018/06/27
2019/03/06
REV BY
CB
CB
CHKD BY
CB CB
APPR BY
CB CB
REVISION HISTORY
REVISION DESCRIPTION
RELEASED TO PRODUCTION
REVISED ANTI-SWEAT HEATER TO 60 WATTS
NOTES: CASE MUST BE GROUNDED WHEN PASSING WIRES THROUGH METAL HOLES A GROMMET MUST BE USED
B
SHEET 1 OF 1
CIRCUIT
#1 LOADING
120V
2.9L1
BUNDLE ORANGE
LIGHT SWITCH 125-01-0307
L1 N
BLK#14
WHT#14
BUNDLE BROWN
L1 N
BUNDLE PURPLE
L1 N
~120 VAC - 50/60
Hz MCA= 2.3A
MOP= 15A
L1 N
~120 VAC - 50/60
Hz MCA= 0.71A
MOP= 15A
L1 N
~120 VAC - 50/60
Hz MCA= .58A
MOP= 15A
T-STAT 225-01-0707
BUNDLE WHITE/BLACK
LIQUID LINE SOLENOID .14A @ 120VAC
LN
~120 VAC - 60 Hz.
MCA= 0.18A MOP= 15A
CIRCUI T#2 ~120 VAC - 1Ø -60 Hz
NOTE:
CASE MUST BE
GROUNDED
15.0
L1 L2 L3
CIRCUIT #2
LOADING
120 V
GFCI DUPLEX 125-01-3178
WGBK
OPTIONAL
EVAPORATOR FAN 12W 0.30A @ 120VAC (6) 0477655
MM
MM
M
M
LIGHT CIRCUIT 0.57A 61.6W @ 120V
LED DRIVER
RED +
BLUE - 4' L.E.D. LIGHT
18" L.E.D. LIGHT
18" L.E.D. LIGHT
4' L.E.D. LIGHT
1' L.E.D. LIGHT
1' L.E.D. LIGHT
4' L.E.D. LIGHT
4' L.E.D. LIGHT
4' L.E.D. LIGHT
4' L.E.D. LIGHT
CANOPY LIGHTS
SHELF LIGHTS
ANTI-SWEAT HEATER 60W .55A@ 120 VAC 0495008

HUSSMANN_GDF_1.1 SHEET SIZE D
THIRD
ANGL
E
PROJECTION
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES.
APPROVED BY - CRAIG BOOREY
TOLERANCES ARE:
DECIMALS .XX
u
.03, .XXX
u
.010 ANGLES
u
2
v
MATERIAL - N/A
DATE DRAWN - 12/26/13 DRAWN BY -CRAIG BOOREY REVIEWED BY -CRAIG BOOREY
ECN# -
768637 REF - NEW DIAGRAM
1H96214
DIAGRAM- TY3-4X4E- R
REV
A
B
ECN
768637
ECN-COD-0015255
DATE
2013/12/26
2022/02/28
REV BY
CB
AL
CHKD BY
CB
CB
APPR BY
CB
CB
REVISION HISTORY
REVISION DESCRIPTION
NEW DIAGRAM
NEW LIGHTS
NOTES: CASE MUST BE GROUNDED
B
SHEET 1 OF 1
CIRCUIT #1
LOADING
120V
1.8L1
BUNDLE ORANGE MO
EVAPORATOR FAN 12W 0.30A @ 120VAC (4) 0477655
LIGHT SWITCH 125-01-0307
L1 N
BLK#14
WHT#14
LIGHT CIRCUIT .34A 36.8W @ 120V
MM
BUNDLE BROWN MBR
MM
LED DRIVER
RED +
BLK - 2' L.E.D. LIGHT - ULT
ANTI-SWEAT HEATER 30W .25A@ 120 VAC 0495006
L1 N
BUNDLE PURPLE MP
2' L.E.D. LIGHT - ULT
1' L.E.D. LIGHT - ULT
2' L.E.D. LIGHT - ULT
1' L.E.D. LIGHT - ULT
2' L.E.D. LIGHT - ULT
2' L.E.D. LIGHT - ULT
L1 N
~120 VAC - 50/60
Hz MCA= 1.5A
MOP= 15A
L1 N
~120 VAC - 50/60
Hz MCA= 0.43A MOP= 15A
L1 N
~120 VAC - 50/60
Hz MCA= .32A
MOP= 15A
T-STAT 225-01-0707
BUNDLE WHITE/BLACK
LIQUID LINE SOLENOID 225-01-0878 .14A @ 120VAC
LN
~120 VAC - 60 Hz.
MCA= 0.18A MOP= 15A
CIRCUI T#2 ~120 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE:
CASE MUST BE
GROUNDED
LOADING
120 V15.0L1
L2 L3
GFCI DUPLEX 125-01-3178
OPTIONAL
BUNDLE YELLOW MYL
WGBK
CANOPY LIGHTS
2' L.E.D. LIGHT - ULT
1' L.E.D. LIGHT - ULT

PROJECT TITLE: DRAWING #:
DRAWING TITLE:
Hussmann Corporation, Int'l. 13770 Ramona Avenue Chino, CA. 91710 (909)-590-4910 Lic.#: 644406
REVISIONS: DRAWN BY:
CHECKED BY:

PRODUCTION ORDER #: 936374
FILE LOCATION:
PAGE 1 OF 1
CRAIG BOOREY
DATE: 3/21/13
DESCRIPTION:
CN#696786
DATE:
3/12/13
#:
A BECN-COD-0015255 NEW LIGHTS, REMOVED DRIVER 2/28/22
BY:
CB
AL
TY3-4X6E-R 1H85148
DIAGRAM-TY3-4X6E-R
BUNDLE ORANGE MO
EVAPORATOR FAN 12W 0.30A @ 120VAC (6) 0477655
LIGHT SWITCH 125-01-0307
L1 N
BLK#14
WHT#14
LIGHT CIRCUIT 0.62A 67.4W @ 120V
MMM
BUNDLE BROWN MBR
MMM
LED DRIVER
RED +
BLK- 4' L.E.D. LIGHT - ULT
ANTI-SWEAT HEATER 60W .56A@ 120 VAC 0495008
L1 N
BUNDLE PURPLE MP
4' L.E.D. LIGHT - ULT
1' L.E.D. LIGHT - ULT
4' L.E.D. LIGHT - ULT
1' L.E.D. LIGHT - ULT
4' L.E.D. LIGHT - ULT
1' L.E.D. LIGHT - ULT
4' L.E.D. LIGHT - ULT
4' L.E.D. LIGHT - ULT
L1 N
~120 VAC - 50/60 Hz
MCA= 2.3A MOP= 15A
L1 N
~120 VAC - 50/60 Hz
MCA= 0.78A MOP= 15A
L1 N
~120 VAC - 50/60 Hz
MCA= 0.7A MOP= 15A
T-STAT 225-01-0707
BUNDLE WHITE/BLACK
LIQUID LINE SOLENOID 225-01-1332 .14A @ 120VAC
LN
~120 VAC - 60 Hz.
MCA= 0.18A MOP= 15A
CIRCUI T#2 ~120 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE: CASE MUST BE GROUNDED
LOADING
120 V
15.0L1
L2 L3
GFCI DUPLEX 125-01-3178
OPTIONAL
WGBK
BUNDLE YELLOW MYL
CANOPY LIGHTS
CIRCUIT #1
NOTE: CASE MUST BE GROUNDED
LOADING
120V
3.0L1

HUSSMANN_GDF_1.1 SHEET SIZE D
THIRD
ANGL
E
PROJECTION
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES.
APPROVED BY - CRAIG BOOREY
TOLERANCES ARE:
DECIMALS .XX u.03, .XXX u.010
ANGLES u2v
MATERIAL - N/A
DATE DRAWN - 2-14-17 DRAWN BY -CRAIG BOOREY REVIEWED BY -CRAIG BOOREY
ECN-CAP-0006457
REF -
3025698
DIAGRAM-TY3-5X9.5 E-R
REV ECN REV BY CHKD BY APPR BY
A ECN-CAP-0006457
DATE
2017/02/14 CB CB CB
REVISION HISTORY
REVISION DESCRIPTION
RELEASED TO PRODUCTION
NOTES: CASE MUST BE GROUNDED WHEN PASSING WIRES THROUGH METAL HOLES A GROMMET MUST BE USED
A
SHEET 1 OF 1
CIRCUIT #1
LOADING
120V
4.7L1
LIGHT SWITCH 125-01-0311 BUNDL
E BROWN
LN
~120 VAC - 60 Hz.
BUNDL E ORANGE
MCA= 1.14A MOP= 15A
LIGHT CIRCUIT= 0.91A 98.4W
M M
BLK#14
WHT#14
LN
~120 VAC - 60 Hz.
MCA= 1.86A MOP= 15A
BLK#14
WHT#14
EVAPORATOR FANS PER COIL 12W 0.3A @ 120VAC (5) 0477655
M M
RED +
BLUE -
BROWN
M M
LN
~120 VAC - 60 Hz.
MCA= 1.86A MOP= 15A
BLK#14
WHT#14
BUNDLE EVAPORATOR FANS
PER COIL 12W 0.3A @ 120VAC (5) 0477655
M M
RED +
BLUE -
LED DRIVER
CIRCUI T#2 ~120 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE:
CASE MUST BE
GROUNDED
LOADING
120 V
15.0L1
L2 L3
GFCI DUPLEX 125-01-3178
WGBK
ANTI-SWEAT HEATER 120 VAC (1) 0495007 40W .33A (1) 0497590 50W .42A
BLK # 14
WHT # 14
L1 N
~120 VAC - 50/60 Hz
MCA= .93A
MOP= 15A
T-STAT 225-01-0707
BUNDLE WHITE/BLACK
LIQUID LINE SOLENOID .14A @ 120VAC
AC 0
LN
~120 V - 6 Hz..
MCA= 0.18A MOP= 15A
OPTIONAL
LED DRIVER
M
M
4' LED LIGHT
3' LED LIGHT
1' LED LIGHT
4' LED LIGHT
4' LED LIGHT
3' LED LIGHT
3' LED LIGHT
1' LED LIGHT
4' LED LIGHT
4' LED LIGHT
4' LED LIGHT
3' LED LIGHT
3' LED LIGHT
3' LED LIGHT
1' LED LIGHT
1' LED LIGHT
1' LED LIGHT

PROJECT TITLE: DRAWING #:
DRAWING TITLE:
Hussmann Corporation, Int'l. 13770 Ramona Avenue Chino, CA. 91710 (909)-590-4910 Lic.#: 644406
REVISIONS: DRAWN BY:
CHECKED BY:
PRODUCTION ORDER #:
FILE LOCATION:

DATE:
6/5/13
4/16/15
BY:
CB
CB
#:
A B C
DESCRIPTION:
CN# 720718 CN#980241 Revised ANTI-SWEAT HEATER
ECN-COD-0015255 NEW LIGHTS, ADDED DRIVER 2/28/22 AL PAGE 1 OF 1
CRAIG BOOREY
DATE: 6/5/13 TY3-CASE 1H87790
DIAGRAM-TY3-6X8E-R
TOGGLE SWITCH 125-01-0307
LN
~120 VAC - 60 Hz.
BUNDLE ORANGE MO
MCA= 1.08A MOP= 15A
LIGHT CIRCUIT= 0.86A 93W
BLK#14
WHT#14
BUNDLE BROWN MBR
M M
LN
~120 VAC - 60 Hz.
MCA= 2.25A MOP= 15A
BLK#14
WHT#14
EVAPORATOR FANS 12W 0.3A @ 120VAC (6) 0477655
M M M
RED +
BLK -
LED DRIVER
CIRCUI T#2 ~120 VAC - 1Ø -60 Hz
CIRCUIT #2
NOTE: CASE MUST BE GROUNDED
LOADING
120 V
15.0L1
L2 L3
M
5' LED LIGHT - ULT
BLK # 14
WHT # 14
BUNDLE PURPLE MP L1 N
ANTI-SWEAT HEATER 120 VAC (1) 0495006 30W, .25A (1) 0495007 40W, .33A
~120 VAC - 60 Hz.
MCA= 0.73A MOP= 15A
T-STAT 225-01-0707
BUNDLE WHITE/BLACK
LIQUID LINE SOLENOID 225-01-1332 .16A @ 120VAC
LN
~120 VAC - 60 Hz.
MCA= .20A MOP= 15A
5' LED LIGHT - ULT
1' LED LIGHT - ULT
1' LED LIGHT - ULT
5' LED LIGHT - ULT
5' LED LIGHT - ULT
1' LED LIGHT - ULT
18" LED LIGHT - ULT
OPTIONAL
5' LED LIGHT - ULT
5' LED LIGHT - ULT
1' LED LIGHT - ULT
1' LED LIGHT - ULT
18" LED LIGHT - ULT
WGBK
RED +
BLK -
LED DRIVER
GFCI DUPLEX 125-01-3178
BUNDLE YELLOW MYL
CANOPY LIGHTS
LOADING
120 V
3.24
L1
CIRCUIT #1
NOTE: CASE MUST BE GROUNDED
