HW Group SD Series User manual

Manual for SD-xxx devices
SD devices are IoT Monitoring devices for SensDesk Technology Portals.
Devices communicate via LAN / WiFi only.

IoT monitoring 2 SD devices
1.1.1. Safety Notices
The device complies with regulations and standards enforced in the Czech Republic and
the European Union. The device has been tested and is supplied in working order. To
keep the device in this condition, it is necessary to adhere to the following safety and
maintenance instructions.
Using the device in a manner other than prescribed by the manufacturer may cause its
safeguards to fail!
The power supply outlet or disconnection point must be freely accessible.
The device must not be used in particular under any of the following conditions:
•The device is noticeably damaged
•The device does not function properly
•Unfastened parts can be heard moving inside the device
•The device has been exposed to moisture or rain
•The device has been serviced by unauthorized personnel
•The power adapter, power supply cable or PoE Ethernet cable is noticeably
damaged
•If the device is used in a manner other than designed for, the protection
provided by the device may fail
•The local electrical system must include a power switch or a circuit breaker and
overcurrent protection.
The manufacturer warrants the device only if it is powered by the supplied power
adapter or an approved power supply.
If you have any problems with installing or operating the device, please contact our
technical support:
Web: www.hw-group.com
Email: [e-mail]
Phone: [phone]
HW group s.r.o.
Formanská 296
Prague, 149 00
Before contacting technical support, please have at hand the exact type of your device
(at the type plate) and, if known, the firmware version (see later in this manual).

IoT monitoring 3 SD devices
1.1.2. Table of Contents
1. SD-XXX DEVICES PRODUCT FAMILY 4
1.1. SD-XXX DEVICES PRODUCT OVERVIEW 4
1.2. SHARED FEATURES OF THE SD-XXX PRODUCT FAMILY 5
1.3. MEASUREMENTS AND DATA UPLOAD 5
2. SETTING UP THE DEVICE 8
2.1. CONNECTING THE CABLES 8
2.2. CONFIGURING THE IP ADDRESS –HWg Config 8
2.3. WWW INTERFACE 10
2.4. CONNECTING SD DEVICES TO SENSDESK PORTAL 21
2.5. DEVICE MIGRATION TO ANOTHER PORTAL 22
2.6. DEFINE SENSOR NAME &SD SAFERANGE FOR EACH SENSOR 25
3. SENSDESK TECHNOLOGY PORTALS 26
3.1. SD DEVICES HAVE TO BE CONNECTED TO A PORTAL 26
3.2. PORTAL OPTIONS 26
3.3. SENSDESK.COM PORTAL FEATURES 28
4. SD-DEVICES MODELS AND THEIR SPECIFIC FEATURES 32
4.1. SD-2x1Wire 32
4.2. SD-2xIn 33
4.3. SD-2xOut 34
4.4. SD-WLD 35
4.5. SD-4-20mA 36
5. TECHNICAL SPECIFICATIONS FOR ALL MODELS 37
6. MECHANICAL DIMENSIONS 38
7. ANOTHER PORTAL COMPATIBLE DEVICES BY HW GROUP CHYBA! ZÁLOŽKA NENÍ
DEFINOVÁNA.
1.1.1. IoT Monitoring products
All SD-xxx devices are IoT Monitoring devices which means they
have to be connected to a SensDesk Technology portal.
All the SMS/email alerts, PDF reports, and central device
management is realized from the portal.
The manufacturer provides a limited free-of-charge portal service
(HWg-cloud.com) and a paid service (SensDesk.com).
You can also check other Portal Providers (your local
distributors) for other available compatible portals.

IoT monitoring 4 SD devices
2. SD-xxx devices product family
The SD-xxx Devices is a family of simple easy-to-install remote monitoring products
with LAN / WiFi connectivity. All products feature a robust design and seamless
integration with any portal based on SensDesk Technology.
2.1. SD-xxx devices product overview
2.1.1. SD-2x1Wire
A device for remote monitoring external 1W and 1W-UNI sensors
(Temperature, Relative Humidity, Light intensity, ...). Two RJ11
ports for external sensors to measure up to 4 sensor values.
2.1.2. SD-2xIn
A device for remote monitoring of 2 DI (Digital Inputs) - state +
pulse counter. Any dry contact can be connected - door contact,
PIR motion detector, or a smoke/gas detector with a relay output,
energy meters with S0 output (external power required).
2.1.3. SD-WLD
Water Leak Detection unit with 1 WLD zone input (external WLD
Type A water sensing cable).
2.1.4. SD-2xOut
A module with 2 DO (relay outputs) controlled from the portal
(HWg-cloud.com or others).
2.1.5. SD-4-20mA
A device with AI (Analog Input) for remote monitoring of external
industrial sensors (4-20mA).

IoT monitoring 5 SD devices
2.2. Shared features of the SD-xxx product family
▪Robust metal design, 70×68×34mm d/w/h (without antenna)
▪Ethernet or WiFi - 802.11 b/g/n (2.4GHz)
▪Support for simultaneous Ethernet and WiFi operation (for easy setup)
▪External antenna, SMA connector
▪Plug&Play –connect power and the device is immediately available in the portal
▪Device & communication settings (communication period, Safe Ranges) are
configured in the SensDesk Technology portal
▪Powered from a 5V adapter or PoE
▪Embedded WEB server
For specifics of individual devices, including any differences in the measurement period,
see the respective device page.
2.3. Measurements and data upload
2.3.1. Sensors measurement and data upload periods
The period for logging the measured values and uploading them to the portal is
automatically fully configured by the portal.
2.3.2. Default SensDesk.com portal values
▪Logging period (storing values in the internal memory): 5 minutes
▪Data upload period (connecting to the portal and uploading all logged values):
15 minutes
Only the Portal administrator may provide you with other than default Logging / Data
update period settings (setup per each device).
2.3.3. SafeRange –range of allowed values
Safe Range is configured in the portal independently for each sensor. Whenever the
measured value strays outside this range, a message to the portal gets sent (even out
of the Data Upload period - default 15 minutes).

IoT monitoring 6 SD devices
2.3.4. Hysteresis/Idle range (sensor value)
The Hysteresis setting defines a tolerance range for suppressing alarm alerts. The
function prevents multiple alarm alerts (too many emails or SMS from the portal) if the
reading oscillates around the specified threshold. Hysteresis is configured
independently for each sensor.
The figure demonstrates two cases. Without the hysteresis idle range of 5 °C, the alarm
raised in point 8 would end in point 9; however, the hysteresis function keeps the alarm
active until the temperature reaches the upper limit of the tolerance band (point 10):
5 °C + (–15 °C) = –10 °C.
▪Hysteresis = 5 °C – The portal sends 4 Email (SMS) messages. Alert is sent
with beginning and end of Alarm State (points 4, 8, 10, 12)
▪No hysteresis (0 °C) – The portal sends 8 Email (SMS) messages. Alert is sent
with beginning and end of Alarm State (points 1, 2, 3, 8, 9, 12, 13, 14)
In determining when the Alarm ends, the Hysteresis value applies. The end of an Alarm
is only notified when the measured value is within the Safe Range and further under
the offset introduced by Hysteresis.
2.3.5. Safe Range vs. Notice Range
Each sensor has a set Safe Range. Faster communication to the portal when Safe Range
is exceeded can be useful for some cases.
Additionally, you can set up several Notices on the Portal which use their own,
independent Notice Range. These are used for setting up Actions. Using these, you can
set up multiple behaviors for different value ranges, like escalating alarms etc.

IoT monitoring 7 SD devices
2.3.6. Alarm Delay
You can set up a Delay value for each sensor. This means that if the measured value
steps out of the sensors defined Safe Range and a Delay is set up, the device (and the
user) won’t be notified of the sensors Alarm State until the Delay period ends.
This can be useful for example if you have an open door with a Door contact sensor
and don’t want to raise an alarm each time someone opens it, but only after it is left
open for 3 minutes.
Alarm status notification based on a Delay value:
▪Blue: Delay = 0
▪Yellow: Delay is non-zero

IoT monitoring 8 SD devices
3. Setting up the device
3.1. Connecting the cables
1) Attach the external antenna
2) Connect the device to the Ethernet (with a patch cable to a switch, or a cross-
over cable to a PC)
3) Plug the power adapter into a power outlet and connect it to the power
connector. If you plugged the device into a PoE enabled switch or a PoE
injector, you can use the device without the power adapter
4) The Power Mode (green) LED in the RJ45 connector lights up
5) If the Ethernet connection works properly, the LINK (amber) LED lights up
after a short while and then flashes whenever any data transfer takes place
(activity indication)
6) Rapidly flashing LINK (amber) LED indicates communication with the DHCP
server
3.2. Configuring the IP address –HWg Config
3.2.1. Open HWg Config and find available devices
The tool is available for download at www.HW-group.com -> Software -> HWg Config
Double-click the icon to run HWg-Config. The program automatically searches for
connected devices. You can also start a search manually by clicking the Find Devices
icon.
The program searches for all available HWg devices in your local network.

IoT monitoring 9 SD devices
3.2.2. Configure the network parameters
Click a MAC address (or double-click somewhere in the row) to open a basic device
configuration dialog:
•Enable DHCP (this will have the rest of the seetings get configured automatically
by your router)
•IP address / HTTP port (80 by default)
•Network mask
•Gateway IP address for your network
•Device name (optional)
Click Apply Changes to save the settings.
3.2.3. Restoring factory defaults
You can restore factory default settings in 3 ways:
Using HWg-Config
Right-click the device MAC address. Within 60 seconds of powering up the unit, factory
defaults can be restored using HWg-Config by selecting Load default values.
Using the Reset button:
1. Turn the device off
2. Press and hold the Reset button
3. Turn the device on and hold the button for another 5 seconds
4. All LEDs light up in sequence
5. Release button, device restarts with restored factory defaults
WWW interface of the device
1. Enter the device IP address in a web browser or click the underlined IP address
shown in HWg-Config.
2. Go to the System tab
3. Click Factory reset

IoT monitoring 10 SD devices
3.3. WWW interface
All SD devices have the same graphical WWW interface. They only differ in the logo
and the I/O information.

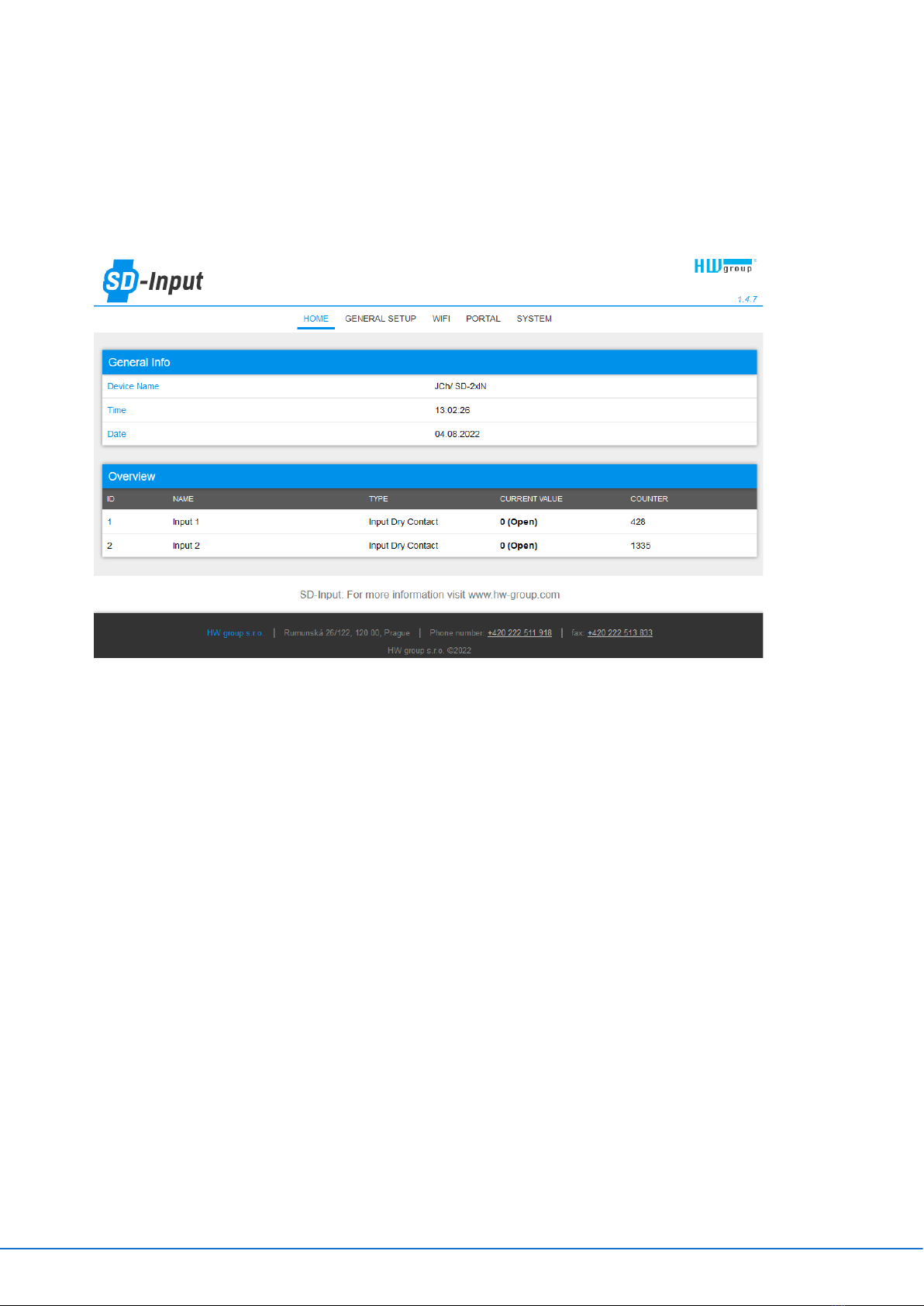

3.3.1. Home
General Info
•Device Name –identify individual devices in larger installations and on a portal.
If needed, device network name can be changed with HWg-Config utility (under
device details settings).
•Time –current time on the device clock. It is configured only from the portal.
•Date –current date on the device clock. It is configured only from the portal.
Overview
Lists current value readings and states
•ID –you can see the short ID for the sensor or input
•Name –sensor name, used for easier identification in large systems. Can be in
format of 1-Wire sensor ID, which is also found physically on the sensor. Or
sensor type, such as CO2 (for CO2sensor).
•Type –identifies the sensor/output type. SD-2xIn also provides additional
Counter value per Input.
•Current value –current reading, including the unit (final)

IoT monitoring 11 SD devices
3.3.2. 4–20mA
Available only in product SD-4-20mA.
4-20mA Settings
•Power enable –enables power to the current loop of external sensor (4-20mA).
Disabled = 0-20mA Analog Input = no power for external probe.
•Internal Value –shows the raw readout from the sensor
•Calibrated Value –shows the value that comes from the Internal Value being
modified by the Calibration Table
•Unit –you can input the name of the unit you want displayed with the Calibrated
value
•Exponent –changes the placement of the decimal point for the Calibrated Value
•Calibration Table –many sensors use the voltage Internal Value to measure a
different value/unit. This table serves to mate Voltage readouts with their
corresponding values for the unit the sensor is designed to measure.

IoT monitoring 12 SD devices
For example a temperature sensor measures from 0° C to 100° C – the minimal internal
value of a 4-20 mA sensor is 4 mA and the maximum is 20 mA. For this example, you
would put 4 in the FROM column and 0 in the TO column (and °C in the Unit row above).
In the next row, you would put 20 in the FROM column and 100 in the TO column.
3.3.3. General Setup
On this page you can configure network parameters, device security and reset the pulse
counters (SD–2xIn only)
•DHCP –enables automatic IP address configuration via a DHCP server if
available. Decision whether or not to enable DHCP depends on the user needs
and your network administrator
•IP Address –IP address of the device - assigned by your network admin
•Network Mask –network mask - assigned by your network administrator
•Gateway –IP address of the default gateway - assigned by your network admin
•DNS Primary / DNS Secondary –IP address of your DNS server - assigned
by your network administrator

IoT monitoring 13 SD devices
•HTTP Port –port where the built-in WWW server listens (default 80)
•Username / Password –user name and password for securing access to device
•Inputs (SD–2xIn only) –Reset Counters –resets the counter value to 0

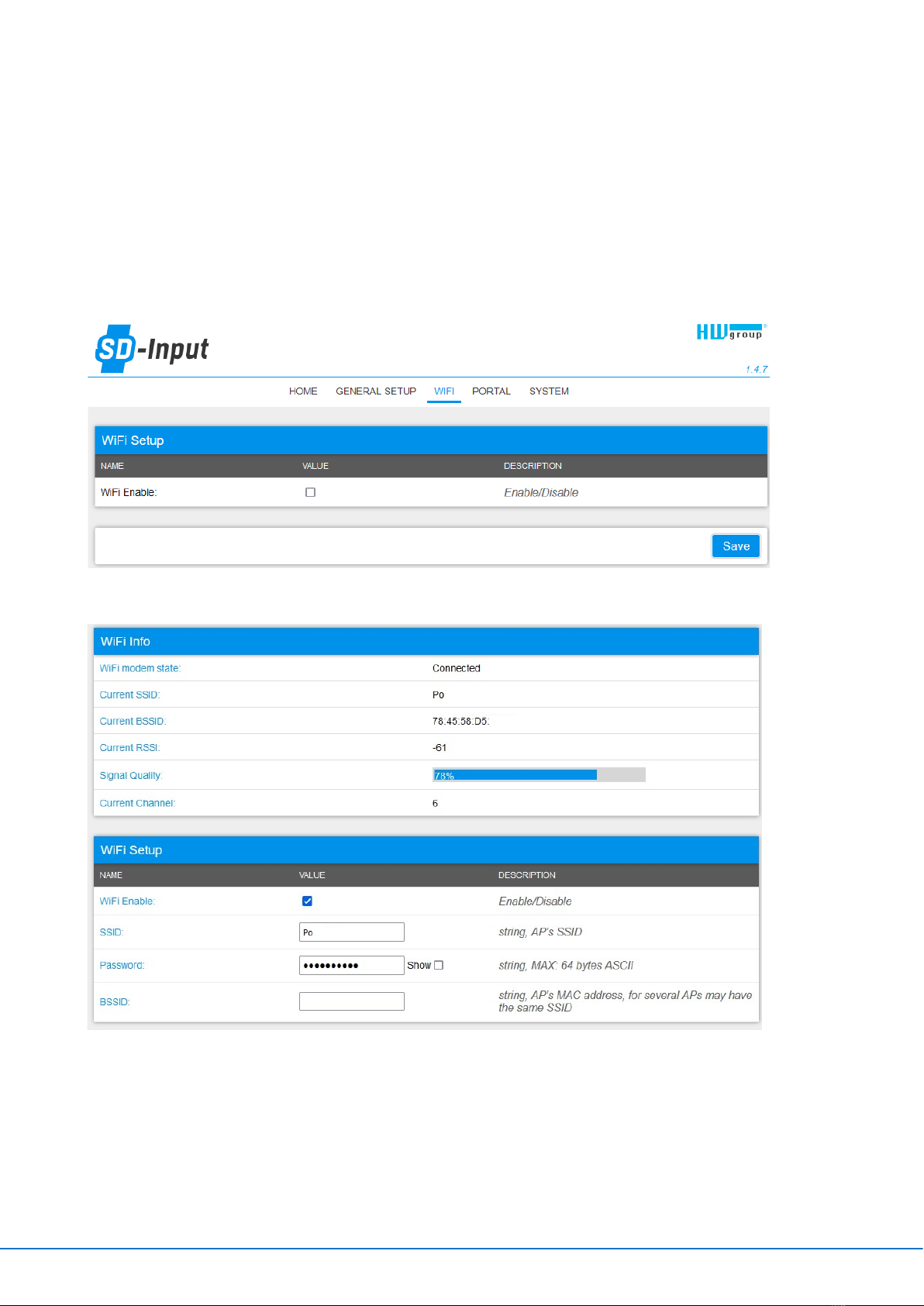

3.3.4. WIFI
When WIFI is off, only the option to enable it is shown:
After enabling WiFi, more options become available:
WiFi Info
▪Disable –WiFi turned off
▪Wait for power on –waiting for the WiFi module to switch on
▪Init –WiFi module is being initialized

IoT monitoring 14 SD devices
▪Connecting –connection is being established
▪SSID check –SSID is being verified
▪Connected –connected to the selected WiFi network
▪Network WiFi scan –looking for available WiFi networks
▪Wait for scan –waiting for the WiFi network scan to start
▪Current SSID –name of the network to which the device is currently
connected - the parameter is not shown if the device is not connected to any
WiFi network
▪Current BSSID –ID of the WiFi network access point to which the device is
currently connected –the parameter is not shown if the device is not connected
to any WiFi network
▪Current RSSI –relative received signal strength indication - the higher the
RSSI, the stronger the signal
▪Signal Quality –WiFi signal strength in % and with a graphical indication
▪Current Channel –WiFi channel used by the device for the connection - the
parameter is not shown if the device is not connected to any WiFi network

IoT monitoring 15 SD devices
WiFi Setup
▪WiFi Enable –enables or disables WiFi. The wireless interface is disabled by
default. After enabling, the device restarts
▪SSID –name of the WiFi network to which the device should connect. If the
network name is not known, use the Scan AP function at the bottom of the page
▪Password –WiFi password. If you don‘t know it, contact your network
administrator
▪BSSID –WiFi access point identifier (MAC address) - optional
Network
WiFi network parameters. To configure Ethernet (RJ-45), use the General Setup tab
WiFi Info
▪Disable –WiFi turned off
▪Wait for power on –waiting for the WiFi module to switch on
▪Init –WiFi module is being initialized
▪Connecting –connection is being established
▪SSID check –SSID is being verified
▪Connected –connected to the selected WiFi network
▪Network WiFi scan –looking for available WiFi networks
▪Wait for scan –waiting for the WiFi network scan to start
▪Current SSID –name of the network to which the device is currently
connected - the parameter is not shown if the device is not connected to any
WiFi network
▪Current BSSID –ID of the WiFi network access point to which the device is
currently connected –the parameter is not shown if the device is not connected
to any WiFi network
▪Current RSSI –relative received signal strength indication - the higher the
RSSI, the stronger the signal
▪Signal Quality –WiFi signal strength in % and with a graphical indication

IoT monitoring 16 SD devices
▪Current Channel –WiFi channel used by the device for the connection - the
parameter is not shown if the device is not connected to any WiFi network
WiFi Network
▪DHCP –enables IP address configuration via a DHCP server if available.
Decision whether or not to enable DHCP depends on the user needs and your
network administrator
▪IP Address –IP address of the device which is assigned by your network
administrator
▪Network Mask –assigned by your network administrator
▪Gateway –IP address of the default gateway which is assigned by your
network administrator
▪DNS Primary / DNS Secondary –IP address of your DNS server, which is
assigned by your network administrator
WiFi Scan List
▪SSID –name of the discovered WiFi network
▪BSSID –access point identifier (MAC address)
▪Channel –WiFi channel used by the access point
▪Security –WiFi security type
▪Signal –signal level in decibels. The higher the value, the stronger the signal.
Attention: -60 is better than -90! Highlighted row indicates the Access Point
that is currently used.
Connecting to a discovered WiFi
▪By clicking the SSID of the discovered network, WiFi settings are filled in. Only
the password needs to be specified manually. The BSSID field remains empty.
This is the default setting. When the Access Point changes, the device
reconnects automatically.

IoT monitoring 17 SD devices
▪By clicking the BSSID, the MAC address of the specific AP (BSSID) is filled in,
in addition to the network name (SSID). The SD device then connects to this
specific AP and will not try to change APs in multi-AP networks.
3.3.5. Portal
Configuration parameters for uploading data to a remote portal using the HWg-PUSH
Protocol. For more information about the protocol and the support for portal solutions,
see SensDesk technology.

IoT monitoring 18 SD devices
Portal Message
Information from the portal, such as links to device or error status. Depends on the
portal type.
Portal Config
▪Portal –turns this feature on or off
▪Server address –complete URL of the remote server. Connection parameters
for the http://www.hwg-cloud.com free portal are pre-filled. The default is
always http://hwg-cloud.com/portal.php
▪IP Port –port where the portal listens. The default is always 80
▪Team –username for assigning the Portal team (company). You will receive it
from your portal administrator
▪Team Password –password for assigning an SD team. You will receive it from
your portal administrator

IoT monitoring 19 SD devices
Portal debug
Information used only for debugging
▪Push Period –period of uploading data to the remote portal. The period is
determined by the portal and cannot be changed by the user.
▪Log Period –period for buffering data for the portal. The period is determined
by the portal and cannot be changed by the user.
▪Current Push Timer –indicates the time until the next upload of data to the
portal
▪Current Log Timer –indicates the time until the next reading of sensors
▪AutoPush Block Timer –if the number of events exceeded limit within time
window, the AutoPush function is temporary disabled temporarily by this
countdown.
▪Retransmit number –number of unsuccessful attempts to upload values to
the portal
▪Manual Push –button to immediately upload data to the portal independently
from the Push Period
3.3.6. System

IoT monitoring 20 SD devices
Download
▪Backup configuration –backup of the device configuration in a BIN format.
After configuring the SD device, click this link to save the current configuration
in case it needs to be restored.
▪Online setup in XML –device setup in the XML format
System
▪Product Name –name (type) of the device
▪Serial Number –serial number of the device
▪Eth MAC Address –MAC address of the device for wired connections
▪WiFi STA MAC Address –MAC address of the device for WiFi connections
▪Version –currently installed version of the product firmware
▪Build –build number of the currently installed firmware
▪Compile time –exact date and time when the firmware was compiled –
indicates the age of the currently installed version
▪UpTime –time since the device was last powered on or restarted
▪Read available version –displays the latest firmware version available at the
HW group update server
▪Start Network Upgrade –starts the firmware upgrade using the HW group
update server
▪Upload Firmware or Configuration –allows uploading a firmware or
configuration file to the device from local storage. Restoring the configuration
may fail if there is too much of a difference in firmware versions between the
current configuration and the one being uploaded.
Factory reset
Restores factory default settings. The default IP address is 192.168.10.20 and no user
name or password is defined.
Restart
Restarts the device
