HWH 725 SERIES User manual

OPERATOR’S MANUAL
ML47964/MP04.3374
19JAN11
Touch Panel Leveling Control
Single Step BI-AXIS Hydraulic Leveling
FEATURING:
HWH CORPORATION
(On I-80, Exit 267 South)
2096 Moscow Road | Moscow, Iowa 52760
Ph: 800/321-3494 (or) 563/724-3396 | Fax: [phone]
www.hwh.com
725 SERIES LEVELING SYSTEM
HWH COMPUTER-CONTROLLED
R
Straight-Acting Jacks
AP47963
R
Pilot Air Dump
SPACEMAKER ROOM EXTENSION SYSTEMS
AND
R
RETRACT
EXTEND
HWH COMPUTERIZED LEVELING
SECURELY BEFORE REMOVING TIRES OR CRAWLING UNDER VEHICLE.
UNDERSTAND OPERATOR’S MANUAL BEFORE USING. BLOCK FRAME AND TIRES
STORE
AUTO
CANCEL
AUTO
LEVEL
TRAVEL
BRAKE
MODE
WARNING!
EXCESS
SLOPE
NOT IN
PARK/
R
MANUAL
RETRACT
EXTEND
CORPORATION
W
HH
R
DUMP
MANUAL
Generator Slide

WARNING !
READ THE ENTIRE OPERATOR MANUAL BEFORE OPERATING.
BLOCK FRAME AND TIRES SECURELY BEFORE CRAWLING UNDER VEHICLE. DO NOT USE LEVELING JACKS OR
AIR SUSPENSION TO SUPPORT VEHICLE WHILE UNDER VEHICLE OR CHANGING TIRES. VEHICLE MAY DROP
AND/OR MOVE FORWARD OR BACKWARD WITHOUT WARNING CAUSING INJURY OR DEATH.
WEAR SAFETY GLASSES WHEN INSPECTING OR SERVICING THE SYSTEM TO PROTECT EYES FROM DIRT, METAL
CHIPS, OIL LEAKS, ETC. FOLLOW ALL OTHER APPLICABLE SHOP SAFETY PRACTICES.
OPERATOR’S MANUAL
KEEP ALL PEOPLE CLEAR OF VEHICLE WHILE DUMPING AIR FROM THE VEHICLE’S SUSPENSION.
DO NOT MOVE THE VEHICLE IF THE VEHICLE IS NOT AT THE PROPER RIDE HEIGHT. CONTACT MANUFACTURER
IMPORTANT: IF COACH IS EQUIPPED WITH A ROOM EXTENSION, READ ROOM EXTENSION SECTION BEFORE
OPERATING LEVELING SYSTEM.
08APR10
MP14.0014
TECHNICAL SERVICE FOR MOVING THE VEHICLE WHEN NOT AT THE PROPER RIDE HEIGHT.
KEEP ALL PEOPLE CLEAR OF VEHICLE WHILE OPERATING LEVELING SYSTEM OR ROOM EXTENSIONS.
HWH maintains technical and information services at 800-321-3494 or
563-724-3396. Assistance is available Monday thru Friday from 8:00A.M until 5:00P.M. C.S.T.
Technical and information service is also available on-line at www.hwh.com.

MP24.3151
07JUN10
"CANCEL" BUTTON:
any leveling system operation.
"AUTO LEVEL" BUTTON:
"AUTO STORE" BUTTON:
four jacks at the same time. WARNING LIGHTS:
"EXCESS SLOPE" LIGHT:
the leveling system cannot level the vehicle.
"NOT IN PARK/BRAKE" LIGHT:
when the hand/auto brake is not set and the "AUTO LEVEL"
"TRAVEL MODE" LIGHT:
when the ignition is on, when the jacks are retracted and
there are no red WARNING lights on.
MASTER "JACKS DOWN" WARNING LIGHT:
light mounted in the dash separate from the touch panel.
and the ignition is "ON".
BUZZER:
CONTROL FUNCTIONS
INDICATOR LIGHTS (CONTINUED)
CONTROL BUTTONS
Push this button to stop
Push this button to retract all
This indicator will light when
This indicator will light
This indicator light will be on
This is a
This is a jacks down warning.
EXTEND BUTTONS (UP ARROWS):
RETRACT BUTTONS (DOWN ARROWS):
LEVELING LIGHTS:
These buttons will
extend their respective jack pairs to lift the vehicle.
These buttons
will retract their respective jack pairs to lower the vehicle.
The four yellow indicating lights are
level sensing indicators. When a yellow light is on, it
indicates that its side, end, or corner of the vehicle is low.
No more than two lights should be on at the same time.Push this button any time to
The four red lights surrounding the
yellow level indicators are jacks down WARNING lights.
They are functional only when the ignition is in the "ON"
extended 1/4 to 1/2 inch.
start the automatic leveling function.
It will sound if the master "JACKS DOWN"
CONTROL IDENTIFICATION
725 SERIES LEVELING SYSTEM
COMPUTER-CONTROL
or "ACC" position, the system is on, and the jacks are
It will be on when any one or more jacks are extended
button is being pushed.
RETRACT
EXTEND
HWH COMPUTERIZED LEVELING
SECURELY BEFORE REMOVING TIRES OR CRAWLING UNDER VEHICLE.
UNDERSTAND OPERATOR’S MANUAL BEFORE USING. BLOCK FRAME AND TIRES
"EXCESS SLOPE"
Indicator light
"AUTO LEVEL"
AUTO LEVEL/STORE
CANCEL Button
"NOT IN PARK"
Indicator light
Indicator light
"TRAVEL MODE"
Indicator light
Indicator light
AUTO LEVEL
"AUTO STORE"
Button
STORE
Button
RAISE LEFT SIDE
Manual button
LOWER LEFT SIDE
Manual button
STORE
AUTO
CANCEL
AUTO
LEVEL
TRAVEL
BRAKE
MODE
WARNING!
EXCESS
SLOPE
NOT IN
PARK/
R
LOWER FRONT
Manual button
RAISE FRONT
Manual button
JACK DOWN
Indicator light
RAISE RIGHT SIDE
Manual button
LOWER RIGHT SIDE
Manual button
LEVEL SENSING
Indicator light
(4) yellow
RAISE REAR
Manual button
LOWER REAR
Manual button
MANUAL
RETRACT
EXTEND (4) red
INDICATOR LIGHTS
AUTO LEVEL INDICATOR LIGHT: This light will flash
during the automatic leveling function.
STORE INDICATOR LIGHT: This light will flash during
the automatic store function.
When all four yellow LEVEL lights are out, the vehicle is
level.
MANUAL
DUMP
"MANUAL DUMP"
Button
warning light is on.
"MANUAL DUMP" BUTTON: This is a manual button for
dumping air from the vehicle suspension.

CONTROL FUNCTIONS
CONTROL IDENTIFICATION
MP24.3154
19JAN11
GENERATOR SLIDE
CONTROL SWITCH
GENERATOR SLIDE OPERATOR’S PANEL
GENERATOR SLIDE CONTROL SWITCH: The GENERATOR
SLIDE CONTROL SWITCH is a two position momentary switch
Pressing the switch in the EXTEND position will extend the
GENERATOR SLIDE. Pressing the switch in the RETRACT
position will retract the GENERATOR SLIDE. Releasing the
GENERATOR SLIDE CONTROL SWITCH will halt the
operation of the GENERATOR SLIDE.
UNDERSTAND OPERATOR’S MANUAL BEFORE USING.
TO PREVENT INJURY OR DAMAGE KEEP PEOPLE AND
OBSTRUCTIONS CLEAR OF SLIDE MECHANISM WHILE
OPENING OR CLOSING.
RETRACT
CORPORATION
H
GENERATOR HYDRAULIC SLIDE
WARNING!
W
H
EXTEND
R

MP25.9995
14MAR12
CONTROL IDENTIFICATION
PUMP RUN TIME
SYSTEM VARIATIONS FOR PUMP RUN TIME
Contact HWH corporation to get specific information about the system in this vehicle.
No matter what HWH system is on the vehicle, the pump should not be ran for more than four minutes
(3" motors) or six minutes (3.7" or 4.5" motors) without allowing the pump motor to cool for thirty minutes.
Continuous operation of the pump motor without allowing the motor to cool can damage the pump motor.
Some HWH systems are equipped with a lighted reset switch.
If the processor turns the pump off because the run time has
been exceeded, the light in the reset switch will turn on. The
With some systems, when the processor has turned the pump off because the run time has been exceeded, power
to the HWH system must be turned off and back on before the system will operate. With motorized vehicles, turn the
ignition off and back on. With non-motorized vehicles, turn the master power switch for the HWH system off and back
DO NOT continue without allowing the pump motor to cool for thirty minutes.
When operating some leveling systems manually or operating the room extensions, the pump will turn off and back
on while pushing the control button when the pump run time has been exceeded.
the pump motor to cool for thirty minutes.
Some systems can be turned back on immediately after the processor turns the pump off.
back on or run the pump without allowing the pump motor to cool for thirty minutes.
Some systems with rooms run the rooms separate from the system processor. These systems do not monitor pump
run time when operating the rooms.
pump motor to cool for thirty minutes.
The HWH systems with a computer processor monitor the pump run time and will turn the pump off if the run time exceeds a
specified time. This time can vary with different systems. Due to available electronics or system design, the pump run time
programs will also vary. Leveling systems and room extensions that are not controlled by a system processor have no pump
run time protection.
thirty minutes.
Pump motors used with HWH leveling systems and room extension systems come in 3 different diameters; 3", 3.7" and 4.5".
Contact the vehicle manufacturer or HWH for help with identifying the motor size.
runs for more than four minutes with a 3" motor; or six minutes with a 3.7" or 4.5" motor that the motor is allowed
to cool for thirty minutes before continuing. Continuous operation of the pump motor without allowing the motor
PUMP RUN TIME
It is important that any time the pump
to cool can damage the motor.
DO NOT run the pump more than four or six minutes without allowing the pump motor to cool for
DO NOT run the pump more than four or six minutes without allowing the
DO NOT turn the system
DO NOT continue without allowing
on.
system will not operate until the reset switch is pushed.
DO NOT continue without allowing the pump motor to
cool for thirty minutes. LIGHTED RESET SWITCH
For cold weather information see "COLD WEATHER OPERATIONS" below.
COLD WEATHER OPERATIONS
HWH leveling and room extension systems are designed to function in cold weather down to 0 degrees Fahrenheit. Below
freezing (32 degrees Fahrenheit) the jacks or rooms will operate slower than usual.
For operation in temperatures dropping below -20 degrees Fahrenheit, it is necessary that the system is equipped with oil
designed for extreme cold weather application such as a synthetic oil. (Contact HWH for recommendations.)
DO NOT run the pump motor continuously.
Continuous operation of the pump with slow moving jacks or rooms in cold weather, without allowing the pump motor to
cool will cause the pump motor to burn up and damage the pump assembly.
It is important that any time the pump runs for more than four minutes
continuing. Continuous operation of the pump motor without allowing the motor to cool can damage the motor.
with a 3" motor; or six minutes with a 3.7" or 4.5" motor that the motor is allowed to cool for thirty minutes before

OPERATING PROCEDURES
MP34.0232
07AUG13
GENERAL INSTRUCTIONS
PREPARATION FOR TRAVEL
If parking on soft ground or asphalt paving, a wood block or
pad should be placed under each jack.
Any time a hydraulic leveling process is interrupted, it is
recommended to retract the jacks according to the JACK
RETRACTION Section and then restart the leveling process.
If the hand / auto brake is not set when the "AUTO LEVEL"
button is pressed, the "NOT IN PARK/BRAKE" light will
come on. When the "AUTO LEVEL" button is released the
If the jacks are retracted but a red "WARNING" light is lit
the system needs to be serviced.
If the jacks cannot be retracted according to the JACK
RETRACTION Section, retract the jacks according to the
MANUAL JACK RETRACTION Section. The system
should then be checked.
Maintain adequate clearance in all directions for vehicle, room
extensions, awnings, doors, steps, etc. Vehicle may move in
any direction due to jacks extending or retracting, settling of
the jacks or the vehicle, equipment malfunction, etc..
Any room extension or generator slide should be fully
DO NOT MOVE THE VEHICLE IF ONE
OR MORE JACKS ARE EXTENDED TO THE GROUND.
WARNING:
"NOT IN PARK/BRAKE" light will go out. The Automatic
retracted before traveling.
Leveling function will not start.
Press the "CANCEL" button or turn the ignition switch
"OFF" at any time to stop the operation of the system.
fail to retract completely, extend the jacks back down
to the ground then retract the jacks again.
NOTE: If the vehicle is parked or stored with the jacks
extended for an extended period of time and the jacks
IMPORTANT: Before traveling, the red jack warning
lights must be off the "TRAVEL MODE" light must be on
and the vehicle should be at the proper height for travel.
If lights are not correct for travel, retract jack as
THE LEVELING JACKS ARE STILL IN CONTACT WITH
THE GROUND OR IN THE EXTEND POSITION. THIS
VEHICLE IS EQUIPPED WITH STRAIGHT-ACTING JACKS.
MOVING THE VEHICLE WITH THE LEVELING JACKS
EXTENDED CAN CAUSE SEVERE DAMAGE TO THE
WARNING:DO NOT MOVE THE VEHICLE WHILE
TRAVELING. CONTACT MANUFACTURER TECHNICAL
SERVICE BEFORE MOVING A VEHICLE THAT IS NOT
AT PROPER TRAVEL HEIGHT.
VEHICLE IS AT THE PROPER RIDE HEIGHT FOR
INTO THE STORE/TRAVEL POSITION AND THE
JACKS AND OR THE VEHICLE AND CREATE A DRIVING
HAZARD. DO NOT RELY SOLELY UPON WARNING
LIGHTS. IT IS THE OPERATOR’S RESPONSIBILITY
TO CHECK THAT ALL JACKS ARE FULLY RETRACTED
described in the JACK RETRACTION Section.

MP34.275
1
27APR1
5
OPERATING PROCEDURES
725 SERIES LEVELING SYSTEM
or level the vehicle as close as possible according to the
Retract the jacks and move the vehicle to a more level posit
ion
SLOPE" light will remain on for two minutes if the ignition
One or more jacks may not be extended. The system will sh
ut
stabilize the vehicle if the "EXCESS SLOPE" light comes on
.
without turning the yellow level light out. The system will no
t
come on. Excess slope is when one or two jacks extend ful
ly
unable to level the coach, the "EXCESS SLOPE" light will
EXCESS SLOPE SITUATION: In the event the jacks are
AUTOMATIC HYDRAULIC LEVELING (HWH TOUCH PANEL CONTROLS)
the vehicle ignition is in the ON or ACC. position
the leveling system touch panel can be on anytime
NOTE: One or two yellow level indicator lights on
the automatic leveling function.
"CANCEL" button on the HWH touch panel will stop
pushing the "AUTO LEVEL", "AUTO STORE" or the
IMPORTANT: During the Automatic Leveling procedures,
and place a pad under each jack if the ground will not
2. At this time, the operator may want to check the jacks
engine off. Turn the ignition to the "ACCESSORY" position.
parking the vehicle and set parking brake. Turn the coach
1. Place transmission in the recommended position for
and the park brake is set.
support the vehicle.
MANUAL HYDRAULIC OPERATION section. The "AUTO
is in the "ON" or "ACC" position.
off, leaving the "EXCESS SLOPE" light on. The "EXCESS
5. Turn the ignition switch to the "OFF" position.
The slight lift experienced during the stabilizing procedure
normally is not sufficient to cause a level issue for the motor
home. However, a feature of the single step leveling system
is the manual leveling buttons will function anytime the
ignition is in the ON or ACC. position and the park brake is
set. If desired, the operator can use the UP ARROWS
(extend jacks) that correspond to any lit yellow level indicato
r
light to "bump" the vehicle up slightly to turn that yellow
indicator light off.
During the automatic
leveling sequence, after the system has extended the
appropriate jacks to level the vehicle and has turned
the yellow level indicator lights off, the system will
then stabilize the vehicle.
The switch will turn on when the jack extends to the ground
and lifts the vehicle slightly. Jacks that have lifted the vehicle
for leveling should have pressure switches that are on.
The sequence starts with the right rear jack. If the pressure
switch is not on, the system will extend the jack as necessary
.
If the switch is on (or when it comes on) the system will check
the left rear jack pressure switch, extending the jack if necessary
If the left rear switch is on (or when it comes on), the system
will recheck the right rear (extending if necessary) then recheck
the left rear (extending if necessary). After checking and
rechecking both rear jacks, the system then checks the fron
t
jacks. The system checks both front jacks at the same time
.
If either pressure switch is not on, the system will turn the
pump on and open the valves for both front jacks. When
both front pressure switches are on, the system turns the
pump and front valves off.
THE "AUTO LEVEL" BUTTON IS PUSHED.
AIR WILL BE EXHAUSTED FROM THE VEHICLE SUSPENSION
AND THE VEHICLE WILL LOWER IMMEDIATELY AFTER
BUTTON THE OPERATOR MUST BE SURE THAT ALL
PERSONS AND OBJECTS ARE CLEAR OF THE VEHICLE.
will begin to dump air from the vehicle suspension. After
approximately 25 seconds, the leveling process will begin.
The AUTO LEVEL light will start to flash. The system
3. Press the "AUTO LEVEL" button one time.
WARNING: PRIOR TO PUSHING THE "AUTO LEVEL"
When a jack extends approximately 1 inch, it’s individual
red warning light on the touch panel will come on. The
touch panel "TRAVEL MODE" light will go out. If the
ignition is in the ON position, the warning buzzer will
sound.
AUTO LEVEL SEQUENCE:
STABILIZE SEQUENCE: The stabilize sequence is part of
the Auto Level sequence. Each jack has a pressure switch. on. The manual UP and DOWN arrow buttons will function
with the "EXCESS SLOPE light on. The "AUTO LEVEL"
button will NOT function if the "EXCESS SLOPE" light is on.
jack until the pressure switch turns on.
is not on, the computer turns the pump and valve on for that
is on, the jack is already stabilizing the vehicle. If the switch
computer checks the jack pressure switches. If the switch
The stabilize procedure is a specific sequence where the
STORE" button will function if the "EXCESS SLOPE" light is

MP34.3061
15FEB11
WARNING:
JACK RETRACTION (HWH TOUCH PANEL CONTROLS)
THE OPERATOR MUST BE SURE THAT
THERE ARE NO OBJECTS UNDER THE VEHICLE AND THAT
ALL PEOPLE ARE CLEAR OF THE VEHICLE.
3. If jacks cannot be retracted by the above procedure see
MANUAL JACK RETRACTION Section.
WARNING: DO NOT MOVE THE VEHICLE WHILE THE
LEVELING JACKS ARE STILL IN CONTACT WITH THE GROUND
OR IN THE EXTEND POSITION. THIS VEHICLE IS EQUIPPED
WITH STRAIGHT-ACTING JACKS. MOVING THE VEHICLE
WITH THE LEVELING JACKS EXTENDED CAN CAUSE
SEVERE DAMAGE TO THE JACKS AND OR THE VEHICLE AND
CREATE A DRIVING HAZARD. DO NOT RELY SOLELY UPON
WARNING LIGHTS. IT IS THE OPERATOR’S RESPONSIBILITY TO
CHECK THAT ALL JACKS ARE FULLY RETRACTED INTO
2. The vehicle can be moved as soon as the red warning
lights are out, the jacks are in the STORE/TRAVEL position
and the green "TRAVEL" light is on, if the vehicle is at the
THE STORE/TRAVEL POSITION AND THE VEHICLE IS AT
OPERATING PROCEDURES
725 SERIES LEVELING SYSTEM
NOTE: When traveling thermal expansion may cause
a jack to extend slightly. When the "AUTO STORE"
button has been used to retract the jacks, the system
will automatically retract any jack that extends due to
thermal expansion.
IMPORTANT: If a red warning light and buzzer come on
while traveling, the jacks should be checked as soon as
a safe parking location is found.
NOTE: When the jacks are stored with the ignition in
the ON position, the warning buzzer will sound until
the jacks have retracted to the STORE position. If
desired, the jacks can be stored with the ignition key
in the accessory position. This will eliminate the
warning buzzer while the jacks are retracting.
1. Start the engine and press the "AUTO STORE" button.
The store indicator light will flash. The vehicle should start
to return to proper ride height. The front jacks will retract for
5 seconds before the rear jacks will begin to retract. As each
jack retracts, its red WARNING light will go out. The system
will automatically shut down 1 minute after the four individual
red "WARNING" lights are out. If any one red "WARNING
light does not go out, the system will continue to store for fifty
minutes, then shut down regardless of the "WARNING" lights
the automatic store function.
"CANCEL" button on the HWH touch panel will stop
pushing the "AUTO LEVEL", "AUTO STORE" or the
IMPORTANT: During the Automatic Store procedures,
IMPORTANT: If power to the system is interrupted
after starting a store procedure with either the
touch panel or the remote rocker switch, the store
procedure should be reinitiated and the jacks
should be completely retracted with all four red
WARNING lights out prior to traveling.
condition.
THE PROPER RIDE HEIGHT.
proper ride height for traveling.
It is recommended to retract any room extensions
before retracting the jacks.

OPERATING PROCEDURES
MP34.3333
07AUG13
IMPORTANT: Do not continue to push an EXTEND
MANUAL JACK RETRACTION
MANUAL HYDRAULIC OPERATION
1. Place transmission in the recommended position for parking
2. Place pads under the jack feet if the ground will not support
the vehicle on the jacks.
4. The vehicle may be leveled using the manual EXTEND
(UP ARROW) buttons on the right half of the panel. If a yellow
LEVEL SENSING light is on, that side, end or corner of the
Jacks will extend (or retract) in pairs to raise (or lower) a side
or end of the vehicle.
button for more than ten (10) seconds after that pair of
5. When leveling is completed, turn the ignition
switch to the "OFF" position.
the vehicle, and set the parking brake. Turn the ignition to the
"ACCESSORY" position.
jacks are fully extended.
large and / or small valves.
NOTE: Assemblies can have different combinations of
release for retracting only if the "AUTO STORE" button on the
equipped with a manual valve release. Use the manual valve
The solenoid valves on the power unit valve assembly are
DO NOT CRAWL UNDER THE VEHICLE, KEEP A SAFE
DISTANCE IN FRONT AND REAR OF THE VEHICLE.
THE VEHICLE MAY DROP AND/OR MOVE FORWARD
OR BACKWARD WITHOUT WARNING AS THE VALVE
RELEASE IS OPERATED.
1. Locate the manual valve release on each solenoid valve.
The solenoid valves are located on the power unit/valve
2. Allow clearance for the vehicle to lower.
assembly.
WARNING: KEEP AWAY FROM THE WHEELS,
5. Check that all four jacks are now retracted.
6. Close the valves by moving the valve release cam to
7. The system should now be repaired before using again.
3. Retract the front jacks by slowly opening
the two center valves.
4. Repeat the process for the rear jacks by opening the two
the closed position.
outer valves.
vehicle is low. It is best to level the vehicle side to side first,
if needed, before front to rear.
Any jack not used for leveling can be extended to the
ground. This provides additional stability against wind and
activity in the vehicle. Jacks used to stabilize the vehicle
after leveling is complete should lift the vehicle slightly after
touching the ground.
BREATHER
RELEASE CAM
WITH VALVE
SMALL STYLE
MANIFOLD
CAP
from the vehicle suspension.
3. Push the "DUMP" button. Wait until all air is exhausted
CLOSED
VALVE
OPEN
VALVE RELEASE CAM
LARGE STYLE WITH
CLOSE VALVE
OPENED
VALVE RELEASE CAM OPERATION
control panel will not retract the jacks for travel.
Large and small valves will be equipped with a valve
release cam. The cam might be rotated in any direction
on the valve. Pushing the release cam in the wrong
direction may damage the valve.

OPERATING PROCEDURES
MP34.6101
17JAN11
GENERATOR SLIDE EXTEND PROCEDURE
WARNING:
CLEAR OF SLIDE WHEN OPERATING.
NOTE:Make sure there is adequate clearance to fully extend
the slide.
3. To extend the slide, press and hold the GENERATOR
SLIDE CONTROL SWITCH in the "EXTEND" position.
When the slide is fully extended, release the GENERATOR
SLIDE CONTROL SWITCH.
IMPORTANT: Do not hold the GENERATOR SLIDE
CONTROL SWITCH in the "EXTEND" position for more than
ten seconds after the slide is fully extended or stops moving.
NOTE: Releasing the GENERATOR SLIDE CONTROL
SWITCH will halt the operation of the slide.
GENERATOR SLIDE RETRACT PROCEDURE
3. To retract the slide, press and hold the GENERATOR
SLIDE CONTROL SWITCH in the "RETRACT" position.
When the slide is fully retracted, release the GENERATOR
SLIDE CONTROL SWITCH.
than ten seconds after the slide is fully retracted or stops
CONTROL SWITCH in the "RETRACT" position for more
Do not hold the GENERATOR SLIDEIMPORTANT:
Releasing the GENERATOR SLIDE CONTROL
SWITCH will halt the operation of the slide.
NOTE:
4. If the slide will not retract see the MANUAL SLIDE
RETRACT PROCEDURE.
KEEP PEOPLE AND OBSTRUCTIONS
1. THE PARK BRAKE MUST BE SET FOR THE SLIDE TO
OPERATE.
THE PARK BRAKE MUST BE SET FOR THE SLIDE TO1.
OPERATE.
NOTE: There is a GENERATOR SLIDE CONTROL SWITCH
in the left front electrical bay.
NOTE: There is a GENERATOR SLIDE CONTROL
SWITCH in the left front electrical bay.
DO NOT FORCE THE SLIDE.
moving. DO NOT FORCE THE SLIDE.
2. The vehicle ignition must be in the "ACC" or "ON" position.
2. The vehicle ignition must be in the "ACC" or "ON" position.

MP34.6140
17JAN11
MANUAL ROOM AND GENERATOR SLIDE RETRACT PROCEDURE
OVERVIEW
1. Retract jacks following the LEVELING SYSTEM
RETRACT PROCEDURE.
2. Locate the HYDRAULIC PUMP/MANIFOLD unit.
VALVES are opened and internal pressure is released.
WINCH
WINCH STRAP
WINCH HANDLE
RATCHET LEVER
HOOK
MANUAL RETRACT WINCH
5. Slowly winch the room in by turning the WINCH HANDLE
clockwise. The RATCHET LEVER should produce a loud, sharp,
clicking noise.
in the hydraulic fluid and make winching more difficult.
WARNING:
ON
OFF
HYDRAULIC PUMP/MANIFOLD
NOTE: The room may move slightly as the SOLENOID
NOTE :
NOTE: Winching the room in quickly will raise pressure
IMPORTANT:
6. When the room is fully retracted, engage the room locking
devices. Leave the retract winch engaged and the solenoid
WARNING: THE ROOM EXTENSION SOLENOID
VALVE RELEASE NUTS MUST BE IN THE OPEN
POSITION WHEN THE MANUAL RETRACT WINCH IS
7. The system should be repaired before using again.
WARNING: THE MANUAL RETRACT WINCH IS
OPERATE THE MANUAL RETRACT
WINCH BY HAND POWER ONLY. IF THE WINCH
CANNOT BE CRANKED EASILY WITH ONE HAND IT IS
PROBABLY OVERLOADED. IF WINCHING BECOMES
TOO DIFFICULT STOP AND CHECK FOR OBSTRUCTIONS
OR RESTRICTIONS ON THE ROOM AND ROOM
LEVELING SYSTEM MANIFOLD NOT SHOWN
SOLENOID VALVES
VALVE
RELEASE
NUT NUT
VALVE
RELEASE
3. Open the Solenoid Valves by slowly turning the valve
release nuts counter clockwise using the 1/4" nut driver
Only open the valves enough to retract NOTE: After repairs are made, when
closing the VALVE RELEASE NUTS, do
When manually retracting the room, make sure
the jacks are retracted before retracting the room.
EQUIPPED FOR MANUALLY RETRACTING THE ROOM
ONLY. IT IS NOT TO BE USED FOR LIFTING OR ANY
OTHER APPLICATION. HIGH FORCES ARE CREATED
WHEN USING A WINCH, CREATING POTENTIAL SAFETY
HAZARDS. FAILURE TO FOLLOW ALL CAUTIONS AND
INSTRUCTIONS MAY CAUSE FAILURE OF THE MANUAL
RETRACT WINCH OR CONNECTIONS RESULTING IN
DAMAGE OR PERSONAL INJURY. MAINTAIN FIRM GRIP
ON THE WINCH HANDLE AT ALL TIMES. NEVER
RELEASE THE HANDLE WHEN RATCHET LEVER IS IN
THE OFF POSITION AND THE WINCH IS LOADED. THE
WINCH HANDLE COULD SPIN VIOLENTLY AND CAUSE
PERSONAL INJURY. CHECK THE WINCH AND STRAPS
FOR DAMAGE OR WEAR, AND CHECK FOR PROPER
RATCHET OPERATION ON EACH USE OF THE WINCH.
DO NOT USE IF DAMAGED OR WORN.
supplied.
the room. DO NOT turn the release nuts more than
4 and 1/2 turns. Turning the nuts more could damage
the valves.
with the Operators Manual. As of APRIL 2002 the
NOTE: Prior to APRIL 2002 a 1/4" Nut Driver was sent
Cap. See the back page of this manual for further info.
1/4" Nut Driver has been incorporated into the Breather
4. Locate the MANUAL RETRACT WINCH and connect
it to the room according to the vehicle manufacturer’s
instructions. To extend the WINCH STRAP firmly grasp
WINCH HANDLE, place RATCHET LEVER in its OFF
position, and slowly rotate the WINCH HANDLE
counter clockwise, keeping a firm grip on the handle. When
enough WINCH STRAP is extended, place the RATCHET
LEVER in its ON position and slowly rotate the WINCH
HANDLE clockwise until the RATCHET LEVER locks.
EXTENSION MECHANISM.
valves open.
ENGAGED.
(WITH SOLENOID VALVES WITH VALVE RELEASE NUTS)
(USE ONLY WHEN THE ROOM WILL NOT RETRACT WITH THE ROOM CONTROL SWITCH)
not over tighten the nuts.
IMPORTANT: If the vehicle is not equipped with a winch,
DO NOT use other pulling devices to retract the room.
Follow steps 2 and 3 and try pushing the room in.
Contact the vehicle manufacturer or HWH Customer
Service at 1-800-321-3494 or 563-724-3396 for assistance.
The room can be retracted manually if a hydraulic or electric
failure prevents the room from being retracted using the
CONTROL SWITCH. For normal retract sequence see the
ROOM SLIDE RETRACT PROCEDURES. Refer to the
vehicle manufacturer for storage location of the winch
and information for connecting the winch to the room.

MAINTENANCE
MP44.001
8
13NOV1
7
OIL LEVEL
ELECTRICAL SYSTEM
The batteries should be in good condition and fully charged.
Weak batteries can cause erratic operation. Battery cable
terminals and battery posts and connections should be kept
All electrical connections, especially ground connections,
should be clean, tight, free from corrosion and protected
JACKS
There are very few user serviceable parts on the jacks
The jacks require very little maintenance. If the jacks are
VISUAL INSPECTION
Periodically inspect the system for oil leaks and
damaged or missing parts, such as pivot bolts or springs.
Check the hydraulic lines and wiring for damage and wear.
Check that the jacks do not interfere with any parts of the
vehicle when they are in the "STORE" position.
The system will operate better if kept clean and free
from caked on mud or ice.
OPERATIONAL CHECK
Check that all lights work according to the "INDICATOR
LIGHT" Section. Correct function of the red "WARNING"
Review the OPERATOR MANUAL. Run the system
according to the SYSTEM OPERATION Section.
Note any abnormal operation.
Review the "JACK RETRACTION" Section. Make sure the
jacks will fully retract to the "STORE" position. Jacks should
not interfere with any of the coach when in the "STORE"
clean. from weathering.
light is important.
position.
extremely dirty with caked on mud they should be washed.
If extremely dirty, the jack rods should NOT be wiped. The
jack rods do not need to be oiled or sprayed with anything.
ROOM EXTENSIONS
The HWH room mechanisms need no maintenance.
DO NOT grease or lubricate any parts of the HWH
mechanism.
Any visible mechanism can be kept clean by washing
with water. Refer to the vehicle manufacturer for
correct maintenance of the room seals.
See ML47149 for proper maintenance of all jacks.
cap before removing.
and steps should be fully retracted before checking fluid
breather cap. Clear any dirt away from the breather / filler
assembly. The oil level is checked and filled through the
level. The oil reservoir is part of the pump / manifold
Any HWH hydraulic equipment, including jacks, slide-outs
servicing of the coach.
All maintenance should be done as part of the normal
there is an oil leak in the system.
purchased and then once every two years. More often if
The oil level should be checked when the vehicle is first should be between the bottom of the dipstick and the
reservoir. Most breather caps have a dipstick. Fluid level
The oil level should be within one inch of the top of the
emergency Dexron automatic transmission fluid can be used
.
Dexron automatic transmission fluid contains red dye
and can cause staining should a leak occur. DO NOT USE
brake fluid or hydraulic jack fluid. Use of these can damage
HWH Specialty Hydraulic Oil is recommended. In an
NOTE: Overfilling the tank can cause leakage of oil
through the breather cap.
center mark.
FLUID:
NOTE:
seals.

MAINTENANCE
NOT IN PARK/BRAKE CHECK
Apply the brake so the coach cannot roll. Turn the ignition
to the "ACC" or "ON" position. Release the parking brake.
THE COACH WHEELS SECURELY SO THE COACH
CANNOT ROLL FORWARD OR BACKWARD.
WARNING: WHEN MAKING THIS CHECK, BLOCK If any of the above checks or inspections reveal a problem
or if there are other problems or questions, consult a
qualified RV repair center, your vehicle or coach
manufacturer, or HWH CORPORATION
22NOV1
6
MP44.050
2
Push the "AUTO LEVEL" button. The "NOT IN PARK/
BRAKE" indicator light should come on while the "AUTO
LEVEL" button is pushed. Release the "AUTO LEVEL"
for service or repair.
button and set the park brake. The leveling system
should now function.
WINTER WEATHER DRIVING
have dried. This can facilitate corrosion of metallic
continue to absorb moisture from the air even after they
Anti-icing / deicing agents when splashed on your vehicle,
components, such as HWH jacks.
To help reduce the corrosion of jacks after exposure to anti
-
icing / deicing agents, thoroughly wash jacks with warm
soapy water.

SENSING UNIT MAINTENANCE/SERVICE
SENSING UNIT ADJUSTMENT / WITH ADJUSTING ENHANCEMENT
NOTE: If opposing LED’s are lit, there is a problem with
the Sensing Unit.
If LED (A) is lit: Tighten adjustment screw number 1
until the LED is off.
If LED (C) is lit: Loosen adjustment screw number 1
until the LED is off.
If LED (B) is lit: Loosen adjustment screw number 3
until the LED is off.
until the LED is off.
If LED (D) is lit: Tighten adjustment screw number 3
09NOV10
MP44.1511
With the vehicle level according to the bubble level, if there
are no yellow lights lit on the Touch Panel, the sensing unit is
properly adjusted. If there are yellow LEVEL lights lit on the
Touch Panel, manual adjustments to the Sensing Unit are
needed.
SENSING UNIT ACCURACY TOLERANCE
The sensing unit has an accuracy tolerance of ± 5.4 inches front to rear and
INSTRUCTION SHEET
± 1 inch side to side on a 36 foot vehicle. Typical leveling results will be better.
IMPORTANT: THE SENSING UNIT MOUNTING SPRINGS
SHOULD BE COMPRESSED ABOUT 1/2 THEIR FREE
LENGTH. SCREW NUMBER 2 SHOULD NOT BE TURNED
MOUNTED BELOW
FRONT
MOUNTING SURFACE
(3) MOUNTING
(3) MOUNTING
SCREWS
SPRINGS
THIS
SIDE
UP
LED A - FRONT OF VEHICLE
LED B - LEFT SIDE OF VEHICLE
LED C - REAR OF VEHICLE
LED D - RIGHT SIDE OF VEHICLE
REMOTE MOUNTED "POTTED" ELECTRONIC SENSING UNIT
WHILE ADJUSTING THE SENSING UNIT. AFTER
ADJUSTING THE SENSING UNIT, BUMP THE SENSING
UNIT TO SEE THAT IT IS SETTLED TIGHT AGAINST ALL
THREE SCREW HEADS AND STILL INDICATES THAT
THE UNIT IS LEVEL.
Level the vehicle by placing a bubble level in the center of the
freezer floor or upon whichever surface within the vehicle that
is to be level. It is best if the level is placed close to the
mounting area of the sensing unit. Using the Leveling System
and the bubble level, ignoring the yellow LEVEL lights on the
Touch Panel, level the vehicle until the bubble is centered.
The ignition (motorized units) or master power switch (towable
units) must be on. Remove the "Adjusting Enhancement Cap".
DO NOT LOSE THIS CAP. There is a small pin beneath the
cap. Use a jumper wire with an alligator clip to apply a ground
to the pin. This will make the sensing unit very sensitive. The
yellow lights may "jump" around while adjusting the sensing unit.
Let the lights settle down after each adjustment. Small, gentle
turns will work best. Turn mounting screws 1 and 3 to adjust
the sensing unit. Turn screws as instructed to turn out all the
yellow LEDs. When all the LEDs are out, remove the jumper
wire and replace the adjusting enhancement cap. DO NOT
over tighten.

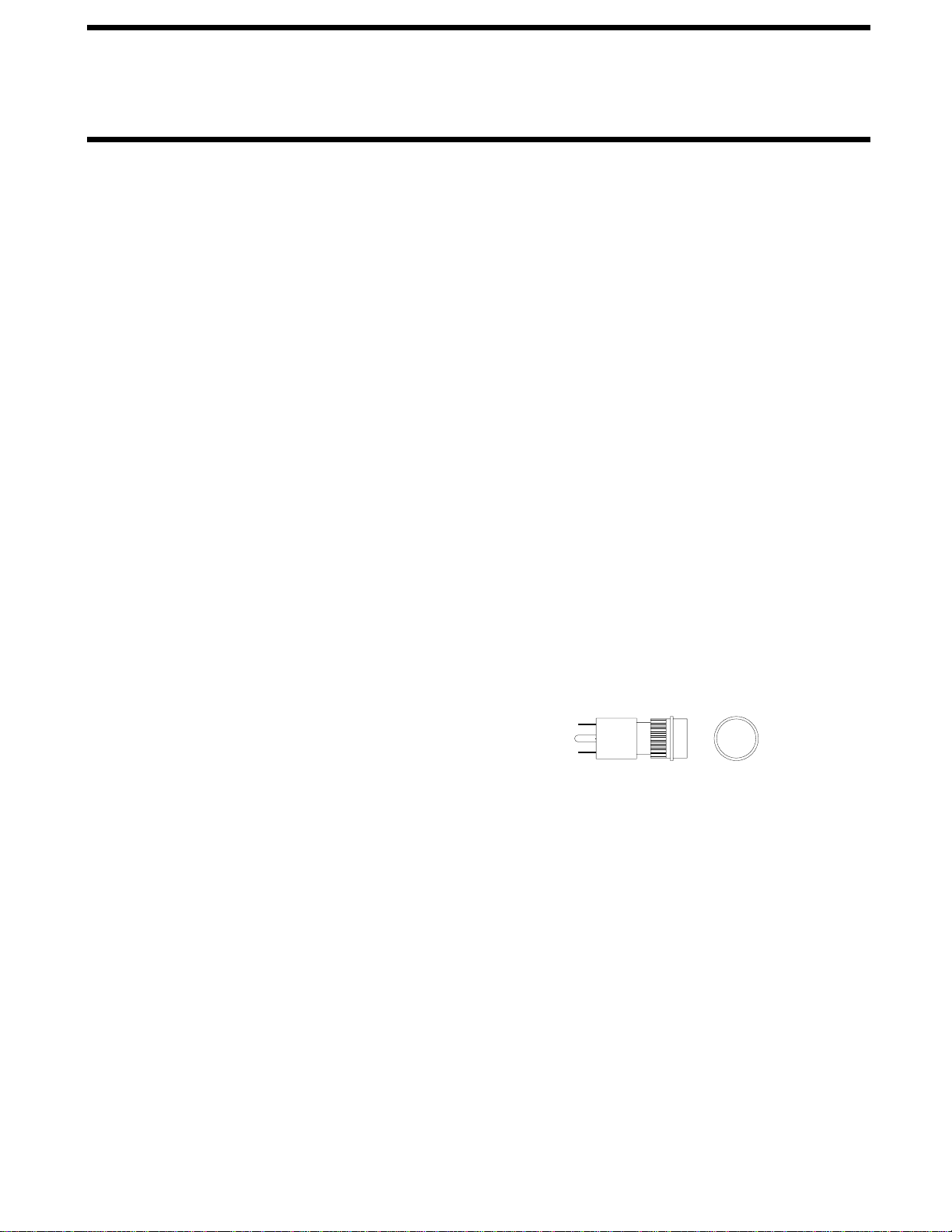

SENSING UNIT
BOTTOM VIEW OF
LED
3
D
C
LED
LED
ABYELLOW LEDs
2
MOUNTING/ADJUSTMENT
SCREWS (3)
1
LED
Move the vehicle to an unlevel position and level the
vehicle according to the yellow level sensing lights on
the touch panel. Readjust if necessary.
ADJUSTING
ENHANCEMENT
CAP

NOTE: BEFORE OPERATING MANUAL
VALVE RELEASE, READ AND UNDERSTAND
PROCEDURE FOR MANUAL JACK RETRACTION
IN OPERATOR’S INSTRUCTIONS. VALVES MAY
HYDRAULIC LINE CONNECTION DIAGRAM
MP64.3917
17APR19
(WITH 4 STRAIGHT-ACTING JACKS)
PUMP/MANIFOLD
ASSEMBLY
SHUTTLE
VALVE
LEFT
FRONT RIGHT FRONT
RIGHT
REAR
LEFT
REAR
625/725 SERIES LEVELING SYSTEM
BREATHER
CAP
VELOCITY VALVE
NOTE: SOME
MANIFOLDS
ARE EQUIPPED
WITH VELOCITY
VALVES
LF RF
3000PSI
PRESSURE
SWITCH
50PSI
PRESSURE
SWITCH
RRLR
MANIFOLDS MAY HAVE FOUR (4) LARGE
VALVES OR FOUR (4) SMALL VALVES
BE EQUIPPED WITH VALVE RELEASE NUTS OR
RELEASE CAMS.
LARGE AND
SMALL VALVES
WITH RELEASE
NUTS
LARGE AND
SMALL VALVES
WITH RELEASE
CAMS
PRESSURE
3000 PSI
ALTERNATE
SWITCH
LOCATION
NOTE: Load center is
not shown, load center
may need to be removed
to access shuttle valve
and shuttle valve tube.
PRESSURE
CHECK
HERE VALVES (4)
CHECK
OUTER

HYDRAULIC
POWER UNIT
M
RELIEF VALVE
RETURN PRESSURE
SOLENOID MANIFOLD
ASSEMBLY
CHECK
VALVE
INNER
CHECK
VALVE
OUTER
SOL.VALVE
LR SOL.VALVE SOL.VALVE
RFLF
PRESSURE/RETURN
SHUTTLE VALVE
50 PSI
SWITCH
*JACK
PRESSURE
SWITCH
JACK
CYLINDER
LEFT REAR RIGHT REAR
RIGHT
FRONT
LEFT
FRONT
MP64.453
0
29MAR1
0
*3000 PSI
SWITCH
LEVELING SYSTEM
ROOM EXTENSION
MANIFOLD LOCATED HERE
WHEN APPLICABLE
RR
SOL.VALVE
* USED ON AUTOMATIC SYSTEMS ONLY
NOTE: 50 PSI PRESSURE SWITCH
MAY NOT BE USED ON ALL 625 MANIFOLDS
.
3500 P.S.I.
BI-AXIS LEVELING WITH STRAIGHT-ACTING JACKS
625, 625S OR 725 SERIES
HYDRAULIC SCHEMATIC DIAGRAM
800 PSI TO SHIFT

HYDRAULIC LINE CONNECTION DIAGRAM
GENERATOR SLIDE CYLINDER
FILLER CAP
BREATHER/
EXTEND VALVE
GEN SLIDE CYLINDER
RETRACT VALVE
GEN SLIDE CYLINDER
VALVE
RELEASE
NUT
17JAN11
MP64.7520
NUT
RELEASE
VALVE
NOTE: LEVELING MANIFOLD NOT SHOWN
TO CHECK OIL LEVEL
RETRACT GEN SLIDE
SLIDE CYLINDER
GENERATOR
ROD END
CONNECTION
CAP END
CONNECTION

725 SERIES SINGLE STEP LEVELING SYSTEM W/PILOT AIR DUMP
MP84.312
0
12APR1
8
TOUCH PANEL
LF RF
LR RR
AB B A
B A B A
6235
4000
4200 3200
6235
3000
6235
1000
1200 2200
6235
2000
WARNING SWITCH
PRESSURE SWITCH WARNING SWITCH PRESSURE SWITCH
SWITCH
WARNING
SWITCH
PRESSURE
SWITCH
WARNING
PRESSURE
SWITCH
UNDERSTAND OPERATOR’S MANUAL BEFORE USING. BLOCK FRAME AND TIRES
SECURELY BEFORE REMOVING TIRES OR CRAWLING UNDER VEHICLE.
HWH COMPUTERIZED LEVELING
EXTEND
RETRACT
AUTO
STORE
LEVEL
AUTO
WARNING!
BRAKE
TRAVEL
CANCEL MODE
PARK/
NOT IN
EXCESS
R
SLOPE
MANUAL
RETRACT
EXTEND
MANUAL
DUMP
ELECTRICAL CONNECTION DIAGRAM
JACK WARNING SWITCHES AND PRESSURE SWITCHES
SEE ELECTRICAL CONNECTION DIAGRAM
LEVELING SYSTEM HYDRAULIC MANIFOLD
PUMP AND MASTER RELAYS
SEE ELECTRICAL CONNECTION
DIAGRAM - SENSING UNIT
CA
B
PILOT AIR DUMP
DO NOT CUT
TERMINATING
RESISTOR
DO NOT CUT
TERMINATING
RESISTOR
MULTIPLEXED INPUT/OUTPUT MODULE
SEE ELECTRICAL CONNECTION DIAGRAM
6230
9300
9301
8100
8101
SEE ELECTRICAL CONNECTION
DIAGRAM - MASTER WARNING
LIGHT AND BUZZER
6230 GND
9301 TRAVEL
9300 DUMP
PILOT DUMP
CONNECTION
BY O.E.M.
CONNECTION
PARK BRAKE
SWITCH 9000 - PARK BRAKE
BY O.E.M.
CONNECTION
FUSE
15 AMP
6120 +12 ACC.
+12V ACC. POWER
FROM IGNITION SWITCH
PUMP
REQUEST
8601
8601
GENERATOR SLIDE
SEE ELECTRICAL CONNECTION -
DIAGRAM - GENERATOR SLIDE -
HYDRAULIC MANIFOLD
EXISTING
DIFFERENT
CONNECTOR
MAY BE

MP84.317
0
ELECTRICAL CONNECTION DIAGRAM
MULTIPLEXED INPUT/OUTPUT MODULE - BLACK STRIKE CONNECTOR
12APR1
8
PIN # WIRE
COLOR WIRE NUMBER WIRE DESCRIPTION AND FUNCTION
A1 - (+12 BLACK WIRE 8601) INPUT WHEN EXTENSION DEVICES ROOMS, GEN SLIDE, STEP COVER, ETC. ARE USE
D
LED AND WIRE/CONNECTION INFORMATION
CAN HIGH COMMUNICATION WIREYELLOWA2 N/A NO CONNECTIONA3 AND A4 SWITCHED GROUND FROM RIGHT FRONT JACK WARNING SWITCH2000BLACKA5 SWITCHED GROUND FROM RIGHT FRONT JACK PRESSURE SWITCHBLACKA6 2200 SWITCHED GROUND FROM RIGHT REAR JACK PRESSURE SWITCHBLACKA7 3200 SWITCHED GROUND FROM 50 PSI MANIFOLD PRESSURE SWITCH8101BLACKA8 +12 VOLT POWER TO THE TOUCH PANELREDB1 6800 CAN LOW COMMUNICATION WIREGREEN N/AB2 GROUND TO THE TOUCH PANELWHITEB3 6230 NO CONNECTIONB4 SWITCHED GROUND FROM RIGHT REAR JACK WARNING SWITCHBLACKB5 3000 SWITCHED GROUND FROM LEFT REAR JACK PRESSURE SWITCHBLACKB6 4200 NO CONNECTIONB7 SWITCHED GROUND FROM 3000 PSI MANIFOLD PRESSURE SWITCHBLACKB8 8100 +12 VOLT POWER FOR LEVEL SENSING UNITC1 RED 6121 SHIELD WIRE FOR GREEN & YELLOW CAN COMMUNICATION WIRESN/AC2 N/A GROUND FOR LEVEL SENSING UNITWHITEC3 6231 SWITCHED GROUND FROM SENSING UNIT - REAR0400BLACKC4 SWITCHED GROUND FROM LEFT REAR JACK WARNING SWITCH4000BLACKC5 NO CONNECTIONC6 AND C7 SWITCHED GROUND FROM SENSING UNIT - RIGHT SIDE0300BLACKC8
D1 RED 6120 +12 VOLT ACCESSORY POWER FOR I/O MODULE
GROUND FOR JACK WARNING SWITCHESWHITED2 6235 NO CONNECTIOND3 SWITCHED GROUND FROM LEFT FRONT JACK WARNING SWITCH1000BLACKD4 SWITCHED GROUND FROM LEFT FRONT JACK PRESSURE SWITCHBLACKD5 1200 SWITCHED GROUND FROM SENSING UNIT - LEFT SIDE0100BLACKD6 SWITCHED GROUND FROM SENSING UNIT - FRONTBLACKD7 0200 GROUND FROM PARK BRAKE SWITCHBLACKD8 9000
RIGHT REAR JACK
RIGHT FRONT JACK
LEFT FRONT JACK
LEFT REAR JACK
LINK LIGHT
DUMP
TRAVEL
MASTER RELAY
PUMP RELAY
FRONT VIEW
OF I/O
MODULE
CONNECTOR
A LIT RED LED INDICATES THERE SHOULD BE
+12 VOLTS ON THE CORRESPONDING WIRE.
LINK LIGHT: LINK LIGHT FLASHING INDICATES PROPER
COMMUNICATION BETWEEN THE I/O MODULE AND THE
TOUCH PANEL. LINK LIGHT ON SOLID OR OFF INDICATES
A FAILURE.
87654321
A
B
C
D
NOTE: DUMP AND TRAVEL LEDS PRESENT
BUT NOT ALWAYS USED
GROUND STUD

MP84.317
4
ELECTRICAL CONNECTION DIAGRAM
MULTIPLEXED INPUT/OUTPUT MODULE - GRAY AMPSEAL CONNECTOR
16APR1
8
PIN # WIRE
COLOR WIRE
NUMBER WIRE DESCRIPTION AND FUNCTION
1
LED AND WIRE/CONNECTION INFORMATION
+12 VOLT POWER TO THE TOUCH PANEL
2
3
4BLACK5 SWITCHED GROUND FROM RIGHT REAR JACK WARNING SWITCHBLACK6 3000 SWITCHED GROUND FROM RIGHT FRONT JACK PRESSURE SWITCH7 NO CONNECTION8 +12 FOR PUMP REQUEST - SLIDE-OUTS, GEN SLIDE, STEP, ETC.BLACK 86019 NO CONNECTION10 GROUND FOR JACK DOWN WARNING SWITCHES11 NO CONNECTION12 THRU 15 SWITCHED GROUND FROM SENSING LIGHT - RIGHT SIDEBLACK16 0300 SWITCHED GROUND FROM RIGHT FRONT JACK WARNING SWITCH17 SWITCHED GROUND FROM LEFT FRONT JACK PRESSURE SWITCHBLACK18 1200 NO CONNECTION19 GROUND TO THE TOUCH PANELWHITE20 6230 SHIELD WIRE FOR GREEN & YELLOW CAN COMMUNICATION WIRESN/A21 N/A CAN HIGH COMMUNICATION WIREYELLOW22 CAN LOW COMMUNICATION WIREGREEN23 NO CONNECTION24 SWITCHED GROUND FROM LEFT REAR JACK PRESSURE SWITCH4200BLACK25
26 BLACK 8100 SWITCHED GROUND FROM 3000 PSI MANIFOLD PRESSURE SWITCH
SWITCHED GROUND FROM SENSING UNIT - FRONTBLACK27 0200 SWITCHED GROUND FROM LEFT FRONT JACK WARNING SWITCH28 SWITCHED GROUND FROM LEFT REAR JACK WARNING SWITCH4000BLACK29 SWITCHED GROUND FROM RIGHT REAR JACK PRESSURE SWITCHBLACK30 3200 NO CONNECTION31 GROUND FOR LEVEL SENSING UNITWHITE32 6231 +12 VOLT POWER FOR LEVEL SENSING UNITRED33 6121
RIGHT REAR JACK
RIGHT FRONT JACK
LEFT FRONT JACK
LEFT REAR JACK
LINK LIGHT
DUMP
TRAVEL
MASTER RELAY
PUMP RELAY
FRONT VIEW
OF I/O
MODULE
CONNECTOR
A LIT RED LED INDICATES THERE SHOULD BE
+12 VOLTS ON THE CORRESPONDING WIRE.
LINK LIGHT: LINK LIGHT FLASHING INDICATES PROPER
COMMUNICATION BETWEEN THE I/O MODULE AND THE
TOUCH PANEL. LINK LIGHT ON SOLID OR OFF INDICATES
A FAILURE.
NOTE: DUMP AND TRAVEL LEDS PRESENT
BUT NOT ALWAYS USED
GROUND STUD
BLACK 9000 GROUND FROM PARK BRAKE SWITCH
6800RED
NO CONNECTION
SWITCHED GROUND FROM 50 PSI MANIFOLD PRESSURE SWITCHBLACK 8101 SWITCHED GROUND FROM SENSING UNIT - LEFT SIDE0100BLACK 0400 SWITCHED GROUND FROM SENSING UNIT - REAR
34
35
2200BLACK
6235WHITE
BLACK 2000
1000BLACK
RED 6120 +12 VOLT ACCESSORY POWER FOR THE I/O MODULE
