CLUX-1CAT4H
1 by 4 CAT6 to HDMI
V1.3 Splitter
Operation Manual
CLUX-1CAT4H

Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2009 by Cypress Technology.
All Rights Reserved.
Version 1.0 October 2009
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
 Always follow basic safety precautions to reduce the risk of
re, electrical shock and injury to persons.
 To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
 Never spill liquid of any kind on or into this product.
 Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
 Do not attach the power supply cabling to building surfaces.
 Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
 To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
V1 20091028 Preliminary Release
V2 20101116 IR Connection in Pg. 7
VR3 20120416 IR Frequency

Table of Contents
1
1
1
1
2
3
4
4
4
6
6
6
7
9
1. Introduction ……………………..……………………...…........….…….
2. Applications …………………..………………….……...................…..
3. Package Contents ………………………...........……….................…
4. System Requirements ……………..……….........………............…….
5. Features …………………………………………......……........…...……
6. Specications ………………………………...……..........………....….
7. Operation Controls and Functions ……………...……..............……
7.1 Front Panel ..............................................................................
7.2 Rear Panel .…………………………………..…….......…...….…
8. Pin Denitions ……………...……................................................……
8.1 IR Cable Pin Denition ............................................................
8.2 RJ-45 Pin Denitions.................................................................
9. Connection and Installation ….………………….........…..…..…......
10. Acronyms …......................................................................................

1. Introduction
The 1 by 4 CAT6 to HDMI 1.3 splitter is the smart way to link and display a
single HDMI source on three or more screens simultaneously. Not only can
it send an HDMI source to three different displays, but it can also act like a
router, when connected to another CAT6 splitter it can transfer an HDMI
signal to a further 3 displays, making a total of six showing the same source
instead of only three. This unit allows users to transmit HDMI signals via CAT6
without compression over long distance. The CAT6 to HDMI splitter also
incorporates functions like EDID, System Reset, Deep color and IR systems.
2. Applications
 Connect to three HDMI displays, or plug into another CAT6 splitter to
reach several more
 Integrate your home entertainment system
 Multi-task project presentations
 Showroom displays
 Advertising display control
 System installation control
3. Package Contents
 1 by 4 CAT6 to HDMI Splitter
 1 x IR Receiver
 1 x IR Blaster
 5V DC power supply adaptor
 Operation Manual
4. System Requirements
 Input device with an HDMI cable
 Output display device(s) with HDMI cables and or CAT6 to HDMI receiver
with HDMI cable to display.
1

5. Features
 HDMI 1.3, HDCP1.1 and DVI1.0 compliant
 Deep color video up to 12bit, 1080p@60Hz
 Allows users to link up to three displays simultaneously
 HDCP keysets allows each output to work independently when
connected to an HDMI display
 Supports both DVI source/display by using an HDMI to/from DVI adaptor
cable
 Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission (32-192kHz Fs sample rate)
 Supports a wide range of PC and HDTV resolutions from VGA to UXGA
and 480i to 1080p.
 Selects EDID from TV mode or STD mode (this splitter)
 Deep color setting of 8 bit or 12 bit
 IR remote control
 System Reset function
 CEC Bypass
2

6. Specications
Video Bandwidth 2.25Gbps (single link)
Input Ports 1 x CAT6 input Video/1 x CAT6 input DDC
Output Ports 1 x CAT6 output Video/1 x CAT6 output DDC
3 x HDMI female ports (Type A connector)
EDID STD / TV
HDMI Audio Output PCM2, 5.1, 7.1, Dolby 5.1, DTS 5.1, DD+, D-TrueHD,
DTS-HD
HDMI Cable Out 1080p 8-bit (15M), 12-bit (10M)
CAT6 Cable In 1080p 8-bit (45M), 12-bit (15M)
CAT6 Cable Out 1080p 8-bit (40M), 12-bit (10M)
HDMI Resolution 480i, ~ 1080p 50/60, 1080p 24, VGA ~ SXGA
IR Frequency 30 ~ 50KHz
ESD Protection Human body model: ±8kV (air-gap discharge)
±4kV (contact discharge)
Power Supply 5VDC/3.2A (US/EU standards, CE/FCC/UL
certied)
Dimensions (mm) 215(W) x133(D) x 43(H)
Weight(g) 900
Chassis Material Metal
Silkscreen Color Black
Power Consumption 12W
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity 20~90% RH (non- condensing)
3

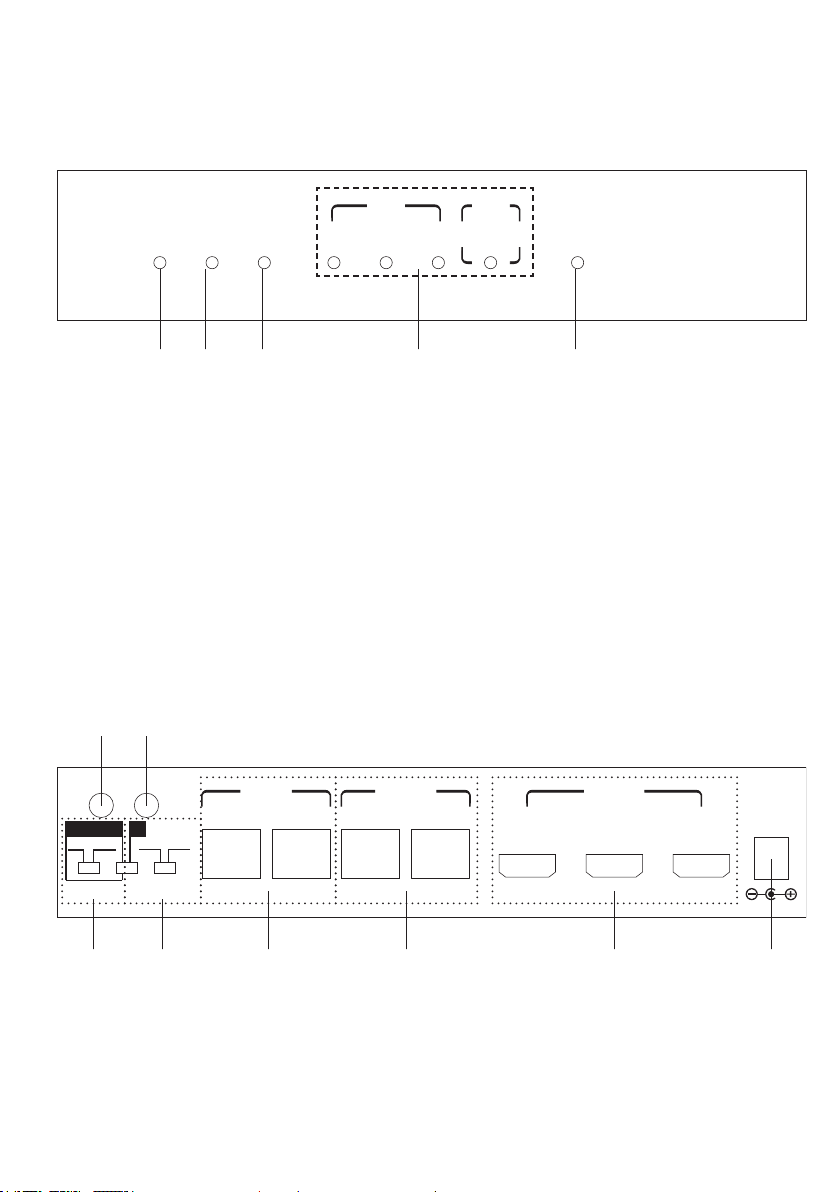

7. Operation Controls and Functions
The following sections describe the hardware components of the unit, along
with how to install and use the device.
7.1 Front Panel
POWER
HDMI
HDMI / DVI HDCP SYNC4321
CAT 6
CLUX-1CAT4H
1x4 CAT6 HDMI 1.3 SPLITTER
① ② ③ ⑤④
① HDMI/DVI indicators: When LED turns on this means the input source is
with HDMI content and when the input source is DVI the LED will not
switch on.
② HDCP indicators: When the input source is has HDCP protection the
HDCP LED will turn on.
③ SYNC Indicator: The LED will switch on when the input source's signal is
detected by the device.
④ Output LED 1~4: The LED will turn on when the output display is connected
with power on.
⑤ Power LED: The LED will switch on when power is on.
7.2 Rear Panel
DC 5V
HDMI OUT
VIDEO DDC VIDEO 1 DDC 1
234
CAT6 IN CAT6 OUT
IR-INIR-OUT
SYS. Reset
8 Bit 12 Bit OFFON
STD
EDID
TV
③ ④ ⑤ ⑥ ⑦ ⑧
①②
① IR IN: This slot connects with the IR receiver cable included in the
package and uses the existing source’s remote to control the source
equipment.
② IR OUT: This slot connects with the IR blaster cable included in the
package and should be placed it in front of the source for sending and
infrared signal.
4

③ EDID Control Switcher: Switch the EDID between STD & TV. Switch to STD
to use the built-in EDID or switch to TV to use TV’s EDID. Default factory
setting is on TV, leave as is when the display is working properly.
Note:
1. When EDID is switched to TV, the unit will detect the first HDMI output
EDID and record in the unit. If the first detected output source is DVI it
will pass on to the next one until the first HDMI source been detected.
The detection priority is HDMI v1.3 > HDMI v1.2 > DVI.
2. When EDID switches to STD the unit will use built-in EDID which supports:
Video → 1080p 8-bit or 12-bit (max)
Audio → PCM 2CH
3. The EDID selection will only activate when the unit is plugged in and
powered on.
④ System Reset: When switched “ON”, the system will send the internal CEC
to the display within 8~10 minutes to force all the displays to switch to
HDMI 1 input port. Meanwhile, the source’s CEC will not be functioning.
When switched “OFF”, the system reset function will be stopped. Factory
default is “OFF”.
⑤ Video/DDC input: These slots are for connecting the Video/DDC input to
the Video/DDC output of the transmitter unit with CAT6 cables.
⑥ Video/DDC output: These slots are for connecting the Video/DDC output
to the Video/DDC input of the receiver unit with CAT6 cables.
Note:
A. This system was tested with CAT6/23AWG/ cables, so if using cables
of another type, the user must be warned that this may result in a lower
maximum distance.
B. Cable distance tested with a PS3 40G, and 37" Samsung 12 bit LCD TV.
C. Figures provided in this manual are reference figures only, actual
figures may depend on source and display use with cable specification.
⑦ HDMI Outputs 2~4: These slots allow you to connect HDMI displays with
HDMI cables. When more than one output is connected, the HDMI
outputs will play an identical video signal.
⑧ Power: This slot is where you plug in the 5VDC power supply included in
the package into the unit and connect the adaptor to an AC outlet.
5

8. Pin Denitions
8.1 IR Cable Pin Denitions
Note: The frequency on both IR Receiver & Blaster can support 20~60KHz.
8.2 RJ-45 Pin Denitions
Pin Video DDC
1 TX2+ DDC Bus Clock
2 TX2- NC
3 TX1+ DDC Bus Data
4 TX0+ Power 5V
5 TX0- GND
6 TX1- IR IN
7 TXC+ HPD
8 TXC- EC
IR Blaster IR Receiver
① ②
① Power 5V
② IR blaster signal
③ NC
① IR signal
② Power 5V
③ Grounding
① ② ③③
6

ABC
HD TV
HDMI
Cable IR Receiver
HDMI
HDMI
HD TV
HDMI
Cable IR Receiver
CAT6
OUTPUT
CAT6
OUTPUT
HDMI
HDMI
DDC
VIDEO
AorBorC
HD TV
HDMI
Cable
HDMI
HDMI
DDC
VIDEO
AorBorC
CH-106RX / CH-1106RX CLUX-1CAT4H / CLUX-1CAT8H CLUX-22HC
IR BLASTER
1.5m
60°
IR RECEIVER
7m
3m 3m
60°
7m
3m 3m
60°
7m
3m 3m
60°

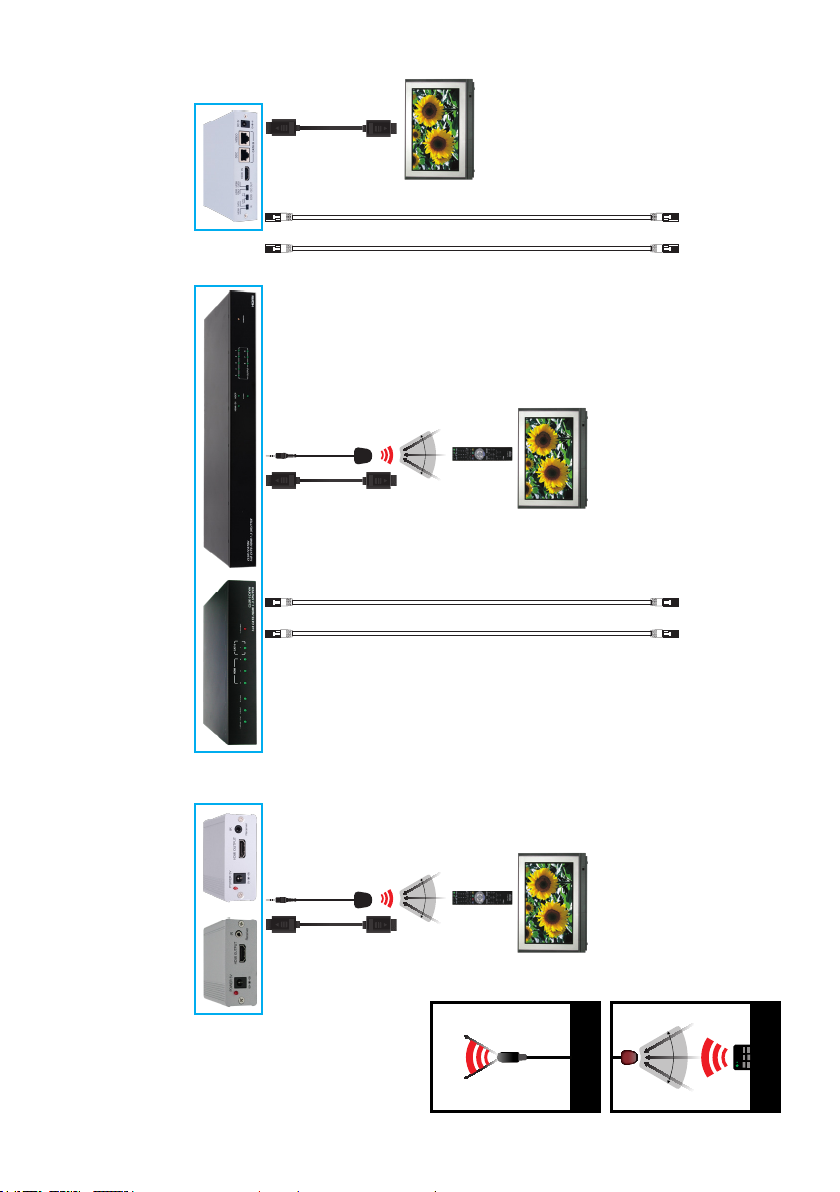

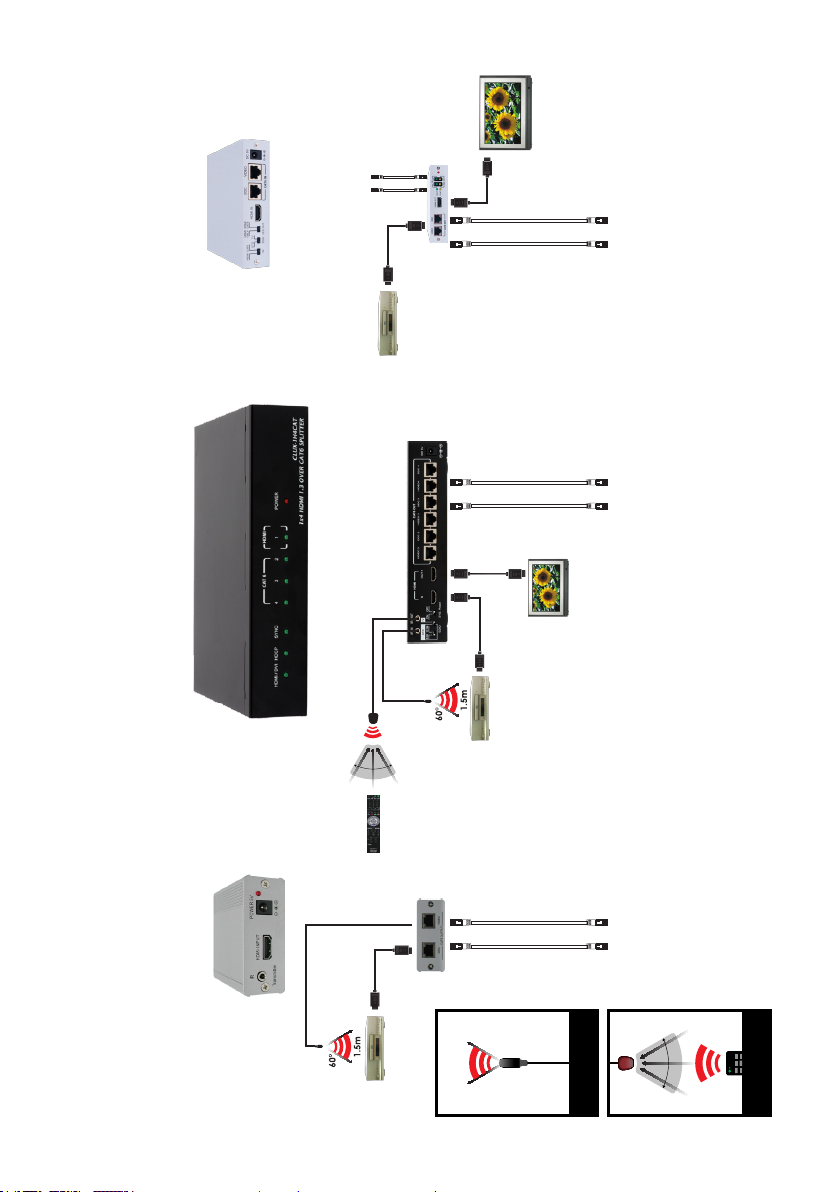

9. Connection and Installation
7

HD TV
HDMI
Cable
HDMI
HDMI
HDMI
HDMI
HDMI
HDMI
IR Receiver
DVD HDMI IN
IN OUT CAT6 OUTPUT
CAT6 OUTPUT
IR Blaster
IR Blaster
DVD
AorBorCAorBorC
x3
CLUX-22HC
CLUX-1H4CAT
CLUX-1H8CAT
CH-106TX
CH-1106TX
DDC
VIDEO
DDC
VIDEO
AorBorC
HDMI
HDMI
CAT6
OUTPUT
DVD
HD TV
DDC
VIDEO
CH-106TX CH-1106TX CLUX-1H4CAT CLUX-1H8CAT CMLUX-4H4CAT CLUX-22HC
DDCVIDEO
HDMI
HDMI
HDMI Cable
HDMI IN
CAT6 IN
IR BLASTER
1.5m
60°
IR RECEIVER
7m
3m 3m
60°
7m
3m 3m
60°
8

Acronyms A
Acronym Complete Term
CAT6 Category 6 cable
DVI Digital Visual Interface
EDID Extended Display Identication Data
HDCP High-Bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDTV High-Denition Television
IR Infrared
LPCM Linear Pulse Code Modulation
STD Standard
SYNC Synchronize
SXGA Super Extended Graphics Array
VGA Video Graphics Array

A

20091208 MPM-CLUX1CAT4H
Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD.
