HY-LINE CP-1262HST User manual

CP-1262HST
HDMI to PC/Component
Converter with Audio Box
Operation Manual
CP-1262HST

Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology. All Rights Reserved.
Version 1.0 April 2011
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
 Always follow basic safety precautions to reduce the risk of
re, electrical shock and injury to persons.
 To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
 Never spill liquid of any kind on or into this product.
 Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
 Do not attach the power supply cabling to building surfaces.
 Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
 To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide ventilation.
Revision History
Version No Date Summary of Change
VR0 20110425 Preliminary Release

Table of Contents
1. Introduction..................................................................................1
2. Applications.................................................................................1
3. Package Contents ......................................................................1
4. System Requirements..................................................................1
5. Features........................................................................................1
6. Specifications ..............................................................................2
7. Operation Controls and Functions............................................. 4
7.1 Front Panel.................................................................... 4
7.2 Rear Panel .................................................................... 4
8. HDMI Connector Pin Assignment............................................... 5
9. Input/Output resolution...............................................................6
10. Connection and Installation .....................................................7
11. Acronyms.....................................................................................8

1
1. Introduction
This converter box is designed to convert HD signal to Analog PC or SD/HD
timings. It enables to convert HDMI sources to any analog PC timing for PC
monitor, Projector or TV. Its high bandwidth capability supports a wide range of
PC and HDTV resolutions.
2. Applications
• Showroom environment
• Education demo
• Installation usage
3. Package Contents
• HDMI to PC/Component converter with audio box
• 5V DC power supply adaptor
• Operation Manual
4. System Requirements
Input source equipment such as computer or digital camera with HDMI port
and output to PC monitor, Projector or TV.
5. Features
• HDMI v1.2 and DVI v1.0 compliant.
• Supports HDMI input and Analog PC or SD/HD output
• Supports output selection between YPbPr and RGBHV
• Supports input/output resolution as below:
PC: 640x480 = VGA@60, 72, 75, 85
800x600 = SVGA@56, 60, 72, 75, 85
1024x768 = XGA@60, 70, 75, 85
1152x864 = MAC@70, 75, 85
1280x768 = WXGA@60RB, 60
1280x800 = WXGA@60RB, 60, 75
1280x960 = @60, 85
1280x1024 = SXGA@60, 75, 85
1366x768 = WXGA@60RB, 60
1440x1050 = @60RB, 60
1440x900 = WXGA@60RB, 60, 75
1600x1200 = UXGA@60
1680x1050 = WSXGA+@60RB, 60
1920x1200 = WUXGA@60RB

2
• HD: 480i@60, 480p@60, 576i@50, 576p@50, 720p@50, 720p@60,
• 1080i@50, 1080i@60, 1080p@24, 1080p@50, 1080p@60
• HDMI input support 8-bits without Deep Color support
• HDMI input compatible with DVI format when using HDMI to DVI adaptor
• HDMI audio input support LPCM 2CH and sampling rate support from
32KHz to 96KHz.
• Component output support 720p, 1080i and 1080p tri-level sync
• Audio output support stereo R/L
• Built in EDID
Note: This product does not process HDCP input. When receiving content
that has HDCP encryption there will be no video & audio output.
6. Specications
Operation Frequency Up to 162MHz
Input port 1 x HDMI
Output ports 1 x HD-15 D-SUB (YPbPr or RGBHV)
1 x Analog R/L 3.5mm phone jack
Output Signal RGB: 0.7 Vp-p 75ohm
H/V: 3 to 5 Vp-p
Or Y: 1 Vp-p 75ohm
Pb/Pr: 0.7Vp-p 75ohm
Input/Output Resolution PC: 640x480 = VGA@60, 72, 75, 85
800x600 = SVGA@56, 60, 72, 75, 85
1024x768 = XGA@60, 70, 75, 85
1152x864 = MAC@70, 75, 85
1280x768 = WXGA@60RB, 60
1280x800 = WXGA@60RB, 60, 75
1280x960 = @60, 85
1280x1024 = SXGA@60, 75, 85
1366x768 = WXGA@60RB, 60
1440x1050 = @60RB, 60
1440x900 = WXGA@60RB, 60, 75
1600x1200 = UXGA@60
1680x1050 = WSXGA+@60RB, 60
1920x1200 = WUXGA@60RB
HD: 480i@60, 480p@60, 576i@50,
576p@50, 720p@50, 720p@60,
1080i@50, 1080i@60, 1080p@24,

3
1080p@50, 1080p@60
HDMI Audio Input LPCM 2CH
HDMI input Color Space RGB, YUV
ESD Protection ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certied)
Dimensions (mm) 76(W) x 30(D) x 92(H)
Weight(g) 172
Chassis Material Aluminum
Silkscreen Color Silver
Operating Temperature 0˚C~40˚C / 32˚F ~ 104˚F
Storage temperature -20˚C~60˚C / -4˚F ~ 140˚F
Relative Humidity 20~90% RH (no condensation)
Power Consumption (W) 3.3/W (Max)

4

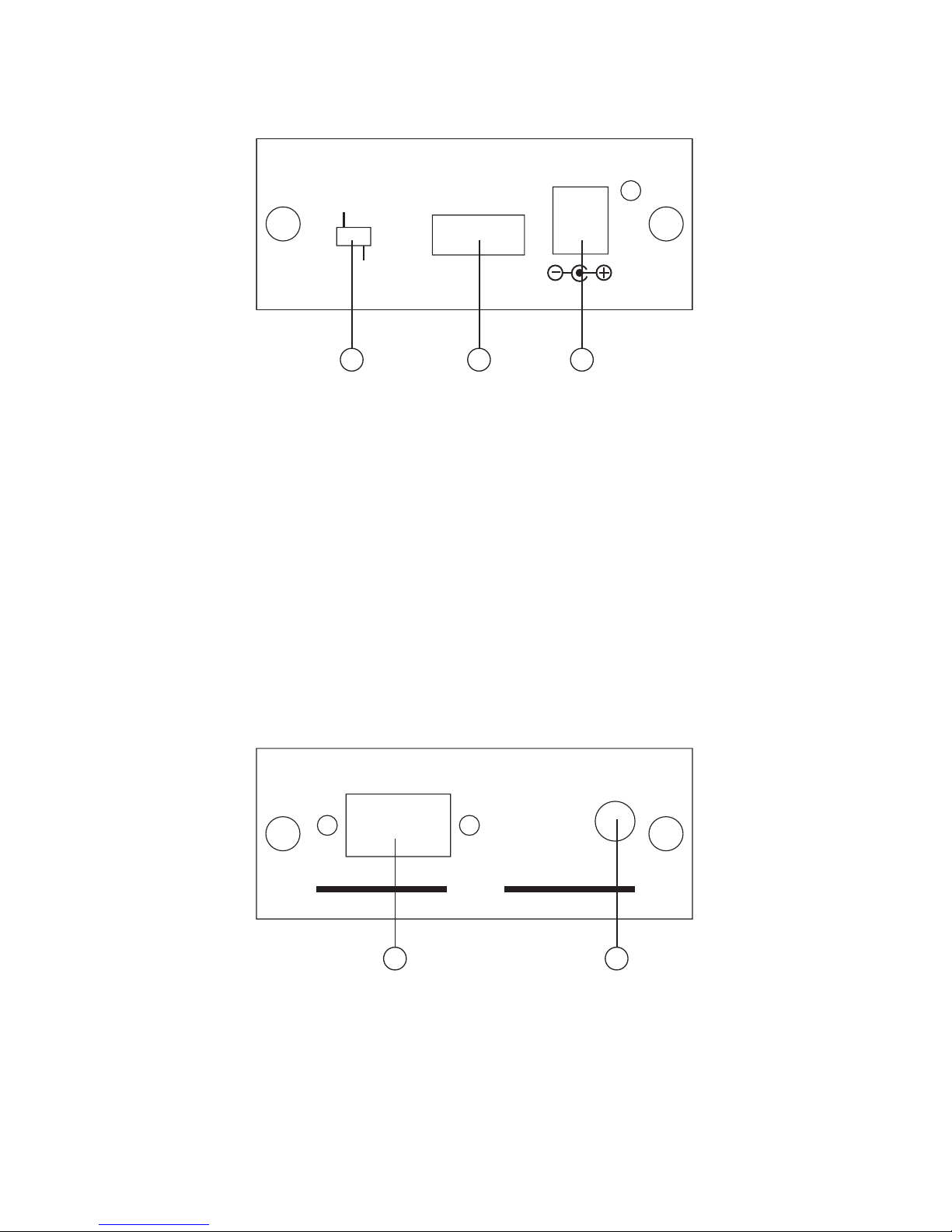

7. Operation Controls and Functions
7.1 Front Panel
1 2 3
DC 5V
RGB
YPbPr
Out
CP-1262HST HDMI to PC/HD
HDMI In
①. YPbPr/RGB switch:
Set the switch to RGB when your HDMI source equipment is PC graphic
card or other digital RGB source signal. Use HD-15 to HD-15 VGA cable to
connect between the unit’s RGB out and RGB input of your PC monitor, or
projector. Set the switch to YPbPr when your HDMI source is video source.
Use a VGA to 3RCA adaptor cable to connect to unit’s YPbPr out to
YPbPr input connector of your HDTV.
w. HDMI input: Connect the HDMI input port to the HDMI output port of your
source equipment such as set-top-box.
e. Power: Plug the 5VDC power supply into the unit and connect the
adaptor to AC wall outlet.
7.2 Rear Panel
1 2
L/RPC/YPbPr
Out
①. HD-15 D-Sub output: Connect the output port to the PC/YPbPr input of
analog PC monitor, Projector or TV.
w. R/L Stereo audio output via 3.5mm phone jack.

5

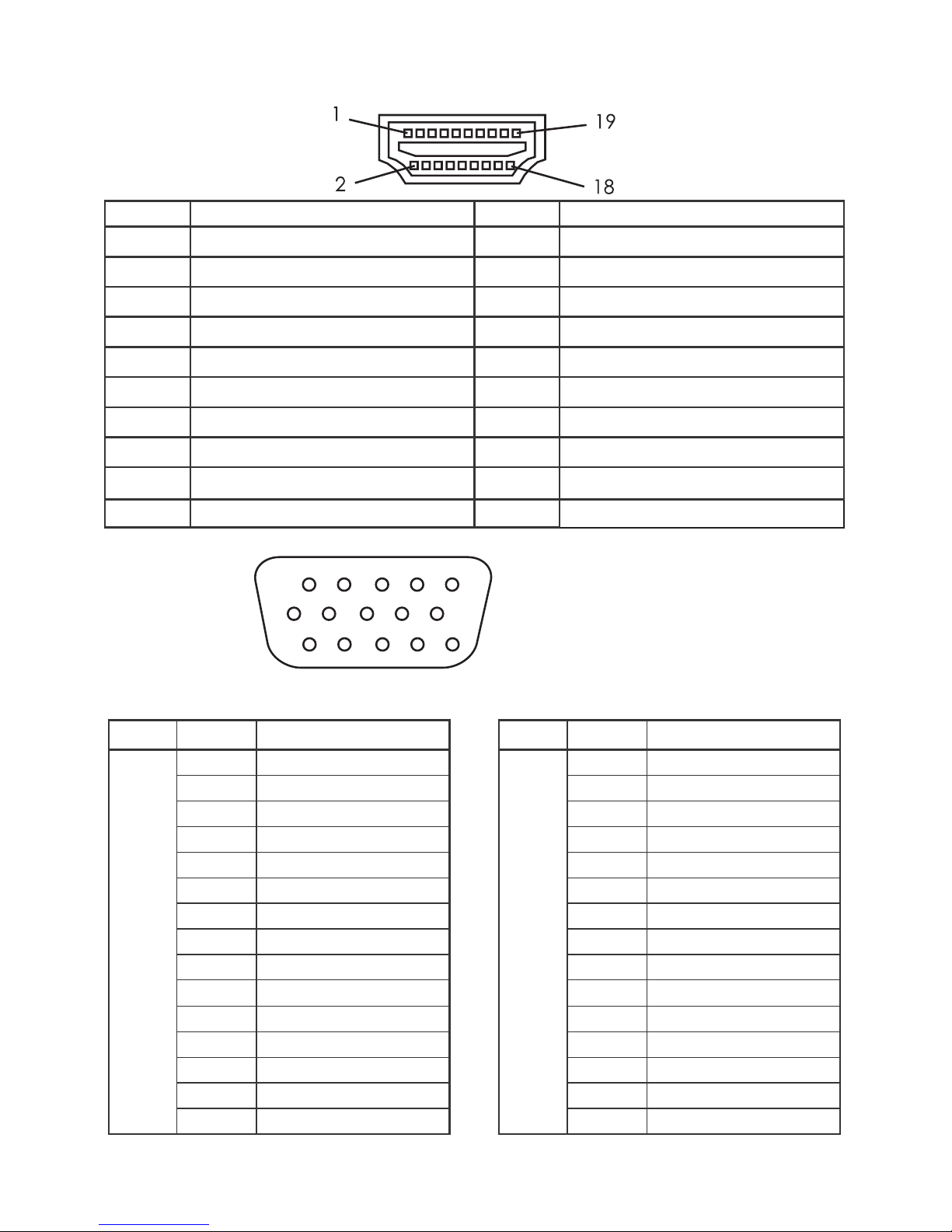

8. HDMI Connector Pin Assignment
Pin# Function Assignment Pin# Function Assignment
1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+
5 TMDS Data1 Shield 6 TMDS Data1-
7 TMDS Data0+ 8 TMDS Data0 Shield
9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock-
13 CEC 14 Reserved (N.C. on device)
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V Power
19 Hot Plug Detect
Output Format
1
67
11
12131415
2345
10 98
B. Analog VGA output pin assign ment
when output switch set to RGB.
C. Analog VGA output pin assignment
when output switch set to YPbPr.
Part No. Pin No. Description (PC out) Part No. Pin No. Description (HD out)
DB15HD
1 RED
DB15HD
1 Pr
2 GREN 2 Y
3 BLUE 3 Pb
4 NC 4 NC
5 GND (DDC-RETURN) 5 GND (DDC-RETURN)
6 GND-RED 6 GND-Pr
7 GND-GREEN 7 GND-Y
8 GND-BLUE 8 GND-Pb
9 N.C 9 N.C
10 GND-SYNC 10 GND-SYNC
11 NC 11 NC
12 DDC-DATA 12 DDC-DATA
13 H-SYNC 13 H-SYNC
14 V-SYNC 14 V-SYNC
15 DDC-CLOCK 15 DDC-CLOCK

6
9. Input/Output resolution
Output switch
Input/
Output
Resolution
PC Output Component Output
480i60 V
480p60 V V
576i50 V
576p50 V V
720p50 V V
720p60 V V
1080i50 V
1080i60 V
1080p24 V
1080p50 V V
1080p60 V V
640x480@60,72,75,85 V
800x600@56,60,72,75,85 V
1024x768@60,70,75,85 V
1152x864@70,75,85 V
1280x768@60RB,60 V
1280x800@60RB,60,75 V
1280x960@60,85 V
1280x1024@60,75,85 V
1366x768@60RB,60 V
1400x1050@60RB,60 V
1440x900@60RB,60,75 V
1600x1200@60 V
1680x1050@60RB,60 V
1920x1200@60RB V
Note:
When the TV didn’t support 1080p@24 input, the user needs to disable the 1080p@24 from
source equipment, such as Blue-ray player or PS3 etc.).
This product does not process HDCP input. When receiving content that has HDCP
encryption there will be no video & audio output.

7
8. Connection and Installation
HDMI out
HDMI
HDMI
DVI out
DVI to HDMI adaptor
VGA cable
3.5mm to 2 RCA
audio cable
LCD Monitor/TV Projector
or
HDMI cable
Connection 1(RGB out)
Set-Top-Box
Connection 2 (YPbPr out)
HDMI cable
Audio
D-Sub to 3 RCA cable
YPbPr cable
LCD TV
Set-Top-Box

MPM-CP1262HST
Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD.
Acronyms A
Acronym Complete Term
DVI Digital Visual Interface
EDID Extended Display Identication Data
HDCP High-bandwidth Digital content protection
HDMI High-Denition Multimedia Interface
MAC Macintosh
PC Macintosh
