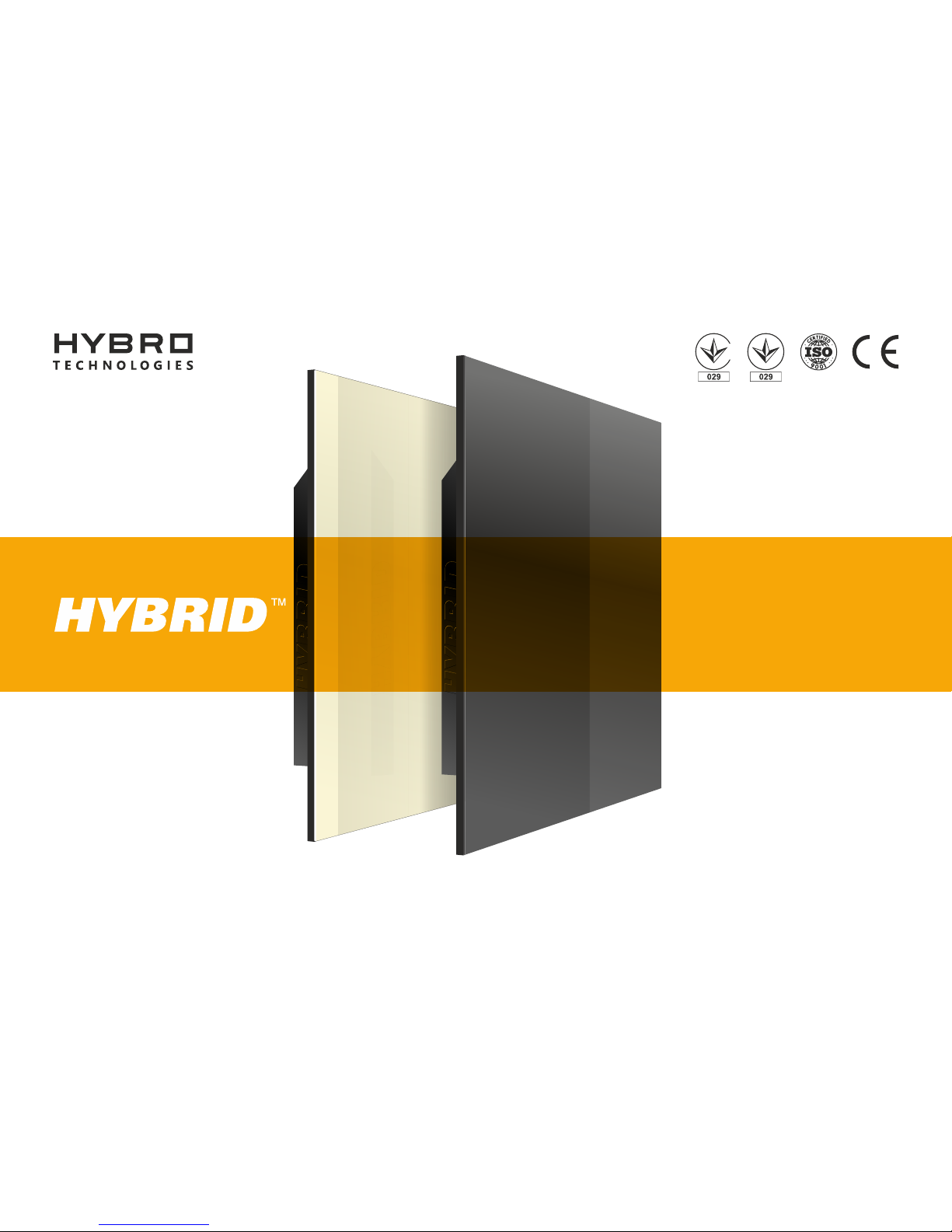

Hybird Ivory User manual

ceramic heating
panel
operating instructions

1. Ceramic heating panel
2. Power cord
3. Mounting kit
4. Instructions and warranty card
5. Polystyrene packaging
6. Corrugated packaging
PACKAGE
Before use, carefully read these instructions. Proper installation, operation
and maintenance of the device is extremely important for your safety and
for the safety of others.
Congratulations
with the purchase!
ceramic heating panel
Voltage............................................................ 220-250 V
Power................................................0,375 kW (h) ±5%
Heating area..........................................................5–7 m2
Dimension..........................................600х600х12 mm
Weight.........................................................................10 kg
Body color....................................................black/white
Body material...........................................................metal
The front surface ............................................. Ceramic
Convection........................................natural heat flow
Operating frequency.....................................50–60 Hz
Warranty period..................................................5 years
Lifetime.................................................................30 years
Degree of protection............................................. Ip44
TECHNICAL
INFORMATION

SAFETY Warning! Do not cover the body of the device or dry clothes, towels and other things on it in
order to avoid overheating.
Distance from the device to flammable surfaces (tulle, curtains) should not be less than 5 сm.
Keep an eye that between the device and the wall there were no flammable materials
(newspapers, magazines, curtains, toys etc).
The device does not have built-in thermostat. Do not use it in small premises when there are people
inside that can not leave the room, unless constant surveillance is provided
Not suitable for operating by children up to 8 years of age and persons with reduced
physical, sensory or mental capabilities.
The device can be used in bathrooms, if grounded terminal connection is located at a minimum
distance of 1 meter from the bath, shower, washbasin etc.
ceramic heating panel

CARE AND
MAINTENANCE
MOUNTING
SAFETY
If the device is used in a dusty environment and got dirty, it should be cleaned.
Before the device's cleaning it is necessary to disconnect it from network for
safety reasons.
The device may only be cleaned with a soft cotton rag
or cotton brush. Rag may be slightly moistened or impregnated with a special detergent
(except for products containing abrasive elements).
After the cleaning the device has to be dried out with leaving no stains.
Before connecting, always make sure that the device and the power cord are not
damaged.
The network that connects the device must be grounded. Conductor cross section in the network
must match the power plug of the device. To connect a device it is necessary to use a cable cross-
section of at least 3 x 0,75 mm2
The required supply voltage - 220V, frequency - 50-60 Hz.
Check the connection to the safety breakers.
Breakers must be placed according to the total number ofdevices (1 unit - 1.7 A).
Make sure that the device is not deformed. If the device is cracked or bursted, the use of
such a device is prohibited.
Carrying, cleaning and leaving the devices inoperative for the long term is only allowed if
they are switched off the power supply.
ceramic heating panel

CONNECTION
SCHEME
H – heating panel
T – thermostat
Connection scheme for a single panel
Connection scheme for few panels
ceramic heating panel

MOUNTING
ceramic heating panel
Connect the
power supply
4
1 Unpack
Mount the fixture
3
Place and drill
the holes
using the template
install anchors
and screws
2
Hang the
unit
5
Warning! Install devices at the same distance between
the floor and the sill,
or at a distance of 100-120 mm from the floor.
Devices must be mounted on concrete, stone, plaster or
metal surfaces.

WARRANTY
TERMS
Warranty provided by manufacturer does not apply to defects caused by improper use of
the device. Examples of cases in which warranty does not cover the damage are given
below:
1. Accidents and damage caused by improper use of the device.
2. Any breakage or damage arising after device's delivery to the consumer, during loading,
unloading and transportation of the unit.
3. Accidents and damage caused by high or low voltage, faulty electrical wiring, switching on
to the network, voltage and frequency of which does not meet the established standards for
the device.
4. Breakage or damage resulting from the repair in non-specialized service centers.
5. Incorrect installation or removal.
Warning! In case of the above mentioned damages warranty service would
not be performed. Warranty service term is specified in the warranty card. Warranty card that does
not possess company's or trade organization's stamp, the seller's signature and sale's date shall be
void. In case of falsifying the warranty document, change of the original serial number, warranty
card becomes invalid. Installation, repair and replacement of the equipment must be carried out
only by qualified service staff or personnel authorized directly by HYBRO Technologies.
