Table of Contents
Section 1: Installation Guidelines
Page
1
Section 2: Operator Introduction
2
Section 3: Safety
3
Section 4: Product Introduction
4
•The Hydra Rinse™Eco System
Section 5: User Interface
5,6
•The “RESET-CUPS-PROGRAM” button functionality
•The “ONE TOUCH” button functionality
•The “PLAY/PAUSE” button functionality
•The “STATUS INDICATORS” LEDs
Section 6: LEXX™ Cups and Gallon Concentrate
7
•LEXX™Liquid Sanitizer and Cleaner Concentrate
Section 7: Registration of Token Tag
8
Section 8: Referenced Components
9
Section 9: Required Water and Drain Source
10
Water Source:
•Temperature Mixing Valve
•Dedicated Water Line
•Drain Source:
✓Acceptable System Option
Section 10: WSF128-169 Portable Wandstation
11
•Mounting Bracket
•Hard Non-porous Food Contact Surfaces

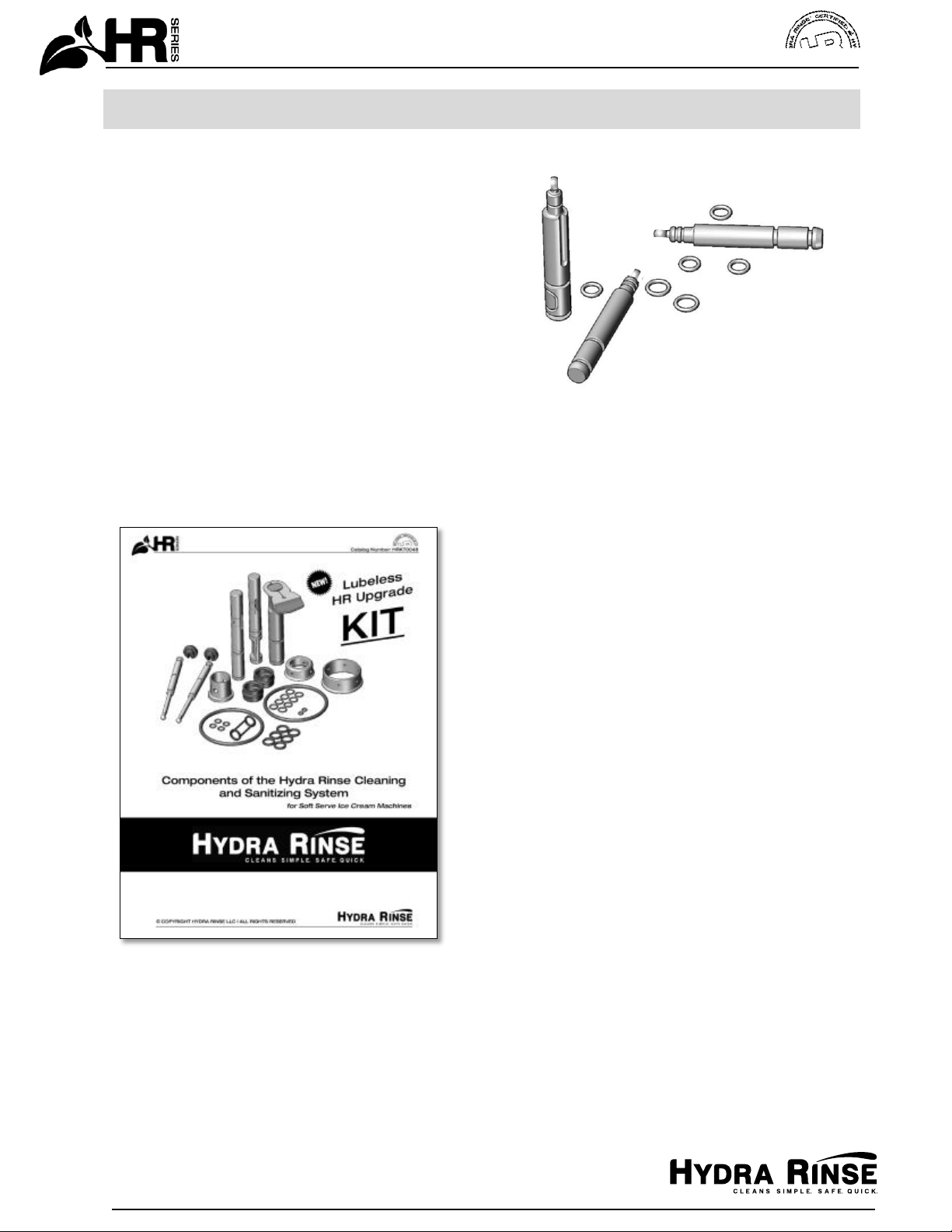

Section 11:Upgraded Components
•Upgraded Components
•Machine Beater Shaft
12

iii101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Table of Contents
Section 12: NSF Certified Hydra Rinse™ Process
Page
13
•21 Step Reference Document
Section 13: NSF Certified Flavor Change Process
14
•19 Step Reference Document
Section 14:Details of the Hydra Rinse™ Process
15-35
•Detailed Training Instructions for Sections 12 & 13
Section 15:Troubleshooting Guide
36, 37
•Table Defining Common Problems, with Potential Cause and Solution
Section 16:Pro-Control LEDs
38, 39
•Table Defining LED Process and Error Codes
Section 17:Battery Installation/Replacement
40
Section 18:Replacement Components
41
•Specific Replacement Components for Your STLHR
Section 19: Warranty
42

1101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Section 1: Installation Guidelines
The information provided is to ensure that
your STLHRmeets factory tested
Performance.
Requirements
No additional tools or fasteners are
required for proper mounting to the soft serve
machine; attaching features are all inclusive.
For the HRWAND128 “WSF128-169
Portable Wandstation”:Depending on
where the location of the “MOUNTING
BRACKET” is installed e.g.
concrete/drywall, etc., anchor bolts (not
included) should be capable of
supporting a minimum of 50 lbs. (Max
screw diameter 3/16” actual size: 0.1875” )
Care should be taken when installing your
STLHR to ensure proper performance
and operation.
•Only STLHR trained personnel should
install and operate this device.
•Only Authorized STLHR service
personnel should make any necessary
repairs
NOTE:
STLHR is engineered to work
exclusively with
LEXXTM Liquid Sanitizer
and Cleaner Concentrate
.
Protective Measures
Never submerge the Pro-Control into
any liquid. This product was manufactured
and designed to meet IP65 standards:
•6: Totally protected from dust
contaminates.
•5: Protected against low pressure
jetting from water in all directions,
limited ingress permitted.
Site Pre-requisite
Water supply must be >50 PSI, capable
of flowing a minimum of 4.5 GPM, having a
sanitary pH value of ~7.0-8.0.
Water Connection
Outlet water temperature 110°F
(43.3°C) but less than 120°F (48.9°C); Default:
112.5°F (44.7°C).
A backflow prevention device is required
(Not Included) for the inlet water connection.
Refer to applicable National, Federal, State and
local codes.
We also recommend using a Water
Softener to minimize hard water impact on
the entire Hydra Rinse™ Eco System.

2101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Section 2: Operator Introduction
The following Hydra Rinse™ product:
STLHR has been carefully engineered and
manufactured to give you consistent
operation.
To the Operator
Careful maintenance and operation of this unit
will ensure product quality and consistent
performance. The STLHRwill require frequent
cleaning of the unit itself. Please take care in
understanding the outlined procedures in this
manual.
Read this Operators Manual in its
entirety before operating or performing any
service with this device.
In the event of failure, contact your local
authorized STLHRDistributor/Reseller.
Note:
Warranty is valid as long as authorized
STLHR parts are acquired from an authorized
STLHR Distributor/Reseller along with service
work being performed by an authorized STLHR
service technician. Hydra Rinse™ reserves any
right to deny warranty claims on device or
parts if unofficial STLHR components were
installed in the unit. This also applies to any
modifications that fall out of the scope of
factory recommendations, apparent abuse or
neglect.
Note:
STLHR is under continuous research and
engineering; any improvements to our product
will lead to information changes within this
manual and are subject to change without
notice (www.hydrarinse.com).
Battery Disposal:
Hydra Rinse™is powered by 3 C Dry Cell
Batteries
• Do Not place in fire or incinerator.
• Do Not dispose in refuse.
• Do remember to recycle in accordance
with local regulations.

3101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Section 3: Safety
Implementation with any one of our
products requires a thorough understanding of
factory recommendations; complete knowledge
of this Operators Manual is recommended.
Important Message
Failures to adhere to the listed safety
precautions may result in severe personal
injury or even death. Personal, unauthorized
service or repairs to this unit may result in
inadvertent damages, and excessive service
repair expense.
Visual Inspection
As a good practice, please take time to
periodically inspect components for
unforeseeable issues that may arise due to
wear or damage (e.g. Water lines, supply
hoses). Hoses can be an obstacle resulting in
tripping and/or falling hazards that result in
injury. Always work carefully around hoses
avoiding injury to anyone within direct and/or
indirect contact.
Water can wreak havoc with
compromised systems, especially with
unprotected surroundings like electrical
receptacles that are unprotected by ground
fault circuit interruption (GFCI). Worn out
extension cords can lead to electrical shock
when exposed to water.
Water/ Temperature
Do not operate the STLHRwith water
temperatures above 120°F (48.9°C).
Batteries
The Pro-Control is designed for non-
rechargeable batteries. Regular “C DRY CELL
BATTERIES" can be exposed to some water for
a short period of time: If this is the case, make
sure batteries are completely dry before
inserting into the Pro-Control Battery Case.
Never change or remove the batteries
when water is present. Find a dry, clean area
when replacing batteries. Since the Pro-
Control is always around water, never
substitute "DRY CELL BATTERIES" for any
rechargeable batteries i.e. li-ion; use of
Professional Alkaline Batteries is suggested.
If water enters into the Pro-Control
Housing, discontinue usage immediately.
Allow unit to air dry for 2 to 3 hours. If unit
fails to operate correctly, replacement will be
required; this failure is not covered under
warranty.
HRWAND128 “WSF128-169
Portable Wandstation”
Never directly point the wand at
anyone, for any reason. Never insert the Wand
Tip into any orifice of any food dispensing
device while beaters are in motion and/or
electrically powered food equipment that may
allow access to electrical circuitry/
components. When possible, always power off
equipment before servicing to avoid
electrocution/ damage to device.

4101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Section 4: Product Introduction
The Hydra RinseTM Eco System is comprised of a plurality of Hydra RinseTM products
designed to work exclusively with ProNatural BrandsTM naturally derived LEXXTM Liquid
Sanitizer and Cleaner Concentrate (LEXX™). The Hydra RinseTM Eco System was designed for
cleaning food dispensing equipment i.e. soft serve ice cream machines.
When you bring more components of The Hydra RinseTM Eco System into your cleaning
process, the more time and money you begin to save while promoting a standardized cleaning
solution for end users.
Ask your participating Dealer for more information about Hydra RinseTM products and their
applications.
The Hydra Rinse™ Eco
System

5101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Section 5: User Interface 1 of 2

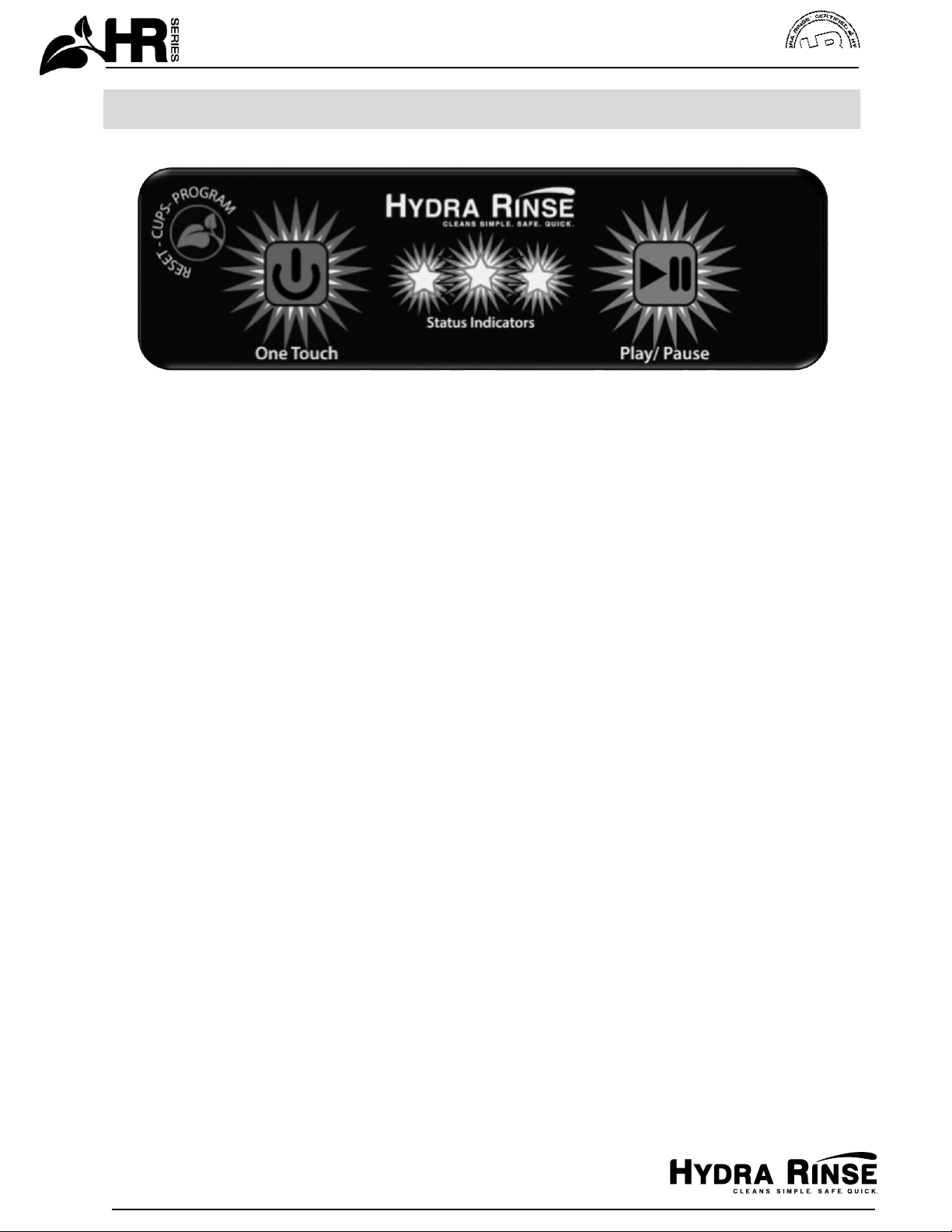

The “RESET-CUPS-PROGRAM” button functionality:
oReset the Pro-Control processor/Read Firmware version
oRegister cleaning/sanitizing cycles
oRead number of cleaning/sanitizing cycles available
The “ONE TOUCH” button functionality:
oInitialize cleaning/sanitizing cycles
oConclude cleaning/sanitizing cycle
oSelf-clean mode when used simultaneously with the “PLAY/PAUSE” button
The “PLAY/PAUSE” button functionality:
oCancel initiated cleaning/sanitizing cycle
oPause/Resume cleaning/sanitizing cycle
oSelf-clean mode when used simultaneously with the “ONE TOUCH” button

6101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Section 5: User Interface 2 of 2
The “STATUS INDICATORS” LEDs:
oPower On/Cycle initiated
oSpecific patterns of the cycles development
oFirmware Version
oCycle paused
oBattery Low/Replacement
oErrors
oNumber of registered cleaning/sanitizing cycles
oCycle complete
An audible “BEEP” may also accompany many of the Status Indicator LED patterns.
Audible sounds indicate to the end users that some kind of action may need to be taken
e.g. place soft serve machine in “WASH MODE”, pause cycle for full teardown of the soft
serve machine, batteries need to be replaced, some error needs to be resolved before
operations can continue.
Section 16: “Pro-Control LEDs”includes a table that breaks down the different
patterns of the Status Indicator LEDs, along with descriptions and specific actions that
may be required by the end user.
A unique function of the Status Indicators helps with registering/reading a “TOKEN
TAG”. The Status Indicators will “BLINK” out the number of cleaning/sanitizing cycles
stored inside the Pro-Control when enabled.
For instance, the “GREEN LED” will represent the hundredths place, the “YELLOW
LED” will represent the tenths place and the “RED LED” will represent the ones place (
e.g.
136 stored cycles is represented with 1 Green blink, 3 Yellow blinks and 6 Red blinks,
indicating 136 available cycles are stored inside the unit
.)

7101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Section 6: LEXX™ Cups and Gallon Concentrate
“LEXX™Liquid Sanitizer and Cleaner
Concentrate”is the steam engine behind the
Hydra Rinse™Process. It’s naturally derived
ingredient provides for incredible efficiency, it also
has no negative impact on product mix or residual
taste when used as directed. Not only is it
tasteless, it doesn’t require rinsing after
application. LEXX’s ability to remove and prevent
Milkstone will be evident with every application.
The Hydra Rinse™System requires two
different products of the same formulation. The
“LEXX™ CUPS”, which come 72 per box provide for
36 automated cleaning cycles; one cup for
cleaning and one cup for sanitizing.
Within the box of “LEXX™ CUPS” is a 36 cycle
“TOKEN TAG”. You register the cups to the “Pro-
Control” using the included “TOKEN TAG”. This
step ensures the Hydra Rinse™Process is using the
specific cleaner/sanitizer it was created for; end
user safety, cleaning and sanitizing results depend
on LEXX™ Liquid Sanitizer and Cleaner
Concentrate.
There is also the 1 gallon version of LEXX™
Liquid Sanitizer and Cleaner Concentrate. The 1
gallon container directly attaches to the
HRWAND128 “WSF128-169 Portable
Wandstation”.
The HRWAND128 will be used to perform
many of the cleaning/sanitizing tasks within the
Hydra Rinse™ Process.
.
(Illustration of TOKEN TAG)

8101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Section 7: Registration of Token Tag
(For reading out number of available cycles, use an old/previous registered “TOKEN TAG”!)
Before the Pro-Control can be put into operation, first install batteries (Section 17:
Battery Replacement) followed by registration of the “TOKEN TAG”. The “TOKEN TAG” can
be found inside the box of HRLEXXCUPS72; more specifically it’s directly attached to the
LEXX™ Liquid Sanitizer and Cleaner Concentrate product insert card.
To register your new box of cups, hold the “TOKEN TAG” up against the “HR
SYMBOL” located on the top cover of the Pro-Control as illustrated; placing the portion of
the Token Tag that contains the printed number of cycles up against the “HR SYMBOL”
i.e. exactly in the center of the “HR SYMBOL” as illustrated.
While holding the “TOKEN TAG” in position, whether for registering or reading, press
and then release the “RESET-CUPS-PROGRAM” button; the LEDs will begin to illuminate.
Once the “TOKEN TAG” has been successfully registered a “BEEP” will be heard, followed
by the “STATUS INDICATORS” blinking out the number of stored cycles within the Pro-
Control.
In order to conclude the “TOKEN TAG” registration process, once again press and
then release the “RESET-CUPS-PROGRAM” button, but this time without the “TOKEN TAG”
present. This will reset the Pro-Control rendering it ready for use.
OPTIMAL
PLACEMENT
FOR READING
TAG

9101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Section 8: Referenced Components
IMAGES FOR ILLUSTRATION ONLY
Item:
Description:
01
HYDRA RINSE™ WIPES
02
LEXX™ CUPS
03
LEXX™ Liquid Sanitizer and Cleaner Concentrate
04
LEXX™ pH TEST STRIPS (Included with Bundle)

10 101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Section 9: Required Water and Drain Source
WATER SOURCE:
It’s important to have proper water
pressure, water flow and water temperature
(Section 1: Installation Guidelines). To
ensure water temperature stays constant
during the automated sequence, a
“TEMPERATURE MIXING VALVE” (1) is
recommended; must be installed in
accordance with all applicable Local, State,
National and Provincial Codes, Ordnances,
Regulations and Laws.
Once the “FITTING, Y-GHT SPLITTER”
item (17) is snug fitted to the
“TEMPERATURE MIXING VALVE” item (1),
continue to rotate the female GHT fitting
counter clockwise for an additional 90-110°
to insure a good tight fit. Repeat the same
process for installing both the”25 FOOT
POLYURETHANE 3/8” O.D. WATER SUPPLY
ASSEMBLY” item (16) and for the combined
“5 FOOT HOSE ASSEMBLY
/
EXTENDED
WATER SUPPLY HOSE”item (15).
DRAIN SOURCE:
There are three approved methods for
waste discharge that flows from the “25’
BYPASS SYSTEM DRAIN HOSE”, which
extends from the “BYPASS SYSTEM”.
Unlike discharging waste through the
“FREEZER DOOR” as in manual operations,
the automated sequence of the Hydra
Rinse™Process manages waste by
removing it up through the food product
mix inlet hole(s), completely opposite of
traditional methods.
The uses of a Sink, Drain Inlet, or a NSF
approved floor drain e.g. 1-½” above drain
gate, are all valid options for the waste
discharge.
( Image for illustration only ) FIG.B
FIG.A
5 Foot Hose
Assembly
Extended water
supply hose

11 101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Section 10: WSF128-169 Portable Wandstation
MOUNTING BRACKET:
The “MOUNTING BRACKET”performs
three simple features:
1. It provides a sturdy nesting place for
the HRWAND128 “WSF128-169
PORTABLE WANDSTATION”.
2. It’s designed to be NSF compliant,
meaning that it requires no tools for
easy cleaning and removal for going
mobile.
3. The lower hanging feature allows for
easy stowing of the “POLYURETHANE
3/8” O.D. WATER SUPPLY HOSE”
Note: There are two mounting holes
(Section 1: Installation Guidelines) 5 7/8”
apart for securing to a vertically solid
surface (anchor bolts sold separately).
HARD NON-POROUS FOOD
CONTACT SURFACES:
The HRWAND128 “WSF128-169
PORTABLE WANDSTATION” can be used
on all hard non-porous food contact
related surfaces of all soft serve equipment
during the Hydra Rinse™ Process. The
Wandstation eliminates the need for
manual mixing of cleaner/sanitizer
solution.
FIG.C
FIG.D

12 101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Section 11: Upgraded Components
UPGRADED COMPONENTS:
Each STLHRvariant comes with one
Upgrade Kit. Be sure to upgrade every soft
serve machine that is intended for cleaning
with the Hydra Rinse™ System
(www.hydrarinse.com). Hydra Rinse™
upgraded components are specific for
every STLHRvariant.
Installation of these upgraded
components allows the Hydra Rinse™
System to perform efficiently.
Food safe lube will no longer be
applied to many of the illustrated
components in FIG.E, with the exception to
the machine “BEATER SHAFT”.
( Image for illustration only ) FIG.F
( Image for illustration only ) FIG.E

13 101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Section 12: NSF Certified Hydra Rinse™ Process
Step 1: Review Section 14: “Details of the Hydra Rinse™ Process” before referencing this document
Step 2: Place machine in “Sleep Mode”. Wait approximately 4 to 5 hours for product to reach temperature >30°F (-1.1°C). Take machine
out of “Sleep Mode” and ensure “Freeze Mode” is disabled for each freezing cylinder. Prepare utility items e.g. buckets, brushes, etc.
Step 3: Remove product mix, mix container(s) and drawers if applicable. Carefully reposition suction tube inlet(s)/adaptor(s) to the back of the
refrigeration cabinet; if there is a top cover(s), clean/sanitize using LEXX™ solution, wipes and/or towels (place on sanitized surface).
Step 4: Place a two bay catch bucket in lower refrigeration cabinet that has either 2 US gallons of warm water (112°F/ 44.4°C) or LEXX™
solution; move end of suction tube inlet(s)/adaptor(s) into empty bay. Turn on “Pump” and “Clean Mode” for each freezing cylinder.
Drain product from soft serve machine into sanitized bucket(s) if intended for re-run (immediately refrigerate). Turn off “Pump” and
“Clean Mode” for each freezing cylinder.
Step 5: Submerse end of suction tube inlet(s)/adaptor(s) into the two bay catch bucket solution. Turn on “Pump” and open the air bleed valve
for each freezing cylinder. Fill freezing cylinder until discharge from air bleeder valve(s) occurs. Close air bleed valve(s), de-activate the
Pump(s), and place each freezing cylinder in “Clean Mode” for ~2 minutes, and then drain. If removing product mix that is frozen
and/or has >= 10% fat content, refill two bay catch bucket with ~2 US gallons of LEXX™solution using wand and repeat STEP 5.
Step 6: Prepare front door: Remove spigot(s), flush air bleeder valve(s) with LEXX™ solution. Also flush and wipe clean all exposed surfaces
of the front door using wand, wipes and/or towels.
Step 7: Clean/flush suction tube inlet adaptor check valve(s) if applicable, and re-submerse in LEXX™ solution. Remove manifold blocks; flush
and wipe clean both the manifold block(s) and the manifold switch mount(s). Install the bypass manifold; remember to fasten the
bypass manifold clip(s) to the manifold block(s) to avoid spillage. Securely connect bypass drain line to an approved drain source.
Step 8: Install the pro-control and engage keeper switch to secure in place.
Step 9: Wet the quick connect on either the pro-control or on the water supply hose with LEXX™ solution and/or wipes.
Step 10:Connect water supply to the pro-control, and insert new LEXX™ cups into the cleaner and sanitizer cup housings (Ensure
tokens are registered and water source is on).
Step 11:Review readiness check list. Press and then release the “ONE TOUCH” button to initialize the pro-control cycle.
Step 12: Open the air bleed valve(s) for each freezing cylinder. Hold open for ~35 seconds, or first audible beep from the pro-control. Release
air bleed valve(s). Turn on “Pump” and “Clean Mode” for each freezing cylinder.
Step 13: Begin cleaning removed components i.e. spigot(s), mix container(s) and drawer(s) if applicable; once the LEXX™ solution is depleted
from the two bay catch bucket, turn off the “Pump” for each freezing cylinder.
Step 14: Pause the pro-control cycle when prompted (sequential audible beeps with all three LEDs Flashing). Take soft serve
machine out of “Clean Mode”for each freezing cylinder; power off the soft serve machine. Disconnect the water supply hose, drain
machine (Section 14 page 31) and then remove the pro-control from the front door. Remove front door and internal
components of the soft serve machine for mechanical scrubbing; clean and then sanitize all components including all front
door components/surfaces; follow manufacturer’s recommended cleaning protocol for the lower refrigeration cabinet (you’ll need to
temporarily remove the bypass system). Re-assemble soft serve machine, and then re-install front door. Re-connect the pro
control, bypass system and water supply hose. Power up the soft serve machine. Press and then release the “PAUSE/PLAY” button
on the pro-control to resume cycle. Hold open the air bleed valve(s) for ~35 seconds. Release the air bleed valve(s). Place soft serve
machine back into “Clean Mode”for each freezing cylinder.
Step 15: Continue to clean and sanitize mix container(s), drawer(s) if applicable and whatever still needs cleaning while the pro-control is
completing its sanitizing cycle.
Step 16:When the “Green LED” is steadily blinking, the pro-control cycle is complete. Take machine out of “Clean Mode” for each freezing
cylinder. Disconnect the right “Manifold Block” from the “Bypass manifold”, and allow solution to drain into an empty bay of the
two bay catch bucket. Place sanitized catch bucket under the pro-control. Remove left cup housing, and temporarily turn on “Clean
Mode” for each freezing cylinder to drain any remaining solution from the machine. Re-attach left cup housing after draining is
completed.
Step 17:Disengage the keeper switch, and remove the pro-control and the bypass system from soft serve machine. Give the lower
refrigeration cabinet a good rinse and wipe down; reassembly soft serve machine front door with spigot(s), lower refrigeration
cabinet components, mix container(s) and drawer(s) if applicable.
Step 18:Wipe down soft serve machine outer shell with wipes and/or toweling. Check and clean all drip tray(s)/pan(s).
Step 19:Reconnect the water supply hose to the pro-control, and run “Self-clean Mode” while cleaning with wipes and/or towel (enter self-
clean mode by holding down both the “One Touch” and the “Play/Pause” buttons simultaneously for 5 seconds).
Step 20:Sanitize bypass manifold, OEM barrel brushes and anything else used during this process with LEXX™ solution before stowing.
Step 21:Add product mix and return mix container cover(s) if applicable; place machine in “Freezing Mode”. If product mix is not being added
Back into the soft serve machine following this process, then remove the front door and all internal components for air drying.
Remember to perform a Pro-Control self-cleaning cycle after every use.
Upgrading soft serve machine (Section 11: Upgraded Components) prior to performing the Hydra Rinse™Process is required

14 101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Section 13:NSF Certified Flavor Change Process
Step 1: Review Section 14: “Details of the Hydra Rinse™ Process” before referencing this document
Step 2: Place machine in “Sleep Mode”. Wait approximately 4 to 5 hours for product to reach temperature >30°F (-1.1°C). Take machine
out of “Sleep Mode” and ensure “Freeze Mode” is disabled for each freezing cylinder. Prepare utility items e.g. buckets, brushes, etc.
Step 3: Remove product mix, mix container(s) and drawers if applicable. Carefully reposition suction tube inlet(s)/adaptor(s) to the back of the
refrigeration cabinet; if there is a top cover(s), clean/sanitize using LEXX™ solution, wipes and/or towels (place on sanitized surface).
Step 4: Place a two bay catch bucket in lower refrigeration cabinet that has either 2 US gallons of warm water (112°F/ 44.4°C) or LEXX™
solution; move end of suction tube inlet(s)/adaptor(s) into empty bay. Turn on “Pump” and “Clean Mode” for each freezing cylinder.
Drain product from soft serve machine into sanitized bucket(s) if intended for re-run (immediately refrigerate). Turn off “Pump” and
“Clean Mode” for each freezing cylinder.
Step 5: Submerse end of suction tube inlet(s)/adaptor(s) into the two bay catch bucket solution. Turn on “Pump” and open the air bleed valve
for each freezing cylinder. Fill freezing cylinder until discharge from air bleeder valve(s) occurs. Close air bleed valve(s), de-activate the
Pump(s), and place each freezing cylinder in “Clean Mode” for ~2 minutes, and then drain. If removing product mix that is frozen
and/or has >= 10% fat content, refill two bay catch bucket with ~2 US gallons of LEXX™ solution using wand and repeat STEP 5.
Step 6: Prepare front door: Remove spigot(s), flush air bleeder valve(s) with LEXX™ solution. Also flush and wipe clean all exposed surfaces of
the front door using wand, wipes and/or towels. Ensure ~ 2 US gallons of LEXX™ solution is available in the two bay catch bucket.
Step 7: Clean/flush suction tube inlet adaptor check valve(s) if applicable, and re-submerse in LEXX™ solution. Remove manifold blocks; flush
and wipe clean both the manifold block(s) and the manifold switch mount(s). Install the bypass manifold; remember to fasten the
bypass manifold clip(s) to the manifold block(s) to avoid spillage. Securely connect bypass drain line to an approved drain source.
Step 8: Install the pro-control and engage keeper switch to secure in place.
Step 9: Wet the quick connect on either the pro-control or on the water supply hose with LEXX™ solution and/or wipes.
Step 10:Connect water supply to the pro-control, and insert new LEXX™ cups into the cleaner and sanitizer cup housings (Ensure
tokens are registered and water source is on).
Step 11:Review readiness check list. Press and then release the “ONE TOUCH” button to initialize the pro-control cycle.
Step 12: Open the air bleed valve(s) for each freezing cylinder. Hold open for ~35 seconds, or first audible beep from the pro-control. Release
air bleed valve(s). Turn on “Pump” and “Clean Mode” for each freezing cylinder.
Step 13: Begin cleaning removed components i.e. spigot(s), mix container(s) and drawer(s) if applicable, and whatever needs cleaning while
the pro-control is completing its sanitizing cycle (~7 minutes). Once the ~2 US gallons of LEXX™solution is depleted from the two
bay catch bucket, turn off the “Pump” for each freezing cylinder.
Step 14: When the “Green LED” is steadily blinking, the pro-control cycle is complete. Take machine out of “Clean Mode” for each freezing
cylinder. Disconnect the right “Manifold Block” from the “Bypass manifold”, and allow solution to drain into an empty bay of the
two bay catch bucket. Place sanitized catch bucket under the pro-control. Remove left cup housing, and temporarily turn on “Clean
Mode” for each freezing cylinder to drain any remaining solution from the machine. Re-attach left cup housing after draining is
completed.
Step 15: Disengage the keeper switch, and remove the pro-control and the bypass system from soft serve machine. Use LEXX™ solution, OEM
barrel brushes, wipes and/or towels to mechanically scrub the spigot port(s); flush air bleed valve(s) if needed. Give the lower
refrigeration cabinet a good rinse and wipe down; reassembly soft serve machine front door with spigot(s), lower refrigeration
cabinet components, mix container(s) and drawer(s) if applicable.
Step 16:Wipe down soft serve machine outer shell with wipes and/or toweling. Check and clean all drip tray(s)/pan(s).
Step 17:Reconnect the water supply hose to the pro-control, and run “Self-clean Mode” while cleaning with wipes and/or towel (enter self-
clean mode by holding down both the “One Touch” and the “Play/Pause” buttons simultaneously for 5 seconds).
Step 18:Sanitize bypass manifold, OEM barrel brushes and anything else used during this process with LEXX™ solution before stowing.
Step 19:Add product mix and return mix container cover(s) if applicable; place machine in “Freezing Mode”. If product mix is not being added
Back into the soft serve machine following this process, then remove the front door and all internal components for air drying.
Upgrading soft serve machine (Section 11: Upgraded Components) prior to performing the Hydra Rinse™Process is required
Remember to perform a Pro-Control self-cleaning cycle after every use.

15 101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®

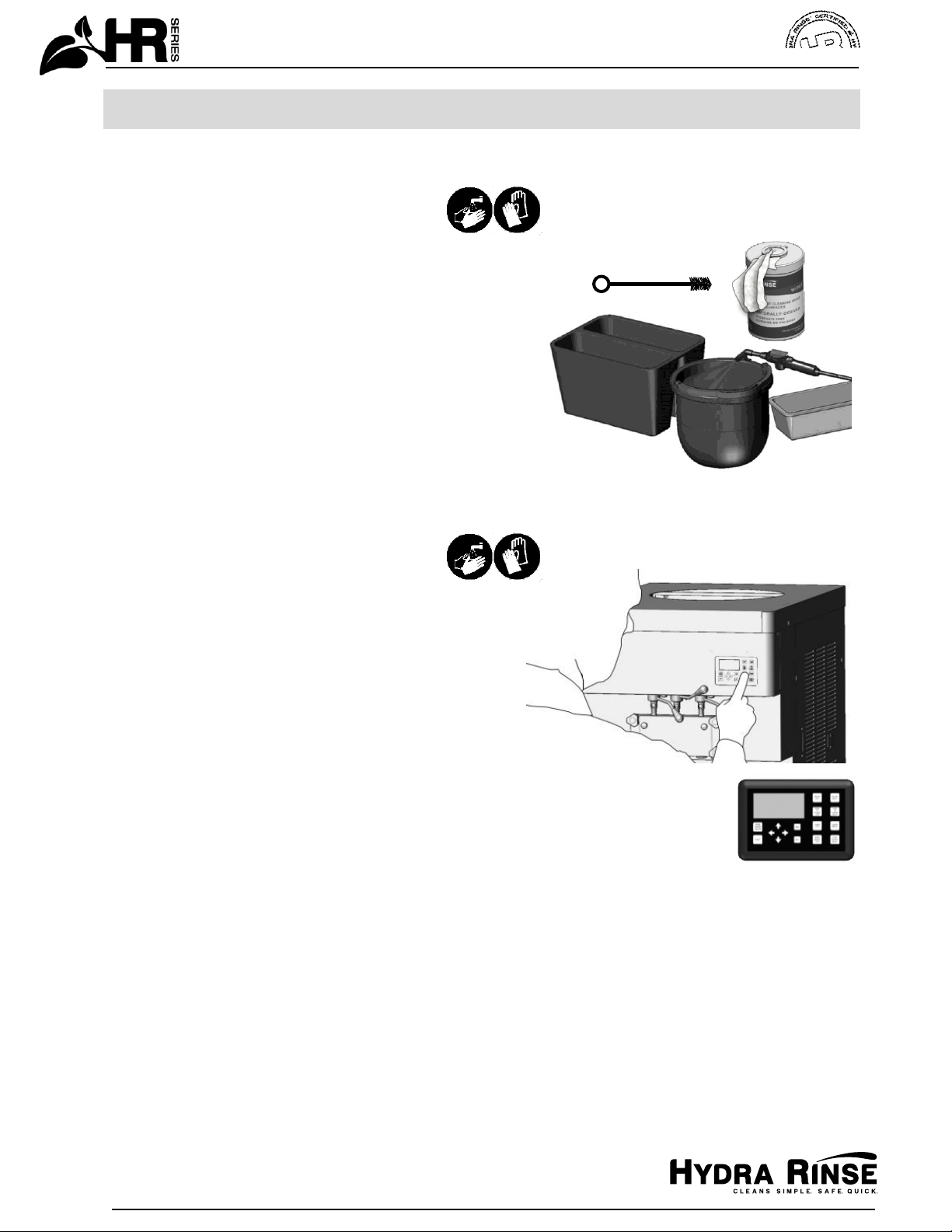

Section 14: Details of the Hydra Rinse™ Process
[For cleaning frequency, please refer to your Original Equipment Manufacturer (OEM) recommendations]
PREPERATION OF UTILITY ITEMS:
It’s always good practice to clean and
sanitize all utility items like Waste Catch
Buckets and OEM Brushes before beginning
the cleaning and sanitizing of the soft serve
machine; use the “WSF128-169 PORTABLE
WANDSTATION”(HRWAND128) and
Hydra Rinse™ Wipes for time savings and
operator efficiency.
DISABLE FREEZE MODE:
Allow the soft serve machine to be in
“SLEEP MODE”FIG2 for a minimum of 4
hours to optimize the volume of product
mix recovery.
This step will also reduce the number
of pre-rinse cycles required when compared
to removing frozen product mix from the
freezing cylinder(s).
Fill a “TWO BAY CATCH BUCKET” with
warm water (~112.5°F (44.7°C)) or LEXX™
solution if removing frozen product mix
from the freezing cylinder(s): Lock the
HRWAND128 Trigger in the dispensing
position for automatic operation.
Note: Using the LEXX™ sanitizing and
cleaning solution in place of warm water
will increase the proficiency associated
with the removal of frozen product mix
(also suggested for product mix with
greater than or equal to 10% fat content).
( Image for illustration only ) FIG.1
( Image for illustration only ) FIG.2
Note: Ensure that “FREEZE MODE” is disabled for
each Freezer Cylinder.

16 101-1620 P.01
© COPYRIGHT HYDRA RINSE, LLC 2017 | ALL RIGHTS RESERVED
Catalog Number: HRKT0060
™
®
Section 14: Details of the Hydra Rinse™ Process
PREPPING LOWER CABINET:
If the soft serve machine is configured
to use product mix in bags instead of
being added directly to a “MIX
CONTAINER(S)”: First disconnect Product
Mix Bag(s) and remove from product
drawers; removing product drawer(s)
independent from the product reduces the
overall weight FIG.3; carefully reposition
the “SUCTION TUBE ADAPTOR(S)” to the
back of the machine.
SUCTION TUBE INLET:
It’s important that the “SUCTION TUBE
INLET ADAPTOR(S)” is unobstructed during
the cleaning and sanitizing process. If the
suction tube adaptor is equipped with a
removable one way check valve FIG.4, leave
it in place until instructed otherwise.
( Image for illustration only ) FIG.4
( Image for illustration only ) FIG.3
( Image for illustration only ) FIG.5
Product Mix
Adaptors
Product Mix
Adaptor Check
Valve
This manual suits for next models
1
Table of contents
Popular Accessories manuals by other brands

nooie
nooie SA10 quick start guide

ROSE DISPLAYS
ROSE DISPLAYS SUPERSNAP WITH WALL HANGERS instruction sheet

PCB Piezotronics
PCB Piezotronics 118B03 Installation and operating manual

PCB Piezotronics
PCB Piezotronics ICP M124A21 Installation and operating manual

PCB Piezotronics
PCB Piezotronics M165A01 Installation and operating manual

KRHÜNER
KRHÜNER 60026 instruction manual
