HYOSUNG GV 650 C User manual

Part No. 99011HA9570
JUL. 2010.
Printed in KOREA
1st Ed.
This owner’s manual contains important safety information.
Please read it carefully.
WARNING
AUSTRALIA

1
This manual should be considered a permanent part of the motorcycle and
should remain with the motorcycle when resold or otherwise transferred to
a new owner or operator. The manual contains important safety informa-
tion and instructions which should be read carefully before operating the
motorcycle.

2
BATTERY INITIAL CHARGING
uses a battery ignition system.
Do not permit to start or operate the motorcycle without the battery otherwise the elec-
trical system will be damage.
Always start or ride the motorcycle with the correct battery installed and connected.
WARNING
Do not use the battery without the battery initial charging.
Otherwise the battery service life may be shortened.
1. BATTERY INITIAL CHARGING
Initial charging of the battery is required after filling electrolyte to improve the battery dura-
bility.
2. BATTERY INSTALLATION
①Fill the electrolyte to the battery.
②Leave the battery for 30 minutes.
③Charge the battery by standard charging. This is necessary for reliability of the battery.
④Install the battery to the motorcycle.
`※ STANDARD CHARGING TIME : 1.2 A for 10 hours
CAUTION

3
All information, illustrations photographs
and specifications contained in this manual
are based on the latest product information
available at the time of publication. Due to
improvements or other changes, there may
be some discrepancies between information
in this manual and your motorcycle.
Hyosung reserves the right to make
changes at any time, without notice and
without incurring any obligation to make the
same or similar changes to motorcycles
previously built or sold.
Please note that this manual applies to all
specifications for all respective destinations
and explains all equipments. Therefore,
your model may have different standard
features than shown in this manual.
󳟈 COPYRIGHT S&T Motors Co., Ltd.
FOREWORD
THANK YOU for choosing a Hyosung
motorcycle. We at Hyosung have
designed, tested and produced this motor-
cycle using the most modern technology
available to provide you with many years of
enjoyable, safe riding. Motorcycling is one of
the most exhilarating sports and to ensure
your riding enjoyment, you should become
thoroughly familiar with the information pre-
sented in this Owner's Manual before riding
the motorcycle.
The proper care and maintenance that
your motorcycle requires is outlined in this
manual.
By following these instructions explicitly
you will ensure a long trouble-free operating
life for your motorcycle. Your Hyosung
dealer has experienced technicians that are
trained to provide your machine with the
best possible service with the right tools and
equipment.

4
IMPORTANT
BREAK-IN INFORMATION FOR
YOUR MOTORCYCLE
The first 1,600 km (1,000 miles) are the
most important in the life of your motorcycle.
Proper break-in operation during this time
will help ensure maximum life and perfor-
mance from your new motorcycle.
Hyosung parts are manufactured of high
quality materials, and manufactured parts
are finished to close tolerances. Proper
break-in operation allows the machined sur-
faces to polish each other and mate
smoothly.
Motorcycle reliability and performance
depend on special care and restraint exer-
cised during the break-in period. It is espe-
cially important that you avoid operating the
engine in a manner which could expose the
engine parts to excessive heat.
Please refer to the BREAK-IN section for
specific break-in recommendations.
WARNING / CAUTION / NOTE
Please read this manual and follow its
instructions carefully.
To emphasize special information the
words『WARNING』,『CAUTION』and
『NOTE』have special meanings.
Information following these signal words
should be carefully reviewed.
These instructions point out special ser-
vice procedures or precautions that
must be followed to avoid damaging the
machine.
The personal safety of the rider may be
involved. Disregarding this information
could result in injury to the rider.
WARNING
CAUTION
N O T E
This provides special information to
make maintenance easier or important
instructions clearer.

WARNING
5
Noise Control System (muffler assembly)
TAMPERING WITH NOISE CONTROL SYSTEM PROHIBITED
Owners are warned that the law may prohibit :
(a) The removal or rendering inoperative by any person other than for the
purpose of maintenance, repair or replacement, of any device or ele-
ment of design incorporated into any new vehicle for the purpose of
noise control prior to its any sale or delivery to the ultimate purchaser or
while it is in use ; and
(b) The use of the vehicle after such device or element of design has been
removed or rendered inoperative by any person.
MAINTENANCE :
The exhaust system of this motorcycle requires no periodic maintenance.
The engine should be adjusted to the manufacture’ s specifications and the
spark plug should be kept in good condition. Running the engine with
incorrectly operating spark plug or misadjusted fuel injection system may
cause permanent damage to the catalyst and to the noise control system.

WARNING
WARNING
6
Motorcycle riding is great fun and an excit-
ing sport. Motorcycle riding also requires
that some extra precautions be taken to
ensure the safety of the rider and passen-
ger. These precautions are :
●●Before first use of
read this owner’s manual
carefully to become familiar with the
motorcycle features, and safety and
maintenance requirements.
Review all instructions, requirements
and warnings with the riders. Keep
the owners manual in the owners
manual storage compartment located
under the seat.
●●Before the rider’s first use of
, make sure
that he / she is familiar with the loca-
tion and operation of all controls, and
has been instructed in the proper
operation of the motorcycle.
●●For first use of
, find a level, open area for
the rider to use to become familiar
with the operation of controls and the
operating and handling characteris-
tics of the motorcycle
.
●●Before each use, perform daily
inspections with the rider. Specific
items to check are listed in the
INSPECTION BEFORE RIDING sec-
tion on page 50 of this owner’s man-
ual.
●●Make sure the rider wears a helmet,
eye protection, and protective cloth-
ing (gloves, leather or heavy cloth
pants, long sleeved shirt or jacket,
boots).
●●Permit use only by two persons.
The motorcycle is designed for use
only by one rider and one passenger.
●●Do not permit anyone to operate
under the
influence of alcohol or other drugs.
It may cause damage to the motorcy-
cle and alter handling characteristics.
●●Observe periodic maintenance
requirements. Your authorized
HYOSUNG dealer is trained and
equipped to perform this service.
●●Drain gasoline from the fuel tank
prior to transporting
.
●●Caution the rider and others near
not to get
close to or touch any moving parts or
any heated areas such as the engine
and exhaust system.
●●Do not make any modifications to
.
Modifications may make the motor-
cycle unsafe or illegal in your state.
CONSUMER INFORMATION
SAFE RIDING RECOMMENDATION
FOR MOTORCYCLE RIDERS

CAUTION
CAUTION
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
7
is equipped
with the side stand ignition interlock
system.
If the transmission is in neutral or side
stand up, you can only start the engine
by pulling in the clutch lever.
This side stand ignition interlock system
prevents the motorcycle from being
started with side stand down.
Make sure that the side stand ignition
interlock system is working properly
before riding.
●●Do not run the engine indoors or
where there is little or no ventilation.
Exhaust gases contain carbon
monoxide, a potentially lethal gas that
is colorless and odorless.
●●Never leave the motorcycle running
while unattended, even for a short
time.
The head lamp, position lamp, meter
lamp, tail lamp and license plate lamp on
this motorcycle always comes on when
the ignition switch is turned to the “ON”
position.
While operating
, the rider should keep both
feet on the footrests at all times, to avoid
injuries resulting from accidents.
Moving the rider’s feet from the
footrests reduces the rider’s ability to
control the motorcycle and could lead to
an accident.
Keep both hands on the handgrips at all
times when riding. Removing your
hands from the handgrips reduces your
ability to control the motorcycle, and
could result in an accident.
Always open the throttle gradually to
prevent front wheel lifting. Failure to
observe this precaution may result in
loss of control and an accident.
WHEN STORING FOR LONG PERIOD :
1. Fully fill the tank with fuel.
2. Remove the battery from the motorcy-
cle.
Do not turn the ignition switch to its
“OFF” position or the steering lock to
lock or the engine stop switch to its
“ ” position whilst riding the motorcy-
cle.

WARNING WARNING
WARNING
WARNING
WARNING
WARNING
8
⊙⊙WEAR A HELMET
⊙⊙RIDING APPAREL
⊙⊙INSPECTION BEFORE RIDING
⊙⊙FAMILIARIZE YOURSELF WITH
THE MOTORCYCLE
⊙⊙KNOW YOUR LIMITS
⊙⊙BE EXTRA SAFETY CONSCIOUS
ON BAD WEATHER DAYS
Motorcycle safety equipment starts with
a quality safety helmet. One of the most
serious injuries that can happen is a
head injury. ALWAYS wear a properly
approved helmet. You should also wear
a suitable eye protection.
Loose clothing can be uncomfortable
and unsafe when riding a motorcycle.
Use good quality motorcycle riding
apparel when riding your motorcycle.
Review thoroughly the instructions in
the “INSPECTION BEFORE RIDING”
section of this manual. Do not forget to
perform an entire safety inspection to
ensure the safety of the rider and its
passenger.
Your riding skill and mechanical knowl-
edge from the foundation for safe riding
practices.
We suggest that you practice riding
your motorcycle in a non-traffic situation
until you are thoroughly familiar with
your machine and its controls.
Remember practice makes perfect.
Ride within the boundaries of your own
skill at all times. Knowing these limits
and staying within them will help you to
avoid accidents.
Riding on bad weather days, especially
wet ones, requires extra caution.
Braking distances double on a rainy
day. Stay off of the painted surface
marks, manhole covers and greasy
appearing areas as they can be espe-
cially slippery.
Use extreme caution at railway cross-
ings and on metal gratings and bridges.
Whenever you have a doubt about road
condition, slow down!

WARNING
9
There are a great variety of accessories
available to Hyosung owners. Hyosung
can not have direct control over the quality
or suitability of accessories you may wish to
purchase except genuine parts.
The addition of unsuitable accessories
can lead to unsafe operating conditions. It
is not possible for Hyosung to test each
accessory on the market or combinations
of all the available accessories, however,
your dealer can assist you in selecting qual-
ity accessories and installing them correct-
ly.
Use extreme caution when selecting and
installing the accessories for your
Hyosung. We have developed some gen-
eral guidelines which will aid you when
deciding whether, and how to equip your
motorcycle.
1. In case that additional weight or aero-
dynamic affecting accessories are
installed, they should be mounted as
low as possible, as close to the motor-
cycle and as near the center of gravity
as is feasible. The mounting brackets
and other attachment hardware should
be carefully checked to ensure that it
provides for a rigid, nonmovable
mount. Weak mounts can allow the
shifting of the weight and create a dan-
gerous, unstable condition.
2. Inspect for proper ground clearance
and bank angle. An improperly mount-
ed load could critically reduce these
two safety factors. Also determine that
the “load” does not interfere with the
operation of the suspension, steering
or other control operations.
3. Accessories fitted to the handlebars or
the front fork area can create serious
stability problems. This extra weight will
cause the motorcycle to be less
responsive to your steering control.
The weight may also cause oscillations
in the front end and lead to instability
problems. Accessories added to the
machine should be as light as possible
and kept to a minimum.
4. The motorcycle may be affected by a
lifting condition or by an instability in
cross winds or when being passed or
passing large vehicles. Improperly
mounted or poorly designed acces-
sories can result in an unsafe riding
condition, therefore caution should be
used when selecting and installing all
accessories.
5. Certain accessories displace the rider
from his or her normal riding position.
ACCESSORY INSTALLATION AND
PRECAUTION SAFETY TIPS
Improper accessories or modifica-
tions can make your motorcycle
unsafe and can lead to an accident.
Never modify the motorcycle with
improper or poorly installed acces-
sories. Follow all instructions in this
owner’s manual regarding acces-
sories and modifications. Use gen-
uine Hyosung accessories or equiva-
lent designed and tested for your
motorcycle. Consult your Hyosung
dealer if you have any questions.

10
Modification of the motorcycle, or removal of
original equipment may render the vehicle
unsafe or illegal.
Obey all applicable equipment regulations in
your area.
This limits the freedom of movement of
the rider and may limit his or her control
ability.
6. Additional electrical accessories may
damage the existing electrical system.
Severe overloads may damage the
wiring harness or create a dangerous
situation due to the loss of electrical
power during the operation of the
motorcycle.
When carrying a load on the motorcycle,
mount it as low as possible and as close as
possible to the machine. An improperly
mounted load can create a high center of
gravity which is very dangerous and makes
the motorcycle difficult to handle. The size
of the “load” can also affect the aerodynam-
ics and handling of the motorcycle.
Balance the load between the left and
right side of the motorcycle and fasten it
securely.
MODIFICATION

11

1. SERIAL NUMBER LOCATION ················ 14
2. FUEL, ENGINE OIL AND ENGINE COOLANT
RECOMMENDATION ···················· 15
FUEL
ENGINE OIL
ENGINE COOLANT SOLUTION
3. NAMES OF EACH PARTS ··················18
4. CONTROLS ························· 21
IGNITION SWITCH
STEERING LOCK
IGNITION KEY
INSTRUMENT PANEL
LEFT HANDLE SWITCHES
RIGHT HANDLE SWITCHES
FRONT BRAKE LEVER ADJUSTMENT
REAR BRAKE PEDAL
GEARSHIFT LEVER
FOOTRESTS
SIDE STAND
SEAT LOCK
REAR SHOCK ABSORBER
HELMET HOLDER
5. SUPPLY OF GASOLINE, ENGINE OIL AND
ENGINE COOLANT····················· 36
GASOLINE
ENGINE OIL
ENGINE COOLANT
6. RIDING TIPS ·························44
STARTING THE ENGINE
STARTING OFF
USING THE TRANSMISSION
RIDING ON HILLS
STOPPING AND PARKING
7. BREAK-IN ·························· 48
TABLE OF CONTENTS
12

13
8. INSPECTION BEFORE RIDING ················50
9. PERIODIC MAINTENANCE ·················· 52
10. INSPECTION AND MAINTENANCE ·············56
TOOL
ENGINE OIL
GASOLINE
FUEL HOSE
ENGINE COOLANT
RADIATOR
RUBBER CAP OF CABLES
EXHAUST PIPE AND MUFFLER
FRONT AND REAR SUSPENSIONS
REAR-VIEW MIRRORS
REFLECTOR
BATTERY
AIR CLEANER
SPARK PLUG
IDLING ADJUSTMENT
THROTTLE CABLE PLAY ADJUSTMENT
CLUTCH CABLE ADJUSTMENT
DRIVE BELT
BRAKES
TIRES
BULBS
11. TROUBLESHOOTING ····················79
12. TRANSPORT ························81
13. CLEANING PROCEDURE ··················81
14. STORAGE PROCEDURE ··················83
15. LABEL····························84
16. SPECIFICATIONS [ ]···············87
17. SPECIFICATIONS [ ]···············89

14
Frame number :
Engine number :
Please write down the numbers in the box
provided below for your future reference.

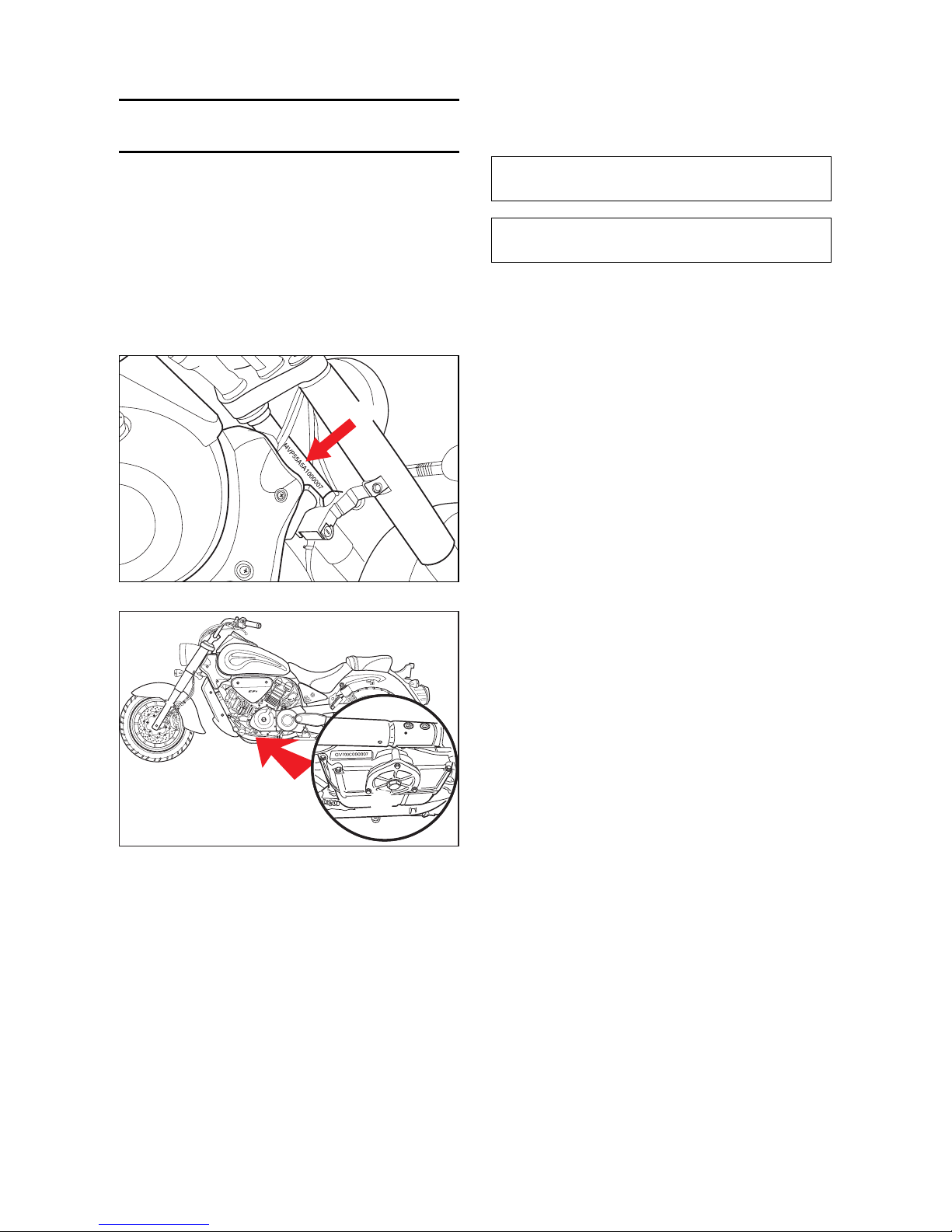

The frame serial number
① is stamped on
the right side of the steering head tube.
The engine serial number
② is stamped
on the left downside of the crankcase
assembly.
The frame and/or engine serial numbers
are used to register the motorcycle. They
are also to assist your dealer in terms of
ordering parts or referring to special ser-
vice information.
The frame number is also known as the
VIN or Vehicle Identification Number.
SERIAL NUMBER LOCATION
❶
❷
󱐑

N O T E
WARNING
CAUTION
15

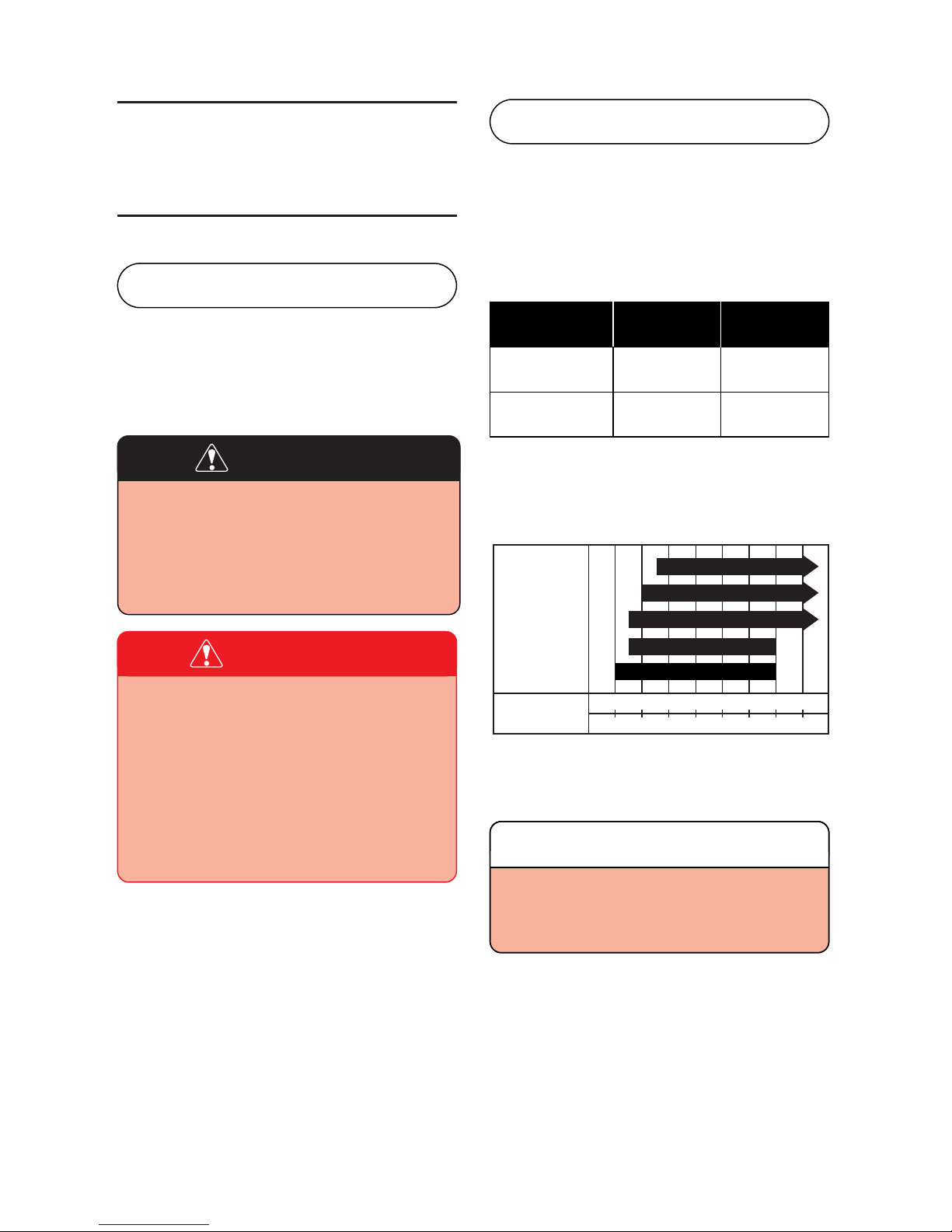

F U E L
ENGINE OIL
Classification
system
API
SAE
Grade
Over SL
10W/40
Remarks
⊙⊙ENGINE OIL SPECIFICATION
Use unleaded gasoline with an octane
rating of 91 or higher.
Unleaded gasoline can extend spark plug
life and exhaust components life.
Oil quality is a major contributor to your
engine’s performance and life.
Always select good quality engine oil.
Using a premium quality four stroke motor
oil will increase the service life of your
motorcycle.
※ If a SAE 10W/40 motor oil is not avail-
able, select alternative according to the
following chart.
FUEL, ENGINE OIL AND
ENGINE COOLANT
RECOMMENDATION
●When refueling, always shut the
engine off and turn the ignition key
to the “OFF” position.
Never refuel near the flames, sparks
and heat sources.
●Do not overfill the fuel tank.
Do not fill gasoline above the fuel
tank entrance lower end.
Spilling gasoline can damage the paint-
ed surfaces.
Be careful not to spill any fuel when fill-
ing the fuel tank.
Wipe spilled gasoline up immediately.
Use the chart to select a viscosity rating
based on temperature range in your area.
In very cold weather [below
- 15
℃℃
(5
˚˚
F)], use SAE 5W/30 for good starting
and smooth operation.
ENGINE OIL
Temperature
℃
℉
-30
-22
-20
-4
-10
14
0
32
10
50
20
68
30
86
40
104
20W50
15W40 15W50
10W40 10W50
10W30
5W30

CAUTION
WARNING
WARNING
16
ENGINE COOLANT SOLUTION
Use an engine coolant that is compatible
with aluminum radiator, mixed with distilled
water only at a 50 : 50 mixture ratio for
engine coolant solution.
An engine coolant mixture other than
50 : 50 can affect cooling efficiency or rust
inhibiting peformance.
Engine coolant is harmful or fatal if
swallowed or inhaled.
Do not drink anti-freeze or coolant
solution. If swallowed, do induce
vomiting. Immediately contact a poi-
son control center or a physician.
Avoid inhaling mist or hot vapors ; if
inhaled, remove to fresh air. If coolant
gets in eyes, flush eyes with water
and seek medical attention. Wash
thoroughly after handling. Solution
can be poisonous to animals.
Keep out of the reach of children and
animals.
Spilled engine coolant can damage
painted surfaces.
Do not spill any fluid when filling the
radiator. Wipe spilled engine coolant
up immediately.
⊙⊙WATER FOR MIXING
Use distilled water only.
Water other than distilled water can cor-
rode and clog the aluminum radiator.
●Don’t mix the unrecommended oil.
It could damage the engine.
●When refilling the oil, don’t allow the
dust to get inside.
●Wipe the spilled oil up immediately.

N O T E
17
This 50
%%
mixture will protect the cooling
system from freezing at temperatures
above
- 31
℃℃
.
If the motorcycle is to be exposed to
temperature below
- 31
℃℃
,,
this mixing
ratio should be increased up to 55
%%
( - 40
℃℃
) or 60
%%
( - 55
℃℃
).
The mixing ratio should not exceed
60
%%
.
⊙⊙ENGINE COOLANT
The engine coolant performs as rust
inhibitor and water pump lubricant as well
as anti-freeze.
Therefore the engine coolant should be
used at all times even though the atmos-
pheric temperature in your area does not
go down to freezing point.
50%
Water
Engine coolant
0.8
ℓ
0.8
ℓ
Required amount of water / coolant
Solution capacity (total) 1.6
ℓ
⊙⊙COOLANT RESERVOIR TANK
☞Refer to 42 page.

18

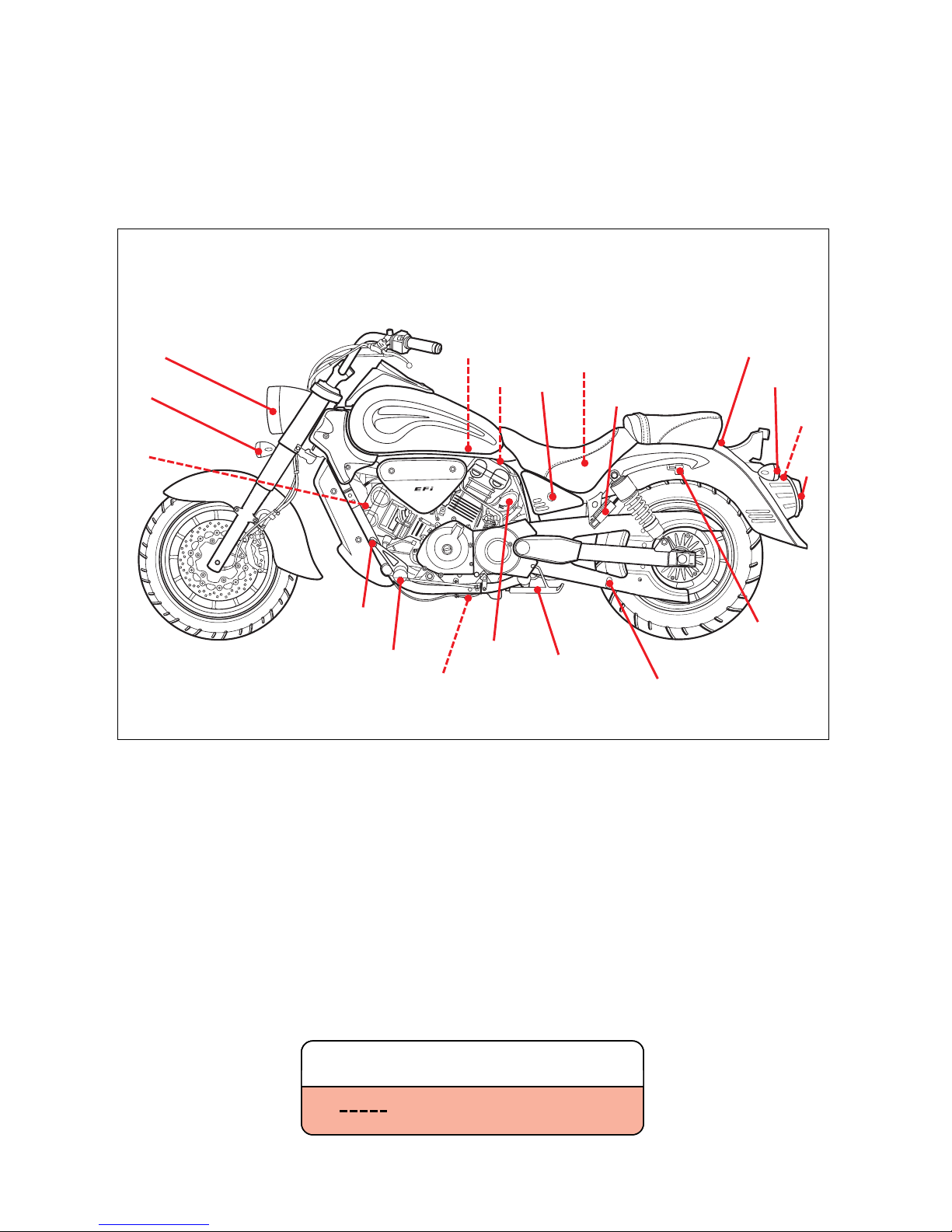

NAMES OF EACH PARTS
①Clutch lever
②Left handle switches
③Instrument panel
④Front brake fluid reservoir
⑤Right handle switches
⑥Front brake lever
⑦Throttle grip
⑧Fuel tank cap
❶
❹
❼
❽
❸
❷❺
❻

N O T E
19
⑨Spark plug (Front)
⑩Front turn signal lamp
⑪Head lamp & Position lamp
⑫Ignition coil (Rear)
⑬Spark plug (Rear)
⑭Front seat lock
⑮Battery & Fuses
⒃Passenger footrests
⒔Rear seat mounting bolt
⒕Rear turn signal lamp
⒖License plate lamp
⒗Brake / Tail lamp
󱇽Helmet holder
󱇾Belt case inspecting hole
󱇿Side stand
󱈀Coolant reserve tank
󱈁Engine oil drain plug
󱈂Footrests
󱈃Gearshift lever
“”
::
means the invisable parts.
❾
❿
󱆌󱆍
󱆎󱆏󱆐
󱆑
󱆒
󱆓
󱆔
󱆕
󱆖
󱆗
󱆘
󱆙
󱆚
󱆛
󱄨
