Hypercable HYC-N4006-26 User manual

www.hypercable.fr www.e-rake.fr
1
Dec, 2016
HYC-N4006-26
4.4~4.9GHz 2x2 MIMO HT-OFDM Radio
PTP Bridge / PTMP Mesh
User Manual
Includes install, configuration and trouble
shooting information for the broadband
wireless access outdoor radio.
Version 1.0.1

www.hypercable.fr www.e-rake.fr
2
Copyright
Copyright © 2021 all rights reserved. No part of this publication may be
reproduced, adapted, stored in a retrieval system, translated into any language,
or transmitted in any form or by any means without the written permission of
the supplier.
About This Manual
This manual includes install, configuration and trouble shooting for the 4GHz
2x2 MIMO HT-OFDM radio. It can help you in avoiding the unforeseen
problems and use the outdoor radio correctly.
Technical Support
If you have difficulty resolving the problem while installing or using the radio,
Please contact the supplier for support.

www.hypercable.fr www.e-rake.fr
3
Table of Contents
CONVENTIONS..............................................................................................................................4
CHAPTER 1 INTRODUCTION.........................................................................................................5
1-1 FEATURES AND BENEFITS......................................................................................................................5
CHAPTER 2 HARDWARE INSTALLATION ............................................................................................7
2-1 PRODUCT KIT.....................................................................................................................................8
2-2 SYSTEM REQUIREMENTS.......................................................................................................................8
2-3 MECHANICAL DESCRIPTION...................................................................................................................9
2-4 HARDWARE INSTALLATION ..................................................................................................................12
CHAPTER 3 CONFIGURATION .....................................................................................................13
3-1 START-UP AND LOG IN........................................................................................................................13
3-2 MESH PROTOCOL CONFIGURATION.......................................................................................................23
3-3 WIRELESS SETUP...............................................................................................................................24
3-4 MANAGEMENT.................................................................................................................................27

www.hypercable.fr www.e-rake.fr
4
Conventions
This publication uses the following conventions to convey instructions and
information:
This symbol means reader take note. Notes contain helpful suggestions or
references to materials not contained in this manual.
This symbol means reader be careful.In this situation, you might do something
that could result in equipment damage or loss of data.
This warning symbol means danger. You are in a situation that could cause
bodily injury. Before you work on any equipment, be aware of the hazards
involved with electrical circuitry and be familiar with standard practices for
preventing accidents.

www.hypercable.fr www.e-rake.fr
5
Chapter 1 Introduction
With MIMO High Throughput OFDM (HT-OFDM) technology, this radio is a high capacity
4GHz radio for Point to point Bridge or Wireless Mesh deployment. It utilizes coordinate

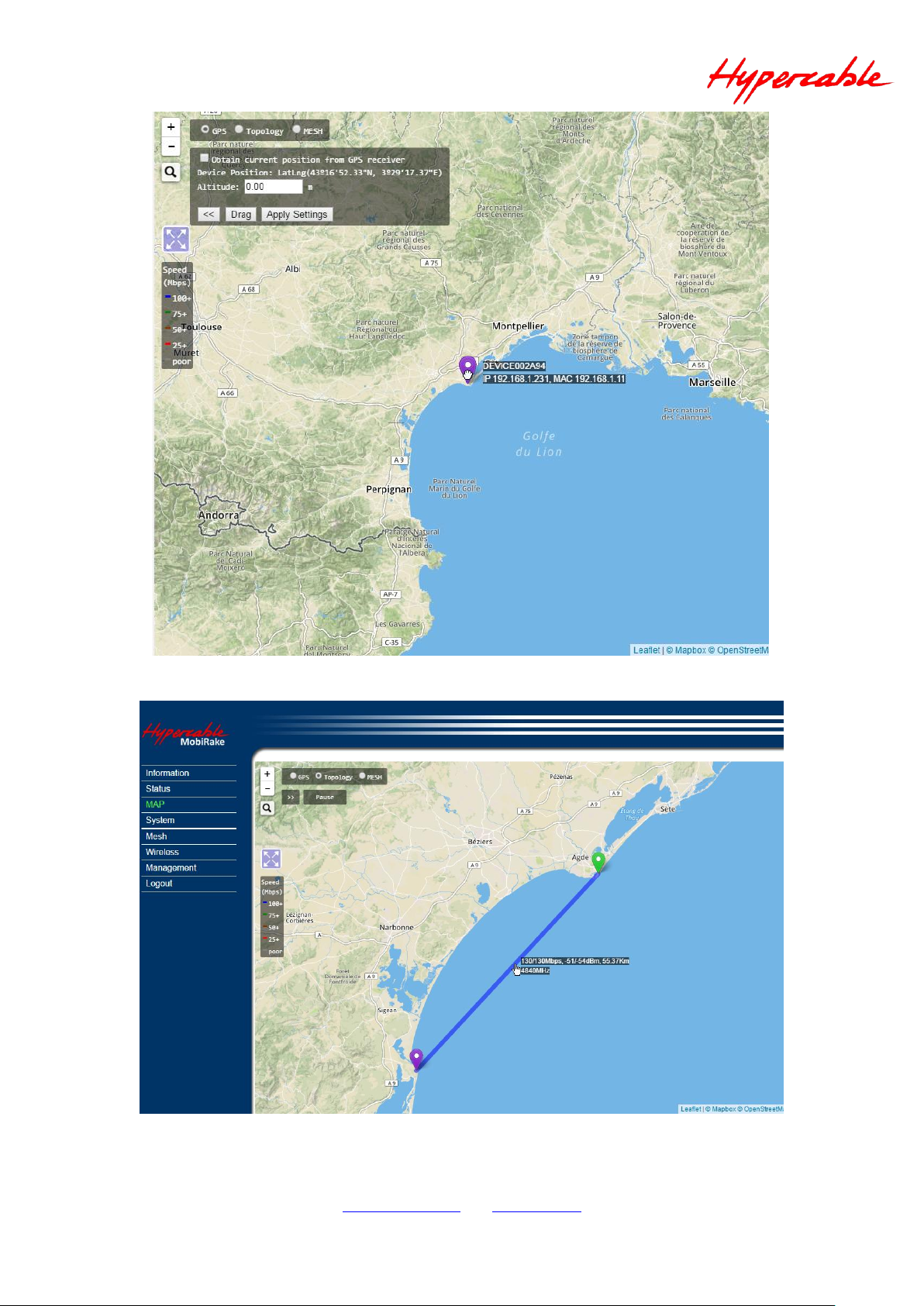

and internet map database to show the topology, status even route of the link.
Customers can easily figure out the linking situation of the deployed radios.
There are 7 channel BWs (2.5/5/10/15/20/30/40 MHz) options can be selected easily by
software. That provides the flexibility of deployment channel plan in high density city
area or high capacity wireless bridge in short distance.
This radio supports powerful security mechanism: WPA2-PSK (AES128) with proprietary
protocol. It also supports excellent MTBF performance by IP-68 dust & water resistant
ratings, integrated surge protection circuit in both radio and POE unit. All these functions
make this outdoor radio much more secure and reliable.
1-1 Features and Benefits
Effective spectrum utility / variable capacities with 7 channel BWs
This radio has 7 channel bandwidths (2.5/5/10/15/20/30/40 MHz) for optional, which is
adjustable via software. This function provides flexibilities of channel plan in crowded
urban environment and variable capacities for different applications.
MIMO HT-OFDM technology provides amazing spectral efficiency
Up to 5 bits/s/Hz amazing spectral efficiency for all channel BW provided by the MIMO
HT-OFDM technology. Work with the variable channel BW options, these two
combination features provides great benefits for both crowded urban area and rural area
with less interference.
Self-healing & self-forming Mesh Protocol
Automatic configuration and routing enables the mesh networks to be self-forming and
self-healing.
FETURES
Provides the easy installation for outdoor PTP bridge / PTMP Mesh applications with
high performance.
±2 ppm Frequency Stability for Mobility & NLOS
7 Channel BW (2.5/5/10/15/20/30/40 MHz)
5 bits/s/Hz amazing spectral efficiency
Network Architecture:
P-T-P Bridge
Mesh - Peer to peer

www.hypercable.fr www.e-rake.fr
6
Transmit Power Control :
Supports settable transmit power levels to adjust coverage cell size, ranging from
max.(100%) to 30% of max., the adjustment step is 1dB.
Fast Seamless Roaming
GPS Coordinates and Internet map database
IEC61000-4-5 Surge Protection
IP-68 Water & Dust Resistant

www.hypercable.fr www.e-rake.fr
7
Chapter 2 Hardware Installation
This chapter describes initial setup of the 4GHz 2x2 MIMO Radio
Warnings
In order to comply with international radio frequency (RF) exposure limits,
dish antennas should be laced at a minimum of 8.7 inches (22 cm) from the
bodies of all persons. Other antennas should be laced a minimum of 7.9 inches
(20 cm) from the bodies of all persons.
Do not work on the system or connect or disconnect cables during periods of
lightning activity.
This equipment must be grounded. Never defeat the ground conductor or
operate the equipment in the absence of a suitably installed ground conductor.
Contact the appropriate electrical inspection authority or an electrician if you
are uncertain that suitable grounding is available.
Ultimate disposal of this product should be handled according to all national
laws and regulations.
Do not locate the antenna near overhead power lines or other electric light or
power circuits, or where it can come into contact with such circuits. When
installing the antenna, take extreme care not to come into contact with such
circuits, as they may cause serious injury or death. For proper installation and
grounding of the antenna, please refer to national and local codes (e.g.
U.S.:NFPA 70, National Electrical Code, Article 810, in Canada: Canadian
Electrical Code, Section 54).
Only trained and qualified personnel should be allowed to install, replace, or
service this equipment.
To meet regulatory restrictions, the radio and the external antenna must be
professionally installed. The network administrator or other IT professional
responsible for installing and configuring the unit is a suitable professional
installer. Following installation, access to the unit should be password
protected by the network administrator to maintain regulatory compliance.
The 4GHz 2x2 MIMO HT-OFDM radio and POE injector can be damaged by
incorrect power application. Read and carefully follow the installation
instructions before connecing the system to its power source.

www.hypercable.fr www.e-rake.fr
8
Follow the guidelines in this chapter to ensure correct operation and safe use
of the 4GHz 2x2 MIMO Radio.
2-1 Product Kit
Before installation, make sure that you have the following items:
4GHz 2x2 MIMO HT-OFDM Outdoor Radio…….......................…..…….…..…..…..x 1
Power over Ethernet………………………………………………………………...………….………x 1
Power Adapter……………………………….…….………………………………..………………....…x 1
Power Cord…………………………………………….……………………………………….………...…x 1
Water-proof connector for SFTP cable………………………………………….………………x 1
Mounting kits.……………………………….……….……………………………………………..........x 1
NOTE: If any of the above items are missing or damaged, please contact your local
dealer for support.
2-2 System Requirements
Before installing the 4GHz 2x2 MIMO HT-OFDM Outdoor Radio, please make sure that these
requirements have been met:
A 10/100/1000 Mbps Local Area Network device such as a hub or switch. (optional)
Category 5 UTP or STP networking cable. (From the PC to POE)
Category 5 SSTP or SFTP networking cable. (From the radio to POE)
A Web browser for configuration: Google Chrome or Microsoft IE 9.0 or later.
Installing TCP/IP protocol to the computer.
System Requirements

www.hypercable.fr www.e-rake.fr
9
2-3 Mechanical Description
Please refer to the following table for the meaning of each feature.
ODU: (External antenna)
4GHz 2x2 MIMO HT-OFDM Outdoor Radio Figure
Note:
1. RF1-Primary port connect to V. polarization of the MIMO antenna.
2. RF1-Secondary port connect to H. Polarization of the MIMO antenna.
Note: screw the cap back well after you use the reset button.
This equipment must be grounded. Never defeat the ground conductor or
operate the equipment in the absence of a suitably installed ground conductor.
Contact the appropriate electrical inspection authority or an electrician if you
are uncertain that suitable grounding is available.
1
RJ-45 Port –Ethernet 1
Ethernet with DC current by POE, Use the SFTP cat.5 cable with weatherproof
connector to connect to the “To ODU” side of the POE injector.
2
M12 –Ethernet 2
Ethernet Only by Ethernet cable with M12 connector.
3
N- Jack Antenna connector
Here you can attach the N-type external antenna to the 4GHz 2x2 MIMO Radio. In
order to improve the RF signal radiation of your antenna, proper antenna
installation is necessary.
4
RSSI level via LED
RSSI level via LED indicator, more LED represent stronger RSSI.
5
Reset button
Revolve the plastic cap, you will see the reset button. Press it and hold for 5~10
seconds, the radio will back to factory default settings.
6
Grounding stud
Connect to the ground conductor with the ground wire.
7
Membrane Vent
1. Moisture vapor permeable to help aid in condensation and fogging reduction
in the ODU.
2. High airflow allows pressure equalization to prevent stress on enclosure seals
Grounding stud
Reset button
Membrane Vent
Grounding stud
RJ-45 Port
(Ethernet 1)
RF1- Primary
RF1- Secondary
LED for RSSI
M12 –Ethernet 2
M12 Cap

www.hypercable.fr www.e-rake.fr
10
Antenna location definition:
※Note:
1. When you set the RF to 1x1 instead of 2x2 MIMO, only Primary port works.
2. RF1 = Wireless 1 / RF2 = Wireless 2 in the configuration page.
RF1- Primary
RF1- Secondary
N/A
GPS Ant

www.hypercable.fr www.e-rake.fr
11
+/- 48VDC POE

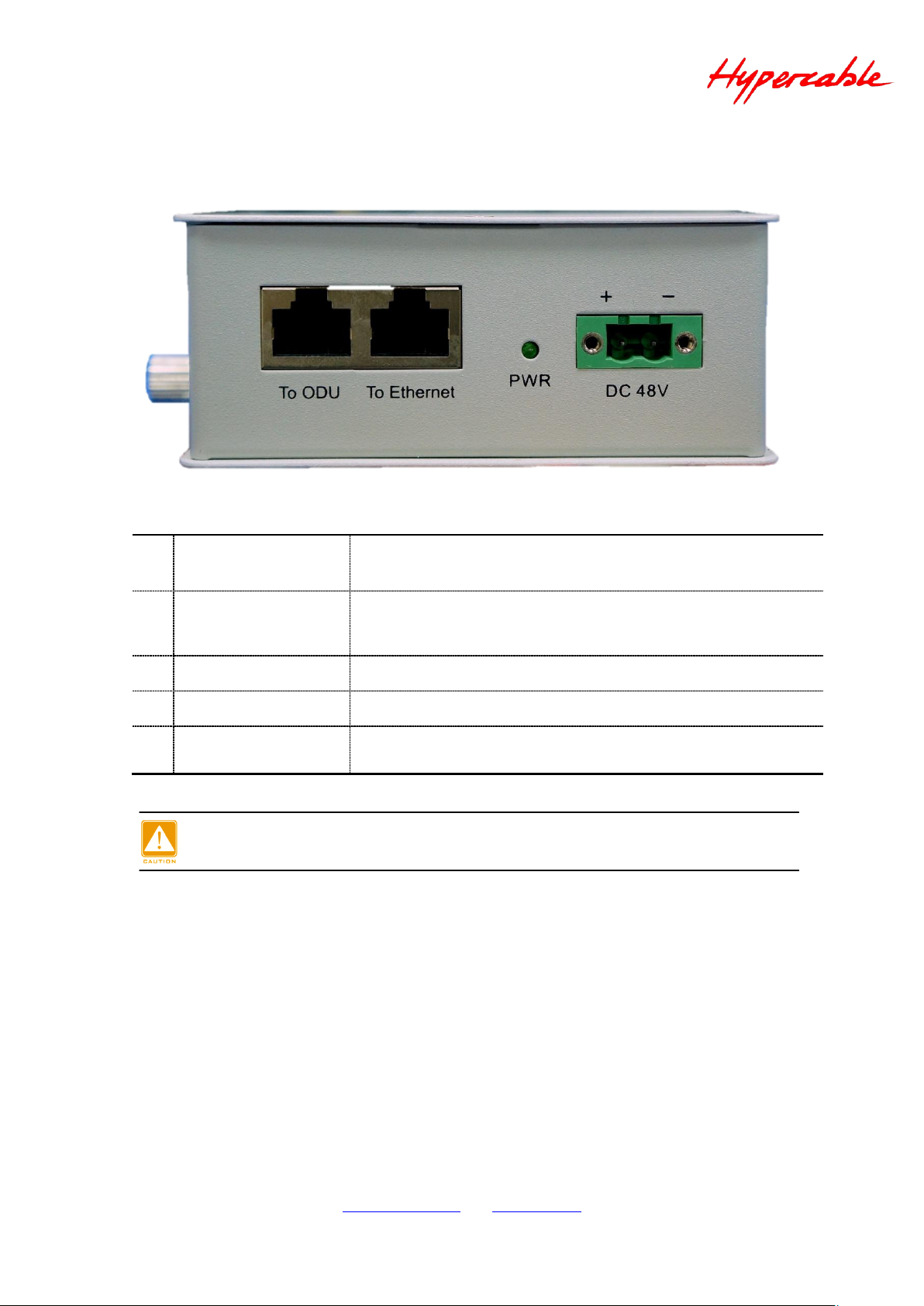

Power Over Ethernet Injector Figure
Power Over Ethernet Injector is not a waterproof unit, should not be exposed
to the outdoor without any protection.
1
To Ethernet
This RJ-45 port is used to connect to the 10/100/1000 Base T
complied device such as switch, router or PC.
2
To ODU
This RJ-45 port is used to connect to the ODU. (Ethernet signal
with passive 48VDC)
3
DC Input
Connect to the 48VDC Power adaptor for DC input.
4
LED Indicator (PWR)
Power LED
5
Grounding stud
Connect to the ground conductor with the ground wire.
Grounding stud

www.hypercable.fr www.e-rake.fr
12
2-4 Hardware Installation
The 4GHz 2x2 MIMO Radio is a radio device, so it is susceptible to common causes of
interference that can reduce throughput and range. Follow these basic guidelines to ensure
the best possible performance:
IF there is any other 4GHz RF device deployed around the outdoor radio, try to set the
channel to the non-overlapping one.

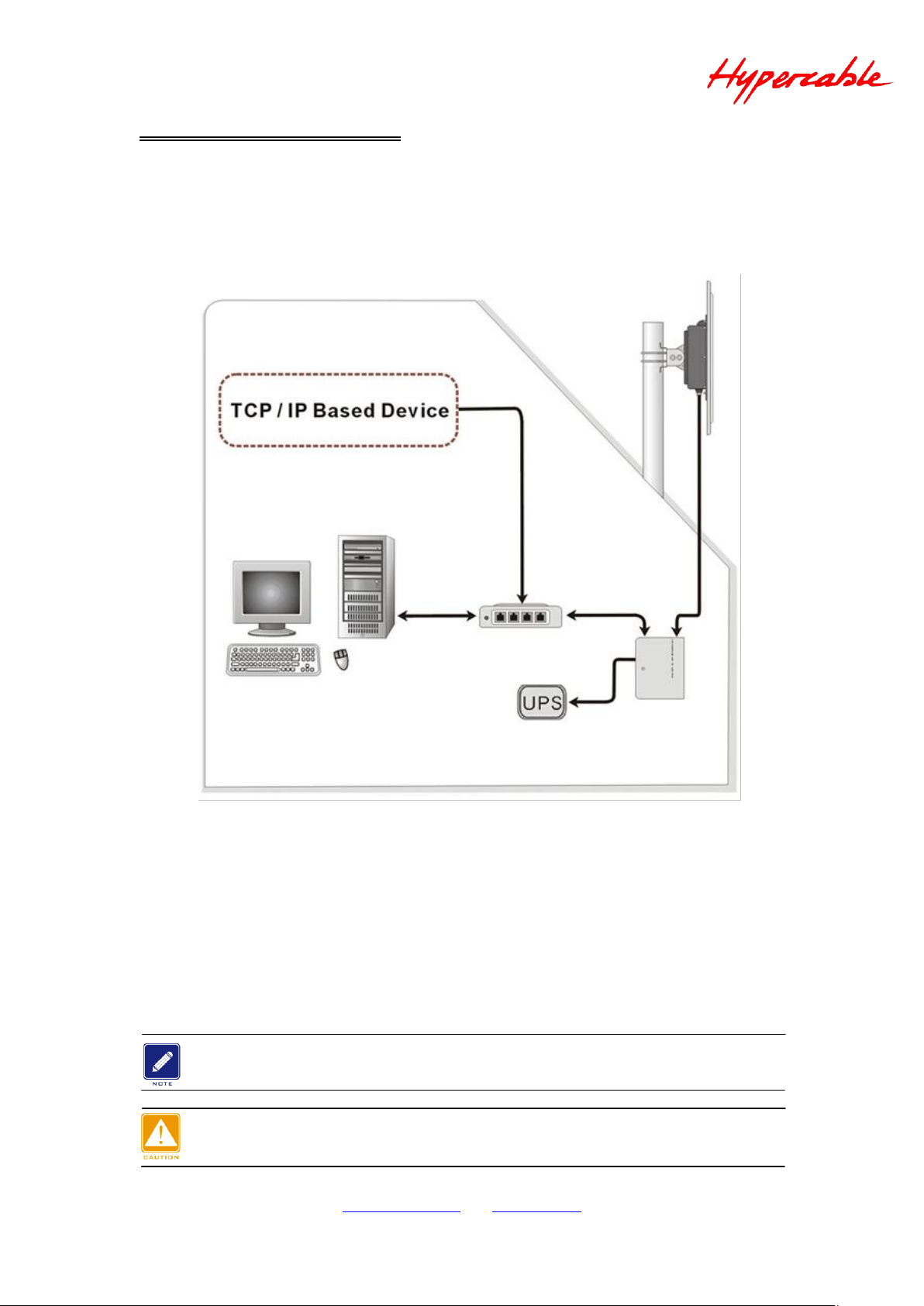

Hardware Installation Figure
Install the bridge at a height sufficient place where structures, trees, or hills do not
obstruct radio signals to and from the unit. A clear line-of-sight path can guarantee the
performance of the RF link.
Site Surveys
Clear and flat area provide better RF range and data rate, on the contrary, physical
obstructions such as trees, electric tower, hills or buildings can reduce the performance
of RF devices. Do not deploy your radios in the location where there is any obstacle
between the antennas.
Configure and verify the 4GHz 2x2 MIMO Radio operations first before you mount the
radio in a remote location.
Power Over Ethernet Injector is not a waterproof unit, should not be exposed to
outdoor without any protection.
Chapter 2 Hardware Installation
Hardware Installation
4GHz 2x2 MIMO
HT-OFDM radio
Router / Switch
(Optional )
OUTDOOR
INDOOR
10/100/1000 Mbps
10/100/1000 Mbps
Passive 48VDC

www.hypercable.fr www.e-rake.fr
13
Chapter 3 Configuration
3-1 Start-up and Log in
In order to configure the 4GHz 2x2 MIMO Radio, use the web browser and please do the
following:
1. Type the IP address http://192.168.1.1 of this radio in the Location (for IE) or Address
field and press Enter.
2. Enter the system name (the default setting is “admin”) and password (the default setting
is “password”).
3. Click on the “Login”button.
After you have logged-in the main page, the Information, Status, MAP, System, Mesh,
Wireless, Management and Logout buttons will be shown in left part. The main menu
provides links to the whole sections of the web configuration interface.
Information
This page shows most of the product information briefly, that includes General Information,
Network Information, MESH, Wireless and Wired Network

www.hypercable.fr www.e-rake.fr
14
Information -1
Information -2
Status
This page shows all the status of the radio in one page, such as System, mesh, wireless and
port statistics.

www.hypercable.fr www.e-rake.fr
15
Status 1
Status -2
Click the Refresh button to run the parameters

www.hypercable.fr www.e-rake.fr
16
Map
The MAP page shows the location / IP address / MAC address of your radio, GPS
coordinates info, Topology Status and Mesh route of PTP/PTMP & Mesh Network. It
also allows you to drag the radio location mark to the place wherever you want. And
in topology mode, you can also monitor the RF settings and the link quality among
the radios.
There are 3 ways to set the location of the radio.
1. You can select “Obtain current position from GPS receiver” with the radio type that
integrated GPS module.
Attach an external GPS active antenna to the GPS port, you can see the received list
of the GPS satellites.

www.hypercable.fr www.e-rake.fr
17
2. Enter the coordinates manually (this can also be done in System / Basic Setup) or
3. Drag the location mark of the radio to anywhere in the map you want.
3. select the purple land mark and drag it to the location you want to install.

www.hypercable.fr www.e-rake.fr
18
MAP –Topology
PTP Topology Map –Data rate / RSSI / Distance / Frequency

www.hypercable.fr www.e-rake.fr
19
Mesh Topology Map –Radio info (IP address/ MAC)
System / Basic Setup
The Device Name is used to give a name to your 4GHz 2x2 MIMO Radio. This will enable you
to manage your radio more easily if there are many radios in your network.
Ethernet Data Rate: you can choose the Ethernet data rate of this radio.
VLAN (802.1Q): enable this feature and assign a management Vlan ID to the radio. Those PC
without same Vlan ID will not be allowed to connect this radio and configure it.
GPS Coordinates: Input the Latitude and Longitude info of the 4GHz 2x2 MIMO Radio’s
location, and click apply. Connect the radio to internet, then it will get the map from internet

www.hypercable.fr www.e-rake.fr
20
automatically.
If your radio type support integrated GPS module, all you need to do to mark this radio on
the correct position of the internet map is check the select box “Obtain current position
from GPS receiver”.
System / IP Settings
IP Address: Type the IP address you want to set to your 4GHz 2x2 MIMO Radio(Default:
192.168.1.1).
IP Subnet Mask: The 4GHz 2x2 MIMO Radio’s Subnet Mask must be the same as your
Ethernet network. We recommended that you do NOT change the value. (Default:
255.255.255.0).
Default Gateway: The 4GHz 2x2 MIMO Radio will use this value for default Gateway.
Primary DNS Server: The 4GHz 2x2 MIMO Radio will use this value for primary Domain
Name Server.
Secondary DNS Server: The 4GHz 2x2 MIMO Radio will use this value for secondary Domain
Name Server.
System /DHCP Setting
