Hytera ZCS-HYT56 User manual

ZCS-HYT56 Portable Integrated
Docking Station
User Manual
Hytera Communications Corporation Limited
All manuals and user guides at all-guides.com

Preface
Welcome to the world of Hytera and thank you for purchasing this product. To derive optimum performance from
the product, please read this manual carefully before use.
This manual is applicable to the following product:
ZCS-HYT56 Portable Integrated Docking Station
All manuals and user guides at all-guides.com

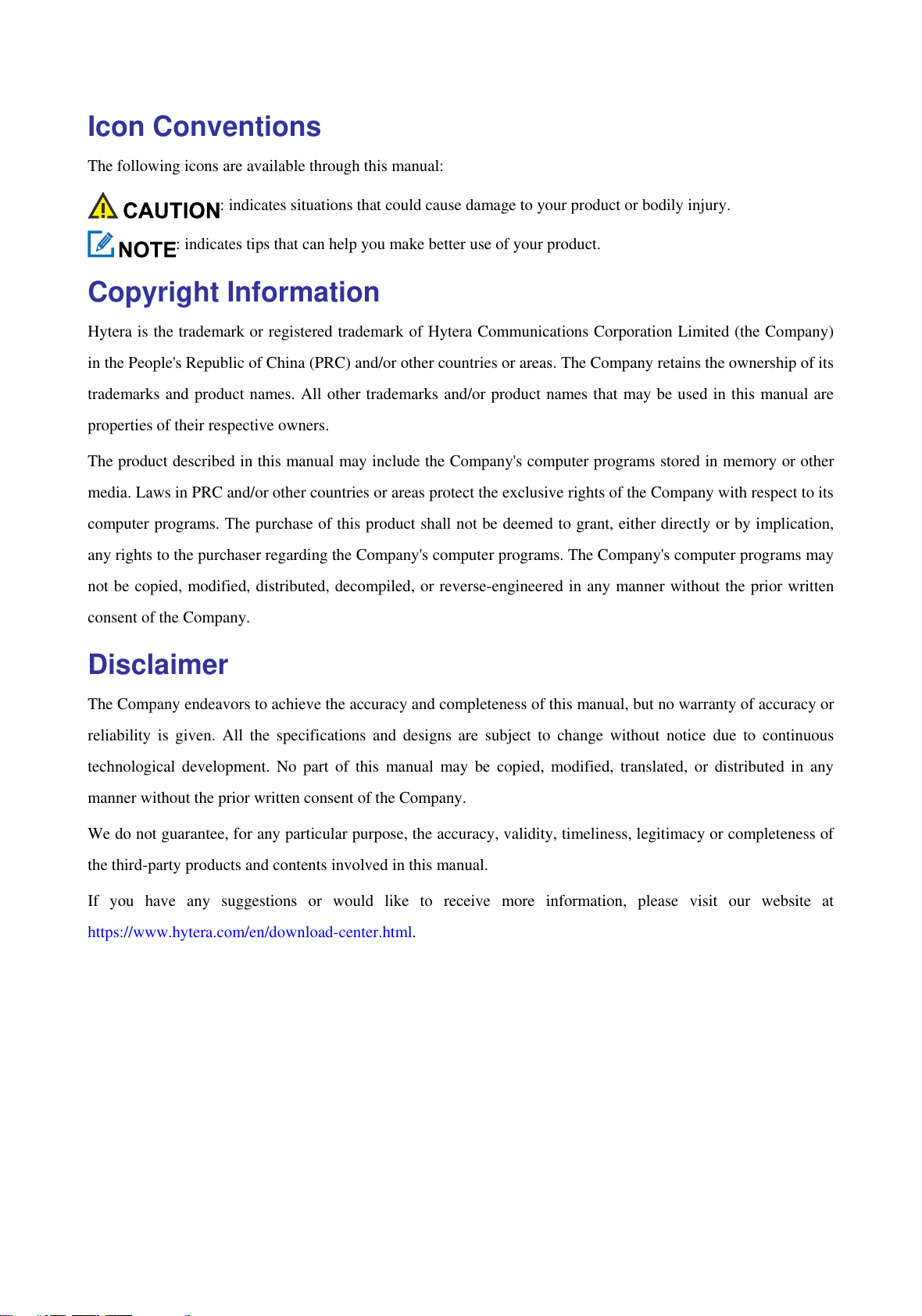

Icon Conventions
The following icons are available through this manual:
: indicates situations that could cause damage to your product or bodily injury.
: indicates tips that can help you make better use of your product.
Copyright Information
Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company)
in the People's Republic of China (PRC) and/or other countries or areas. The Company retains the ownership of its
trademarks and product names. All other trademarks and/or product names that may be used in this manual are
properties of their respective owners.
The product described in this manual may include the Company's computer programs stored in memory or other
media. Laws in PRC and/or other countries or areas protect the exclusive rights of the Company with respect to its
computer programs. The purchase of this product shall not be deemed to grant, either directly or by implication,
any rights to the purchaser regarding the Company's computer programs. The Company's computer programs may
not be copied, modified, distributed, decompiled, or reverse-engineered in any manner without the prior written
consent of the Company.
Disclaimer
The Company endeavors to achieve the accuracy and completeness of this manual, but no warranty of accuracy or
reliability is given. All the specifications and designs are subject to change without notice due to continuous
technological development. No part of this manual may be copied, modified, translated, or distributed in any
manner without the prior written consent of the Company.
We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or completeness of
the third-party products and contents involved in this manual.
If you have any suggestions or would like to receive more information, please visit our website at
https://www.hytera.com/en/download-center.html.
All manuals and user guides at all-guides.com

1. Packing List
Please unpack carefully and check that you have received the following items. If any item is missing or damaged,
please contact your dealer.
Item Qty. (PCS) Item Qty. (PCS)
Portable Integrated Docking
Station
1 WLAN Antenna 1
Power Cord 1 Quick Reference Guide 1
Network Cable 1 Disk 1
Figures in this manual are only for reference.
All manuals and user guides at all-guides.com

2. Pr
o
2.1 Pr
o
Front V
i
Rear Vi
e
Side Vi
e
Sl
o
o
duc
t
o
duct
L
i
ew
e
w
e
w
o
t
t
Ove
r
L
ayou
t
US
B
r
view
t
B
Port P
o
o
wer Button
Network P
o
o
rt
P
D
P
ower Inlet
WLAN A
n
D
isplay
n
tenna Port
All manuals and user guides at all-guides.com

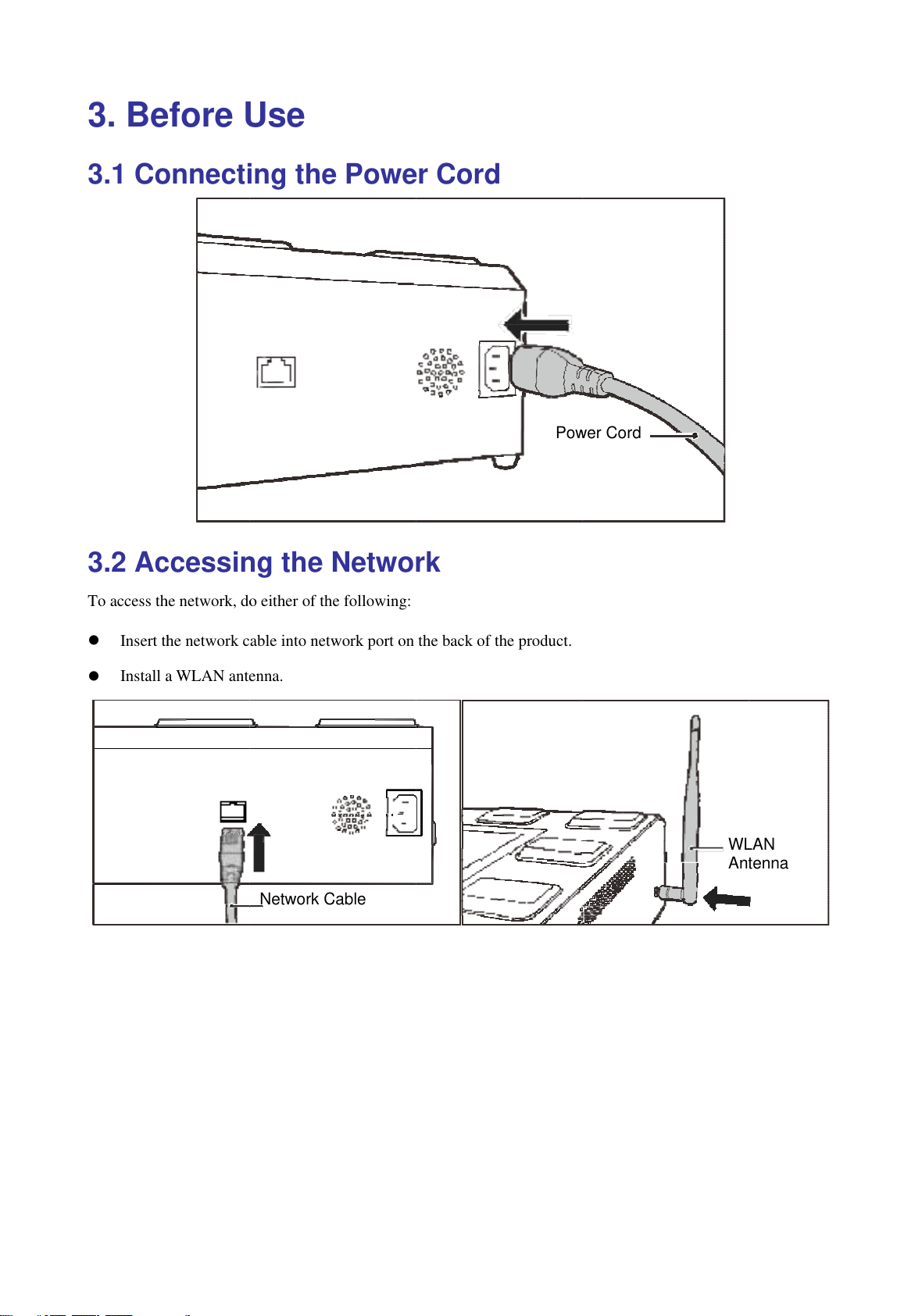

3. B
e
3.1 C
o
3.2 A
c
To access t
h
Insert t
h
Install
a
e
fore
U
o
nnect
i
c
cessi
n
h
e network, d
o
h
e network c
a
WLAN ant
e
U
se
i
ng th
e
n
g the
o
either of th
able into net
w
e
nna.
Network
C
e
Pow
e
Netwo
e following:
w
ork port on
C
able
e
r Cor
d
rk
the back of t
d
h
e product.
Po
w
w
er Cord
W
L
An
t
L
AN
t
enna
All manuals and user guides at all-guides.com

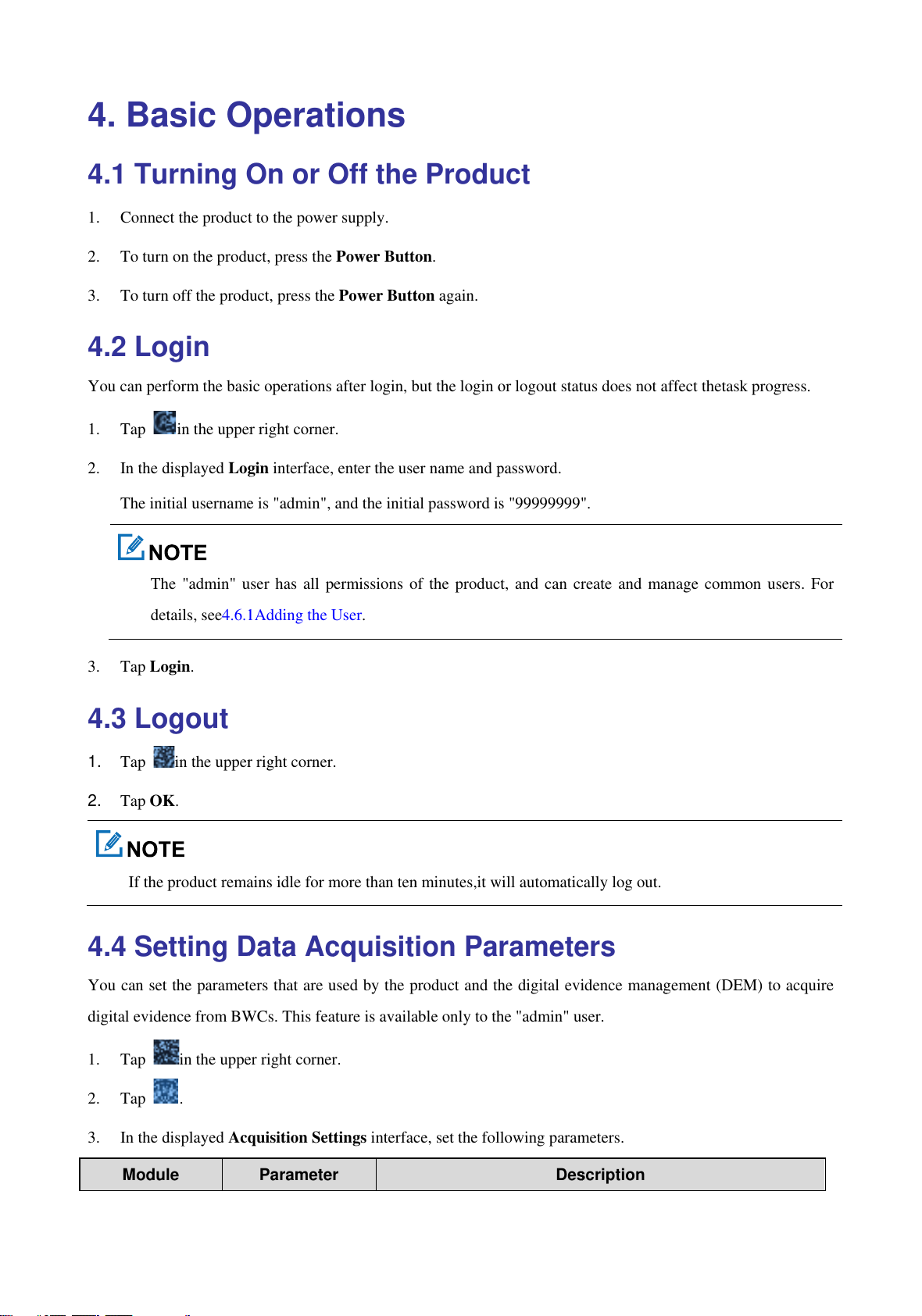

4. B
a
4.1 Tu
1. Conne
c
2. To tur
n
3. To tur
n
4.2 L
o
You can pe
r
1. Tap
2. In the
d
The in
i
T
h
de
t
3. Tap L
o
4.3 L
o
1. Tap
2. Tap O
K
If the
4.4 S
e
You can se
t
digital evid
e
1. Tap
2. Tap
3. In the
d
Modu
a
sic
O
rning
O
c
t the produc
t
n
on the prod
u
n
off the prod
o
gin
r
form the
b
as
i
in the uppe
r
d
isplayed Lo
g
i
tial usernam
e
h
e "admin"
u
t
ails, see4.6.
1
o
gin.
o
gout
in the uppe
r
K
.
product rem
a
e
tting
D
t
the paramet
e
nce from B
W
in the upp
e
.
d
isplayed Ac
q
le
O
pera
t
O
n or
O
t
to the powe
r
u
ct, press the
u
ct, press th
e
i
c operations
r
right corne
r
g
in interface
,
e
is "admin",
u
ser has all
p
1
Adding the
U
r
right corner
a
ins idle for
m
D
ata A
c
ers that are
u
W
Cs. This fe
a
e
r right corne
r
q
uisition Se
t
Paramete
t
ions
O
f
f
th
e
r
supply.
Power Butt
o
e
Power But
t
after login,
b
r
.
,
enter the us
e
and the initi
a
p
ermissions
o
U
se
r
.
.
m
ore than te
n
c
quisit
u
sed by the
p
a
ture is avail
a
r
.
t
tings interfa
c
r
e
Prod
u
o
n.
t
on again.
b
ut the login
o
e
r name and
p
a
l password i
s
o
f the produ
c
n
minutes,it
w
ion Pa
p
roduct and t
h
a
ble only to t
h
c
e, set the fo
l
u
ct
or
logout sta
t
p
assword.
s
"99999999
"
c
t, and can c
r
w
ill automati
c
ramet
e
h
e digital ev
i
h
e "admin" u
s
l
lowing para
m
De
s
t
us does not
a
"
.
r
eate and m
a
c
ally log out.
e
rs
i
dence mana
g
s
er.
m
eters.
s
cription
a
ffect thetask
a
nage comm
o
g
ement (DE
M
progress.
o
n users. Fo
r
M
) to acquir
e
r
e
All manuals and user guides at all-guides.com

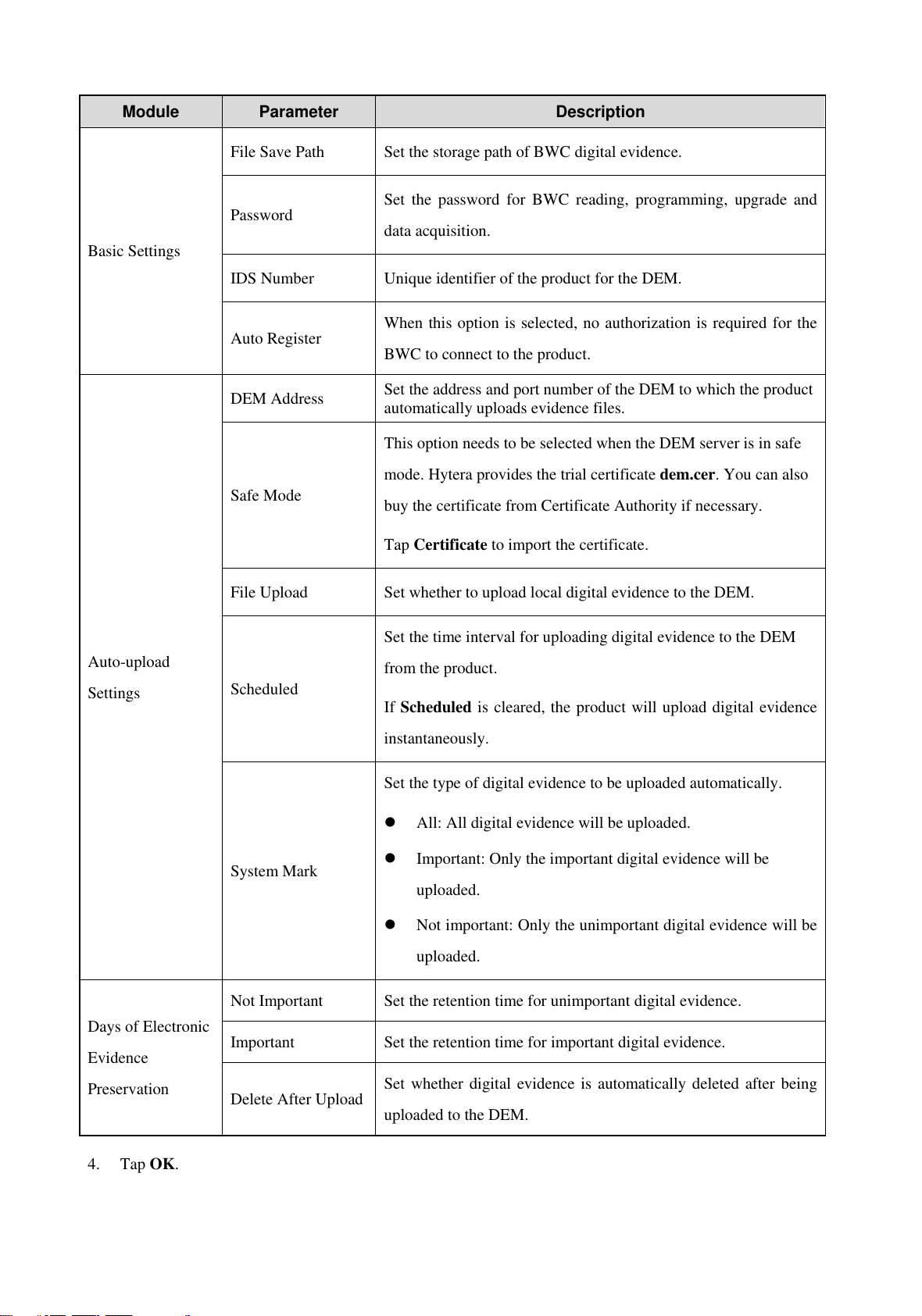

Module Parameter Description
Basic Settings
File Save Path Set the storage path of BWC digital evidence.
Password
Set the password for BWC reading, programming, upgrade and
data acquisition.
IDS Number Unique identifier of the product for the DEM.
Auto Register
When this option is selected, no authorization is required for the
BWC to connect to the product.
Auto-upload
Settings
DEM Address Set the address and port number of the DEM to which the product
automatically uploads evidence files.
Safe Mode
This option needs to be selected when the DEM server is in safe
mode. Hytera provides the trial certificate dem.cer. You can also
buy the certificate from Certificate Authority if necessary.
Tap Certificate to import the certificate.
File Upload Set whether to upload local digital evidence to the DEM.
Scheduled
Set the time interval for uploading digital evidence to the DEM
from the product.
If Scheduled is cleared, the product will upload digital evidence
instantaneously.
System Mark
Set the type of digital evidence to be uploaded automatically.
All: All digital evidence will be uploaded.
Important: Only the important digital evidence will be
uploaded.
Not important: Only the unimportant digital evidence will be
uploaded.
Days of Electronic
Evidence
Preservation
Not Important Set the retention time for unimportant digital evidence.
Important Set the retention time for important digital evidence.
Delete After Upload
Set whether digital evidence is automatically deleted after being
uploaded to the DEM.
4. Tap OK.
All manuals and user guides at all-guides.com

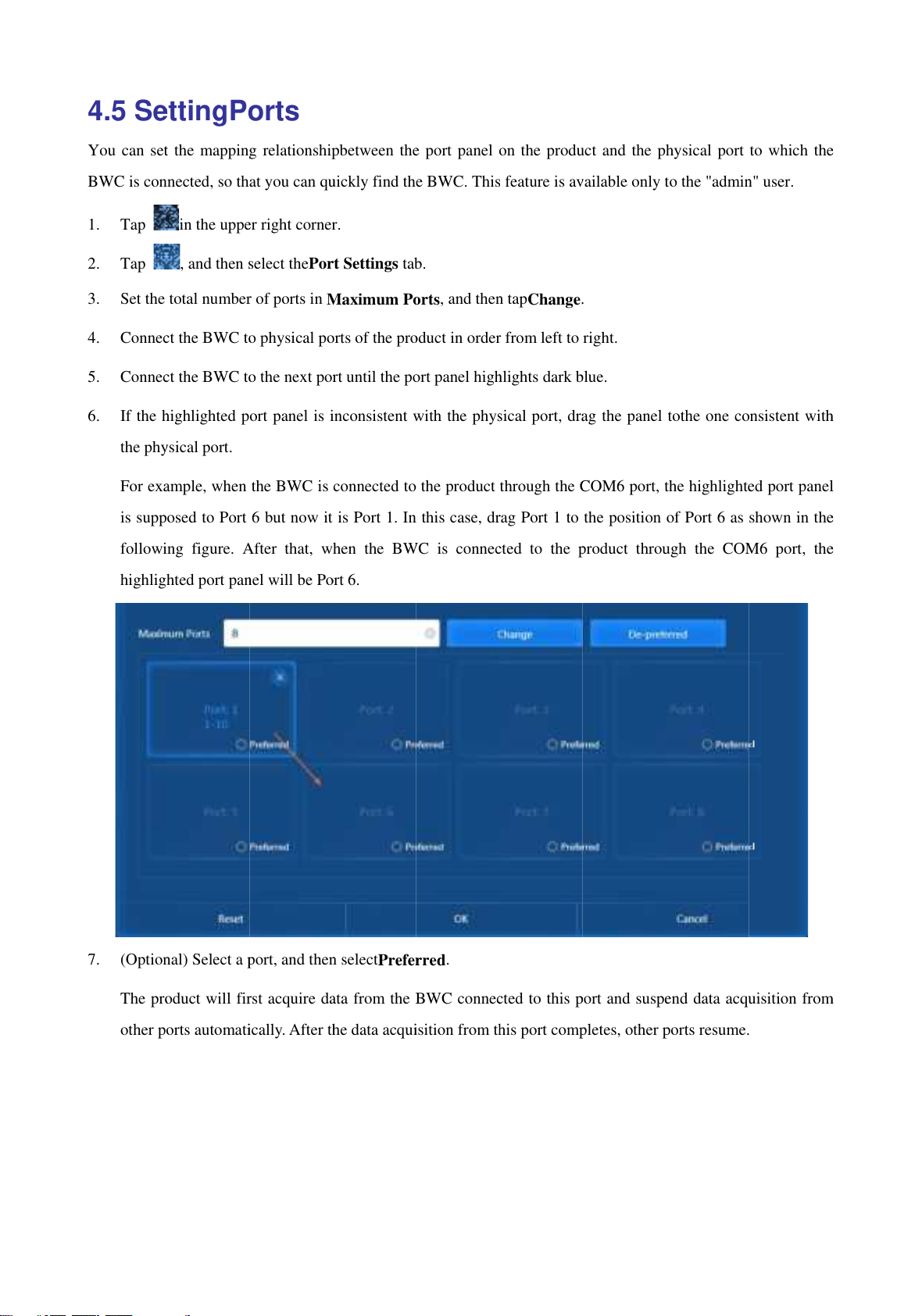

4.5 S
e
You can se
t
BWC is co
n
1. Tap
2. Tap
3. Set the
4. Conne
c
5. Conne
c
6. If the
h
the ph
y
For ex
a
is sup
p
follow
i
highlig
7. (Optio
n
The pr
o
other p
e
ttingP
o
t
the mappin
g
n
nected, so th
in the upp
e
, and then
s
total numbe
r
c
t the BWC t
o
c
t the BWC t
o
h
ighlighted p
y
sical port.
a
mple, when
p
osed to Port
i
ng figure.
A
hted port pa
n
n
al) Select a
p
o
duct will fi
r
orts automat
i
o
rts
g
relationshi
p
at you can q
u
e
r right corne
r
s
elect thePo
r
r
of ports in
M
o
physical p
o
o
the next po
r
ort panel is
i
the BWC is
6 but now it
A
fter that, w
n
el will be P
o
p
ort, and the
n
r
st acquire d
a
i
cally. After t
h
p
between th
e
u
ickly find th
r
.
r
t Settings ta
b
M
aximum P
o
o
rts of the pr
o
r
t until the p
o
i
nconsistent
w
connected to
is Port 1. I
n
hen the B
W
o
rt 6.
n
selectPrefe
r
a
ta from the
B
h
e data acqu
i
e
port panel
e BWC. Thi
s
b
.
o
rts, and the
n
o
duct in orde
r
o
rt panel hig
h
w
ith the phy
s
the product
n
this case, d
r
W
C is conne
c
r
red.
B
WC conne
c
i
sition from t
h
o
n the prod
u
s
feature is a
v
n
tapChange
.
r
from left to
h
lights dark
b
s
ical port, dr
a
through the
C
r
ag Port 1 to
c
ted to the
p
c
ted to this
p
h
is port com
p
u
ct and the p
v
ailable only
t
.
right.
b
lue.
a
g the panel
C
OM6 port,
t
the position
p
roduct thro
u
p
ort and susp
e
p
letes, other
p
hysical port
t
o the "admi
n
tothe one c
o
t
he highlight
e
of Port 6 as
u
gh the CO
M
e
nd data acq
u
p
orts resume
.
to which th
e
n
" user.
o
nsistent wit
h
e
d port pane
l
shown in th
e
M
6 port, th
e
u
isition fro
m
e
h
l
e
e
m
All manuals and user guides at all-guides.com

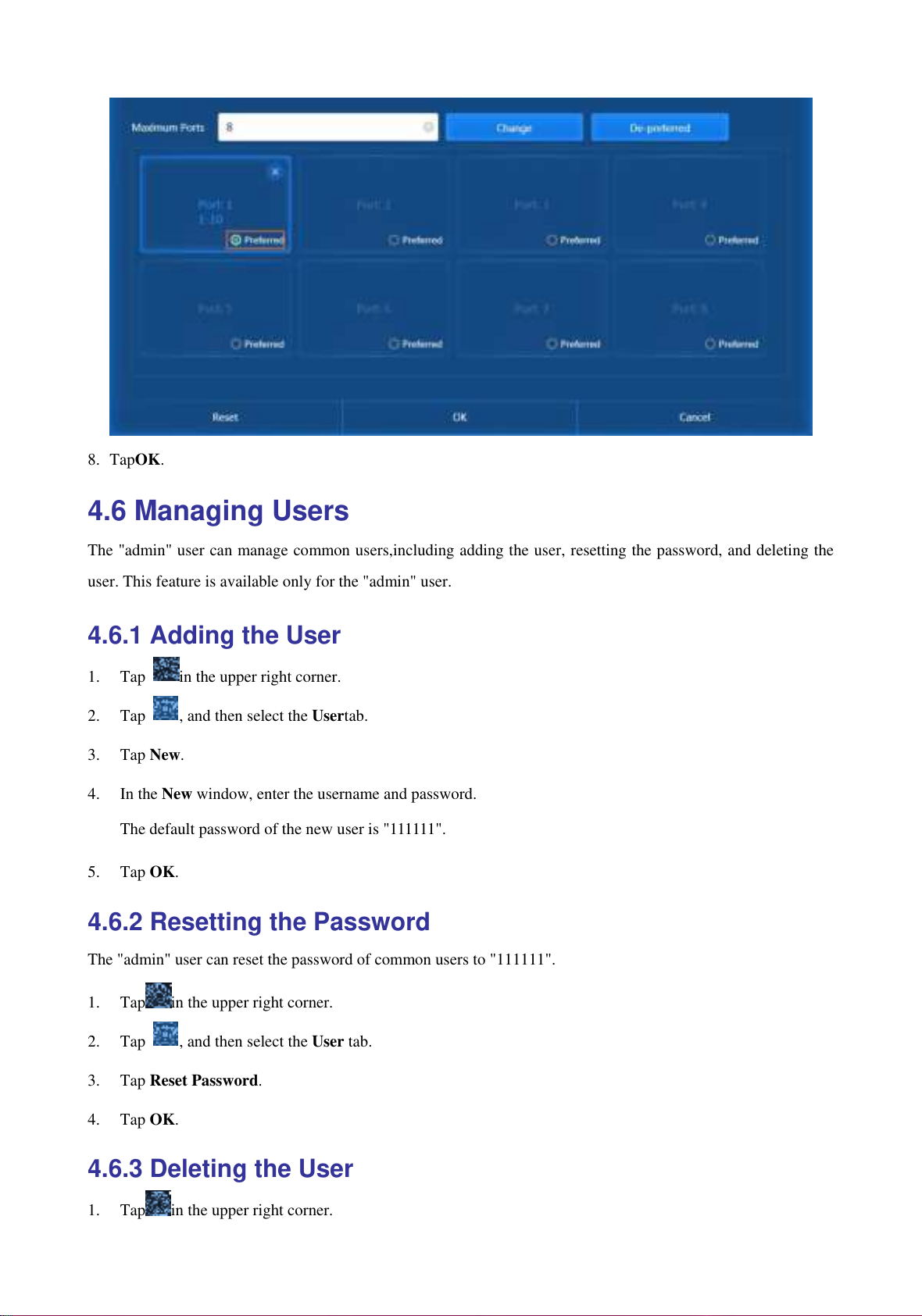

8. TapOK.
4.6 Managing Users
The "admin" user can manage common users,including adding the user, resetting the password, and deleting the
user. This feature is available only for the "admin" user.
4.6.1 Adding the User
1. Tap in the upper right corner.
2. Tap , and then select the Usertab.
3. Tap New.
4. In the New window, enter the username and password.
The default password of the new user is "111111".
5. Tap OK.
4.6.2 Resetting the Password
The "admin" user can reset the password of common users to "111111".
1. Tap in the upper right corner.
2. Tap , and then select the User tab.
3. Tap Reset Password.
4. Tap OK.
4.6.3 Deleting the User
1. Tap in the upper right corner.
All manuals and user guides at all-guides.com

2. Tap , and then select the User tab.
3. Tap the check box in No. to choose the user to be deleted.
4. Tap Delete.
4.7 Managing Devices
You can add andimport the BWC for programming.
4.7.1 Adding the Device
1. Tap in the upper right corner.
2. Tap , and then select the Devices tab.
3. Tap Add.
4. Set the following parameters.
Parameter Description
SN Serial number and unique identifier of a BWC.
Officer ID Officer ID using the BWC.
Officer Name Officer name using the BWC.
5. Tap OK.
4.7.2 Importing the Device
You can import BWCs in batches.
1. Tap in the upper right corner.
2. Tap , and then select Devices tab.
3. Tap Download template.
4. Open the template, and then fill in the following parameters.
Parameter Description
SN Serial number and unique identifier of a BWC.
Officer ID Officer ID using the BWC.
Officer Name Officer name using the BWC.
5. Tap Import, and then tap Open.
All manuals and user guides at all-guides.com

4.7.3
A
With the A
u
With the A
u
Tap .
4.7.4 E
1. Tap
2. Edit th
e
3. Tap O
K
4.7.5
D
The deleted
1. Tap
2. Tap O
K
4.8 M
a
You can im
p
4.8.1 I
m
1. In the
u
2. Click t
h
3. Click I
4. Select
a
4.8.2
P
r
1. In the
u
2. Click t
h
3. Select
a
4. To set
t
 S
e
 S
e
U
p
A
pprovi
n
u
to Register
fe
u
to Register
fe
diting t
.
e
BWC and
o
K
.
D
eleting
BWC canno
t
.
K
.
a
nagin
g
p
ort the prog
r
m
portin
u
pper right c
o
h
e Program
m
mport.
a
template, a
n
r
ogram
m
u
pper right c
o
h
e Program
m
a
template, a
n
t
he program
m
e
lect a termi
n
e
lect Push to
p
on being co
n
n
g the
D
fe
ature enabl
e
fe
ature disabl
e
he Offi
c
o
fficer infor
m
the De
v
t
upload digi
t
g
Pro
g
r
amming te
m
g the P
o
rner, click
m
ingtempla
t
n
d then click
m
ing the
o
rner, click
m
ing templa
n
d then click
m
ing mode,
d
n
al, and then
c
all terminals
,
n
nected to th
D
evice
e
d
b
y default
,
e
d, the prod
u
c
e
r
m
ation.
v
ice
t
al evidence
t
g
ramm
i
m
plate, and th
e
rogram
, and then
t
etab.
Open.
Device
, and then
te tab.
Write.
d
o either of t
h
c
lick Write.
,
and then cli
c
e IDS,the ter
m
,
the product
u
ct needs to a
p
t
o the produc
t
i
ng Te
m
e
n push it to
t
ming T
e
select .
select .
h
e following:
c
k Write.
m
inal will a
u
can directly
a
p
prove the i
n
t
.
m
plate
t
he BWC.
e
mplat
e
u
tomatically
b
a
cquire data
w
n
itial access o
s
e
b
e programm
e
w
hen the B
W
f the BWC a
s
e
d.
W
C is inserte
d
s
follows:
d
.
All manuals and user guides at all-guides.com

4.8.3
C
1. In the
u
2. Click t
h
3. Select
a
4. Click
C
All pro
5. Click
O
4.9 A
p
You have 9
0
functions a
g
4.9.1
A
Ensure that
y
1. Tap
2. Tap
3. In the
A
4. Choos
e
5. Tap S
a
6. Send t
h
4.9.2 I
m
Ensure that
y
1. Tap
2. Tap
3. In the
A
4. Choos
e
5. Tap O
K
C
ancelli
n
u
pper right c
o
h
e Program
m
a
template, a
n
C
ancel.
gramming ta
OK
.
p
plyin
g
0
days free tr
i
g
ain.
A
pplyin
g
y
ou have plu
in the up
p
.
A
bout windo
e
the file sav
e
a
ve.
h
e key licens
e
m
portin
y
ou have obt
in the upp
.
A
bout windo
e
the obtaine
d
K
.
n
g the
P
o
rner, click
m
ing templa
n
d then click
sks to
b
e exe
g
for/I
m
i
al to use all
f
g
for th
e
gged the do
n
p
er right corn
w, tap Expo
r
e
path and en
t
e
application
g the L
i
ained the lic
e
er right corn
e
w, tap Impo
r
d
license, an
d
P
rogra
m
, and then
te tab.
Details.
cuted are ca
n
m
portin
f
eatures of t
h
e
Licen
s
n
gle to the pr
o
er.
r
t Applicati
o
t
er the file n
a
file to Hyter
a
i
cense
e
nse file (in .
l
e
r.
r
t License.
d
then tap Op
m
ming
T
select .
n
celed.
g the
L
h
e product. A
f
s
e
o
duct.
o
n.
a
me.
a
to obtain th
e
l
icense form
a
en.
T
asks
L
icens
e
f
ter that, you
e
license.
a
t) and plugg
e
e
must apply
f
e
d the dongl
e
f
or the licens
e
e
to the prod
u
e
to use thes
e
u
ct.
e
All manuals and user guides at all-guides.com

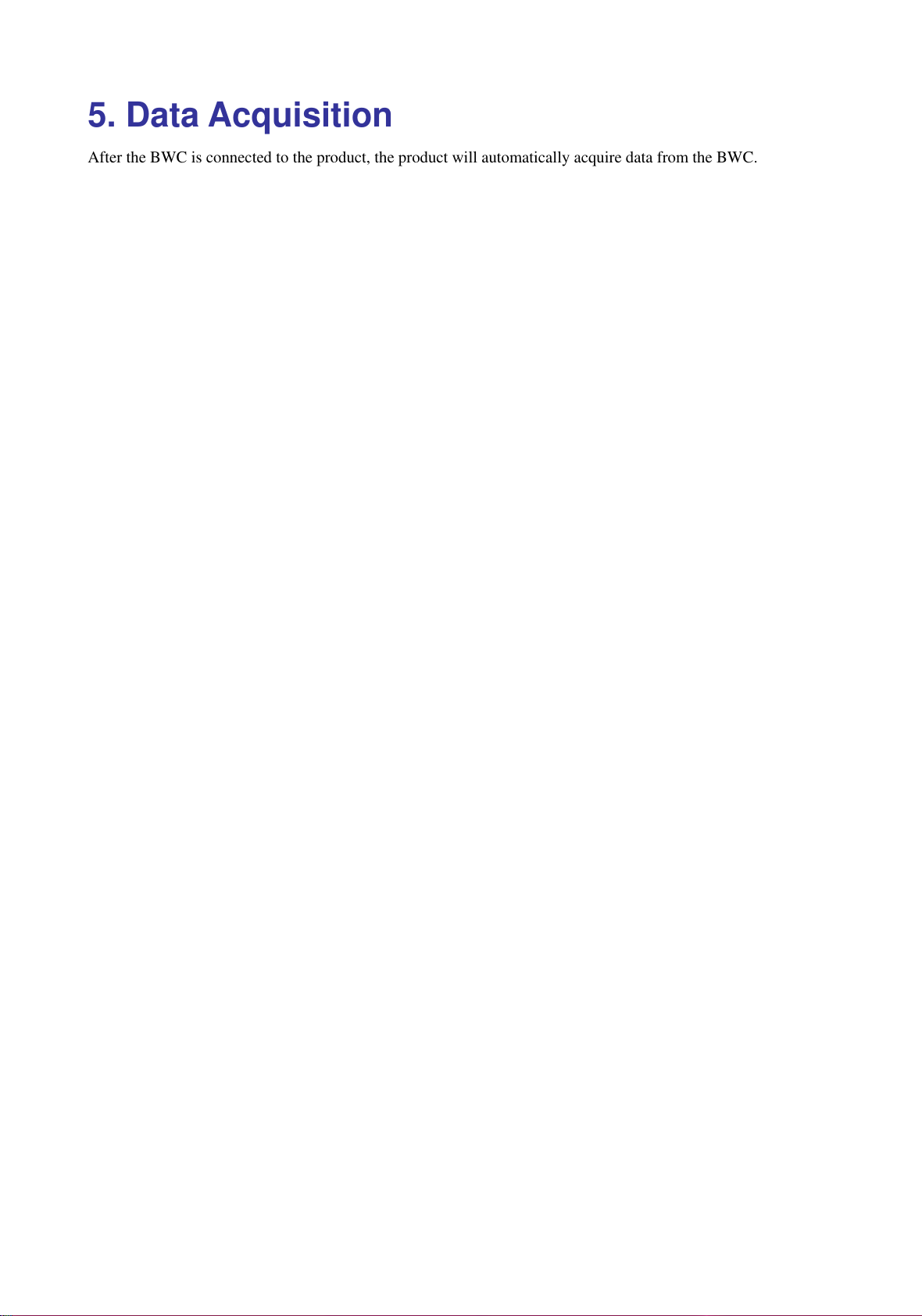

5. Data Acquisition
After the BWC is connected to the product, the product will automatically acquire data from the BWC.
All manuals and user guides at all-guides.com

6. More Functions
For more detailsof the product functions, refer to Hytera IDS Operation Guide.
To obtain the manual, tap in the upper right corner, and then tap .
All manuals and user guides at all-guides.com

7. Toubleshooting
Phenomena Analysis Solution
All fansworkintermittently,
and the product displays "No
signal" only.
The memory module and the
main board may have a poor
contact.
Disconnect the product from the power
supply, clean the connecting fingerof the
memory module with an eraser, and then
re-insert the memory module.
Replace the slot of the memory module.
Memory module may
malfunction.
Replace the memory module.
Power supply for the central
processing unit (CPU) may
be faulty.
Disconnect the product from the power
supply, and then re-connect the CPU power
supply cable.
The display does not light
upafter power-on.
The power cord may be
connected improperly.
Re-connect the power cord.
The display does not
responsdwhen you tap it.
The product may bedead.
Disconnect the product from the power
supply, and then restart the product.
The product shows a fully
blurred screen.
The Video Graphics Array
(VGA) cable may be
connected improperly.
Re-connect the VGA cable.
VGAcable may be faulty. Replace the VGA cable.
The main board may output
incorrect signal.
Repair or replace the main board.
Graphics drivermay
malfucntion.
Update the graphics driver.
Integrated graphics may be
faulty.
Replace theintegrated graphics or theCPU
with integrated graphics.
The product shows a partially
blurred screen.
Display may malfunction. Replace the display.
After power-on, the product
displays "Reboot and Select
proper Boot device or Insert
Solid State Disk (SSD) may
be faulty so that the product
Replace the SSD.
All manuals and user guides at all-guides.com

Phenomena Analysis Solution
Boot Media in selected Boot
device and press a key".
cannot detect the SSD.
The product failed to
acquirethe the digital evidence
from the BWC.
The BWC may be inserted
improperly into the slot of
the product.
Remove the BWC, and then insert it into
theslot of the product again.
If the above solutions cannot solve your problems, or you may have some other queries, please contact us or your
local dealer for more technical support.
All manuals and user guides at all-guides.com

8. Care and Cleaning
To guarantee optimal performance as well as a long service life of the product, please follow these tips.
Product Care
Do not pierce or scrape the product.
Keep the product far away from substances that can corrode the circuitry.
Keep the product dry.
Product Cleaning
Turn off the product and remove the power cord before cleaning.
Clean up the dust and fine particles on the product surface regularly with a clean and dry lint-free cloth or a
brush.
Use neutral cleanser and a non-woven fabric to clean the product after long-time use. Do not use chemical
preparations such as stain removers, alcohol, sprays, or oil preparations, so as to avoid surface and case
damage.
Make sure the product is completely dry before use.
All manuals and user guides at all-guides.com

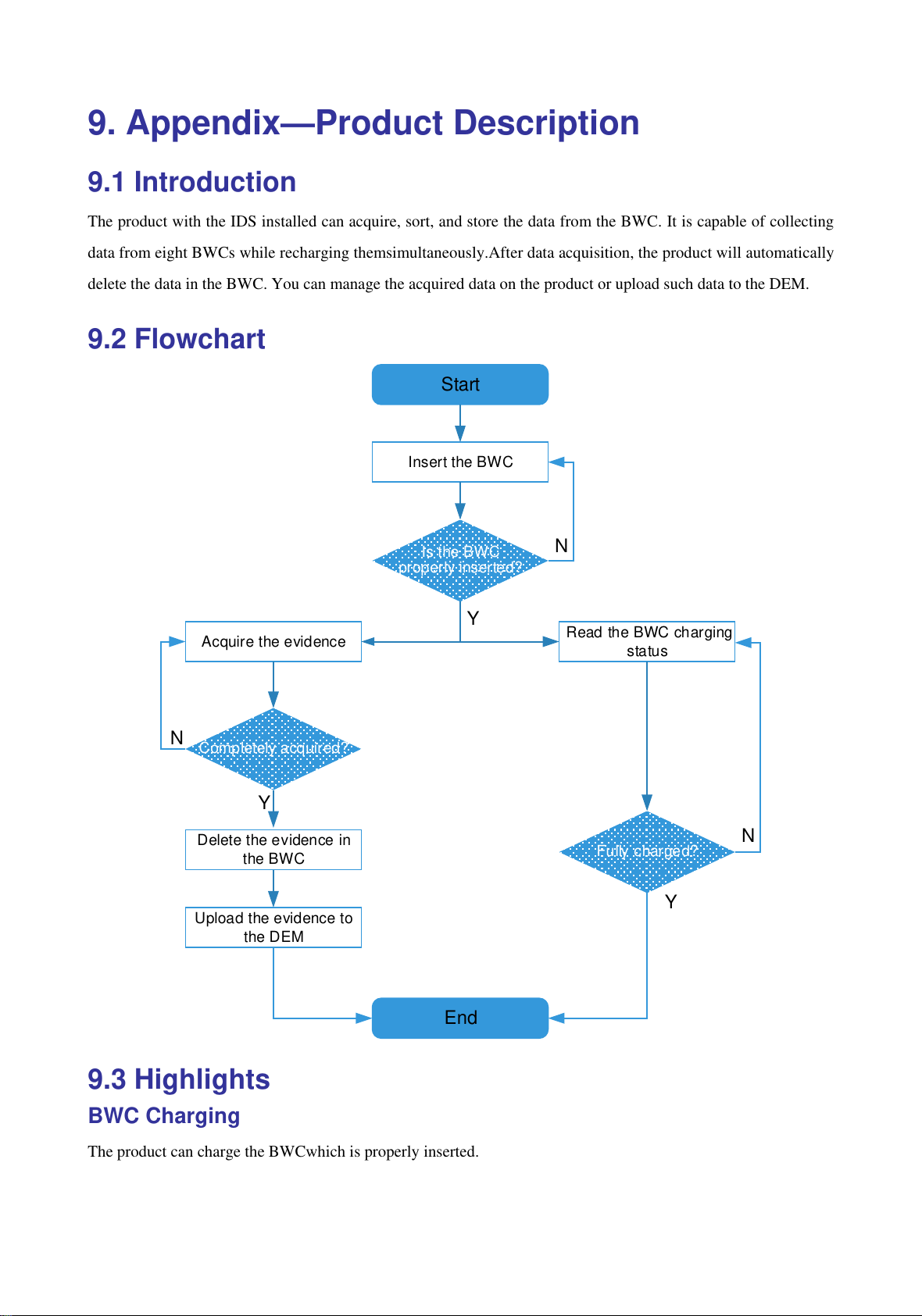

9. Appendix—Product Description
9.1 Introduction
The product with the IDS installed can acquire, sort, and store the data from the BWC. It is capable of collecting
data from eight BWCs while recharging themsimultaneously.After data acquisition, the product will automatically
delete the data in the BWC. You can manage the acquired data on the product or upload such data to the DEM.
9.2 Flowchart
Start
Insert the BWC
Is the BWC
properly inserted?
N
Y
Read the BWC charging
status
Acquire the evidence
Fully charged?
N
Y
Completely acquired?
Y
N
End
Delete the evidence in
the BWC
Upload the evidence to
the DEM
9.3 Highlights
BWC Charging
The product can charge the BWCwhich is properly inserted.
All manuals and user guides at all-guides.com

Data Acquisition
The product automatically acquires evidencefrom the BWCwhich is properly inserted.
Data Playback
The product allows you to view evidence such as photos, audios, and videos.
Evidence Upload
For extended storage, the product allows you to upload the evidence to the DEM and check the upload status.
9.4 Technical Specifications
Item Description
Dimensions (H x W x D) 436mm x 298mm x 110mm
Weight 9±0.5kg
LCD Display 10.1-inch capacitive multi-touch screen
Resolution: 1280 x 800
Number of Inserted BWCs 8, support data acquisition while charging
CPU Intel® Core™ i5-6400
Memory 8GB
System SSD 128GB
Hard Disk Capacity 4TB, support redundant array of independent disks
(RAID)backup
USBPort 2 x USB 3.0
Network Port RJ45 Gigabit port
WLAN 2.4G/5G, 802.11a/b/g/n/ac
Power Supply 220V AC, 250W, support 115 V to 230 V
Operating Temperature -10°C to 55°C
Operating Noise 45dB(A)
All manuals and user guides at all-guides.com
