HNT-3079 SMART HOME SYSTEM

4
Instruction Manual
4
Instruction Manual
4
Instruction Manual
Table of Contents
01 Precautions Precautions on use 6
External structure and description 8
02 How to use Screen construction 10
Calling option 11
Security option 19
Control option 27
Information option 32
Setting option 36
03 Size and specication Specication 46
Product warranty 47

01 Precautions
If a power plug or an equipment connector applies as a blocking device,
such device has to be in a location where it can be manipulated easily.
Precautions on use 6
External structure and description 8
HNT-3079

6
Instruction Manual
Precautions on use
This part contains matters that can result in a serious injury or even death. Please read and be fully aware of the
contents for the correct use of the equipment.
!
Any attempts of disassembly, repair,
remodeling are prohibited.
Do not have the product exposed to a
physical impact, smoke, oil, or water.
If there is any abnormal noise, smell, or
smoke coming out of the product, stop using
it immediately and call the Service Center.
Do not use water or chemicals, such as
alcohol, to wipe the outside of the product
with but use only a piece of dry cloth.
For the prevention of an injury, the product
has to be xed on the ground or wall safely
according to the installation manual.
Do not install the product in a place that is
either hot or humid due to a heating equipment
or such or is exposed to direct sunlight.

Instruction Manual 7
Precautions on use
*Electrical installation of building needs to be equipped with a bipolar main power switch where both poles have a contact separation of at least 3mm or bigger.
This part contains matters that can result in an injury or a property damage. Please read and be fully
aware of the contents for the correct use of the equipment.
!
Do not place any equipments that generate
strong magnetism (a large TV or speaker)
near the product.
Be careful not to have water get into a
camera of a doorphone while cleaning the
entrance.
This product does not operate if a circuit
breaker is shut down or in case of a blackout.
Do not press buttons with a sharp object,
such as an awl or a pin, or put such into the
hole.
Do not leave the equipment in a place where
water drops or splashes.
Please keep the Instruction Manual safely
and, if moving to a new house, hand over the
manual to the new owner of your house.

8
Instruction Manual
8
Instruction Manual

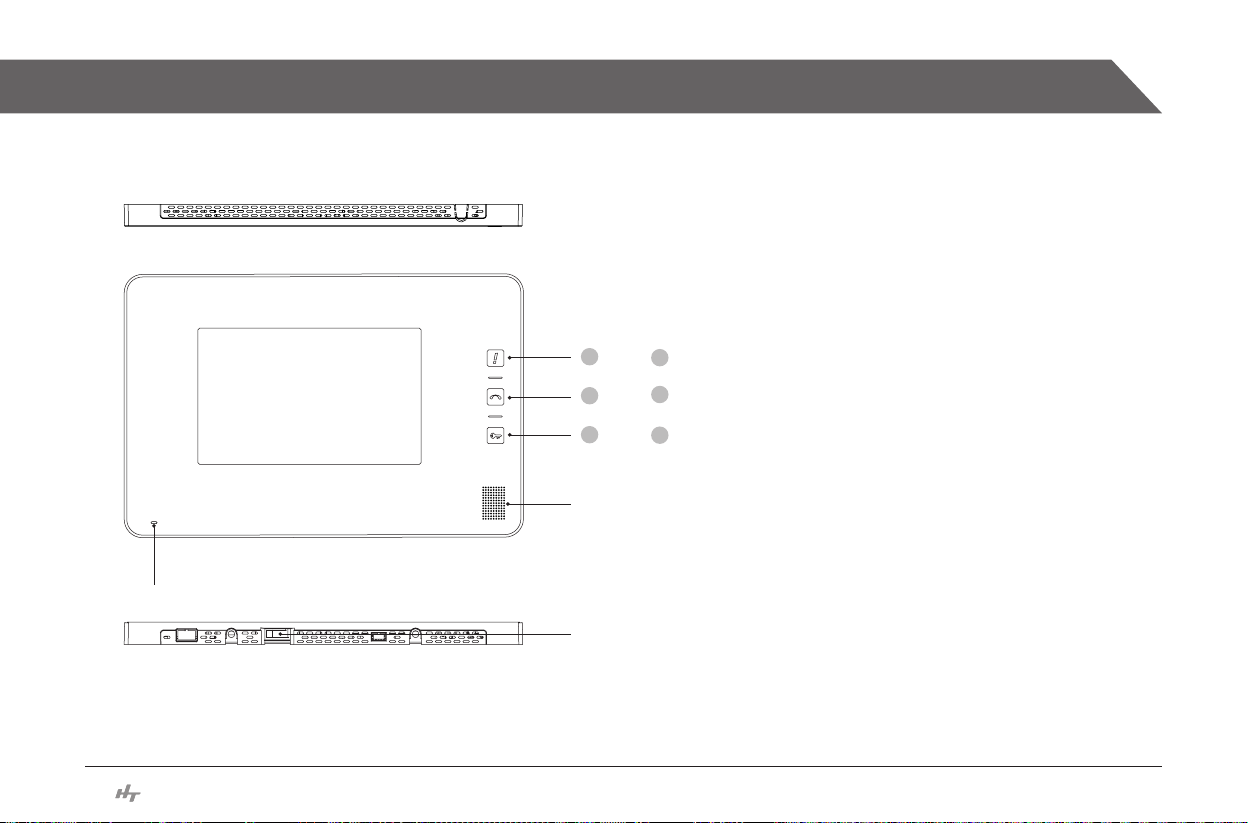

External structure and description
※
Product image may differ by model and optional specication is included.
Power switch
Microphone
Speaker
1
2
3
1Emergency It is used in case of emergency.
2
Call It starts and ends a call when receiving a call.
3
Open Door It opens the door while calling through a doorphone
or the Lobby phone or on the phone.

02 How to use
Screen construction 10
Calling option 11
Security option 19
Control option 27
Information option 32
Setting option 36
HNT-3079

10
Instruction Manual
Screen construction
1. Initial screen Main menu
Functions of each menu
Function
It starts and ends a call when receiving a call.
This menu is for setting of delay time on away mode and changing user’s password
to inactivate away mode or disarm emergency mode.
If you select menus, you can move to applicable device control screens.
If you select menus, you can move to applicable device information screens.
If you select menus, you can move to applicable device setting screens.
Menu
Talk
Security
Control
Information
Setup

Instruction Manual 11
Calling option
1. Call through door phone
It is for making a call through a door phone
installed at the main entrance of housing.
Be careful while using Open Door option as
there is a risk of a security problem due to
user's mistake.
If a call is made to a door phone
Press the button as below to start the call.
If you do not receive the call for30 seconds, it will automatically end.
Talk
or
Call

Whenyouwanttoseeimagesoutsidethedoor(doormonitoringfunction)

Press the button as below to see images.
Talk
Door
Monitoring
 
Whenyouendthedoorphonecall(automaticallyendsin3minutes)
Press the button as below to end the call.
Disconnect or Call End Call

12
Instruction Manual
Calling option
1. Call through door phone
It is for making a call through a door phone
installed at the main entrance of housing.
Be careful while using Open Door option as
there is a risk of a security problem due to
user's mistake.
*Optional features are available only when such
features are installed during construction.
The feature may change or not be available
depending on connection methods or if
connection is not possible.
Open Door function (optional feature)
Press the button as below to end the call and open the door.
Door Opening or Open Door End Call
Whenyouwanttosavevisitorimages

Press the button below to save images of the visitor calling or in call. You can see the saved images in
[Security] - [Storage List] menu.
Video Saving

Instruction Manual 13
※The actual display may be different according to functions.
Calling option
2. Call through the lobby
phone
It is for a call with the lobby phone and only
receiving calls are available.
Be careful while using Open Door option as
there is a risk of a security problem due to user's
mistake.

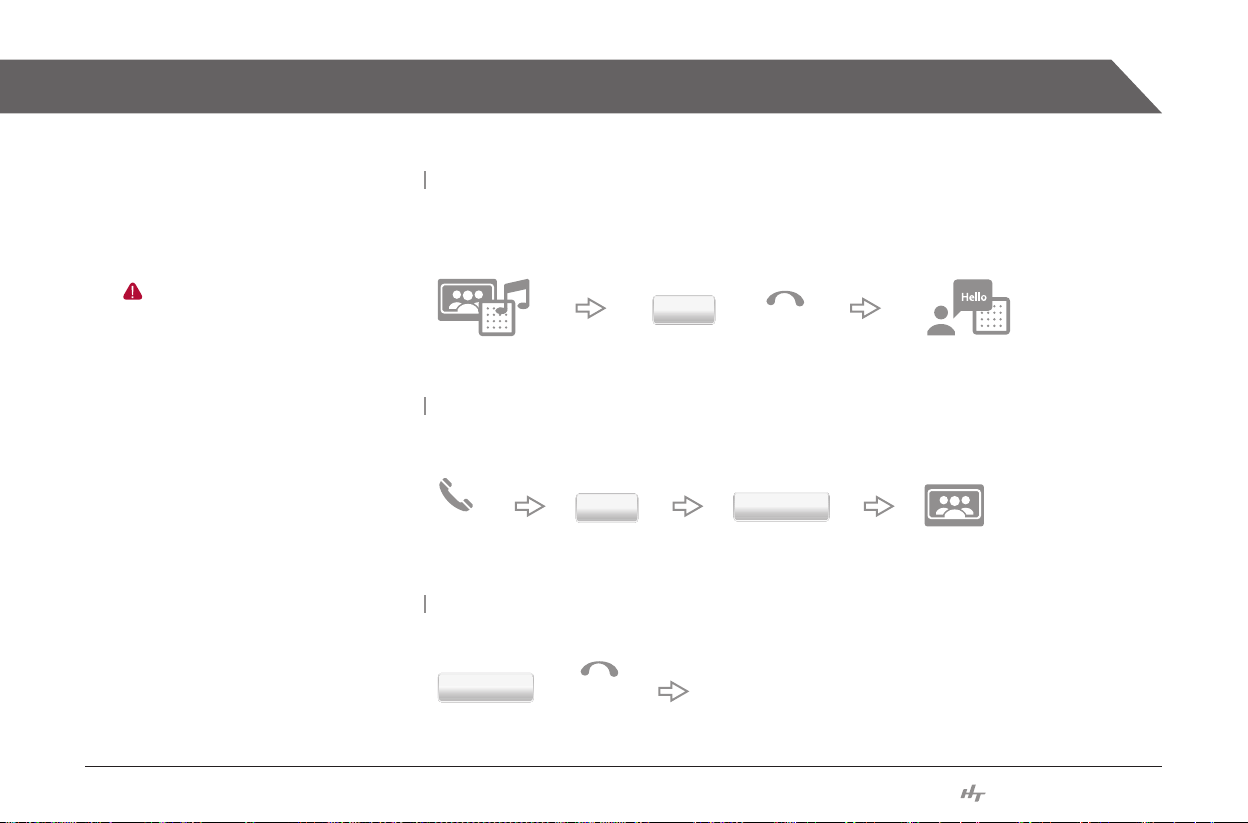

When you receive a call from the lobby
Press the button as below to start the call.
Talk or
Call

When you end thecallfromthelobby(automaticallyendsthecallin
 1minute)

Press the button as below to end the call.
Disconnect or Call End Call
Auto lobby door open
Press the button as below to open the door and end the call.
Door Opening or Open Door End Call

14
Instruction Manual
Calling option
2. Call through the lobby
phone
It is for a call with the lobby phone and only
receiving calls are available.
Be careful while using Open Door option as
there is a risk of a security problem due to user's
mistake.
Whenyouwanttosavevisitorimages

Press the button below to save images of the visitor calling or in call. You can see the saved images in
[Security] - [Storage List] menu.
Video Saving

Instruction Manual 15
Calling option
3. Call through the guard
phone
It is for making a call at the controller installed
in the security ofce.
Be careful while using Open Door option as
there is a risk of a security problem due to user's
mistake.
When you receive a call from the guard phone
Press the button as below to start the call.
Talk or Call
Whenyouwanttomakeacallatthesecurityoffice

Press the button as below to start the call.
Talk
Guard
When you end the call with the guard phone
(automatically ends in 3 minutes)
Press the button as below to end the call.
Disconnect or Call End Call

16
Instruction Manual
Calling option
4. Call through the phone
When making a call at the mobile phone, voice
quality may vary depending on manufacturers.
Internet phones (IP phones) are not supported.
When you receive a call
Press the button as below to start the call.
Talk or Call
Whenyoumakeacall

Press Call icon and then press Phone button.
Press dial buttons and then press Call button to make a call.
Talk
Phone
When you end the call
Press the button as below to end the call.
Disconnect or Call End Call

Instruction Manual 17
Calling option
5. Call to household
It is for making a call to neighbor.
Internet phones (IP phones) are not supported.
When you receive a call from neighbor
Press the button as below to start the call.
Talk or Call
Whenwanttomakeacalltoneighbor

In order to make a call to neighbor, press Call Household button, enter the number (apartment and room number; 0000-0000)
and then press Call button to generate a calling sound.
Talk
Household
When you end the call to neighbor (automatically ends in 3 minutes)
You can end a call by pressing the following buttons.
Disconnect or Call End Call

18
Instruction Manual
Calling option
6. Other information
It is a common feature for all kinds of calls.
Volume control
You can adjust the volume of the bell while making a call.
You can adjust the volume of the voice while speaking for the call.
You can congure those settings in [Setup] – [User Setting] – [Volume / Bell] screen.
Redial

Redial is available in Neighbor Call and Phone Call screens.
You can make a call to the number (neighbor) that you made a call for the last time.
Redial

Instruction Manual 19
Security option
1. Description of the
security option
The device can be connected with re/
gas detector, security detector or external
emergency buttons to monitor their conditions,
generates alarm sounds for abnormal
situations and automatically noties relevant
organizations of such situations.
*Passwords are required to activate or deactivate
the security mode or deactivate alarm (default
setting is ‘0000’).
Fire/Gas Alarm
It monitors re/gas conditions for 24 hours, generates alarm sounds for abnormal situations and automatically noties
relevant organizations of such situations.
SecurityModeforAwayMode
When the device is congured to Security Mode for Away Mode, it monitors conditions of Security 1, Security 2, Security 3
and Security 4 sensors, generates alarm sounds for abnormal situations and automatically noties relevant organizations
of such situations.
SecurityModeforHomeMode
When the device is congured to Security Mode for Home Mode, it monitors conditions of Security 1, Security 3 and
Security 4 sensors, generates alarm sounds for abnormal situations and automatically noties relevant organizations of
such situations.
SecurityModeforAtHomeMode
When the device is congured to Security Mode for At Home Mode, it monitors conditions of Security 1, Security 3 and
Security 4 sensors, generates alarm sounds for abnormal situations and automatically noties relevant organizations of
such situations.


Emergency Alarm
It monitors conditions of the emergency switch, generates alarm sounds for abnormal situations and automatically noties
relevant organizations of such situations.

20
Instruction Manual
Security option
2. Security Mode for Away
Mode
When you go out, congure the device to
Security Mode for Away Mode to monitor
trespassing. The device monitors outside and
inside areas.
If you do not leave the place within the preset
time, it will be considered trespassing and
notied to the security ofce.

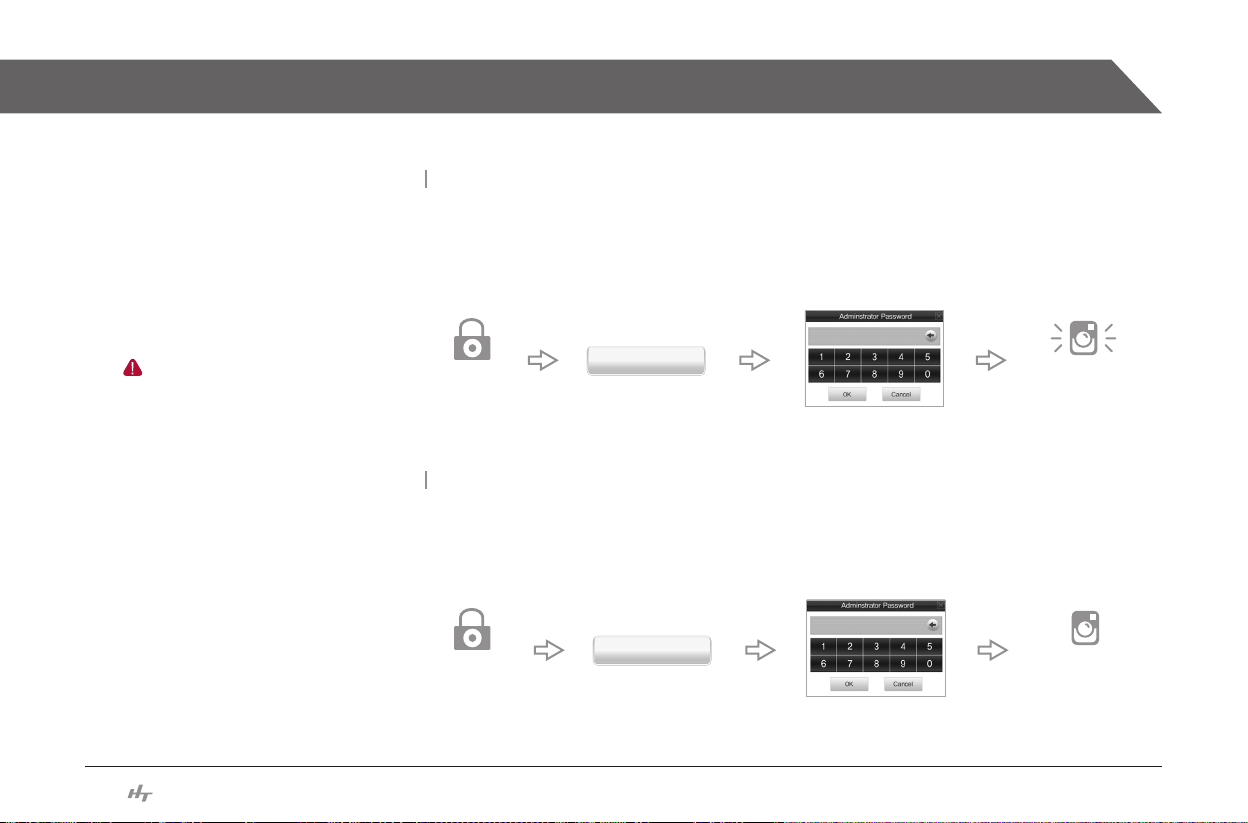

How to congure Away Mode
When you go out, congure the device to Security Mode for Away Mode to monitor trespassing. The device monitors
outside and inside areas.
Close all doors, press the button as below and then enter the password in the password window to generate “beep”
sound that indicates the state of delay. When the delay time is over, Security Mode is activated saying “Security Mode
of Away Mode is activated.”
Security
Away Mode
Security
'Beep, beep"
HowtodeactivateAwayMode

When the door opens while the device is in Security Mode for Away Mode, a password window will appear and “beep”
sounds will occur at the speaker and the door phone during the entry delay time.
If you enter the password, it will be deactivated saying “Away Mode is deactivated.” If another screen appears, press the
button as below to deactivate the mode.
Security
Disbandment
Deactivate
Security
