Hyundai HCH40V26-A User manual

1
READ AND FOLLOW ALL SAFETY
BATTERY CHARGER
HCH40V26-A
ORIGINAL INSTRUCTIONS

2
INSTRUCTIONS IMPORTANT SAFETY
INSTRUCTIONS
When using electrical products, basic precautions
should always be practiced including the following:
1. READ AND FOLLOW ALL SAFETY
INSTRUCTIONS.
2. Read and follow all instructions that are on the
product or provided with product.
3. For a cord-connected unit, do not use an extension
cord.
4. Reference the national electrical code,ANSI/NFPA
70, specifically for the installation of wiring and
clearances from power and lighting conductors.
5. Installation and electrical wiring must be done by
qualified person(s) in accordance with all applicable
codes and standards, including fire-rated construction.
6. For a cord-connected unit, do not install or use
within 10 feet or a pool.
7. For a cord-connected unit, do not use in a
bathroom.
SAVE THESE INSTRUCTIONS this manual contains
important safety and operating instructions for power
units.
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future
reference.

3
This appliance cannot be used by children aged from 8
years and above if they are continuously supervised.
This appliance cannot be used by people with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
WARNING! When using the battery charger, the
following basic safety precautions should be
observed for protection against electric shock,
danger of injury, and burns.
■Please read and observe these instructions before
using
the device.
■Only the following battery packs can be charged with
this charger: HBAT40V4-A
■This charger is only to be used indoor under dry
conditions.
■This charger is not intended to charge any other type
of battery and should never be used in explosive or
inflammable environments.
■Non-rechargeable batteries cannot be charged with
this battery charger.
SAFETY INSTRUCTIONS

4
■To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
■Before using the device check that the mains cable
and mains plug are not damaged.
■The device must not be damp, and it should not be
used in a damp environment.
■Do not use the device if it has suffered any heavy
shock or jolting, or is damaged in any other way.
■Due to the heat generated during charging, the
battery charger should not be operated on a
combustible surface or in an inflammable environment.
■Do not cover the ventilating slits.
■Never disassemble the device yourself. Danger of
an electric shock or fire could be caused by improper
reassembly.
■When the appliance is not in use and before cleaning
and maintenance, unplug the appliance from the outlet.
■During charging, the battery pack with charger must
be placed in a well-ventilated area. Malfunction during
charging can be caused by storing and operating in
places where the temperature exceeds +40°C; this
should be avoided. Battery charging in closed
cupboards, near heat sources (radiators, bright
sunshine) etc., causes heat to accumulate and can
damage the device.
■If the battery is not going to be used for a longer
period, pull the battery off the battery charger and
disconnect the mains plug.
■Protect battery contacts to avoid a short circuit
caused by a metallic object that can cause a fire or

5
explosion.
■Do not rivet or screw any name-plates or signs onto
the device. The protective insulation can thereby be
rendered ineffective. Adhesive labels are
recommended.
■If the mains cord is damaged, it must be replaced by
the manufacturer, its service agent, or similarly
qualified persons in order to avoid a hazard.
WARNING! Do not insert any object into the
ventilation slots or charging connector. This can
cause damage to the appliance and may increase the
risk of personal injury and property damage.
WARNING!Do not alter or modify the unit from
the original design or function. This may increase
the risk of serious personal injury or property damage.
WARNING!Before you plug in your product,
make sure that the supply voltage used
corresponds to that indicated on the rating plate.

6
The product is intended only for charging the 36 V
Li-Ion battery packs. See TECHNICAL DATA for
details.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.

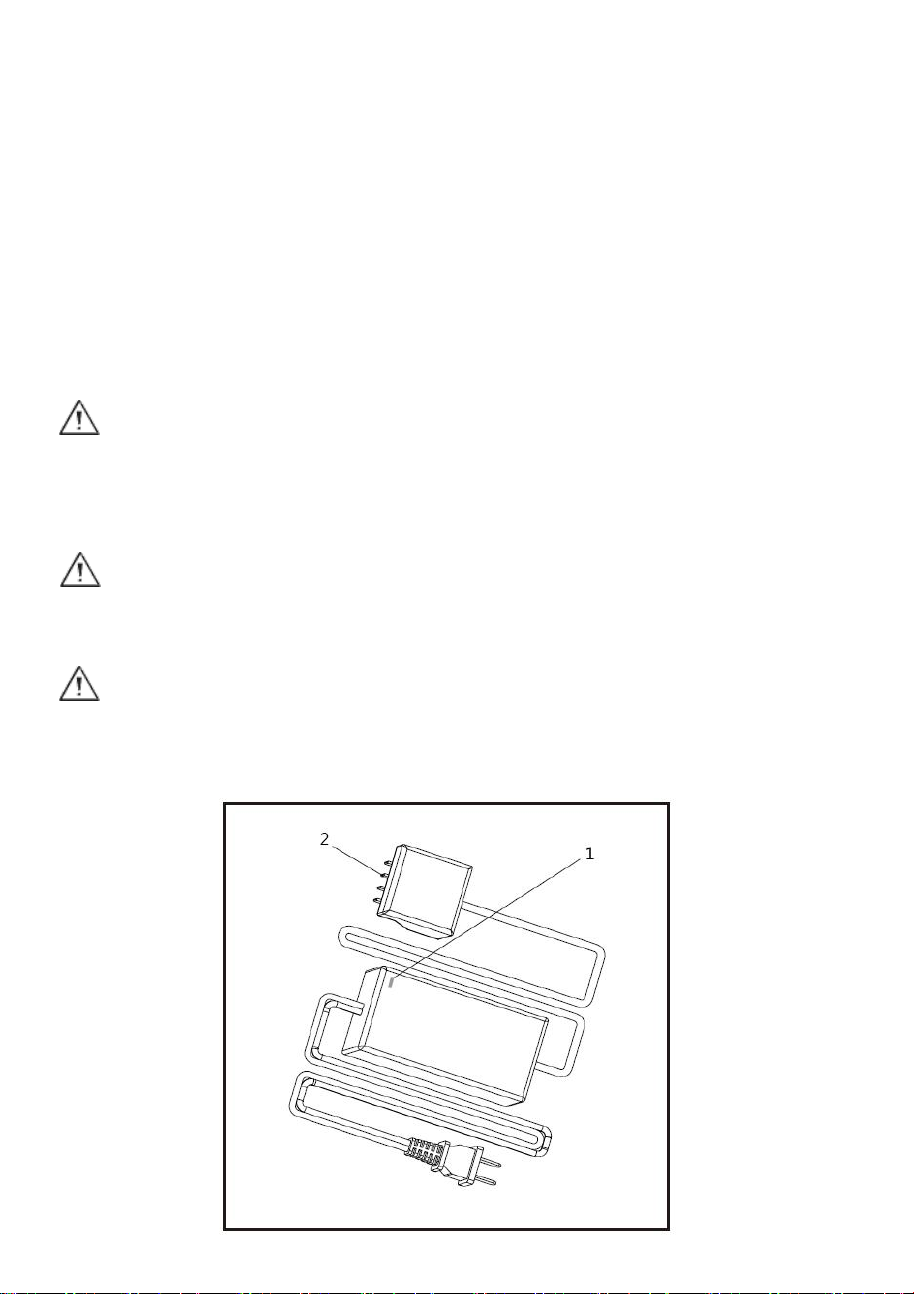

1.Red LED
2.Battery port
3.Battery pack
SPECIFIED CONDITIONS OF USE
DESCRIPTION
3
Pull out the battery port when
you’re finished charging
Insert the battery port to start
charging

7
OPERATION
WARNING! Do not allow familiarity with products
to make you careless. Remember that a careless
fraction of a second is sufficient to inflict serious injury.
WARNING! Do not use any attachments or
accessories not recommended by the
manufacturer of this product. The use of
attachments or accessories not recommended can
result in serious personal injury.
WARNING! Never operate the charger where
there is a possibility of inflammable or explosive
gases or vapor. Keep well away from petroleum, paint
and cleaning supplies, and gas-fired heating systems.
WARNING! Charge in a well-ventilated area. Do
not block charger vents. Keep them clear to allow
proper ventilation.
CHARGING THE BATTERY PACK
Battery packs are shipped in a low charge condition to
prevent possible problems. Therefore, you should
charge them until the green LED on the front of the
charger comes on.
CHARGING A HOT BATTERY PACK
When using a tool continuously, the batteries in the
battery pack will become hot. You should let a hot
battery pack cool down for approximately 30 minutes
before attempting to recharge.
NOTE: This situation only occurs when continuous use
of a tool causes the batteries to become hot. It does not

8
occur under normal circumstances. Refer to
CHARGING A COOL BATTERY PACK for normal
recharging of batteries. If the charger does not charge
the battery pack under normal circumstances, return
both the battery pack and the charger to your nearest
authorized service centre for electrical check.
CHARGING A COOL BATTERY PACK
Only charge the 36 V Li-Ion battery packs with this
charger. Make sure the power supply is normal
household voltage, 100-240VAX50/60Hz, AC only.
Make sure the battery pack. the battery pack is secured
in the charger before beginning operation.

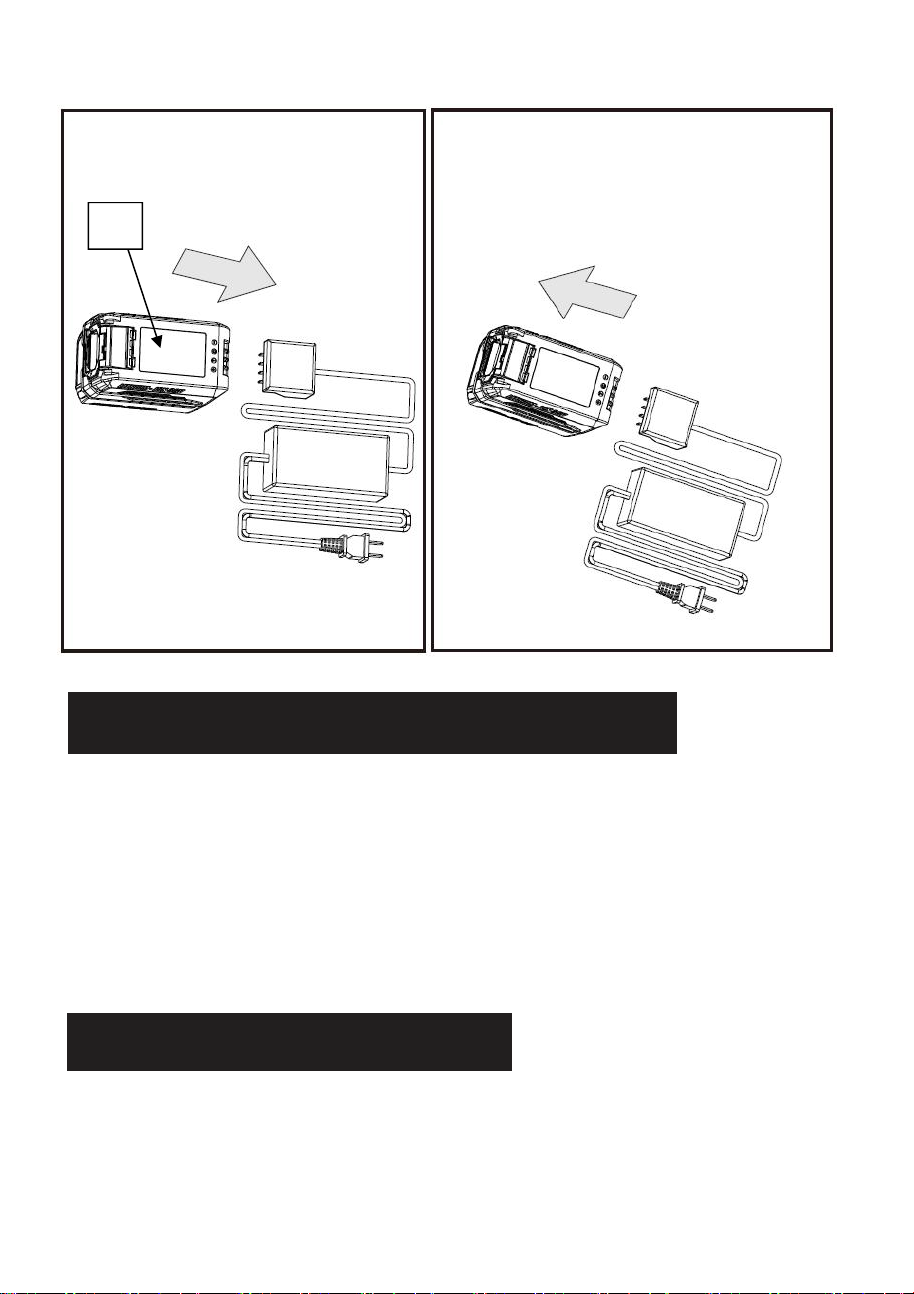

1.Connect the charger to the power supply.
2.Place the battery pack in the charger, aligning the
raised rib on the battery pack with the groove in the
charger.
3.Slide in the battery pack to be sure contacts on the
battery pack engage properly with contacts in the
charger.
NOTE: After charging is complete, the green charger
LED will remain on until the battery pack is removed
from the charger or charger is disconnected from the
power supply. The battery pack will become slightly
warm to the touch while charging. This is normal and
does not indicate a problem. Do not place the charger
and the battery pack
in an area of extreme hot or cold. They will work best at
normal room temperature.
NOTE: The charger and battery pack should be placed
in a location where the temperature is more than 10°C

9
WARNING! If at any point during the charging
process none of the LEDs are lit, remove the
battery pack from the charger to avoid damaging
the product. Do not insert another battery. Return the
charger and battery to your nearest service centre for
service or replacement.
MAINTENANCE
There are no user serviceable parts or adjustments
inside the battery or charger. Both should be returned
to an authorized service centre for specialized
attention.
WARNING! Risk of injury. Service, testing and
repairs should only be carried out by authorized
service centres. We recommend our customer service
department or authorized service centres.
but less than 40°C.
4.When batteries become fully charged, unplug the
charger from the power supply and remove the battery
pack.
Compatible battery packs
HBAT40V4-A: 36 V 4Ah
BATTERY PROTECTION FEATURES
36 V lithium-ion batteries are designed with features
that protect the lithium-ion cells and maximize battery
life. If the tool stops during use, release the trigger to
reset and resume operation. If the tool still does not
work, the battery needs to be recharged.

10
CLEANING THE CHARGER
WARNING! Unplug the charger power cord from
the power supply before cleaning to prevent
serious personal injury.
■Clean the charger surface (except labels) using a
damp cloth with a mild detergent.
■Do not use any strong detergents on the plastic
housing. They can be damaged by certain aromatic oil
such as pine and lemon, and by solvents such as
kerosene.
■Moisture can cause a shock hazard. Wipe off any
moisture with a soft dry cloth.
■Use a small brush or the air discharge of a small
vacuum cleaner brush to clean the air vents on the
charger.
■Keep the air vents free of obstructions.
STORAGE
Store your charger in a cool dry place between 10 and
25 °C.
It is not recommended to leave it in a vehicle during hot
or cold conditions. Ensure no metal filings or swarf can
fall into the vents during storage, as this may cause
serious injury when it is next used.

11
LED FUNCTIONS
Mode
Red
Green
Standby power
Off
On
Charging
Off
Flash
Full Charge
Off
On
Too hot too cold
Flash
Flash
Defective
Flash
Off
TECHNICAL DAT
TEC
HNI
CAL
DAT
A
Input
100-240~, 50/60Hz, 1.8A
Output
36V d.c.(40V max)1.8A
Charger battery
Li-ion
Insulation class
Class Ⅱ
TECHNICAL DATA

12
●Warning
-Please check prior use, if output voltage and current of
the battery charger is suitable for the charging battery
pack.
-Disconnect the supply before making or breaking the
connections to the battery.
-Cleaning and user maintenance shall not be made by
children without supervision.
-If the shape of the plug does not fit the power outlet,
use an attachment plug adaptor of the proper
configuration for the power outlet
●Maintenance and servicing
-The equipment should not be stored in a damp
environment or in places with corrosive gases. Store in
a dry place outside of the range of children.
-Clean the surface of the equipment and wipe it off only
with a dry cloth.
-The equipment may not be dismantled. If the
equipment is damaged, contact the supplier or
manufacturer.
-Maintenance and servicing are not required under
normal conditions.

13

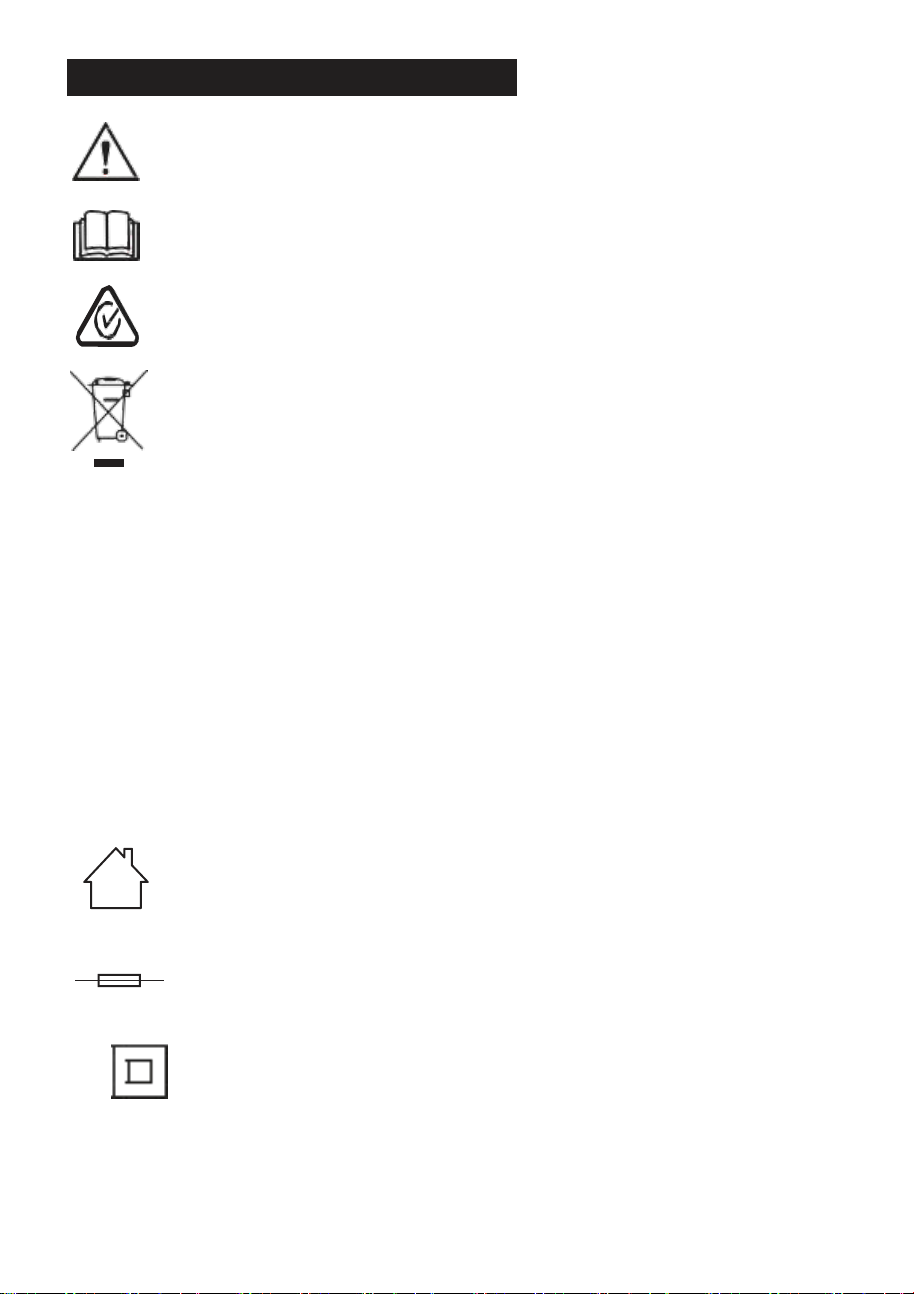

SYMBOLS
Safety alert
Before charging, read the instructions
Regulatory Compliance Mark (RCM). Product
meets applicable regulatory requirements.
Correct Disposal of this product
This marking indicates that this battery charger
and battery pack should not be disposed with other
household wastes throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources.
To return your used device, please use the return and
collection systems or contact the retailer where the
product was purchased. They can take this product for
environmental safe recycling.
For indoor use only
T3.15A Fuse
Class II

WARRANTY
The manufacturer guarantees the product against defects in material and workmanship for a period of 2
years from the date of the original purchase. The warranty only applies if the product is for household use.
The warranty does not cover breakdowns due to normal wear and tear.
The manufacturer agrees to replace parts identied as defective by the designated distributor. The
manufacturer does not accept responsibility for the replacement of the machine, in whole or in part , and/or
ensuing damage.
The warranty does not cover breakdowns due to:
• insu󰀩cient maintenance.
• abnormal assembly, adjustment or operations of the product.
• parts subject to normal wear and tear.
The warranty does not extend to:
• shipping and packaging costs.
• using the tool for a purpose other than that for which it was designed.
• the use and maintenance of the machine done in a manner not described in the user manual.
Due to our policy of continuous product improvement, we reserve the right to alter or change specications
without notice. Consequently, the product may be di󰀨erent from the information contained therein, but a
modication will be undertaken without notice if it is recognized as an improvement of the preceding
characteristic.
READ THE MANUAL CAREFULLY BEFORE USING THE MACHINE.
When ordering spare parts, please indicate the part number or code, you can nd this in the spare parts list
in this manual. Keep the purchase receipt; without it, the warranty is invalid. To help you with your product,
we invite you to contact us by phone or via our website:
• +33 (0)9.70.75.30.30
• https://services.swap-europe.com/contact
You must create a "ticket" via the web platform.
• Register or create your account.
• Indicate the reference of the tool.
• Choose the subject of your request.
• Describe your problem.
• Attach these les: invoice or sales receipt, photo
of the identication plate (serial number), photo
of the part you need (for example: pins on the
transformer plug which are broken).
WARRANTY
14

WHAT TO DO IF MY MACHINE BREAKS DOWN?
If you bought your product in a store:
a) Empty the fuel tank.
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
the repairer will refuse the machine.
Go to the store with the complete machine and with the receipt or invoice.
If you bought your product on a website:
a) Empty the fuel tank.
b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
the repairer will refuse the machine.
c) Create a SWAP-Europe service ticket on the site: https://services.swap-europe.com When making the
request on SWAP-Europe, you must attach the invoice and the photo of the nameplate (serial number).
d) Contact the repair station to make sure it is available before dropping o󰀨 the machine.
Go to the repair station with the complete machine packed, accompanied by the purchase invoice and the
station support sheet downloadable after the service request is completed on the SWAP-Europe site
For machines with engine failure from manufacturers BRIGGS & STRATTON, HONDA and RATO, please
refer to the following instructions.
Repairs will be done by approved engine manufacturers of these manufacturers, see their site:
• http://www.briggsandstratton.com/eu/fr
• http://www.honda-engines-eu.com/fr/service-network-page;jsessionid=5EE8456CF39CD572AA2AEEDFD
290CDAE
• https://www.rato-europe.com/it/service-network
Please keep your original packaging to allow for after-sales service returns or pack your machine
with a similar cardboard box of the same dimensions.
For any question concerning our after-sales service you can make a request on our website https://
services.swap-europe.com
Our hotline remains available at [phone].
PRODUCT FAILURE
15

THE WARRANTY DOES NOT COVER:
• Start-up and setting up of the product.
• Damage resulting from normal wear and tear of the product.
• Damage resulting from improper use of the product.
• Damage resulting from assembly or start-up not in accordance with the user manual.
• Breakdowns related to carburetion beyond 90 days and fouling of carburetors.
• Periodic and standard maintenance events.
• Actions of modication and dismantling that directly void the warranty.
• Products whose original authentication marking (brand, serial number) has been degraded, altered or
withdrawn.
• Replacement of consumables.
• The use of non-original parts.
• Breakage of parts following impacts or projections.
• Accessories breakdowns.
• Defects and their consequences linked to any external cause.
• Loss of components and loss due to insu󰀩cient screwing.
• Cutting components and any damage related to the loosening of parts.
• Overload or overheating.
• Poor power supply quality: faulty voltage, voltage error, etc.
• Damages resulting from the deprivation of enjoyment of the product during the time necessary for repairs
and more generally the costs related to the immobilization of the product.
• The costs of a second opinion established by a third party following an estimate by a SWAP-Europe repair
station
• The use of a product which would show a defect or a breakage which was not the subject of an immediate
report and/or repair with the services of SWAP-Europe.
• Deterioration linked to transport and storage*.
• Launchers beyond 90 days.
• Oil, petrol, grease.
• Damages related to the use of non-compliant fuels or lubricants.
* In accordance with transport legislation, damage related to transport must be declared to carriers within 48
hours maximum after observation by registered letter with acknowledgement of receipt.
This document is a supplement to your notice, a non-exhaustive list.
Attention: all orders must be checked in the presence of the delivery person. In case of refusal by the
delivery person, it you must simply refuse the delivery and notify your refusal.
Reminder: the reserves do not exclude the notication by registered letter with acknowledgement within 72
hours.
Information:
Thermal devices must be wintered each season (service available on the SWAP-Europe site). Batteries must
be charged before being stored.
WARRANTY EXCLUSIONS
16

14
