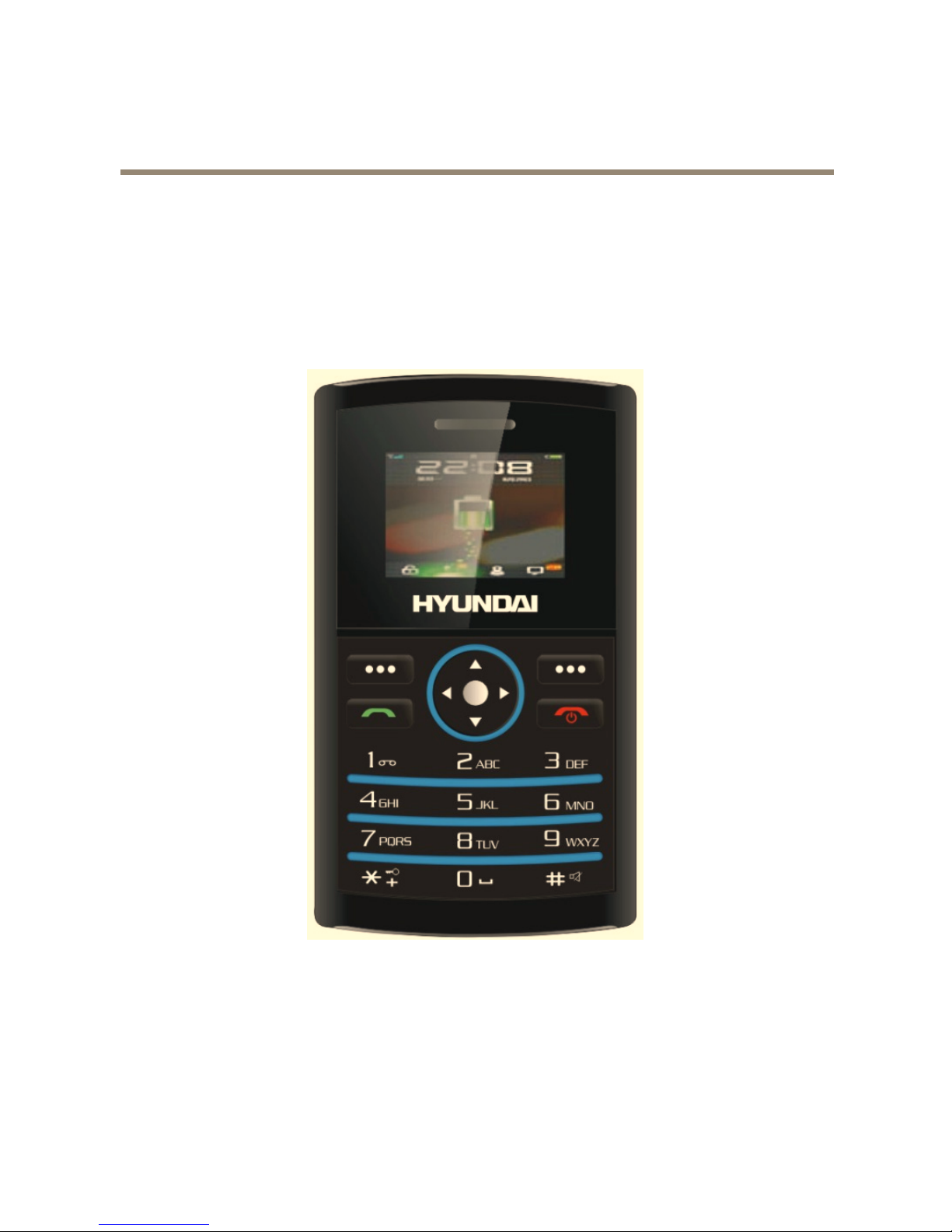

Hyundai MB-110 User manual

U SE R G UI D E
M B-1 1 0 G S M
Before operating this set,
please read these instructions carefully.

1
IMPORTANT –Your handset is not supplied with a
simcard. The MB-110 GSM will work on all GSM networks.
You will need to insert a simcard for the handset to work
properly.
Network Services – The MB-110 GSM is approved for
use on the GSM900 and GSM1800 networks. Check with
your mobile phone service provider to see if you can use
the Dualband feature or other Network Services described
in this guide. Some networks may not support all
language dependent characters and/or services.
Unpacking your MB-110 GSM Mobile
In the box are:
•the mobile handset
•a mains power adaptor
•the handset back cover
•a rechargeable battery pack
•this user guide
Keep the packing materials for future use.
Keep your sales receipt - it is your guarantee.

2
Where to find it…………………..…………..………… 3
Symbols on the display ………..………………….… 4
Menu Operation …………….…..………………..…… 5
Read these notes first……....……….………….…… 5
Installation and setup………………………..….…… 6
Switching On and Off …………………..……..…..… 8
Making & answering calls…………………………… 9
Using the Phone Book……………………………… 10
Call Log…………………….……………………….…. 13
SMS text messaging……………………………….… 13
Tools…………………………..……………….............. 16
Setting…………………………..…………………..… 19
Profiles………………………..…………………….….…. 19
Display settings ……………………..……………. 19
Security settings……………………………………. 19
Network settings …………………………………… 20
Call settings……………………………………….…. 20
Set Phone Others…………………………………… 20
Troubleshooting……………………………………… 21
Guarantee and Service information……………….. 22
Battery Information…………………………………… 23
Additional Safety Information………………………. 23
Contents

3
Where to find it
Earpiece
Press to end or reject a call.
Press
to
return
to
standb
y
Select buttons
(Left/Right soft keys)
Perform functions
indicated by the
display text above
Talk button
Press to answer a
phone call.
Press to enter
redial list
Left/Right/Up/Down
butto
n
s
Press to adjust receiving
volume in talk and
speakerphone modes.
Press to step through
names, phone numbers,
menus and settings.
Standby mode shortcuts:
Left – to Inbox
Right – to Alarm
Up - to Sound Profiles
Down - to Phonebook
Press and hold to switch
the
phone
on
or
off
End Call / Power
On-Off button
OK button
The same as Left
key function
Press to select or
deselect the day on
weekly alarm
function

4
The network name
Time
Date
Symbols on
the
display
1 - The left soft key in the standby mode is Menu.
2 - The right soft key in the standby mode is SMS.
The Soft keys change to different functions in other
modes.
Radio signal level - Shows the signal strength.
Battery level/Charge – Shows battery remaining
level or show animation during charging.
Call Divert - On if call divert unconditional is set.
Alarm - On if an alarm is set.
Ringer Off - On if handset's ringer is turned off.
Headset - On when a headset is plugged in.
New SMS - Indicates you have new text messages.
Lock - On when the handset's keypad is locked.
Missed Call - On if you have missed Call records.
Mute - On if the handset microphone is muted.
1 2

5
Menu Operation
Menu lists are used for set up operation.
The left and right soft keys are Menu and SMS shortcut in
standby.
Press Menu ( ) and the display changes and the soft
keys become Select and Back.
Use Up or Down to move up or down menu lists, and
Select or Back for the next or previous display.
When writing text, use the # key to switch cases:
Upper case (ABC), Title case (Abc), Lower case (abc) or
Numerals (123). Use Left ,Right, Up or Down to move
the cursor, and Clear to delete letters.
Read these notes first
Your phone is an electronic product and should be treated
with care to meet any warranty and safety obligations.
•SWITCH ON SAFELY – Don’t switch on when mobile
phone usage is prohibited or may cause interference
or danger.
•HEARING AID COMPATIBILITY – With the hearing
aid set to normal, adjust the phone volume. If this fails
to be ok, then to try the hearing aid in the ‘T’ position.
•WATER-RESISTANCE – Keep it dry. The phone is
not water-resistant.
•TEMPERATURE RANGE – Operating 0°C to 40°C.
Storage -20°C to 60°C.
•CARE & CLEANING - Do not drop or knock the phone
excessively, and keep it clean using a damp cloth if

6
necessary - do not use chemicals, cleaning solvents,
or strong detergents.
Installation and setup
Before operating the MB-110 GSM a SIM card must be
installed. Keep the SIM card out of small children’s reach.
The SIM card and its contacts can be damaged easily by
scratches or bending, so handle the card carefully.
Install the SIM card and battery
1. Switch off the phone, disconnect the
power adaptor and remove the battery.
2. To remove the back cover and slide the
cover down.
3. Remove the battery by lifting from the
top edge.
4. Carefully slide the SIM card into the
holder with the gold connectors face
down and angled corner bottom right.
5. Replace the battery by aligning the
gold connectors on the battery with
those on the phone, and push the
top end of the battery down until
it clicks into place.
6. Replace the back cover by
placing it flat on the back
of the handset and sliding
up until it clicks into place.
Charge the battery

7
Warning! Use only batteries and chargers supplied with
or approved for this MB-110. Use of others will invalidate
approvals or warranty and may be dangerous.
Do not charge the battery with the back cover removed.
1. Connect the charger lead firmly into the socket on the
Right side of the handset.
2. Plug the charger into an AC mains socket. The battery
indicator bar scrolls and “Charging…” is displayed.
3. Charging the battery may take up to 5 hours.
4. If no “Charging…”is displayed, disconnect the charger,
and retry. If charging still fails, contact the helpline.
5. The battery is fully charged when the bar stops
scrolling. Disconnect the charger from the phone and
the AC outlet.
Connect a compatible headset (Optional)
You can use the MB-110 GSM with the headset along.
The connector must be a jack plug that inserts in the
Power/Headset socket on the right side of the handset.
When connecting a headset, including those approved for
used with the MB-108 GSM, pay special attention to
volume levels. Read its user guide for detailed safety
instructions. Do not connect incompatible products.
When correctly inserted the headset icon will show on
the handset display.
Headset / Charging Connector

8
Plug in power adapter to charge battery.
Plug in headset accessory for headset use.
Switching On and Off
To switch the phone on and off
To switch off, press and hold End Call until the
display clears.
To switch back on, press and hold End Call until the
display turns on.
Warning! Do not switch on when mobile phone usage
is prohibited or it may cause interference or
danger.
To lock the handset keypad
When you do nothing for some time the keypad will
be locked the display shows
Or press Menu key(left soft key), Then press“”
key to lock the keypad when idle mode.
To unlock the keypad press Unlock key(left soft key),
Then press “”key to unlock.
Note: When the keypad is locked, you can answer, end
or reject a call in the normal way. During a call, you
can operate the phone as usual.
When the keypad is locked, you can dial
emergency number like “112”.

9
Making & Answering calls
To make a call
Ensure the phone is switched on and in service.
Key in the telephone number including area code.
(To add prefix "+" press the “*” key twice quickly)
Press Talk to dial the number on the display.
To end calls press the End Call button.
Last Number Redial
In standby mode, press Talk to see the last 10
numbers & press Up / Down to go to the number
Press Talk to dial the number.
To answer a call
When the phone rings, press Talk to answer it.
Earpiece volume
During a call, press Up / Down to alter the volume.
The volume level displays.
To switch to speakerphone
During a call, press Option & Down to go to
HandsFree, & Select
To end the call press End Call, or to return to normal
handset use, press Option again then select
HandsFree Off.
