Hyundai Robex 22-7 User manual

SERVICE MANUAL
SER. NO. HY2270001~

INTRODUCTION
To insure a long life for the machine and the engine and to prevent failure and prob-
lems, proper operation, maintenance and repairs are indispensable.
This service manual includes an “outline,” “structure and operation,” “inspection and
adjustment,” “disassembly and assembly,” “standard maintenance,” and “repair and re-
placement of parts” of the machine which are necessary to carry out the inspections and
repairs in the repair shop.
We hope that this manual helps you to efficiently and effectively carry out repairs by
providing and accurate description of the product and the correct repair techniques.

CONTENTS
1. Precautions on Maintenance
2. Outline
3. Attachment
4. Engine
5. Main Pump
6. Hydraulic Oil Filter
7. Control Valve
8. Joystick
9. Slew Motor
10. Travel Motor
11. Hydraulic Cylinder
12. Swivel Joint
13. Crawler
14. Spring Case and Grease Cylinder
15. Idler
16. Sprocket
17. Track Roller
18. Electrical Equipment
19. Troubleshooting

1 PRECAUTIONS ON MAINTENANCE
1. Correct operation
Correct operation means to follow the correct “procedure” and “method.”
Procedure focuses on speed and accuracy of each job.
In the method, are addressed what type of facility, tools, instruments, materials, oil should
be used, how and which part should be checked, adjusted or disassembled, and what
matters to attend to.
2. Precautions on operation
1. Safety check
Check that stoppers and sleepers are correctly installed for the vehicle jack-up
operation.
2. Preparation
Prepare all of the tools and inspect and adjust the instruments.
3. For efficiency
1) Understand the state before disassembly.
What is the problem? Is disassembly absolutely necessary?
2) Before disassembly
Determinewhethermatchmarksarenecessary.Fortheelectricalsystem,disconnect
the cable from the battery terminal.
3) Precautions for disassembly
In stead of checking all of the disassembled parts at once, check each part
individually as it is disassembled. When removing the hydraulic unit or the hoses,
mount a dust cap on the connection.
4) Repair of disassembled parts
Keep the disassembled parts in order. Clearly distinguish the parts to be replaced
with new parts from those to be reused. Packings, seals, rings, split pins must be
replaced.
NOTE:
Electrical equipment, rubbers and V belts (which are easily affected by water and
oil) must be handled carefully in order to prevent soiling them.
5) Clean disassembled parts
Thoroughly clean the disassembled parts.
6) Assembly
Perform the assembly correctly (tightening torque, application of Three Bond,
screw lock, grease, use of seal tape, etc.). Also install the hose correctly.
1-1
Hose mark Hose mark

2 OUTLINE
CONTENTS
2-1 Location of serial No.
2-2 Name of each part
2-3 Dimensions and specification
2-4 Weight list
2-5 Oil and grease supply points
2-6 List of supply oil and grease
2-7 When to repair
2-8 Hydraulic circuit diagram

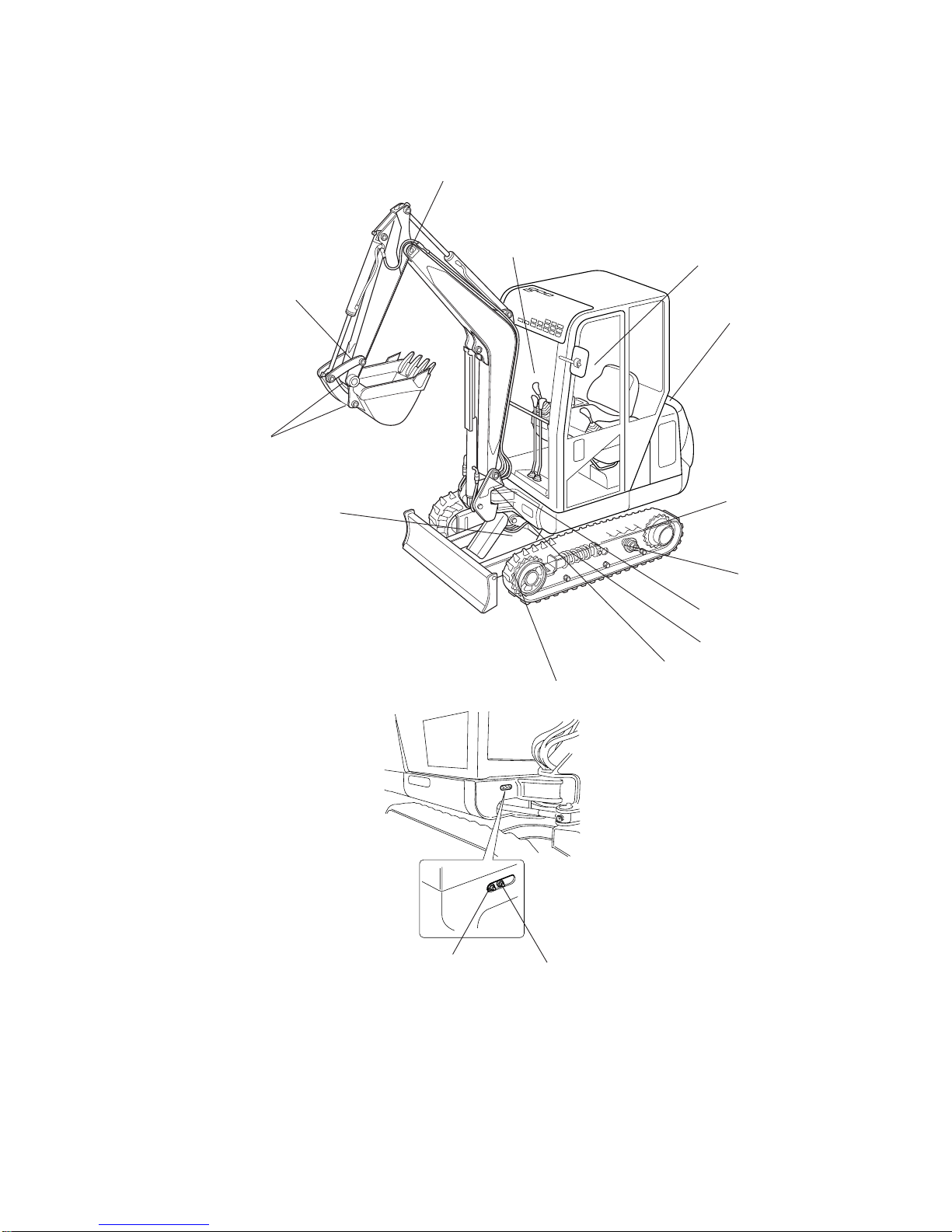

2-1 Location of Serial Number
2-1

2-2 Name of each part 1. Boom
2. Boom cylinder
3. Arm cylinder
4. Arm
5. Bucket cylinder
6. Bucket links
7. Dump link
8. Bucket
9. Swing frame
10. Engine cover
11. Fuel tank
12. Hydraulic tank
13. Cabin
14. Counter weight
15. Operator's seat
16. Crawler
17. Dozer blade
18. Dozer cylinder
19. Travelling motor
20. Track roller
21. Front idler
22. Grease cylinder
23. Swing post
24. Swing cylinder
25. Operation levers
1. Meter unit
2. Starter switch
3. Horn switch
4. Fuse box
5. Right operation lever
6. Left operation lever
7. Accelerator lever
8. Dozer operation lever
9. Right travelling lever
10. Left travelling lever
11. Swing pedal
12. P.T.O. pedal
13. Safety lock lever
14. Slew lock pin
15. Overdrive switch
16. Heater switch(for Cabin)
17. Wiper switch(for Cabin)
18. Manual boom lowering lever
19. Cigarette lighters
2-2
5
6
7
8
1
4
2
23
17 18 21
24
22 20
19
9
16
10
14
3
11
12
25
15
13
FUSE
18
87
14
10 9
2
5
4
63
1
13 12
15
17
16
11
19

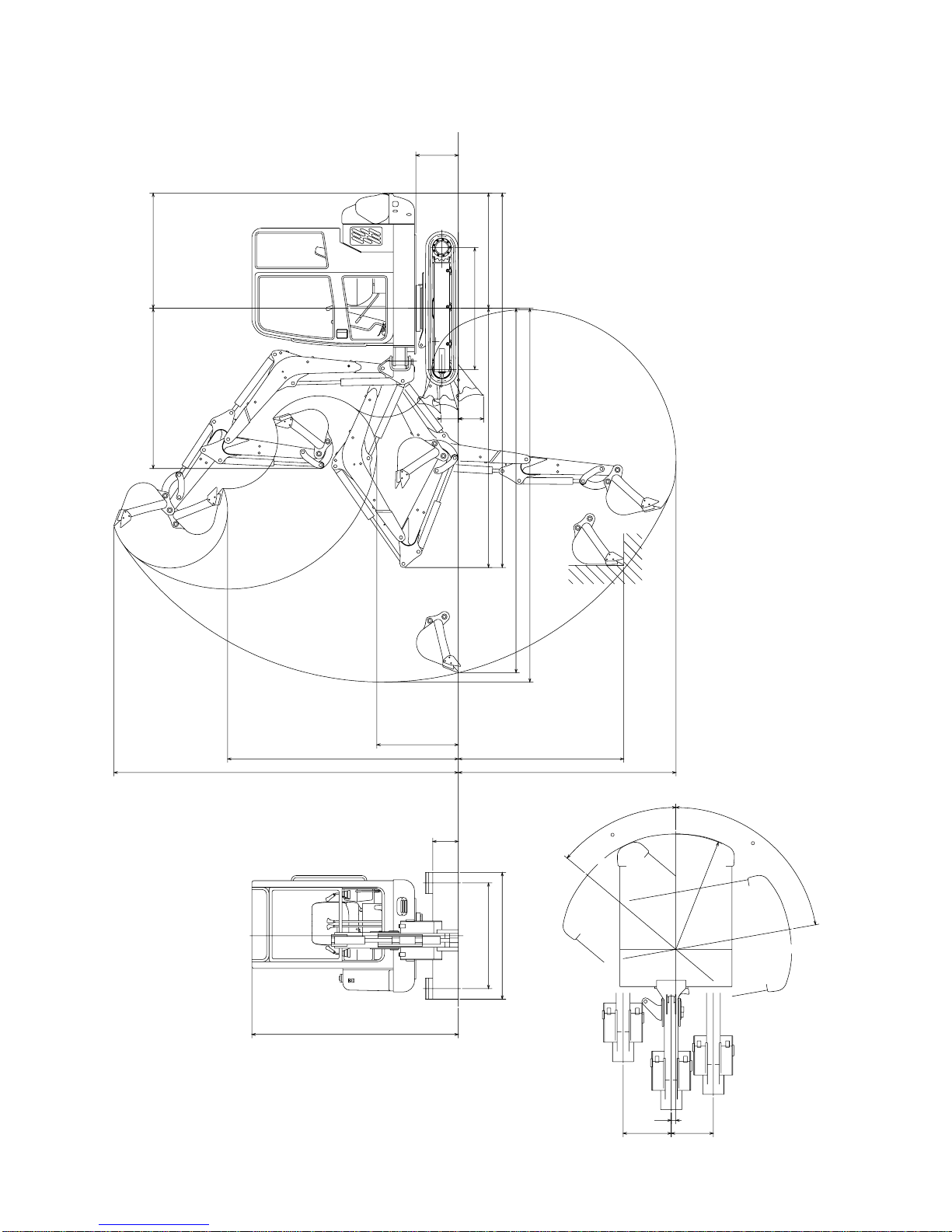

2-3 Dimensions and Specifications
2-3
465
1405(L80゜Swing)(1445)
280
2250(Height)
1150
1380
1325
1745(1795)
190
275
Ｒ1255
1255
1255
3745
2510
885
1795
2365
4065 3965 4075
2820
80
50
50
520455

2-4
Model Robex22-7
Canopy rubber 2,080
Canopy steel 2,130
Cabin rubber 2,200
Cabin steel 2,250
Standard bucket capacity/width m3/mm 0.06 / 450
Type MITSUBISHI L3E
Displacement cc 952
Rated output kW(PS) / min-1 12.5(17) / 2,400
Overall length mm 4,075
Overall width mm 1,380
Overall height mm 2,250
Max.digging depth mm 2,365
Max.vertical digging depth mm 1,795
Max.digging height mm 3,745
Max.dumping height mm 2,510
Max.digging radius mm 4,065
Reach at ground mm 3,965
Min. turning radius front mm 1,745
swing mm 1,405
Rear turning radius mm 1,255
Boom swing angle L/R deg 80 / 50
Max.digging force(Bucket) kN 16.3
Max.digging force(Arm) kN 11.2
Max.drawbar pull kN 16.2
Travel speed(low) / (high) km / h 2.2 / 3.8
Slew speed min-1 11.5
Gradeability Angle 30°
Pump Type Piston ×2+Gear
Oil flow / min 24.0 ×2+15.4
P.T.O Oil flow / min 48.0
Main relief pressure MPa 18.6 ×2+17.2
Dozer blade width×height mm 1,380 ×280
Shoe width×tumbler center mm 230 ×1,325
Ground Cabin rubber kPa 33.5
pressure Cabin steel 34.2
Type of travelling motor Piston
Crawler tension system Grease cylinder
Hyd.oil capacity 33.0
Fuel capacity 29.0
Engine oil capacity 3.5
Cooling water capacity 5.6
Noise level LwA/LpA dB 93 / 82
Engine
Working
range
Performance
Dimensions
Underbody
Hydraulic
system
Capacity
Machine
weight kg

2-4 Weight list
2-5
Part name
Slew bearing 29
Track frame 179
Dozer 74
Crawler(steel) 84×2
Crawler(rubber) 59×2
Idler 8×2
Adjust cylinder 12×2
Track roller 5.0×6
Sprocket 4×2
Slew motor 15
Turning motor 25×2
Joystick 2.0×2
Engine 94
Radiator 7.0
Battery 12
Seat plate 16.5
Swivel joint 11
Pump 15
Pump frange 9
Control valve 23
Tops roof 110
Cabin 230
Part name
Boom 70
Arm 40
Bucket 57
Dump link 9.4
Bucket link(R) 1.7
Bucket link(L) 2.0
Boom joint pin 2.0
Arm joint pin 1.7
Bucket pin 1.7×2
Bucket link pin 1.5
Swing post 36
Swing post pin 4.1
Swing frame 258
Hydraulic oil tank 28
Fuel tank 16
Engine cover(A)(B) 24
Engine cover(C) 8.0
Counter weight 200
Boom cylinder 20
Arm cylinder 20
Bucket cylinder 17
Swing cylinder 16
Dozer cylinder 13
Unit: kg

2-5 Oil and grease supply points
2-6
Swing cylinder
head pin
Bucket link pin
Bucket pin
Swing post pin
Boom joint pin
Boom arm joint pin
Travel motor
Track roller
Dozer joint pin
Front idler
Adjust cylinder
Fuel tank Hydraulic tank
Engine
Slew gear

Genuine oil
Be sure to use Castrol Hyspin 46.
Table of recommended Lubricants
*Use class CD engine oil (API Service Classification)
Cooling water (antifreeze)
*To prevent the cooling system from freezing, add antifreeze to the cooling water.
Replace the cooling water after 1 year from its delivery, because the effect will decrease.
*Use "Long-life coolant" for the antifreeze.
*Mixing ratio of antifreeze.
Temperature -5°C-10°C-15°C-20°C-25°C-30°C
Amount of antifreeze 1.3 1.6 2.0 2.3 2.7 3.2
Engine inside capacity Radiator capacity Reserve tank capacity Total
1.7 3.5 0.4 5.6
Type of oil according to ambient condition
-10°C~40°C-20°C~0°C
Soft water (antifreeze is mixed in water)
Diesel fuel with freezing point below -7°C
SAE10W-30
SAE 30
ISO VG 46
SAE 30
SAE 30
Name
Engine cooling water
Fuel tank
(effective capacity)
Engine lubricating oil
Travel motor
(reduction gear)
Hydraulic tank
Track roller (1 piece)
Front idler (1 piece)
2-6 List of lubrication
Quantity of oil/water
5.6
29
3.5
0.33
33
100cm3
40cm3
2-7
No. LUBRICANT SHELL MOBIL
1 Engine Oil Myrina oil 10W-30 Delvac Super10W-30
2 Gear Oil Spirax Heavy Duty 140 Mobilub HD 85W-140
3 Hydraulic Oil ISO VG 46 (equivalent) ISO VG46 (equivalent)
4 Cup Grease Alvinia 2 Mobilux 2
5 Anti Freeze Anti Freeze Anti Freeze
6 Diesel Fuel — —

2-7 When to repair
It is difficult to judge when to perform periodic inspections, maintenance and repairs.
Although the wearing rate of each component differs depending on the grade of daily
inspection, the skill in machine operation, the working conditions, the quality of used
lubricating oil, the frequency of oil replacement, the quality of land to be dug, the digging
rate, the schedule for maintenance and repairs should be decided considering the state
of engine, the indication of the hour meter, the degree of wear in each part, the state of
hydraulic system, your experience and data.
2.7.1 Category of maintenance
2-8
Prestart-up inspection Execute every day before beginning
operation
Maintenance after the first
25 service hours Execute every 25 hours by the hour meter
Maintenance after the first
50 service hours Execute once a week (every 50 hours by the hour meter)
Maintenance after the first
100 service hours Execute every 100 hours by the hour meter
Maintenance after the first
250 service hours Execute every 250 hours by the hour meter
Maintenance after the first
300 service hours Execute every 300 hours by the hour meter
Maintenance after the first
500 service hours Execute every 500 hours by the hour meter
Maintenance after the first
1,000 service hours Execute every 1,000 hours by the hour meter
Maintenance after the first
2,000 service hours Execute every 2,000 hours by the hour meter

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Inspection and
maintenance item
Engine oil pan
Engine oil filter
Fuel filter
Engine valve
clearance
Fan belt
Fuel tank
Radiator (sub-tank)
Radiator fin
Air cleaner
Hydraulic oil tank
Hydraulic line filter
Hydraulic suction
filter
Bucket teeth and
others
Slew bearing
Inspect crawler
tension(grease
cylinder) and
grease the crawler
Battery liquid
amount and
specific gravity
Inspect each body
part for loosening
and damage
Each lever and
instrument
Lubricating oil of
slew/travelling
reduction gear
Lubricating oil of
track roller/Front
Idler reduction gear
Electrical wiring
Water and oil
leakage in each
body part
Inspect and grease
attachment
Inspection and maintenance interval (hours)
7 50 100 250 500 1,000
Replace the
engine oil
Replace the
cartridge
Drain water
and sediment
Clean
Replace oil
Replace oil
Check and
clean
Check and
clean
Replace the
cartridge
(New
machine
only)
Clean the
element
(New
machine
only)
Replace the
engine oil
(New
machine only)
Replace the
cartridge
(New
machine only)
Inspect and
adjust (New
machine only)
Drain water
and sediment,
clean strainer
Check and
clean
Inspect and
grease
Inspect, clean
and supply
distilled water
Replace the
element
Inspect and
adjust
Replace and
clean
Replace the
element
Replace the
cartridge
Replace the
element
Replace oil (after
the first 500
service hours
only for a new
machine)
Check oil
level
Check and
adjust
Check oil
level
Check water
level
Check oil
level
Inspect
Check and
adjust
Check and
tighten
Inspect
Inspect
Inspect
Inspect
attachment
2-7-2 Maintenance procedure
2-9
Replace oil
Supply oil and
grease

Item
Engine oil pan
Fuel tank
Radiator
Each oil/grease
supply point
Inspect each body
part for looseness
and damage
Each lever and
instrument
Hydraulic oil tank
Bucket teeth and
others
Electrical wiring
Fan belt
Item
Each body part
Fuel tank
Cooling water
Content
Check oil level
Check fuel level
Check water level
Oil and grease
Looseness, removal,
water and oil leakage
Operation check
Check oil level
Wear
Looseness and tears
Check and adjust
Content
Clean, check for water
and oil leaks.
Looseness, failure, etc.
Fuel supply
Drain
1
2
3
4
5
6
7
8
9
10
1
2
3
Remarks
Before starting engine
Check that the fuel level is
above the center of level
gauge.
Check that the amount of water
in sub-tank is within a specified
level.
Refer to page 2-6
Refer to tightening torque list.
Whether abnormal operation
exists or not
Add oil if its level falls below the
specified level. (Be careful of
the position of machine.)
Check whether the
replacement of parts is
necessary or not.
Loosened terminal, torn
covering, etc.
10 to 12 mm sag at the center
Remarks
Treatment of the part where
cleaning was not sufficient
such as dirt sticking to the
body or muddy water
remaining on the body.
Add fuel
Only when the danger of
freezing exists
(2)Post operation inspections
2-7-3 Prestart inspections
(1)Prestart inspections
2-10

2-11
PF screw
Torque N-m
Size
127-30
—
4
347-52
—
8
157-63
—
2
3108-120
—
4
126-140
1
Tightening Torque List
At prestart inspections, always check the bolts and nuts for looseness. If any bolt or nut
is loose, retighten according to the table below.
N-m
Tightening torque of the bolt and nut (Body)
Material 8.8 10.9 12.9
Size N-m N-m N-m
M6 12.5 16 20
M8 30 39 45
M10 62 72 80
M12 100 120 130
M14 160 195 220
M16 250 305 340
N-m
Tightening torque of the hydraulic pipings
PT screw
Torque N-m
Size
136
—
4
355
—
8
186
—
2
3130
—
4
195
1
1300
1—
4
1400
1—
2

2-7-4 Maintenance after the first 50 service hours
Item
Engine oil pan and
Engine oil filter
Engine valve
clearance
Remarks
Only for a new machine. After
this, every 250 service hours
Only for a new machine. After
this, every 500 service hours
Content
Replace engine oil
and filter
Inspect and adjust
1
3
2-12
5
6
12
14
20
Fuel tank
Radiator fin
Slew bearing
Battery
Each oil/grease
supply point
Drain sediment and
water
Clean the strainer
Clean the fins
Inspect and grease
Liquid quantity
Specific gravity
Clean
Oil and grease
Remove the drain plug on the
lower part of the tank
Wash strainer with diesel fuel
Dust sticking to the fin affects
the cooling effect and causes
overheating
Always grease the machine
after it is used in water
Whether the liquid level is
proper or not. If short, add
distilled water
1.26 when fully charged; 1.20
when discharged (Recharge
the battery when 1.20.)
Clean each part, brush and
connect terminal and apply
grease
Refer to page 2-6
2-7-5 Maintenance every 50 service hours

2-7-6 Maintenance after the first 100 service hours
Item
Hydraulic line filter
Hydraulic suction
filter
Content
Replace the cartridge
Clean the element
Remarks
Only for a new machine. After
this, every 500 service hours
Only for a new machine. After
this, every 500 service hours
9
10
2-13
2-7-7 Maintenance every 100 service hours
Item
Fuel filter
Air cleaner
Content
Clean the element
Clean the dust cover,
clean or replace the
element
Remarks
After cleaning, open the cock
to vent air
Check also for a loosened band
2
7
Item
Engine oil
Engine oil filter
Hydraulic oil tank
Content
Replace the engine oil
Replace the cartridge
Drain water and
sediment
Remarks
Remove the drain plug on the
lower part of the tank. (After
50 service hours for a new
machine)
After 50 service hours for a new
machine
After air is vent, loosen the
drain plug
1
8
2-7-8 Maintenance every 250 service hours
Item
Fuel filter
Engine valve
clearance
Radiator
Air cleaner
Hydraulic line filter
Hydraulic suction
filter
Content
Replace the element
Check valve clearance
Replace cooling water
and clean the radiator
Replace the element
Replace the cartridge
Replace the element
Remarks
Clean the inside of bowl
Clearance between the valve
and the rocker
Remove the drain plug, clean
the radiator and add water to
the sub-tank up to the specified
level.
After 100 service hours for a
new machine
2
3
6
7
9
10
2-7-10 Maintenanceevery500servicehours
Item
Lubricating oil of
slew and travelling
reduction gears
Content
Replace lubricating oil
Remarks
Replace oil after the first 500
service hours. Every 1,000
service hours after this (Refer
to Table of Oil/Grease Supply
Points)
17
2-7-9 Maintenance after the first 500 service hours
