I.D. AL GeoPlayer User manual

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
MANUAL
GeoPlayer
Audio Player
MP3 & WAV
with GPS function

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
Table of content
A - Safety instructions............................................................................ P1
B- Productinformation........................................................................... P3
1- Productpresentation......................................................................... P4
2-Functionnalities................................................................................. P4
3- Installation ........................................................................................ P5
4- Operatingmode andnaming offiles .................................................. P8
5- GPSconfigurationfile.......................................................................P11
6- Infraredremotecontrol .................................................................... P15
AppendixA: Characteristics ................................................................ P16
Appendix B : Functionnalities............................................................... P16
ID-AL products are exclusively manufactured by Waves System
LAVILLE EN BOIS - 44830 BOUAYE - FRANCE
Sales and information: [phone]
E-mail:[email protected]
Web site: http://www.id-al.com
Technical department : [email protected]
Technicalsupport:
For a detailed list of technical support options, please visit our site www.id-al.com.
Information in this manual is subject to change without notice and do not represent any commitment from
Waves System. The equipment described in this manual is supplied under condition of the terms of
license specifying the legal use conditions. This manual can’t be reproduced or used, in whole or in part,
in any form and by any mean, for other use than private, without the written permission from Waves
System.
ID-AL is a trademark of Waves System.

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
- 1 -
WARNING:DONOTEXPOSETOMOISTUREANDDUST!
Unplug the power cord before any intervention !
FORYOURSAFETY,PLEASEREADCAREFULLYTHISOPERATIONMANUAL
BEFOREUSINGYOURPLAYER
A. SAFETY INSTRUCTIONS
A.1 CE marking
The CE marking is on the ID plate, at the back of the product. It means this product complies with the low
voltage CE directive, according the EN 55022 standard, and the EMC directive 61000-4-x.
A.2 Directives
• Electro-magnetic compatibility (EMC) and low voltage directive requirements are satisfied.
A.3 Overview
• The user’s manual forms an integral part of the unit. It must be kept close to the unit. Precise observance
of these instructions is a pre-condition to use the unit for the intended purpose and for its correct
operation.
This user’s manual must be passed on to any future purchaser or operator.
The staff would receive instructions concerning the correct use of the product.
• Safety for the operator as well as trouble-free operation of the unit is only ensured if use is made of
original equipment parts. Moreover, use may only be made of those accessories that are specified in the
technical documentation or that have been expressly approved by the manufacturer. The manufacturer
cannot guarantee for the safety or proper functioning of the unit in the case where accessories or
consumables are used which are not supplied by the manufacturer.
• The warranty doesn’t cover damages caused by use of accessories or consumables which are not
supplied by the manufacturer.
• The manufacturer only regard himself as being responsible for the equipment with regard to safety,
reliability and proper functioning if assembly, re-settings, changes or modifications, extensions and
repairs have been carried out by the manufacturer or a company authorized by the manufacturer and if
the equipment is used in conformity with the operating instructions written in this manual.
• The AP103 MicroPlayer complies with the applicable technical safety standards at the date of print. All
rights reserved for electrical diagrams, procedures, mentioned names and equipments.
• No reproduction, in whole or in part, without the written permission from Waves System.
A.4 General safety instructions
This equipment left our facilities in perfect conditions of operation. In order to maintain these conditions,
for safety and to avoid any risk of injury, the user must imperatively follow the safety instructions and
read the ´Warning!´ notes in this manual.
This equipment, manufactured by Waves System, has been so designed that any danger is virtually
excluded provided it is used according to its purpose. However, for safety reasons, we are obliged to
point out the following measures:

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
- 2 -
• When operating this appliance, observe all local rules and enforced regulations!
The homologation shall be invalid if any modification or alteration is made on the appliance. Operating
modified appliances may lead to a penal suit. In the interest of the safety of work, the manager and the
operator will be responsible for respecting the instructions.
• Retain all packing material in case the device must be shipped. Take care that it does not fall into the
hands of children. Only the original packing guarantees optimal safety of the appliance during transport.
Should it be necessary to ship the product during the guarantee period, Waves System will not accept
claims for damage arising during the transport from using incorrect packing material!
• This product is dedicated to broadcasting music. It may only be operated by trained or knowledgeable
personnel who can handle the device correctly.
• Before every use, the operator must check the functional safety and the condition of the appliance.
• The operator must be knowledgeable in the operation of the appliance.
• This device must not be used in places with potential explosion risk. Moreover, it must not be used in an
environment favouring combustion neither in a wet or excessively hot or cold place.
A.5 Safety instructions against risks pertaining to electrical current
• The appliance must be connected to a grounded AC power outlet or a correctly wired CEE AC outlet.
• Before connecting the appliance, verify that the power supply voltage and frequency match the
specifications indicated on the appliance.
• Before powering, check that the appliance and the cables are not damaged. Damaged cables and
connections must be immediately replaced.
• Never leave power cords enter in contact with other cables! Handle the power cord and all the cables
connected to a power supply with extreme care.
• Always connect the power supply last. Check that the power switch is ´off’ before connecting the
appliance to mains supply. The mains outlet must be accessible after installation.
• Check the appliance and its power cord from time to time.
Unplug the power supply if you don’t use the appliance anymore or for maintenance.
• Always grasp only the plug on the power supply cord. Never pull the cable to unplug.
• Power supply, repairs and maintenance must be done by qualified personnel.
• Do not switch the appliance on and off in short intervals, as this may reduce its life, especially
concerning the hard disk.

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
A.6 - Conditions of use :
• This product has been designed for indoor use only.
• If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the device
switched off until it has reached room temperature.
• Do not shake the device. Avoid brute force when installing or operating the device.
• When choosing the installation-spot, please make sure that the device is not exposed to extreme heat,
moisture or dust. There should not be any cables lying around, for your own safety and that of bystand-
ers.
B. PRODUCT INFORMATION
B.1 Correct usage
The player is designed for automatically broadcasting audio files.
Correct usage implies observation of the instructions in this manual as well as observing the require-
ments concerning installation.
B.2 Incorrect usage
Any other use beyond this is considered as incorrect usage. The manufacturer will not be liable for any
damage resulting from incorrect usage. The operator carries all risks.
B.3CONTENT
GeoPlayer audio board
User manual
B.4TECHNICALSPECIFICATION
Audio Player MP3 and WAV - Model GeoPlayer
Nominal values for power supply : 12V DC
B.5INSTALLATION
The apparatus must be set up in a dry and dust-free room.
Do not install the player too close to a wall. To avoid overheating, the ventilation holes must
be kept clear and an air circulation gap must be left above the unit.
B.6ELECTRICALCONNECTION
Before use, compare mains voltage with that specified on model plate.
- 3 -

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
- 4 -
1 - Product presentation
The GeoPlayer is an audio player which reads MP3 and WAV files stored on a SD memory card.
Playback of audio files is triggered by global positioning coordinates recorded by the integrated GPS
sensor.
The GeoPlayer can read files in loop automatically on powering on ; at any time broadcast of background
audio can be interrupted to play a file when a identified geographical position is reached.
Through the integrated GPS sensor, the GeoPlayer compares its current position with the positions listed
in a correlation table. When they match, the GeoPlayer plays the audio file(s) associated to the position.
The GeoPlayer offers interactive GPS broadcast for tourist vehicles such as trains, buses, boats...
2 - Functionnalities
Geopositioning and interactivity: The GeoPlayer broadcasts audio files in relation to GPS positions.
Three trigger modes are available: Track mode, Alarm and Free Tour mode.
Autoplay: This function is available on the GeoPlayer; the player will automatically start playing the
selected files on powering on.
Broadcast mode: The way files are organized and named on the SD card defines the broadcast mode.
Directory and file names provide powerful automation of playback patterns.
Updating: By removing the SD card from the player to transfer updates using a card reader on a PC.
Audio output: Two audio outputs are available. Line level stereo output on standard 3.5 stereo Mini-jack
to connect the player onto a sound system and amplified output on screw-in terminal block to connect
directly onto speakers. The ouput power is sufficient for any vehicle.
Power supply: The player is protected against polarity reversal. Caution, the NanoPlayer accepts
variations between 10 and 15V. Outside this range, the player could be damaged.
Amplifier output power is determined by the power supply. When the line level output is used a 500mA
6W unit is enough to power the player. If the integrated amplifier is used a 2A (24W) power supply unit
minimum is required. If the supply unit has insufficient power, sound will be very bad and the power unit
will heat up and eventually break down.

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
3 - Installation

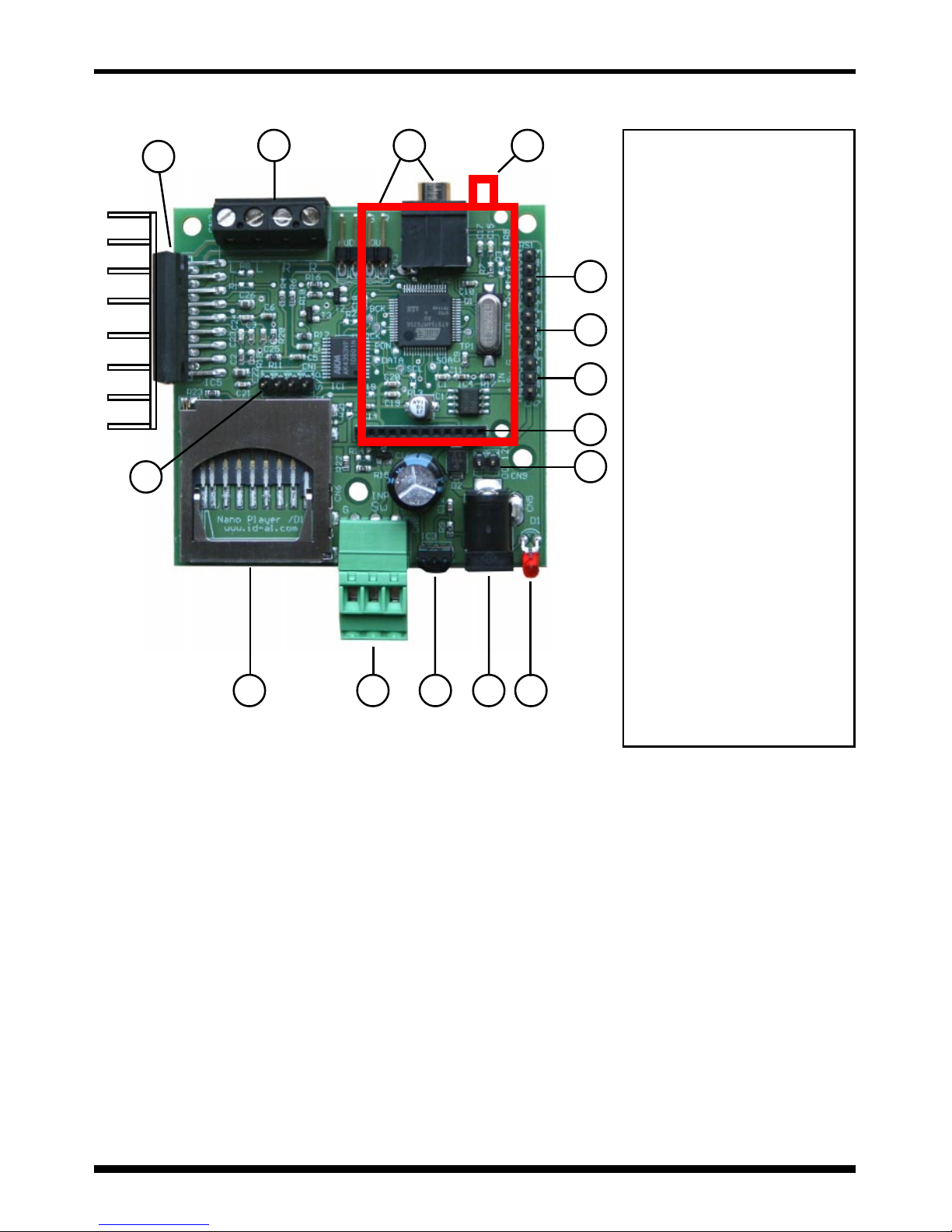

14 1 2
4567
8
9
10
Memory card: choose a good quality card of a minimum size of 64Mo - New cards are usually
formatted in «FAT». You can also use FAT32 format for SD card above 512Mo.
Push the card without forcing. To remove, push on the card to release it.
Caution, the GeoPlayer does not have any on-off switch. The player is powered on as soon as it is
plugged in.
The SD card must be inserted or removed when the GeoPlayer is NOT POWERED ON.
The amplifier heats up. It is important to add a cooling device whose
size must be in relation with the required power
- 5 -
11
12
13
3
1 - Amplified audio output
2 - Line level audio output
3 - Luminous indicator
4 - Power supply
5 - Infrared detector
6 - Input contact
7 - SD card connector
8 - Secondary power supply
9 - GPS extension
10 - Input contact
11 - Volume level setting
12 - Option (Serial link)
13-OptionS/PDIF
14-Amplifier+heatdissipation
device to be added
15 - GPS antenna input
15

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
1 - Speaker Output: The GeoPlayer includes a built-in amplifier. The board can therefore be connected
directly onto speakers. Connect the speaker wires onto the output of each of the 2 channels.
Caution: Never connect outputs between themselves, do not create short-circuits and do not use
speakers with lower impedance than specified in the player specification.
2 - Audio Output: on the line level stereo output, connect an amplifier, sound system, mixer or any
device providing a line level input. The 4 pins connector offers an internal connection link.
3 - Luminous indicator: a red LED displays the status of the player
- LED on permanently: no playback, GPS connected
- LED on and flashing twice: no playback, GPS non connected
- LED flashes regularly: reading, GPS connected
- LED off and flashing twice: reading, GPS non connected
- LED flashing slowly: Error signal (SD card problem... )
4 + 8 - Power supply: If the player is powered with a filtered and regulated power supply unit or a
battery, the recommanded tension is 12V DC, even if the player can be powered between 10V and 15V.
The current used will depend on the power of the amplifier.
Connector DC 2.1mm/5.5mm - + in the centre.
Connect a PSU or a 12V battery - The 2 pins
connector allows internal supply when the
board is integrated. Diode protection against
polarity
reversal
5 - Infrared: The GeoPlayer can be controlled with a infrared remote
handset (not supplied with the OEM board - available as an option).
- 6 -
Left speaker
Right speaker
Left output
Ground
Ground
Right output
Stereo audio output on mini-jack 3.5
Power supply
12V - DC
-+

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
6 + 10 - Input on dry contact: Connect a push button to be able to select/force the next GPS position
when the GeoPlayer is in track mode. See the GPS mode description chapter in the manual. Create a brief
contact between «SW» input and the ground G.
- 12V (+) power supply output (to power an external device)
- Input contact (SW)
- Ground (G)
- Ground (G)
- Input contact (SW)
- 12V (+) power supply output
7 - SD memory card: Insert a memory card in the slot (minimum storage capacity 64Mo). When
inserting or removing the memory card, make sure that the player is not powered on.
9 - GPS extension connector: a GPS sensor is fitted on the connector to allow automated broadcast
of audio information in relation to the geographical positioning coordinates.
11 - Volume setting: volume setting is provided by connecting 2 push buttons on the «VOL» connector.
Adjust volume by pressing Volume + and Volume - buttons.
- Volume + button
- Ground (G)
- Volume - button
12 - Option connector for serial link: for future extensions. On request.
13 - S/PDIF connector: To provide a digital audio S/PDIF output. On request.
14 - Amplifier: The amplifier heats up and it is important to add a cooling device. The size of the device
must be proportional to the desired power; the wall of the case, a piece of metal or a purchased cooling
device can be used.
15- GPS antenna input: Both passive and active antennas can be used to receive satellite’s signals.
Acitve antennas are more sensitive. MMCX type connector is required.
A magnetic active antenna is available
as an option. It can be placed on the
vehicle roof. Simply connect the
cable onto the connecteur on
the GeoPlayer.
SW
G
+
G
-
- 7 -

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
- 8 -
4 - Operating the player and naming of files
The GeoPlayer reads files and playback instructions stored on the SD memory card. No extra software
is required to configure the player. Playback options are provided by the way files are named and
organized in the directories.
There are two categories of files:
1 - Files to be played on powering on the player and played back in loop.
2 - Files to be played on GPS position detection.
These 2 categories of files are represented by 2 directories or folders. Naming of directories results in
various playback options.
A configuration file «gps.csv» must also be copied at the root of the SD card ; this file contains the
various GPS positions and associated information (see details in chapter 5).
Example of use:
On powering on, one or several files are played and loop (background music for instance). When GPS
location is reached, the looping files stop and the audio file associated to the GPS location is played;
after playing the triggered file, the loop file is played again.

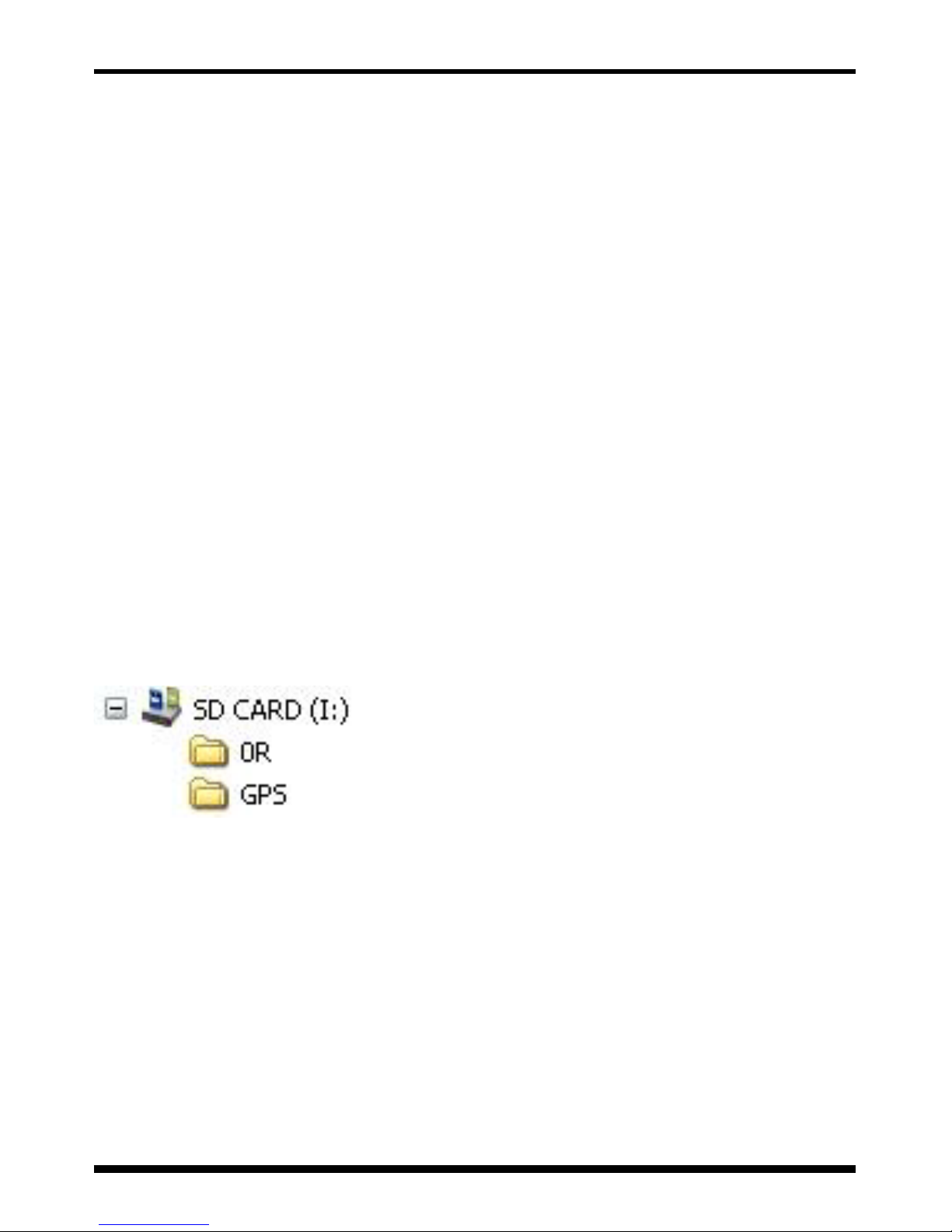

4.1 Organization of the two directories:
Only one level of directory is allowed at the root of the memory card. Two directories only are permitted.
Directory names are composed of 2 meaningful characters.
Exemple : «0R» or «0S» and «GPS»
4.1.1 Directory «0x»
Place in this directory audio files to be played in loop on powering on the player. When the player is
powered, presence of this directory is checked. If it is found, all the files are played. If it is not present
on the SD card, the player goes to standby mode and awaits for a GPS input.
The maximum number of files in this directory is 250.
●●
●●
●The first digit «0» defines the directory number.
0x : Directory 0 is the default directory played on powering on the player.
●●
●●
●The letter defines the broadcast mode of the files in the directory.
xR : R for random mode (RND)
xS : S for sort mode in sequenced order (SORT)

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
- 9 -
- When choosing «R», files are played in random mode.
In random mode, files names are free followed by extension .mp3 for MP3 files and extension .wav for
WAVE files. It is possible to mix both types of files in the same directory.
- When choosing «S», files are played in a sequential order. Sorting is in numerical order of the first 3
digits of file names. Therefore files need to be numbered with 3 figures, which can be or not followed by
complementary characters.

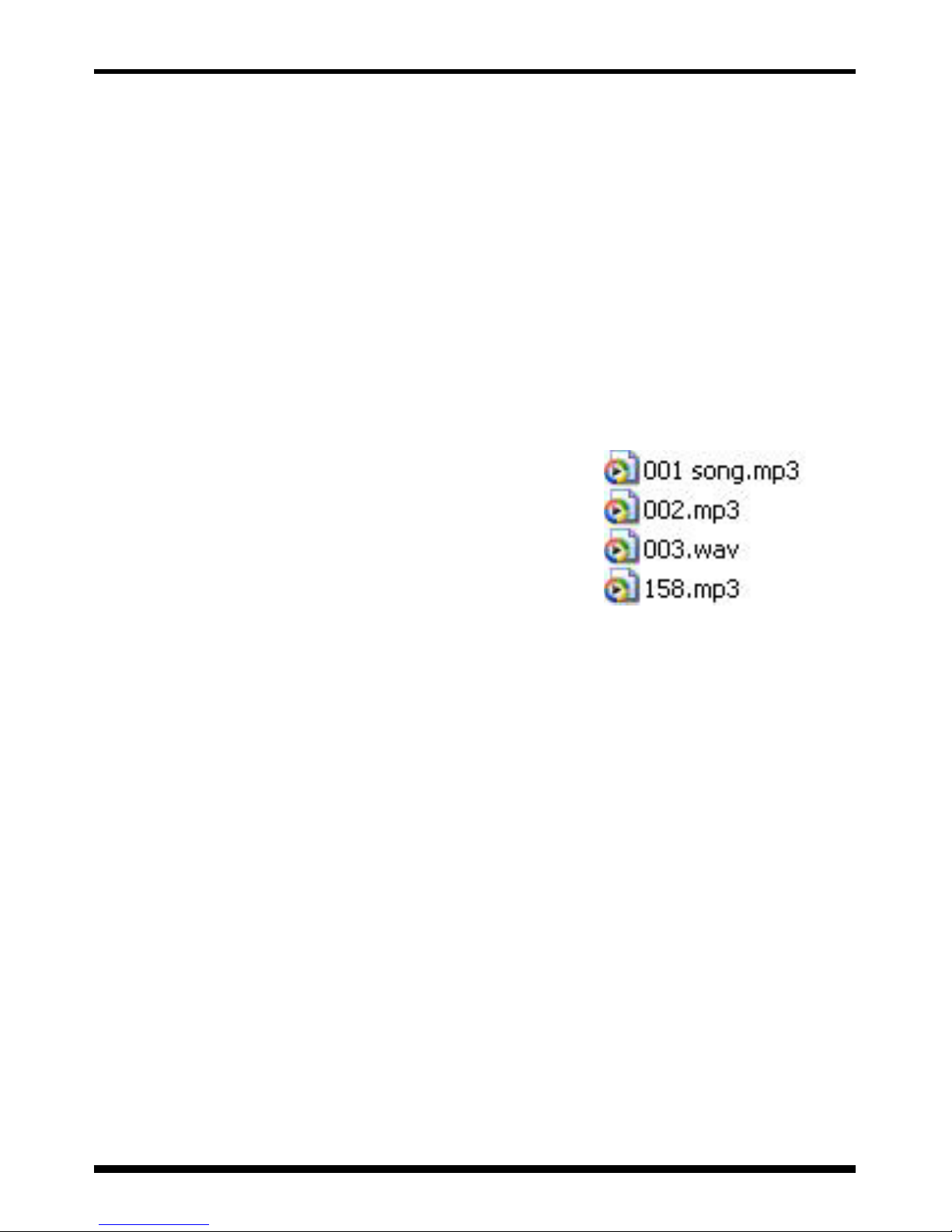

For example:
001 my song.mp3
002 another song.mp3
003 music.wav
004.wav
....
250 another music.mp3
Insequential order mode «S», non numberedfiles willbe ignored.
Caution: 250 files maximum !
Note : in sequential mode (SORT), only numbered files will be
read, non-numbered files will be ignored. In random, all files will
be read.
If no file needs to be played on powering on, do not create this directory.
4.1.2 Directory «GPS»
The «GPS» directory contains files to be broadcast in relation to the geographical positions of the
GeoPlayer. File names are compulsory and composed of 3 or 4 figures followed by an optional file name.
Example : 001.mp3 or 0011 my file.mp3 or 0011.wav ....
The first 3 figures define the main file number. This number is the number called in the configuration file
of GPS coordinates - See related chapter.
The main file number is between 001 and 999.
Each of the files to be broadcast in relation to a GPS position is identified by its main file number, made of
3 figures between 001 and 999. These 3 meaningful digits may be followed or not by a chosen name.
Extensions «.mp3» or «.wav» define the audio file format.

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
- 10 -
For any one given GPS location, it is possible to broadcast a series of audio files, i.e. up to 10 files.Asub-
number is then added to the main file number to specify the broadcast order of the messages.
The sub-number is between 0 and 9.
Example : when the GeoPlayer reaches a given location, you could broadcast an introduction jingle, an
information message, an advert and an end jingle.
To achieve this scenario, you need to create 4 files with the same main file number and 4 different sub-
numbers to define the sequence order in which the files will be played back:
0010 introduction jingle.mp3
0011 information message.mp3
0012 advert.wav
0013 end jingle.mp3
- The main file number is 001
- The sub-numbers are 0 to 3. Files are read in this order.
- Every file includes an optional name followed by the extension defining its format.
Both mp3 and wav files can be played.
Note : Files are broadcast in sub-numbers order but they do not have to be consecutive numbers:
0012.mp3
0015.mp3
0018.mp3
- The main file number is 001
- The sub-numbers are 2, 5, 8. Files will be read in this order.
Other example:
When a tourist train reaches each GPS location, information are broadcast in various languages. The
sub-numbers specifies the broadcast order of each language.
0050 French.mp3
0051English.mp3
0052German.mp3
- The main file number is 005
- The sub-numbers are 0, 1, 2. Files will be read in this order.
Note : the fourth number is only necessary if several files need to be broadcast.

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
5 - GPS configuration file
The GeoPlayer broadcasts audio files in relation to geographical locations. The integrated GPS sensor,
permanentlycomparestheplayer’s position with a pre-established table listing the pointsto be scrutenized.
The Global Positioning System, known as GPS, is presently the main international satellites positioning
system. It uses the geodesic system WGS 84 and is based on calculation of the distance between the
sensor and several satellites. Data necessary to calculate position of 31 satellites are regularly transmitted
to the sensor which is able to work out the coordinates.
Each point of interest is identified by the following data:
- Latitude
- Longitude
- Tolerance around the point
- Main number of the triggered file
- Trigger mode
Maximum number of files = 150
Latitude et longitude
Latitude and longitude are the coordinates of a desired trigger point. They can be obtained using a GPS
device, a software such as Route 66 or via internet services such as GoogleMaps...
Several formats are used to indicate latitudes and longitudes. The most common are:
- degrees (°), minutes ('), seconds, decimal - DMSd (often used in mobile GPS devices)
- degrees (°) decimal - Dd (often used in cartography software)
The GeoPlayer uses the degrees decimal Dd format.
Tolerance:
For each point, a tolerance expressed in metres can be specified. This tolerance forms a square around
the point and its choice is very important. The tolerance depends on the moving speed and on the size of
the detection area. If the area is too small, there is a risk of not triggering the point. If it is too large, the
audio file could be triggered too early.
It is important to understand that the GPS sensor updates its coordinates every second. At high speed,
a big distance is covered in one second.
Example:
On foot - about 5km/h which is 1m/s
Slow vehicle - at 20km/h which is 6m/s
Fast vehicle - at 60km/h which is 17m/s
Very fast vehicle - at 100km/h which is 28m/s
The precision of the GPS sensor is about 5 m. Nevetheless, we advise not to specify a too small
tolerance to obtain a reliable trigger. The maximum tolerance is 1000m (1km).
- 11 -

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
Main file number for the triggered file
One or several audio files are associated to each location. The files to be broadcast are stored on the SD
card in the «GPS» directory. (see chapter 4 for details).
File numbers are between 001 and 999
Several GPS locations may call the same audio file(s) ; it is possible to listen to the same message at
different locations.
Trigger mode
Depending on applications and vehicles, the way audio files are triggered may vary.
Three trigger modes are available on the GeoPlayer:
1 - Track mode
2 - Alarm mode
3 - Free tour mode
●1 - Track mode
Use this mode to trigger the various positions one after the other in a defined sequential order. Define the
complete track and the sequence of selected positions. The player is only watching one point ata time
and will move to the next one once the current position has been triggered.
In this mode, it is possible to pass twice by the same point at different times, for example for return
journeys or crossroads, and play a different messages each time.
If a problem occurs, a detour or no trigger for some reason, it is possible to force trigger of a point
manually by using the input contact of the player, by connecting a push button for example.
●2 - Alarm mode
Use this mode when it is necessary to watch positions in no specific order and broadcast the associated
audio files. The message will loop as long as the player stays in the GPS position, including the tolerance.
The Alarm mode has priority over the Track mode. Typical use is to warn about danger in a specific zone.
●3 - Free tour mode
Use this mode to broadcast messages during a tour without any pre-defined sequence order. All the
positions are constantly watched. In this mode, it is not possible to broadcast different messages for a
same position (round trip situation) ; to achieve this scenario, the Track mode must be used.
Note : It is possible to use different modes in a trip. Locations specified in Alarm mode are permanently
watched when only one point at a time is watched in Free tour mode. The next location will only be
triggered once the current location has been played.
- 12 -

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
5.1 Creation of the configuration file «gps.csv»
For the GeoPlayer to broadcast audio files associated to GPS positions, it is necessary to create a
configuration file which is a cross reference table between the audio files and the GPS data.
The table includes the following data: latitude and longitude of the position, tolerance around the point,
main audio file number to be broadcast, broadcast mode and optional comments.
Any spreadsheet can be used to create this configuration file, Excel type or Open Office equivalent. An
ID-AL assistant is also available for download from the www.id-al.com web site.
Example of table:
ColumnA: Position number - maximum 150 points
Column B: Latitude in Degree/decimal format - Dd (use a dot, not a coma, as separator)
Column C: Longitude in Degree/decimal format - Dd (use a dot, not a coma, as separator)
Column D: Tolerance in meters (whole number, no decimal)
Column E: Trigger Mode 1 - Track / 2 - Alarm / 3 - Free tour
Column F: Main audio file number to be read (see chapter 4) - 3 digits mandatory (text format)
ColumnG:Optional comments
Important notes in creating the configuration file:
- Do not add any column - Do not modify their order
- Do not add any line - no extra header, no empty line nor additional line at the end of the table
- Latitudes and longitudes stated in degree/decimal format
- Do not include units of measure nor symbols (m, km, °, ‘, ...) ONLY values
- It is possible to indicate different trigger modes. The broadcast order is defined by the Track mode order
(the 2 other modes have no order). It is easier to put together locations with the same trigger mode.
- The point number (column A) is only an indication and any figure can be used. The sequence of
broadcast is defined by the line number of the table.
After saving the completed table, export it a «csv» file. This is a text format supported by most spreadsheet
software. In the file menu, choose «save as» and select format «csv separated by semicolon (;)».
Save this file under «gps.csv» and copy it at the root of the SD card. Do not change the name
«gps.csv».
- 13 -

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
5.1 Finding GPS coordinates using GoogleMaps
GPS coordinates of locations can be found for free from the GoogleMaps web site. There are indicated
in degree decimal format.
Connect to this address: http://maps.google.fr/
Zoom on a selected value and press «satellite» tab to display the photo
- 14 -

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
Place the mouse at the desire point on the map and do right click. Then select «directions from here». A
tag appears on the map and coordinates are displayed in the window on the left hand side of the screen.
The green tag can be moved around using the mouse.
Copy these coordinates into the table and proceed the same way for the other locations to be identified.
6 - Infrared remote control
The GeoPlayer includes an infrared sensor and can therefore be controlled by a remote control handset.
An ID-AL remote is available as an option.
This remote controls the following functions:
Transport bar : Play / Stop / Next - Previous
Volume control : Increase or decrease volume
Trigger key : Play the next GPS position when the GeoPlayer is in track mode. (same as Input contact
function)
- 15 -

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
•
- 16 -
AppendixA- Characteristics
Power supply:
• Nominal voltage: 12V DC
• Power supply range: 10V to 15V DC
Consumption on 12V power supply:
• Stand-by: 100mA
• Reading (line level output - amplified output not used): 130mA
• Reading - amplifier maximum @8Ohms: 2A (varies with volume level)
Output audio power:
• Voltage 12V - THD 10% - Charge 8 Ohms: 2 x 7W
• Voltage 12V - THD 0,5% - Charge 8 Ohms: 2 x 5W
Dimensions:
• Width: 70mm - Height: 18mm
• Depth without connectors: 67mm - Depth with connectors: 80mm
Weight: 45g
Appendix B - Functions
Audio characteristics
• Reads stereo MP3 files (MPEG ½ layer 3), 44.1KHz, from 112kbit/s to 320kbits/s
• Reads CBR (Constant Bit Rate) files and VBR (variable Bit Rate) files
• Reads stereo Wav files, 44.1kHz, 16 bits
• Volume setting = 32 steps (from Mute to maximum)
SD Memory card
• Accepts SD card - 64Mo minimum - Formatted in FAT16 and FAT32
• Supports long file names
Interfacing
• Status indicator LED
• Infrared sensor - Play, Stop, Next, Previous, Trigger, Volume +, Volume -
Protocole SONY SIRC 12bits modulated at 38kHz
• 1 input on dry contact on Phoenix 3.81mm plug-in connector
• External power supply connector DC 2.1/5.5 and internal
• Stereo output on mini-jack and internal connector
• Amplified stereo output on screw-in terminal block
• GPS antenna with MMCX connector
GPS function
Reception norm NEMEA-0183 V3.01
• Protocole GPRMC upto 16 satellites
• Acquisition at 1Hz (1 per seconde
• Module precision: 5m (CEP)
• Sensitivity: -140dBm in acquisition / -155dBm in surveillance
• Acquisition time: < 5 seconds hot / < 60 secondes cold
MP3 Files encryption
• Compatible with encryption software tool v1 and v2. On request.

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
Notes :

® Waves System V 1.0 - 2008
I.D. AL - GeoPlayer - MP3 and WAV Player with GPS function - Manual
http://www.id-al.com
http://www.wsystem.com
