I3-technologies I3cair User manual

i3CAIR

Quick start guide

https://i3cair.com/manual

Thank you.

Enjoy the purchase of your i3CAIR - Indoor Air Quality Sensor.

View this manual online

Lets see what’s in the box.

i3-Technologies is conscious about the environmental impact of the products that we produce. Therefore we would

like you to support us in this mission by disposing all packaging according to any local regulations.

To check if we packed your product correctly, please verify if all these items are present:

i3CAIR |WHAT’S IN THE BOX

1x i3CAIR sensor box 1x USB cable 1x User guide

Is something missing or does it look damaged?

We’re so sorry, please contact our support service at

[email protected], or contact your local reseller.

i3CAIR |COMPATIBILITY

Compatibility Requirements.

The i3CAIR solution works best in combination with an i3TOUCH display. This i3TOUCH

display needs to have an active internet connection along with access to the i3STORE.

The i3CAIR sensor box is compatible with the i3TOUCH-range displays:

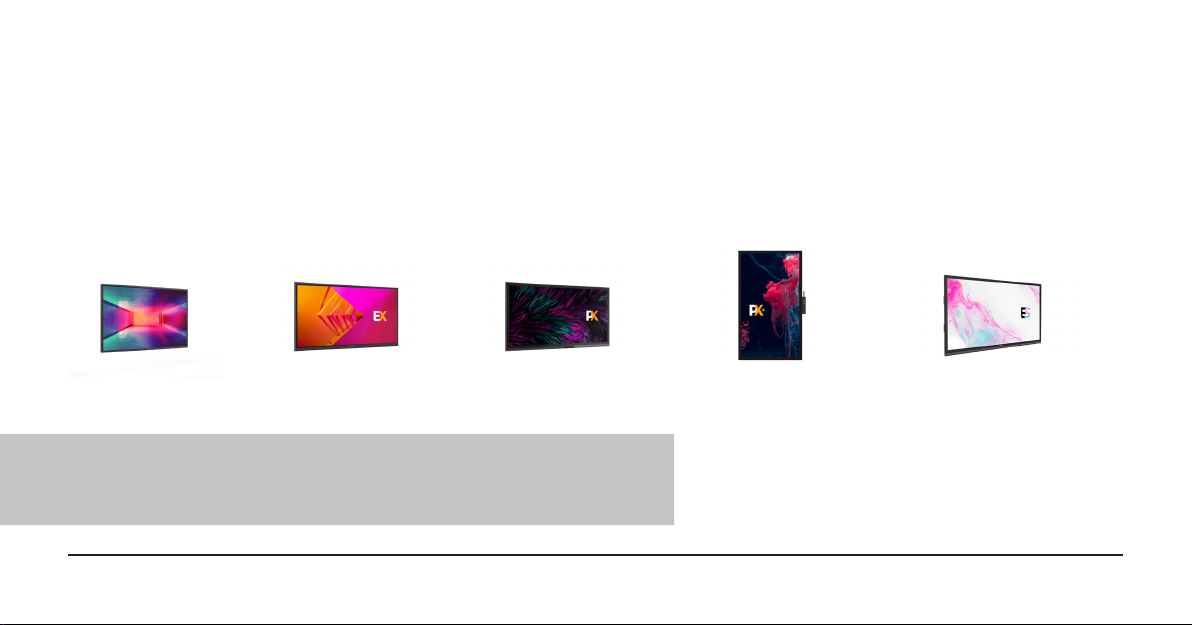

i3TOUCH E10r i3TOUCH EX i3TOUCH PX i3TOUCH PXr i3TOUCH ES

No need for a power outlet! The i3CAIR gets its power from the i3TOUCH display

through the USB cable. So no need to struggle with power supply extensions.

i3CAIR |SENSORS

The Sensors.

The i3CAIR Indoor Air Quality Monitor has 4 sensors that determine the Wellbeing Index:

Carbon dioxide (CO2)

The levels of carbon dioxide

emissions indoors are determined

by human breathing. CO2is one of the

best indicators to determine indoor

air quality.

Ranges from: 0 to 10,000 ppm

Typical Accuracy: ±40 ppm

Particle matter (PM2.5)

Ranges from: 0 to 1,000 μg/m3

Typical Accuracy: ±15 μg/m3(<100)

or 15% (>100)

Temperature

Make sure the temperature is

right for you, allowing you to stay

energetic and focused.

Range: 0°C to 100°C / 32°F to 212°F

Typical Accuracy: ±1°C / ±1.8°F

Humidity

Ranges from: 0 to 100%

Typical Accuracy: ±5%

Best Position.

Avoid influence from external sources

i3CAIR |POSITION

Where to position the i3CAIR?

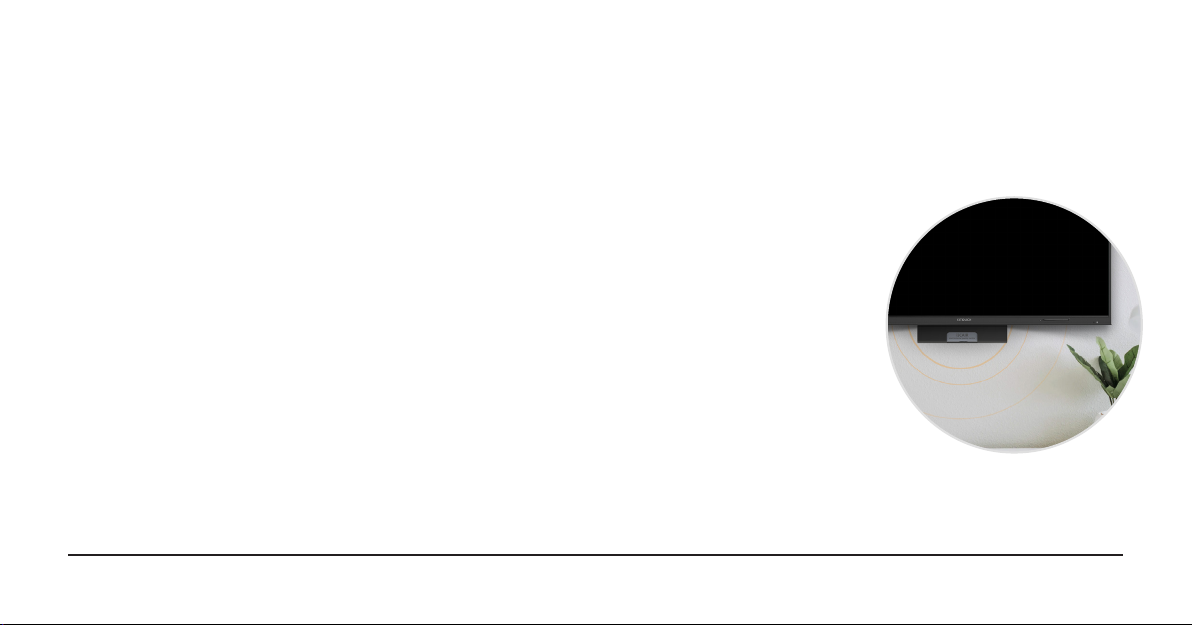

The i3CAIR is best placed in a ‘neutral’ space in the room. We advice not to place an

i3CAIR close to a radiator or any other kind of heating source. The i3CAIR is best placed

in the middle, under the i3TOUCH display, ideally in the shade. Direct sunlight is to be

avoided.

The following circumstances are to be avoided:

1. Placing your i3CAIR too close to a heat source (avoid proximity of heating system,

electronic devices, direct sunlight).

2. Placing your i3CAIR too close to an air vent or ventilation system or anything that

causes an unnatural airflow.

3. Do not position your i3CAIR upside-down

Mounting.

Mounting the i3CAIR onto an i3TOUCH

i3CAIR |MOUNTING

Using the specially designed bracket

The i3CAIR sensor box can be positioned in the most ideal

position using the specially designed bracket. This bracket

can be easily attached to your i3TOUCH

Connect & Setup.

Connect

Connecting your i3CAIR to an i3TOUCH display is incredibly simple!

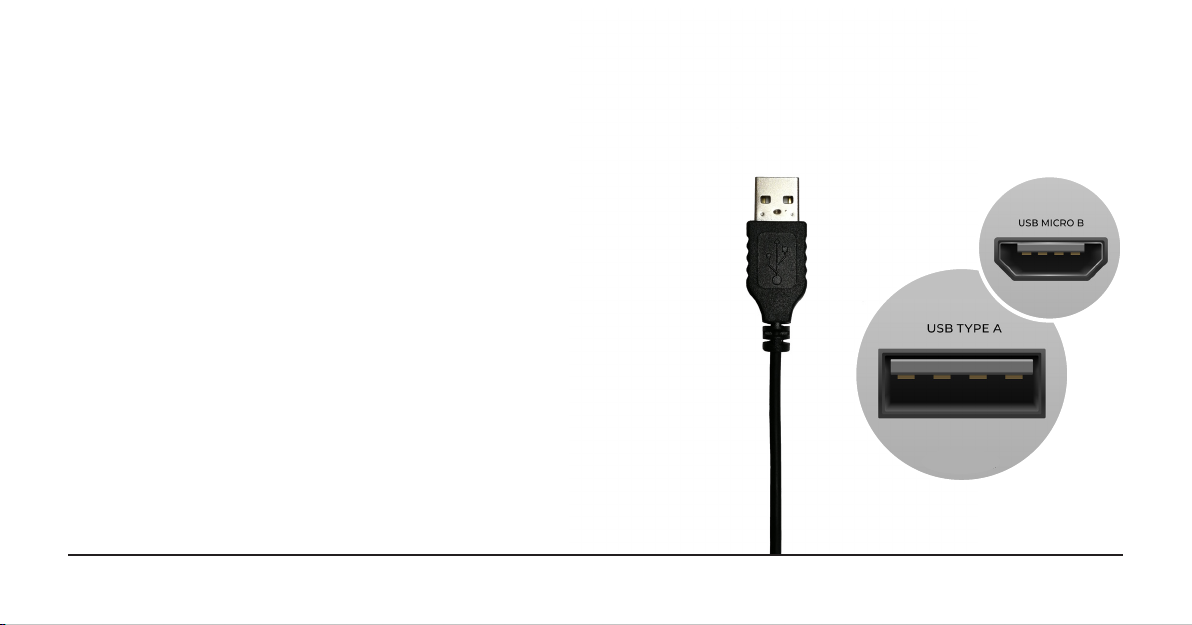

Use the included USB cable to connect the i3CAIR (micro USB port)

with a USB port on the i3TOUCH.

The i3CAIR will get its power from the USB cable so there is no need

for an external power supply.

When powered on, a small green LED light appears

on the back of the device.

Product Voltage : DC 5V

i3CAIR |CONNECT

Congure.

Install i3CAIR from the i3STORE

The i3CAIR app can be installed directly on your i3TOUCH

display from the i3STORE.

Launch the i3CAIR app

Once the i3CAIR has been attached to the i3TOUCH, move to your

installed apps and open the i3CAIR aplication.

Auto-Configure the i3CAIR

When the i3CAIR app is present on an i3TOUCH display then it will

automatically detect the connection of an i3CAIR sensor box. When

you launch the app you will see the connection status in the upper

right corner.

i3CAIR |CONFIGURE

i3CAIR

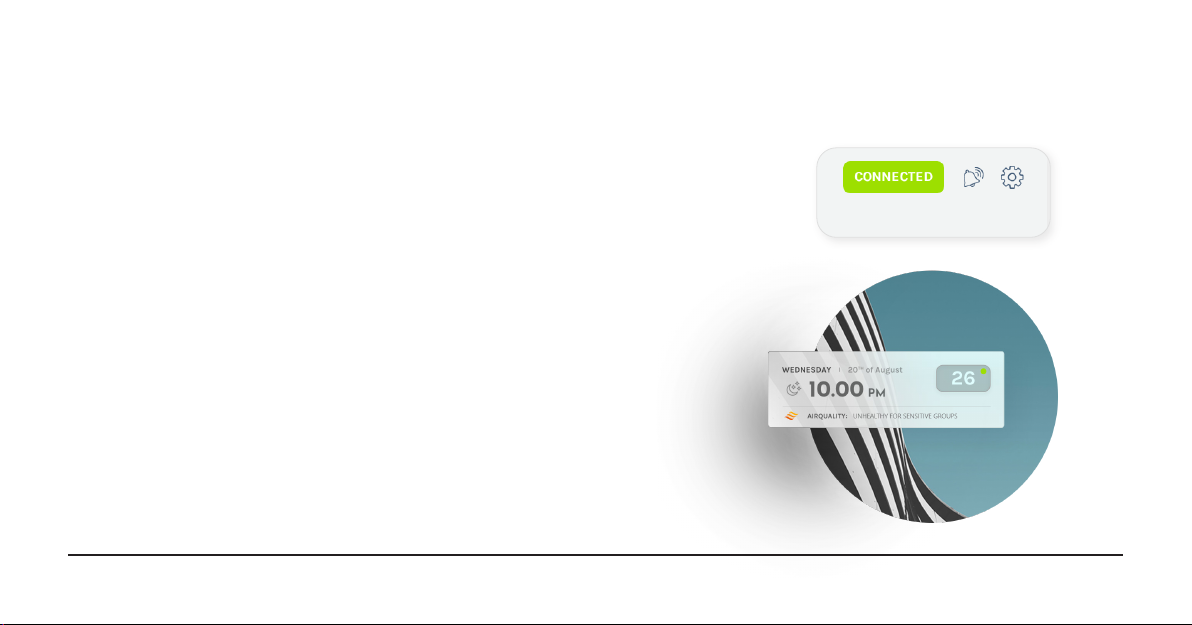

Connection Status.

Check the connection status in the i3CAIR app

When the connection with the sensor box is successful

the status will be ‘green’ - ‘connected’.

In case of issues the connection status will be ‘red’

showing a ‘disconnected’ message.

Check the connection status in the i3LAUNCHER

If an i3CAIR sensor box has been paired successfully with an

i3TOUCH then the i3CAIR air quality widget will appear in the

upper left corner of the i3Launcher

i3CAIR |CONNECTION

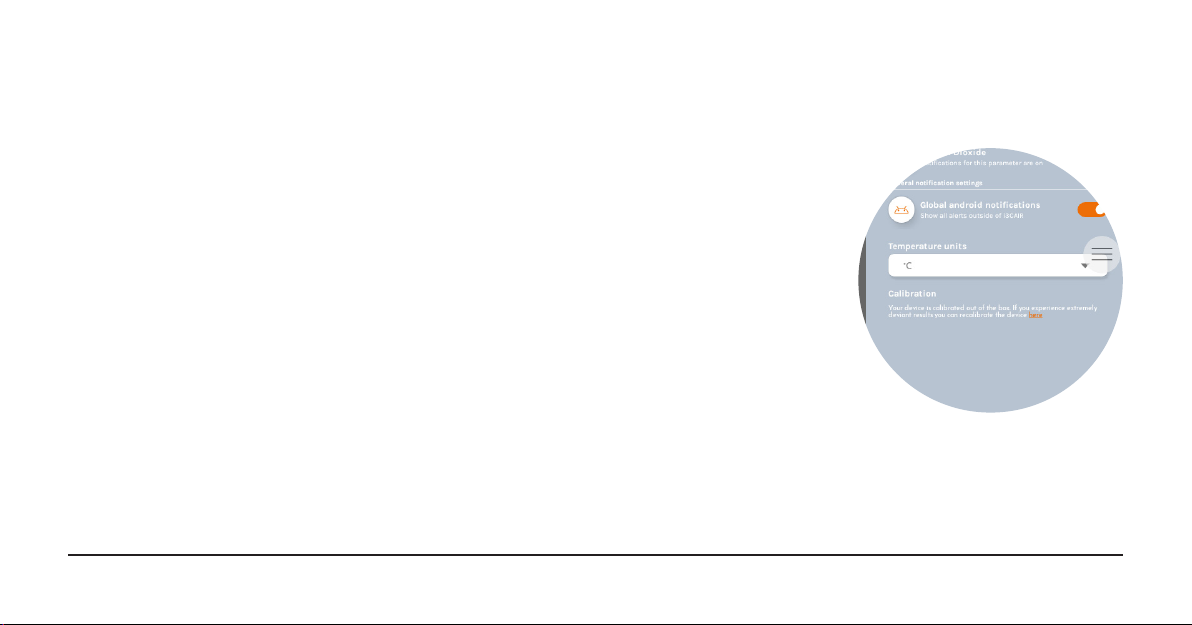

Calibration.

Your device is calibrated out of the box. If you experience deviant

results you can recalibrate the device on the bottom of the menu.

Only use this function if you notice abnormal or inaccurate CO2 readings.

Before you proceed with the CO2sensor calibration. Make sure to position the

i3CAIR sensor box in a location with good outside air circulation. For example:

next to an open window. The i3CAIR sensor box will use the outside air to start the

calibration process. Do not use this calibration function in a closed room with high

CO2 values or in a location with high outside CO2values like a polluted city center.

Doing this will result in an incorrect calibration and cause inaccurate CO2readings.

While not required, it is recommended to leave the i3CAIR sensor box powered on

for at least three weeks while completing initial calibration. The i3CAIR sensor box

will continue to automatically calibrate over a longer period of time to

further increase the accuracy of CO2readings.

i3CAIR |CALIBRATION

Using the i3CAIR app.

Explaining the interface

i3CAIR |APP

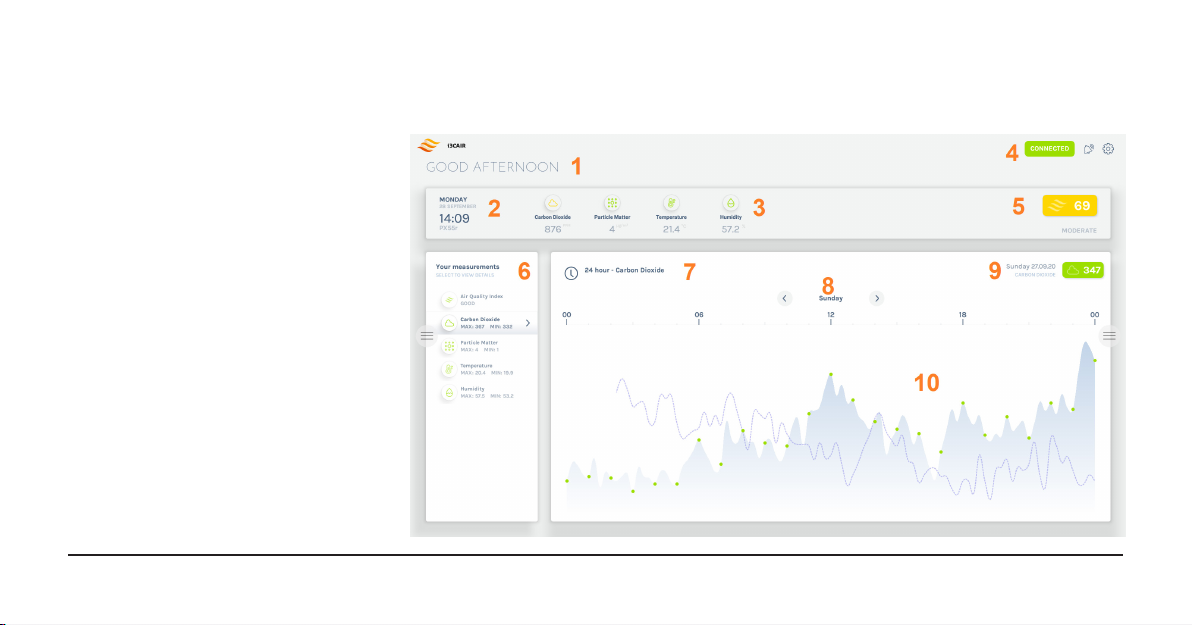

1 A message welcoming you appropriately according to the time of day

2 Current date and time

3 Current sensor data - refreshes every 5 second

4 Connection status (green is connected, red means not connected)

5 Current air quality index - refreshes every 5 seconds

6 The i3CAIR app stores sensor data for 7 days. Via this menu (horizontal tabs) one can consult

the 7-days rolling data of the air quality index or the data from each individual sensor.

Clicking on a tab will display the graph of the past 24 hours.

7 Time range along with the type of sensor that was chosen

8 Day of the week when the measurements were stored - clicking on the arrows will

move to the past/next 24 hours

9 Air quality index of the day chosen day (identical to point 8.). This index is calculated

on all data captured during that particular day.

10 Graph - touching the graph will provide you detailed information of the data measured

at that point in time.

i3CAIR |APP

Regulatory Information.

i3CAIR |INFORMATION
