IAP A-30 User manual

Ambient Self-Cleaning Dust Collector
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. The continual observance of these procedures will help increase your production and extend the life of the
equipment.
Operations manual
Model: A-30

Ambient Self-Cleaning Dust Collector
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. The continual observance of these procedures will help increase your production and extend the life of the
equipment.
1
Table of Contents
Specifications .....................................................................................................................................................2
Dimensions (in mm/inches) ...............................................................................................................................2
Safety Instructions of Ambient Self-Cleaning Dust Collector ............................................................................3
Electrical Installation..........................................................................................................................................4
Filter ...................................................................................................................................................................5
Assembly ............................................................................................................................................................5
Maintenance ......................................................................................................................................................8
Operation ...........................................................................................................................................................8
Parts Diagram.....................................................................................................................................................9
Parts List...........................................................................................................................................................10
Contact Information.........................................................................................................................................11

Ambient Self-Cleaning Dust Collector
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. The continual observance of these procedures will help increase your production and extend the life of the
equipment.
2
Specifications
Nominal Airflow
3000 cfm.
Motor
5 HP
Power Supply
460V / 3ph
Compressed Air
90 psi
Inlet
17.3”x 19.7”
Outlet
28.5" x 24"
Machine Dimension
76”x 40”x 49”
1st Filtration
Aluminum Mesh
2nd Filtration
Cartridge Filter
Dimensions (in mm/inches)
40.7"
76"
49.3"
40.7"
49.3"
76"

Ambient Self-Cleaning Dust Collector
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. The continual observance of these procedures will help increase your production and extend the life of the
equipment.
3
Safety Instructions of Ambient Self-Cleaning Dust Collector
DANGER: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, will result in minor or moderate injury.
NOTE: Alerts the user to useful information about proper operation of the machine to avoid machine damage.
WARNING: To reduce your risk of serious injury, read
this Manual carefully before operating the product and
preserve the Operation Manual properly.
•Keep children, the elderly, handicapped people, and
others who are not familiar with this piece of
equipment away from it during operation.
•Safely store all tools when not in use. Store tools in a
dry safe place to inhibit rust. Always lock up tools and
keep them out of reach of children and others.
•Always use common sense and exercise caution. Do not
operate under the influence of drugs or alcohol, when
tired, or when distracted.
•Do not wear loose fitting clothing or jewelry as they can
be caught in moving machine parts. Use proper welding
clothing and eye protection when using this product for
welding fume extraction.
•Keep work area clean and organized. Cluttered areas
can be unsafe and dangerous during operation.
•Ensure that the working environment is suitable for this
machine. Do not use this product in areas that are wet,
cluttered, or have poor lighting.
WARNING: To reduce the risk of accidental injury,
never leave machine running while unattended.
•Check for damaged parts before using machinery.
Repair or replace any damaged parts before operation.
•Do not clean, repair, or replace any parts unless power
to the machine is off.
•Replace the damaged parts by the instructions of the
manual. If the said instructions are not specified in the
manual, then contact your dealer.
•If the machine breaks down, contact your dealer
immediately. Do not attempt to repair to avoid
damaging the machine.
•All wires used by the product shall be safely located to
prevent personal contact with the wires.

Ambient Self-Cleaning Dust Collector
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. The continual observance of these procedures will help increase your production and extend the life of the
equipment.
4
•Do not drag the electrical wires with force and do not
use the wires if frayed or current leakage occurs to
avoid harming the operator.
NOTE: The original manufacturer’s parts and accessories
shall be used to avoid injuries from occurring. If any
problem happens, contact your dealer immediately.
•Keep machine away from oil, chemicals or flammables,
as sparks may ignite these materials and cause
explosion.
•This product is suitable for collecting smoke and
welding oil gas. Do not use it in collecting iron chips and
dust at the same time to avoid producing sparks.
•When the fan blades are operated at high-speed, do
not reach hand near these blades to prevent finger
from breaking or clothes/necktie from getting caught.
•Do not put hand or foreign matter into the air inlet to
avoid getting caught due to the high- speed rotation of
fan blades.
Electrical Installation
•Check if the voltage, phase count and earth wire fit the
machine.
•Inspect power and control cables periodically. Replace
if damaged or bare wires are exposed.
•Be sure to follow local electrical codes and the
electrical safety standards when connecting the
machine.
CAUTION: For your safety, all electrical wire
connections and installation shall be carried out by a
professional technician.
•In the event of certain malfunctions or breakdowns,
grounding provides a path of least resistance for
electric current to reduce the risk of electric shock.
•Before connecting the electric cord, make sure the
switch is in the “OFF” position.
•This machine is equipped with an electric cord having
an equipment-grounding wire and a grounding plug.
Connect grounding wire (yellow/green) to the earth
wire power jack. If repair or replacement of the electric
cord or plug is necessary, do not connect the
equipment-grounding conductor to a live terminal.
WARNING: If machine is not properly grounded and
connected to power supply, can result in risk of electric
shock.

Ambient Self-Cleaning Dust Collector
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. The continual observance of these procedures will help increase your production and extend the life of the
equipment.
5

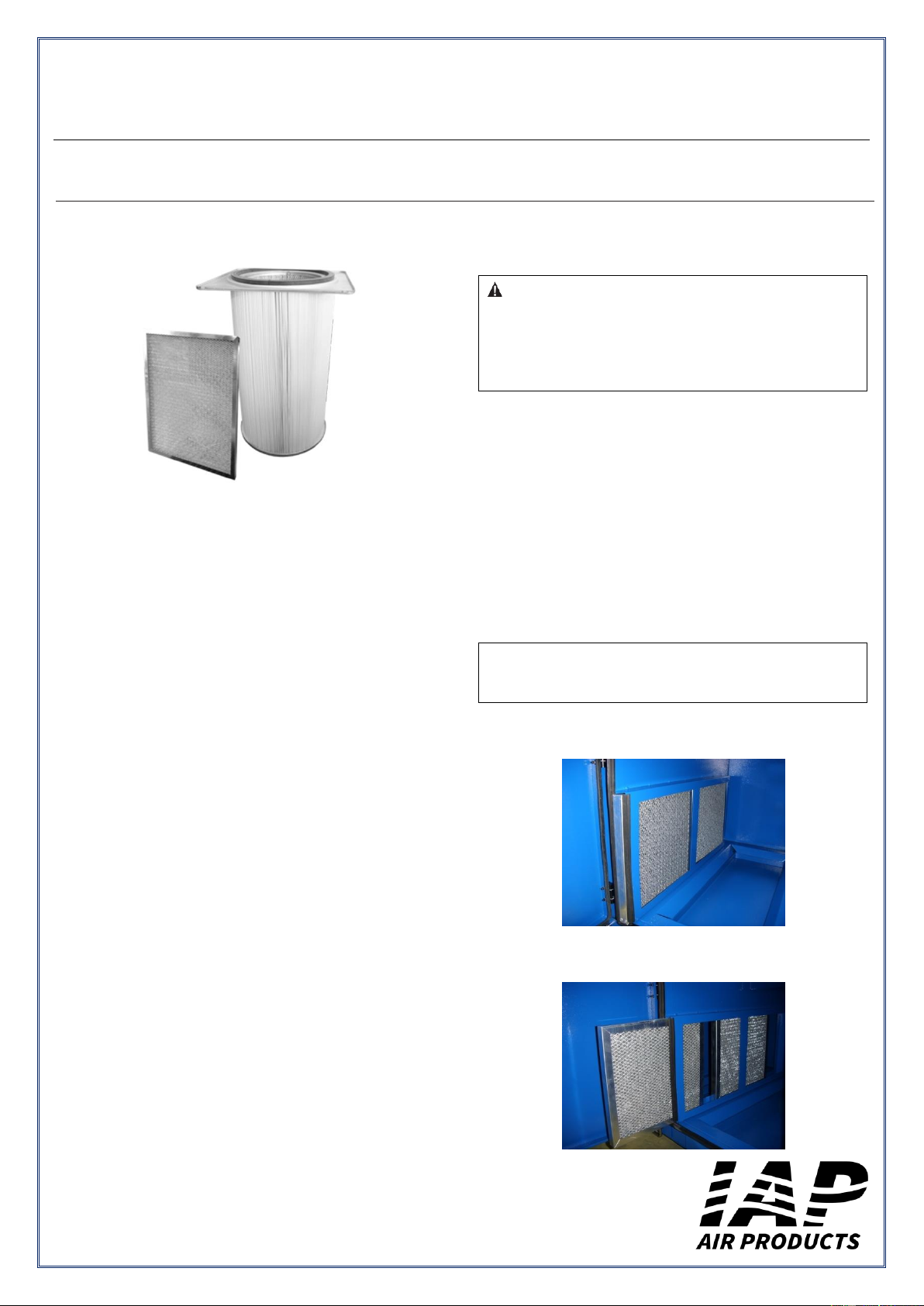

Filter
Aluminum Mesh
1. Efficiency: Capturing welding sparks and steel chips
2. Specification: 440 x 540 x 22mm [17.4” x 21.3” x 0.87”]
3. Quantity: 2 pcs
Cartridge Filter
1. Efficiency: Filtering very fine particles
2. Specification: Ø380 x 660mm [Ø15” x 26”]
3. Quantity: 4 pcs
4. Filtering area: 15m2x 4 = 60m2(645.6 ft2)
Assembly
WARNING: Read and understand all of the precautions
stated in the Manual, and for your safety, do not connect
the Ambient Self-Cleaning Dust Collector before the
assembly is finished.
The machine must be fully assembled before it can be
operated.
Before beginning the assembly process, check if the machine
and components are consistent with those indicated in the
Parts List.
If any doubt arises or when the components are incomplete,
please contact your dealer.
NOTE: For correct assembly, refer to the Illustrations and
Parts List on pages 5-7.
Aluminum Mesh
1. Pull out the aluminum mesh.
2. Install with a new one.

Ambient Self-Cleaning Dust Collector
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. The continual observance of these procedures will help increase your production and extend the life of the
equipment.
6

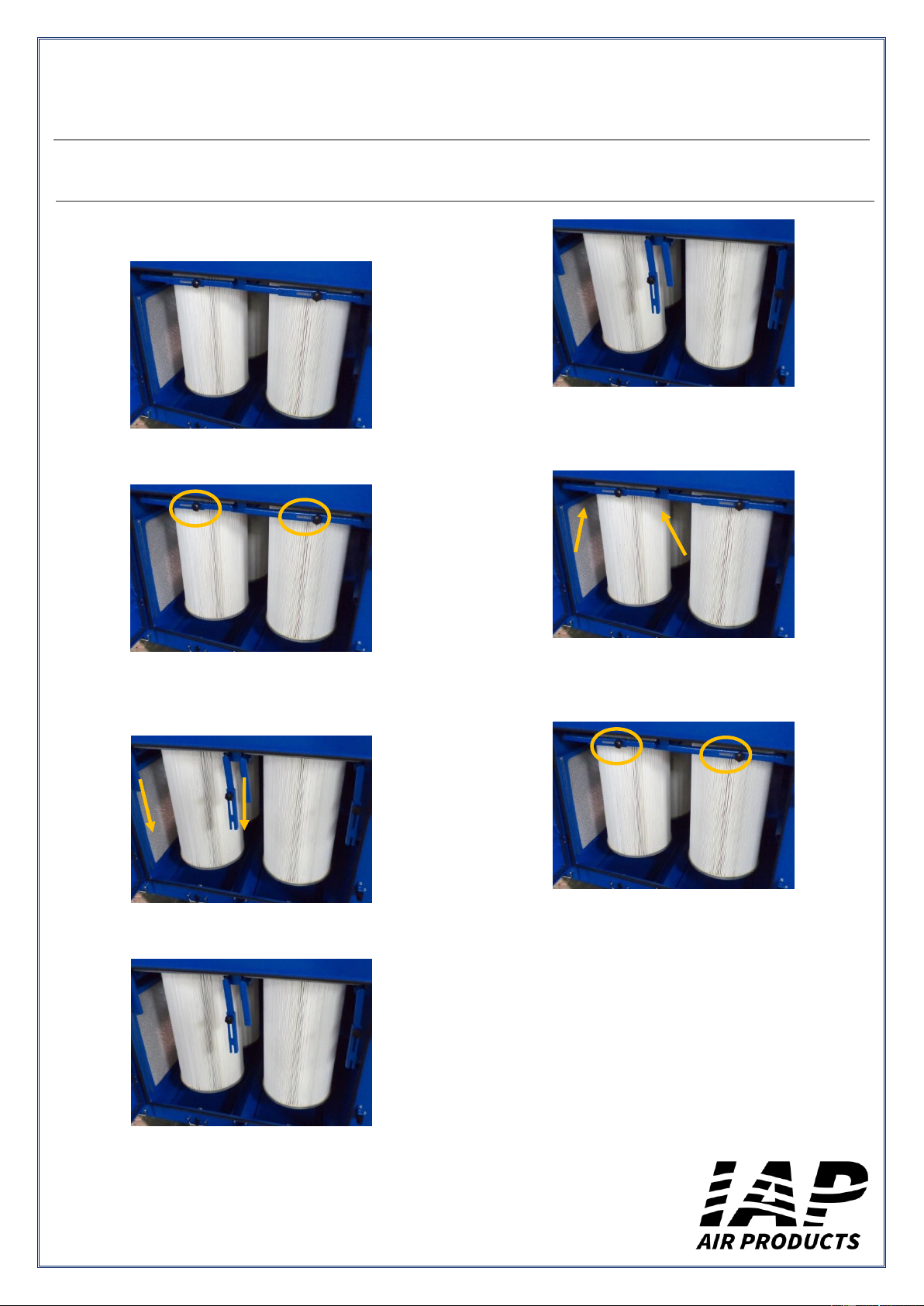

Cartridge Filter
1. Open the front Door.
2. Loosen the knob screws, to release the filter handle
fixing plate.
3. Pull down the filter handles.
4. Pull the Cartridge Filter out and clean or replace as
needed.
5. Install the Cartridge Filter into the track and push it to
the end.
6. Pull up the filter handles.
7. Fasten the plate and handles with knob screws.
8. Inspect the door seal, and replace if damaged.
9. Close and latch the door.

Ambient Self-Cleaning Dust Collector
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. The continual observance of these procedures will help increase your production and extend the life of the
equipment.
7
Air Supply
NOTE: The air supply should be between 60 and 90 PSI.
Do not exceed 90 PSI pressure.
1. Attached compressed air to the unit for cleaning
purposes.
2. A 1/4" NPT port is available for the connection of the
fume extractor to a compressed air supply.
3. Place a pressure regulator inline ahead of the
connection to control the air pressure.
Junction Box
1. Junction Box (120V): Solenoid and Indicator Run Light.
2. Junction Box (460V): Motor.
1. Flexible conduit: Solenoid 1.
2. Flexible conduit: Solenoid 2 and Indicator Run Light.
3. Flexible conduit: Motor.
Pre-drilled holes
1. Pressure gauge tube (Pre-drilled holes: 1/2”).
2. Motor (Pre-drilled holes: 3/4”).
3. Solenoids and Indicator Run Light (Pre-drilled holes:
1/2”).
❶
❷
❸
❶
❷
❶
❷
❸

Ambient Self-Cleaning Dust Collector
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. The continual observance of these procedures will help increase your production and extend the life of the
equipment.
8
Maintenance
Aluminum Mesh
-The Aluminum Mesh is washable and reusable.
-It will need to be replaced when worn, damaged, or when it
becomes so clogged that washing is no longer effective.
Cartridge Filter
-The Cartridge Filter is reusable.
-Rinse filter outside under warm water.
-Allow time for the filter to dry completely before installation
and usage. Do not leave filter in the sun to dry or apply heat
to speed the process.
-It will need to be replaced when worn, damaged, or when it
becomes so clogged that washing is no longer effective.
Dust Drawer
-Turn the latch knob 90°clockwise and pull on the handle to
remove the dust drawer.
-Cleaning the dust drawer.
Operation
WARNING: Before operation be sure to read this
entire manual carefully, make sure all Warning/Danger
sections are understood and proper safety equipment is
utilized.
-Check if relevant safety protection measures have been
taken according to the Manual.
-Please confirm the power, air volume and the matching
table of the Ambient Self-Cleaning Dust Collector.
-Connect power to system after complete assembly of
Ambient Self-Cleaning Dust Collector has been performed.
-Please refer to embedded directional arrow, confirm the
motor is turning in the direction as labeled on the machine.
-Disconnect power when machine is not in use.
Pressure Gauge
-When the machine is in operation, the pressure gauge
indicator will be between 2” ~ 6”.
-If a decrease in airflow is noted during operation or pressure
exceeds 6” ~ 8”, this means that the filters are dirty and need
to be cleaned or replaced.
-If the operating airflow is weak after cleaning and the
pressure still exceeds 6” ~ 8”, a new filter will be required.

Ambient Self-Cleaning Dust Collector
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. The continual observance of these procedures will help increase your production and extend the life of the
equipment.
9

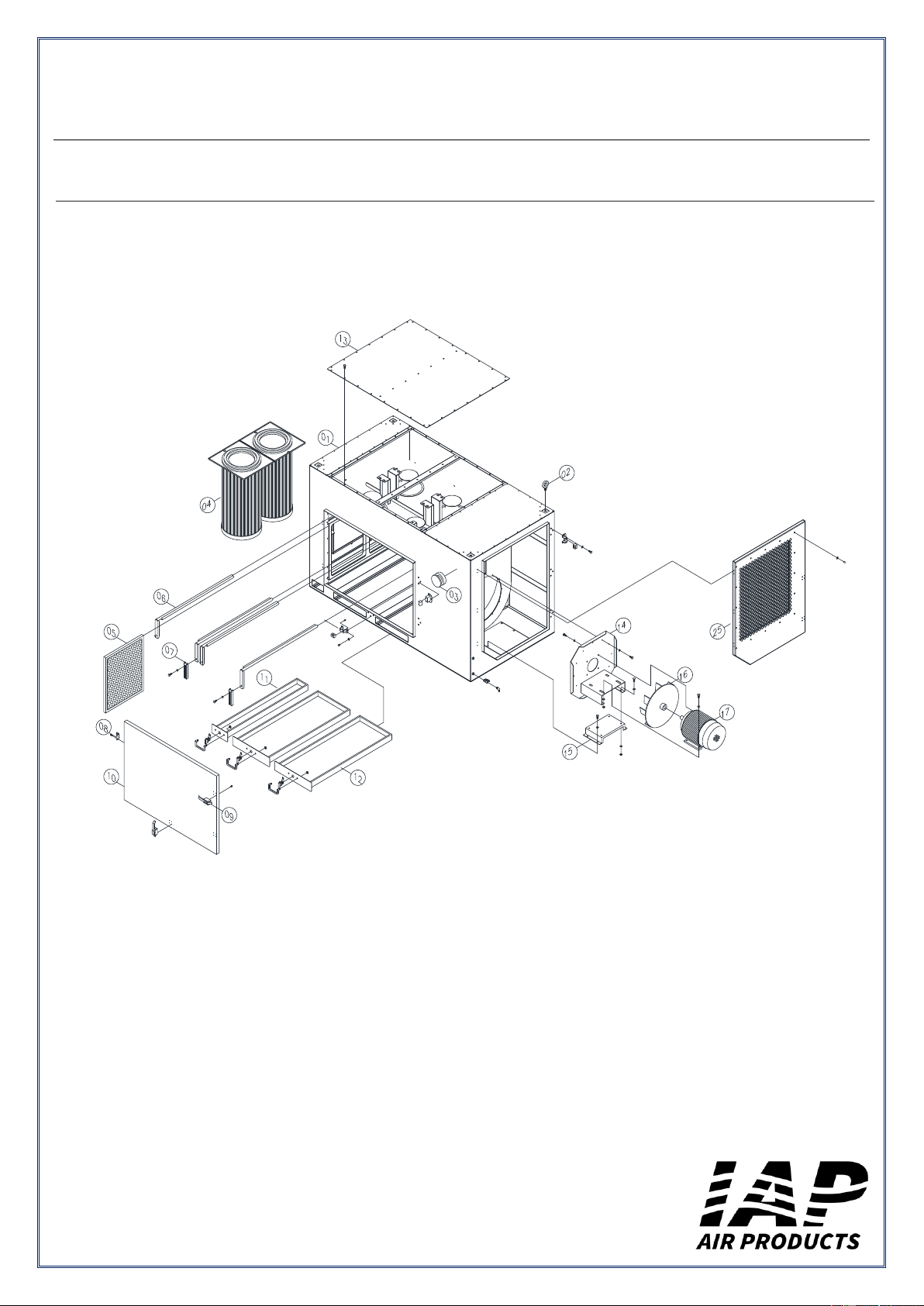

Parts Diagram

Ambient Self-Cleaning Dust Collector
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. The continual observance of these procedures will help increase your production and extend the life of the
equipment.
10
Parts List
Item
Description
Qty.
1
Main Body
1
2
Eye Bolt (M16*20mm)
4
3
Indicator Run Light
1
4
Cartridge Filter
4
5
Aluminum Mesh
2
6
Filter Handle
4
7
Filter Handle Fixing Plate
2
8
Hinge
2
9
Door’s Handle
2
10
Door
1
11
Drawer (small)
1
12
Drawer (large)
2
13
Top Cover
1
14
Motor Base
1
15
Motor Support Base
1
16
Impeller
1
17
Motor
1

Ambient Self-Cleaning Dust Collector
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. The continual observance of these procedures will help increase your production and extend the life of the
equipment.
11
Contact Information
Industrial Air Purification, Inc.
2544 Highway 70 East, Cookeville, TN 38506
Tel : [phone]
E-mail : [e-mail]
Website : www.IAP-AirProducts.com
