IBC control MicroMax User manual

IBC
control
MANUAL

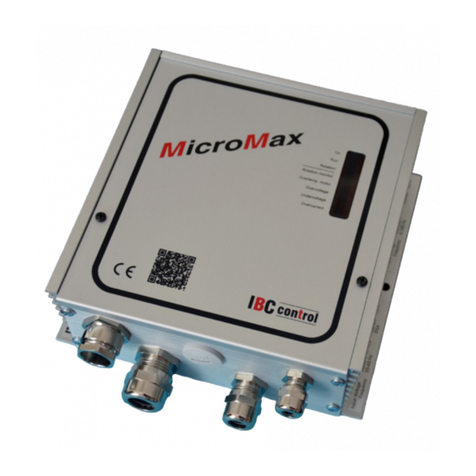

CONTROL UNIT FOR ROTARY HEAT EXCHANGER
MicroMax
Article no. F21009301
Set of EMC-glands as an option
With adjustable boost function and threshold value
M
a
d
e
i
n
S
w
e
d
e
n
Since 1983Since 1983
Ska vara 25 mm i diameter på höjden

Installation instructions 2
Mounting 2
Safety instructions 3
Manufacturer's declaration 4
Description of functions 5
Technical data 6
Functions 6
- DIP switch 7
- Operational indications 7
- Alarms 8-9
- Settings via potentiometer 9
- Push button 9
Connection diagram 10
Connections 10
Checks before powering up
the control unit 11
Putting the equipment into
operation 11
EMC installation 12
EMC gland 12
Personal notes 13
TABLE OF CONTENTS

Warning indication e control unit may only be used in perfect technical
condition.Any damage that may aect safety must be dealt
with immediately.
Maintenance/Repairs e function of the control unit should be checked
regularly.
Troubleshooting and repairs may only be performed by
trained personnel.
Electrical safety regulations must be met.
Disposal and
recycling When replacing components or when the control unit in
its entirety need replacing, please follow the advice below:
e aim should always be maximum possible recycling
of raw materials, with minimum possible environmental
impact.
Never dispose of electrical components with ordinary
waste, always use the designated collection points.
Disposal should be as environment-friendly as the
technology allows in terms of environmental protection
and recycling.
INSTALLATION INSTRUCTIONS
MOUNTING
Mounting hole 5 ø
Mounting hole 5 ø
2

SAFETY INSTRUCTIONS
“Safety instructions” refers to instructions whose specic
intent is to avoid the risk of personal injury and to prevent
damage to equipment.
Danger! Electrical current to electrical components!
Note: Switch o main power before removing the cover.
Never touch electrical components or contacts while main
current is switched on. Risk of electric shock, resulting in
serious injury or death.
Residual voltage remains in connected terminals even aer
main power has been switched o.
e following symbols and references will be used in this description.
ese important instructions apply to personal protection and technical safety
during operation.
3

4
MANUFACTURER'S DECLARATION
Manufacturer IBC control AB
Brännerigatan 5 A, SE-263 37 Höganäs, Sweden
Product Control unit for rotary heat exchanger
Type designation MicroMax
Article number F21009301
EU directive
applied to the
product
e manufacturer's declaration of conformity with the
requirements of the EMC Directive 2004/108/EC.
All control units are approved according to the requirements
of the EMC Directive 2004/108/EC and are tested according
to standard EN 61800-3:2004, emission category C1 and
immunity category C2.
All control units comply with the Low Voltage Directive
2006/95/EC, standard EN 61800-5-1.
All control units are designed for installation in environments
subject to pollution degree 2.
is product also complies with RoHS Directive 2011/65/EU.
Höganäs 2015-07-01
IBC control AB
Christer Persson
MD

• MicroMax is part of a range of control units adapted, with the necessary
additional functions, for optimum control of rotary heat exchangers.
e series consists of four sizes, MicroMax, MicroMax180, MicroMax370 and
MicroMax750.
All of the control units drive three-phase induction motors with associated
gearing, the control unit designation denotes motor output.
All control units have an input signal of 0-10 V.
• MicroMax is designed for wheels up to 1500 mm with a wheel speed of
max 12 rpm.
If a faster wheel speed is necessary, rotor diameter should be reduced.
• Heat exchanger rpm and thus thermal eciency are governed by the control unit
so that wheel speed is proportional to the input signal from the control centre.
• MicroMax has a customisable threshold of 0-2 V.
• MicroMax has adjustable boost function.
• MicroMax has a rotation monitor (magnet mounted on the wheel with
associated magnetic sensor) and built-in cleaning function.
e functions can be disconnected via DIP switches.
• MicroMax starts automatically aer voltage drop-out and resets
all alarms on restart.
• e motor should not be disconnected from the control unit while under load.
DESCRIPTION OF FUNCTIONS
5

Ambient temperature,
non condensing
-25 - +45 OC
Protection form IP54
Weight 0.9 kg
Dimensions, HxWxD 158x165x60 mm
Connection voltage 1x230-240 V +/-15%
50/60 Hz
Power input, max. 210 W
Input current, max. 0.9 A
External fuse, max. 10 A
Output voltage*) 3x0-230 V
Output frequency 5-100 Hz
Minimum frequency (Fixed) 5 Hz
Max frequency 40-100 Hz
Motor output, max 90 W
Motor current 0.7 A
Overload 2 min/30 min 1.3 A
Internal fuse **) 2 AT
Acceleration time
Retardation time
(Fixed) 30 sec
(Fixed) 30 sec
* Exact value cannot be obtained with a digital measuring
instrument
** e fuse protects both motor and electronics
TECHNICAL DATA
FUNCTIONS
6

DIP SWITCH
Cleaning function Cleaning function set to ON position.
When the wheel has stopped for 30 minutes, the cleaning function is
activated and the wheel rotates at minimum rpm for 10 seconds.
Rotation monitor Rotation monitor set to ON position.
High speed*) e wheel rotates at the set maximum rpm when the switch is set to ON.
Aer a test run, make sure the DIP switch is set to OFF.
Low speed*) e wheel rotates at the xed minimum rpm when the switch is set to
ON.
Aer a test run, make sure the DIP switch is set to OFF.
*) Manual operation (test mode)
OPERATIONAL INDICATIONS
On/alarm ON is lit continuously.
Flashes when the control unit has tripped.
Run Comes on when the motor is to rotate, i.e. when the input signal exceeds
the threshold value.
Rotation Flashes when the magnet passes the magnetic sensor, regardless of the
“Rotation monitor” DIP switch setting.
Flashes even if the input signal is lower than the threshold value.
7

Rotation monitor
Probable fault cause on
installation
Probable fault cause in
operation
Alarms and trips unless a pulse is received every 5 minutes.
- Magnet facing the wrong way
-Magnetic sensor incorrectly connected (wrong polarity),
see “Connections” on page 10
-Too wide a gap between the magnetic sensor and magnet, max 15 mm
-Broken belt
- Belt slipping
- Stuck wheel
- Magnetic sensor or magnet not intact
Overtemperature motor
Probable fault cause
Alarms and trips if motor winding temperature is too high.
e thermal contact in the motor reverts to normal mode when the
temperature drops.
See "Overcurrent" on page 9.
Overvoltage Alarms and trips if the connection voltage exceeds 276 V
for more than 4-5 seconds.
Undervoltage Alarms and trips if the connection voltage falls below 195 V
for more than 4-5 seconds.
Short circuit /
overcurrent
Probable fault cause
Alarms and trips in the event of a phase-to-phase or phase-to-earth
short circuit and overcurrent.
Short circuit phase-phase or phase-earth (earth fault)
MicroMax trips immediately.
- Motor winding fault
Measure motor resistance, it should be identical on all phases.
- Short circuit between phases in the cable
- Earth fault in motor or cable
ALARMS
All alarms remain in state.
Continued on next page
8

Continued from previous page
Probable fault cause
Overcurrent
MicroMax limits current at 1.2 A and trips then aer 4-5 s.
- e motor is too small in relation to wheel diameter
- Wheel rotation sluggish
- Damaged motor, e.g. bearing fault
Measure current.
NOTE! Precise voltages and amperages can only be obtained with a
moving-iron instrument.
------------------------------------------------------------------------------------------------------
SETTINGS VIA POTENTIOMETER
Boost Torque boost at low rpm. Factory set.
May be increased if necessary, but motor temperature will increase.
reshold value e control unit will start when the input signal exceeds the threshold
value, adjustable between 0-2 V.
Max rpm Potentiometer for adjusting maximum rpm.
Adjust between 40-100 Hz.
Factory setting, 50 Hz.
PUSH BUTTON
Reset Reset button for resetting the control unit.
e control unit also resets in the event of voltage drop-out.
In both cases, all alarms reset.
Automatic restart takes place aer a voltage drop-out.
9

CONNECTIONS
Switch o power before starting work on the equipment.
Recommended tightening torque on terminals 0.5 Nm, max tightening torque 0.8 Nm.
Connection voltage
(L-N-PE)
1x230-240 V +/-15 %, 50/60 Hz.
NOTE! Protective earth must always be connected.
Motor
(U-V-W)
ree-phase induction motor wired for 3x230 V (Delta).
Max 90 W.
Direction of rotation is changed by switching two of the phases.
ermal contact
(T-T)
e thermal contact in the motor should be used to protect the motor
from overheating.
Must be jumped if the temperature switch is not connected.
Alarm relay
(13-14-15)
Closes between 14-15 in the event of an alarm or voltage drop-out.
Max 2 A resistive load / 250 V AC.
Input signal
(2-3)
0-10 V.
Plus connected to terminal 2, minus to terminal 3.
Rotation monitor
(9-10)
White cable connected to terminal 9, brown to terminal 10.
e magnet is installed with south side (S) towards the sensor.
Max. gap 15 mm.
CONNECTION DIAGRAM
10
T T 2 3
+
0-10 V
9 10
w
Rotation
monitor
3~
L N U V W
M
1x 230 V 3x230 V Thermal
contact
13 14 15
Alarm relay
(Max 2 A / 250 V AC)
S
2
1345 br

Check that the control unit is connected as per instructions on page 10.
Connection voltage 230-240 V +/-15%, 50/60 Hz.
Check that the motor is wired for 3 x 230 V. If there is an operating switch between
the motor and the control unit, the motor thermal contact should be
connected via the auxiliary terminal in the operating switch.
Check that the input signal is 0-10 V.
Check that the cleaning function and rotation monitor DIP switch are set to ON.
PUTTING THE EQUIPMENT INTO OPERATION
Should be done in sequence.
Check that the motor rotates in the right direction in relation to the wheel's direction
of rotation.
In the event of a fault, switch two phases to the motor.
Adjustment of
maximum rpm
Set the “High Speed” DIP switch to the ON position.
Adjust "Max. rpm" so that the wheel rotates at 10-12 rpm
(or as per directions from wheel manufacturer).
Aer a test run, set the DIP switch to OFF.
Checking
minimum rpm
Set the “Low Speed” DIP switch to ON.
Check that the wheel starts.
e minimum rpm is preset.
Aer a test run, set the DIP switch to OFF.
Checking the
cleaning function
Switch o the voltage.
Make sure the “Cleaning function” DIP switch is set to ON and the input
signal is disconnected.
When power is switched on, the wheel will rotate at minimum rpm for
10 seconds.
Checking the
rotation monitor
e yellow “Rotation” LED will ash when the magnet passes the
magnetic sensor, regardless of DIP switch position.
Finish by having the control unit drive the wheel at maximum and minimum
rpm and checking that the wheel speed is correct.
CHECKS BEFORE POWERING UP THE CONTROL UNIT
11

Magnetic sensor, LiYCY 2x0.34
Shielded
Input signal, LiYCY 2x0.34/0.5
Shielded
EMC INSTALLATION
EMC GLAND
Motor cable
Ölex Classic 110 CY/7G0.75
Shielded
Incoming EKK 3G1.5
Not shielded
EMC glands must be used for shielded cables.
e above cables or equivalent must be used to comply with the EMC Directive.
NOTE!
When connecting the shield to the EMC gland, it is important to do so as shown above.
12

PERSONAL NOTES
13

IBC control AB
Brännerigatan 5 A
SE-263 37 Höganäs
Sweden
Tel. [phone]
www.ibccontrol.se
[email protected]
IBCcontrol
F21009902GB Version 1.0.1 2018-09-01
