ELECTRIC SCREWDRIVER
SD10-86|SD12-75

2
1. GENERAL POWER TOOL SAFETY WARNINGS __________
2. ELECTRIC SCREWDRIVER WARNINGS _________________
3. PRODUCT OVERVIEW _________________________________
4. PRODUCT SPECIFICATIONS ___________________________
5. SETUP _________________________________________________
6. PRODUCT FUNCTIONS AND ASSEMBLY _______________
7. GENERAL OPERATION ________________________________
8. TROUBLESHOOTING __________________________________
TABLE OF CONTENTS
IBL SD 10-86|12-75
3
6
7
9
10
11
14
16

3
Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or fumes.
Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control.
Power tool plugs must match the outlet. Never modify the plug
in any way. Do not use any adapted plugs with earthed(grounded)
power tools. Modified plugs and un-matching outlets will increase
the risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep it away from heat, oil, sharp edges
or moving parts.
When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings, instructions, illustrations
and specifications provided with this power tool. Failure to follow
all instructions listed below may result in electric shock, fire
and/or serious injury. Save all warnings and instructions for future
reference. The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-operated (cordless)
power tool
WORK AREA SAFETY
ELECTRICAL SAFETY
IBL SD 10-86|12-75

4
Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs or alcohol. A moment of
inattention while operating power tools may result in serious
personal injury.
Use personal protective equipment. Always wear eye protection.
Protective equipment such as a dust mask, non-skid safety shoes,
hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery pack,
picking up or carrying the tool.
Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected
situations.
Dress properly, say no to loose clothing or jewellery. Keep your
hair, clothing away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and
properly used. Use of dust collection can reduce dust-related
hazards.
Have your power tool serviced by a qualified repair-person
using only identical replacement parts. This will ensure that the
safety of the power tool is maintained.
When servicing a power tool, use only identical replacement
parts. Follow instructions in the maintenance section of this
manual. Use of unauthorized parts or failure to follow maintenance
instructions may create a risk of shock or injury.
PERSONAL SAFETY
IBL SD 10-86|12-75
SERVICE

5
Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer
at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and
off. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are dangerous
in the hands of untrained users.
Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are easier
to control.
Keep handles and grasping surfaces dry, clean and free from oil
and grease. Slippery handles and grasping surfaces do not allow
for safe handling and control of the tool in unexpected situations.
Even if you are operating this product in accordance with all the
safety requirements, potential risks of injury and damage remain.
The following dangers can arise:
Health defects resulting from vibration emission if the product is
being used over long periods of time or not adequately managed
and properly maintained.
Injuries and damage to property due to broken cutting attachments
or the sudden impact of hidden objects during use.
Danger of injury and property damage caused by other objects or
due to natural reactions or calamities.
POWER TOOL USE AND CARE
IBL SD 10-86|12-75
RESIDUAL RISKS

6
Hold the tool by insulated gripping surfaces when performing
an operation.
Use firm pressure while driving in, but do not press too hard.
Too much pressure will not help the process and will cause the bit
to overheat, may cause the bit to bend or break, cause undue strain
on the tool, and may damage the bit or work piece. Pressing too
hard may stall the motor.
Wear ear protectors. Exposure to noise can cause hearing loss.
Always wear safety goggles or eye protection when using this tool.
Use a dust mask or respirator for applications which generate dust.
Place the switch in the locked or ‘OFF’position before making any
assembly, adjustments or changing accessories. Such preventive
safety measures reduce the risk of starting the tool accidentally.
Position yourself to avoid being caught between the tool. When
the bit become jammed in the work, the reaction torque of the tool
could crush your hand or leg.
If the bit becomes bound in the work piece, release the trigger
immediately, reverse the direction of rotation and slowly press the
trigger to back out the bit. Be ready for a strong reaction torque.
Do not use dull or damaged bits and accessories. Dull or
damaged bits have a greater tendency to bind in the work piece.
Do not grasp the tool or place your hands too close to the bit.
When installing a drivers bit, insert the bit well within the jaws of
the chuck. If the bit is not inserted deep enough, the grip of the
jaws over the bit is reduced and the loss of control is increased.
Designate a work area that is clean and well-lit. The work area
must not allow access by children or bystanders to prevent injury
and distraction.
Do not operate the tool while carrying it at your side. A spinning
driver bit could become entangled with clothing and injury may
result.
Never attempt to open the product housing for any reason. If
the plastic housing of the product breaks open or cracks,
immediately discontinue its use, have it repaired by a technician.
ELECTRIC SCREWDRIVER SAFETY WARNINGS
IBL SD 10-86|12-75

7
PRODUCT OVERVIEW
1. Chuck
2. Torque+Mode adjustment ring
3. Forward/Reverse rotation control lever
4. ON/OFF trigger switch
5. Switch lock on button
1
2
4
5
3
IBL SD 10-86
IBL SD 10-86|12-75

8
IBL SD 12-75
1. Chuck
2. Torque+Mode adjustment ring
3. Forward/Reverse rotation control lever
4. ON/OFF trigger switch
5. Switch lock on button
1
2
4
5
3
IBL SD 10-86|12-75

9
Rated voltage
Rated Input Power
Rated no load speed
Weight
Chuck capacity
Torque
Protection class
Rated voltage
Rated Input Power
Rated no load speed
Weight
Chuck capacity
Torque
Protection class
: 230V~50Hz
: 280W
: 0-750 rpm
: 1.35 Kg
: 10 mm
: 19 settings (+1 Drill Mode setting)
: Class II
IBL SD 10-86|12-75
PRODUCT SPECIFICATIONS
IBL SD 10-86
IBL SD 12-75
: 230V~50Hz
: 280W
: 0-750 rpm
: 1.25 Kg
: 10 mm
: 23 settings (+1 Drill Mode setting)
: Class II

10
Unpack all parts and lay them on flat, stable surface. Remove all
packing materials. Make sure the delivery contents are complete
and free of any damage. If you find that parts are missing or
show damage, do not use the product but contact your dealer.
Using an incomplete or damaged product represents a hazard to
people and property.
Ensure that you have all the accessories and tools needed for
assembly and operation. This also includes suitable personal
protective equipment.
This product is intended for fastening and removing screws
majorly. It can also be used for drilling in wood, steel (light
purpose only).
SD10-86 and SD12-75 has 19 and 23 torque settings respectively
and one drill setting each.
It should not be used for working on materials that are dangerous
to health. The product is not suitable for heavy duty works.
For safety reasons it is essential to read the entire instruction
manual before first operation and to observe all the instructions
mentioned in it.
SETUP
UNPACKING AND ENSURING
WARNING! The product must be fully assembled before
operation! Do not use a product that is only partly assembled or
assembled with damaged parts! Follow the assembly instructions
and use the pictures provided as a visual guide to easily assemble
the product! Do not connect the product to power supply before it
is completely assembled!
INTENDED USE
IBL SD 10-86|12-75

11
Turn the chuck sleeve (1) anticlockwise until the chuck jaws are
opened wide enough to insert the driver/drill bit.
Insert the bit all the way to the stop. Turn the chuck sleeve
clockwise until the bit is properly fastened in the chuck jaws.
For removing the bit, simply reverse the above procedure.
PRODUCT FUNCTIONS AND ASSEMBLY
ON/OFF SWITCH AND LOCK-ON BUTTON
4
5
Switch the device ON by pressing the
ON/OFF switch (4) and OFF by releasing
the switch. It is also a variable speed
switch that delivers higher speed and
torque with higher pressure.
For continuous operation, Press ON/OFF
switch then lock-on button (5), release
ON/OFF switch first and lock-on button
second.
IBL SD 10-86|12-75
MOUNTING/ REMOVING BITS
WARNING! Always use driver/drill bits according to the
intended use! Some bits become hot during use, handle them
carefully! Wear protective gloves!
I
II

12

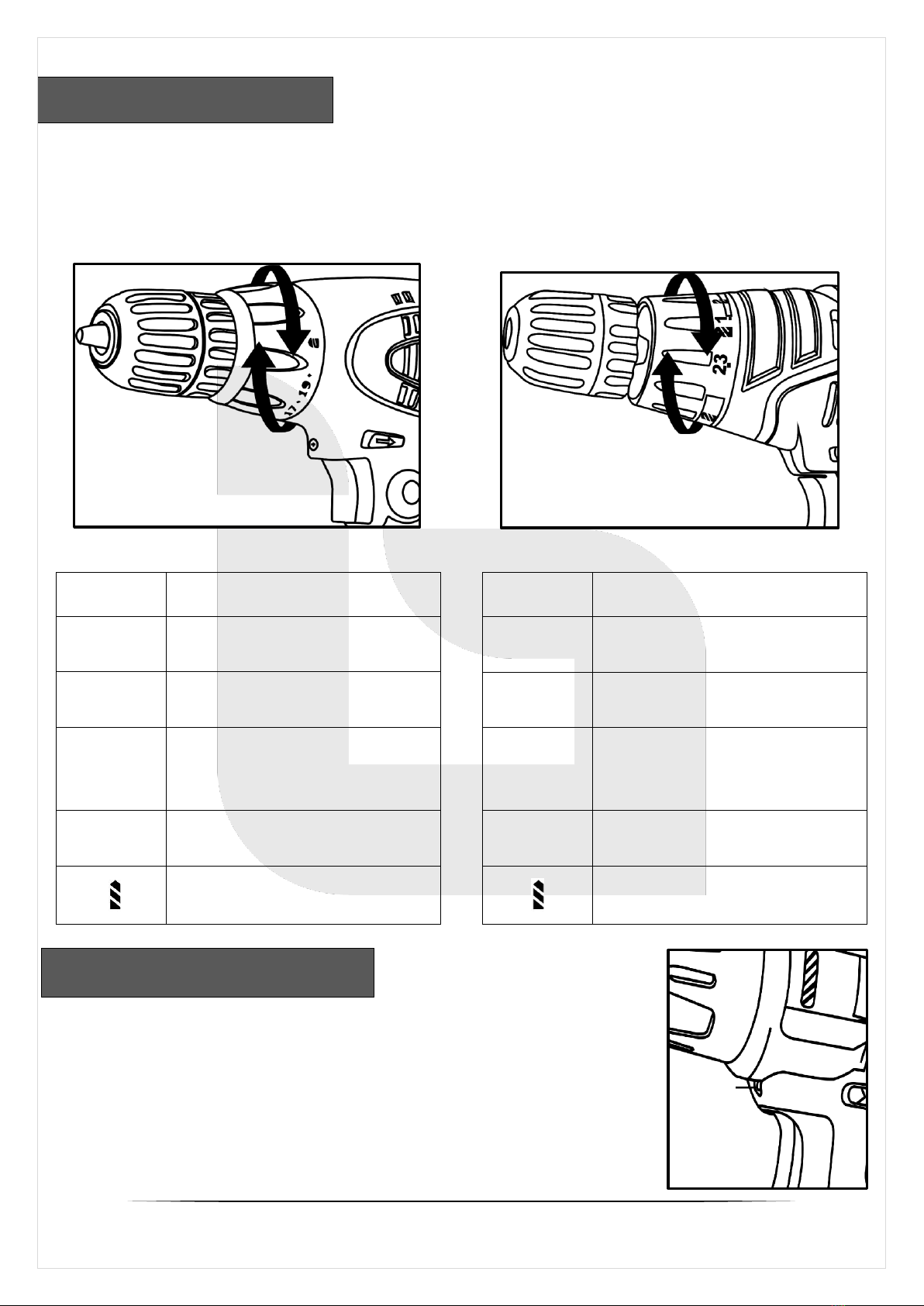

Torque
Description
1 –6
For driving small
screws
6 - 11
For driving screws
into soft material
12 - 18
For driving screws
into soft and hard
material
19 - 23
For driving screws
into hard materials
For drilling in wood,
plastic and steel
Torque
Description
1 –4
For driving small
screws
5 –9
For driving screws
into soft material
10 - 14
For driving screws
into soft and hard
material
15 - 19
For driving screws
into hard materials
For drilling in wood,
plastic and steel
IBL SD 10-86|12-75
TORQUE ADJUSTMENT
It is possible to adjust the output torque settings (with a drill
mode setting). The torque is adjusted by rotating the torque+
mode adjustment ring (2). Torque is greater when the ring is set
on a higher setting and lower when set on a lower setting.
AUTOMATIC WORK LIGHT
Only for SD 10-86, there is a work light which
will automatically illuminate by pressing the
ON/OFF switch (4). This helps to focus on the
work more thoroughly and could work on a not
much bright environment as well.
Work
Light
IBL SD10-86 IBL SD12-75

13
Change the rotational direction from forward to reverse by
switching the forward/reverse rotation control (3).
1. Move the forward/reverse rotation control (3) to the left (as seen
from the operator position) in order to use the product in a
clockwise rotational mode.
2. Move the forward/reverse rotation control switch to the right (as
seen from the operator position) in order to use the product in
anticlockwise rotational mode.
3. Move the rotation control switch to the centre position to lock the
ON/OFF switch and avoid accidental starting.
FORWARD / REVERSE ROTATION CONTROL
WARNING! Only change the rotational direction when the product
is switched OFF and has come to a complete stop! Always ensure that
the rotation switch is adjusted to the correct position depending on the
intended operation! Always slide the control as far as it will go! Do not
use the product with the control in any intermediate position!
IBL SD 10-86|12-75
Position Application
Rotational
direction
Screw-driving
Screw removing
Lock the ON/OFF switch and avoid accidental starting
- 1 -
- 2-
- 3-
Drilling into material
Loosen drill bits

14
WARNING! Do not use the product if it is damaged or shows wear.
Switch the product off immediately if you are disturbed while
working by other people entering the working area.
Always use sharp bits. Dull or damaged bits may cause undue stress
and possibly break, causing injury.
Refer specific instructions on page no. 6 before operation.
Plug the power cord into a suitable outlet. Slide the direction
trigger to determine the rotation direction of the chuck.
Secure the work piece to keep it from moving during the
operation. Use a punch to mark the position of the hole.
Pre-drill the holes with a smaller diameter of the screw to be
screwed. Hold the tool perpendicular to the screw to be screwed
in or out. Holding it at an angle may cause slipping or jamming of
the driver bit.
Place the tip of the driver bit directly on the screw first and then
switch the product ON.
You can lock the trigger in the ON position for continuous
operation by the trigger, pressing in the lock ON button, and
releasing the trigger.
The trigger has a variable speed feature. Pressing it lightly will
make the tool operate slowly, pressing more will cause the tool to
operate faster.
Only apply as much pressure as necessary to keep the screw in
place and the driver bit in contact with the screw head. Too much
pressure will cause damage to the screw head and driver bit, too
little pressure will cause the driver bit to slide away.
Use the tool only for light drilling, with this same procedure, by
changing the torque setting to drill mode.
Remove blocked and stuck screws by changing the rotational
direction. After use, switch the tool OFF and let it cool down.
GENERAL OPERATION
IBL SD 10-86|12-75

15
Keep your power tool clean. Remove debris from it after each
use and before storage. Do not use chemical, alkaline, abrasive or
other aggressive detergents or disinfectants to clean this product
as they might be harmful to its surfaces. Regular and proper
cleaning will help ensure safe use and prolong the life of the
product. Clean the product with a dry cloth. Use a brush for areas
that are hard to reach.
Always store the product in a place that is inaccessible to
children. We recommend using the original package for storage
or covering the product with a suitable cloth or enclosure to
protect it against dust.
Before and after each use, check the product and accessories (or
attachments) for wear and damage.
Inspecting the driver/drill bits; Since use of a dull tool will
cause motor malfunctioning and degraded efficiency, replace the
bits with a new one or re-sharpen when abrasion is noted.
This product does not contain any parts that can be repaired
by the consumer. Contact an authorised service centre or a
similarly qualified person to have it checked and repaired.
CLEANING AND STORAGE
MAINTENANCE AND REPAIR
WARNING! Always switch the product OFF, disconnect the
product from the power supply and let the product cool down
before performing inspection, maintenance and cleaning work! Only
perform repairs and maintenance work according to these
instructions! All further works must be performed by a qualified
specialist!
IBL SD 10-86|12-75

16
Suspected malfunctions are often due to causes that the users can
fix themselves, therefore check the product using this section. In
most cases the problem can be solved quickly.
Problem
Possible Cause
Solution
1. Product does
not start
1.1 No power supply
1.2 Product damaged
1.3 Other electrical
defect to the
product
1.1 Check the plug on
the power supply
1.2 Check it by an
electrician
1.3 Check it by an
electrician
2. Unsatisfactory
result
2.1 Bit is worn
2.2 Bit not suitable for
the intended
operation
2.1 Replace with a new
one
2.2 Use suitable bit
3. Product
suddenly
stops
3.1 Product overloaded
3.1 Remove the
product from
the work-piece and
switch it ON again
TROUBLESHOOTING
WARNING! Only perform the steps described within these
instructions! All further inspection, maintenance and repair work must
be performed by an authorised service centre or a similarly qualified
specialist if you cannot solve the problem yourself!
IBL SD 10-86|12-75

17
Do not dispose this product by normal household waste, but take it to a collection
point and recycling of electrical and electronic equipment. This is indicated by the
symbol on the product, user manual or packaging. Re-use, material utilization or
other forms of old appliances, you make an important contribution in protecting our
environment.
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your Local Authority or local store for recycling advice.
CONTACT US
HiTech Machineries & Equipments
IV/540E, Thottumugham, P.O, Aluva
Ernakulam(Dist), Kerala, India- 683105
Toll Free : 1800 103 4090
Whatsapp : [phone]
Website : www.ibelltools.com
Email : [email protected]
