IBM Eserver 325 Type 8835
Option Installation Guide
ERserver


IBM Eserver 325 Type 8835
Option Installation Guide
ER s e r v e r


Note: Before using this information and the product it supports, read the general information in “Notices”,
on page 35.
First Edition (September 2003)
© Copyright International Business Machines Corporation 2003. All rights reserved.
US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract
with IBM Corp.

Contents
Safety ............................v
Chapter 1. Introduction ......................1
Related publications .......................1
Notices and statements used in this book ...............2

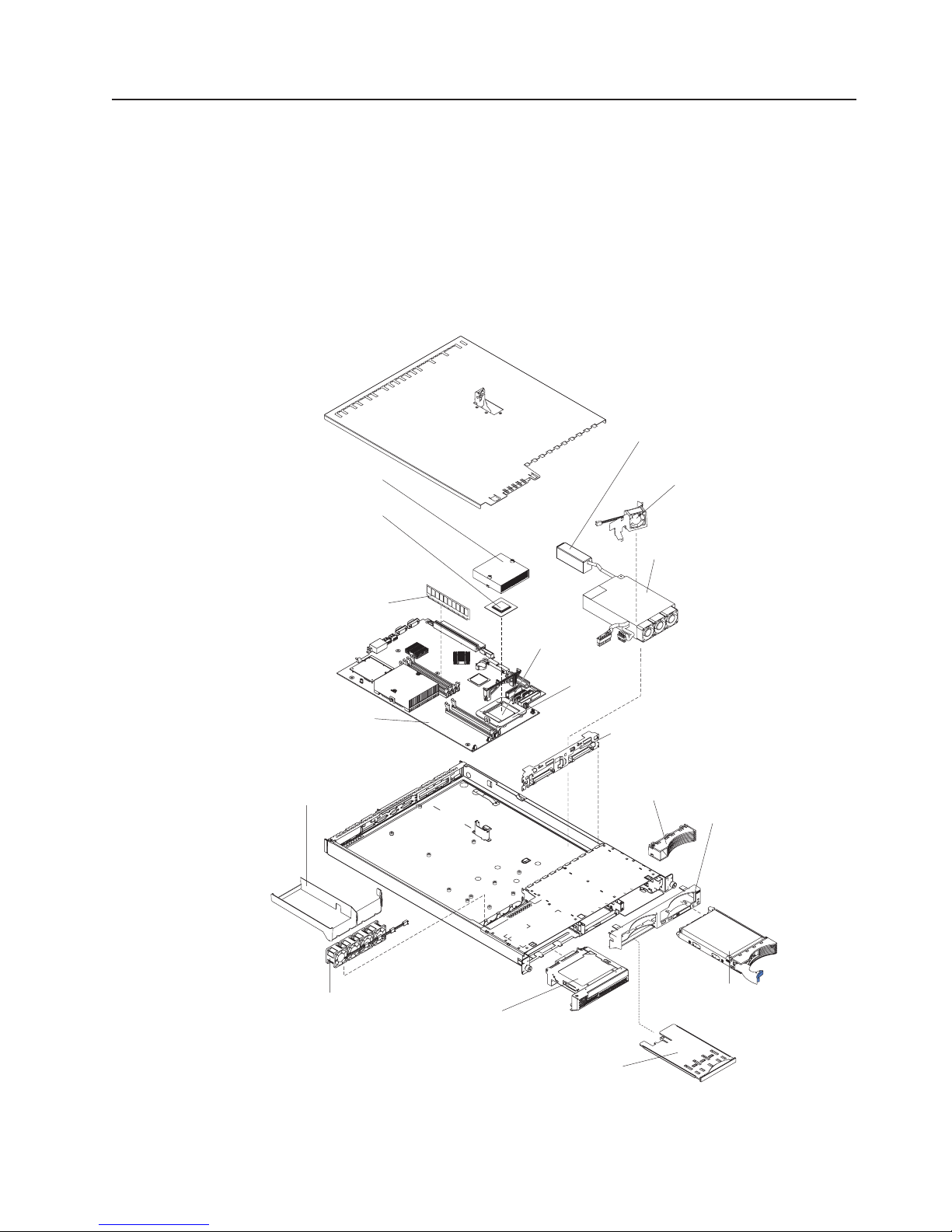

Major components of the Eserver 325 Type 8835 server .........3

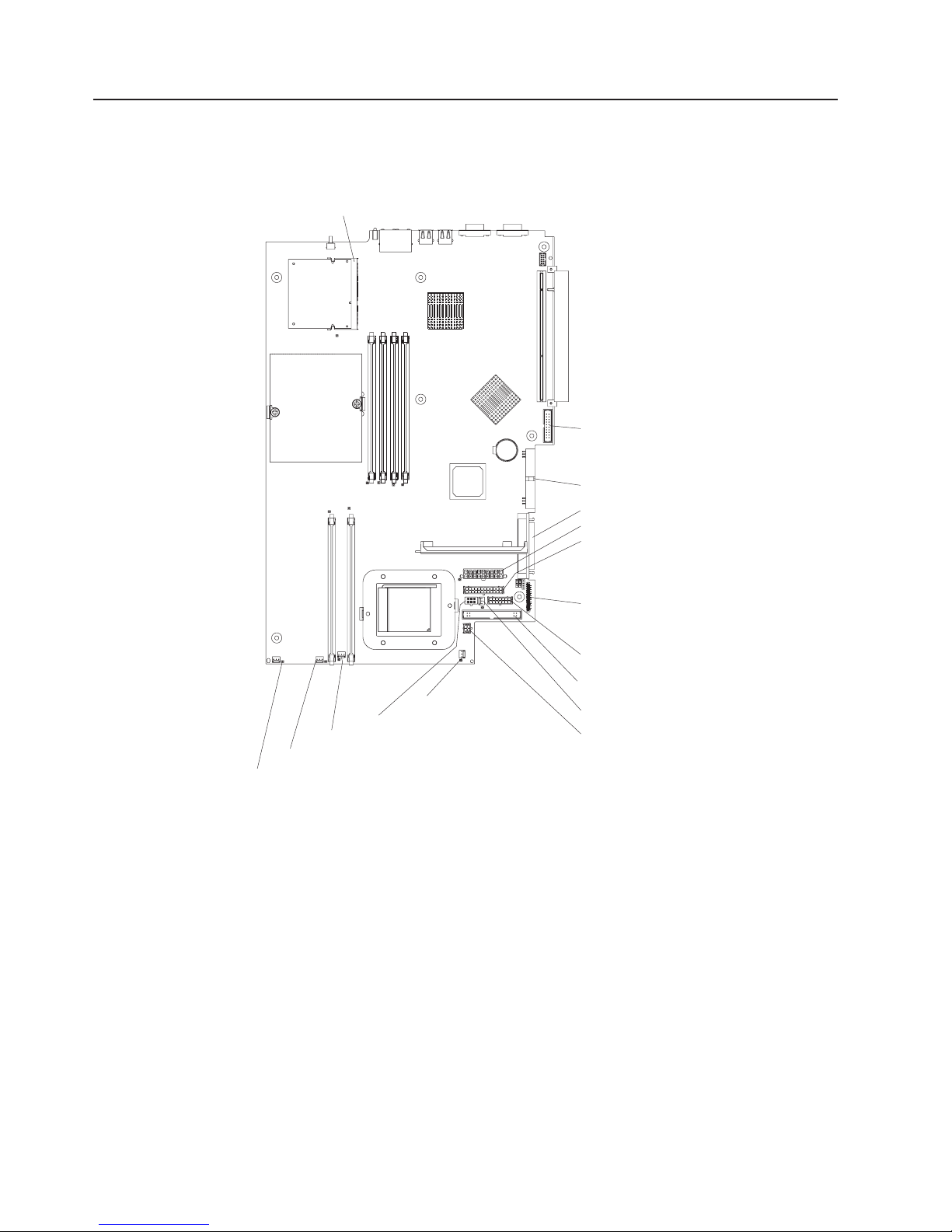

System-board internal connectors ..................4

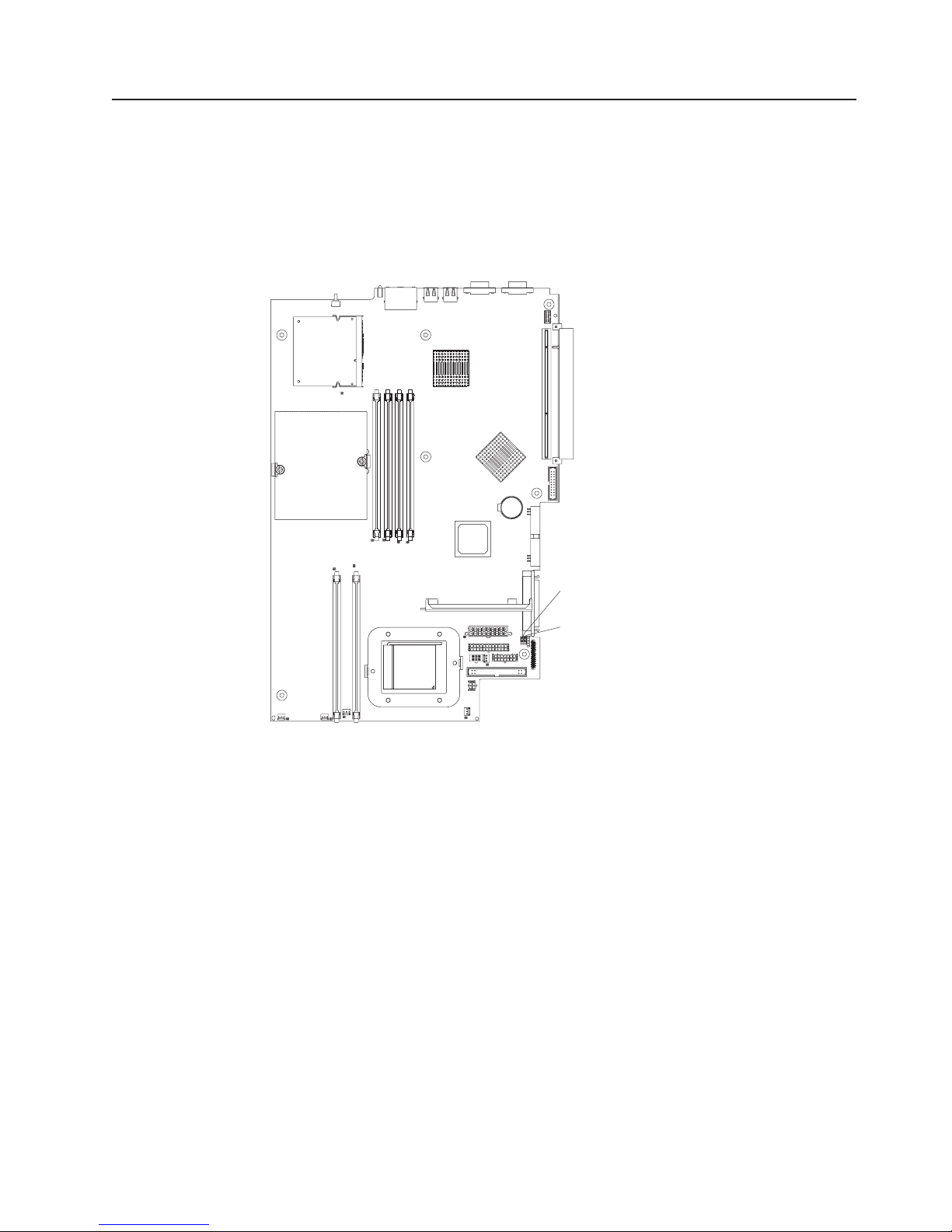

System-board switches and jumpers .................5
System-board external connectors ..................6
System-board LEDs .......................7
System-board option connectors ...................8
Chapter 2. Installing options....................9
Installation guidelines .......................9
System reliability guidelines....................9
Handling static-sensitive devices ..................9
Server power features ......................10
Turning on the server .....................10
Turning off the server .....................10
Removing the cover and bezel ...................11
Installing an adapter .......................12
Installing a hard disk drive.....................18
Installing a hot-swap hard disk drive ................19
Installing a non-hot-swap hard disk drive ..............20
Installing a memory module ....................21
Installing an additional microprocessor ................23
Replacing the battery ......................27
Replacing a fan assembly .....................29
Completing the installation.....................31
Connecting the cables .....................31
Updating the server configuration .................32
Chapter 3. I/O connectors ....................33
Ethernet (RJ-45) connectors ....................34
Serial connector ........................34
Universal Serial Bus connectors ..................34
Video connector ........................34
Appendix. Notices .......................35
Edition notice .........................35
Trademarks ..........................36
Important notes.........................36
Product recycling and disposal ...................37
Battery return program ......................37
Electronic emission notices ....................38
Federal Communications Commission (FCC) statement .........38
Industry Canada Class A emission compliance statement ........38
Australia and New Zealand Class A statement ............38
United Kingdom telecommunications safety requirement.........39
European Union EMC Directive conformance statement .........39
Taiwanese Class A warning statement ...............39
Chinese Class A warning statement ................39
Japanese Voluntary Control Council for Interference (VCCI) statement . . . 40
© Copyright IBM Corp. 2003 iii

Power cords ..........................40
Index ............................43
iv IBM Eserver 325 Type 8835: Option Installation Guide

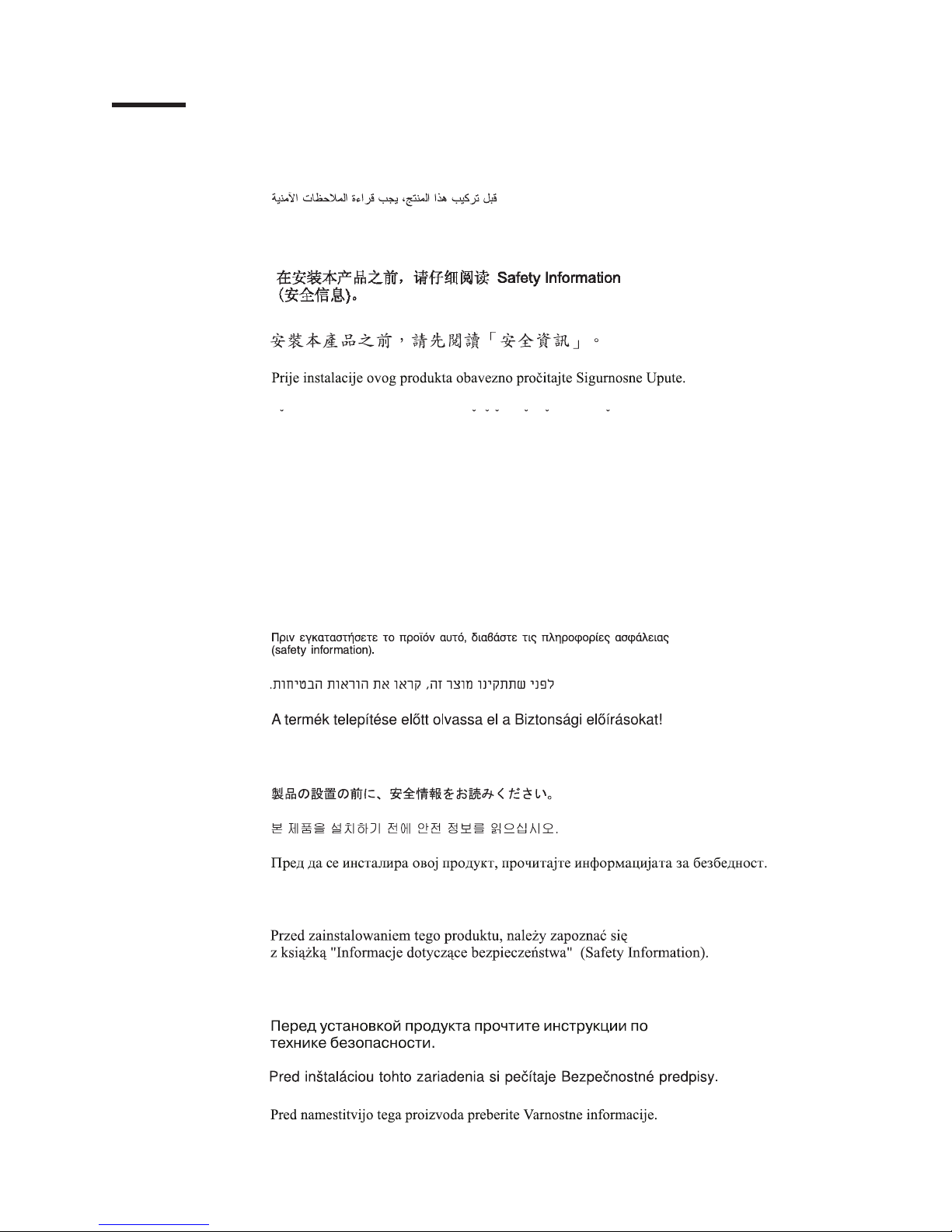

Safety
Before installing this product, read the Safety Information.
Antes de instalar este produto, leia as Informações de Segurança.
Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí.
Læs sikkerhedsforskrifterne, før du installerer dette produkt.
Lees voordat u dit product installeert eerst de veiligheidsvoorschriften.
Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety Information.
Avant d’installer ce produit, lisez les consignes de sécurité.
Vor der Installation dieses Produkts die Sicherheitshinweise lesen.
Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.
Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet.
Antes de instalar este produto, leia as Informações sobre Segurança.
© Copyright IBM Corp. 2003 v

Antes de instalar este producto, lea la información de seguridad.
Läs säkerhetsinformationen innan du installerar den här produkten.
vi IBM Eserver 325 Type 8835: Option Installation Guide

Important:
All caution and danger statements in this documentation begin with a
number. This number is used to cross reference an English caution or
danger statement with translated versions of the caution or danger
statement in the IBM Safety Information book.
For example, if a caution statement begins with a number 1,
translations for that caution statement appear in the IBM Safety
Information book under statement 1.
Be sure to read all caution and danger statements in this
documentation before performing the instructions. Read any additional
safety information that comes with your server or optional device before
you install the device.
Statement 1:
DANGER
Electrical current from power, telephone, and communication cables is
hazardous.
To avoid a shock hazard:
vDo not connect or disconnect any cables or perform installation,
maintenance, or reconfiguration of this product during an electrical
storm.
vConnect all power cords to a properly wired and grounded electrical
outlet.
vConnect to properly wired outlets any equipment that will be attached to
this product.
vWhen possible, use one hand only to connect or disconnect signal
cables.
vNever turn on any equipment when there is evidence of fire, water, or
structural damage.
vDisconnect the attached power cords, telecommunications systems,
networks, and modems before you open the device covers, unless
instructed otherwise in the installation and configuration procedures.
vConnect and disconnect cables as described in the following table when
installing, moving, or opening covers on this product or attached
devices.
To Connect: To Disconnect:
1. Turn everything OFF.
2. First, attach all cables to devices.
3. Attach signal cables to connectors.
4. Attach power cords to outlet.
5. Turn device ON.
1. Turn everything OFF.
2. First, remove power cords from outlet.
3. Remove signal cables from connectors.
4. Remove all cables from devices.
Safety vii

Statement 2:
CAUTION:
When replacing the lithium battery, use only IBM Part Number 33F8354 or an
equivalent type battery recommended by the manufacturer. If your system has
a module containing a lithium battery, replace it only with the same module
type made by the same manufacturer. The battery contains lithium and can
explode if not properly used, handled, or disposed of.
Do not:
vThrow or immerse into water
vHeat to more than 100°C (212°F)
vRepair or disassemble
Dispose of the battery as required by local ordinances or regulations.
viii IBM Eserver 325 Type 8835: Option Installation Guide

Statement 3:
CAUTION:
When laser products (such as CD-ROMs, DVD drives, fiber optic devices, or
transmitters) are installed, note the following:
vDo not remove the covers. Removing the covers of the laser product could
result in exposure to hazardous laser radiation. There are no serviceable
parts inside the device.
vUse of controls or adjustments or performance of procedures other than
those specified herein might result in hazardous radiation exposure.
DANGER
Some laser products contain an embedded Class 3A or Class 3B laser
diode. Note the following.
Laser radiation when open. Do not stare into the beam, do not view directly
with optical instruments, and avoid direct exposure to the beam.
Class 1 Laser Product
Laser Klasse 1
Laser Klass 1
Luokan 1 Laserlaite
Appareil A Laser de Classe 1
`
Safety ix

Statement 4:
≥18 kg (39.7 lb) ≥32 kg (70.5 lb) ≥55 kg (121.2 lb)
CAUTION:
Use safe practices when lifting.
Statement 5:
CAUTION:
The power control button on the device and the power switch on the power
supply do not turn off the electrical current supplied to the device. The device
also might have more than one power cord. To remove all electrical current
from the device, ensure that all power cords are disconnected from the power
source.
1
2
xIBM Eserver 325 Type 8835: Option Installation Guide

Statement 8:
CAUTION:
Never remove the cover on a power supply or any part that has the following
label attached.
Hazardous voltage, current, and energy levels are present inside any
component that has this label attached. There are no serviceable parts inside
these components. If you suspect a problem with one of these parts, contact
a service technician.
Statement 10:
CAUTION:
Do not place any object weighing more than 82 kg (180 lb) on top of
rack-mounted devices.
>82 kg (180 lb)
WARNING: Handling the cord on this product or cords associated with accessories
sold with this product, will expose you to lead, a chemical known to the State of
California to cause cancer, and birth defects or other reproductive harm. Wash
hands after handling.
ADVERTENCIA: El contacto con el cable de este producto o con cables de
accesorios que se venden junto con este producto, pueden exponerle al plomo, un
elemento químico que en el estado de California de los Estados Unidos está
considerado como un causante de cancer y de defectos congénitos, además de
otros riesgos reproductivos. Lávese las manos después de usar el producto.
Safety xi

xii IBM Eserver 325 Type 8835: Option Installation Guide

Chapter 1. Introduction
This Option Installation Guide contains instructions for installing, removing, and
connecting optional devices that your server supports.
Related publications
In addition to this Option Installation Guide, the following documentation comes with
your server:
vUser’s Guide
This publication is in Portable Document Format (PDF) on the IBM
®
Eserver
Documentation CD. It contains general information about your server.
vInstallation Guide
This printed publication contains instructions for setting up your server and basic
instructions for installing some options.
vSafety Information
This publication is in PDF on the IBM Eserver Documentation CD. It contains
translated caution and danger statements. Each caution and danger statement
that appears in the documentation has a number that you can use to locate the
corresponding statement in your language in the Safety Information book.
vRack Installation Instructions
This printed publication contains instructions for installing your server in a rack.
vHardware Maintenance Manual and Troubleshooting Guide
This publication is in PDF on the IBM Eserver Documentation CD. It contains
information to help you solve problems yourself, and it contains information for
service technicians.
Depending on your server model, additional publications might be included on the
IBM Eserver Documentation CD.
Your server might have features that are not described in the documentation that
you received with the server. The documentation might be updated occasionally to
include information about those features, or technical updates might be available to
provide additional information that is not included in your server documentation.
These updates are available from the IBM Web site. Complete the following steps
to check for updated documentation and technical updates:
1. Go to http://www.ibm.com/pc/support/.
2. In the Learn section, click Online publications.
3. On the “Online publications” page, in the Brand field, select Servers.
4. In the Family field, select Eserver 325.
5. Click Display documents.
© Copyright IBM Corp. 2003 1

Notices and statements used in this book
The caution and danger statements that appear in this book are also in the
multilingual Safety Information book, which is on the IBM Eserver Documentation
CD. Each statement is numbered for reference to the corresponding statement in
the Safety Information book.
The following notices and statements are used in the documentation:
vNotes: These notices provide important tips, guidance, or advice.
vImportant: These notices provide information or advice that might help you avoid
inconvenient or problem situations.
vAttention: These notices indicate potential damage to programs, devices, or
data. An attention notice is placed just before the instruction or situation in which
damage could occur.
vCaution: These statements indicate situations that can be potentially hazardous
to you. A caution statement is placed just before the description of a potentially
hazardous procedure step or situation.
vDanger: These statements indicate situations that can be potentially lethal or
extremely hazardous to you. A danger statement is placed just before the
description of a potentially lethal or extremely hazardous procedure step or
situation.
2IBM Eserver 325 Type 8835: Option Installation Guide

Major components of the Eserver 325 Type 8835 server
The blue color on components and labels indicates touch points, where a
component can be gripped, a latch moved, and so on.
The following illustration shows the locations of major components in a small
computer system interface (SCSI) hot-swap hard disk drive model server. An
integrated drive electronics (IDE) non-hot-swap hard disk drive model is also
available.
Note: The illustrations in this publication might differ slightly from your hardware.
Microprocessor
heat sink
Microprocessor
Dual inline
memory module
(DIMM)
System board
Air baffle
Microprocessor fans CD-ROM
drive assembly
Hot-swap hard disk
drive SCSI backplane
(SCSI model only)
Power supply
Hard disk drive
fan/air baffle
Power-cord box
Hard disk drive
Filler panel (SCSI model only)
Bezel
(SCSI model only)
Microprocessor
socket
USB option tray
Heat-sink
retention
module
Chapter 1. Introduction 3

System-board internal connectors
The following illustration shows the internal connectors on the system board.
System Management
SO-DIMM connector (J16)
Remote Supervisor
Adapter II (JMGT1)
Secondary IDE (IDE2)
SCSI backplane signal (SCSI1)
System board power (J10)
SCSI backplane power (J12)
Front panel signal (J13)
System board power (J11
Primary IDE (IDE1)
Fan 1 (SFAN1)
CD-ROM drive power (J14)
Fan 2 (SFAN2)
Front USB (J15)
Fan 3 (SFAN3)
Fan 4 (SFAN4)
Fan 5 (SFAN5)
4IBM Eserver 325 Type 8835: Option Installation Guide

System-board switches and jumpers
The following illustration shows the switches and jumpers on the system board.
Any jumper blocks on the system board that are not shown in the illustration are
reserved. See the section about recovering the basic input/output system (BIOS)
code in the Hardware Maintenance Manual and Troubleshooting Guide on the IBM
Eserver Documentation CD for information about the boot block recovery jumper.
Boot block
recovery jumper (JBBF1)
Clear CMOS jumper (JBAT1)
Chapter 1. Introduction 5

System-board external connectors
The following illustration shows the external input/output connectors (ports) on the
system board.
Ethernet ports (Dual)(JLAN1)
Serial port 2 (COM2)
Serial port 1 (COM1)
Video port (JVGA1)
USB ports (USB2 and USB1)
6IBM Eserver 325 Type 8835: Option Installation Guide
