IBM BladeCenter T Type 8720 Owner's manual

BladeCenter TTy p e 8720 and 8730
Hardware Maintenance Manual and
Troubleshooting Guide
򔻐򗗠򙳰

BladeCenter TTy p e 8720 and 8730
Hardware Maintenance Manual and
Troubleshooting Guide
򔻐򗗠򙳰

Note
Before using this information and the product it supports, be sure to read Appendix C, “Notices,” on page 157.
Sixth Edition (August 2006)
©Copyright International Business Machines Corporation 2004. All rights reserved.
US Government Users Restricted Rights –Use, duplication or disclosure restricted by GSA ADP Schedule Contract
with IBM Corp.

About this manual
This manual contains diagnostic information, aSymptom-to-FRU index, service
information, error codes, error messages, and configuration information for the
BladeCenter
® Type 8720 and 8730.
Important safety information
Be sure to read all caution and danger statements in this book before performing
any of the instructions. See “Safety information” on page 113.
Lea todas as instruções de cuidado eperigo antes de executar qualquer operação.
Prenez connaissance de toutes les consignes de type Attention et Danger avant de
procéder aux opérations décrites par les instructions.
Lesen Sie alle Sicherheitshinweise, bevor Sie eine Anweisung ausführen.
Accertarsi di leggere tutti gli avvisi di attenzione edi pericolo prima di effettuare
qualsiasi operazione.
©Copyright IBM Corp. 2004 iii

Lea atentamente todas las declaraciones de precaución ypeligro ante de llevar a
cabo cualquier operación.
Online support
You can download the most current diagnostic, H8 flash, and device driver files
from http://www.ibm.com/pc/support on the World Wide Web.
Support telephone numbers
View support telephone numbers at http://www.ibm.com/planetwide/ on the World
Wide Web.
iv BladeCenter TType 8720 and 8730: Hardware Maintenance Manual and Troubleshooting Guide

Contents
About this manual ....................... iii
Important safety information .................... iii
Online support .........................iv
Support telephone numbers ....................iv
Chapter 1. General information...................1
Related publications .......................3
Notices and statements used in this book ...............4
Features and specifications for the BladeCenter TType 8720 unit ......5
Features and specifications for the BladeCenter TType 8730 unit ......7
Major components of the BladeCenter TTypes 8720 and 8730 unit ......9
Front view ..........................9
Rear view ..........................15
BladeCenter Tunit power, controls, and indicators ............19
Starting the BladeCenter Tunit ..................19
Shutting down the BladeCenter Tunit ...............21
Chapter 2. Configuring the BladeCenter Tunit ............23
Setting up the remote connection ..................25
Cabling the Ethernet port ....................25
Management and configuration program ...............26
Setting up the management and configuration program .........26
Starting the management and configuration program ..........27
Setting management and configuration program options.........28
Saving and restoring the configuration file ..............29
Configuring an I/O module.....................29
What to configure .......................29
Supporting Ethernet failover ...................30
Configuring the Ethernet controllers in the blade servers ........30
BladeCenter Tnetworking guidelines .................31
Using Remote Deployment Manager Version 4.11 Update 3or later .....33
Using IBM Director .......................33
Communicating with the IBM Director software ............33
Chapter 3. Diagnostics .....................35
Diagnostic tools overview .....................35
Identifying problems using the Light Path Diagnostics feature ........35
Chapter 4. Setting up the BladeCenter Thardware ..........37
Setting up the BladeCenter Tunit ..................37
Installation guidelines ......................37
Preparing for system power ...................38
System reliability considerations .................39
Handling static-sensitive devices .................40
Preinstallation steps .......................42
Removing and installing the bezel assembly ..............43
Removing the bezel assembly ..................43
Installing the bezel assembly...................44
Removing and installing the bezel air filter ...............44
Removing and installing power modules ...............46
Removing apower module ...................47
Installing apower module ....................48
Removing and installing the media tray ................49
©Copyright IBM Corp. 2004 v

Removing the media tray ....................50
Installing the media tray ....................50
Removing and installing management modules .............51
Removing amanagement module .................52
Installing amanagement module .................53
Removing and installing blower modules ...............54
Removing ablower module ...................55
Installing ablower module....................55
Removing and installing the KVM (keyboard, video, mouse) module .....56
Removing the KVM module ...................57
Installing the KVM module....................57
Removing and installing the LAN module ...............58
Removing the LAN module ...................59
Installing the LAN module ....................59
Removing and installing I/O modules .................60
Removing an I/O module ....................62
Installing an I/O module ....................62
Blade servers .........................63
Blade server expansion options ..................63
Removing and installing ablade server or filler module .........64
Completing the installation.....................66
Chapter 5. Service replaceable units ................67
DC terminal cover with fasteners ..................68
AC rear panel .........................69
DC Rear Panel .........................70
Upper flex circuit assembly ....................71
Lower flex circuit assembly ....................72
Docking board/blower housing assembly -(dc Type 8720 and ac Type 8730) 75
Rear chassis stiffener bracket ...................77
Backplane ..........................79
Backplane insulator .......................81
Air damper ..........................82
Mechanical chassis .......................85
Chapter 6. Symptom-to-FRU index .................89
Error symptoms ........................89
Light path diagnostics LEDs ....................98
Temperature error messages ................... 100
Blower error messages ..................... 100
Power error messages ..................... 100
Blade server error messages ................... 101
KVM error message ...................... 102
Switch error messages ..................... 102
Management-module error messages ................ 103
Bus error messages ...................... 104
Undetermined problems ..................... 104
Problem determination tips .................... 105
Chapter 7. Parts listing, BladeCenter TType 8720 and 8730 ...... 107
Type 8720 and 8730 -Front view ................. 107
Type 8720 and 8730 -Rear view.................. 108
Appendix A. Getting help and technical assistance .......... 111
Before you call ........................ 111
Using the documentation ..................... 111
vi BladeCenter TType 8720 and 8730: Hardware Maintenance Manual and Troubleshooting Guide

Getting help and information from the World Wide Web ......... 111
Software service and support ...................112
Hardware service and support ...................112
Appendix B. Related service information ..............113
Safety information .......................113
General safety........................113
Electrical safety .......................114
Safety inspection guide ....................115
Handling electrostatic discharge-sensitive devices ..........116
Grounding requirements ....................117
Safety notices (multi-lingual translations) ..............117
Appendix C. Notices ...................... 157
Edition notice ......................... 157
Trademarks.......................... 158
Important notes ........................ 158
Product recycling and disposal .................. 159
Battery return program ..................... 159
Electronic emission notices .................... 160
Federal Communications Commission (FCC) statement ........ 160
Industry Canada Class Aemission compliance statement ........ 160
Australia and New Zealand Class Astatement ............ 160
United Kingdom telecommunications safety requirement ........ 160
European Union EMC Directive conformance statement ........ 161
Taiwanese Class Awarning statement ............... 161
Chinese Class Awarning statement ................ 161
Japanese Voluntary Control Council for Interference (VCCI) statement 161
Power cords ......................... 162
Index ............................ 165
Contents vii

viii BladeCenter TType 8720 and 8730: Hardware Maintenance Manual and Troubleshooting Guide

Chapter 1. General information
The IBM
® BladeCenter ®
TTypes 8720 and 8730 units are rack-mounted,
high-density, high-performance blade server systems developed for
telecommunications network applications and other applications requiring physical
robustness.
The BladeCenter Tunit uses blade servers, switches, and other components that
are common to the IBM BladeCenter product line. This common component
strategy makes it ideal for applications in telecommunications networks that need
high levels of computing power and access to common off-the-shelf middleware
packages that are used in IT data centers. The BladeCenter Tunit supports up to
eight blade servers and four I/O modules, making it ideally suited for networking
environments that require alarge number of high-performance servers in asmall
amount of space. The BladeCenter Tunit provides common resources that are
shared by the blade servers, such as power, cooling, system management, network
connections, backplane, and I/O (CD-ROM drive and connectors for USB, network
interfaces, and –for blade servers that support the KVM function –keyboard, video,
and mouse).
Performance, ease of use, reliability (NEBS/ETSI compliance), and expansion
capabilities were key considerations during the design of the BladeCenter Tsystem.
These design features make it possible for you to customize the system hardware
to meet your needs today, while providing flexible expansion capabilities for the
future.
This Hardware Maintenance and Troubleshooting Guide provides information to:
vSet up and cable aBladeCenter Tunit
vStart and configure aBladeCenter Tunit
vInstall and remove modules, options, and blades
vReplace field replaceable units
vPerform troubleshooting and servicing of the BladeCenter Tunit
Packaged with the Hardware Maintenance and Troubleshooting Guide are software
CDs that help you to configure and manage the BladeCenter Tunit.
This Hardware Maintenance and Troubleshooting Guide and other publications that
provide detailed information about your BladeCenter Tunit are provided in Portable
Document Format (PDF) on the IBM BladeCenter TDocumentation CD.
You can register the BladeCenter Tunit and blade servers on the World Wide Web.
To register, go to: http://www.ibm.com/pc/register/.
©Copyright IBM Corp. 2004 1

Record information about your BladeCenter Tunit in the following table. You will
need this information when you register your BladeCenter Tunit with IBM.
Product name IBM Eserver BladeCenter T
Machine type (8720 or 8730) _________________________________________
Model number _________________________________________
Serial number _________________________________________
The serial number and model number are located in three places on the
BladeCenter Tunit:
vTop of the BladeCenter Tunit.
vFront of the bezel assembly.
vFront of the BladeCenter Tunit.
The labels on the top and the front of the bezel assembly of the BladeCenter Tunit
are shown in the following illustration.
CMM
1
CMM
2
ESD
Information label
Serial number label
Aset of user labels comes with each blade server. When you install ablade server
in the BladeCenter Tunit, write identifying information on alabel and place the label
on the BladeCenter Tunit bezel.

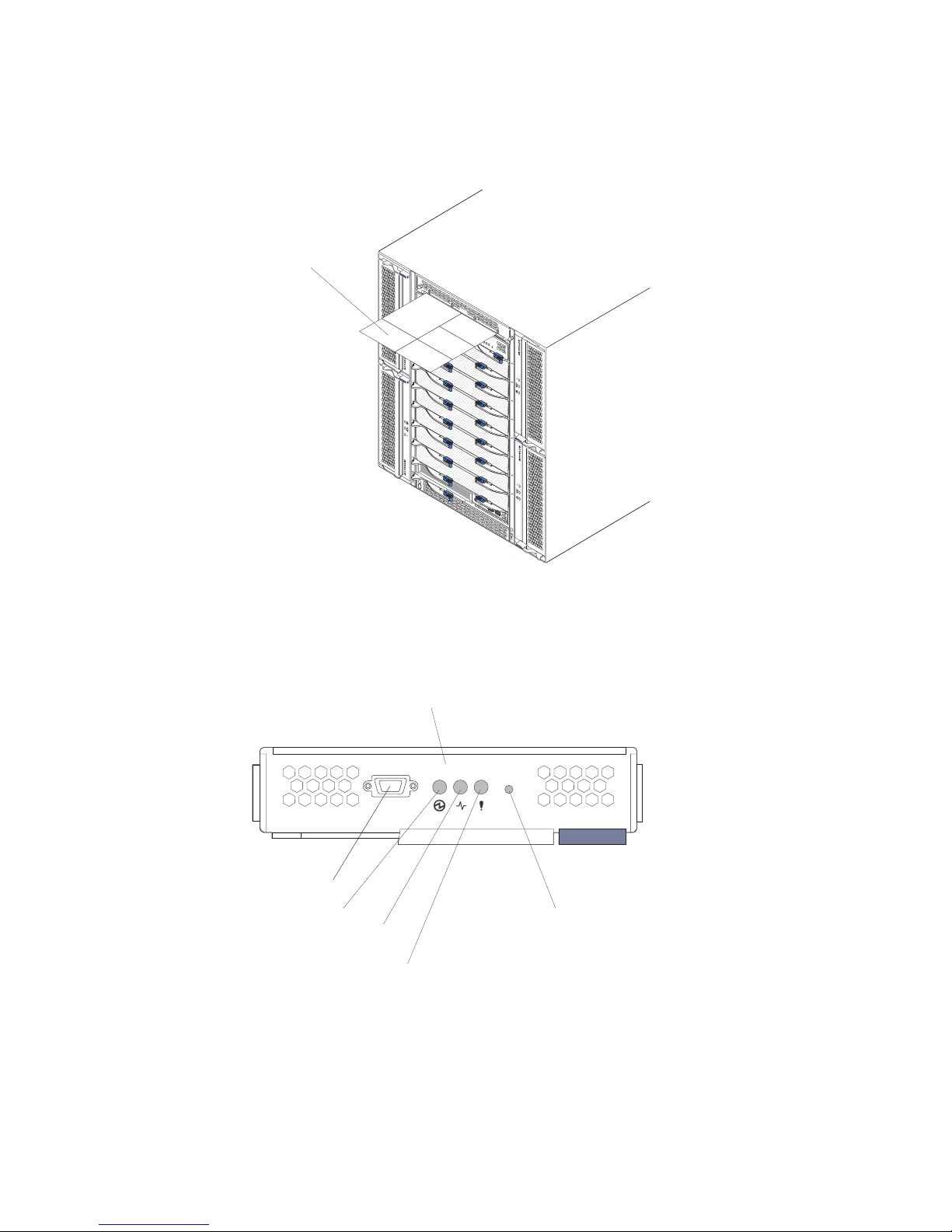

The following illustration shows the placement of the label, to the side of the blade
server, on the BladeCenter Tunit.
2BladeCenter TType 8720 and 8730: Hardware Maintenance Manual and Troubleshooting Guide

User
label
CMM
1CMM 2
Important: Do not place the label on the blade server itself or in any way block the
ventilation holes on the blade server.
Related publications
This Hardware Maintenance and Troubleshooting Guide is provided in Portable
Document Format (PDF). It contains information to help you solve the problem
yourself or to provide helpful information to aservice technician.
In addition to this Hardware Maintenance and Troubleshooting Guide,the following
documentation is provided in PDF on the IBM BladeCenter TDocumentation CD
that comes with your BladeCenter Tunit:
vSafety Information: This document contains translated caution and danger
statements. Each caution and danger statement that appears in the
documentation has anumber that you can use to locate the corresponding
statement in your language in the Safety Information document.
vInstallation and User’s Guide This publication provides general information about
the server, including information about features, how to configure the server, and
how to get help.
vBladeCenter Track installation instructions
These documents contain instructions for installing the BladeCenter Tunit in a
4-post and 2-post rack.
Note: The BladeCenter Tcan also be installed in some xSeries and pSeries
racks, such as the IBM Netbay42 Enterprise Rack Model 9308. See the
installation instructions that come with those racks.
vBladeCenter TManagement Module Installation Guide
This document contains instructions for installing an IBM BladeCenter T
management module option in aBladeCenter Tunit and creating the initial
configuration.
vBladeCenter TManagement Module User’s Guide
This document contains instructions for using the Web interface to configure the
management modules in aBladeCenter Tunit.
Additional publications might be included on the IBM BladeCenter TDocumentation
CD.
Chapter 1. General information 3

Notices and statements used in this book
The caution and danger statements that appear in this book are also in the
multilingual Safety Information book, which is on the IBM BladeCenter T
Documentation CD. Each statement is numbered for reference to the corresponding
statement in the Safety Information book.
The following notices and statements are used in the documentation:
vNote: These notices provide important tips, guidance, or advice.
vImportant: These notices provide information or advice that might help you avoid
inconvenient or problem situations.
vAttention: These notices indicate possible damage to programs, devices, or
data. An attention notice is placed just before the instruction or situation in which
damage could occur.
vCaution: These statements indicate situations that can be potentially hazardous
to you. Acaution statement is placed just before the description of apotentially
hazardous procedure step or situation.
vDanger: These statements indicate situations that can be potentially lethal or
extremely hazardous to you. Adanger statement is placed just before the
description of apotentially lethal or extremely hazardous procedure step or
situation.
4BladeCenter TType 8720 and 8730: Hardware Maintenance Manual and Troubleshooting Guide

Features and specifications for the BladeCenter TType 8720 unit
The following table provides asummary of the features and specifications of the
BladeCenter TType 8720 unit.
Table 1. BladeCenter TType 8720 features and specifications
Media tray (on front):
vDVD/CD-RW drive: slim IDE
vTwo Universal Serial Bus (USB) v2.0
full speed ports
vSystem-status panel
Module bays (on front):
vEight hot-swap blade bays
vFour hot-swap power-module bays
vTwo hot-swap management module
bays
Module bays (on rear):
vFour hot-swap I/O module bays
vFour hot-swap blower bays
vOne hot-swap KVM (keyboard, video,
mouse) module
vOne hot-swap LAN module
Power modules:
vStandard: Two 1300-watt or greater
hot-swap -48 Vdc (-40 to -60 Vdc)
power modules
–Power modules 1and 2supply
power to:
-Blade bays 1through 4
-Management modules 1and 2
-I/O modules 1and 2
-Media tray
-All KVM, LAN, and alarm
interfaces
-All four blower modules
–Power modules 1and 2provide
redundancy to each other
v
Maximum: Four 1300-watt or greater
hot-swap -48 Vdc (-40 to -60 Vdc)
power modules
–Power modules 3and 4supply
power to:
-Blade bays 5through 8
-I/O modules 3and 4
–Power modules 3and 4provide
redundancy to each other
–Blowers are powered by all four
power modules
LAN module:
vTwo 10/100 Mb Ethernet remote
management connections
vOne DSUB 15P alarm connector
KVM module:
vVideo port (analog)
vPS/2 keyboard port
vPS/2 mouse port
vSystem-status panel
I/O modules:
vStandard: None
vMaximum: Four
–Two hot-swap 1Gb Ethernet
four-port switch modules
–Two hot-swap switch modules of
another network-communication
standard, such as Fibre Channel
Management module:
vStandard: One hot-swap management
module providing system-management
functions for the BladeCenter Tunit
vMaximum: Two hot-swap management
modules (one active, one redundant)
Redundant cooling:
Four variable-speed hot-swap blowers
Front bezel with changeable filter
Upgradeable microcode:
vmanagement module firmware
vI/O-module firmware (not all I/O module
types)
vBlade server service processor firmware
(BIOS, service processor)
Size (8 U):
vHeight: 349.25 mm (13.75 in. or 8U)
vDepth: 508 mm (20 in.) from front of
chassis to rear I/O connector plane
Maximum depth: 600 mm (23.62 in.)
including bezel, handles, and cable
bend radius.
vWidth: 442 mm (17.4 in.)
vWeight:
–Fully configured with modules and
blade servers: Approx. 100.2 kg (221
lb)
–Fully configured without blade
servers: Approx. 61.7 kg (136 lb)
Security features:
vLogin password for remote connection
vLightweight Directory Access Protocol
(LDAP) and role based security for user
authentication and authorization
vSecure Shell (SSH) for remote
command-line interface
vSecure socket layer (SSL) security for
remote Web interface access
Predictive Failure Analysis
® (PFA)
alerts:
vBlowers
vBlade-dependent features
vPower supplies
Declared acoustical noise emission levels
for normal operations:
vSound-power levels (upper-limit): 7.8 bels
vSound-pressure levels (average), for four
one-meter bystander positions: 63 dBA
The noise emission levels stated are the
declared upper limit sound-power levels, in
bels, for arandom sample of machines. All
measurements made in accordance with ISO
7779 and reported in conformance with ISO
9296.
Environment:
vAir temperature:
–Altitude: -60 to 1800 m(-197 ft to 6000
ft)
-BladeCenter Ton: 5° to 40°C (41° to
104°F)
-BladeCenter Ton (short term): -5° to
55°C (23° to 131°F)
–Altitude: 1800 mto 4000 m(6000 ft to
13000 ft)
-BladeCenter Ton: 5° to 30°C (41° to
86°F)
-BladeCenter Ton (short term): -5° to
45°C (23° to 113°F)
–System unit off: uncontrolled
v
Rate of temperature change: 30°C/hour
(54°F/hour)
vHumidity:
–BladeCenter Ton: 5% to 85%
–BladeCenter Ton (short term): 5% to
90% not to exceed 0.024 water/kg of dry
air
–BladeCenter Toff: uncontrolled
Electrical input:
vdc power
vInput voltage: -48 Vdc (-38 Vdc to -75 V
dc)
vInput current:
–Chassis: 70 amp maximum
–Single power-supply feed: 70 amp
maximum
v
Input connector type: Two (2) four post DC
terminals, rated at 70 amps each.
Heat output:
vInput kilovolt-amperes (kVA) approx.
–Minimum configuration: 0.2 kVA
–Maximum configuration: 3.7 kVA
vBTU output
–Ship configuration:
673 Btu/hour (197 watts)
–Full configuration:
12640 Btu/hour (3707 watts)
Chapter 1. General information 5

Notes:
1. For details about the BladeCenter Tunit port specifications, see “BladeCenter T
unit power, controls, and indicators” on page 19.
2. For information about which types of I/O modules can be installed in which
I/O-module bays, see “I/O modules” on page 19.
3. The operating system in the blade server must provide USB support for the
blade server to recognize and use the keyboard, mouse, and CD-ROM drive.
The BladeCenter Tunit uses USB for internal communication with these
devices.
6BladeCenter TType 8720 and 8730: Hardware Maintenance Manual and Troubleshooting Guide

Features and specifications for the BladeCenter TType 8730 unit
The following table provides asummary of the features and specifications of the
BladeCenter TType 8730 unit.
Table 2. BladeCenter TType 8730 features and specifications
Media tray (on front):
vDVD/CD-RW drive: slim IDE
vTwo Universal Serial Bus (USB) v2.0
full speed ports
vSystem-status panel
Module bays (on front):
vEight hot-swap blade bays
vFour hot-swap power-module bays
vTwo hot-swap management module
bays
Module bays (on rear):
vFour hot-swap I/O module bays
vFour hot-swap blower bays
vOne hot-swap KVM (keyboard, video,
mouse) module
vOne hot-swap LAN module
Power modules:
vStandard: Two 1300-watt or greater
220-volt (200-240 Vac) hot-swap
power modules
–Power modules 1and 2supply
power to:
-Blade bays 1through 4
-Management modules 1and 2
-I/O modules 1and 2
-Media tray
-All KVM, LAN, and alarm
interfaces
-All four blower modules
–Power modules 1and 2provide
redundancy to each other
v
Maximum: Four 1300-watt or greater
220-volt (200-240 Vac) hot-swap
power modules
–Power modules 3and 4supply
power to:
-Blade bays 5through 8
-I/O modules 3and 4
–Power modules 3and 4provide
redundancy to each other
–Blowers are powered by all four
power modules
LAN module:
vTwo 10/100 Mb Ethernet remote
management connections
vOne DSUB 15P alarm connector
KVM module:
vVideo port (analog)
vPS/2 keyboard port
vPS/2 mouse port
vSystem-status panel
I/O modules:
vStandard: None
vMaximum: Four
–Two hot-swap 1Gb Ethernet
four-port switch modules
–Two hot-swap switch modules of
another network-communication
standard, such as Fibre Channel
Management module:
vStandard: One hot-swap management
module providing system-management
functions for the BladeCenter Tunit
vMaximum: Two hot-swap management
modules (one active, one redundant)
Redundant cooling:
Four variable-speed hot-swap blowers
Front bezel with changeable filter
Upgradeable microcode:
vmanagement module firmware
vI/O-module firmware (not all I/O module
types)
vBlade server service processor firmware
(BIOS, service processor)
Size (8 U):
vHeight: 349.25 mm (13.75 in. or 8U)
vDepth: 508 mm (20 in.) from front of
chassis to rear I/O connector plane
Maximum depth: 600 mm (23.62 in.)
including bezel, handles, and cable
bend radius.
vWidth: 442 mm (17.4 in.)
vWeight:
–Fully configured with modules and
blade servers: Approx. 100.2 kg (221
lb)
–Fully configured without blade
servers: Approx. 61.7 kg (136 lb)
Security features:
vLogin password for remote connection
vSecure Shell (SSH) for command-line
interface
vSecure socket layer (SSL) security for
remote Web management access
Predictive Failure Analysis (PFA) alerts:
vBlowers
vBlade-dependent features
vPower supplies
Declared acoustical noise emission levels
for normal operations:
vSound-power levels (upper-limit):7.8 bels
vSound-pressure levels (average), for four
one-meter bystander positions: 63 dBA
The noise emission levels stated are the
declared upper limit sound-power levels, in
bels, for arandom sample of machines. All
measurements made in accordance with ISO
7779 and reported in conformance with ISO
9296.
Environment:
vAir temperature:
–BladeCenter Ton: 10° to 35°C (50° to
95°F). Altitude: 0to 914 m(2998.69 ft).
–BladeCenter Ton: 10° to 32°C (50° to
89.6°F). Altitude: 914 mto 2134 m
(2998.69 ft to 7000 ft).
–BladeCenter Toff: -40° to 60° C(-40° to
140°).
vHumidity:
–Server on: 8% to 80%
–Server off: 8% to 80%
Electrical input:
vSine-wave input (50 or 60 Hz single-phase)
required
vInput voltage:
–Minimum: 200 Vac
–Maximum: 240 Vac
v
Input current:
–Chassis: 18 amp maximum @208 Vac
–Single power-supply feed: 9amp
maximum
v
Input connector type: Four (4) C13 inputs,
rated at 8amps each
Heat output:
vInput kilovolt-amperes (kVA) approx.
–Minimum configuration: 0.2 kVA
–Maximum configuration: 3.5 kVA
v
BTU output
–Ship configuration:
673 Btu/hour (197 watts)
–Full configuration:
11900 Btu/hour (3490 watts)
Chapter 1. General information 7

Notes:
1. For details about the BladeCenter Tunit port specifications, see “BladeCenter T
unit power, controls, and indicators” on page 19.
2. For information about which types of I/O modules can be installed in which
I/O-module bays, see “I/O modules” on page 19.
3. The operating system in the blade server must provide USB support for the
blade server to recognize and use the keyboard, mouse, and CD-ROM drive.
The BladeCenter Tunit uses USB for internal communication with these
devices.
8BladeCenter TType 8720 and 8730: Hardware Maintenance Manual and Troubleshooting Guide

Major components of the BladeCenter TTypes 8720 and 8730 unit
The following illustration shows the locations of major components in your
BladeCenter Tunit.
KVM module
I/O module
Power module
ESD
A
C
I
N
D
C
O
U
T
A
C
1
3
0
0
W
A
C
I
N
!D
C
O
U
T
Blade server
Filler blade
Media tray
Management module
Bezel assembly
A
C
I
N
!D
C
O
U
T
A
C
1
3
0
0
W
LAN
module
Blower module
(4 units)
Attention: To maintain proper system cooling, each module bay must contain
either amodule or afiller module; each blade bay must contain either ablade
server or afiller blade.
Front view
This section identifies the components, controls, and LEDs on the front of your
BladeCenter Tunit.
Management-module bay 1
Power module 3
Power module 1
Power module 4
Power module 2
Front panelMedia tray
ESD connector
Management-module bay 2
CMM
1CMM 2
Blade server 1
Blade server 8
Chapter 1. General information 9

System service cards
These cards contain system service instructions and awritable area for your use.
The cards are located in aslot just above the management-module bays. To access
the service cards, slide out the cards as shown in the following illustration.
CMM
1
CMM
2
ESD
System service card
Management module controls and indicators
These management-module controls and indicators provide status information about
the management module and remote management connection. For additional
information, see the Hardware Maintenance Manual and Troubleshooting Guide on
the IBM BladeCenter TDocumentation CD.
Power LED
Active LED
Error LED
Management module
Reset button
Serial port
Management module LEDs: These LEDs provide status information about the
management module and remote management connection.
vPower: When this green LED is lit, it indicates that the management module has
power.
vActive: When this green LED is lit, it indicates that the management module is
actively controlling the BladeCenter Tunit. Only one management module
actively controls the BladeCenter Tunit. If two management modules are
installed in the BladeCenter Tunit, this LED is lit on only one.
10 BladeCenter TType 8720 and 8730: Hardware Maintenance Manual and Troubleshooting Guide
