IC Sciences LS-810-B User manual

User Manual
Blood Pressure Monitor LS810-B
Please read this user manual carefully and thoroughly to ensure
safe usage of this product. Keep this manual for further reference
in case you have problems.
Thank you for selecting the IC Sciences Corporation Blood
Pressure Monitor LS810-B.
Wrist Type
Version:1.0
MEM
SET
FCC ID: OU9LS810-B01
Distributed by:
Informed Clinical Sciences Corporation
1 Joy Street, Boston, USA MA 02108
Download and install My BP Coach
from iTunes Store or Google play
My BP Coach

1
INTRODUCTION .............................................................
2
Indications for Use
LCD Display Signal
Monitor Components
BEFORE YOU START
........................................................
6
MEASUREMENT
.............................................................
9
INFORMATION FOR USER..................................................... 16

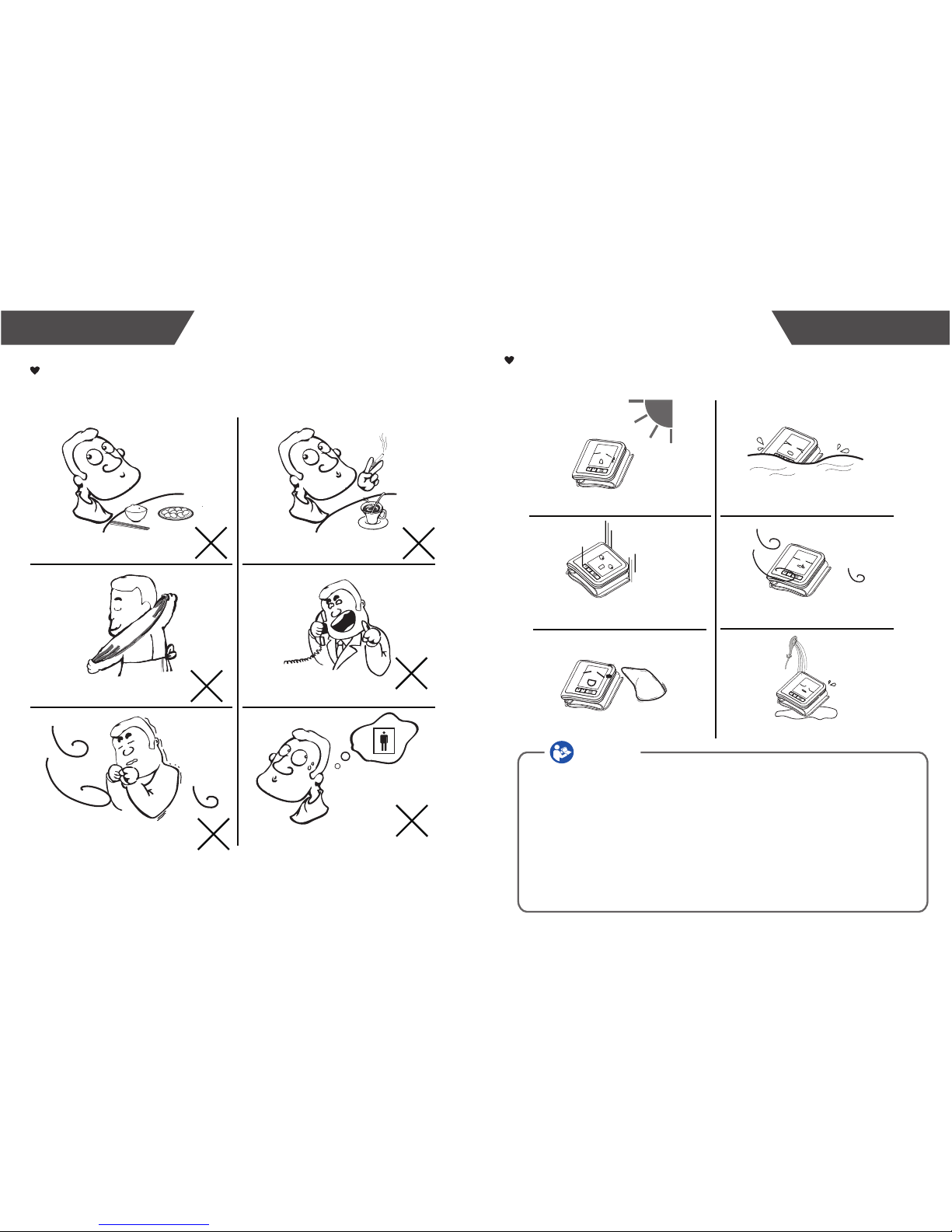

Tips for Measurement
Maintenance
ABOUT BLOOD PRESSURE.................................................... 18
What are systolic pressure and diastolic pressure?
What is the standard blood pressure classification?
Why does my blood pressure fluctuate throughout the day?
Why is the blood pressure I get from the hospital different from home?
Is the result the same if measuring on the right wrist?
TROUBLESHOOTING ......................................................... 20
SPECIFICATIONS ............................................................. 21
THE MATCHED COMPONENTS ............................................... 22
CONTACT INFORMATION...................................................... 22
Safety Information
Power Supply and Charge Power
Activate Your Blood Pressure Monitor
Setting Date and Time
Positioning the Cuff
Start Measurement
Data Management ..................................
14
Recall the Records
Delete the Records
.........................
COMPLIED STANDARDS LIST ........................ 23
FCC STATEMENT ...................................................... 24......
Pair up the Blood Pressure Monitor with Your Device
Table of Contents
...............
Measurement Principle
General Description
EMC GUDIANCE ...................................................... 25......
Table of Contents

INTRODUCTION INTRODUCTION
Thank you for selecting IC Sciences Corporation’s Blood Pressure Monitor
(LS810-B). The monitor features blood pressure measurement, pulse rate
measurement and the data storage. The design provides you with two
years of storage.
This
manual contains important safety and care informatiion and
provides step-by-step instructions for using the product.
Please read this user manual carefully and thoroughly before use.
FEATURES:
Systolic Blood Pressure
Diastolic Blood Pressure
Pulse Rate
Memory: Up to 60 records
This product uses the Oscillometric Measuring Method to detect blood pressure.
Before every measurement, the unit establishes a “zero point” equivalent to the
atmospheric pressure. Then it starts inflating the cuff. Meanwhile, the unit
detects pressure oscillation generated by beat-to-beat pulsatile, which is used
to determine the systolic pressure and diastolic pressure as well as pulse rate.
The device also compares the longest and the shortest intervals of detected
pulse wave with the average value, and then calculates the standard deviation.
The monitor will light up a warning symbol when the calculated standard
deviation is larger than or equal to 15.
Measurement Principle
General Description

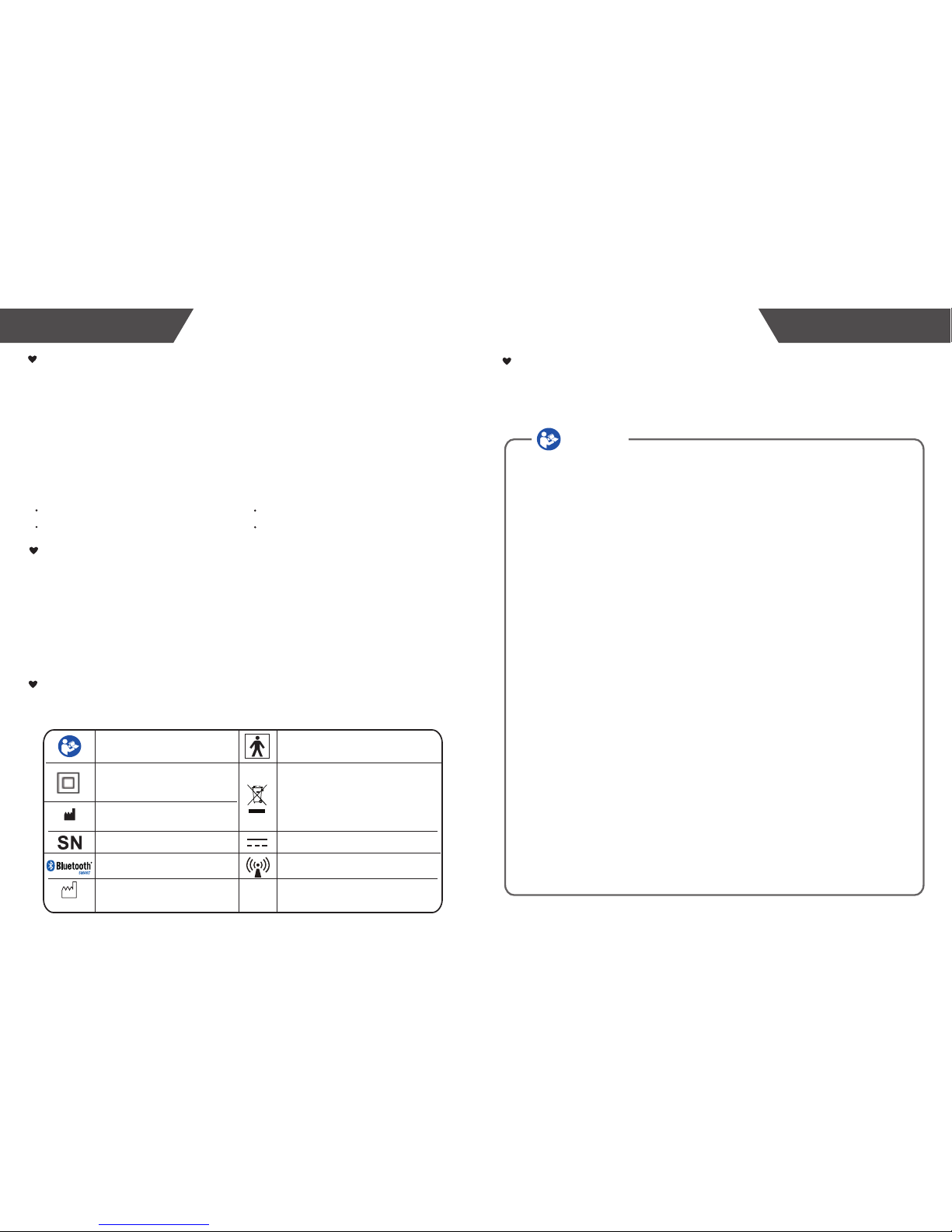

The below signs might be in the user manual, labeling or other components.
They are the requirement of standard and using.
Safety Information
Symbol for “THE OPERATION
GUIDE MUST BE READ”
Symbol for “MANUFACTURER”
Symbol for “SERIAL NUMBER”
Symbol for “TYPE BF APPLIED
PARTS”
Symbol for “DIRECT CURRENT”
Symbol for “ENVIRONMENT
PROTECTION - Waste electrical products
should not be disposed of with
household waste. Please recycle where
facilities exist. Check with your local
authority or retailer for recycling advice”
The Bluetooth Combination Mark
Symbol for “MANUFACTURE
DATE”
23
Indications for use
The IC Sciences Corporation Blood Pressure Monitor is a digital
monitor intended for use in measuring blood pressure and heartbeat rate with
wrist circumference ranging from 13.5 cm to 21.5 cm ( about 5-8.5 inches ).
It is intended for adult indoor use only.
Symbol for “ Class II Equipment”
CAUTION
* It is intended for adult indoor use only. Pregnant women, pre-eclamptic patients,
and severely obese patients should not use the device. If you need to measure your blood
pressure, please consult your physician.
* This device is intended for non-invasive measuring and monitoring of arterial blood pressure. It is
not intended for use on extremities other than the wrist or for functions other than obtaining a
blood pressure measurement.
* Do not confuse self-monitoring with self-diagnosis. This unit allows you to monitor your blood
pressure. Please start or end medical treatment basing solely on physician’s treatment advice.
* If you are taking medication, consult your physician to determine the most appropriate time for
your measurement. Never change a prescribed medication without your physician’s consent.
* This unit is not suitable for continuous monitoring during medical emergencies or operations.
Otherwise, the patient’s wrist and fingers will become anaesthetic, swollen, and even purple due
to a lack of blood.
* If the pressure of the cuff exceeds 40 kPa (300 mmHg), the unit will automatically deflate. If the
cuff doesn’t deflate when its pressure exceeds 40 kPa (300 mmHg), detach the cuff from the wrist
and press the START/STOP button to stop inflation.
* Do not use the monitor under the conditions of strong electromagnetic field (e.g. medical RF
equipment) that radiates interference signal or electrial fast transient/ burst signal.
* The maximum temperature that the applied part can be achieved is 42.5℃ (108.5 F) while the
environmental temperature is 40℃ (104 F).
* The device is not AP/APG equipment. It is not suitable for use in the presence of a flammable
anesthetic mixture with air (or oxygen, nitrous oxide).
* Please keep the unit out of reach of infants, children or pets, since inhalation or swallowing of
small parts is dangerous or even fatal.
* Please use ACCESSORIES and detachable parts specified / authorised by MANUFACTURER.
Otherwise, it may cause damage to the unit or danger to the user / patient.
* The patient is an intended operator. The patient can measure, transmit data and charge battery
under normal circumstances and maintain the device and its accessories according to the user
manual.
* The blood pressure monitor, and the cuff are suitable for use within the patient
environment. If you are allergic to dacron or plastic, please don’t use this device.
* The device is not intended for PATIENT transport outside a healthcare facility.
*This device cannot be used with HF surgical equipment at the same time.
* There is a PTC current limiter in the monitor, which specification is 8V and 0.5A. When the voltage
and current exceed the limiting value, the monitor will stop working.
* If Luer lock connectors are used in the construction of tubing, there is a possibility that they might
be inadvertently connected to intravascular fluid systems, allowing air to be pumped into a blood
vessel.
* Be careful of strangulation due to cables and hoses, particularly due to excessive length.
Symbol for “Including RF
transmitter”
Readings taken by the LS810-B are equivalent to those obtained by a trained
observer using the cuff and stethoscope auscultation method.

INTRODUCTION INTRODUCTION
4

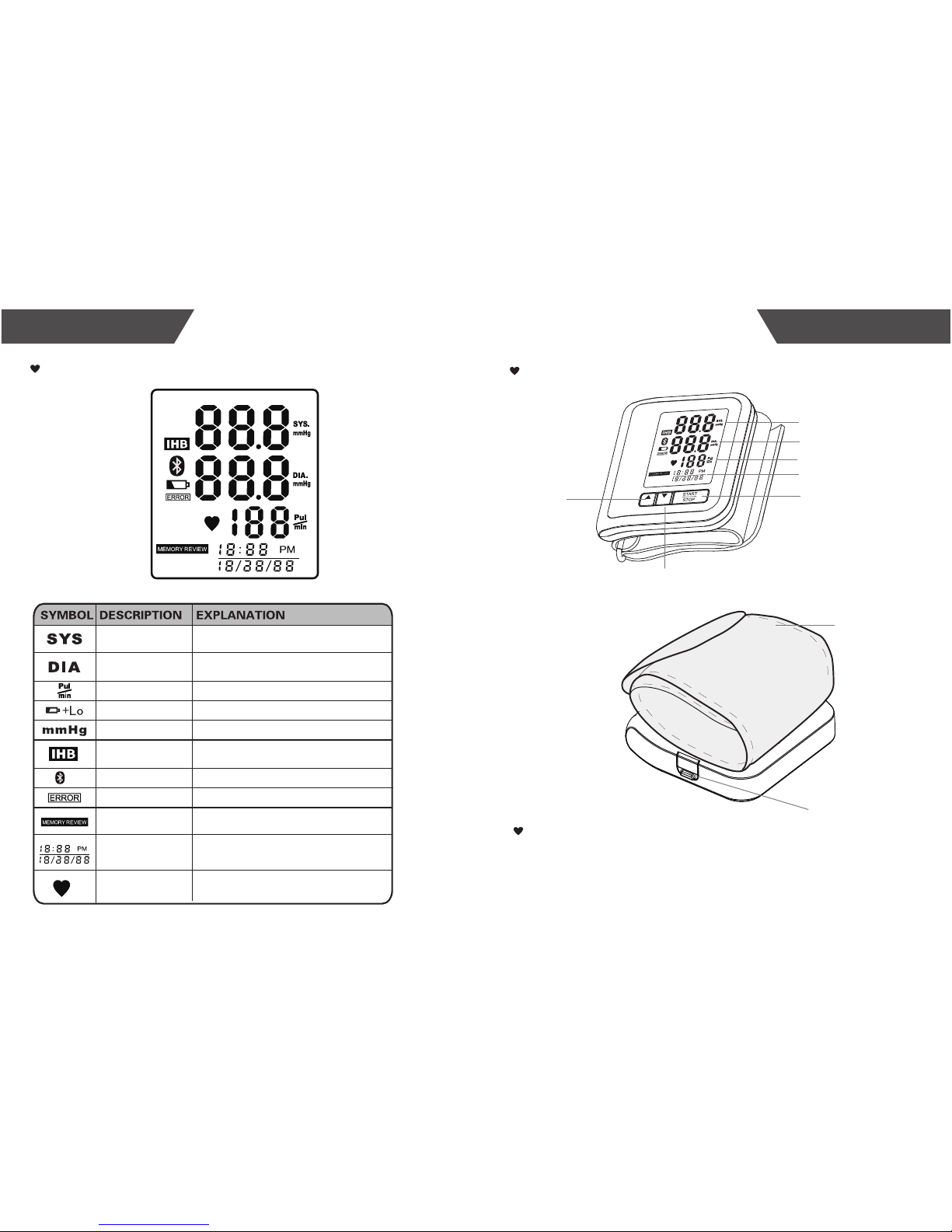

LCD Display Signal
Systolic
Blood Pressure Top number in your blood pressure
Diastolic
Blood Pressure Bottom number in your blood pressure
Pulse beat/minute
Unit Measurement unit of blood pressure
Time Hour:Minute (Month/Day/Year)
Low Battery Low battery; please charge the power.
Error
Memory Recalling the history records
Bluetooth Successful Bluetooth Connection
IHB Detector Irregular Heartbeat Detector
Error
5
SYSTOLIC
DIASTOLIC
MEM/UP
BUTTON
SET/DOWN
BUTTON
START/STOP BUTTON
CUFF
(Type BF applied part)
PULSE RATE
TIME
USB Interface
Monitor Components
List
1.Blood Pressure Monitor
(LS810-B)
2.USB Cable
3.User Manual
MEM
SET
Component list of
pressure measuring system
1 PCBA
2 Air pipe
3 Pump
4 Valve
5 Cuff
Heartbeat Heartbeat detection during the
measurement

BEFORE YOU START BEFORE YOU START
6
1. The battery of LS810-B is a built-in rechargeable
lithium-ion battery, the battery current is 420 mAh.

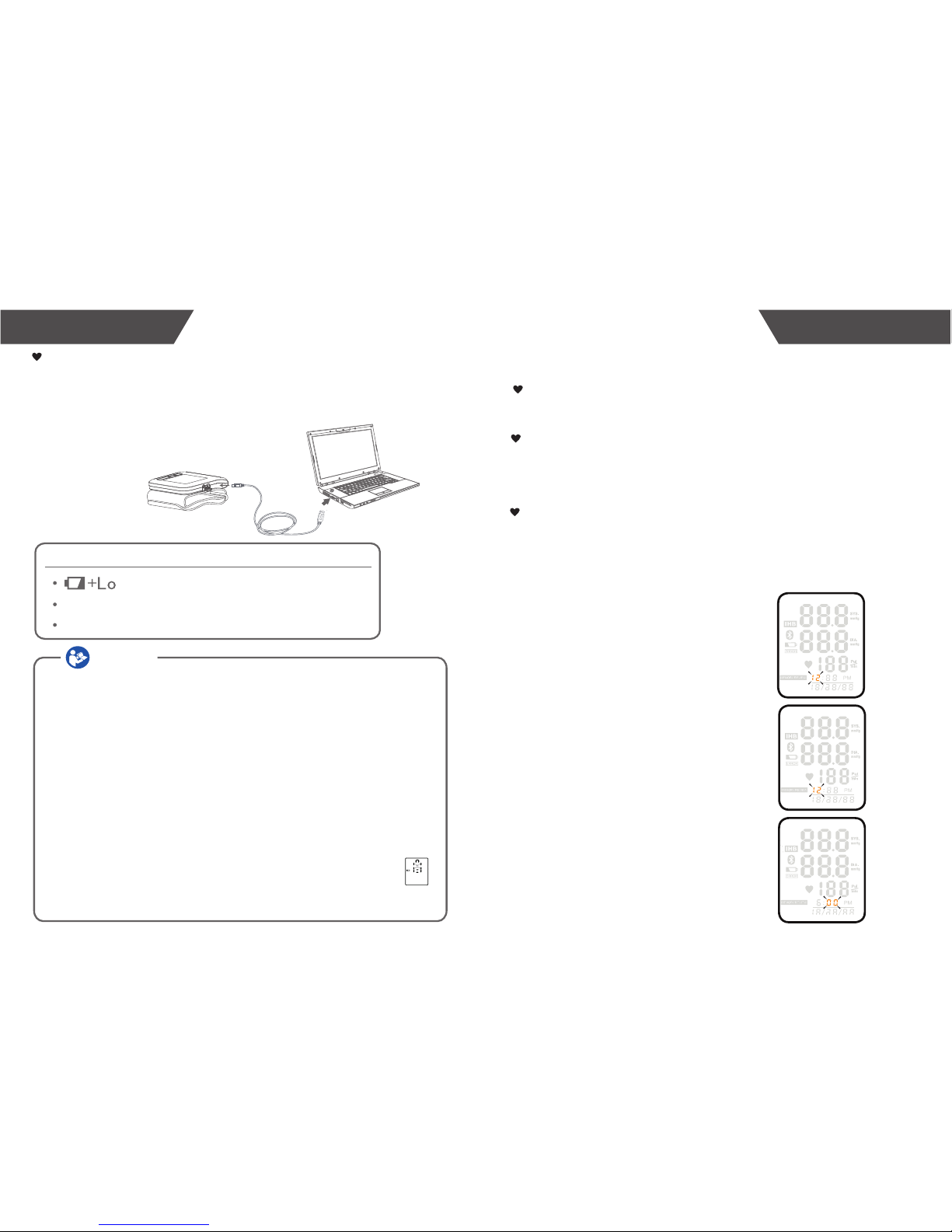

2. Please use the USB cable to charge
the battery, just like the following picture:
Power Supply and Charge Power
Charging the power under following circumstances:
displays on the LCD
The LCD display dims
When powering on the monitor, the LCD doesn’t light up.
CAUTION
1. The battery of the LS810-B is a built-in rechargeable lithium-ion battery;
please do not disassemble by unauthorized maintenance personel.
2. Under normal use, it can be charged about 300 times.
If the battery cannot charge the power normally or the blood pressure
monitor cannot be used normally, please connect with the authorized
maintenance personel. If measured three times per day, and the battery
is fully charged, it can be used for about 20 days.
3. Store and use the blood pressure monitor in a cool, dry, and
ventilated environment. Avoid close proximity to fire and extreme heat
or it can cause the battery to explode.
4. You can only use the IC Science’s authorized USB cable to
charge the power. You cannot use the blood pressure monitor during
charging.
5. During charging, the blood pressure monitor displays the symbol:
When the charging is finished, please unplug the device.
6. When charging, do not touch the charging connector and the patient
simultaneously.
7
Setting Date and Time

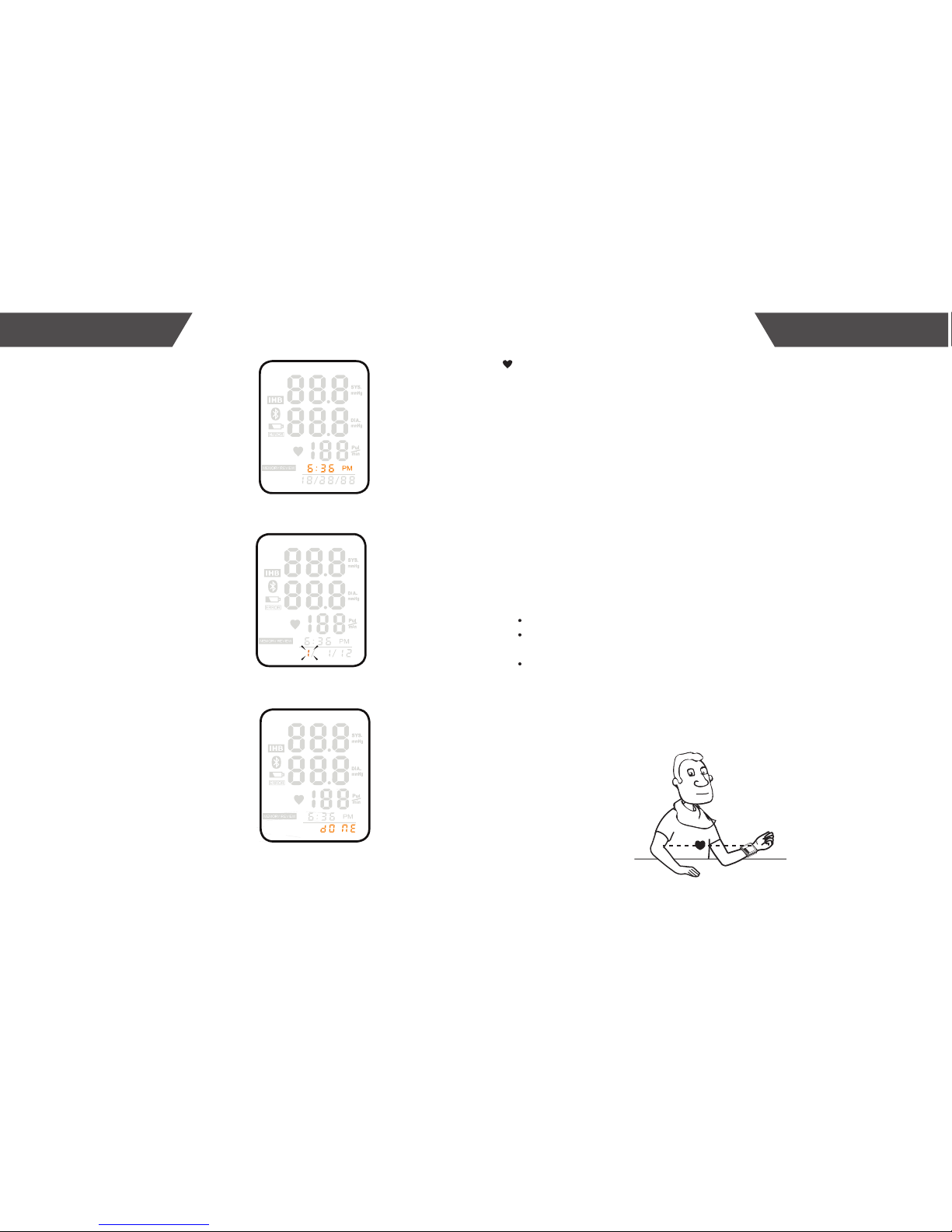

2.As pictured in the right, the
blinking numeral representing
[HOUR]. Press “MEM” button to
change the numeral. Each press
will increase the numeral by one
in a cycling manner.
1.When the monitor is OFF, press
and hold “SET” button for 3
seconds to enter Time Setting
Mode.
3.Press “SET” button again to
confirm [HOUR]. Then the
numeral representing [MINUTE]
blinks.
Please proceed to time setting before your initial use to
ensure each piece of recorded information is labled with a
time stamp. (Year Range: 2012-2052; Time Format: 12 Hours)
When you get the Blood Pressure Monitor, the first thing
you must do is to activate it. Please press and hold the SET
button to activate it, then it will enter the setting mode.
Activate Your Blood Pressure Monitor
Download and install My BP Coach from
iTunes Store or Google play
