IC Sciences TMB-1018-BT User manual

User Manual

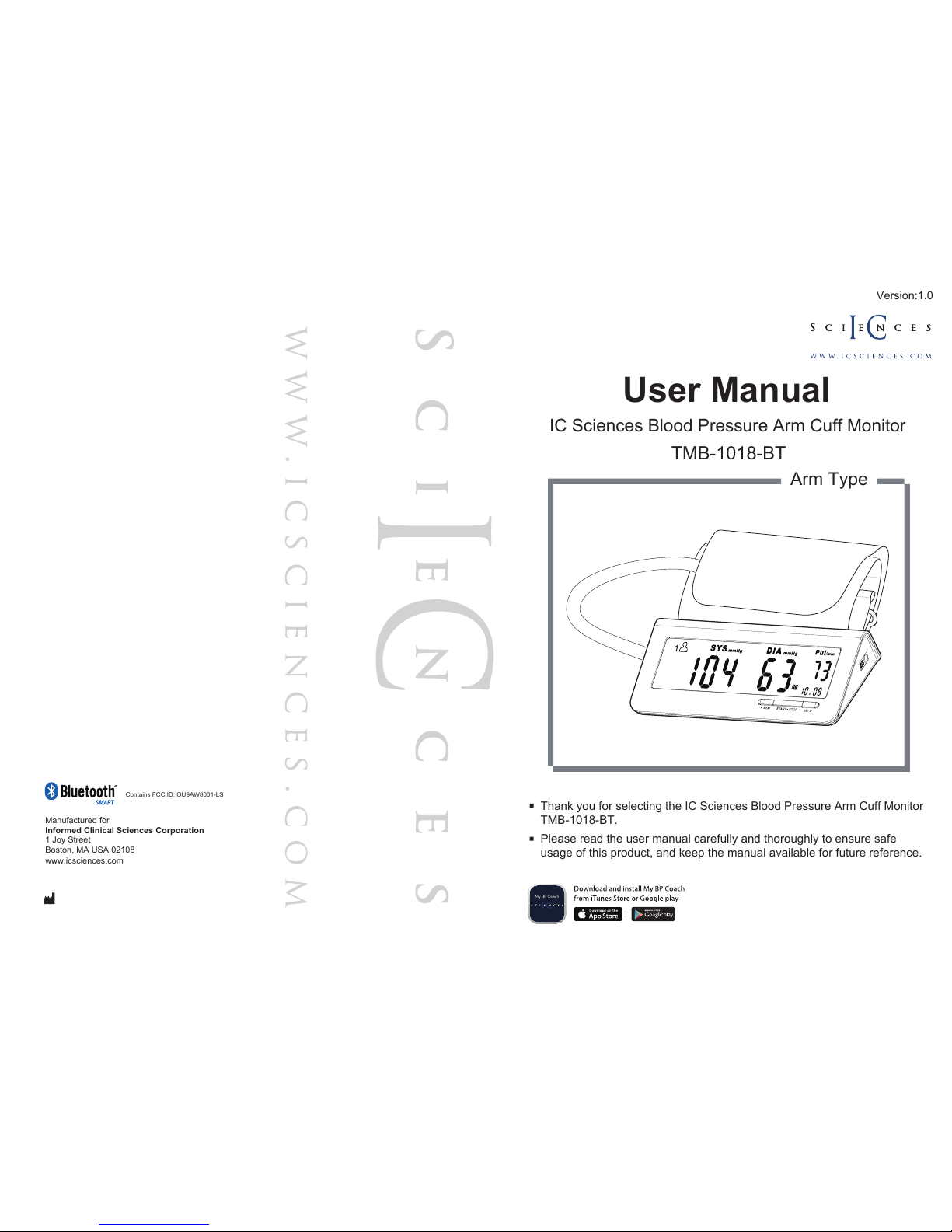

IC Sciences Blood Pressure Arm Cuff Monitor
TMB-1018-BT
Manufactured for
Informed Clinical Sciences Corporation
1 Joy Street
Boston, MA USA 02108
www.icsciences.com
Version:1.0
Arm Type
Please read the user manual carefully and thoroughly to ensure safe
usage of this product, and keep the manual available for future reference.
Thank you for selecting the IC Sciences Blood Pressure Arm Cuff Monitor
TMB-1018-BT.
Contains FCC ID: OU9AW8001-LS
GUANGDONG TRANSTEK MEDICAL ELECTRONICS CO., LTD
Zone A, 5/F., Investment Building, No. 12 Huizhan East Rd., Torch
Development District, Zhongshan, Guangdong, 528437, China

1

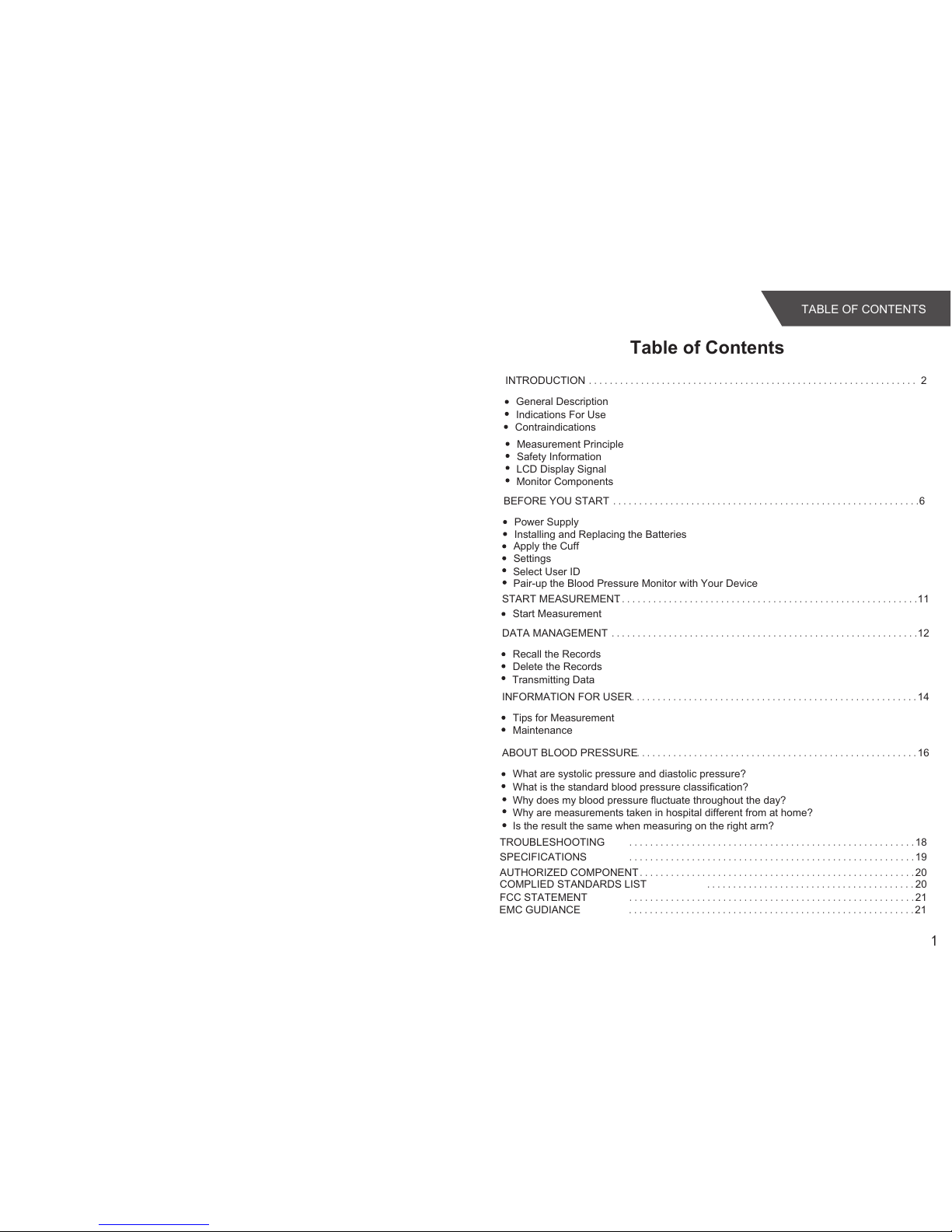

INTRODUCTION ............................................................... 2
General Description
Indications For Use
Measurement Principle
Safety Information
LCD Display Signal
Monitor Components
BEFORE YOU START ...........................................................6
Power Supply
Installing and Replacing the Batteries
Apply the Cuff
Settings
Select User ID
Pair-up the Blood Pressure Monitor with Your Device
DATA MANAGEMENT ...........................................................12

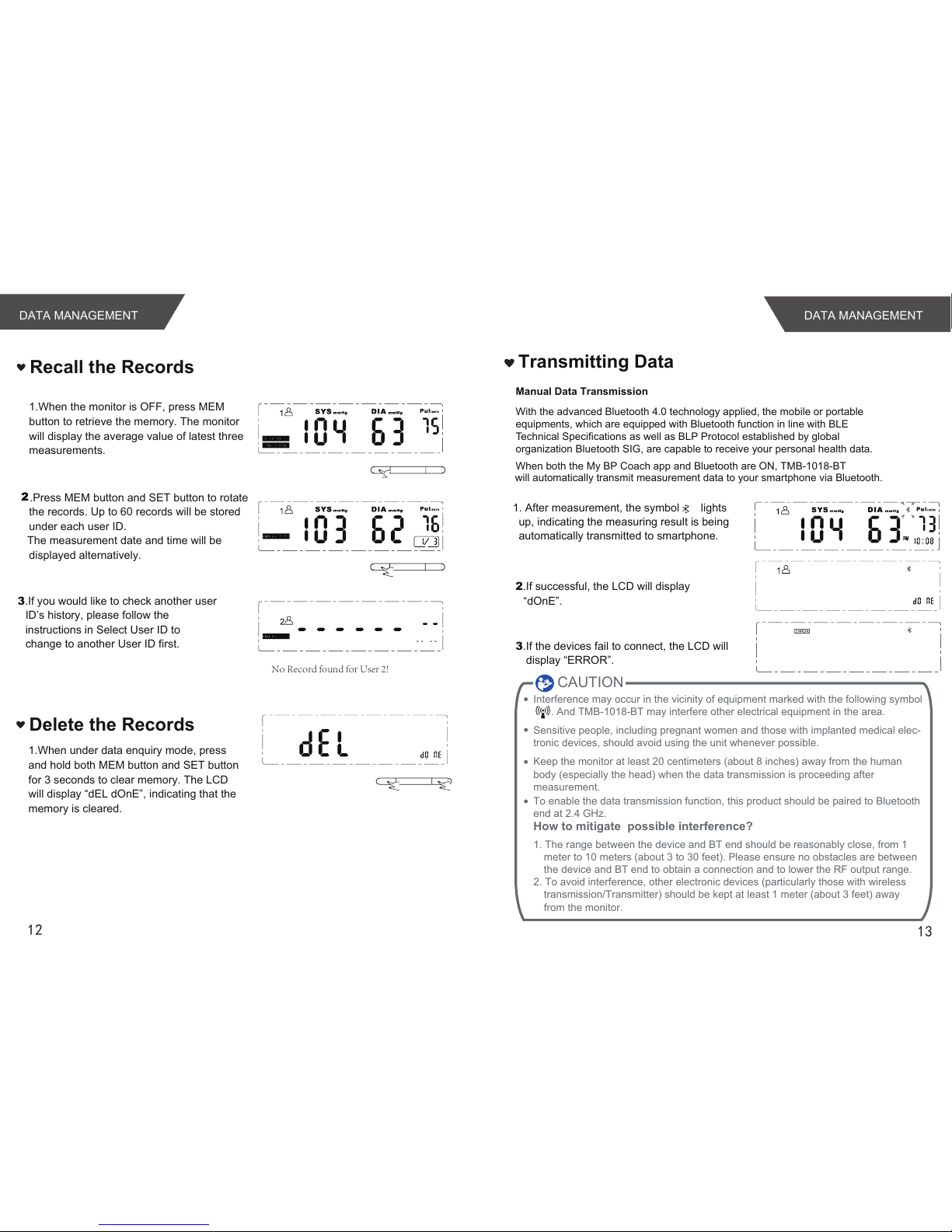

Recall the Records
Delete the Records
Transmitting Data
INFORMATION FOR USER.......................................................14
Tips for Measurement
Maintenance
START MEASUREMENT...........................................................11
Start Measurement
TABLE OF CONTENTS
ABOUT BLOOD PRESSURE.......................................................16
What are systolic pressure and diastolic pressure?
What is the standard blood pressure classification?
Why does my blood pressure fluctuate throughout the day?
Why are measurements taken in hospital different from at home?
Is the result the same when measuring on the right arm?
TROUBLESHOOTING .......................................................18
SPECIFICATIONS .......................................................19
AUTHORIZED COMPONENT.......................................................20
COMPLIED STANDARDS LIST ........................................20
FCC STATEMENT .......................................................21

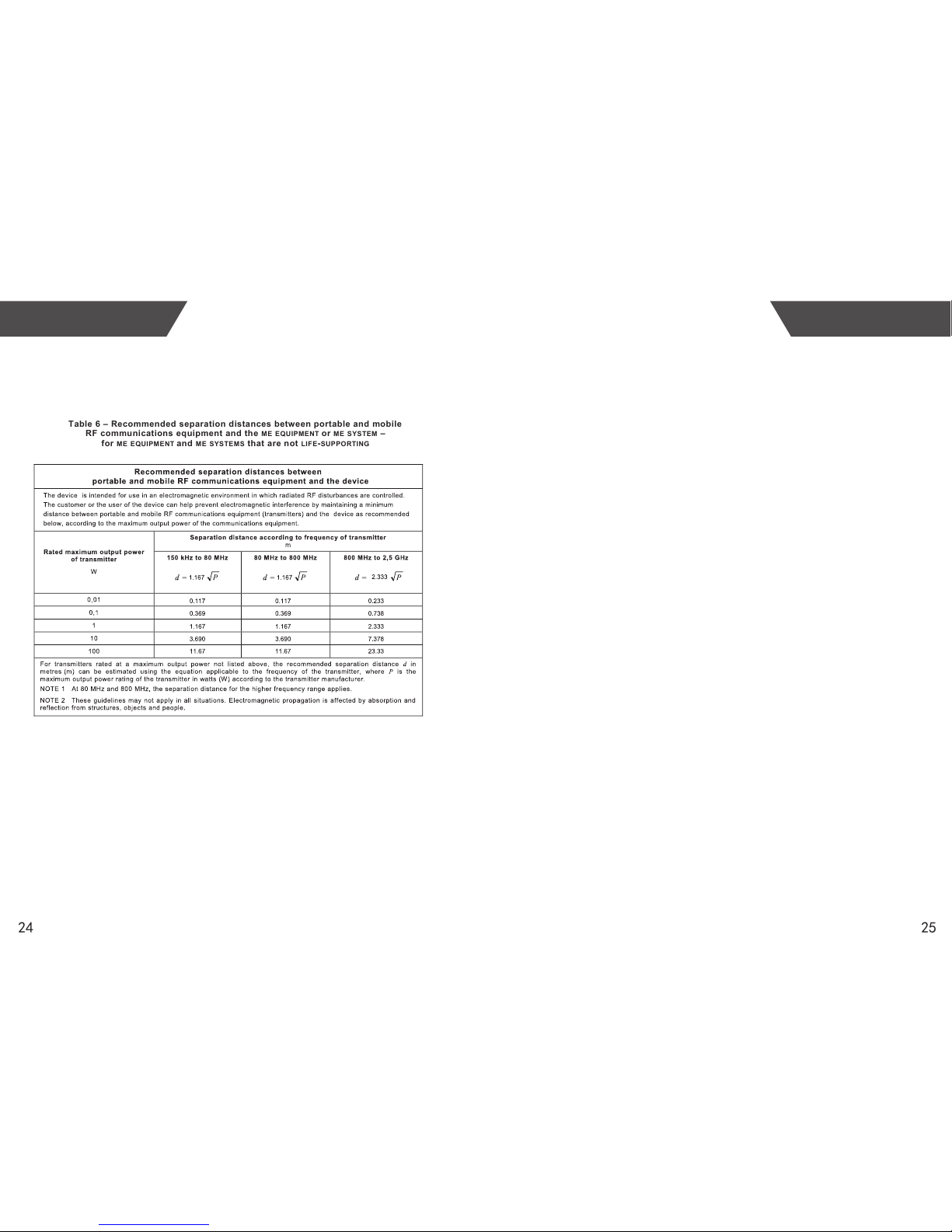

EMC GUDIANCE .......................................................21
Table of Contents
Contraindications

Thank you for selecting the IC Sciences Blood Pressure Arm Monitor (TMB-1018-BT).
The monitor features blood pressure measurement, pulse rate measurement and
the data storage. The design provides you with two years of storage.
Readings taken by the TMB-1018-BT are equivalent to those obtained by a trained
observer using the cuff and stethoscope auscultation method.
This manual contains important safety and care information, and provides step-by-step
instruction for using the product.
Read the manual thoroughly before using the product.
Features:
Blue LCD display with white backlight
Up to 60 pieces of recorded data stored for each user
Measuring While Inflating (MWI) technology
Bluetooth data transmitting function
This product uses the Oscillometric Measuring method to detect blood pressure.
Before every measurement, the unit establishes a “zero pressure” equivalent to
the air pressure.Then it starts inflating the arm cuff; meanwhile, the unit detects
pressure oscillations generated by beat-to-beat pulsatile, which is used to determine
the systolic and diastolic pressure and pulse rate.The device also compares
the longest and the shortest time intervals of detected pulse waves to mean time
interval then calculates standard deviation.The device will display a warning signal
with the reading to indicate the detection of irregular heartbeat when the difference
of the time intervals over.
INTRODUCTIONINTRODUCTION
The symbols below might be in the user manual, on labeling, or
other components.

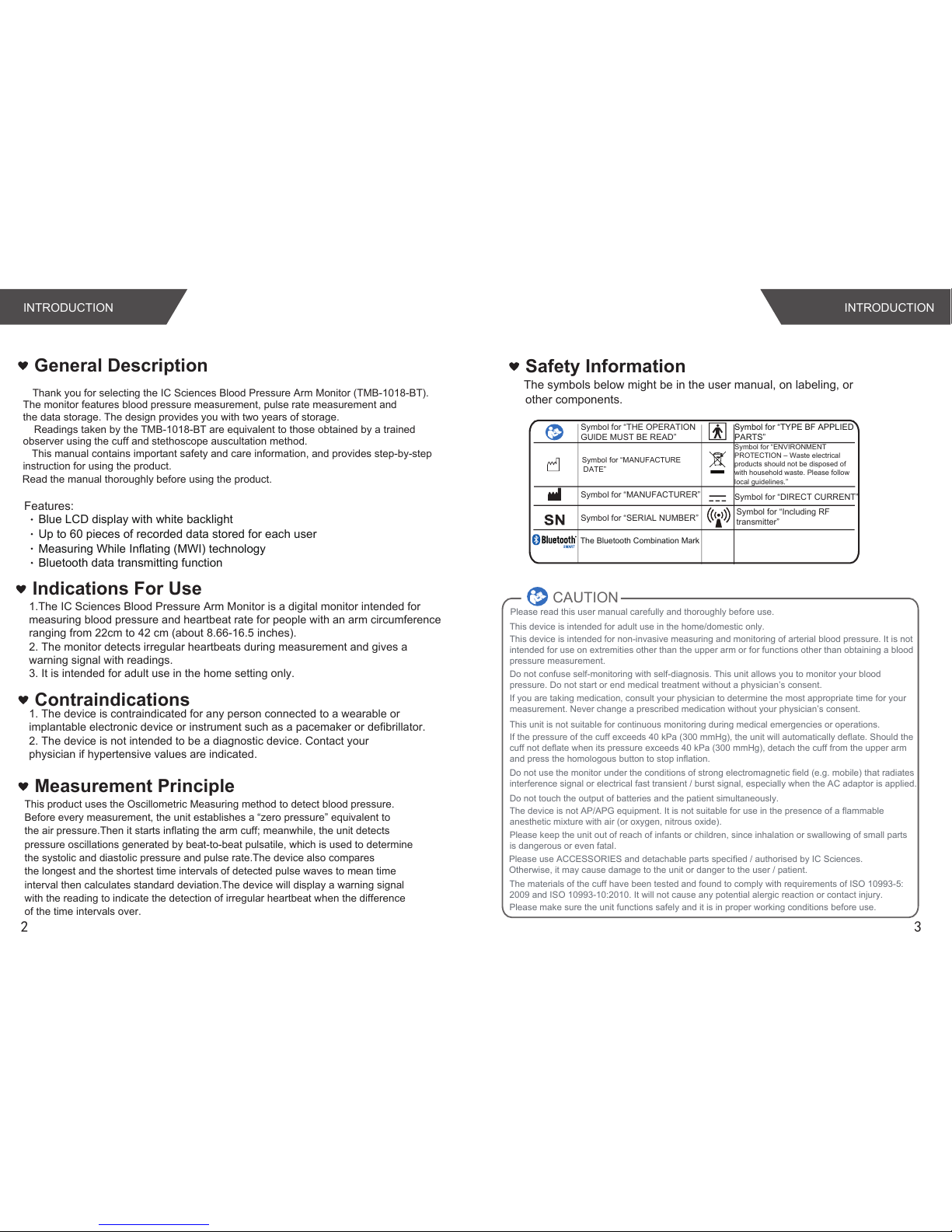

Safety Information
Symbol for “MANUFACTURER”
Symbol for “SERIAL NUMBER”
Symbol for “TYPE BF APPLIED
PARTS”
Symbol for “ENVIRONMENT
PROTECTION – Waste electrical
products should not be disposed of
with household waste. Please follow
local guidelines.”
Symbol for “DIRECT CURRENT”
This device is intended for adult use in the home/domestic only.
This device is intended for non-invasive measuring and monitoring of arterial blood pressure. It is not
intended for use on extremities other than the upper arm or for functions other than obtaining a blood
pressure measurement.
Do not confuse self-monitoring with self-diagnosis. This unit allows you to monitor your blood
pressure. Do not start or end medical treatment without a physician’s consent.
If you are taking medication, consult your physician to determine the most appropriate time for your
measurement. Never change a prescribed medication without your physician’s consent.
This unit is not suitable for continuous monitoring during medical emergencies or operations.
If the pressure of the cuff exceeds 40 kPa (300 mmHg), the unit will automatically deflate. Should the
cuff not deflate when its pressure exceeds 40 kPa (300 mmHg), detach the cuff from the upper arm
and press the homologous button to stop inflation.
Please read this user manual carefully and thoroughly before use.
The device is not AP/APG equipment. It is not suitable for use in the presence of a flammable
anesthetic mixture with air (or oxygen, nitrous oxide).
Do not touch the output of batteries and the patient simultaneously.
Do not use the monitor under the conditions of strong electromagnetic field (e.g. mobile) that radiates
interference signal or electrical fast transient / burst signal, especially when the AC adaptor is applied.
Please keep the unit out of reach of infants or children, since inhalation or swallowing of small parts
is dangerous or even fatal.
CAUTION
Please use ACCESSORIES and detachable parts specified / authorised by IC Sciences.
Otherwise, it may cause damage to the unit or danger to the user / patient.
The materials of the cuff have been tested and found to comply with requirements of ISO 10993-5:
2009 and ISO 10993-10:2010. It will not cause any potential alergic reaction or contact injury.
Please make sure the unit functions safely and it is in proper working conditions before use.
The Bluetooth Combination Mark
Symbol for “THE OPERATION
GUIDE MUST BE READ”
2 3
General Description
Indications For Use
Measurement Principle
Symbol for “MANUFACTURE
DATE”
Contraindications
1.The IC Sciences Blood Pressure Arm Monitor is a digital monitor intended for
measuring blood pressure and heartbeat rate for people with an arm circumference
ranging from 22cm to 42 cm (about 8.66-16.5 inches).
2. The monitor detects irregular heartbeats during measurement and gives a
warning signal with readings.
3. It is intended for adult use in the home setting only.
1. The device is contraindicated for any person connected to a wearable or
implantable electronic device or instrument such as a pacemaker or defibrillator.
2. The device is not intended to be a diagnostic device. Contact your
physician if hypertensive values are indicated.
Symbol for “Including RF
transmitter”

INTRODUCTION INTRODUCTION
4

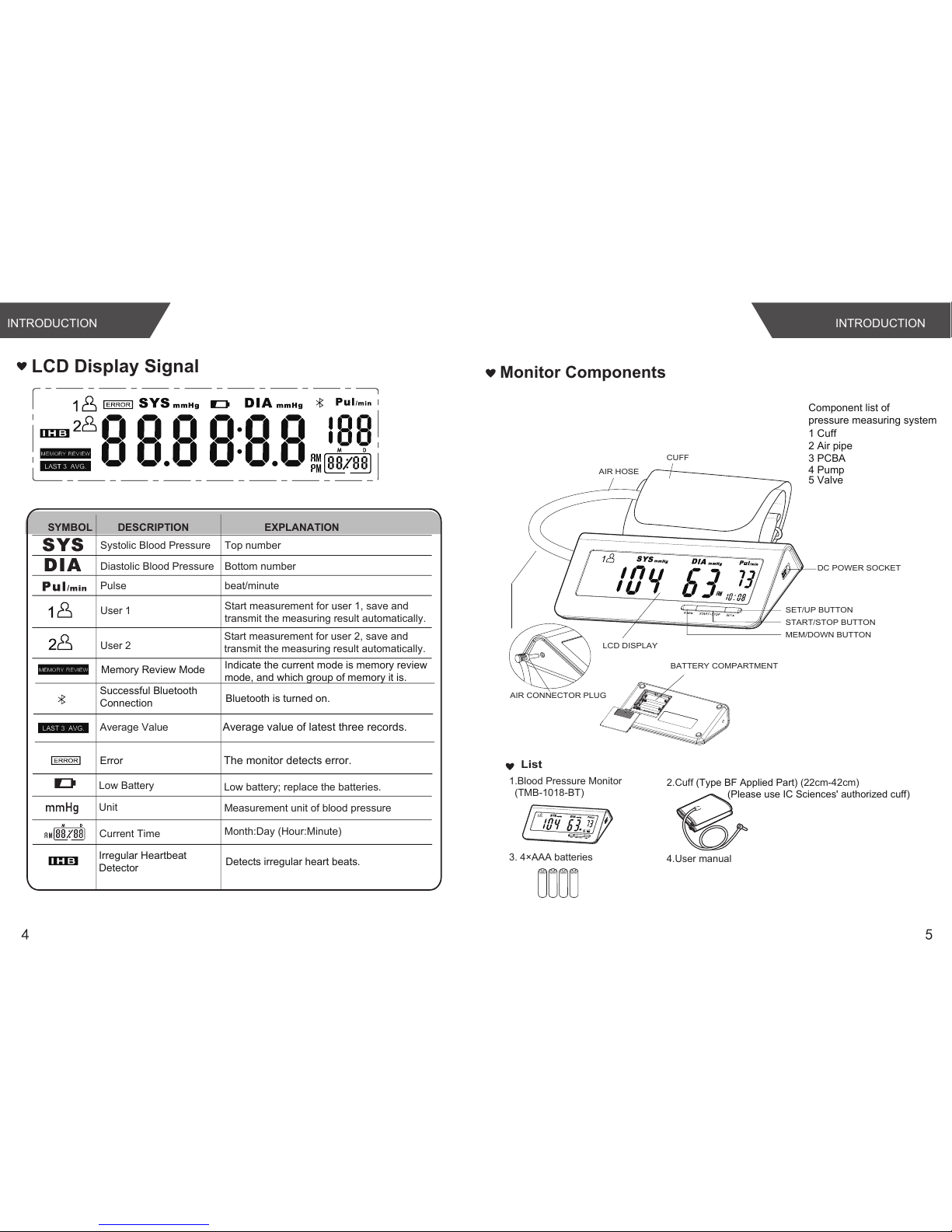

LCD Display Signal Monitor Components
5
SYMBOL DESCRIPTION EXPLANATION
Systolic Blood Pressure Top number
Diastolic Blood Pressure Bottom number
Pulse beat/minute
User 1 Start measurement for user 1, save and
transmit the measuring result automatically.
User 2 Start measurement for user 2, save and
transmit the measuring result automatically.
Successful Bluetooth
Connection
Low Battery Low battery; replace the batteries.
Unit Measurement unit of blood pressure
Error
Memory Review Mode
Average Value
Current Time Month:Day (Hour:Minute)
Irregular Heartbeat
Detector
Indicate the current mode is memory review
mode, and which group of memory it is.
Bluetooth is turned on.
Detects irregular heart beats.
Average value of latest three records.
The monitor detects error.
AIR CONNECTOR PLUG
List
1.Blood Pressure Monitor
(TMB-1018-BT)
4.User manual
3. 4×AAA batteries
2.Cuff (Type BF Applied Part) (22cm-42cm)
BATTERY COMPARTMENT
CUFF
AIR HOSE
LCD DISPLAY
DC POWER SOCKET
MEM/DOWN BUTTON
START/STOP BUTTON
SET/UP BUTTON
(Please use IC Sciences' authorized cuff)
Component list of
pressure measuring system
1 Cuff
2 Air pipe
3 PCBA
4 Pump
5 Valve

BEFORE YOU START
Power Supply
Installing and Replacing the Batteries
1. Open the battery door.
2. Insert the batteries according to the polarity
indications.
3. Close the battery door.
Replace the batteries under following circumstances:
displays on the LCD.
The LCD display dims.
When powering on the monitor, the LCD doesn’t light up.
Remove batteries if the device is not likely to be used for some time.
Worn batteries are harmful to the environment. Do not dispose with daily garbage.
Remove the old batteries from the device following your local recycling guidelines.
CAUTION
BEFORE YOU START
Download and install My BP Coach
from iTunes App store or Google play
Apply the Cuff
2.As pictured on the right, position
the cuff on your upper arm.
1.Insert the plug of cuff’s air pipe into
the interface located on the right side
of the monitor.
3.Tighten the cuff. Make sure the cuff
is fixed 2 to 3 centimeters (about an
inch) above your elbow.
You should be able to insert one
finger when the cuff is tightened
around your upper arm.
4.Correct Posture:
It is best to position the cuff on your bare
arm.
Sit comfortably and relaxed in a chair.
The center of the cuff should be about
even with your heart.
Sit with legs relaxed with your feet falling
outwards. Rest your arm on a table with
your palm facing up.
6
AC adaptor
(Included)
1.Battery powered mode:
6VDC 4×AAA batteries
2.AC adaptor powered mode:
6V 1A
(Can be supplied by AC adaptor model
UE08WCP-060100SPA) (Included)
Please unplug the adaptor to use battery
power.
7
CAUTION
In order to get the best effect and protect your monitor, please use the
battery and power adaptor, which complies with U.S. safety standard.
Do not dispose of batteries in fire. Batteries may explode or leak.

9
8
BEFORE YOU START BEFORE YOU START
4.Repeat step 2 and 3 to confirm [MONTH] and [DAY]. Then the monitor
switches to [YEAR] setting.
MONTH DAY
5.Repeat step 2 and 3 to confirm [YEAR].
HOUR
MINUTE
Settings
Set the time on your arm cuff before your initial use to ensure
each record is labeled with a time stamp. (The range of the
year is 2000 to 2050. Time Format: 12 Hours)
NOTE: The monitor will shut off 60 seconds after the last
operation when in Setting Interface.
1.When the monitor is OFF,
press and hold SET button to
enter [HOUR] and [MINUTE]
setting.
2.Press MEM button to
change the numeral. Each
press will increase the
numeral by one in a
cycling manner.
3.Press SET button to
confirm the [HOUR] and
[MINUTE]. Then the
monitor diverts to
[MONTH] and [DAY]
setting.
YEAR
6.After confirming the [YEAR], the LCD will display “dOnE” and the
monitor will shut off.
Select User ID
NOTE: The monitor will shut off 60 seconds after the last
operation when in User ID selection mode.
1.When the monitor is OFF,
press and hold MEM
button to enter User ID
selection mode.
2.The current User ID
blinks.
3.Press MEM button to switch
between User 1 and User 2.
4.Press SET button to
confirm the selected User
ID.

11
10

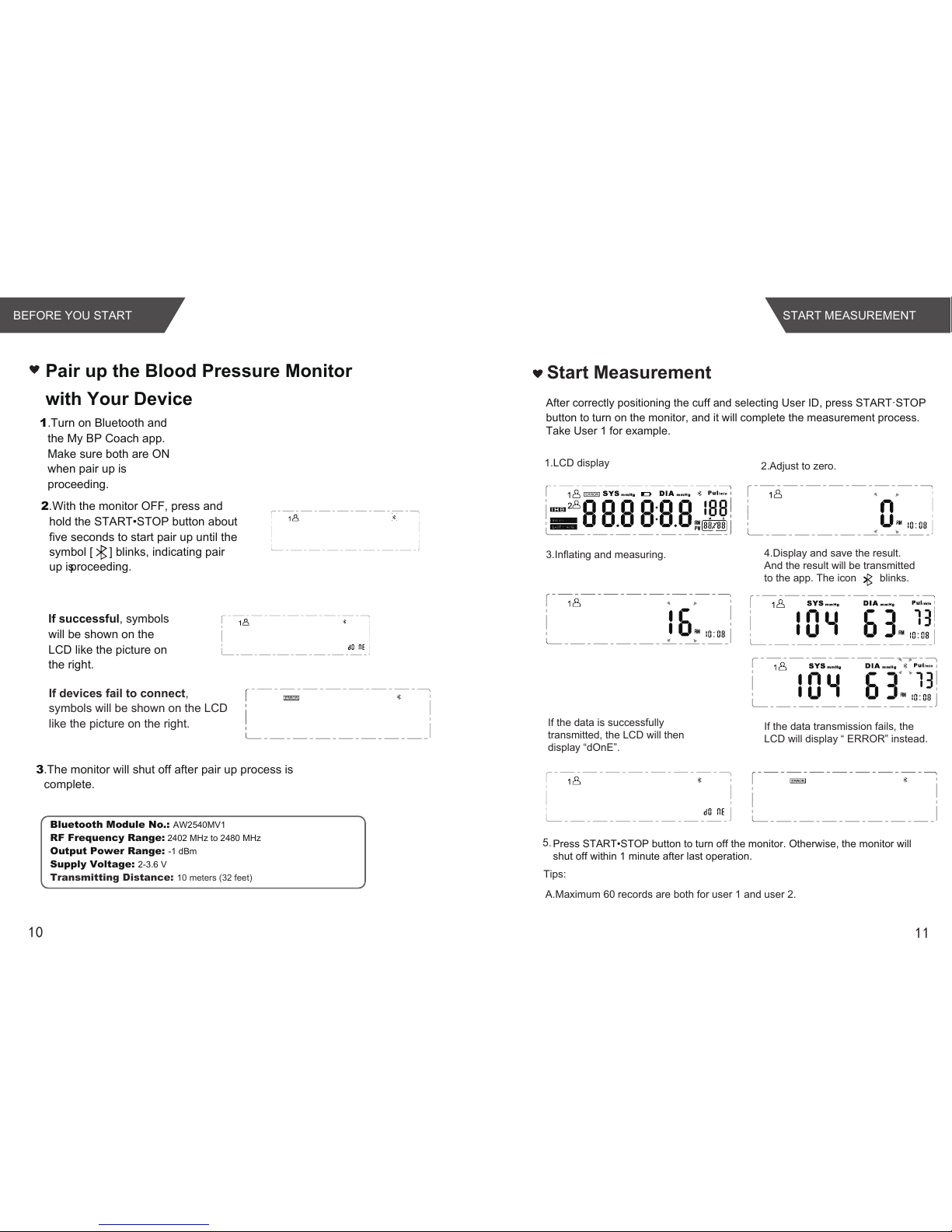

START MEASUREMENT
1.LCD display
Tips:
3.Inflating and measuring.
Start Measurement
5.
2.Adjust to zero.
Press START•STOP button to turn off the monitor. Otherwise, the monitor will
shut off within 1 minute after last operation.
4.Display and save the result.
And the result will be transmitted
to the app. The icon blinks.
A.Maximum 60 records are both for user 1 and user 2.
After correctly positioning the cuff and selecting User ID, press START·STOP
button to turn on the monitor, and it will complete the measurement process.
Take User 1 for example.
Pair up the Blood Pressure Monitor
with Your Device
1.Turn on Bluetooth and
the My BP Coach app.
Make sure both are ON
when pair up is
proceeding.
2.With the monitor OFF, press and
hold the START•STOP button about
five seconds to start pair up until the
symbol [ ] blinks, indicating pair
up is proceeding.
If successful, symbols
will be shown on the
LCD like the picture on
the right.
If devices fail to connect,
symbols will be shown on the LCD
like the picture on the right.
3.The monitor will shut off after pair up process is
complete.
BEFORE YOU START
Bluetooth Module No.: AW2540MV1
RF Frequency Range: 2402 MHz to 2480 MHz
Output Power Range: -1 dBm
Supply Voltage: 2-3.6 V
Transmitting Distance: 10 meters (32 feet)
If the data is successfully
transmitted, the LCD will then
display “dOnE”.
If the data transmission fails, the
LCD will display “ ERROR” instead.

13
12
DATA MANAGEMENT DATA MANAGEMENT
2
the records. Up to 60 records will be stored
under each user ID.
The measurement date and time will be
displayed alternatively.
Recall the Records
2.Press MEM button and SET button to rotate
1.When the monitor is OFF, press MEM
button to retrieve the memory. The monitor
will display the average value of latest three
measurements.
3.If you would like to check another user
ID’s history, please follow the
instructions in Select User ID to
change to another User ID first.
Delete the Records
1.When under data enquiry mode, press
and hold both MEM button and SET button
for 3 seconds to clear memory. The LCD
will display “dEL dOnE”, indicating that the
memory is cleared.
No Record found for User 2!
Transmitting Data
Manual Data Transmission
With the advanced Bluetooth 4.0 technology applied, the mobile or portable
equipments, which are equipped with Bluetooth function in line with BLE
Technical Specifications as well as BLP Protocol established by global
organization Bluetooth SIG, are capable to receive your personal health data.
When both the My BP Coach app and Bluetooth are ON, TMB-1018-BT
1. After measurement, the symbol lights
up, indicating the measuring result is being
automatically transmitted to smartphone.
2.If successful, the LCD will display
“dOnE”.
3.If the devices fail to connect, the LCD will
display “ERROR”.
CAUTION
Interference may occur in the vicinity of equipment marked with the following symbol
. And TMB-1018-BT may interfere other electrical equipment in the area.
Sensitive people, including pregnant women and those with implanted medical elec-
tronic devices, should avoid using the unit whenever possible.
Keep the monitor at least 20 centimeters (about 8 inches) away from the human
body (especially the head) when the data transmission is proceeding after
measurement.
To enable the data transmission function, this product should be paired to Bluetooth
end at 2.4 GHz.
How to mitigate possible interference?
1. The range between the device and BT end should be reasonably close, from 1
meter to 10 meters (about 3 to 30 feet). Please ensure no obstacles are between
the device and BT end to obtain a connection and to lower the RF output range.
2. To avoid interference, other electronic devices (particularly those with wireless
transmission/Transmitter) should be kept at least 1 meter (about 3 feet) away
from the monitor.
will automatically transmit measurement data to your smartphone via Bluetooth.

INFORMATION FOR USER
1514
Your readings may be innaccurate if the measurement is taken
in the following circumstances:
Tips for Measurement
Within 1 hour
after dinner or drinking
Within 20 minutes
after taking a bath
In a very cold environment
Immediately measuring
after tea, coffee, smoking
When talking or moving your fingers
When you need to urinate
To obtain the best performance, please follow the tips below:
Use and store in a dry place and
avoid the sunshine
Avoid shaking and dropping.
Use a slightly damp cloth
to remove the dirt.
Avoid immersing in water.
Clean with a dry cloth.
Avoid dusty environment and
unstable temperatures
Avoid washing the cuff
Maintenance
INFORMATION FOR USER
1. Make sure the unit functions safely and is in proper working order before use. Don’t service or
maintain while the device is in use.
2. If you have any problems with this device, such as setting up, maintaining or using, please
contact IC Sciences. Do not open or repair the device yourself.
3. Please contact IC Sciences if any unexpected operation or events occur.
4. Cleaning: Dusty environments may affect the performance of the unit. Please use a soft cloth
to remove dirt from the device and cuff before and after use.
5. Calibration: The manufacturer does not require such preventive inspections or calibration by
other persons and will make available on request of circuit diagrams, component part list, etc.
6. Disposal: Degraded sensors may result in inaccurate measurement while loosened electrodes
may cause the monitor’s failure to power on. Please dispose of ACCESSORIES, detachable
parts, and ME EQUIPMENT according to local guidelines.
CAUTION

ABOUT BLOOD PRESSURE ABOUT BLOOD PRESSURE
1716
1. Individual blood pressure varies
throughout the day. It can also be
affected by the way you fasten your cuff
and your measurement position; take the
measurement in the same position.
2.Blood pressure varies even
more when you on medication.
3.Wait at least 3 minutes to take
your blood pressure again.
Why does my blood
pressure fluctuate
throughout the day?
Is the result the same
when measuring on the
right arm?
It is ok to take readings in both
arms, but there may be different
results for each arm. Try to use the
same arm every time.
Why are measurements
taken in the hospital
different than those
Blood pressure can be different
e v e n d u r in g a 2 4 - h o u r p er i o d
because of the weather, emotion,
exercise etc. Especially “white coat”
syndrome, which makes results
higher than the ones at home.
F o l l o w t h e s e t i p s f o r
correct to ensure correct
readings:
M a k e s u r e t h e c u f f i s f a s t e n e d
correctly.
Make sure the the cuff is not too tight
or too loose.
Relax for 4-5 minutes before taking
your blood pressure.
Take several deep breaths before
beginning.
What are systolic and diastolic pressures?
press
artery vein
blood discharging
Systolic
relax
blood entering
Diastolic
What is the standard blood pressure classification?
When ventricles contract and pump blood out
of the heart, the blood pressure reaches its
maximum value in the cycle, which is called
systolic pressure. When the ventricles relax,
the blood pressure reaches its minimum
value in the cycle, which is called diastolic
pressure.
Irregular Heartbeat Detector
This Blood Pressure Monitor is equipped with an intelligent function of Irregular
Heartbeat (IHB) Detector. During each measurement, the arm cuff records the
heartbeat intervals and determines the standard deviation. If the calculated value is
larger than or equal to 15, this monitor will show the IHB symbol on the screen
when displaying the measuring result.
CAUTION
The appearance of the IHB icon indicates that a pulse irregularity consistent with
an irregular heartbeat was detected during measurement. Usually this is NOT a
cause for concern. However, if the symbol appears often, we recommend you
seek medical advice. Please note that the device does not replace a cardiac
examination, but serves to detect pulse irregularities at an early stage.
The chart on the right
illustrates the blood
pressure classification
mode by American Heart
Association (AHA).
The AHA recommends
the following guidelines
for upper limit of normal
blood pressure readings
at home.
Systolic Blood Pressure 135 mm Hg
Diastolic Blood Pressure 85 mm Hg
AHA Home Guideline for Upper Limit of Normal BP
Blood Pressure Category
Normal
Prehypertension
High Blood Pressure
(Hypertension) Stage 1
High Blood Pressure
(Hypertension) Stage 2
Hypertensive Crisis
(Emergency care needed)
Systolic
mmHg (upper#)
Diastolic
mmHg (lower#)
less than 120
120-139
140-159
160 or higher
Higher than 180
and
or
or
or
or
less than 80
80-89
90-99
100 or higher
Higher than 110
This chart reflects blood pressure categories defined by American Heart Association.
taken at home?

TROUBLESHOOTING
19
18
SPECIFICATIONS
AC adaptor is inserted
incorrectly.
Insert the AC adaptor
tightly
PROBLEM SYMPTOM CHECK THIS REMEDY
No power
Low
batteries
Error
massage
Display will not
light up.
Batteries are exhausted.
Replace with new batteries
Insert the batteries
correctly
Replace with new batteries
Batteries are inserted
incorrectly.
Display is dim or
display Batteries are low.
shows Data communication
has failed
Error 1 shows
Error 2 shows
Error 3 shows
Error 5 or
Error 6 shows
Error 10 or Error
11 shows
Error 20 shows
Error 21shows on
the display.
System error
occurred.
Retake the measurement.
If the problem persists,
contact the retailer or our
customer service
department for further
assistance. Refer to the
warranty for contact
information and return
instructions.
Check if the APP is on or
not, try data transmission
again.
Inflation is slow or the
cuff is not secure.
Refasten the cuff and then
measure again.
The cuff is very tight
Readjust the cuff, not too
loose or too tight and then
measure again.
The pressure of the
cuff is excess.
Refasten the cuff and then
measure again.
The monitor detected
motion, talking or the
pluse is too poor
while measuring.
Relax for a
moment and then
measure again.
The measurement
process does not detect
the pulse signal.
Loosen clothing on the
arm and then measure
again.
Relax for a moment and
then measure again.
The treatment of the
measurement failed.
Power supply
Battery Powered Mode:
6V (4 x AAA-size batteries)
AC Adaptor Powered Mode:
6V 1A
(Can be supplied by AC adaptor model
UE08WCP-060100SPA!) (Included)
Display mode Blue LCD with White Backlight
V.A. = 140mm(L) x 36mm(W)
Measurement mode Oscillographic testing mode
Measurement range Pressure: 0-40kpa(0~300mmHg)
pulse value:(40-199)times/minute
Accuracy
Working condition
Storage & transportation
condition
Measurement perimeter
of the upper arm About 22cm - 42cm (8.6 inches to 16.5 inches)
Weight Approx. 465 g (about 1 lb) (Excluding batteries)
External dimensions
Attachment
Approx. 180*100*40mm (approx 7 x 4 x 1.6 in)
4*AAA batteries,user manual
Mode of operation Continuous operation
Degree of protection Type BF applied part
IP Classification
IP22
WARNING: No modification of this equipment is allowed.
Software Version V01
Device Classification Battery Powered Mode: Internally Powered ME Equipment
AC Adaptor Powered Mode: Class II ME Equipment
Pressure:
5℃-40℃within ±0.4kpa (3mmHg)
pulse value: ±5%
Temperature:5℃ to 40℃ (41 F to 104 F)
Relative humidity ≤85%
Atmospheric pressure: 86kPa to 106kPa
Temperature: -20 ℃ to 60 ℃ (-4 F to 140 F)
RH: 10% to 93%
Atmospheric pressure: 50kPa to 106kPa

20 21
Authorized Component
Please use the included IC
Sciences authorized
adaptor
Complied Standards List
Contact Information
AUTHORIZED COMPONENT
For more information about our products and
assistance, please contact www.icsciences.com for customer service.
Manufactured for: IC Sciences
Company: Informed Clinical Sciences Corporation
Address:
1 Joy Street
Boston, MA USA 02108
FCC Statement
UE08WCP-060100SPA
100-240V 50-60Hz,400mA
6V 1A
Adaptor
Type:
Input:
Output:
(Conforms to UL Certification)
ISO 14971:2007
EN 980:2008
EN 1041:2008
Risk Management
Labeling
User Manual
Generl Requirements
for Safety
Performance and
Clinical
Requirements
Electromagnetic
Compatibility
IEC 60601-1:2005/A1:2012
ANSI/AAMI/IEC 80601-2-30:2009
ANSI/AAMI/ISO 81060-2:2009
IEC 60601-1-2:2007
Note:
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only)
This product has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
The product generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If the product does cause harmful interference to radio or television
reception, which can be determined by turning the product on / off, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the product and the receiver.
- Connect the product into an outlet on a circuit which is different from what the receiver is
connected to.
- Consult the dealer or an experienced radio / TV technician for help.
EMC guidance
Table 1 – Guidance and M ANUFACTURER’S declaration – ELECTROMAGNETIC EMISSIONS –
for all ME EQUIPMENT and ME SYSTEMS
Guidance and manufacturer’s declaration – electromagnetic emissions
Emissions test Compliance Electromagnetic environment –guidance
RF emissions
CISPR 11
Group 2
RF emissions
CISPR 11
Class B
Harmonic emissions
IEC 61000-3-2 Not applicable
Not applicable
Voltage fluctuations/
flicker emissions
IEC 61000-3-3
The device is intended for use in the electromagnetic environment specified below.
The customer or the user of the device should assure that it is used in such an
environment.
The device must emit electromagnetic
energy in order to perform its intended
function. Nearby electronic equipment may be affected.
EMC GUIDANCE
Software life-cycle
processes IEC 62304:2006
Caution: The user is cautioned that changes or modifications not
expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.

22 23
Table 2 – Guidance and MANUFACTURER’S declaration – electromagnetic IMMUNITY –
for all ME EQUIPMENT and ME SYSTEMS
Table 4 – Guidance and MANUFACTURER’S declaration – electromagnetic IMMUNITY –
forME EQUIPMENT and ME SYSTEMS that are not LI FE-SUPPORTING

24 25
Table 6 – Recommended separation distances between portable and mobile
RF communications equipment and the ME EQUIPMENT or ME SYSTEM –
forME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING
