ICA Duster 600 User manual

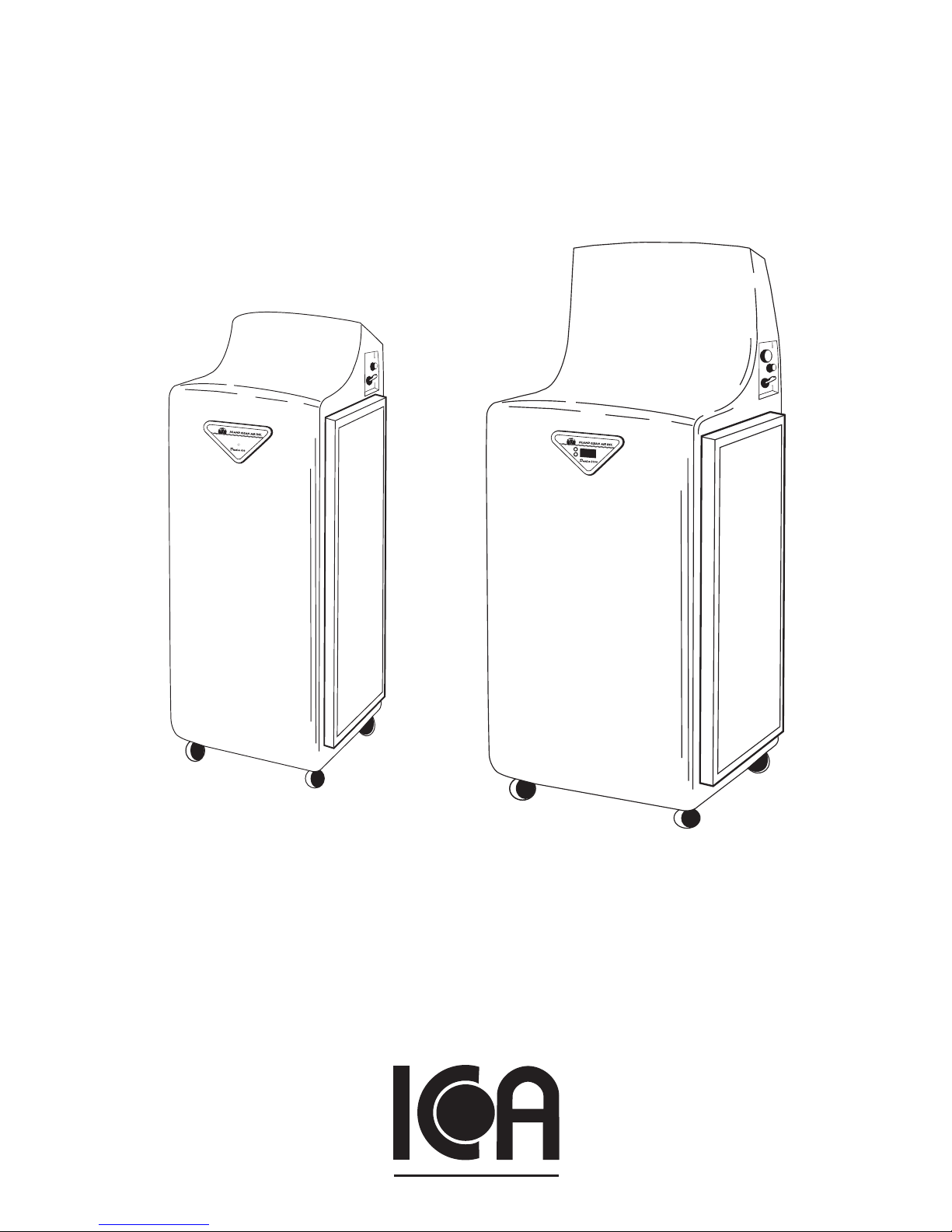

Duster 600 & 2000
Mobile Air Cleaning System
CFM
OPERATIONS
MANUAL
Choose the Air you breathe
ISLAND CLEAN AIR

CONGRATULATIONS!
By choosing a Duster 600 or 2000 you have acquired
A LIFETIME OF CLEAN AIR
The Duster was developed after years of research and
development to find solutions to the problems of poor
indoor air quality, especially in shop environments. It is
constructed of only the highest quality components.
The Duster’s mobility, ability to circulate all the shop
air, and 3 stage filtration process represent a dramatic
breakthrough in the application of modern air cleaning
technology.
Table of Contents
PAGE
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Parts & References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Cleaning the Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Changing the Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Digital Filter Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Won’t start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Digital gauge problems . . . . . . . . . . . 8
Filter problems . . . . . . . . . . . . . . . . . . . 8
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
– 1 –

– 2 –
Safety Instructions
The Duster 600 has been engineered for safety. It
is built. of fir resistant material. Never the less it is
important that you:
• Keep the machine clean and dry.
• Keep it away from heat and flames.
• Always vacuum off heavy dust build-up around
the filters.
• Do not operate without the filters.
Note: Using filters other than those made by Island
Clean Air will void the warranty.
Note:
1. The Duster 2000 has a red light that comes
on when filters are plugged. The Duster 600
has a Flip-up indicator on top that tells you
when to clean the filters.
2. The operation of this unit does not exclude the
proper use of industry approved respirators and
Island Clean Air Inc cannot guarantee health
benefits.

– 3 –
Parts and References
CFM
5
6
7
1
2
3
4
11 D600 Flip-up air flow
indicator
8910

Parts List
– 4 –
Polyethylene Unit Housing.
Variable Speed Control 700 -2000 cfm (Duster 2000)
Two Speed 450 and 600 cfm (Duster 600)
Fuse Holder 125V, 20 Amps Duster 2000, 10 Amps
Duster 600, Puck & turn to change.
Caution: Disconnect power cord before checking fuse.
On / Off Power Switch
Digital Air Flow Reading, tells you when to clean the
filters, Check on “High” position, Duster 2000 only
(Flip up Smiley on the Duster 600) see #11
Green “on” indicates good air flow, Duster 2000
Red “on” only indicates poor air flow, Duster 2000
Green (pre-filter) pad. Vacuum clean
White Pleated Filter
Duster 600 26.2 sq. ft. of media
Duster 2000 60.0 sq. ft. of media
Polyester material vacuum clean.
High pressure washable.
Activated granular Carbon Cell
Duster 600 Flip-up Smiley Face
1
3
7
6
5
8
9
10
4
2
11

– 5 –
Cleaning the Filters
When flip up “Smiley Face” stays down, on Duster 600
When gauge is reading 1500 or less on high position Duster 2000
HP-36 Filter
Procedure:
1. Turn off machine.
2. Vacuum the pads first.
3. Remove pads and
vacuum pleated filter
behind the pads.
4. Reinstall the pad.
5. Reinstall filters.
Note: Occasionally, remove
the filter and high-pressure
wash (10" away) only the
pleated filters to remove
trapped particulate. Wash
both sides of the filter for
1/2 minute each side at least.
Carbon Filters: (not
cleanable) Check filter
seals that the carbon
filters are kept clean.

Digital Filter Monitor (Duster 2000)
Shows you when to clean the filters
–6 –
CFM
The digital read-out on the front of the machine indicates the airflow
volume in cubic feet per minute (CFM).
As the filters get loaded with dust the reading goes down if you
operate the machine at the same speed. Check filters on
high position.
After several months, the reading may be down by 500, even
after vacuum cleaning. Then it will be necessary to high pressure
wash only the pleated filters, but not the green pads.
On the Duster 600 the Smiley Face Flip-up stays down horizontal
when the filters are plugged.
Continued Over
Fuse
On /Off
Switch
Duster 2000
Digital Air
Flow Gauge
Note: Duster 600
has a flip up
indicator

–7–
Specifications
All components are factory and field tested.
FILTERS:Made in the USA and Canada.
1. DP16 DUST / SPRAY PAD
12" x 36" x 2"
305mm x 915mm x 50mm
2. HP16 INTAKE FILTER
12" x 36" x 4"
305mm x 915mm x 102mm
3. CF16 CARBON FILTER
12" x 36" x 1"
305mm x 915mm x 25mm
ELECTRICAL:
1/6 Hp, 1-3 Amp, 110V motor –
direct drive
Two speed
Available 50Hz, 220V
BLOWER CAPACITY:
600 CFM
16 cubic meters/minute
UNIT BODY CONSTRUCTION:
Molded polyethylene
Impact resistant
Duster 600
WEIGHT:
Net 84 pounds 38.2 kg
QUIET OPERATION:
59 db low, 65 db high
Duster 2000
FILTERS:Made in the USA and Canada.
1. DS6 DUST / SPRAY PAD
16" x 36" x 1"
406mm x 915mm x 25mm
2. HP36 INTAKE FILTER
16" x 36" x 4"
406mm x 915mm x 102mm
3. CF36 CARBON FILTER
16" x 36" x 1"
406mm x 915mm x 25mm
ELECTRICAL:
1Hp, 1-12 Amp, 110V motor –
direct drive
Variable speed control
Available 50 Hz, 220V
BLOWER CAPACITY:
2000 CFM
56 cubic meters/minute
UNIT BODY CONSTRUCTION:
Molded polyethylene
Impact resistant
WEIGHT:
Net 101 pounds 40.7 kg
QUIET OPERATION:
0 – 72 db
WARRANTY:
5 years parts, filters excluded
WARRANTY:
5 years parts, filters excluded

–8 –
Trouble Shooting
Won’t Start:
1. Is it plugged it correctly. Extension cords should
be 14 gauge, grounded.
2. Check wall outlet circuit breaker or fuse. Motor
draws 3 amps (Duster 600), 10 amps (Duster
2000). Most breakers are 15 amps.Usually
you cannot run other large machinery on the
same circuit.
Filter Cleaning Gauge Problems:
•Please call factory if your gauge stops working
for any reason.
Filter Problems:
•CAUTION: Paint overspray, oil and glue mists,
will destroy the HP-16 pleated filters.
Always keep the green pads in place
in front of them.
•To get the longest filter life out of carbon filters
keep them clean. Dust plugs the carbon pores.

–9 –
Warranty Information
Please note:
In order to validate your warranty, the Warranty
Registration Card must be filled and returned to Island
clean Air Inc. Non-registered claims may be rejected.
Terms:
All products made by Island Clean Air Inc. are warranted
to be free of defects in materials and workmanship
for a period of five (5) years from the date of original
purchase. Warranty parts will be furnished free of
charge, to replace any parts which are determined to
be defective.
This limited warranty does not include filters, cleaning
or damages caused by accident, neglect or misuse
and will cease if the products is re-sold, rented or
otherwise disposed of. Only factory original filters are
recommended for use with this product. The use of
any other filters not specifically sold by, or approved
by Island Clean Air Inc. may affect the performance
and safety of the product, and will void this warranty.
In no event shall Island Clean Air Inc. be liable for any
indirect, incidental or consequential damages from the
sale or use of this product. It cannot guarantee health
benefits. This applies both during and after the term of
this warranty.
This warranty provides specific legal rights.
Please report all claims by calling 1-800-661-6211.

NOTES
–10 –

Choose the Air you breathe
ISLAND CLEAN AIR
Tel: [phone] • Fax [phone]
Toll Free 1- 800-661- 8211 • 1-800-661- 6211
www.islandcleanair.com
