iCarsoft MB II User manual

2015-02-06
V1.00.00
Note: This manual applies to iCarsoft 2nd generation serial products and CR Plus and
is subject to change without prior written notice.
In addition, all instructions and illustrations herein are mainly prepared based on
iCarsoft 2nd generation serial products. Please kindly note that no further descriptions
will be given for CR Plus as most major operation differences (excluding user
interface) between iCarsoft 2nd generation serial products and CR Plus are clearly
marked.

iCarsoft English User’s Manual
i
Disclaimer
To take full advantage of the unit, you should be familiar with the engine.
All information, illustrations, and specifications contained in this manual are
based on the latest information available at the time of publication. The
right is reserved to make change at any time without notice.
Safety Precautions and Warnings
To prevent personal injury or damage to vehicles and / or the iCarsoft Serial
products / CR Plus, please read this user’s manual first carefully and observe
the following safety precautions at a minimum whenever working on a vehicle:
Always perform automotive testing in a safe environment.
Do not attempt to operate or observe the tool while driving a vehicle.
Operating or observing the tool will cause driver distraction and could
cause a fatal accident.
Wear safety eye protection that meets ANSI standards.
Keep clothing, hair, hands, tools, test equipment, etc. away from all moving
or hot engine parts.
Operate the vehicle in a well-ventilated work area: Exhaust gases are
poisonous.
Put blocks in front of the drive wheels and never leave the vehicle
unattended while running tests.
Use extreme caution when working around the ignition coil, distributor cap,
ignition wires and spark plugs. These components create hazardous
voltages when the engine is running.
Put the transmission in P (for A/T) or N (for M/T) and make sure the parking
brake is engaged.
Keep a fire extinguisher suitable for gasoline/chemical/ electrical fires
nearby.
Don’t connect or disconnect any test equipment while the ignition is on or
the engine is running.
Keep this tool dry, clean, free from oil/water or grease. Use a mild
detergent on a clean cloth to clean it if necessary.

iCarsoft English User’s Manual
ii
Table of Contents
1. INTRODUCTION.........................................................................................1
1.1 ICARSOFT 2ND GENERATION SERIAL PRODUCTS ......................................1
1.2 CR PLUS................................................................................................1
2. General Information.....................................................................................3
2.1 ON-BOARD DIAGNOSTICS (OBD) II..........................................................3
2.2 DIAGNOSTIC TROUBLE CODES (DTCS) ....................................................3
2.3 LOCATION OF THE DATA LINK CONNECTOR (DLC).....................................4
3. Product Descriptions ...................................................................................5
3.1 OUTLINE OF ICARSOFT SERIAL PRODUCTS /CR PLUS...............................5
3.2 SPECIFICATIONS .....................................................................................6
3.3ACCESSORIES.........................................................................................6
4. Connections & Settings...............................................................................7
4.1 INSTALL TF CARD....................................................................................7
4.2 CONNECTIONS........................................................................................7
4.2 SETTINGS...............................................................................................8
4.3 HELP......................................................................................................8
5. Diagnose...................................................................................................11
5.1 OBDII/EOBD DIAGNOSING ...................................................................12
5.2 SYSTEM DIAGNOSING (FOR ICARSOFT SERIAL PRODUCTS) .....................14
5.2 SYSTEM DIAGNOSING (FOR CRPLUS)...................................................15
6. Register & Update.....................................................................................17
7. FAQ...........................................................................................................20

iCarsoft English User’s Manual
1
1. INTRODUCTION
1.1 iCarsoft 2nd Generation Serial Products
The iCarsoft 2nd generation Serial products cover the following models: MB II,
FD II, VAG II, POR II, VOL II, OP II, LR II, TYT II, CP II, RT II, FT II, G-M II, NIS
II and MMA II, which are especially designed for the DIY users and the
servicemen of small service workshop.
Featuring the color LCD display and personalized function menu, the iCarsoft
Serial products support all 10 models of OBDII test for a complete diagnosis,
which can diagnose full electronic control system of single vehicle model and
enable you to read/clear DTCs and playback data stream in live graphic form.
Moreover, the iCarsoft Serial products also feature the following bi-directional
“special tests”: EVAP, O2 Sensor, I/M Readiness, MIL Status, VIN Info, and
On-board monitors testing.
In addition to amazing & powerful diagnosing function, iCarsoft Serial products
also feature Oil/ Service lamp reset and some other special functions.
It can be upgraded via TF card: Download the upgrade package into the TF
card and then insert the TF card into your tool to keep it updated with the latest
software version.
Note: The iCarsoft Serial products may automatically reset while being disturbed
by strong static electricity. THIS IS A NORMAL REACTION.
1.2 CR Plus
The CR Plus incorporates over 40 diagnostic software of prevailing vehicle
models covering European, American and Asian etc and supports all 10
models of OBDII test for a complete diagnosis. It enables you to diagnose four
basic electronic control systems of single vehicle model (engine, transmission,
ABS and airbag) and diagnosis functions include Read DTCs, Clear DTCs,
Read data stream etc.
Moreover, the CR Plus also supports the following bi-directional “special tests”:
EVAP, O2 Sensor, I/M Readiness, MIL Status, VIN Info, and On-board
monitors testing.

iCarsoft English User’s Manual
2
In addition to amazing & powerful diagnosing function, CR Plus also features
some special functions such as Oil/ Service lamp reset, EPB and SAS etc.
It can be upgraded via TF card: Download the upgrade package into the TF
card and then insert the TF card into your tool to keep it updated with the latest
software version.

iCarsoft English User’s Manual
3
2. General Information
2.1 On-Board Diagnostics (OBD) II
The first generation of On-Board Diagnostics (called OBD I) was developed by
the California Air Resources Board (ARB) and implemented in 1988 to monitor
some of the emission control components on vehicles. As technology evolved
and the desire to improve the On-Board Diagnostic system increased, a new
generation of On-Board Diagnostic system was developed. This second
generation of On-Board Diagnostic regulations is called “OBD II”.
The OBD II system is designed to monitor emission control systems and key
engine components by performing either continuous or periodic tests of
specific components and vehicle conditions. When a problem is detected, the
OBD II system turns on a warning lamp (MIL) on the vehicle instrument panel
to alert the driver typically by the phrase of “Check Engine” or “Service Engine
Soon”. The system will also store important information about the detected
malfunction so that a technician can accurately find and fix the problem. Here
below follow three pieces of such valuable information:
1) Whether the Malfunction Indicator Light (MIL) is commanded ‘on’ or ‘off’;
2) Which, if any, Diagnostic Trouble Codes (DTCs) are stored;
3) Readiness Monitor status.
2.2 Diagnostic Trouble Codes (DTCs)
OBD II Diagnostic Trouble Codes are codes that are stored by the on-board
computer diagnostic system in response to a problem found in the vehicle.
These codes identify a particular problem area and are intended to provide you
with a guide as to where a fault might be occurring within a vehicle. OBD II
Diagnostic Trouble Codes consist of a five-digit alphanumeric code. The first
character, a letter, identifies which control system sets the code. The second
character, a number, 0-3; other three characters, a hex character, 0-9 or A-F
provide additional information on where the DTC originated and the operating
conditions that caused it to set. Here below is an example to illustrate the
structure of the digits:

iCarsoft English User’s Manual
4

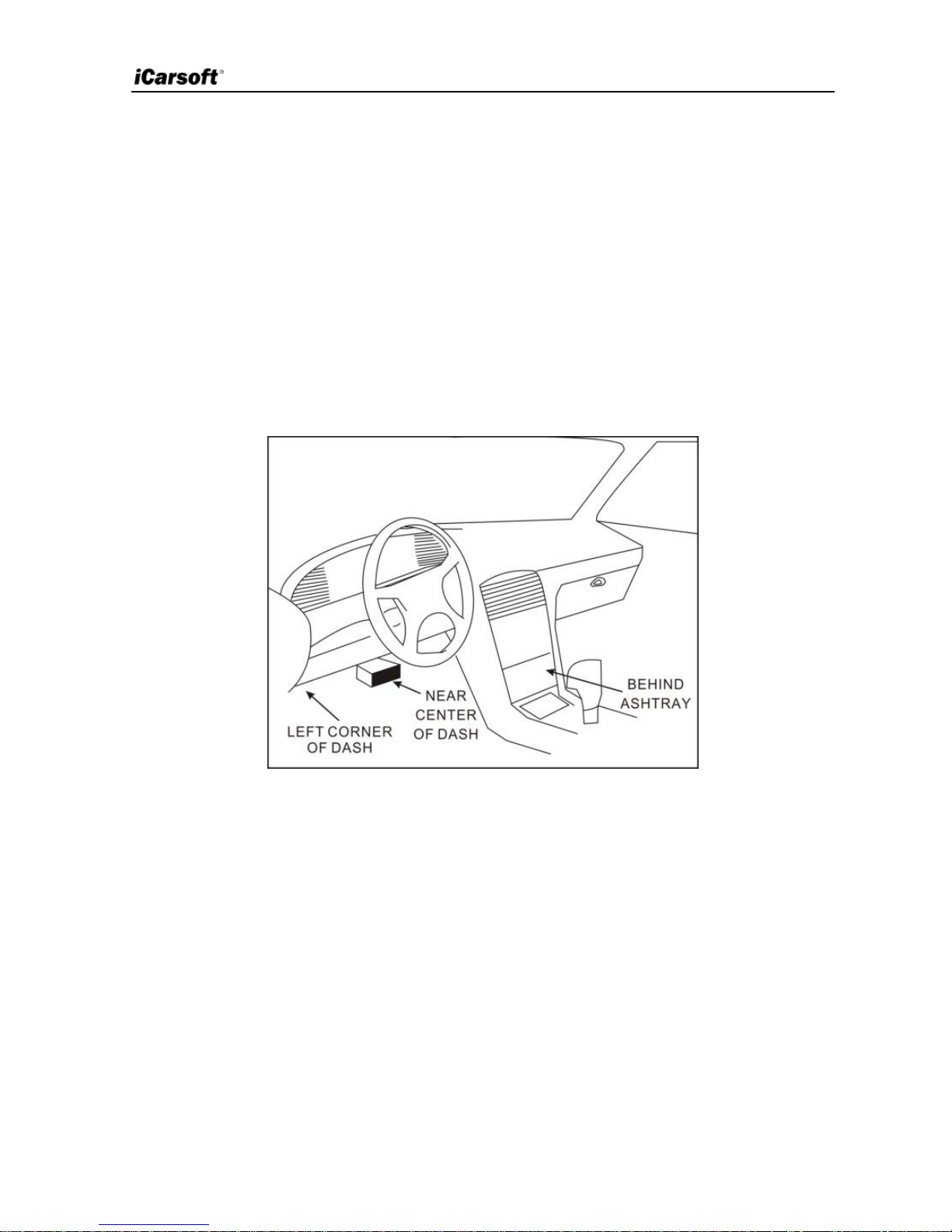

2.3 Location of the Data Link Connector (DLC)
The DLC (Data Link Connector or Diagnostic Link Connector) is the
standardized 16-cavity connector where diagnostic code readers interface with
the vehicle’s on-board computer. The DLC is usually located 12 inches from
the center of the instrument panel (dash), under or around the driver’s side for
most vehicles. If Data Link Connector is not located under dashboard, a label
should be there telling location. For some Asian and European vehicles, the
DLC is located behind the ashtray and the ashtray must be removed to access
the connector. If the DLC cannot be found, refer to the vehicle’s service
manual for the location.
Figure 2-1

iCarsoft English User’s Manual
5
3. Product Descriptions

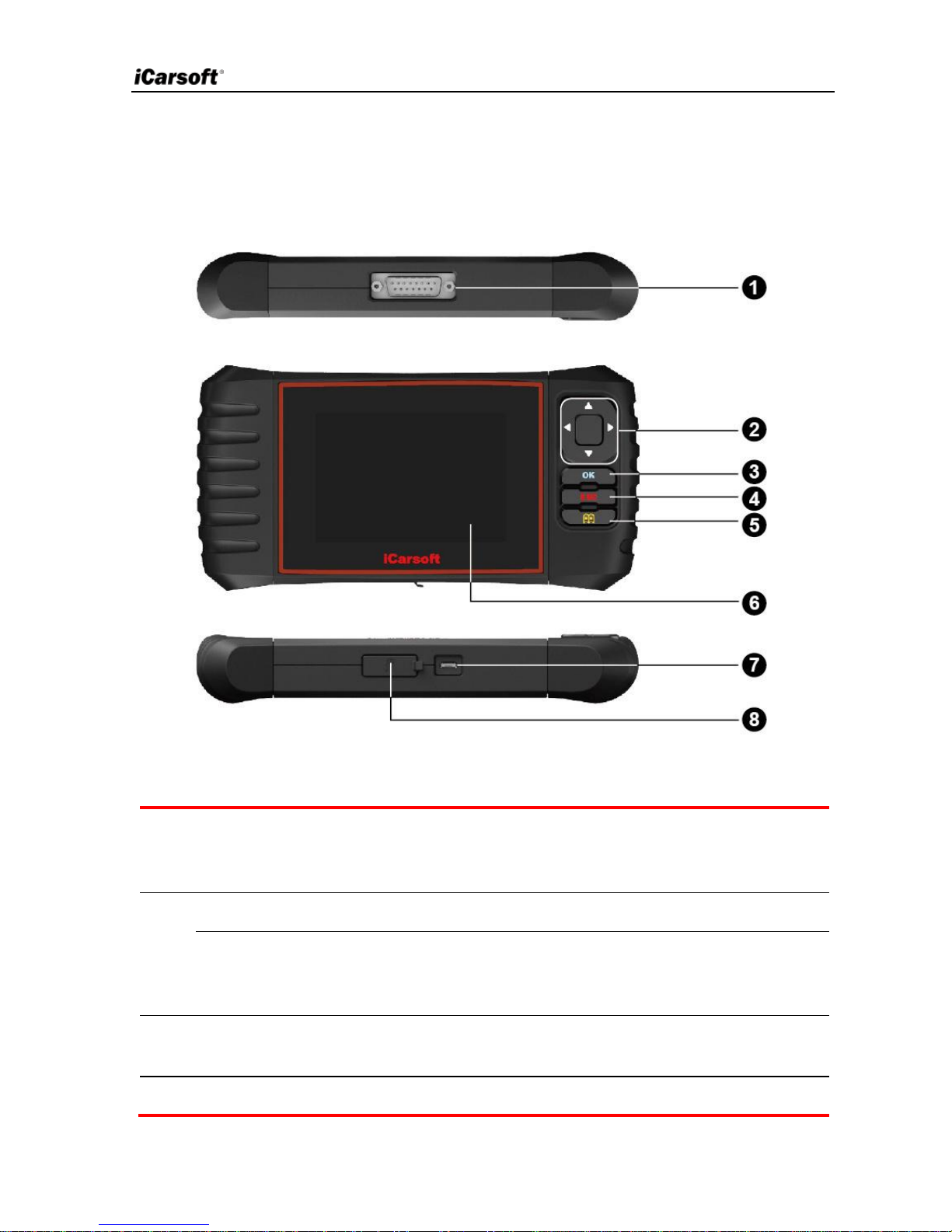

3.1 Outline of iCarsoft Serial products / CR Plus
Figure 2-1
1
OBD-16 Connector
Connects the iCarsoft Serial products / CR
Plus to the vehicle’s Data Link Connector
(DLC) via the diagnostic cable.
2
▲/▼Button
Move cursor up or down for selection.
►/◄Button
Move cursor right or left for selection; Or
turn page up or down when more than one
page is displayed.
3
OK Button
Confirms a selection (or action) from a menu
list.
4
ESC Button
Exit the current program or return to the

iCarsoft English User’s Manual
6
previous screen.
5
Button
To retrieve the DTCs in the database.
6
LCD Display
Indicates test results.
7
USB Port
To connect to PC to upload data or print test
results.
8
TF card slot
Insert the TF card into it to update your tool.
3.2 Specifications
1) Screen: 4.0” TFT, 480*320 LCD display
2) Input voltage range: 9~18V
3) Operating current: < 500mA
4) Power consumption: < 4W (Typical)
3) Operating temperature: 32°F~122°F / 0°C~50°C
4) Storage tempetature: -4°F~158°F / -20°C ~70°C
5) Working humidity: < 80%
6) Outline dimension: 200*100*27 mm (L x W x H)
7) Weight: < 400g
3.3 Accessories
1) Main Unit
2) Main diagnostic cable
3) User’s Manual
4) USB cable
5) TF card
6) TF card reader

iCarsoft English User’s Manual
7
4. Connections & Settings
4.1 Install TF card
1) Take out the TF card from package box.
2) Insert the TF card into the TF card slot perpendicularly. Make sure is fully
inserted in the right place with the “micro” label facing upward.
Note: You can hear a clicking sound if you insert the TF card in the right place.
Press the card slightly, it will be ejected automatically.
4.2 Connections
1) Turn the ignition off.
2) Locate the vehicle’s DLC socket.
3) Plug one end of the diagnostic cable into the OBDII 16pin connector of
iCarsoft Serial products/CR Plus, and connect the other end to the vehicle’s
DLC.
4) Turn the ignition on. Engine can be off or running.

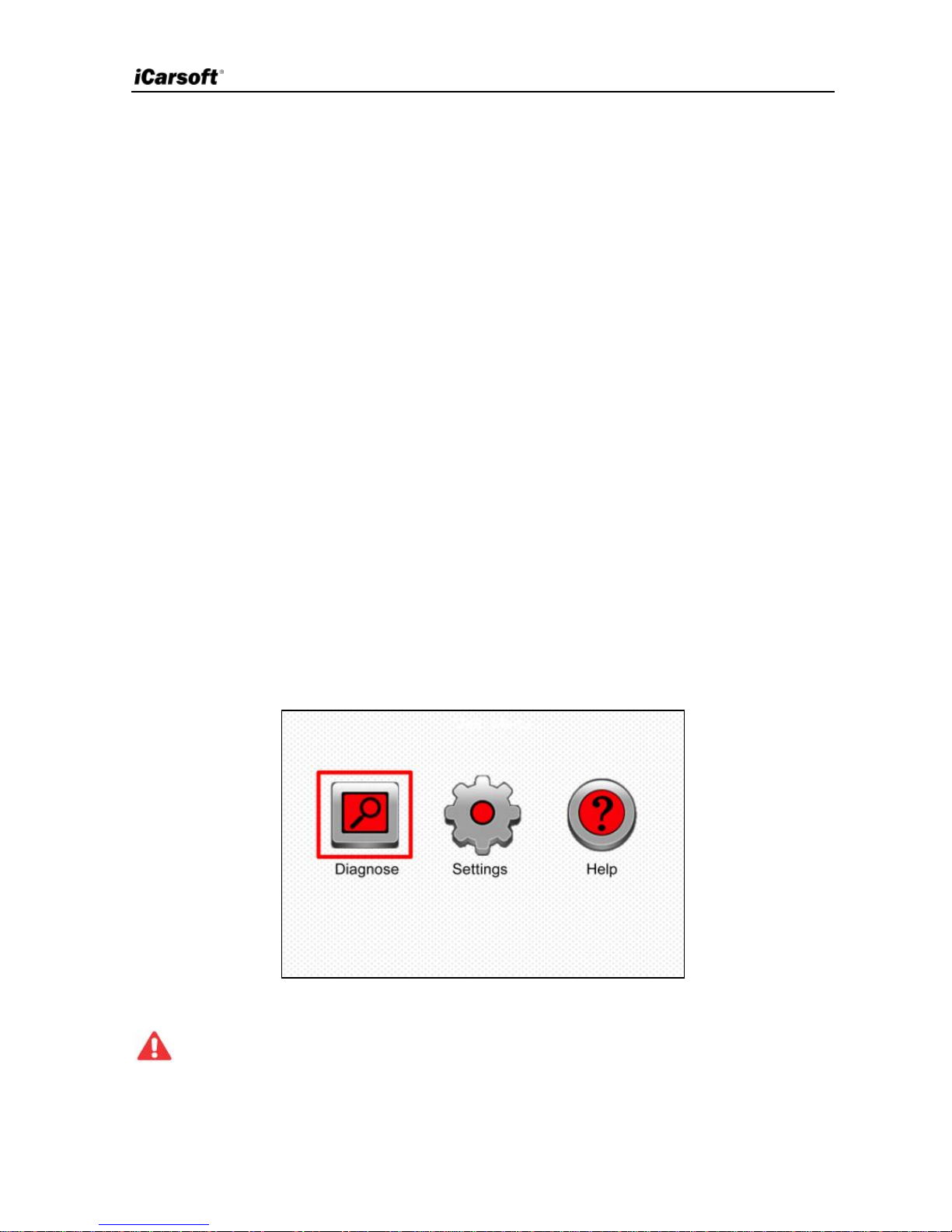

5) After finishing, the system will start initializing. After initialization, the system
will enter the main menu interface. See Fig. 3-1.
Figure 3-1
CAUTION: Don’t connect or disconnect any test equipment with ignition
on or engine running.

iCarsoft English User’s Manual
8
4.2 Settings

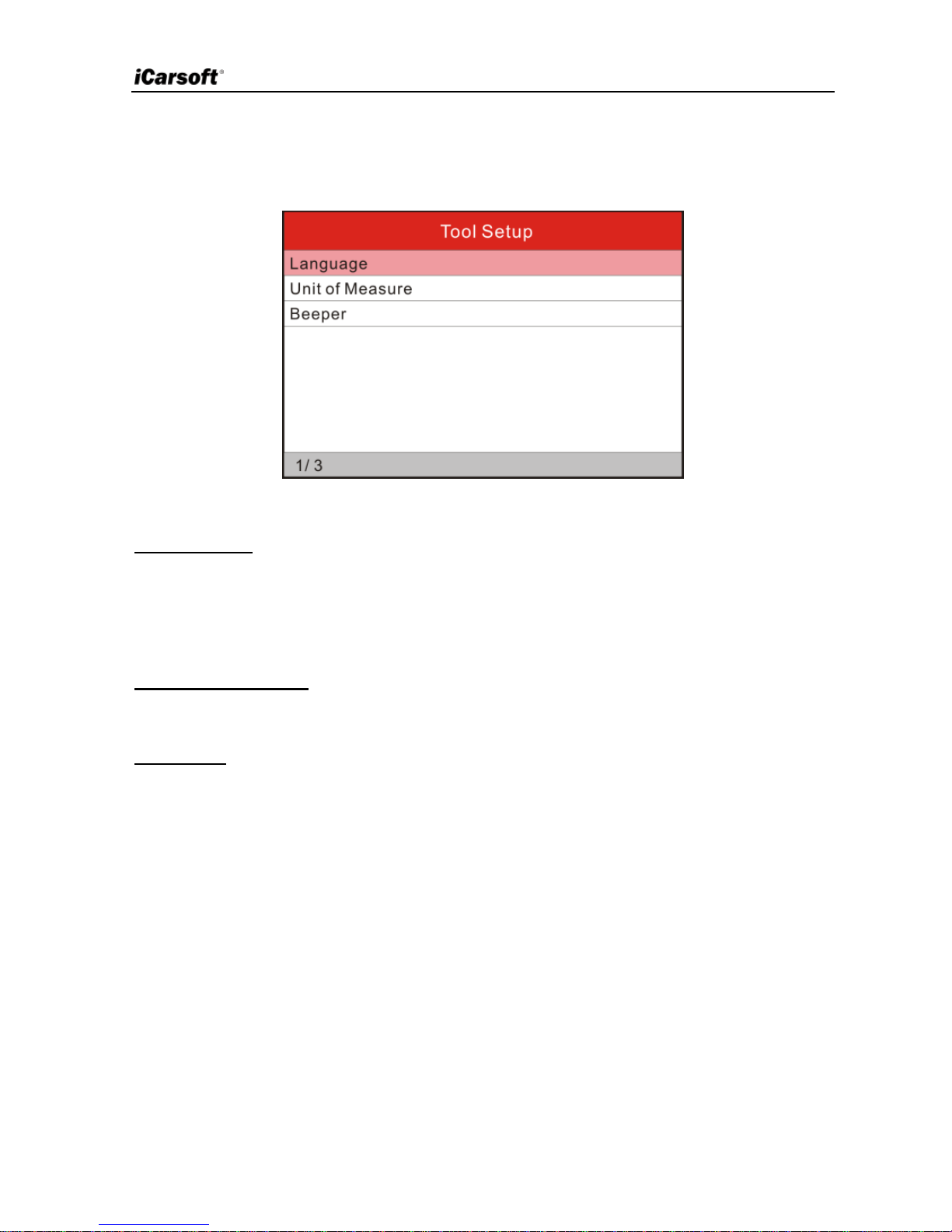

Select [Settings] in the main menu and press [OK] to enter.
Figure 3-2
1) Language
This option enables you to set the user interface language.
Note: Due to continuous software upgrade, language interface may differ from
different software versions.
2) Unit of Measure
This option allows you to set measurement unit.
3) Beeper
It is used to set On/Off the buzzer.

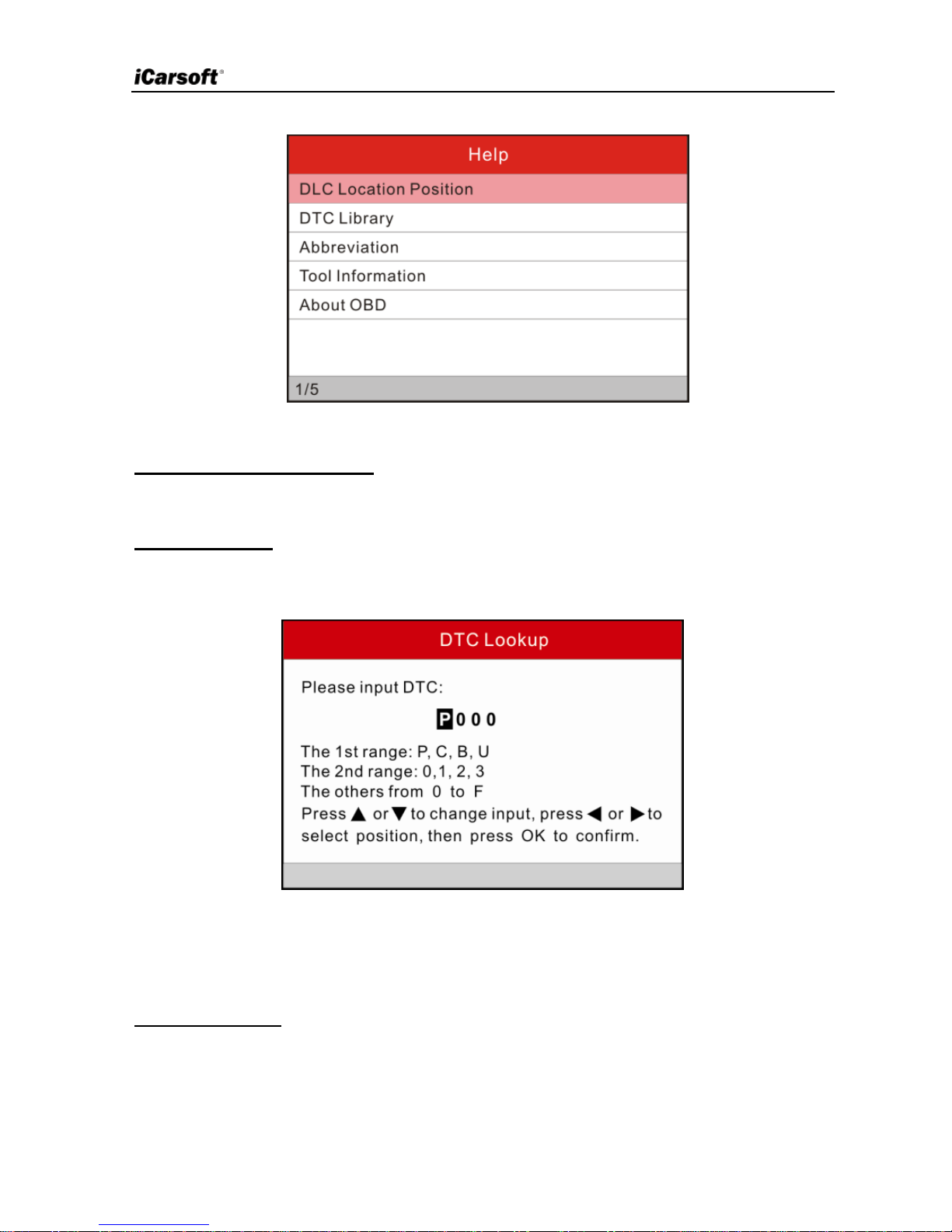

4.3 Help
This menu enables you to view device information and OBD introduction.
In main menu, select [Help] and press [OK] to enter Figure 3-3.

iCarsoft English User’s Manual
9
Figure 3-3
1) DLC Location Position
This option helps you to find the location of vehicle’s DLC.
2) DTC Library
In Figure 3-3, select [DTC Library] and press [OK] to enter the following
screen.
Figure 3-4
Press [►]/[◄] to move the highlight bar to different position; press [▲]/[▼] to
alter the value, and then press [OK] to retrieve the definitions of the DTC.
3) Abbreviation
In Figure 3-3, select [Abbreviation] and press [OK] to enter the abbreviation
word list.

iCarsoft English User’s Manual
10

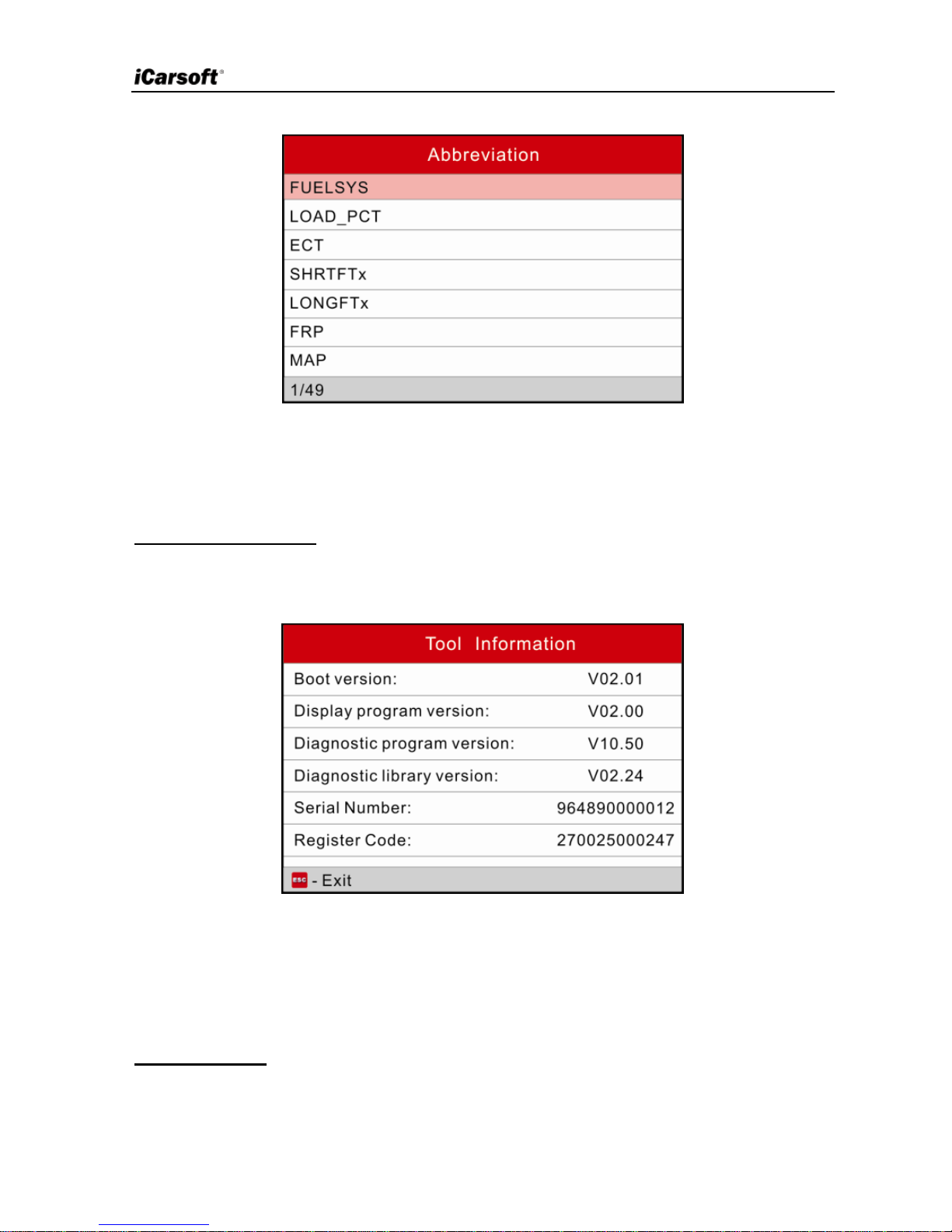

Figure 3-5
Press [►]/[◄] to turn to next or previous page; press [▲]/[▼] to select different
items, and then press [OK] to view its full name and explanations.
4) Tool Information
In Figure 3-3, select [Tool Information] and press [OK] to view the related
information of iCarsoft Serial products / CR Plus.
Figure 3-6
Note: You are strongly recommended to note down the Serial Number and
Register Code in Figure 3-6 since these 2 pieces of information are required
while registering your iCarsoft Serial products / CR Plus.
5) About OBD
This option allows you to have a general knowledge of OBD.

iCarsoft English User’s Manual
11
5. Diagnose

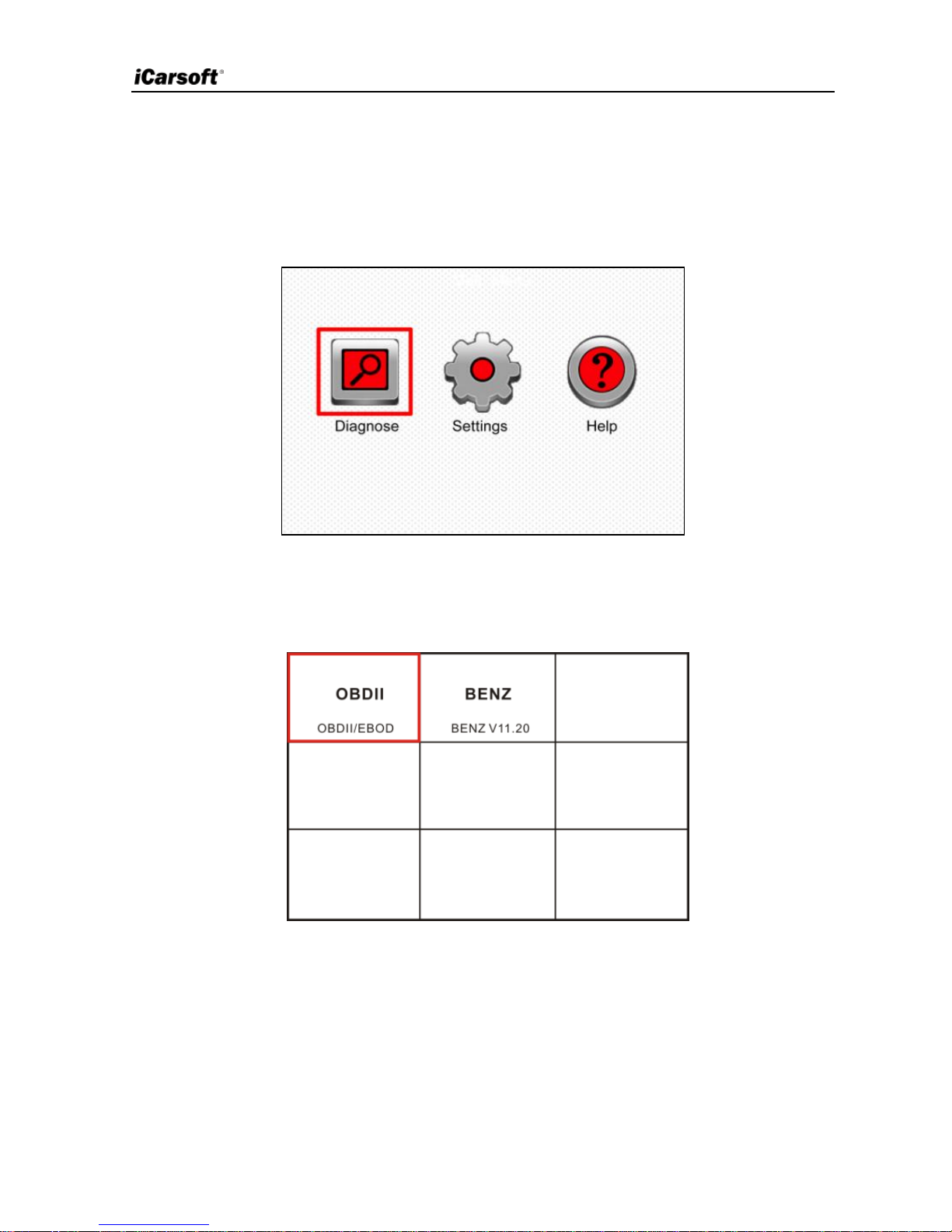

Select [Diagnose] in main menu screen and press [OK], the screen will display
as follows:
Figure 5-1
In Figure 5-1, press [OK] to enter system, a screen similar to Figure 5-2 will
appear:
Figure 5-2 (For iCarsoft Serial products)
Note: For different models, this page may vary from different vehicle makes.

iCarsoft English User’s Manual
12

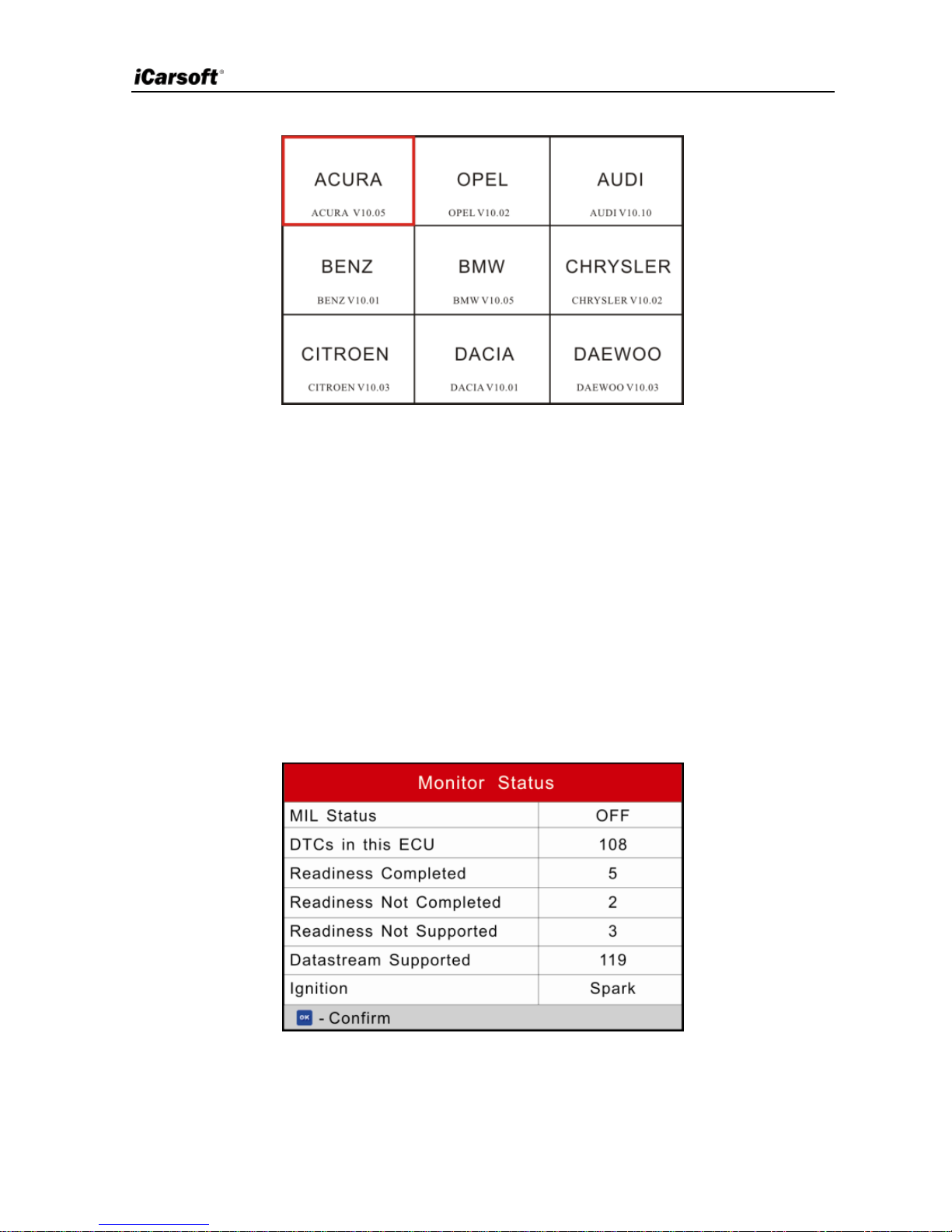

Figure 5-2 (For CR Plus)
5.1 OBDII/EOBD Diagnosing
This option presents a quick way to check for DTCs, isolate the cause of the
illuminated Malfunction Indicator Lamp (MIL), check monitor status prior to
emissions certification testing, verify repairs, and perform a number of other
services that are emission-related.
In Figure 5-2 (For iCarsoft Serial products), press [OK] and the screen will
enter Fig. 5-3.
In Figure 5-2 (For CR Plus), press [►]/[◄] to highlight the “EOBD”, and then
press [OK] to enter Fig. 5-3.
Figure 5-3
Press [OK], a screen similar to Figure 5-4 will appear:

iCarsoft English User’s Manual
13

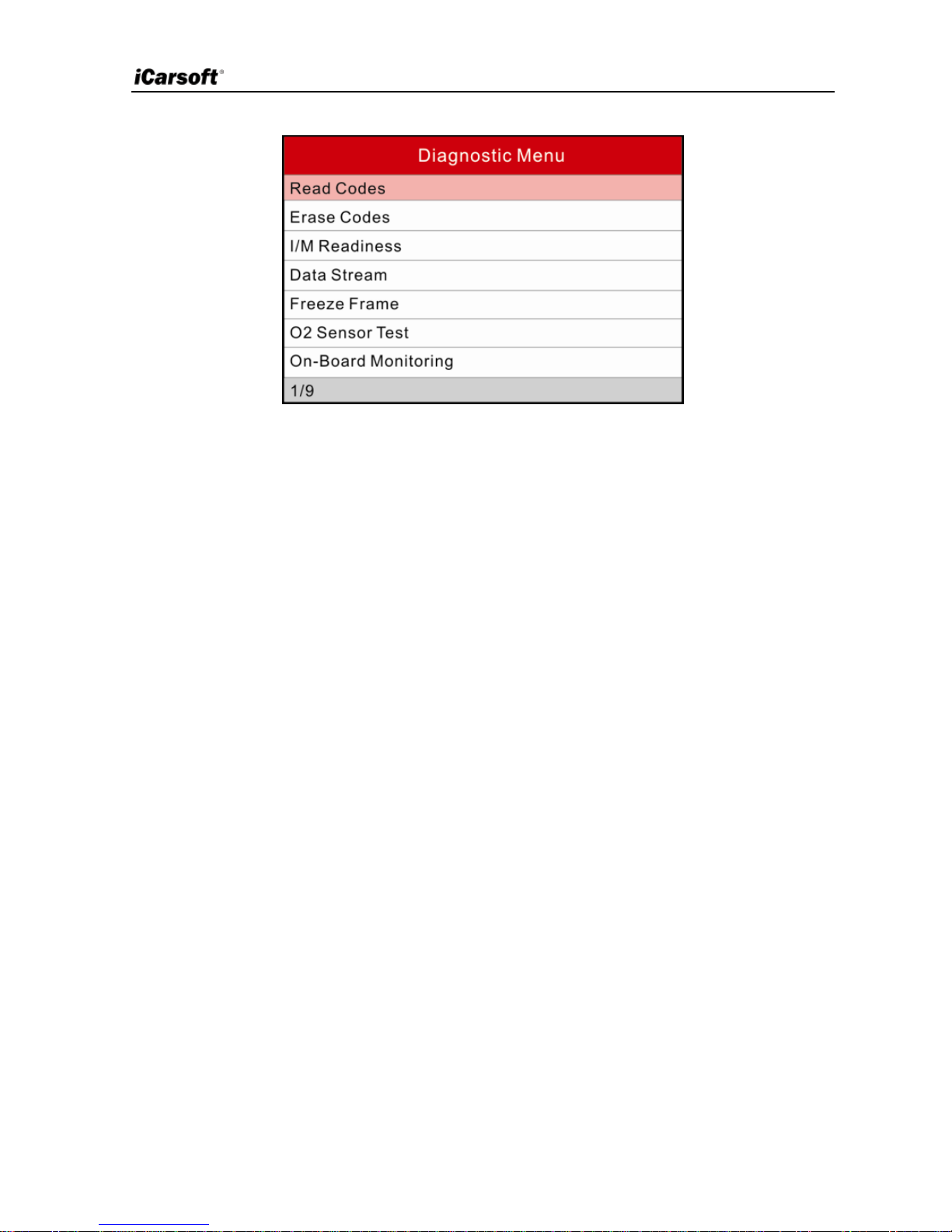

Figure 5-4
It mainly includes the following functions:
1. Read Codes -- This option is used to identify which section of the emission
control system has malfunctioned.
2. Erase Codes -- It is used to clear the diagnostic trouble codes.
3. I/M Readiness -- I/M Readiness indicates whether or not the various
emissions-related systems on the vehicle are operating properly and are
ready for Inspection and Maintenance testing.
4. Read Data Stream
5. Freeze Frame -- When an emission-related fault occurs, certain vehicle
conditions are recorded by the on-board computer. This information is
referred to as freeze frame data. Freeze Data is a snapshot of the operating
conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor
test results for most recently performed tests from the vehicle’s on-board
computer.
7. On-Board Monitoring -- This function can be utilized to read the results of
on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for
the vehicle’s EVAP system. Before using the system test function, refer to
the vehicle’s service repair manual to determine the procedures necessary
to stop the test.
9. Vehicle Information -- The option displays the Vehicle Identification

iCarsoft English User’s Manual
14
Number (VIN), the Calibration Verification Number (CVN), and other
information of the test vehicle.
5.2 System Diagnosing (For iCarsoft Serial products)
This function is specially designed to diagnose all electronic control systems of
single vehicle model.
Note: Before diagnosing, please make sure the diagnostic program corresponding to
certain vehicle model has been installed on your iCarsoft Serial products.

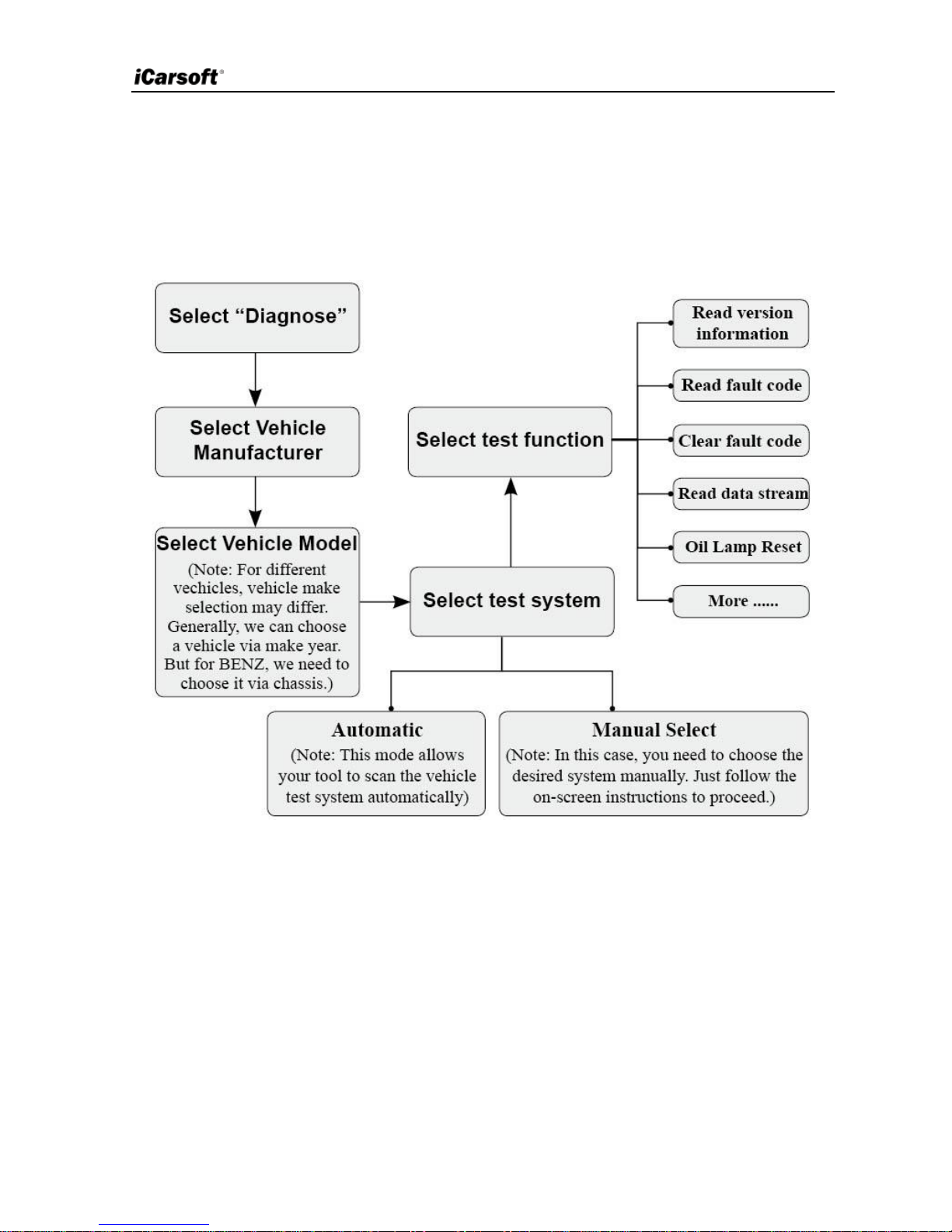

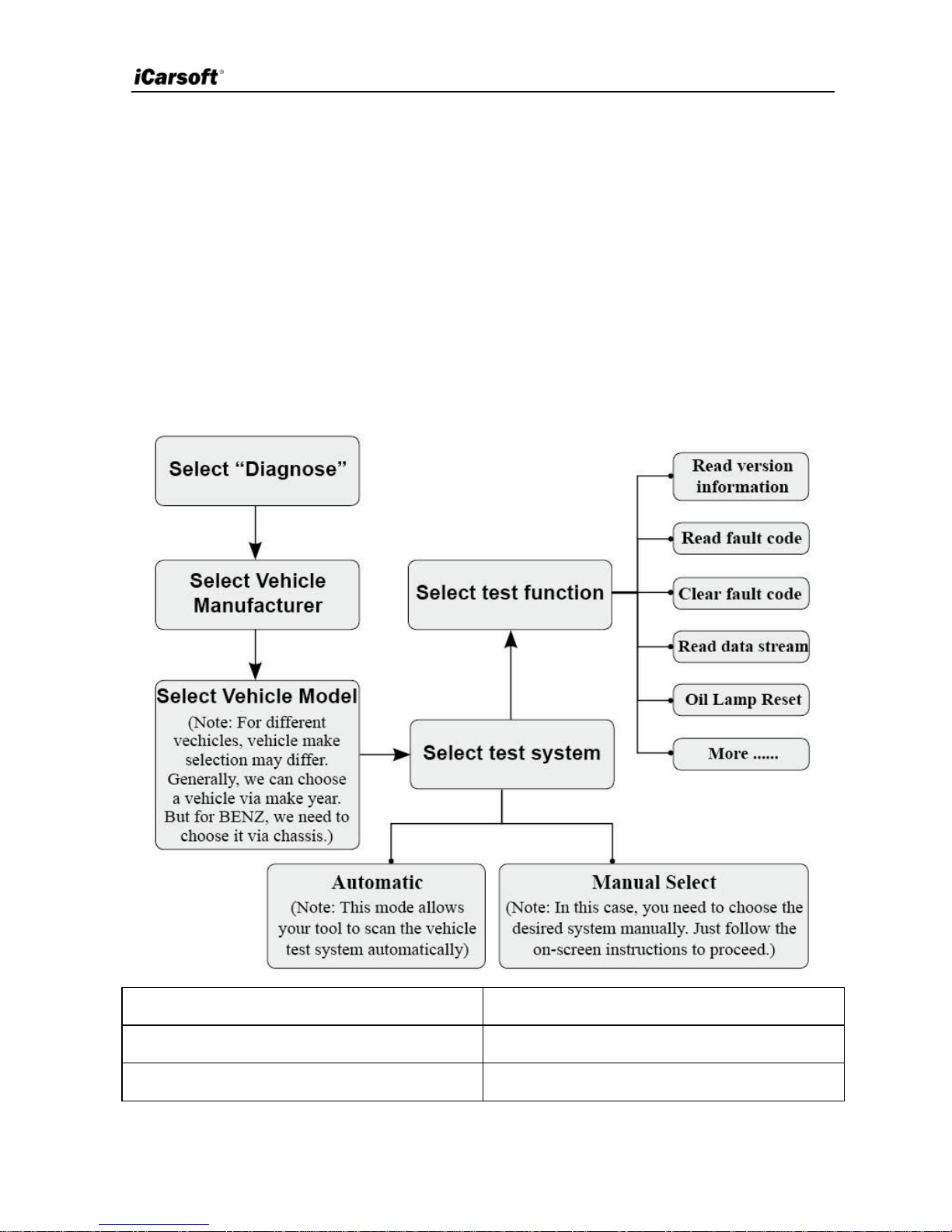

Refer to the flowchart illustrated as below to diagnose a vehicle:
English
Select “Diagnose”
Select Vehicle Manuafacturer

iCarsoft English User’s Manual
15
Select Vehicle Model
(Note: For different vehicles, vehicle
make selection may differ. Generally
we can choose a vehicle via make
year. But for BENZ, we need to
choose it via chassis.)
Select test system
Automatic (Note: This mode allows
your tool to scan the vehicle test
system automatically.)
Manual Select (Note: In this case, you
need to choose the desired system
manually. Just follow the on-screen
instructions to proceed.)
Select test function
Read version information
Read fault code
Clear fault code
Read data stream
Oil Lamp Reset
More…
Note: For vehicles manufactured by different vendors, it is possible that it has
different diagnostic menus. For details, please follow the instructions on the screen to
proceed.
5.2 System Diagnosing (For CR Plus)
This function is specially designed to diagnose four basic electronic control
systems of vehicle models which include the following systems:
ENG (Engine)
ABS (Anti-lock Brake System)
TCM (Transmission Control Module)

iCarsoft English User’s Manual
16
SRS (Supplemental Restraint System)
Note: Before diagnosing, please make sure the diagnostic program corresponding to
certain vehicle model has been installed on your CR Plus.
Refer to the flowchart illustrated as below to diagnose a vehicle:
Note: For vehicles manufactured by different vendors, it is possible that it has
different diagnostic menus. For details, please follow the instructions on the screen to
proceed.
