DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 1
CONTENTS
GENERAL INFORMATION
• Dry AND Thermal Cleaning Process 2
• No Residual Blasting Media 2
DRY ICE BLASTING – How It Operates
• Dry Ice Pellets 2
• Method 2
• Cleaning Effect 2
SAFETY REGULATIONS
• General 3
• Personnel Qualications 3
• Safety and Risk 3
• Precautions During Blasting 3
• Static Electricity 4
• Pacemaker Precautions 4
• Explosive Hazard 4
• Danger of Congelation 4
• Danger of Thrown Loose Objects 4
• Noise 4
• Dust 5
• Danger of Congelation 5
• CO2Detector 5
• CO2Concentrations 5
MACHINE ILLUSTRATIONS 6
CONTROL PANEL 8
BLASTING HOSE 8
ICEGUN HD 9
STARTING THE
DRY ICE BLASTING MACHINE 10
• Setting Up 10
• Starting 10
SHUTTING DOWN
THE DRY ICE BLASTING MACHINE 12
EMERGENCY STOP 12
PRECAUTIONS – BLASTING HOSE
• Connection and Disconnection 12
• Defective Blasting Hose 12
• Blasting Hose Repair 13
PRECAUTIONS
– ELECTRIC CONNECTION 13
MAINTENANCE
• Daily Before Starting the Machine 13
• After 100 Hours of Operation 13
• After 500 Hours of Operation 13
REPAIR AND WARRANTY 14
• Repair 14
• Terms of Warranty 14
NOZZLE SELECTION
AND AIR CONSUMPTION 15
• Nozzle Diameter
and Spread Angle 15
• Small Spread Angle 15
• Large Spread Angle 15
• Nozzle Size 15
• Air Consumption Table 15
• Example of Use of the Table 15
TECHNICAL DATA
• IceBlast KG30 ¾” Supreme 16
• IceBlast KG50 ¾” Supreme 17
• IceBlast KG50 1” Supreme 18
SPARE PARTS INDEX
• IceBlast KG30 ¾” 20
• IceBlast KG50 ¾” / 1” 21
• Blasting Hose 22
• IceGun HD 23

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 2
“ Dry ice pellets sublimates immediately
on striking the object. ”
This change from a solid to a gaseous form, the
accompanying tremendous expansion in volume,
the high kinetic energy and the low temperatures
are the most important factors which result in the
loosening of impurities.
Method
The dry ice blasting machine contains a dry ice pellet
tank and a dosing unit, which doses the dry ice pellets
into the jet of compressed air. By means of the com-
pressed air, the dry ice is transported through a special
blasting hose to the blasting gun and nozzle.
In the blasting gun, the air stream is accelerated, and
the dry ice pellets leave the nozzle of the blasting gun
at very high velocity.
Cleaning Effect
The cleaning effect of dry ice blasting is based on
three principles:
• Thermal Effect:
The dry ice pellets have a temperature of
-79°C/-110°F, and impurities are therefore
cooled down drastically; the impurities shrink
and loosen due to different thermal expansion
 coefcients.
• Kinetic Effect:
When the dry ice pellets leave the blasting gun
nozzle they have high kinetic energy and strike
the impurities at a speed almost equivalent to
the velocity of sound.
• Sublimation Effect / Volume Expansion:
The dry ice pellets are being pressed into the
brittle impurities and sublimate immediately on
contact. The resulting volume increase by a
factor of approx. 700 contributes to tearing
away deposited dirt.
In some cases the thermal effect will be the most
signicantfactor,inothercasesthekineticeffect
willbethemostsignicantfactor.
GENERAL INFORMATION
The dry ice blasting machine and its accessories
have been developed with the aim of supplying
cleaning equipment which minimizes consequential
cleaning costs and combines the best characteristics
of sand blasting and steam cleaning.
Dry AND Thermal Cleaning Process
Dry ice blasting provides a dry cleaning process
(familiar in sand blasting), AND a thermal cleaning
process (familiar in steam cleaning).
The blasting media itself (dry ice pellets) subli-
mates; this means that in most cases the process
can be used for cleaning components, machinery
and plant equipment without dismantling and often
without having to cover adjacent plant equipment.
No Residual Blasting Media
Dry ice blasting provides a dry and gentle, but
extremelyefcient,cleaningprocessthatleavesno
residual blasting media to be disposed of, and no
undesired substances that might penetrate into or
be deposited on machines and plant components.
This means that cleaning by dry ice blasting
becomes an excellent alternative to cleaning with
traditional methods.
DRY ICE BLASTING – How It Operates
Dry Ice Pellets
The dry ice blasting machine uses small CO2”par-
ticles” as the blasting medium, called dry ice pellets
(CO2– the chemical symbol for carbon dioxide).
In a machine commonly known as a pelletizer, liquid
CO2is used to produce hard and uniform dry ice pellets.
The pellets are approx. 3 mm (0.1 inch) in diameter
and approx. 10 mm (0.4 inch) in length – or rice-sized.
These dry ice pellets have a temperature of -79°C/
-110°F. When used for dry ice blasting, the pellets
are blasted onto the object to be cleaned at a very
high velocity. On contact with the surface of the
object, they immediately change from a solid to a
gaseous form as they heat up on impact.

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 3
“ Drastic reduction of waste problems.
No abrasive effect. ”
SAFETY REGULATIONS
General
This manual contains instructions and safety regula-
tions which must be followed while starting, opera-
ting and maintaining the dry ice blasting machine.
It is important that the manual is kept, so the
operator always knows its exact location. It is also
important the owner makes certain that the
operator reads, understands and follows the con-
tents of the manual.
Personnel Qualications
Personnel responsible for operation, servicing and
maintenancemustbesuitablyqualiedtoperform
these functions.
Special training in machine handling as well as
repair and maintenance is offered by the manufac-
turer of the machine.
The owner of the machine must ensure that the
person appointed to operate the dry ice blasting
machine fully understands and is able to follow the
SAFETY REGULATIONS denedinthefollowing
pages, and the WARNING SYMBOLS located on
the machine.
Safety and Risk
The machine is constructed to comply with the
standards and clauses contained in the declaration
of conformity and the terms of sale. Therefore, pro-
vided the manufacturer’s instructions are followed,
the machine will not pose any risk to the operator.
Precautions during Blasting
Air, CO2gas and dry ice pellets leave the gun nozzle
at a very high velocity (up to 300 m/s – 984 ft/s).
Therefore,
• donotaimthenozzleataperson(s)orinthe
direction of a place(s) where other people work,
• remember,dryicepelletscanbedeectedback
from the object being cleaned,
• donotaimthenozzleindirectionswhere
damage might result.
Do not use the machine “for fun” and under no
circumstances should you aim the gun nozzle at
persons or other living creatures.

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 4
Danger of Thrown Loose Objects
There is a risk of dry ice pellets and small objects
beingdeectedbackduringblasting.
Thereforesmallobjectsmustbermlysecuredbe-
fore blasting. Loose objects must not be left in the
area where the cleaning process is taking place!!
The operator must always wear approved protective
goggles or a protective shield when working with
the dry ice blasting machine. This also applies to
anybody near the workspace.
Noise
Because of the high air velocities in the gun nozzle
during dry ice blasting, the level of noise in the area
where the operator works may exceed the maximum
permissible level. The owner is responsible for keeping
himself acquainted with, and informing the operator of
any precautions to be taken as to the application of ear
protection, since legislation on maximum permissible
noise levels varies from one country to another.
Static Electricity
Serious discharge of static electricity can occur.
Always make sure that objects to be cleaned are
adequately earthed/grounded and that this ear-
thing/grounding remains stable throughout the
whole cleaning process.
The dry ice blasting machine is earthed/grounded,
from machine cabinet to blasting gun, and through
the main electricity connection on the rear side of
the machine – provided that the machine has been
set up and connected as described under STARTING
THE DRY ICE BLASTING MACHINE page 10.
PACEMAKER Precautions
Do NOT use the dry ice blasting machine, if you are
wearing a pacemaker. The dry ice blasting machine
may cause pacemaker malfunction.
Explosive Hazard
The machine must never be used in surroun-
dings where there is a danger of explosion.
Despite optimum earthing/grounding of both ma-
chine and cleaning object, static electricity can be
generated and create a spark.
Danger of Congelation
At atmospheric pressure, CO2in a solid form has
a temperature of -79°C/-110°F or lower and can
give rise to congelation when the dry ice comes in
contact with unprotected skin.
Important!
Therefore, always read the safety data sheet pro-
vided by the dry ice supplier, and follow the instruc-
tions given.
“ Dry ice pellets are non-toxic, non-abrasive
and free of moisture. Therefore, dry ice
blasting is applicable for a large number of
industries. ”

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 5
Dust
Certain types of dust have a tendency to pulverize
during the cleaning process. Therefore we recom-
mend that the operator wears a dust mask or if
necessary a breathing mask and industrial protec-
tive clothing.
The owner is responsible for keeping himself
acquainted with, and informing the operator of any
precautions to be taken as to the application of dust
masks, since the limit value varies from one country
to another.
Danger of Congelation
When using the dry ice blasting machine, the opera-
tor must wear long-sleeved industrial protective
clothing in order to eliminate the risk of congelation
when the dry ice comes in contact with unprotected
skin.
Read the safety data sheet provided by the
dry ice supplier and follow the instructions
given.
CO2Detector
The presence of a CO2detector is recommended in
areas of limited ventilation such as rooms, closed
tanks, etc. The CO2detector can be installed to in-
terrupt the blasting process before the CO2concen-
tration exceeds a prescribed limit.
CO2Concentrations
Dry ice pellets are CO2in a solid form. At normal
atmospheric pressure, CO2can only exist in a solid
form at a temperature of -79°C/-110°F or lower.
When CO2is used as a blasting medium, it becomes
heated and changes into a gaseous form. As CO2
hasahigherspecicgravitythanordinaryatmos-
pheric air, inhaled air will contain CO2– especially
if the blasting process takes place in small or partly
closed rooms.
In such conditions there is a risk of the oxygen con-
tent of inhaled air being replaced by CO2. Therefore
it is essential to make sure the room is well venti-
lated when dry ice blasting!!
Note that
• lowCO2concentrations (3-5%) result in
headaches and rapid breathing,
• CO2concentrations of 7-10% produce head-
aches and nausea, and may lead to uncon-
sciousness,
• higherCO2concentrations lead to unconscious-
ness and in the worst case – suffocation.
As stated above, high CO2concentrations can
displace oxygen and result in unconsciousness.
Therefore, avoid using the dry ice blasting machine
in spaces/rooms where ventilation is limited.
“ When using the blasting equipment,
the operator must wear gloves in order to
eliminate the risk of being burned. ”

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 6
1 Handle on hopper lid.
2 Hopper lid.
Maintained in open position
by pneumatic struts.
3 Handle for maneuvering
the machine.
4 Control panel.
5 Connection for blasting hose.
6 Dry ice dosing unit.
Doses dry ice into the
blasting air stream.
“ The equipment is designed to meet
the wishes of users. It is light, mobile,
reliable and easy to operate. ”
MACHINE ILLUSTRATIONS
7 Machine wheel brakes.
Must remain applied when
the machine is in operation.
8 Pressure control.
Adjusts the blasting pressure
to the value set on the
control panel.
9 Main valve for blasting air
stream. If the machine is
ready for operation and the
blasting parameters required
have been set, this valve
opens for the blasting air
stream, every time the trig-
ger switch on the blasting
gun is activated. As soon as
the trigger switch on the
blasting gun is released, the
valve cuts off the air stream.
10 Static Ground Cable
1
2
3
3
3
3
4
68
9
5
7
10

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 7
“ In many cases cleaning is possible
without dismantling. The frequency of
production stops is therefore often
drastically reduced. ”
ACompressed-air-driven
vibrator on the hopper.
1 Hopper.
2 Control box.
3 Filter rate controller for vibra-
tor and main valve (to be set
to 4.5-5.0 bar / 65-73 psi).
4 Compressed air supply.
5 Main power supply.
MACHINE ILLUSTRATIONS
6 Signal cable from blasting
hose. Transfers signals from
the trigger switch on the
blasting gun to the machine
control.
7 Cable holder.
8 Rating plate.
9 Cabinet handles are for
maneuvering the machine
manually on its wheels. Do
NOT use them as lifting
hooks. Use a forklift truck or
a crane instead!
10 Static Ground Cable
Important!
When lifting with a forklift
truck, make sure that the forks
are inserted all the way under
the machine frame itself.
When using a crane for lifting,
a yoke with straps under the
cabinet frame must be used.
Ensure that wheels and wheel
brakes do not become damaged.
4 5
79
9
10
1
2A
3
10 6
8
9

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 8
CONTROL PANEL
1Machine ON / OFF.
2Consumption of Dry Ice in kg/h -lbs/min.
3Emergency stop.
4Air Supply pressure.
5Blasting pressure.
6Knob for adjusting air pressure.
7Warning symbols and
instructions.
BLASTING HOSE
1Hose coupling – for connection
on front of the dry ice blasting
machine.
2Signal cable – for connection
on front of the dry ice blasting
machine.
3Signal cable – for connection
to the blasting gun.
4Hose coupling – for connection
to the blasting gun.
1
4
3
2
ICEGUN HD SUPREME WITHOUT LIGHT
The standard blasting hose is
madeofaexibleber-reinforced
silicone tube with a protective
sleeve. Blasting hoses made
ofTeonforuseine.g.the
food industry are available upon
request.
126
7
345
“ A broad range of accessories can be
supplied for the blasting gun, ensuring
maximum efciency. ”
10
7
8
9
Dim. (mm/inch)
– incl. nozzle and nozzle holder
Length: 320 / 12.5
Width: 60 / 2.36
Height: 185 / 7.28
Weight
– incl. nozzle and nozzle holder
g: 1150 / lbs: 2.53
7Safety switch
8 Blasting nozzle – interchangeable
9 Signal cable
10 Two-step trigger
- Blasting with dry ice AND air
- Blasting with AIR ONLY
Light max 20 min without blasting

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 9
“ The blasting gun is ergonomically
designed. The gun is built up of modules and
can be adapted to suit any task. ”
ICEGUN HD SUPREME WITH LIGHT
1Light.
2Safety switch.
3Two-step trigger.
- Blasting with dry ice AND air.
- Blasting with AIR ONLY.
4 Signal cable.
5 Standard Round Nozzle
- interchangeable.
6 Nozzle holder.
Dim. (mm/inch)
– incl. nozzle and nozzle holder
Length: 320 / 12.5
Width: 60 / 2.36
Height: 185 / 7.28
Weight
– incl. nozzle and nozzle holder
g: 1150 / lbs: 2.53
Light max 20 min without blasting
Fault Cause Remedy
Only air is coming out of the
gun
No signal to IceGun
Trigger on gun is not fully
depressed
Connection lost in blast hose
IceGun has a two-step trigger,
half depressed blast air only
Call technician to be further
diagnosed
3
2
5
4
61

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 10
STARTING THE DRY ICE BLASTING MACHINE
2
1
33
4
5
6
7
Setting Up
1 Make sure the machine is on a level, horizontal
surface, and that the wheel brakes are applied.
2Plug the blasting hose couplings into the socket
on the machine front and the blasting gun,
respectively.
Check to make sure the hose couplings are
correctly connected.
3Connect the signal cable at both ends of the
blasting hose with the sockets on the machine
front and the blasting gun.
CORRECT ORDER IS IMPORTANT!!
FIRST connect the blasting hose couplings
– THEN the signal cable!!
4Connect the main power supply.
5Connect the compressed air supply.

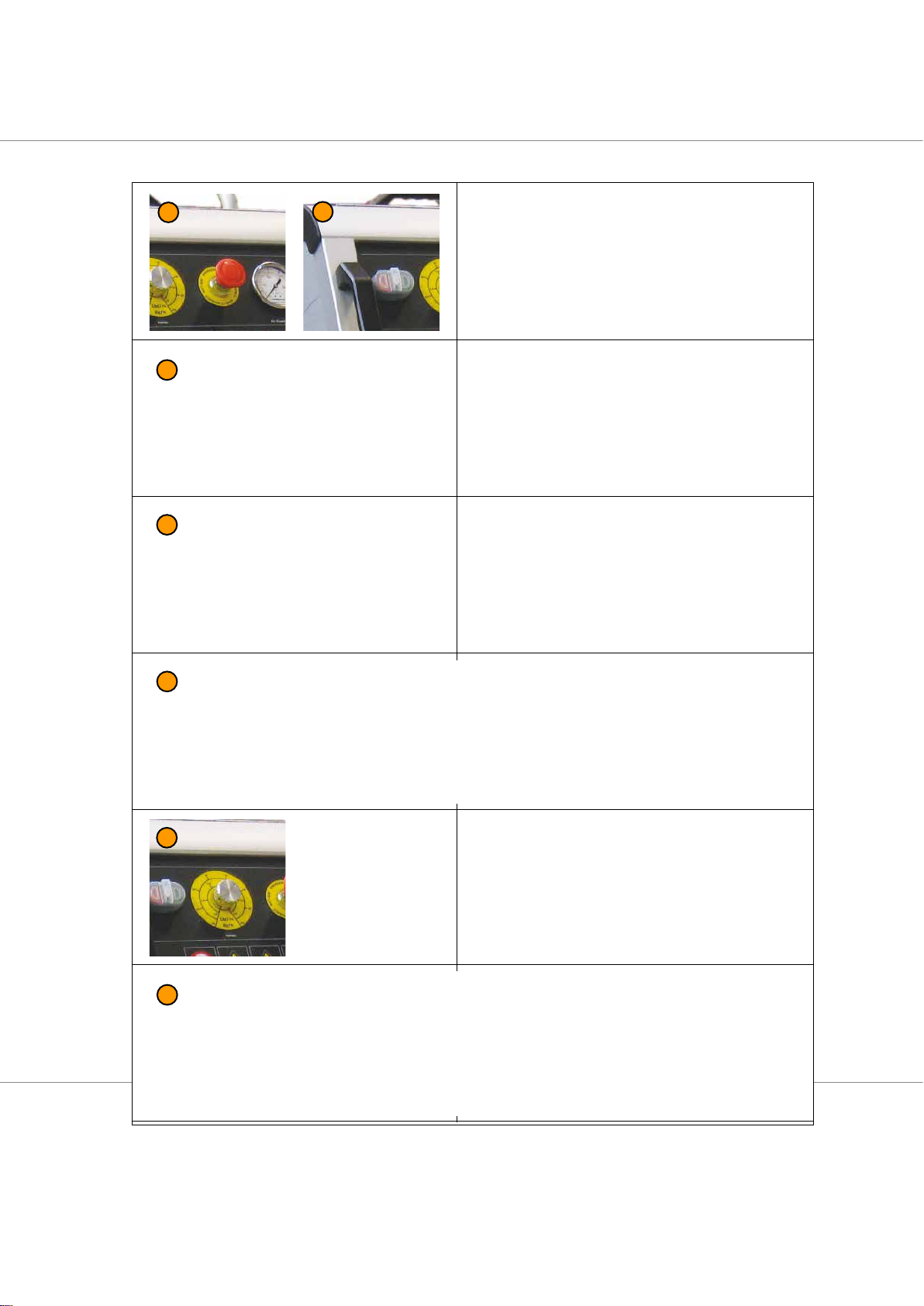

Starting
When the machine has been set up as described
above (items 1-5), the following procedure shall
be followed before the cleaning process has
begun:
6Check carefully to ensure that the dosing unit
is dry and clean at the hopper outlet.
7Open the external compressed
air supply (slowly).
22

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 11
10 The IceBlast machine is equipped with a Static
Ground Cable which is mounted on the front of the
IceBlast machine. Connect the Static Ground Cable
to the item being blast cleaned or to an electrically
conductive supporting structure of the material.
135 9
7
10
11
12
14
11 Activate the trigger on the blasting gun
 forafewsecondstoallowairtoowthrough
the system. Checking for moisture in the
airstream, and proper operation of the dosing
disc, vibrator, and regulator
13 Adjust the dry ice consumption (kg/h / lbs/min.)
and the blasting pressure (bar/psi) – the value is
shown on the pressure gauge.
12 Fill dry ice pellets into the hopper (this can be done while the
machine is in operation).
Please note: It is recommended that you run the hopper empty before each
llingtoenabletheoperatortoseewhether“snow”orlumpsappearinthedryice.
These can prevent a continuous supply of dry ice to the dosing unit.
Never leave the machine with the lid open.
14 Start dry ice blasting.
Please note: Before activating the trigger on the blasting gun, the operator
must stand in a working posture that prevents loss of balance from blasting
gun recoil (at max. blasting pressure, with the largest nozzle diameter, the
recoil energy can reach as much as 10 kg / 22 lbs).
8Check to make sure that the machine is in normal
operating position (the emergency stop button is
pulled out).
9Turn the machine ON (press the green ON button).
13
89

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 12
“ The operator must NEVER repair the
blasting hose without using original IceTech
spare parts!! ”
SHUTTING DOWN THE DRY ICE BLASTING MACHINE
When the cleaning task has been completed, the
following procedure must be carried out before the
machine is dismantled or stored:
• Emptythehopper.
• Activatethetriggerontheblastinggun
for a few seconds in order to empty the system
of possible dry ice residue.
• Closethecompressedairsupply.
• Activatethetriggerontheblastinggunforafew
seconds in order to depressurize the system.
• Turnoffthemachine(presstheredOFFbutton).
• Disconnectthemainpowersupply.
• Disconnectthecompressedairsupply.
• Itisrecommendedtodisconnectthe
blasting hose.
CORRECT ORDER IS IMPORTANT!
FIRST disconnect the signal cable – THEN the
blasting hose couplings!!
• Avoidkinkingtheblastinghose,whenrolling
it up.
EMERGENCY STOP
Activation of the emergency stop button immediately
stopstheblastingairstreamandthedryiceow.
Before the machine can be restarted, the following
procedure must be carried out:
• Disengagetheemergencystopbutton
(pull out the button).
• Startthemachine(pressthegreenONbutton).
• Restarttheblastingairstreambyactivating
the trigger switch on the blasting gun.
PRECAUTIONS – BLASTING HOSE
Connection and Disconnection
Never disconnect the blasting hose from the ma-
chine or blasting gun when the main power supply
and/or compressed air supply are connected. Other-
wise activation of the trigger on the blasting gun will
result in a discharge of blasting air through an open
outlet instead of through the blasting gun nozzle.
If this happens, the operator will lose control of the
air stream, and serious injury may result.
CORRECT ORDER IS IMPORTANT!!
• Connection:
FIRST connect the blasting hose couplings
– THEN the signal cable!!
• Disconnection:
FIRST disconnect the signal cable
– THEN the blasting hose couplings!!
Defective Blasting Hose
The outer hose sleeve protects the operator from
any exposure caused by wear and tear of the inner
hose. No pressure build-up is permissible in the outer
sleeve during operation.
If a defective blasting hose is used, the operator
risks serious injury from being hit by dry ice pel-
lets.
Anysignofinationmeansthattheinnerhoseisin
some way defective.
NOTE:
If that fault occurs, stop the machine
IMMEDIATELY:
• Closethecompressedairsupplyimmediately.
• Activatethetriggerontheblastinggun
until the system is depressurised.
• Activatetheemergencystopbutton.
• Disconnectthemainpowersupply.
• Disconnectthecompressedairsupply.
• Disconnecttheblastinghose
(FIRST disconnect the signal cable
– THEN the blasting hose couplings).
• Makesuretheblastinghoseisrepairedand
pressure-tested (see following page).
• Althoughthehoppermaynotbeempty,the
system must not be blasted through until a
new/repaired blasting hose has been connected.

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 13
“ Examine the hose for cracks
and other damage before starting
the machine ”
Blasting Hose Repair
Blasting hoses must only be repaired either by
anIceTechtechnicianorbytheowner’squalied
personnel having been trained by IceTech in the
repair and maintenance of IceTech dry ice blasting
machines and accessories. Beyond the necessary
knowledge, the person concerned must have appro-
priate tools and equipment, as well as the auxiliary
materials required, at his disposal.
The operator must NEVER repair the
blasting hose without using original IceTech
spare parts!!
Thestandardblastinghoseismadeofaexible
ber-reinforcedsiliconetubewithaprotectivesleeve.
BlastinghosesmadeofTeonforuseinthefood
industry are available upon request.
PRECAUTIONS – ELECTRIC CONNECTION
Main Power Supply
The main electric connection supplies the machine
with LN + PE. (L-N), respecting the live/phase (L),
neutral (N) and ground (PE) connections
Themachinevoltageisspeciedontheratingplate.
The control circuits use 24 V DC.
OFF Button
The OFF button cuts off voltage to the control cir-
cuits, but does not make the machine voltage-free.
The machine is only voltage-free when the
main power supply has been disconnected.
Cover Plate at the hopper Bottom
Acoverplateisttedatthebottomofthehopperto
prevent the operator from coming into contact with
the moving parts of the dosing unit during operation.
Since the cover plate is part of the safety precautions
of the machine, it must NOT be removed.
MAINTENANCE
Daily before Starting the Machine
1Pay special attention to places on the blasting hose
where kinks may have occurred during operation.
2If any kind of damage to the blasting hose or the
machine itself is noted, such damage must be repaired
eitherbyanIceTechtechnicianorbytheowner’squalied
personnel who has been trained by IceTech in the repair
and maintenance of IceTech dry ice blasting machines and
accessories. Beyond the necessary knowledge, the person
concerned must have appropriate tools and equipment, as
well as the auxiliary materials required, at his disposal.
In this way it is ensured that the repaired blasting hose/
machine continues to comply with the safety regulations
after repair.
After 100 Hours of Operation
1Examine connections for wear and tear or other
damage. Tighten up or replace them as necessary.
2Check the dosing unit for damage and leakage.
After 500 Hours of Operation
1Examine connections for wear and tear or other
damage. Tighten up or replace them as necessary.
2 Dismantle the dosing unit. Check the dosing disc.
and wear plates for damage and wear.
If the dosing disc and wear plates are OK - then
reassemble and readjust the dosing unit. If wear
plates and dosing disc are not OK – then ...
3Replace the dosing disc, and replace the upper
and lower wear insert at the dosing disc.
4Reassemble the dosing unit.
5Check the blasting hose for wear and tear.
6If necessary, replace the diaphragm in the
pilot-controlled pressure regulator.

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 14
REPAIR AND WARRANTY
Repair
The repair/replacement of the following parts can
bemadebytheowner’squaliedpersonnel:
• Signalcableplugsonthemachine,blastinghose
and blasting gun.
• Blastinghosecouplingsonthemachine,hose
and gun.
• Electricityandcompressedairsocketsonthe
rear of the machine.
When making repairs/replacements, use only
original IceTech spare parts.
Terms of Warranty
In order to comply with the terms of the warranty,
and for safety reasons, repairs other than those
stated above require relevant tools and equip-
ment and therefore must always be made either by
anIceTechtechnicianorbytheowner’squalied
personnel who have been trained by IceTech in the
repair and maintenance of IceTech dry ice blasting
machines and accessories. Beyond the necessary
knowledge, the person concerned must have appro-
priate tools and equipment, as well as the auxiliary
materials required, at his disposal.
The liability of the manufacturer under the terms
of the CE endorsement in regards to safety may
become invalid:
•If repairs are made using non-IceTech
spare parts.
•If repairs are made by unqualied personnel.
•If repairs are unsatisfactory due to lack of
relevant tools and equipment.
In such cases, the liability of the manufacturer will
besolelyconnedtoanymanufacturingfaults/er-
rors made prior to the machine being delivered and
before repairs/replacements have been made.

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 15
Nozzle Diameter and Blast Pattern
Thenozzleselectionshouldbebasedonnding
the best combination of air consumption, dry ice
consumptionandcleaningefciency.
The selection of the nozzle spread angle should
depend on how strong or weak a cleaning effect is
desired for a given dry ice consumption.
Small Blast Pattern
A small blast pattern gives a concentrated jet with a
high cleaning effect on a small area.
Wide Blast Pattern
Alargespreadangle,e.g.theatnozzle,resultsin
a jet which for the same consumption of dry ice and
air cleans a larger area with a lesser cleaning effect.
Nozzle Size
It is most important to select the size of nozzle
which will provide the desired air velocity using
the available compressor capacity. Choosing the
right nozzle size and type will optimize not only the
cleaning effect, but also the dry ice consumption
and the time required for the cleaning process itself.
Refer to the air consumption table for guidance on
the nozzle selection.
Air Consumption Table
The air consumption table indicates the air con-
sumption in relation to nozzle size and blasting
pressure. The maximum supply pressure of KG50
and KG30 amounts to 16 bar/232 psi.
Example of Use of the Table
The air consumption table outlines the air consump-
tion achieved with the nozzle sizes available. If for
example a size 8 nozzle is used at a blasting pres-
sure of 6 bar (87 psi) the air consumption amounts
to 4.2 Nm3/min (148.3 ft3/min).
The available compressor capacity will always need
to be taken into consideration and therefore it may
be necessary to do some test blasts and observe
the results until the optimum combination of nozzle
size and blasting pressure for a certain application
is found.
NOZZLE SELECTION AND AIR CONSUMPTION
KG 6/20
KG 12
KG 30
KG 50
Air consumption in Nm3/min - ft3/min
at the pressures indicated (bar/psi)
Ø = nozzle diameter
KG 6/20
KG 12
KG 30
KG 50
AIR CONSUMPTION TABLE
Bar» 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Ø 5 0.7 0.9 1.2 1.4 1.6 1.9 2.1 2.3 2.6 2.8 3.0 3.3 3.5 3.7 4.0
Ø 6 1.0 1.3 1.7 2.0 2.4 2.7 3.0 3.4 3.7 4.0 4.4 4.7 5.1 5.4 5.7
Ø 7 1.4 1.8 2.3 2.7 3.2 3.7 4.1 4.7 5.1 5.7 6.2 6.6 7.1 7.4 7.7
Ø 8 1.8 2.4 3.0 3.6 4.2 4.8 5.4 6.1 6.7 7.3 7.9 8.4 9.1 9.7 10
Ø 9 2.3 3.0 3.8 4.6 5.3 6.1 6.9 7.7 8.4 9.4 10.1 10.8 11.7 12.1 13
Ø 10 2.8 3.7 4.7 5.7 6.6 7.6 8.5 9.6 10.4 11.3 12.4 13.4 14.3 15.3 16
AIR CONSUMPTION TABLE
psi» 29 44 58 73 87 102 116 131 145 160 174 189 203 218 232
Ø 5 25 32 42 49 56 67 74 81 92 99 106 116 124 131 141
Ø 6 35 46 60 71 85 95 106 120 131 141 155 166 180 191 201
Ø 7 49 64 81 95 113 131 145 166 180 201 219 233 251 261 272
Ø 8 64 85 106 127 148 169 191 215 237 258 279 297 321 342 353
Ø 9 81 106 134 162 187 215 244 272 297 332 357 381 413 427 459
Ø 10 99 131 166 201 233 268 300 339 367 399 438 473 505 540 565
Air consumption in m3free air/min
Air consumption in ft3/min

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 16
“ A broad range of accessories can be
supplied for the blasting gun, ensuring
maximum efciency. ”
TECHNICAL DATA
IceBlast KG30 ¾” Supreme
Dimensions (mm/inch)
Length: 580 / 22.8
Width: 550 / 21.6
Height incl. handle: 960 / 37.7
Weight
kg: 85 / lbs: 187
US version: kg: 109 / lbs: 240
Dry Ice Capacity
kg: 30
lbs: 66
Dry Ice Consumption
kg/h: 0-100
lbs/h: 0-220
innitelyadjustable
Supply Pressure
bar: min. 5 - max. 16
psi: min. 72 - max. 232
Blasting Pressure
bar: min. 2 - max. 16
psi: min. 29 - max. 232
Air Consumption
m3: 0.7-11
cfm: 25-388
depending on nozzle
combination
Compressed Air Connection
1” claw coupling
Air quality: According to ISO 8573-1 Class 3
for environment temperature below +5°C/ +41°F.
Power Consumption
110/230 V
AC 50-60 Hz
800 W
Blasting hose
Inside diameter: ¾”
Single Hose System
Noise
Noise level 60-120 dB(A) depending on
blasting pressure, nozzle combination, material
surface and other environmental factors.
For Spare Parts:
Scan this code with your Smartphone´s
QR CODE READER APP or
Go online at http://www.icetechworld.com/Spare-
Parts/View-category.html
The Circuits board is listed
intheULcerticationsystem.

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 17
TECHNICAL DATA
IceBlast KG50 ¾” Supreme
Dimensions (mm/inch)
Length: 700 / 27.5
Width: 550 / 21.6
Height incl. handle: 1160 / 45.6
Weight
kg: 90 / lbs: 198
US version: kg: 110 / lbs: 242
Dry Ice Capacity
kg: 50
lbs: 110
Dry Ice Consumption
kg/h: 0-100
lbs/h: 0-220
innitelyadjustable
Supply Pressure
bar: min. 5 - max. 16
psi: min. 72 - max. 232
Blasting Pressure
bar: min. 2 - max. 16
psi: min. 29 - max. 232
Air Consumption
m3: 0.7-11
cfm: 25-388
depending on nozzle
combination
Compressed Air Connection
1” claw coupling
Air quality: According to ISO 8573-1 Class 3
for environment temperature below +5°C/ +41°F.
Power Consumption
110/230 V
AC 50-60 Hz
800 W
Blasting hose
Inside diameter: ¾”
Single Hose System
Noise
Noise level 60-120 dB(A) depending on
blasting pressure, nozzle combination, material
surface and other environmental factors.
For Spare Parts:
Scan this code with your Smartphone´s
QR CODE READER APP or
Go online at http://www.icetechworld.com/Spare-
Parts/View-category.html
The Circuits board is listed
intheULcerticationsystem.

MANUAL for KG30 - KG50 SUpreMe
DRY ICE BLASTING EQUIPMENT FROM ICETECH | PAGE 18
TECHNICAL DATA
IceBlast KG50 1” Supreme
Dimensions (mm/inch)
Length: 700 / 27.5
Width: 550 / 21.6
Height incl. handle: 1160 / 45.6
Weight
kg: 90 / lbs: 198
US version: kg: 110 / lbs: 242
Dry Ice Capacity
kg: 50
lbs: 110
Dry Ice Consumption
kg/hr: 0-150 (0-220 optional)
lbs/hr: 0-330 (0-485 optional)
innitelyadjustable
Supply Pressure
bar: min. 5 - max. 16
psi: min. 72 - max. 232
Blasting Pressure
bar: min. 2 - max. 16
psi: min. 29 - max. 232
Air Consumption
m3: 0.7-16
cfm: 25 - 565
depending on nozzle
combination
Compressed Air Connection
1.5” claw coupling
Air quality: According to ISO 8573-1 Class 3
for environment temperature below +5°C/ +41°F.
Power Consumption
110/230 V
AC 50-60 Hz
800 W
Blasting hose
Inside diameter: 1”
Single Hose System
Noise
Noise level 60-120 dB(A) depending on
blasting pressure, nozzle combination, material
surface and other environmental factors.
For Spare Parts:
Scan this code with your Smartphone´s
QR CODE READER APP or
Go online at http://www.icetechworld.com/Spare-
Parts/View-category.html
The Circuits board is listed
intheULcerticationsystem.
