Operator & Parts Manual
Dry Vacuum Cleaner
www.icecompanies.com
2630403EU
REV.01(01-2014)
ID10
INTERNATIONAL CLEANING EQUIPMENT

SAFETY PRECAUTION. . . . . . . . . . . . . . . . . . . . . 2
MACHINE OPERATON & STORAGE. . . . . . . . . . . . .3
MACHINE COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
WEAR&TEAR PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
ICE ID10 1
TABLE OF CONTENTS

SAFETY PRECAUTION
2ICE ID10
OPERATOR
Carefully read and understand this manual before operating this machine.
This machine must be grounded!
This machine shall be grounded while in use to protect theoperator from electric shock.
Grounding provides a path of least resistance for electric current. This machine is equipped
with a cord having an equipment-grounding conductor and grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. Do not remove the ground pin under any circumstances.

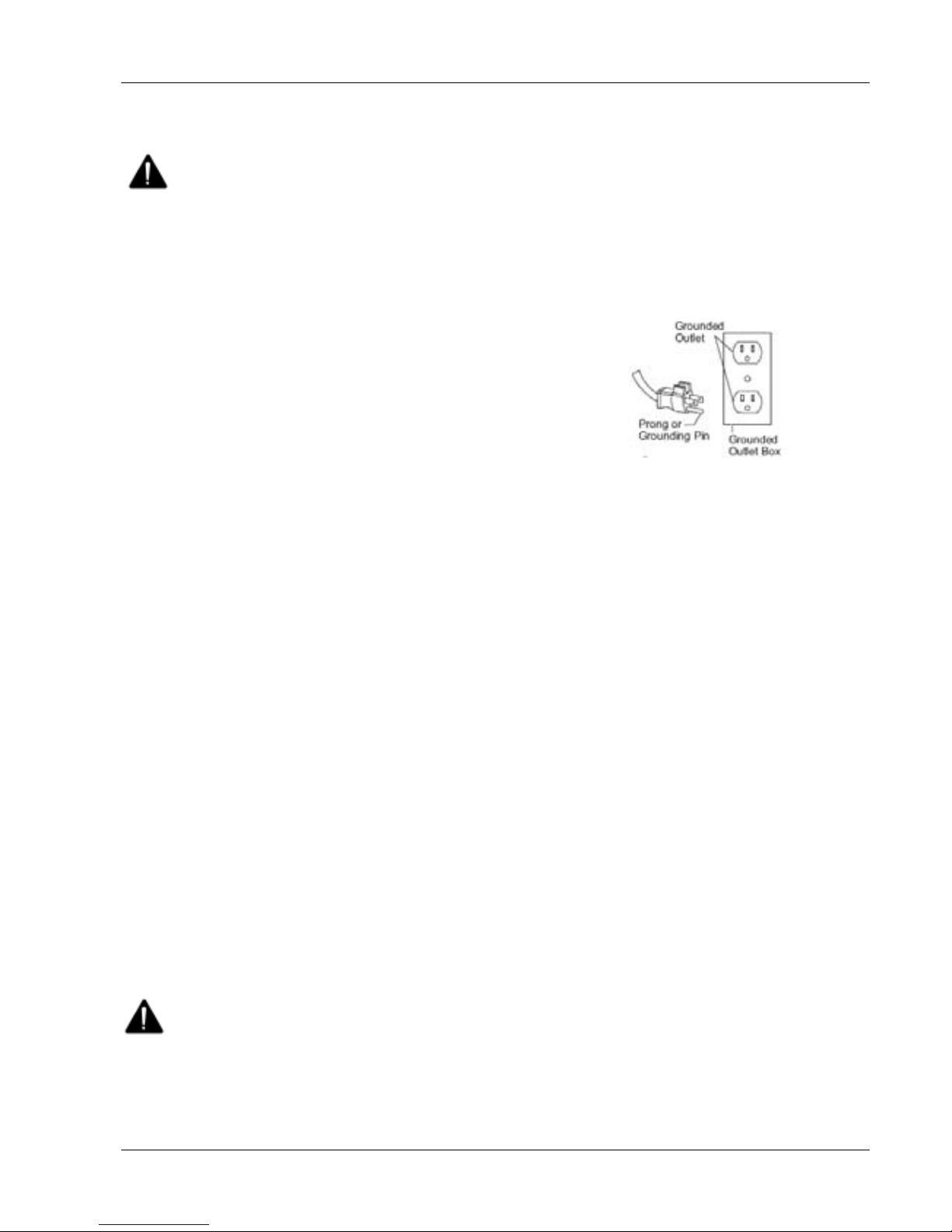

This machine is for use on a nominal 220-volt circuit
and has a grounding plug that resembles the plug
illustrated in Figure. Make sure that the machine is
connected to an outlet having the same conguration as
the plug. No adapter should be used with this machine.
This machine is intended for commercial use. It is constructed for use in an indoor environment
and is nor intended for any other use. Use only recommended accessories.
1. Do not operate machine:
– Unless trained and authorized. – Unless you have read and
– In ammable or explosive areas. understand the operators manual.
– With a damaged cord or plug – With the use of extension cords.
– If not in proper operating condition. – In outdoor areas and standing water.
2. Before operating machine:
– Make sure all safety devices are in place and operating properly.
3. When using machine:
– Do not run machine over cord. – Do not pull machine by cord or plug.
– Do not pull cord around – Do not unplug by pulling on the cord.
sharp edges or corners. – Do not stretch cord.
– Do not handle plug with wet hands. – Keep cord away from heated surfaces.
– Report machine damage or faulty
operation immediately.
To avoid electrical shock,please replace the power cord immediately if any damage is
being detected. The replacement must be performed only by an authorized person or
by our customer service center.
4. Before leaving or servicing machine:
– Turn off machine. – Unplug cord from outlet.
5. When servicing machine:
– Unplug cord from outlet. – Use manufacturer supplied or
approved replacement parts.

Operation of the Canister Vacuum
ICE ID10 3
OPERATOR
Read operators manual thoroughly prior to operating or servicing
this machine.
DRY PICKUP.
3) Connect vacuum hose to inlet on the machine body.
4) Choose appropriate tool, and attach it to the free end of the hose.
5) Plug power cord into grounded outlet.
Be sure the machine is not plugged into an outlet.
1) Remove the vac head of machine and conrm that there is either a cloth of paper lter in
place.
2) Replace & the latch vac head.
STORAGE
1) Unplug machine from power source and wrap cord on handle.
2) Attach the combination tool to the holder .
3) Store in upright position in a dry area.
MAINTENANCE
To keep the machine performing well for many years, please follow the following
maintenance procedures.
Always confirm that the machine is unplugged prior to performing any
maintenance or repairs.
1) Unplug machine as soon as you are done using it.
2) Check power cord for any damage. If any damage is detected, replace the cord immediately.
3) Lubricate casters with a water resistant lubricant every month
4) Check machine for loose or missing nuts and bolts, and replace as necessary.
5) Check the lter, and clean it after each use
6) Remove the vacuum hose and check it for any holes and clogs
7) Clean the outside of the machine with a mild cleaner
Do not use an extension cord in conjunction with the standard power cord.
6) To start the machine push on the red rocker switch turn on.
7) Check the lter bag periodically to see if it is full. For optimal performance, replace the
bag when it is 3/4 full.
8) This machine is designed to be pulled around by the vacuum hose, so pull the hose, and
the vacuum will follow.
9) To stop the machine at any time, simply turn off the rocker switch

MACHINE COMPONENTS
4 ICE ID10
OPERATOR
1.Carrying handle 2.On/off switch
3.Snap Handle 4.Hose intake
5.Caster 6.Wheel
7.Tank 8.Motor cover
9.Holder , Combination tool 10. Main cord
4
10
7
6
9
1
5
3
2
8

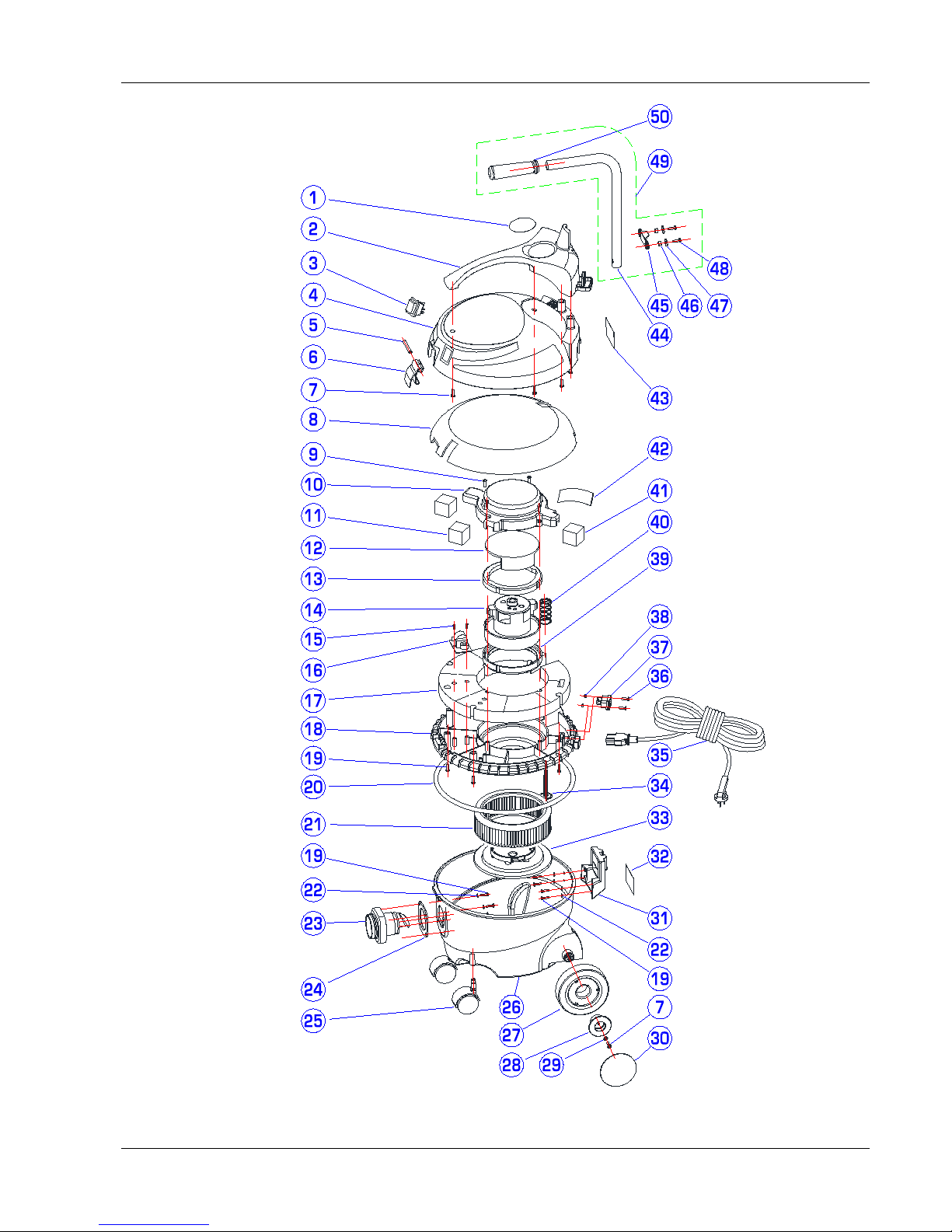

ICE ID10 5
OPERATOR

6ICE ID10
DIA
NO
PART
NUMBER DESCRIPTION NO REQ'D
1 2010121 Logo 1
2 2610111 Handle 1
3 2110108 Switch 1
4 2610102 Housing,Vac Head 1
5 2010119 Pin 1
6 2610117 Catch 1
7 1311316 Screw, Ph,ST4.8 X 16 4
8 2610122 Screen,Housing,Vac Head 1
9 1311216 Screw,Ph,ST4.2X16 4
10 2610104 Mounting Cover,Motor 1
11 2010109 Screen,Mounting Cover 2
12 2610123 Silencer,Mounting Cover 1
13 2710105 Top Gasket,Motor 1
14 2710108 Vac Motor,220V 1
15 1310016 Screw,Ph,ST2.9X16 2
16 2010126 EMI 1
17 2610108 Screen,Mounting Base 1
18 2610101 Mounting Base,Motor 1
19 1321220 Screw,Ph,ST4.2 X 19 13
20 2610106 Sealer 1
21 2610118 Filter(HEPA) 1
22 1421409 Washer,Plain,∅4.3X∅9X0.8 8
23 2020203 Intake 1
24 2020202 Gasket,Intake 1
25 2020210 Caster,∅50 2
26 2620201 Tank 1
27 2620209 Wheel 2
28 2620207 Axle 2
29 1421516 Washer,Plain,∅5X∅16X1 2
30 6010138 Cover,Wheel 2
31 2620204 Holder,Combination Tool 1
32 2030414 Warning Decal 1
33 2610119 Bracket,Filter 1
34 2010113 Valve,By-Pass 1
35 2610126EU Power Cord(EU Plug) 1
2610126HK Power Cord(UK Plug),10M 1
2610127 Power Cord(UK Plug),20M 1
36 1122315 Screw,FH,SST,M3X15 2
37 2610128 Socket 1
38 1123305 Nut, Lock, M3 2
39 2010103 Bottom Gasket,Motor 1
40 2010116 Spring 1
41 2010130 Screen,Mounting Cover 2
42 2610124 Silencer,Mounting Cover 2
43 2630405EU Serial Decal 1
44 2610301 Handle 1
45 2610303 Bracket 1
46 2610304 Spacer 2
47 1221518 Washer,Plain,∅5X∅18X2 2
48 1221516 Screw,Ph, M5 X 16 2
49 2610300 Handle Assey(Optional) 1
50 2610302 Cover,Handle 1
OPERATOR
PARTS LIST

ICE ID10 7
OPERATOR
ACCESSORIES

8ICE ID10
OPERATOR
PARTS LIST
DIA
NO
PART
NUMBER DESCRIPTION NO REQ'D
1 2030300 Hose Assy 1
2 2030402 Paper Bag(Optional) 1
3 2030107 Tube,Sst 2
4 2030401 Vacuum Bag,Cloth 1
5 2030220 Combination Tool 1
6 2030104 Dusting Tool 1
7 2030106 Crevice Tool 1
8 2030101 Upholstery Tool 1

ICE ID10 9
OPERATOR
TECHNICAL DATA
Model ID10
Voltage 220V-240V
Power 1000W
Current 4.5 A
Frequency 50-60Hz
Capacitor(Tank) 13L
Capacitor(Dust Bag) 10L
Vacuum 2300mmH2O(90")
Flow rate 3240L/Min(114CFM)
Sound pressure level
at workstation 59 dB(A)
Weight 5.5kg
Length of Power cord 10m
Hepa H13
Dimensions 39.4cm(L)X36cm(W)X39.6cm(H)

10 ICE ID10
OPERATOR
Wiring Diagram
ID10
220V
PHASE
SUPPLY
SINGLE
50/60HZ
SWITCH
RVV3X0.75/H05VV-F3X0.75
Power
Supply
Cord
BLUE
G/Y
BROWN
G/Y
BLACK
BLACK
Motor
EMI

ICE ID10 11
OPERATOR
WEAR &TEAR PARTS
D I A
NO
PART
NUMBER DESCRIPTION NO REQ'D
1 2020210 Caster,¢50 2
2 2620209 Wheel 2
3 2030101 Upholstery Tool 1
4 2030401 VACUUM BAG,CLOTH 1
5 2030220 Combination Tool 1
62030104 Dusting Tool 1
72030106 Crevice Tool 1
