Ice iW90 Programming manual

Operator & Parts Manual
Wet / Dry Vacuum Cleaner
www.icecompanies.com
2320601U
REV.04(02-2017)
iW90
INTELLIGENT CLEANING EQUIPMENT

SAFETY PRECAUTION. . . . . . . . . . . . . . . . . . . . . 2
HANDLE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . 3
MACHINE OPERATON & STORAGE. . . . . . . . . . .4-5
MACHINE COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-13
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

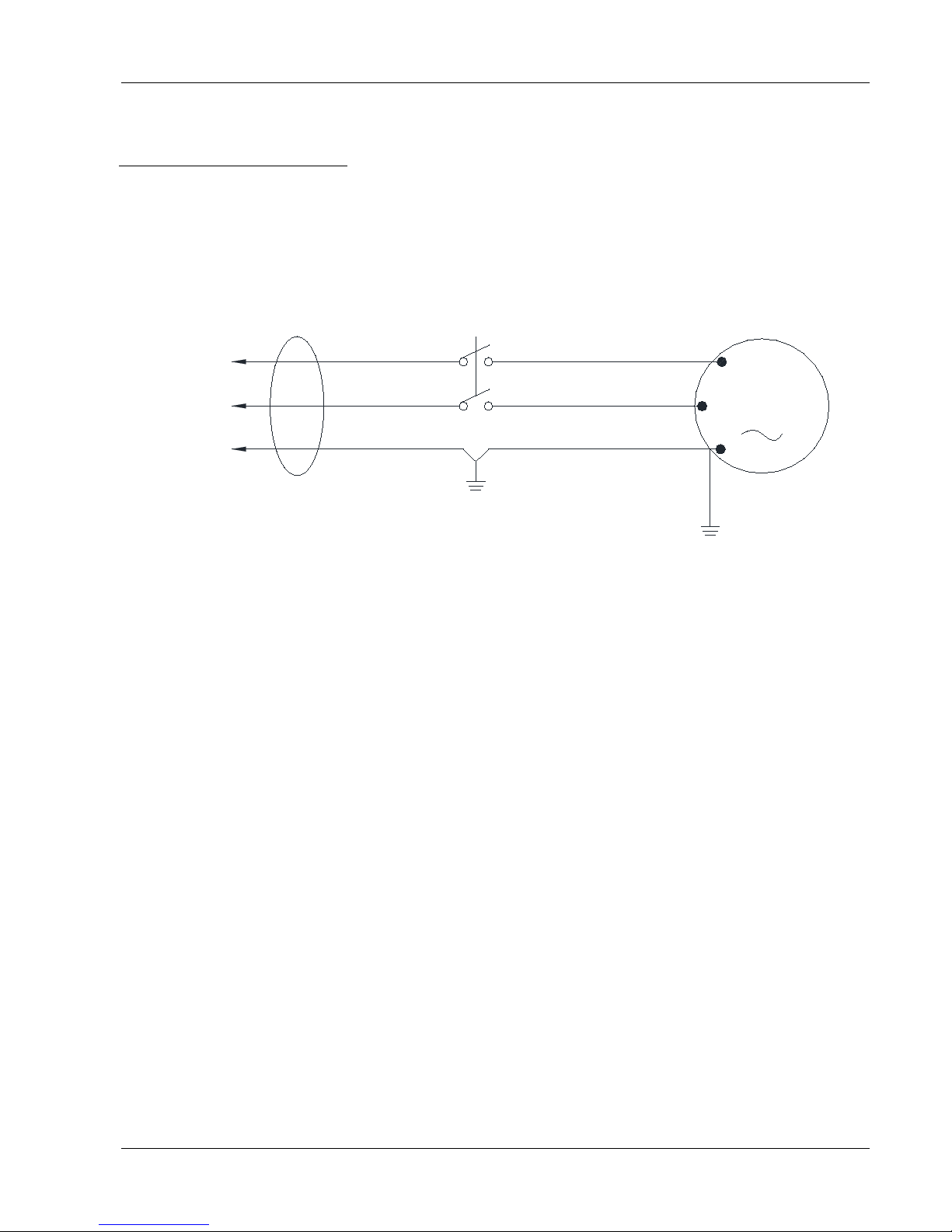

WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
WEAR&TEAR PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
ICE iW90 1
TABLE OF CONTENTS

SAFETY PRECAUTION
2ICE iW90
OPERATOR
Carefully read and understand this manual before operating this machine.
This machine must be grounded!
This machine shall be grounded while in use to protect theoperator from electric shock.
Grounding provides a path of least resistance for electric current. This machine is equipped
with a cord having an equipment-grounding conductor and grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. Do not remove the ground pin under any circumstances.

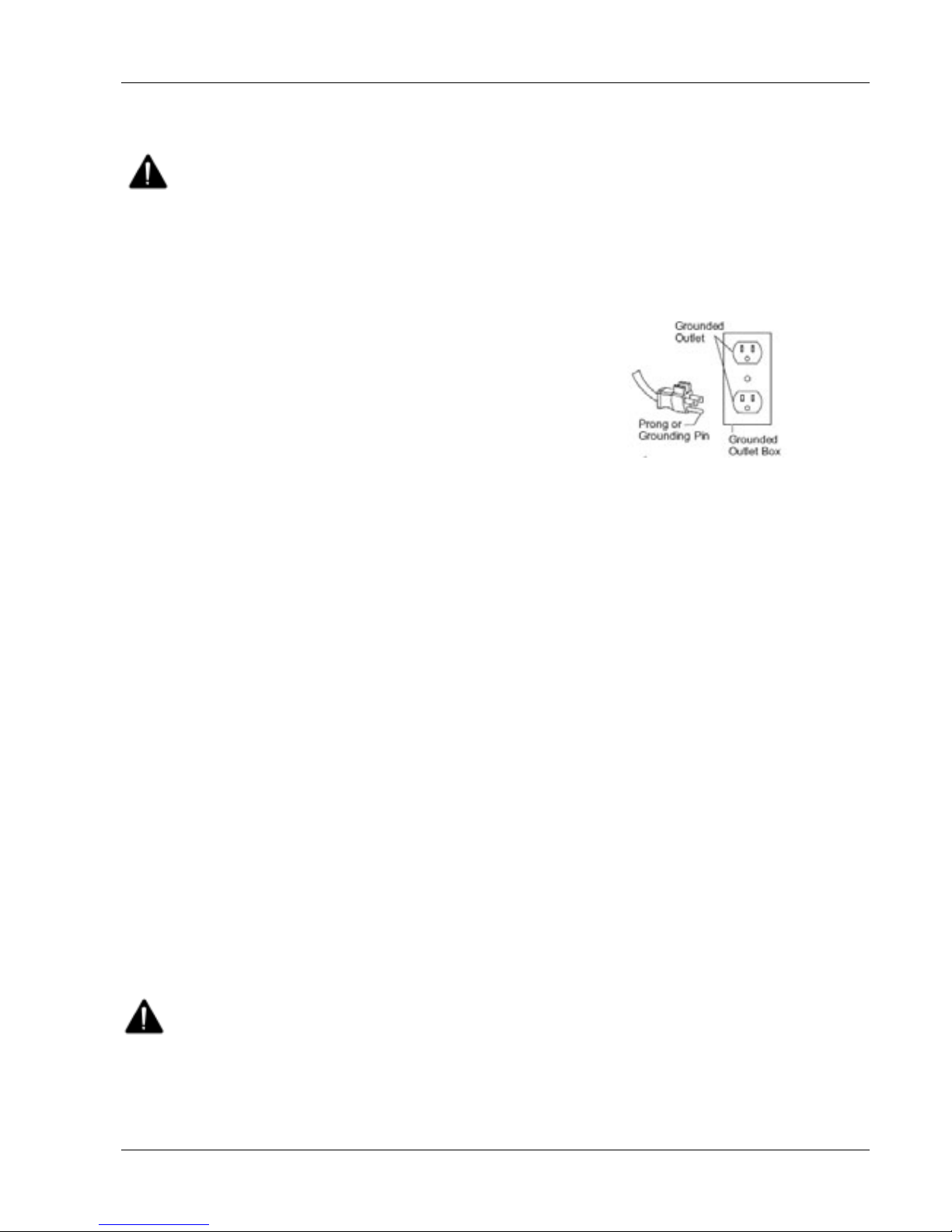

This machine is for use on a nominal 120-volt circuit
and has a grounding plug that resembles the plug
illustrated in Figure. Make sure that the machine is
connected to an outlet having the same conguration as
the plug. No adapter should be used with this machine.
This machine is intended for commercial use. It is constructed for use in an indoor environment
and is nor intended for any other use. Use only recommended accessories.
1. Do not operate machine:
– Unless trained and authorized. – Unless you have read and
– In ammable or explosive areas. understand the operators manual.
– With a damaged cord or plug – With the use of extension cords.
– If not in proper operating condition. – In outdoor areas and standing water.
2. Before operating machine:
– Make sure all safety devices are in place and operating properly.
3. When using machine:
– Do not run machine over cord. – Do not pull machine by cord or plug.
– Do not pull cord around – Do not unplug by pulling on the cord.
sharp edges or corners. – Do not stretch cord.
– Do not handle plug with wet hands. – Keep cord away from heated surfaces.
– Report machine damage or faulty
operation immediately.
To avoid electrical shock,please replace the power cord immediately if any damage is
being detected. The replacement must be performed only by an authorized person or
by our customer service center.
4. Before leaving or servicing machine:
– Turn off machine. – Unplug cord from outlet.
5. When servicing machine:
– Unplug cord from outlet. – Use manufacturer supplied or
approved replacement parts.

ICE iW90 3
OPERATOR
Handle Assembly Instructions
Attaching Handle
1] Remove handle from ship position (Figure 1).
2] Realign handle as shown and screw knobs (Adjustable handle has
three height](Figure 2).
3] Attach Drain hose (Figure 3).
4] Attach front mount squeegee (Figure 4).
Figure 1
Figure 2
Figure 3
Figure 4

Operation of Wet & Dry Vacuum
4 ICE iW90
OPERATOR
Read operators manual thoroughly prior to operating or servicing
this machine.
Be sure that the handle is properly assembled on machine body prior to
operating .
Wet Operation
1) Remove clear window and remove the cloth or paper lter form vacuum.
2) While clear window is removed, check to make sure that the oat shut-off is
unobstructed and fully functional.
3) Replace clear window on the top of the recovery tank.
4) Connect vacuum hose to inlet on the machine body.
5) Attach appropriate accessory tool for the job to be completed.
6) Make sure the Main Power Switch is in the OFF position, then plug power
cord into a grounded outlet.
Do not use an extension cord in conjunction with the standard power cord.
7) If using the front-mounted squeegee assembly, be sure that squeegee is
attached to front of machine.
8) If using the front-mounted squeegee assembly, lower squeegee to the oor
by depressing the left half of the pedal [rear of the machine] forward with your
foot.
9) Turn power switch to “on” position.
10) During wet pickup, the oat shut-off will automatically prevent water from
entering the recovery tank once the recovery tank is full.
If foam develops in the recovery tank during wet vacuuming, use de-
foamer chemical to help eliminate the foam. Foam will not activate the float
shut-off, and therefore, may cause vacuum motor damage.
11) To raise the squeegee assembly back to transport position, depress the
right half of the pedal (rear of the machine) downward with your foot.
Dry Operation
1) If the machine has been used for wet pick-up, empty the Recovery Tank,
rinse it out and dry it completely and install the Dry Container System. DO NOT
use the machine for dry pick-up without the Dry Container System in place.
2) Remove clear window, and be sure the cloth or paper filter is properly
installed.

ICE iW90 5
OPERATOR
STORAGE
1) Unplug machine from power source and wrap cord on handle.
2) Store in upright position in a dry area.
3) Store with squeegee assembly off the ground.
4) Store with clear window off unit so that tank may breathe.
MAINTENANCE
To keep the machine performing well for many years, please follow the following
maintenance procedures.
Always conrm that the machine is unplugged prior to performing any
maintenance or repairs.
1) Unplug machine as soon as you are done using it.
2) Check power cord for any damage. If any damage is detected, replace the cord
immediately.
3) Lubricate casters with a water resistant lubricant every month
4) Check machine for loose or missing nuts and bolts, and replace as necessary.
5) Check the lter, and clean it after each use
6) Remove the vacuum hose and check it for any holes and clogs
7) Clean the outside of the machine with a mild cleaner
Do not operate machine without bag or lter properly installed.
3) Replace clear window on the top of the recovery tank.
4) Connect vacuum hose to inlet on the machine body.
5) Attach appropriate accessory tool for the job to be completed.
6) Make sure the Main Power Switch is in the OFF position, then plug power
cord into a grounded outlet.
Do not use an extension cord in conjunction with the standard power
cord.
7) Turn power switch to “on” position.
8) Check the filter bag periodically to see if it is full. For optimal
performance, replace bag when it is 3/4 full.
DRAINING THE RECOVERY TANK
1) Unplug machine from power outlet.
2) Transport machine to nearest oor drain of bucket.
3) Remove drain hose form rear of machine. Remove ball plug from drain
hose, and drain the contents of the tank.
4) After the contents have drained, remove the clear window and rinse
recovery tank with clean water.
5) Replace the ball plug on the drain hose and hang hose back on the rear
of the machine.
To prevent odors in the recovery tank, remover the vacuum head when
machine is not in operation to allow air to circulate.

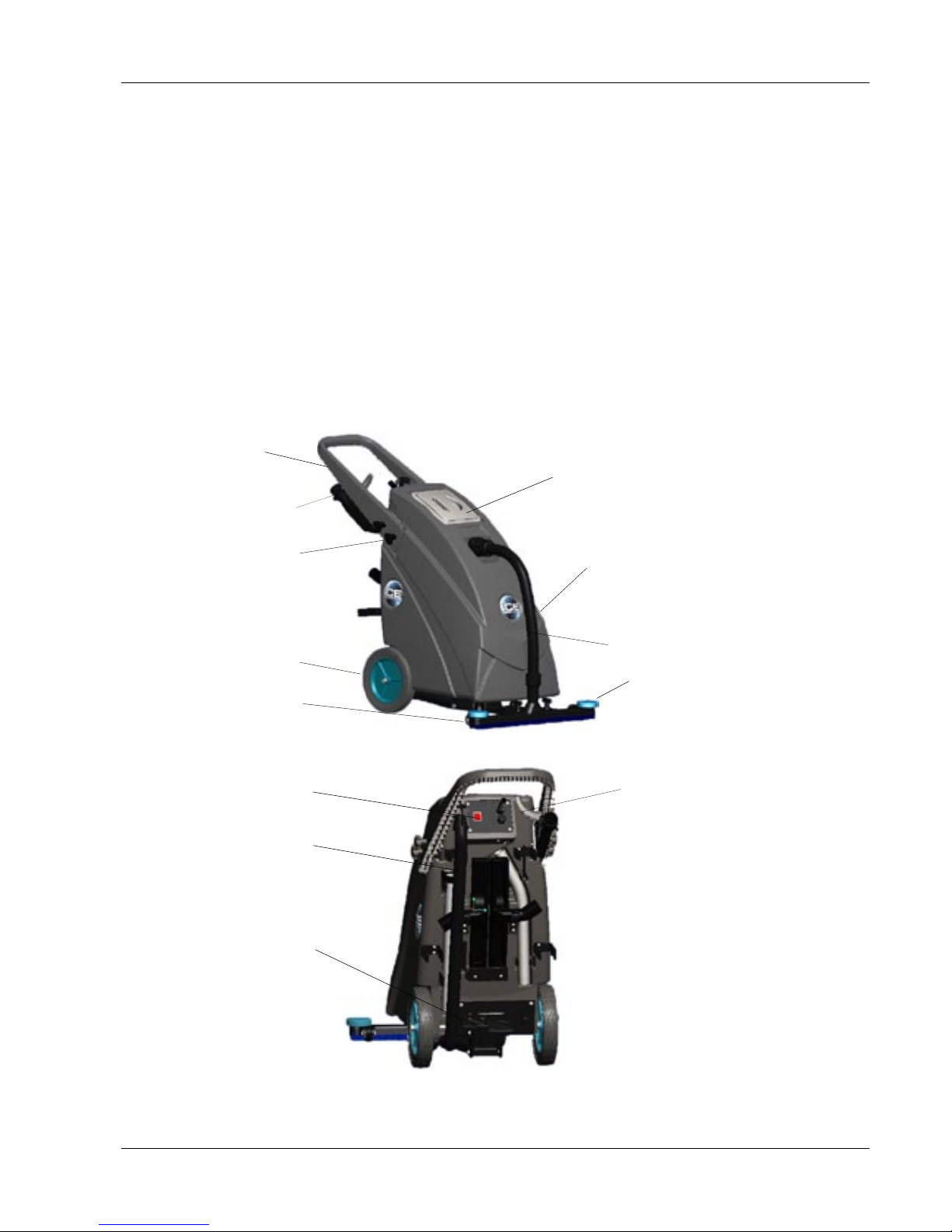

MACHINE COMPONENTS
6 ICE iW90
OPERATOR
1.Handle 2. Crevice Tool
3.Knob 4. 10" Wheel
5.3.5" Caster 6. Front mount squeege
7.Hose Assy 8. Tank
9.Clear Window 10. On/off switch
11.Drain Hose 12. Pedal
13.Wire Hook
4
5
9
6
13
8
1
10
11
12
3
2
7

ICE iW90 7
OPERATOR

8 ICE iW90
OPERATOR
PARTS LIST
DIA
NO
PART
NUMBER DESCRIPTION NO
REQ'D
1 2320202 Handle 1
2 2310126 Clamp, Crevice 1
3 2320405U Cord 1
4 6210519U Power Cord 1
5 2110108 Switch 1
6 1313325 Screw, ST4.8 X 25 2
7 2320409 Power Cord 1
8 2320403 Strain Relief 1
9 4020310 Strain Relief 1
10 1221510 Screw,Ph, M5 X 10 4
11 2320401 Panel, Switch 1
12 2320220 Bend 1
13 2320229 Float,Shut off 1
14 2320216 Clear Window 1
15 2320218 Gasket, Clear Window 1
16 1321225 Screw,Ph,ST4.2 X 25 4
17 2320217 Rubber Hinge 1
18 1421409 Washer,Plain,Φ4.3XΦ9X0.8 9
19 1321210 Screw, Ph, St4 X10 5
20 1221410 Screw, Ph, M4 X10 4
21 2320241 Bracket,Right,Handle 1
22 4010316 Logo 3
23 1222510 Screw,Fh, M5 X10 8
24 2020203 Intake 1
25 2020202 Gasket,Intake 1
26 2320201 Tank 1
27 2320210 3.5" Caster 2
28 1421618 Washer,Plain,Φ6.4XΦ18X1.6 4
29 1021616 Screw,Hex, M6 X16 4
30 2320211 Axle 1
31 2320228 Wheel,10" 2
32 6160113 Washer,Wheel,Al 2
33 6110011 Cap,Axle 2
34 1962050 Clamp, Φ27~Φ51 1
35 2230130 Drain Hose, Serial number:000000-000534 1
2320248 Drain Hose, Serial number:000534- 1

ICE iW90 9
OPERATOR
PARTS LIST
DIA
NO
PART
NUMBER DESCRIPTION NO
REQ'D
36 1221514 Screw, Ph, M5 X14 16
37 2310128 Clamp, Straight Tube 2
38 2320603U Serial Decal 1
39 2310131 Supportor,Pick-up Tool 1
40 2030414 Warning Decal 1
41 2310130 Clamp, Pick-up Tool 2
42 2320240 Bracket,Left, Handle 1
43 2310127 Clamp, Bend Tube 2
44 1221520 Screw, Ph, M5 X20 8
45 2310125 Clamp, Hose 4
46 2310129 Clamp, Dusting Tool 1
47 8014040 Clamp, Cord 2
48 2230131 PlugSerial number:000000-000534 1
49 2320219 Knob 2
50 1432026 Washer, Lock,Φ10 4
51 1421020 Washer,Plain,Φ10.5XΦ20X2 4
52 1436010 Retaining Ring, Φ10 2
53 2320207 Plate 1
54 2320402 Decal,Panel 1
55 6210123 Connector 1
56 7000283 Cap 2
57 2320415 Warning Decal 1

10 ICE iW90
OPERATOR

ICE iW90 11
OPERATOR
PARTS LIST
DIA
NO
PART
NUMBER DESCRIPTION NO
REQ'D
1 2320500 Hose Assy 1
2 2230121 Machine End 1
3 2320501 Threaded Insert 2
4 2230123 Clip Ring 2
5 2320502 Hose 1
6 2230124 Angeled Hose End, 38mm 1
7 2320208 Acoustic Insulstion Pipe 1
8 1914300 Tie, Cable 1
9 1221616 Screw, Ph, M6 X16 5
10 2320214 Leaf Spring 1
11 2320304 Knob, Floor Tool 1
12 2320311 26" Blade(PU) 2
2320309 26" Blade(Optional) 2
13 1221514 Screw, Ph, M5 X14 4
14 2320303 Clamp, Blade 1
15 1321310 Screw, Ph, St4.8 X10 2
16 1421618 Washer,Plain,Φ6.4XΦ18X1.6 4
17 1021825 Screw,Hex, M8 X25 2
18 1439005 Retaining Ring, Φ5 4
19 2320308 2" Wheel 2
20 2320306 Axle, 2" Wheel 2
21 2320302 Bumper 2
22 2320301 26" Body,Pick-Up Tool 1
23 2320215 Mounting Plate, Floor Tool 1
24 2320212 Axle, Mounting Plate 1
25 1421020 Washer,Plain,Φ10.5XΦ20X2 6
26 1436010 Retaining Ring, Φ10 6
27 2320213 Axle, Pedal 2
28 2320209 Pedal 1
29 2320411 Strain Relief 1
30 2320203 Bottom Plate, Assy 1
31 1422616 Washer, Lock,Φ65
32 2310123 Filter 1
33 2310118 Gasket 2
34 1123608 Nut, Lock, M6 3
35 1421617 Washer,Plain,Φ6.2XΦ16X2 11
36 2310121A Vac Motor,3-Stg,120V,With Terminal, Serial number:000000-000592 1
8011025A Vac Motor,2-Stg,120V,With Terminal,Serial number:000593- 1
37 2310122 Stud,Vac Motor 3-Stg, Serial number:000000-000592 3
8112006 Stud,Vac Motor 2-Stg,Serial number:000593- 3
38 1121605 Nut, M6 3
39 2310116 Gasket,Vac Motor 1
40 2310120 Screen 1
41 2320308A 2" Wheel Assy 2

12 ICE iW90
OPERATOR
ACCESSORIES

ICE iW90 13
OPERATOR
PARTS LIST
DIA
NO
PART
NUMBER DESCRIPTION NO
REQ'D
12320300 26" Front Mount Squeegee Assy 1
22330120 Hose, Vacuum Assy 1
32230124 Angeled Hose End, 38mm 1
42230122 Threaded Insert 1
52230123 Clip Ring 1
62330122 Hose 1
72330121 Hose End 1
82230115 Wand 1
92230116 Tube, SST 2
10 2230126 Dusting Tool 1
11 2230127 Crevice Tool 1
12 2230106 Dry Pick-Up Tool, 360mm 1
13 2230107 Wet Pick-Up Tool, 360mm 1
14 2230117 Body,Pick-Up Tool 360mm 1
15 2130101 Wheel, Assy 2
16 2130102 Axle, Wheel 2
17 2230109 Seat, Rubber Blades,Back 1
18 2230110 Seat, Rubber Blades,Back 1
19 2230111 Brush Strip, Back 1
20 2230112 Brush Strip, Front 1
21 2230113 Rubber Blade, Back 1
22 2230114 Rubber Blade, Front 1
23 2330130 Cloth Bag 1
2330132 Paper Bag(optional) 1
24 2330131 Clip, Cloth Bag(optional) 1
25 2330134 Catridge Filter 1

14 ICE iW90
OPERATOR
TECHNICAL DATA
Model iW90
Voltage 120V
Power 500W
Current 5 A
Frequency 50-60Hz
Capacitor 90L
Vacuum 1500mmH2O(60")
Flow rate 2130L/Min(75CFM)
Sound pressure level
at workstation 70 dB(A)
Weight 40kg
Length of Power cord 15m
Dimensions 117.6cm(L)X45.3cm(W)X110cm(H)

ICE iW90 15
OPERATOR
Wiring Diagram
iW90
SWITCH
60HZ
PHASE
SUPPLY
SINGLE
120V
Motor
POWER
SUPPLY
SJTW 14/3C
CORD
WHITE
G
BLACK
BLUE
G/Y
BROWN

16 ICE iW90
OPERATOR
WEAR &TEAR PARTS
DIA
NO
PART
NUMBER DESCRIPTION NO
REQ'D
1 2320210 3.5" Caster 2
2 2320223 Wheel,10" 2
3 2320309 26" Blade 2
4 2320308 2" Wheel 2
5 2230126 Dusting Tool 1
6 2230113 Rubber Blade, Back 1
7 2230114 Rubber Blade, Front 1
8 2230127 Crevice Tool 1

CERTIFICATE OF QUALIFIED
MODEL : SERIAL NO.:
INSPECTOR: DATE :
ICE Company Limited
TEL : (+86) 769 8186 9000 FAX : (+86) 769 8186 3000
Table of contents
Other Ice Vacuum Cleaner manuals
