Ice SoftBank Whiz User manual

CAUTION: Read the Notification Pager Manual (this document) before using the product,
and store in a safe location after reading it.
Notification Pager Manual

Notification pager will notify the operator (Sound/Vibration) when irregular occur during autonomous cleaning
or when the machine encounters obstacles. When using the notification pager for the first time, please take the
pager out of the battery box and charge the pager. (see "Recharging the Notification Pager").
■Notification pager can only be used during autonomous cleaning.
No. Name Description
①Display The battery level icon and mute icon appear at the left of the display, and
alerts appear at the right of the display. (see P80 “11-1-2 Alert Display and
its Notification Timing”)
②Pager mute switch To set the notification pager only to vibrate for alert notifications, set the
pager mute switch on.
③Power button Use the given pin to turn the power On for the Notification Pager.
④Pager main button To stop the alert and vibration, press the pager main button.
⑤Clip Use the clip when placing the notification pager in your pocket, etc.
Battery level icon
Mute icon Alert screen
①
②
③
⑤
④
1-1.Notification Pager Functions
1. Notification Pager

■When the machine detects danger or detects an obstacle, an alert will be displayed on the notification pager
(see "Alert display and its notification timing") and it notifies the operator by emitting an alert and vibrating. It
emits an alert and vibrates for 15 seconds then stops for 5 seconds, which it repeats for 10 minutes. After the
error with the machine has been resolved, the notification pager sounds for 1 second and its display indicates
standby.
■To receive alert notifications, pair the machine and the notification pager. (see "Pairing the Notification Pager")
Once the display on the notification pager indicates communication, place it in the pager compartment to
complete pairing.
■During autonomous cleaning, always carry the notification pager on you. Alerts cannot be received while
the notification pager is in the pager holder.
■The range in which the notification pager can communicate with themachine is a direct line up to 300 m
(985 ft) (2 floors above and below).
* Range of communication depends on the environment. Communication may not be possible such
as where there are walls with metal.
■After using the notification pager, place it in the notification pager charger (see "Recharging the Notification
Pager").
■If the notification pager won't be used for a long period of time (approx. 2 months) turn the switch Off (see
"Turning the Notification Pager On/Off")

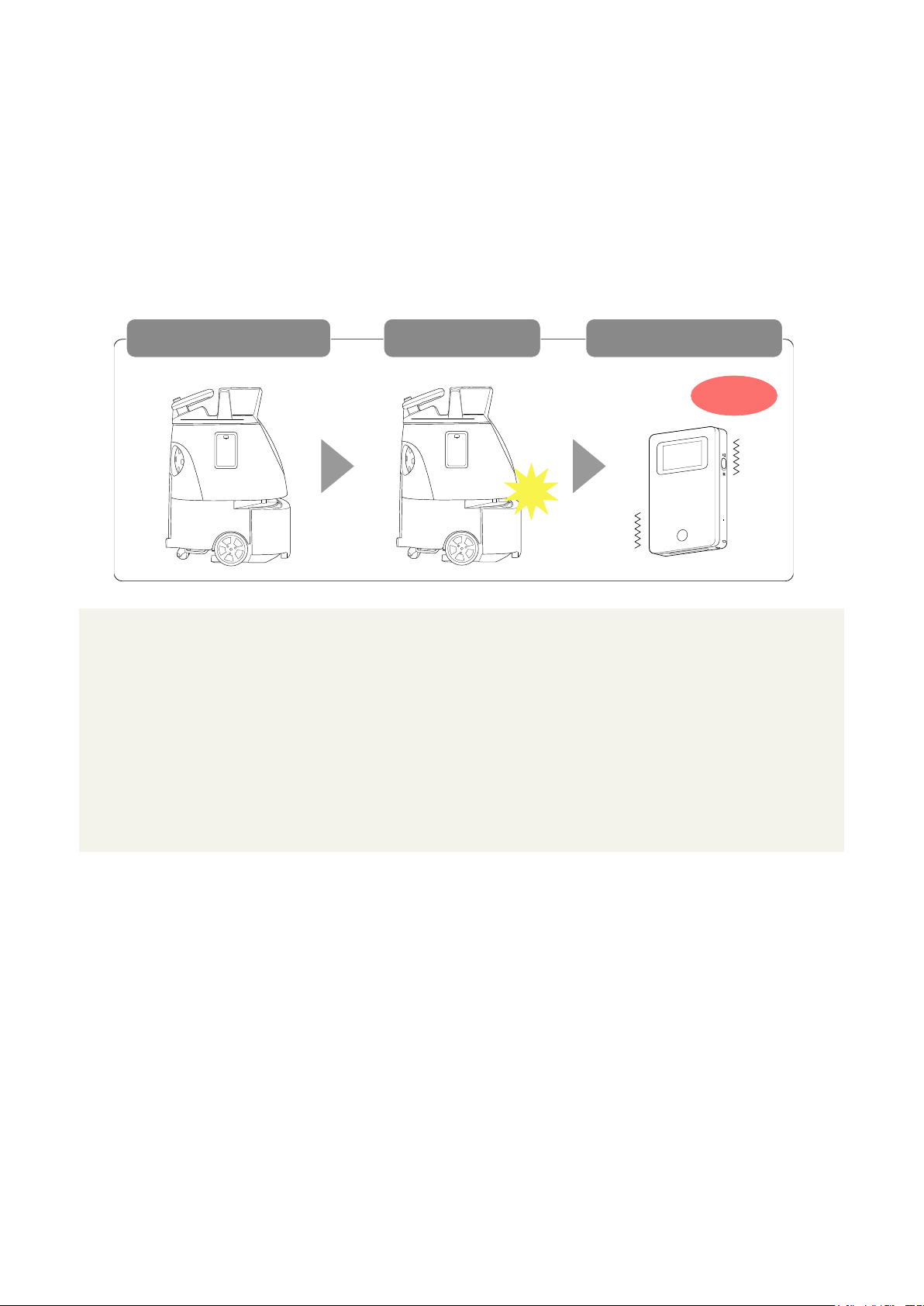

Start autonomous cleaning
Sound ／Vibration
Object detected Receive alert notification
3
1-1-1.Notification Pager Functions & Usage

Appearing on
display Description Appearing on display Description
Standby (within the
communication range/
paired)
Autonomous cleaning
complete
Machine battery level low No machine battery
remaining
Dustbag full Connected for wireless
communication
Connection for wireless
communication not possible
(outside communication
range/not paired)
Error alert
• When danger has been
detected near obstacles or
steps
• When the emergency stop
button has been pressed
• When the machine goes off
path during the operation
4

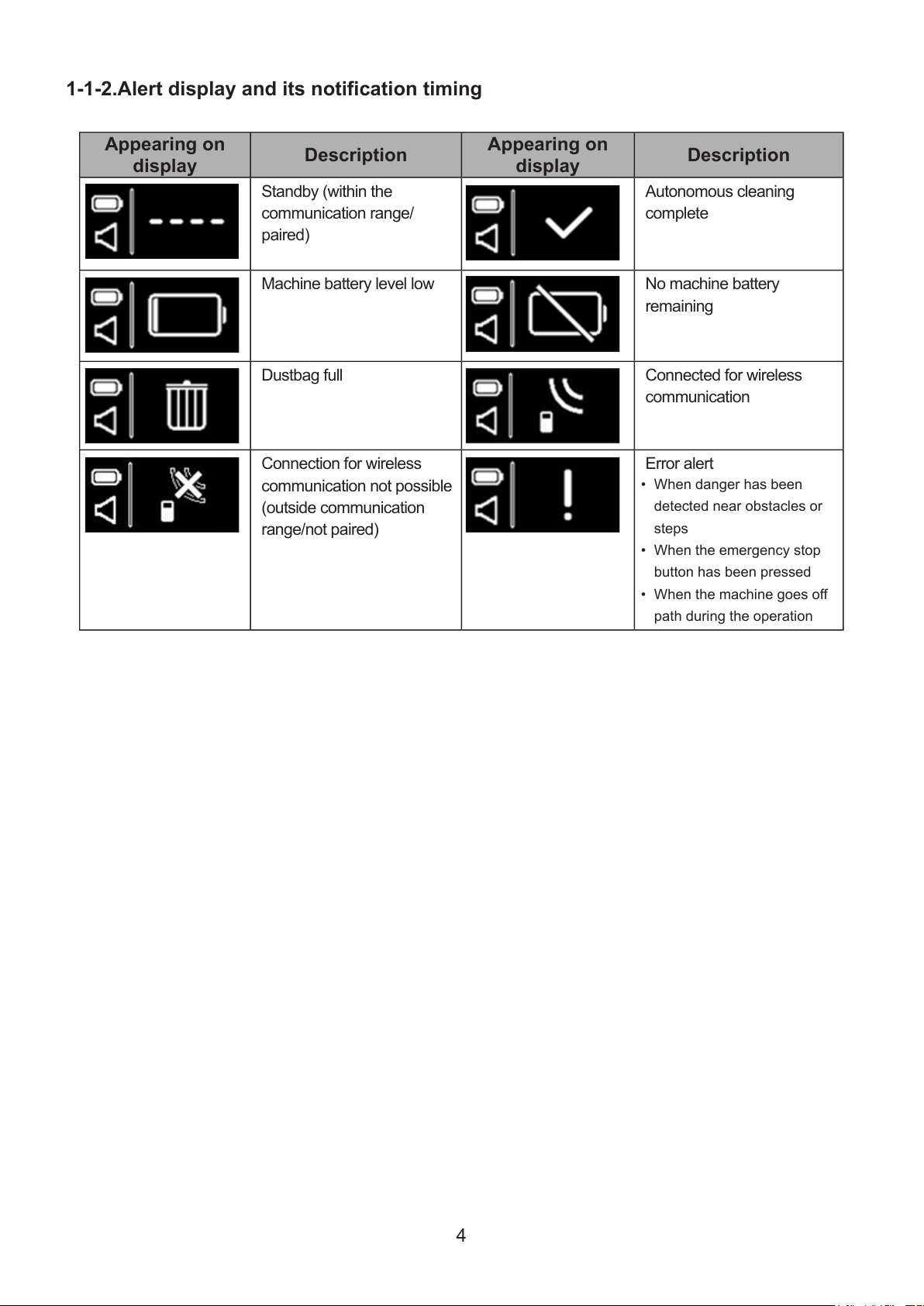

1-1-2.Alert display and its notification timing

When using the notification pager for the first time, use the supplied pin to turn the power On.
Keep the inserted pin pressed until the notification pager vibrates.
5

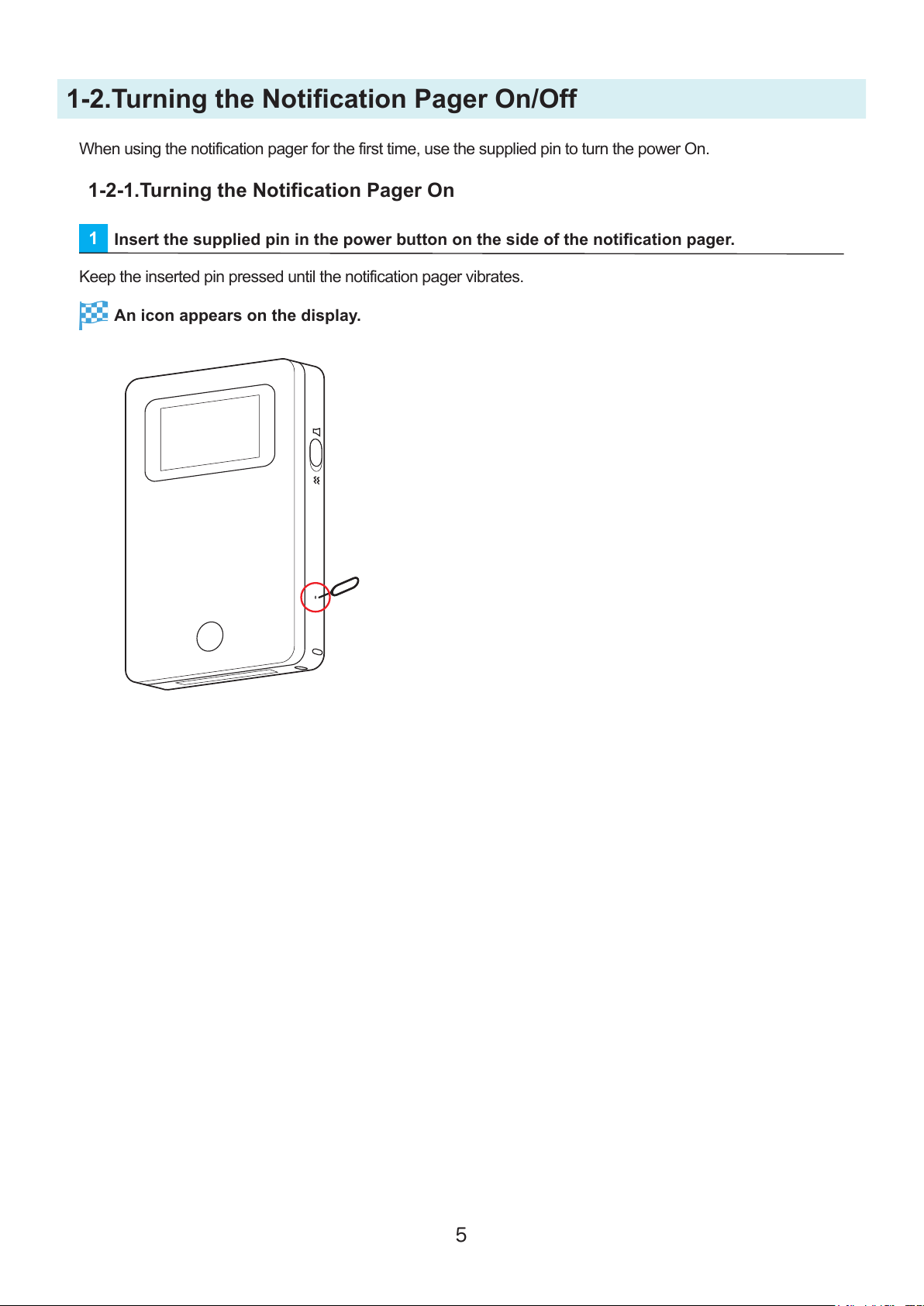

1-2-1.Turning the Notification Pager On
1-2.Turning the Notification Pager On/Off
1Insert the supplied pin in the power button on the side of the notication pager.
An icon appears on the display.

6
1-2-2.Turning the Notification Pager Off
1Insert the supplied pin in the power button on the side of the notication pager.
2Press the pager main button, and check that nothing appears on the display.
The display turns off.

■Please check your mobile phone cellular connection in advance. Robot Operations Center (ROC) will not
be connected to 4G (LTE) in an area where there is no signal.
■The connection status to the ROC will be shown by the ROC indicator on the display (see Whiz
Operational Manual " Touch Display")
In order to receive the alert on the notification pager, the pager must be paired with the machine itself.
7

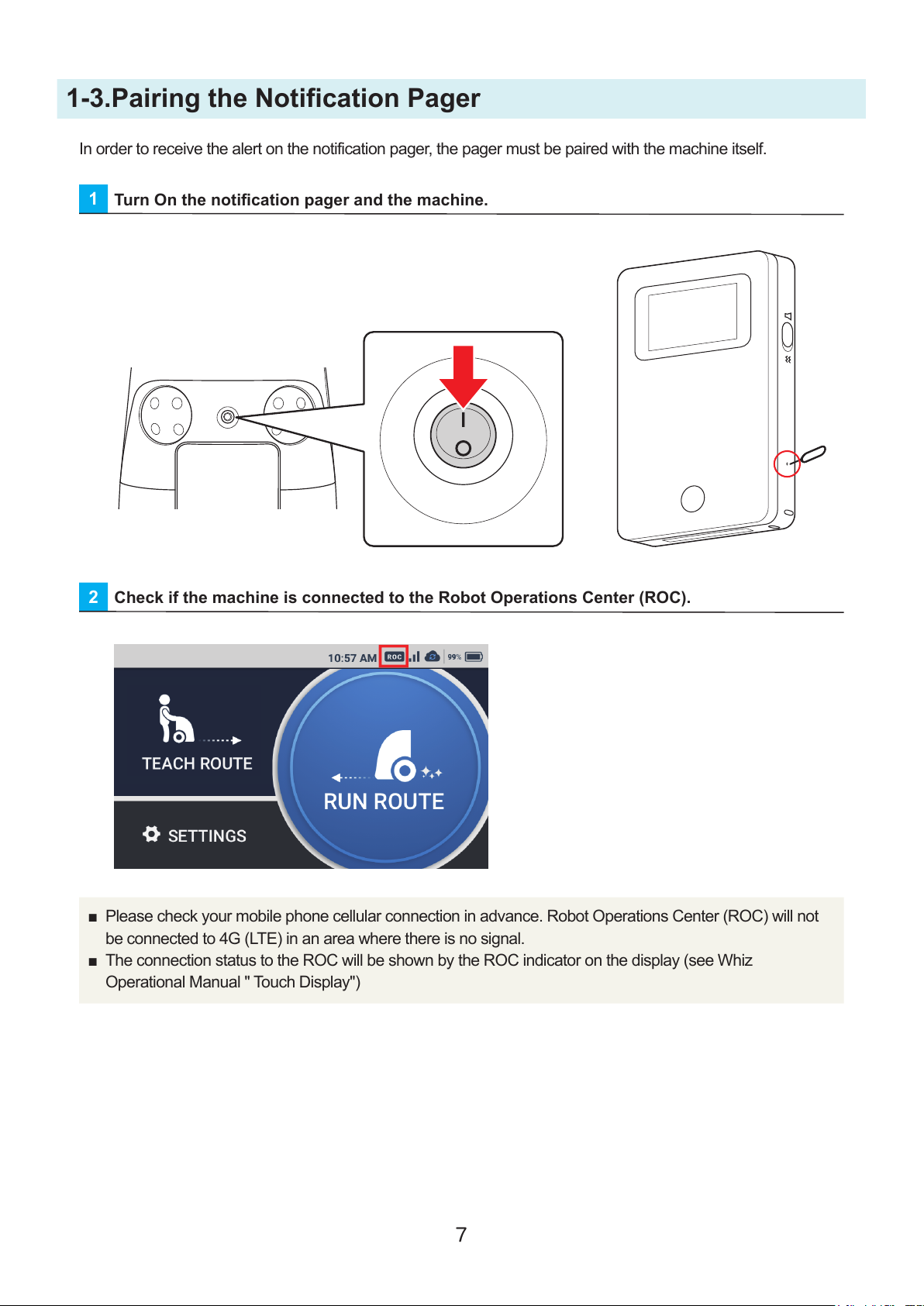

1-3.Pairing the Notification Pager
1Turn On the notication pager and the machine.
2Check if the machine is connected to the Robot Operations Center (ROC).

■Carry out autonomous cleaning and check if you will receive the alerts (see Whiz Operational Manual
“Carrying Out Autonomous Cleaning”).
8
3Press the button on the notication pager for at least 5 seconds.
4Attach the pager onto the pager holder on the side of the machine.
The message “Wireless connection in process” will be shown on the pager's display.

■An AC adapter is not included in the product package. The customer must use their own AC adapter.
■Press the pager main button, and if the fully charged mark appears on the display, it has completed
charging.
■About 2.5 hours are required to fully recharge.
The customer must purchase a USB AC adapter themselves.
9
1-4.Recharging the Notification Pager
If notification pager battery is running low, charge the pager fully before using it.
1Insert the Micro USB plug to the cable in the terminal on the back of the notication pager
charger.
2Connect the USB plug to the cable in USB AC adapter, and plug the adapter into an outlet.
3Place the notication pager in its charger.

IMPORTANT SAFETY INFORMATION: READ AND UNDERSTAND THESE SAFETY WARNINGS AND ALL
INSTRUCTIONS PRIOR TO UNPACKING AND USING THE MACHINE.
Warnings presented here are intended to warn the user of potential harm to the user and other people as well as
damage to property. Always adhere to them to reduce the potential for harm. This manual also provides safety
warnings, correct handling procedures, and other regulatory information for using the machine, notification
pager, battery, and battery charger. Warnings provided in this manual do not cover all possible situations that
may arise. Safety of the pedestrians and people in the surrounding will be the first priority in any circumstances
(such as when the machine does not operate properly, when the machine has tripped over, etc.).
Always adhere to warnings regarding machine installation, maintenance, and use and store this manual where it
can always be referred to.
In the following emergencies, immediately press the emergency stop button and turn off the main power switch.
■The machine is in a hazardous state (example: emitting smoke, is inoperable, has fallen over, etc.)
■The machine comes close to inflicting harm on surrounding people or things.
■The machine is operating (behaving) unpredictably or is operating in a manner that is inconsistent with this
manual.
10
2. Safety Warnings
2-1.About Safety Warnings

Indicates a hazardous situation that, if not avoided, could result in minor or moderate
injury.
Indicates the caution item that may cause failure or damage to the equipment when
mishandled.
Prohibited (not allowed) action. Compulsory action based on instruction
(must be performed).
Must not be used where exposed to
water, and must not be splashed with
water.
Unplug the power plug from the outlet.
The following symbol categories explain the level of harm or damage that can occur if warnings are not
observed and the machine or related equipment is used incorrectly. Please be sure you understand these
symbols and their correlating meanings before reading the remainder of this manual.
The following pictorial indication categories explain information to be observed. Read this guide after thoroughly
understanding the information.
NOTE
Indicates a hazardous situation that, if not avoided, will result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could result in death or serious
injury.
DANGER
WARNING
CAUTION
11
2-2.Description of Symbols
2-3.Description of Pictorial Indications

If wearing an implanted cardiac pacemaker or implanted defibrillator, consult with the
manufacturer of such medical device to confirm a safe operational distance from the
machine.
Electric signals may affect the operation of the pacemaker or defibrillator.
Do not use in a healthcare environment or near electronic medical devices.
* The machine does not comply with UL or IEC 60601 standards (or equivalent standards).
Do not drop or throw.
Subjecting it to strong impact may cause the battery pack in the notification pager to leak, overheat,
rupture, or ignite, and otherwise result in injury, electric shock, damage, malfunction, overheating,
leakage, chemical explosion, or other damage to the machine, battery charger, battery or notification
pager.
Do not place the notification pager or the notification pager charger inside a heating cooker
such as a microwave oven or a high-pressure container such as a pressure cooker, or place
on top of an electromagnetic cooker (IH cooker).
Doing so may cause leakage, overheating, explosion, or ignition of the battery pack inside the
notification pager, or overheating, smoking, ignition, or failure of the notification pager or the
notification pager charger.
Store out of the reach of infants, children, and pets.
Failure to do so may present a choking hazard or other risk of physical injury or death of infants,
children, and pets.
If prolonged contact with the notification pager causes skin irritation (itchiness, rash, eczema,
etc.), immediately discontinue use and consult a doctor.
12
2-4.Handling the Notification Pager
WARNING
DANGER
DANGER
2-5.Handling near Electronic Medical Devices

Refer to the labels on each product (the machine, battery charger, battery).
Do not short-circuit. Do not disassemble.
Do not immerse in water or other liquid.
This product is designed and manufactured with recyclable, high-quality materials and components. When
disposing of the machine, check that it is being disposed of properly as industrial waste differentiated from
general and business waste according to regional and municipal regulations by request to an industrial waste
disposal operator.
* If the machine is being leased, it cannot be disposed of by yourself. Contact customer support
([email protected]). When disposing of the machine, remove the battery from the machine, and dispose of
 properly according to regulations for waste disposal in the region you are residing in.
The full text of the EU declaration of conformity is available at meetwhiz.com/certification
13
2-6.Pictorial Symbols
2-7.Machine Disposal and Recycling
