SERVICE MANUAL
ADDENDUM
NOTE: Use these amended pages as one addendum set.
Do not mix them up with the previous master pages.
Definitions
Replacement page The page to replace the original one.
Addendum page The page to be added to the original set.
Amended page The page to be added as change history, including corrections.
CONTENTS
July 2019
|A210/|A210E/|A220
[Version List]
Model Version Version
Number
TX
Power
Channel
Spacing
Installed unit
Remarks
MAIN
VOLUME
FRONT
PA
K-CONNECT
PA-EUR
MAIN-B
FRONT-B
D-CONNECT
VOLUME-B
PA-B
IC-A210 USA-01 #01 8W 25.0 kHz
✔ ✔ ✔ ✔ ✔ – – – – ‒ ‒ Discontinued production version (End S/No: 0105909)
EXP-01 #02 ✔ ✔ ✔ ✔ ✔ ‒– – – – ‒Discontinued production version (End S/No: 0202816)
IC-A210E EUR-01 #03 6W 8.33/25.0 kHz
✔ ✔ ✔ –✔ ✔ – – – – ‒
IC-A210
USA-03 #05
8W
✔ ✔ ✔ ✔ ✔ – – – – ‒ ‒ Discontinued production version (End S/No: 0501508)
CHN-01 #11 25 kHz
✔ ✔ ✔ ✔ ✔ – – – – ‒ ‒ Discontinued production version
USA-02 #21 ✔ ✔ ✔ ✔ ✔ ‒– – – – ‒Discontinued production version (End S/No: 2103700)
IC-A210E EUR-02 #23 6W
8.33/25.0 kHz
✔ ✔ ✔ –✔ ✔ – – – – ‒Discontinued production version (End S/No: 2302207)
IC-A210 USA-04 #25 8W
✔ ✔ ✔ ✔ ✔ – – – – – ‒Discontinued production version (End S/No: 2505880)
IC-A220 USA-05 #41 – – ‒ ‒ –‒✔ ✔ ✔ ✔ ✔
This service manual addendum contains information for only the above versions.
SECTION 1 SPECIFICATIONS ………………………………… 1-1g and 1-2g
SECTION 4 ADJUSTMENT PROCEDURES …………………… 4-1g~4-10g
SECTION 5 PARTS LIST ………………………………………… 5-1g~5-54g
SECTION 6 MECHANICAL PARTS ……………………………… 6-1g~6-4g
SECTION 7 BOARD LAYOUTS …………………………………… 7-1~7-16g
SECTION 8 BLOCK DIAGRAM …………………………………8-1g and 8-2g
SECTION 9 VOLTAGE DIAGRAM ………………………………… 9-1g~9-15g
1-1g
SECTION 1 SPECIFICATIONS
(Amended page)
July 2019
IC-A210 IC-A210E IC-A220
GENERAL
• Frequency range Ch spacing
25 kHz 118.000~136.975 MHz
Ch spacing
8.33 kHz 118.000~136.992 MHz
Weather
channel†161.000~164.000 MHz* –161.000~164.000 MHz*
• Frequency stability ±5 ppm ±1 ppm (0°C to +40°C) ±5 ppm
• Operating temperature range –20°C to +55°C; –4°F to +131°F
• Antenna impedance 50 Ω
• Number of memory channels 10 memory channels
200 group channels
10 history channels
10 GPS channels
10 weather channels†
10 memory channels
200 group channels
10 history channels
10 GPS channels
20 memory channels
50 group channels
20 history channels
10 GPS channels
10 weather channels†
• Mode AM (A3E), FM†AM (A3E) AM (A3E), FM†
• Power supply requirement (negative ground) 13.80 V/27.50 V DC
• Dimensions (projections not included) 160 (W) ×34 (H) ×271 (D) mm; 6.3 (W) ×1.3 (H) ×10.7 (D) inches
• Weight (approximately) 1.0 kg (2.2 lb)
• Output power (Carrier power) 8 W 6 W 8 W
• Modulation 70% (Maximum 98%) 85% (Maximum 95%) 70% (Maximum 98%)
• Spurious emission
–60 dBc
–36 dBm (harmonics)
–46 dBm
(Other than harmonics)
(Except operating
frequency ±1 MHz range.)
–60 dBc
• Microphone impedance 600 Ω
• Transmitter intermittent duty cycle
–
1 minute (Transmitter ON)
3 minute
(Transmitter OFF)
–
Model Version Version
Number Applicable standard
IC-A210 USA-01 #01 RTCA DO-186B
EXP-01 #02
IC-A210E EUR-01 #03 ETSI EN300 676
IC-A210
USA-03 #05
RTCA DO-186BCHN-01 #11
USA-02 #21
IC-A210E EUR-02 #23 ETSI EN300 676
IC-A210 USA-04 #25 RTCA DO -186B
IC-A220 USA-05 #41
The underlined parts have been updated from the previous version of the addendum, or the original page.
*; [USA] version only. †; Receiving only.
1-2g
(Amended page)
July 2019
The underlined parts have been updated from the previous version of the addendum, or the original page.
IC-A210 IC-A210E IC-A220
RECEIVER
• Receive system Double-conversion superheterodyne
• Intermediate frequencies 1st 38.85 MHz
2nd 450 kHz
• Sensitivity AM Less than 2 μV**
at 6 dB S/N
Less than –101 dBm
at 12 dB SINAD
Less than 2 μV**
at 6 dB S/N
FM* Less than 1.4 μV**
at 12 dB SINAD –Less than 1.4 μV**
at 12 dB SINAD
• Selectivity Ch spacing:
25 kHz
±3 kHz/6 dB
±22 kHz/60 dB ±8.5 kHz/6 dB ±3 kHz/6 dB
±22 kHz/60 dB
Ch spacing
8.33 kHz
±2.778 kHz/6 dB
±7.37 kHz/60 dB ±2.8 kHz/6 dB ±2.778 kHz/6 dB
±7.37 kHz/60 dB
• Spurious response rejection More than 74 dBμ More than 70 dB More than 74 dBμ
• Audio output power External
speaker 5 W into a 4 Ωload
Headphone 60 mW into a 500 Ωload
*; [USA] version only. †; Receiving only.
**; The input signal strength level of this receive sensitivity is measured at the load end (PD).
4-1g

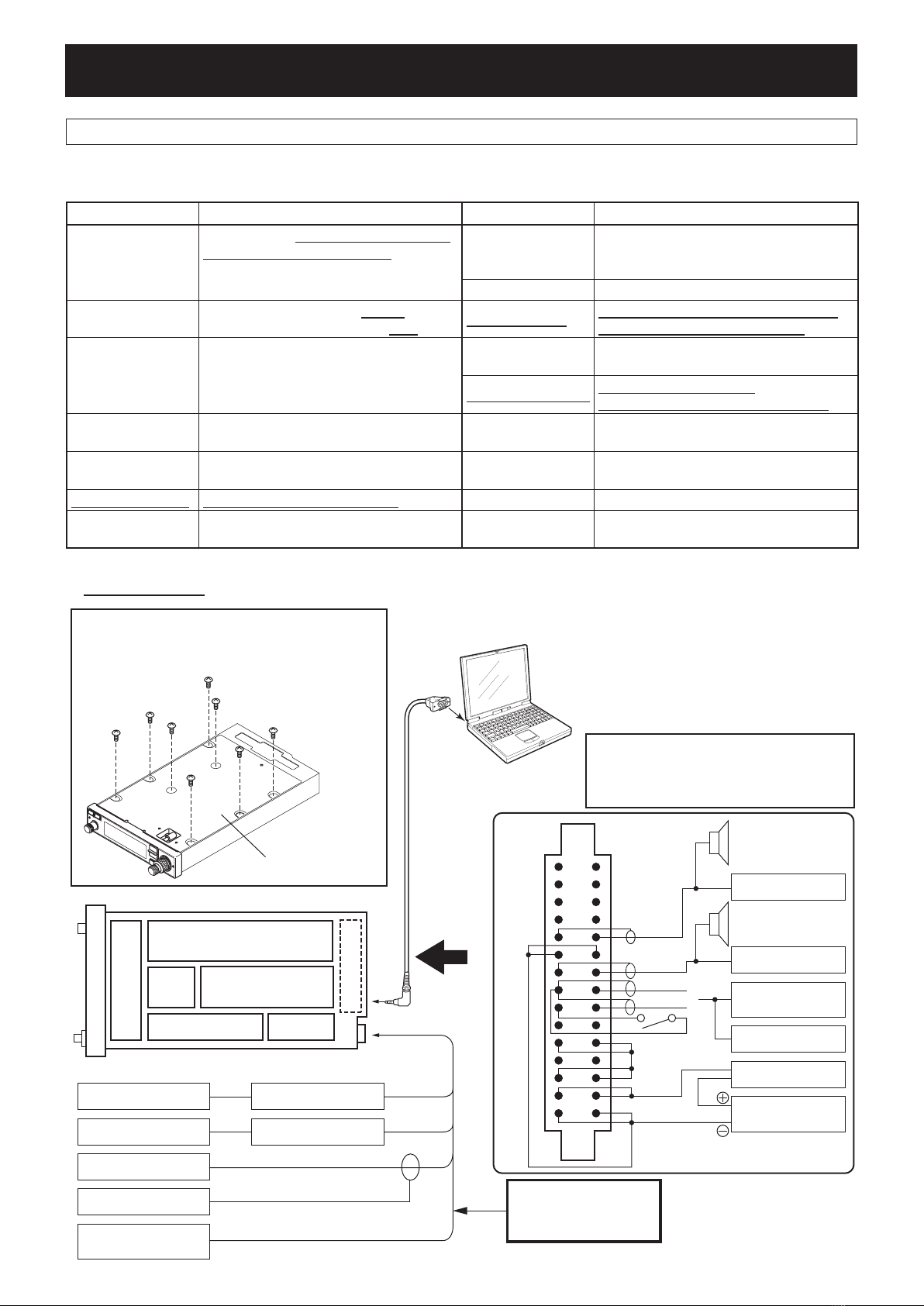

SECTION 4 ADJUSTMENT PROCEDURES
(Replacement page)
July 2019
4-1 PREPARATION
■REQUIRED EQUIPMENT
EQUIPMENT GRADE AND RANGE EQUIPMENT GRADE AND RANGE
Adjustment
software
CS-A210 ADJ (for IC-A210/IC-A210E),
or CS-A220ADJ (for IC-A220)
(Revision 1.0 or later)
Standard signal
generator (SSG)
Frequency range: 0.1~300 MHz
(–127 to –17 dBm)
AC millivoltmeter Measuring range: 10 mV to 10 V
Power supply Output voltage: 13.8 V/27.5 V DC
Current capacity: More than 10 A Distortion meter
Measuring accuracy
:3% or less at 1 kHz
Input level: 50 mV to 10 V
RF power meter
Measuring range: 0.1~50 W
Frequency range: 100~300 MHz
SWR: Less than 1.2 : 1
External
speaker
Power rating: More than 10 W
Headphone
speaker Input impedance: 500
Power rating: More than 60 mW
Oscilloscope Frequency range: DC~20 MHz
Measuring range: 0.01~20 V JIG cable Modified molex®cable (See the illust
below)
Modulation
analyzer
Frequency range: 30~300 MHz
Measuring range: 0~100% Frequency counter Range: 0.1~300 MHz
Accuracy: ±1 ppm or better
Spectrum analyzer Measuring range: Up to 3 GHz Digital voltmeter Measuring range: 0.1~10 V
Audio generator
(AG)
Frequency range: 300~3000 Hz
Output level: 1~500 mV Attenuator Attenuation: 30 dB
Power rating: More than 50 W
■CONNECTIONS
to the antennna connector
To K-CONNECT UNIT
To [DATA] jack
Power supply
(13.8 V/27.5 V: 10 A)
Audio generator
(AG)
Distortion meter
AC milivoltmeter
Ammeter (10 A)
External speaker
(4 Ω)
Distortion meter
Headphone speaker
(500 Ω)
PTT
MIC1
MIC2 or
Attenuator
Attenuator
Modulation analyzer
Spectrum analyzer
RF Power meter
Frequency counter
Standard signal
generator (SSG)
OPC-1529R
PC
SYSTEM REQUIREMENTS
For CS-A210 ADJ:
• Microsoft®Windows®
Me/2000/XP and Windows Vista™
• RS-232C serial port (D-sub 9 pin)
For CS-A220ADJ:
• Microsoft®Windows®Vista™, Windows®7/8/8.1
• RS-232C serial port (D-sub 9 pin)
REMOVE THE TOP COVER before adjustment.
Before starting adjustment, remove the top cover
from the chassis to expose the MAIN UNIT.
(DO NOT remove the bottom cover)
USE K-CONNECT UNIT for adjustment.
If MB-113 is atattached to the transceiver,
attach the original rear unit ‘K-CONNECT
UNIT.’ MB-113 has no [DATA] jack.
CAUTION:
DO NOT transmit while
the SSG is connected.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
A
B
C
D
E
F
H
J
K
L
M
N
P
R
S
(TOP VIEW)
JIG cable
Top cover
The underlined parts have been updated from the previous version of the addendum, or the original page.
4-2g
(Replacement page)
July 2019
■PROCEDURE OF ADJUSTMENT
1) Connect the transceiver and PC with the OPC-1529R.
2) Turn ON the transceiver.
3) Boot up Windows, and click the program group ‘CS-A210/A220 ADJ’ in the ‘Programs’ folder of the [Start] menu, then the
CS-A210/A220 ADJ’s window appears.
4) Click the [ADJ] icon to enter the adjustment mode.
5) Click the [READ] icon to load the initial data from the transceiver.
6) Set or modify the adjustment data as specified in the guidances (pages 4-3 to 4-10).
7) When the adjustment is finished, click the [WRITE] icon.
8) Click the [NRM] icon to quit the adjustment mode, and return to the normal mode.

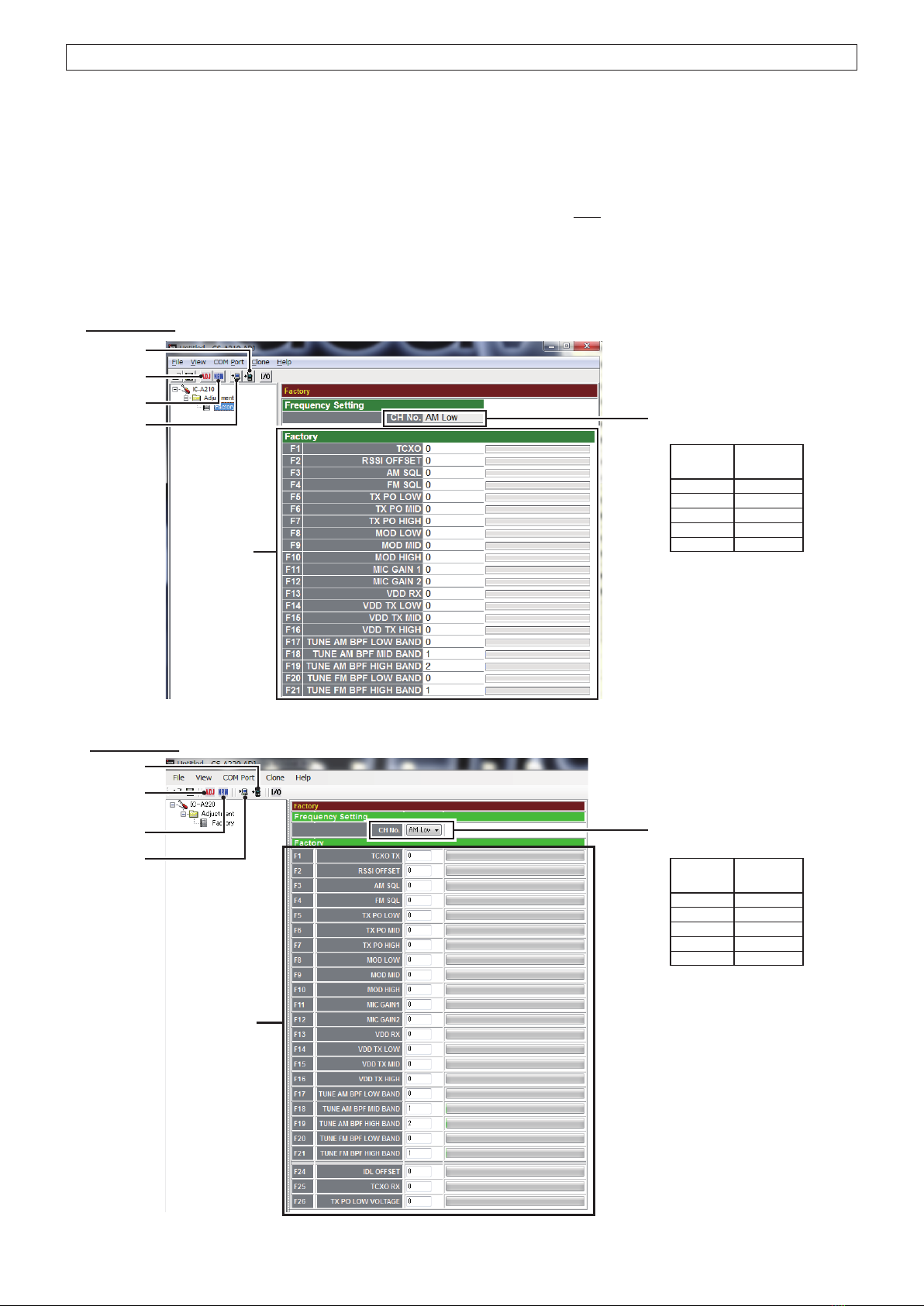

• ADJUSMENT SOFTWARE SCREEN
[ADJ]
[NRM]
[LOAD]
Adjustment
items
[WRITE]
Select the adjustment channel
for each adjustment item.
<CS-A210 ADJ>
*This screen is an example.
[ADJ]
[NRM]
[LOAD]
Adjustment
items
[WRITE]
<CS-A220 ADJ>
Select the adjustment channel
for each adjustment item.
*This screen is an example.
CH No. Frequency
(MHz)
AM Low 118.000
AM Mid 127.500
AM High 136.975
FM Low 161.650
FM High 163.275
CH No. Frequency
(MHz)
AM Low 118.000
AM Mid 127.500
AM High 136.975
FM Low 161.650
FM High 163.275
The underlined parts have been updated from the previous version of the addendum, or the original page.
4-3g
(Replacement page)
July 2019
4-2 FREQUENCY ADJUSTMENT
ADJUSTMENT ADJUSTMENT SETUP OPER ATION ADJUSTMENT
ITEM/POINT VALUE
VDD VOLTAGE
~Adjustment~
(RX)
1CH No.: [AM Mid]
Receiving
Connect the 13.8 V power
source to the transceiver.
Connect the digital voltmeter
to the CP2 on the MAIN unit.
[F13]
(Adjustment screen)
13.5 V (±0.1 V)
LOCK VOLTAGE
~Adjustment~
(RX)
1CH No.: [AM High]
Receiving
Connect the digital voltmeter
to the CP1 on the MAIN unit.
C136
(MAIN unit)
3.5 V (±0.1 V)
(TX) 2CH No.: [AM High]
Transmitting
C127
(MAIN unit)
~Verification~
(RX)
3CH No.: [AM Low]
Receiving
More than
0.5 V
(TX) 4CH No.: [AM Low]
Transmitting
REFERENCE
FREQUENCY
~Adjustment~
1CH No.: [AM High]
Transmitting
Connect the RF power
to the antenna connector.
Loose couple the frequency
counter to the antenna
connector.
[F1]
(Adjustment screen)
136.975 MHz
(±100 Hz)
2†Receiving [F25]
(Adjustment screen)
Enter the
same
adjustment
value of the
[F1].
†For only IC-A220.
• VDD voltage (RX) check point
(TOP VIEW)
CP2
VDD voltage check point
• Lock voltage (RX and TX) adjustments
(TOP VIEW)
C127
PLL Lock voltage (TX)
adjustment
CP1
PLL Lock voltage
check point
C136
PLL Lock voltage (RX)
adjustment
The underlined parts have been updated from the previous version of the addendum, or the original page.
4-4g
4-3 TRANSMIT ADJUSTMENTS
ADJUSTMENT ADJUSTMENT SETUP OPER ATION ADJUSTMENT
ITEM/POINT VALUE
VDD VOLTAGE
~Preset~
1Set the preset value on the
adjustment screen.
[F5] 200
2[F6]
3 [F7]
~Adjustment~ 4CH No.: [AM Low]
No audio signals are applied to
the MIC line.
Transmitting
Connect the RF power
to the antenna connector.
Connect the digital voltmeter
to the CP2 on the MAIN unit.
[F14]
(Adjustment screen)
For IC-A210:
14.5 V
(±0.2 V)
For IC-A210E:
13.0 V
(±0.2 V)
For IC-A220:
13.5 V
(±0.2 V)
5CH No.: [AM Mid]
Transmitting
[F15]
(Adjustment screen)
6CH No.: [AM High]
Transmitting
[F16]
(Adjustment screen)
For only IC-A220:
IDLING CURRENT
~Preset~
1Set the preset value on the
adjustment screen.
[F5] 0
2[F6]
3[F7]
4[F24]
~Adjustment~ 5CH No.: [AM Mid]
No audio signals are applied to
the MIC line.
Transmitting
Connect the ammeter
between the transceiver and
the power source.
Record
the flowing
current.
6[F24]
(Adjustment screen)
Set to the
value so that
the flowing
current
becomes 1.0 A
(±0.1 A) higher
than step 5.
TX OUTPUT
POWER
~Adjustment~
1CH No.: [AM Low]
No audio signals are applied to
the MIC line.
Transmitting
Connect the RF power meter
to the antenna connector.
[F5]
(Adjustment screen)
For IC-A210/
IC-A220:
8.0 W
(±0.2 W)
For IC-A210E:
6.0 W
(±0.2 W)
2CH No.: [AM Mid]
Transmitting
[F6]
(Adjustment screen)
3CH No.: [AM High]
Transmitting
[F7]
(Adjustment screen)
(Replacement page)
July 2019
Continued on the next page…
• VDD voltage check point
(TOP VIEW)
CP2
VDD voltage check point
The underlined parts have been updated from the previous version of the addendum, or the original page.
4-5g
ADJUSTMENT ADJUSTMENT SETUP OPER ATION ADJUSTMENT
ITEM/POINT VALUE
MIC1 DEVIATION
AND MIC GAIN
~Preparation~
1Set the preset value on the
adjustment screen.
[F11] 75
2[F12]
~ Modulation
adjustment~
3CH No.: [AM Low]
Transmitting
Connect the modulation
analyzer to the antenna
connector through the
attenuator, and set it to:
HPF: OFF
LPF: OFF
De-emphasis: OFF
Detector: (P-P)/2
Connect the audio generator
to the MIC1 line, and set it to:
Frequency: 1 kHz
Level: 300 mV rms
Waveform: Sine wave
[F8]
(Adjustment screen)
88% (±2%)
4CH No.: [AM Mid]
Transmitting
[F9]
(Adjustment screen)
5CH No.: [AM High]
Transmitting
[F10]
(Adjustment screen)
~ MIC gain
adjustment~
6CH No.: [AM Mid]
Transmitting
Set the audio generator to:
Level: 80 mV rms
[F11]
(Adjustment screen)
75% (±5%)
~ Modulation
verification~
7CH No.: [AM Low]
Transmitting
Set the audio generator to:
Level: 100 mV rms
For IC-A210/
IC-A220:
70~98%
For IC-A210E:
85~95%
8CH No.: [AM Mid]
Transmitting
9CH No.: [AM High]
Transmitting
MIC2 DEVIATION
AND MIC GAIN
~Adjustment~
1CH No.: [AM Mid]
Transmitting
Connect the modulation
analyzer to the antenna
connector through the
attenuator, and set it to:
HPF: OFF
LPF: OFF
De-emphasis: OFF
Detector: (P-P)/2
Connect the audio generator
to the MIC2 line, and set it to:
Frequency: 1 kHz
Level: 80 mV rms
Waveform: Sine wave
[F12]
(Adjustment screen)
75% (±5%)
~ Modulation
verification~
2CH No.: [AM Low]
Transmitting
Set the audio generator to:
Level: 100 mV rms
For IC-A210/
IC-A220:
70~98%
For IC-A210E:
85~95%
3CH No.: [AM Mid]
Transmitting
4CH No.: [AM High]
Transmitting
For only IC-A210E:
TX FLOWING
CURRENT
(UNMODULATED)
~Verification~
1CH No.: [AM Low]
No audio signals are applied to
the MIC line.
Transmitting
Connect the RF power
meter or 50 dummy load
to the antenna connector.
Connect the ammeter
between the transceiver and
the power source.
1~4 A
2CH No.: [AM Mid]
Transmitting
3CH No.: [AM High]
Transmitting
(Replacement page)
July 2019
4-3 TRANSMIT ADJUSTMENTS (CONTINUED)
The underlined parts have been updated from the previous version of the addendum, or the original page.
Continued on the next page…
4-6g
ADJUSTMENT ADJUSTMENT SETUP OPER ATION ADJUSTMENT
ITEM/POINT VALUE
TX FLOWING
CURRENT
(MODULATED)
~Verification~
1CH No.: [AM Low]
Transmitting
Connect the RF power
meter or 50 dummy load
to the antenna connector.
Connect the ammeter
between the transceiver and
the power source.
Connect the audio generator
to the MIC1 line, and set it to:
Frequency: 1 kHz
Level: 300 mV rms
Waveform: Sine wave
For IC-A210/
IC-A220:
Less than 6 A
For IC-A210E:
Less than 5 A
2CH No.: [AM Mid]
Transmitting
3CH No.: [AM High]
Transmitting
SPURIOUS
EMISSION
~Verification~
1CH No.: [AM Low]
No audio signals are applied to
the MIC line.
Transmitting
Connect the spectrum
analyzer to the antenna
connector through the
attenuator.
For IC-A210/
IC-A220:
Less than
60 dBc,
Less than
60 dBm (for
components
in 1559~1610
MHz range)
For IC-A210E:
Less than
(harmonic
components),
Less than
(Non
harmonic)
2CH No.: [AM Mid]
Transmitting
3CH No.: [AM High]
Transmitting
(Replacement page)
July 2019
The underlined parts have been updated from the previous version of the addendum, or the original page.
4-3 TRANSMIT ADJUSTMENTS (CONTINUED)
4-7g
4-4 RECEIVE ADJUSTMENTS
ADJUSTMENT ADJUSTMENT SETUP OPER ATION ADJUSTMENT
ITEM/POINT VALUE
RX TUNING
VOLTAGE
1CH No.: [AM Low]
Receiving
Connect the digital voltmeter
to the CP5 on the MAIN unit.
[F17]
(Adjustment screen)
5.0 V (±0.1 V)
RX BPF (AM)
~Adjustment~
1CH No.: [AM Low]
Receiving
Connect the digital voltmeter
to the CP10 on the MAIN
unit.
Connect the standard signal
generator (SSG) to the
antenna connector, and set
it to:
Frequency: 118.000 MHz
Modulation: 1 kHz
Deviation: 30%
L2, L4, L8, L10
(MAIN unit)
Minimum
voltage
2CH No.: [AM Mid]
Receiving
Set the SSG to:
Frequency: 127.500 MHz
[F18]
(Adjustment screen)
3CH No.: [AM High]
Receiving
Set the SSG to:
Frequency: 136.975 MHz
[F19]
(Adjustment screen)
~Verification~ 4CH No.: [AM Low]
Receiving
Connect the distortion meter
to the external speaker line
Set the SSG to:
Frequency: 118.000 MHz
Level*:
To the level
so that the
distortion
meter shows
6 dB S/N or
12 dB SINAD.
For IC-A210/
IC-A220:
Less than
(6 dB S/N)
For IC-A210E:
Less than
(12 dB SINAD:
with CCIT filter)
5CH No.: [AM Mid]
Receiving
Set the SSG to:
Frequency: 127.500 MHz
6CH No.: [AM High]
Receiving
Set the SSG to:
Frequency: 136.975 MHz
For only IC-A210
and IC-A220:
RX BPF (FM)
~Preparation~†
1 Set the preset value on the
adjustment screen.
[F21] 255
~Adjustment~ 2CH No.: [FM Low]
Receiving
Connect the standard signal
generator (SSG) to the
antenna connector, and set
it to:
Frequency: 161.650 MHz
Modulation: 1 kHz
Deviation: 3.5 kHz
Connect the digital voltmeter
to the CP13 on the MAIN
unit.
[F20]
(Adjustment screen)
Maximum
voltage
3CH No. : [FM High]
Receiving
Set the SSG to:
Frequency: 163.275 MHz
[F21]
(Adjustment screen)
~Verification~ 4CH No.: [FM Low]
Receiving
Connect the distortion meter
to the external speaker line
with the 4 load.
Set the SSG to:
Frequency: 161.650 MHz
More than
12 dB SINAD
5CH No. : [FM High]
Receiving
Set the SSG to:
Frequency: 163.275 MHz
(Replacement page)
July 2019
The underlined parts have been updated from the previous version of the addendum, or the original page.
Continued on the next page…
†For only IC-A220.
*The output level of the standard signal generator (SSG) is indicated at the load end (PD).
4-8g
(Replacement page)
July 2019
• Receive adjustments
(TOP VIEW)
(TOP VIEW)
CP5
Tuning voltage check point
L2, L4, L8, and L10
RX BPF adjustment
CP10
RX BPF (AM) check point
CP13
RX BPF (FM) check point
Continued on the next page…
The underlined parts have been updated from the previous version of the addendum, or the original page.
4-9g
(Replacement page)
July 2019
The underlined parts have been updated from the previous version of the addendum, or the original page.
4-4 RECEIVER ADJUSTMENTS (CONTINUED)
ADJUSTMENT ADJUSTMENT SETUP OPER ATION ADJUSTMENT
ITEM/POINT VALUE
SQUELCH (AM)
~Adjustment~
1CH No.: [AM Mid]
Receiving
Connect the standard signal
generator (SSG) to the
antenna connector, and set
it to:
Frequency: 127.500 MHz
Modulation: 1 kHz
Deviation: 30%
[F3]
(Adjustment screen)
To the value so
that the squelch
just opens.
~Verification~ 2Set the frequency step in the
settings menu to 25 kHz.
Receiving
Set the SSG to:
Level*: 3 dBµV
(110 dBm)
Squelch closed
3 Set the SSG to:
Level*: 2dBµV
(105 dBm)
Squelch
opened
4Set the frequency step in the
settings menu to 8.33 kHz.
Receiving
Set the SSG to:
Level*: 11 dBµV
(96 dBm)
For only IC-A210/
IC-A220:
SQUELCH (FM)
~Adjustment~
1CH No.: [FM High]
Receiving
Connect the standard signal
generator (SSG) to the
antenna connector, and set
it to:
Frequency: 163.275 MHz
Modulation: 1 kHz
Deviation: 30%
[F4]
(Adjustment screen)
To the value so
that the squelch
just opens.
~Verification~ 2 Set the SSG to:
Level*: 0 dBµV
(107 dBm)
Squelch closed
3 Set the SSG to:
Level*: 5dBµV
(102 dBm)
Squelch
opened
RX AUDIO
DISTORTION
AND FLOWING
CURRENT
~Verification~
1CH No.: [AM Mid]
Receiving
Connect the distortion meter
to the external speaker line
with the 4 load.
Connect the ammeter
between the transceiver and
the power source.
Connect the standard signal
generator (SSG) to the
antenna connector, and set
it to:
Frequency: 127.500 MHz
(53 dBm)
Modulation: 1 kHz
Deviation: 85%
Set the volume so that the
distortion meter shows
4.47 V (5 W).
Less than 10%
of distortion
2 Set the volume level to the
maximum level.
Less than 4 A
3Stand-by (squelched) Set the SSG to:
Level: OFF
Less than 0.8 A
Continued on the next page…
*The output level of the standard signal generator (SSG) is indicated at the load end (PD).
4-10g
ADJUSTMENT ADJUSTMENT SETUP OPER ATION ADJUSTMENT
ITEM/POINT VALUE
HEADSET AUDIO
DISTORTION
~Verification~
1CH No.: [AM Mid]
Receiving
Connect the distortion meter
with the 500 load to the
headset line.
Connect the standard signal
generator (SSG) to the
antenna connector, and set
it to:
Frequency: 127.500 MHz
(53 dBm)
Modulation: 1 kHz
Deviation: 85%
Set the audio output level
so that the distortion meter
shows 5.48 V (60 mW).
Less than 10%
of distortion
For only IC-A220:
INTERCOM
FUNCTION
~Verification~
1Turn the intercom function
ON.
Set the "INCOM LV1" in the
configulation menu to 60.
Connect the distortion meter
with the 500 load to the
headset line.
Connect the audio generator
with the AC millivoltmeter to
the MIC1 line, and set it to:
Frequency: 1 kHz
Level: 20 mV rms
Waveform: Sine wave
2.16 ~3. 24 Vrms
2Set the "INCOM LV2" in the
configulation menu to 60.
Connect the distortion meter
with the 500 load to the
headset line.
Connect the audio generator
with the AC millivoltmeter to
the MIC2 line, and set it to:
Frequency: 1 kHz
Level: 20 mV rms
Waveform: Sine wave
2.16 ~3. 24 Vrms
27.5 V
OPER ATION
~Verification~
1 Connect the 27.5 V power
source to the transceiver.
Connect the digital voltmeter
to the CP2 on the MAIN unit.
13.5 V (±0.5 V)
*The output level of the standard signal generator (SSG) is indicated at the load end (PD).
(Replacement page)
July 2019
The underlined parts have been updated from the previous version of the addendum, or the original page.
4-4 RECEIVER ADJUSTMENTS (CONTINUED)
The underlined parts have been updated from the addendum of the previous version, or from the original page.
SECTION 5 PARTS LIST
5-1g
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[MAIN UNIT] (for IC-A210 and IC-A210E)
REF PART DESCRIPTION M. H/V
NO. NO. LOCATION
[MAIN UNIT] (for IC-A210 and IC-A210E)
REF PART DESCRIPTION M. H/V
NO. NO. LOCATION
(Amended page)
July 2019
IC2 1110007200 S.IC M61545AFP#DF0R T 29.5/66.7
IC3 1110003800 S.IC NJM2904V-TE1-#FMZB B 18.7/53.7
IC4 1110003250 S.IC TDA7233D (TDA7233D013TR) T 54.2/92.4
IC5 1180003000 REG LM2587T-ADJ/NOPB
IC6 1180002010 S.REG BA08FP-E2 T 70.5/82.0
IC7 6910019020 S.IC LTC1069-1IS8#TRPBF T 91.0/79.0
IC8 1110003780 S.IC NJM2902V-TE1-#ZZZB T 98.4/90.6
IC9 6910019030 S.IC LTC6904IMS8#TRPBF T 98.3/73.2
IC13 1110003670 S.IC BA3308F-E2 T 43.3/67.9
IC14 1110007200 S.IC M61545AFP#DF0R T 85.3/92.1
IC16 1110007230 S.IC NJM2137M-TE1-#ZZZB B 119.6/16.1
IC17 1190001211 S.IC HIP4081AIBZ-T T 93.2/8.9
I C2 5 1110 0 07 23 0 S .I C NJ M213 7M -T E1- # Z ZZ B T 117.0 /111. 8
IC26 1130006221 S.IC TC4W53FU (TE12LF) T 100.3/77.5
IC31 1180002990 S.REG BD9781HFP-TR T 134.8/135.9
IC32 1130006221 S.IC TC4W53FU (TE12LF) T 123.5/87.1
IC37 1110002751 S.IC TA75S01F (TE85RF) T 119.4/93.2
IC38 1110002751 S.IC TA75S01F (TE85RF) T 112.0/91.7
IC39 1110003201 S.IC TA31136FNG (EL) T 144.1/57.1
IC42 1180002010 S.REG BA08FP-E2 T 199.2/127.1
IC43 1130006221 S.IC TC4W53FU (TE12LF) B 149.7/49.5
IC44 1180001862 S.IC TA78M05F (TE16L1NQ) T 200.6/119.5
IC45 1130006221 S.IC TC4W53FU (TE12LF) B 148.0/68.8
IC46 1130011180 S.IC BU4081BF-E2 T 188.9/130.3
IC47 1130012970 S.IC ADF4110BRUZ-RL7 B 186.7/59.9
IC48 1130011510 S.IC BU2099FV-E2 T 177.8/118.1
IC49 1130008751 S.IC TC4028BF (ELNF) T 179.5/131.0
1130008751 S.IC TC4028BF (ELNF) [#02]
1130013520 S.IC CD4028BNSR [#03]
1130008751 S.IC TC4028BF (ELNF) [#05]
1130008751 S.IC TC4028BF (ELNF) [#11]
1130008751 S.IC TC4028BF (ELNF) [#21]
1130013520 S.IC CD4028BNSR [#23]
1130008751 S.IC TC4028BF (ELNF) [#25]
IC52 1110003800 S.IC NJM2904V-TE1-#FMZB B 92.7/66.5
IC54 1180003140 S.REG TA78L24F (TE12LF) T 125.3/117.1
IC67 1130004201 S.IC TC4S66F (TE85RF) T 67.7/71.9
Eqv. 1130019770 S.IC TC4S66FRF [#03]
IC68 1190002610 S.IC JMS-1+ T 95.1/53.6
IC69 1110007270 S.IC ERA-50SM+ B 65.0/61.4
IC70 1130004201 S.IC TC4S66F (TE85RF) B 141.1/92.9
Eqv. 1130019770 S.IC TC4S66FRF [#03]
IC71 1130004201 S.IC TC4S66F (TE85RF) B 121.9/112.0
Eqv. 1130019770 S.IC TC4S66FRF [#03]
IC74 1130006441 S.IC TC7S08F (TE85RF) B 97.0/125.4
IC75 6910019050 S.DC BD9001F-E2 B 109.2/127.8
IC76 1110002751 S.IC TA75S01F (TE85RF) T 75.9/70.7
IC78 1190001350 S.IC M62364FP 600D B 120.6/97.3
IC79 1110002751 S.IC TA75S01F (TE85RF) B 132.0/96.2
IC80 1130004201 S.IC TC4S66F (TE85RF) B 118.5/112.0
Eqv. 1130019770 S.IC TC4S66FRF [#03]
IC81 1110003780 S.IC NJM2902V-TE1-#ZZZB T 135.1/81.8
IC82 1110002751 S.IC TA75S01F (TE85RF) B 192.7/102.3
Q2 1530002381 S.TRA 2SC4215-Y (TE85LF) B 176.5/26.3
Q3 1530002381 S.TRA 2SC4215-Y (TE85LF) B 189.1/22.1
Q5 1560001281 S.FET 2SK508-T1B-A K53 [#01] T 182.6/41.4
1560001281 S.FET 2SK508-T1B-A K53 [#02]
1560002170 S.FET MCH3914-TL-H (70R8) [#03]
1560001281 S.FET 2SK508-T1B-A K53 [#05]
1560001281 S.FET 2SK508-T1B-A K53 [#11]
1560001281 S.FET 2SK508-T1B-A K53 [#21]
1560001281 S.FET 2SK508-T1B-A K53 [#23]
1560001281 S.FET 2SK508-T1B-A K53 [#25]
Q6 1560001281 S.FET 2SK508-T1B-A K53 [#01] T 186.6/31.8
1560001281 S.FET 2SK508-T1B-A K53 [#02]
1560002170 S.FET MCH3914-TL-H (70R8) [#03]
1560001281 S.FET 2SK508-T1B-A K53 [#05]
1560001281 S.FET 2SK508-T1B-A K53 [#11]
1560001281 S.FET 2SK508-T1B-A K53 [#21]
1560001281 S.FET 2SK508-T1B-A K53 [#23]
1560001281 S.FET 2SK508-T1B-A K53 [#25]
Q9 1540000690 S.TRA 2SD2351 T106 B 42.3/83.2
Q11 1590005250 S.FET 2SJ661-DL-1E [#01] T 26.7/131.0
1590005250 S.FET 2SJ661-DL-1E [#02]
1590005250 S.FET 2SJ661-DL-1E [#03]
1590005250 S.FET 2SJ661-DL-1E [#05]
1590005250 S.FET 2SJ661-DL-1E [#11]
1590005250 S.FET 2SJ661-DL-1E [#21]
1590003950 S.FET 2SJ312 (TE24LQ) [#23]
1590005250 S.FET 2SJ661-DL-1E [#25]
Q12 1590000430 S.TRA DTC144EUA T106 B 113.6/119.4
Eqv. 1590004750 S.TRA LMUN5213T1G
Q15 1560001121 S.FET 2SK2414-Z-E1-AZ [#01] T 81.9/116.6
1560001121 S.FET 2SK2414-Z-E1-AZ [#02]
1560002220 S.FET 2SK3377-Z-E1-AZ [#03]
1560001121 S.FET 2SK2414-Z-E1-AZ [#05]
1560001121 S.FET 2SK2414-Z-E1-AZ [#11]
1560001121 S.FET 2SK2414-Z-E1-AZ [#21]
1560001121 S.FET 2SK2414-Z-E1-AZ [#23]
1560001121 S.FET 2SK2414-Z-E1-AZ [#25]
Q16 1560001121 S.FET 2SK2414-Z-E1-AZ [#01] T 81.0/108.8
1560001121 S.FET 2SK2414-Z-E1-AZ [#02]
1560002220 S.FET 2SK3377-Z-E1-AZ [#03]
1560001121 S.FET 2SK2414-Z-E1-AZ [#05]
1560001121 S.FET 2SK2414-Z-E1-AZ [#11]
1560001121 S.FET 2SK2414-Z-E1-AZ [#21]
1560001121 S.FET 2SK2414-Z-E1-AZ [#23]
1560001121 S.FET 2SK2414-Z-E1-AZ [#25]
Q20 1580000780 S.FET 3SK195 (TE85LF) [#01] T 131.4/57.5
1580000780 S.FET 3SK195 (TE85LF) [#02]
1580000850 S.FET 3SK263-5-TG-E [#03]
1580000780 S.FET 3SK195 (TE85LF) [#05]
1580000780 S.FET 3SK195 (TE85LF) [#11]
1580000780 S.FET 3SK195 (TE85LF) [#21]
1580000780 S.FET 3SK195 (TE85LF) [#23]
1580000780 S.FET 3SK195 (TE85LF) [#25]
Q21 1530003281 S.TRA 2SC4211-6-TL-E T 144.2/90.6
Q24 1530002381 S.TRA 2SC4215-Y (TE85LF) T 150.2/89.9
Q25 1530002381 S.TRA 2SC4215-Y (TE85LF) T 150.3/82.0
Q26 1530002381 S.TRA 2SC4215-Y (TE85LF) T 150.1/72.1
Q29 1520000860 S.TRA 2SB1302S-TD-E T 175.0/102.9
Q30 1590001010 S.TRA DTB113ZK T146 B 185.4/102.5
Eqv. 1590004830 S.TRA KRA225S-RTK/P
Q32 1590001010 S.TRA DTB113ZK T146 B 188.9/102.5
Eqv. 1590004830 S.TRA KRA225S-RTK/P
Q33 1530002921 S.TRA 2SC4226-T1 (R25) T 179.0/30.5
Q35 1530002381 S.TRA 2SC4215-Y (TE85LF) B 170.5/29.4
Q38 1530002381 S.TRA 2SC4215-Y (TE85LF) T 181.6/56.6
Q41 1530002921 S.TRA 2SC4226-T1 (R25) T 165.7/23.5
Q42 1540000690 S.TRA 2SD2351 T106 B 196.3/23.0
Q45 1530002680 S.TRA 2SC3357-T1 B 104.7/57.8
Q46 1590000430 S.TRA DTC144EUA T106 T 172.9/121.5
Eqv. 1590004750 S.TRA LMUN5213T1G
Q48 1590004500 S.TRA DMC561040R B 88.6/63.9
Q50 1530002841 S.TRA 2SC4116-Y (TE85RF) T 146.0/87.3
Q51 1540000690 S.TRA 2SD2351 T106 T 153.6/109.8
Q53 1590000430 S.TRA DTC144EUA T106 B 188.4/98.1
Eqv. 1590004750 S.TRA LMUN5213T1G
Q54 1590000430 S.TRA DTC144EUA T106 B 184.8/122.7
Eqv. 1590004750 S.TRA LMUN5213T1G
Q55 1590000430 S.TRA DTC144EUA T106 T 131.3/89.9
Eqv. 1590004750 S.TRA LMUN5213T1G
Q58 1530002841 S.TRA 2SC4116-Y (TE85RF) B 21.9/91.3
Q59 1560001330 S.FET RSR025N03 B 18.9/91.3
Eqv. 1560001850 S.FET RQK0303MGDQA
Q60 1560001330 S.FET RSR025N03 B 18.9/94.7
Eqv. 1560001850 S.FET RQK0303MGDQA
Q61 1590000430 S.TRA DTC144EUA T106 B 21.9/95.4
Eqv. 1590004750 S.TRA LMUN5213T1G
Q62 1560002170 S.FET MCH3914-TL-H (70R8) [#03] B 177.3/38.6
1560001281 S.FET 2SK508-T1B-A K53 [#23]
D1 1750002580 S.DIO HVU187TRF-E B 42.0/59.6
D2 1750002580 S.DIO HVU187TRF-E B 45.0/60.6
D3 1750002580 S.DIO HVU187TRF-E B 44.5/57.7
D4 1750000590 S.DIO DAN217T146 B 7.3/69.7
D5 1750000590 S.DIO DAN217T146 B 7.5/62.4
D6 1750000590 S.DIO DAN217T146 B 9.3/75.9
D10 1720000850 S.VAR 1SV242 (TPH2F) [#01] B 48.1/53.6
1720000850 S.VAR 1SV242 (TPH2F) [#02]
1720000850 S.VAR 1SV242 (TPH2F) [#05]
1720000850 S.VAR 1SV242 (TPH2F) [#11]
1720000850 S.VAR 1SV242 (TPH2F) [#21]
1720000850 S.VAR 1SV242 (TPH2F) [#23]
1720000850 S.VAR 1SV242 (TPH2F) [#25]
D11 1720000850 S.VAR 1SV242 (TPH2F) [#01] B 56.1/53.1
1720000850 S.VAR 1SV242 (TPH2F) [#02]
1720000850 S.VAR 1SV242 (TPH2F) [#05]
1720000850 S.VAR 1SV242 (TPH2F) [#11]
1720000850 S.VAR 1SV242 (TPH2F) [#21]
1720000850 S.VAR 1SV242 (TPH2F) [#23]
1720000850 S.VAR 1SV242 (TPH2F) [#25]
D12 1750001390 S.ZEN DAM1MA33 B 17.6/121.4
D13 1720000850 S.VAR 1SV242 (TPH2F) [#01] B 72.3/54.8
1720000850 S.VAR 1SV242 (TPH2F) [#02]
1720000850 S.VAR 1SV242 (TPH2F) [#05]
1720000850 S.VAR 1SV242 (TPH2F) [#11]
1720000850 S.VAR 1SV242 (TPH2F) [#21]
1720000850 S.VAR 1SV242 (TPH2F) [#23]
1720000850 S.VAR 1SV242 (TPH2F) [#25]
D14 1720000850 S.VAR 1SV242 (TPH2F) [#01] B 80.8/52.6
1720000850 S.VAR 1SV242 (TPH2F) [#02]
1720000850 S.VAR 1SV242 (TPH2F) [#05]
1720000850 S.VAR 1SV242 (TPH2F) [#11]
1720000850 S.VAR 1SV242 (TPH2F) [#21]
1720000850 S.VAR 1SV242 (TPH2F) [#23]
1720000850 S.VAR 1SV242 (TPH2F) [#25]
D15 1730001011 S.ZEN RD16M-T2B-A B3 B 19.8/131.0
D16 1750000590 S.DIO DAN217T146 B 21.7/58.5
D17 1750000590 S.DIO DAN217T146 B 22.4/48.6
D18 1750000051 S.DIO 1SS193 (TE85RF) B 45.7/83.2
D19 1750000581 S.DIO 1SV307 (TPH3F) B 107.4/63.9
The underlined parts have been updated from the addendum of the previous version, or from the original page.
5-2g
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[MAIN UNIT] (for IC-A210 and IC-A210E)
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (for IC-A210 and IC-A210E)
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
(Amended page)
July 2019
D20 1750000581 S.DIO 1SV307 (TPH3F) [#01] B 107.4/62.0
1750000581 S.DIO 1SV307 (TPH3F) [#02]
1750000581 S.DIO 1SV307 (TPH3F) [#03]
1750000581 S.DIO 1SV307 (TPH3F) [#05]
1750000581 S.DIO 1SV307 (TPH3F) [#11]
1750000581 S.DIO 1SV307 (TPH3F) [#23]
1750000581 S.DIO 1SV307 (TPH3F) [#25]
D21 1720000831 S.VAR KV1770STL-G 1-3 [#01] T 190.2/48.8
1720000831 S.VAR KV1770STL-G 1-3 [#02]
1720000831 S.VAR KV1770STL-G 1-3 [#05]
1720000831 S.VAR KV1770STL-G 1-3 [#11]
1720000831 S.VAR KV1770STL-G 1-3 [#21]
1720000831 S.VAR KV1770STL-G 1-3 [#23]
1720000831 S.VAR KV1770STL-G 1-3 [#25]
D22 1720000831 S.VAR KV1770STL-G 1-3 [#01] T 195.7/42.1
1720000831 S.VAR KV1770STL-G 1-3 [#02]
1720000831 S.VAR KV1770STL-G 1-3 [#05]
1720000831 S.VAR KV1770STL-G 1-3 [#11]
1720000831 S.VAR KV1770STL-G 1-3 [#21]
1720000831 S.VAR KV1770STL-G 1-3 [#23]
1720000831 S.VAR KV1770STL-G 1-3 [#25]
D23 1750000051 S.DIO 1SS193 (TE85RF) T 92.9/108.2
D26 1750001530 S.DIO DF10SC6-7072 T 69.3/133.9
D27 1750000581 S.DIO 1SV307 (TPH3F) T 127.5/62.6
D28 1750000581 S.DIO 1SV307 (TPH3F) [#01] T 126.7/56.7
1750000581 S.DIO 1SV307 (TPH3F) [#02]
1750000581 S.DIO 1SV307 (TPH3F) [#03]
1750000581 S.DIO 1SV307 (TPH3F) [#05]
1750000581 S.DIO 1SV307 (TPH3F) [#11]
1750000581 S.DIO 1SV307 (TPH3F) [#23]
1750000581 S.DIO 1SV307 (TPH3F) [#25]
D29 1790001241 S.DIO MA2S7280GL [#01] B 137.4/92.2
1790001241 S.DIO MA2S7280GL [#02]
1750002170 S.DIO DB2S31400L [#03]
1790001241 S.DIO MA2S7280GL [#05]
1790001241 S.DIO MA2S7280GL [#11]
1790001241 S.DIO MA2S7280GL [#21]
1750002170 S.DIO DB2S31400L [#23]
1790001241 S.DIO MA2S7280GL [#25]
D32 1750001500 S.DIO CMS15 (TE12LQ) B 130.4/130.7
D33 1750002580 S.DIO HVU187TRF-E T 153.3/86.4
D35 1750002580 S.DIO HVU187TRF-E T 155.4/77.0
D36 1750001070 S.DIO DAN235ETL B 167.5/36.6
Eqv. 1750002470 S.DIO KDS112E-RTK/P
D50 1750001500 S.DIO CMS15 (TE12LQ) B 111.6/132.1
D51 1790000991 S.ZEN MAZ8051GHL B 97.0/128.4
D52 1790001790 S.DIO RB876W TL T 134.4/55.6
D53 1750000550 S.DIO 1SS355 TE-17 T 130.7/69.2
D54 1790001521 S.ZEN MAZ8075GLL B 89.7/90.4
D55 1730002760 S.ZEN UDZSTE-17 9.1B [#03] T 156.2/111.3
1730002760 S.ZEN UDZSTE-17 9.1B [#23]
FI1 2040000501 LC BNX-002-01-Z
FI2 4580000110 S.FIL ACF321825-223-T T 103.9/121.0
FI3 2010002400 S.MON FL-306 (38.850 MHz) T 117.3/65.0
FI4 2010002410 S.MON FL-307 (38.850 MHz) [#01] T 117.3/58.2
2010002410 S.MON FL-307 (38.850 MHz) [#02]
2010002410 S.MON FL-307 (38.850 MHz) [#03]
2010002410 S.MON FL-307 (38.850 MHz) [#05]
2010002410 S.MON FL-307 (38.850 MHz) [#11]
2010002410 S.MON FL-307 (38.850 MHz) [#23]
2010002410 S.MON FL-307 (38.850 MHz) [#25]
FI5 2020002320 S.CER CFWKA450KEFA [#01] B 152.6/59.5
2020002320 S.CER CFWKA450KEFA [#02]
2020002400 S.CER CFWKA450KDFA-R0 [#03]
2020002320 S.CER CFWKA450KEFA [#05]
2020002320 S.CER CFWKA450KEFA [#11]
2020002320 S.CER CFWKA450KEFA [#21]
2020002400 S.CER CFWKA450KDFA-R0 [#23]
2020002320 S.CER CFWKA450KEFA [#25]
FI6 2020002180 S.CER CFWKA450KHFA-R0 [#01] B 143.7/59.5
2020002180 S.CER CFWKA450KHFA-R0 [#02]
2020002180 S.CER CFWKA450KHFA-R0 [#03]
2020002180 S.CER CFWKA450KHFA-R0 [#05]
2020002180 S.CER CFWKA450KHFA-R0 [#11]
2020002180 S.CER CFWKA450KHFA-R0 [#23]
2020002180 S.CER CFWKA450KHFA-R0 [#25]
X1 6070000300 S.DIS JTBM450CX24 B 134.4/59.0
X2 6050012650 S.XTA CR-860 (38.4 MHz) T 175.9/61.0
L1 6200010780 S.COI C2520C-1R0G-A B 44.7/64.6
L2 6190001591 COI #E526HNA-100312 [#01]
Eqv. 6190002480 COI E526HNA-100312 (1) [#01]
L2 6190001591 COI #E526HNA-100312 [#02]
Eqv. 6190002480 COI E526HNA-100312 (1) [#02]
L2 6190002640 COI E526HNA-100312 (2) [#03]
6190001591 COI #E526HNA-100312 [#05]
Eqv. 6190002480 COI E526HNA-100312 (1) [#05]
L2 6190001591 COI #E526HNA-100312 [#11]
Eqv. 6190002480 COI E526HNA-100312 (1) [#11]
L2 6190001591 COI #E526HNA-100312 [#21]
Eqv. 6190002480 COI E526HNA-100312 (1) [#21]
L2 6190001591 COI #E526HNA-100312 [#23]
Eqv. 6190002480 COI E526HNA-100312 (1) [#23]
L2 6190001591 COI #E526HNA-100312 [#25]
Eqv. 6190002480 COI E526HNA-100312 (1) [#25]
L3 6200010950 S.COI C2520C-1R5G-A (1.5U) [#01] B 53.1/62.5
6200010950 S.COI C2520C-1R5G-A (1.5U) [#02]
6200010440 S.COI C2520C-1R2G-A (1.2U) [#03]
6200010950 S.COI C2520C-1R5G-A (1.5U) [#05]
6200010950 S.COI C2520C-1R5G-A (1.5U) [#11]
6200010950 S.COI C2520C-1R5G-A (1.5U) [#21]
6200010950 S.COI C2520C-1R5G-A (1.5U) [#23]
6200010950 S.COI C2520C-1R5G-A (1.5U) [#25]
L4 6190001591 COI #E526HNA-100312 [#01]
Eqv. 6190002480 COI E526HNA-100312 (1) [#01]
L4 6190001591 COI #E526HNA-100312 [#02]
Eqv. 6190002480 COI E526HNA-100312 (1) [#02]
L4 6190002640 COI E526HNA-100312 (2) [#03]
6190001591 COI #E526HNA-100312 [#05]
Eqv. 6190002480 COI E526HNA-100312 (1) [#05]
L4 6190001591 COI #E526HNA-100312 [#11]
Eqv. 6190002480 COI E526HNA-100312 (1) [#11]
L4 6190001591 COI #E526HNA-100312 [#21]
Eqv. 6190002480 COI E526HNA-100312 (1) [#21]
L4 6190001591 COI #E526HNA-100312 [#23]
Eqv. 6190002480 COI E526HNA-100312 (1) [#23]
L4 6190001591 COI #E526HNA-100312 [#25]
Eqv. 6190002480 COI E526HNA-100312 (1) [#25]
L5 6200004480 S.COI MLF1608D R82K-T T 17.4/64.4
L6 6200004480 S.COI MLF1608D R82K-T T 17.4/60.2
L7 6200011450 S.COI C2520C-R39G-A B 70.9/62.8
L8 6190001591 COI #E526HNA-100312 [#01]
Eqv. 6190002480 COI E526HNA-100312 (1) [#01]
L8 6190001591 COI #E526HNA-100312 [#02]
Eqv. 6190002480 COI E526HNA-100312 (1) [#02]
L8 6190002640 COI E526HNA-100312 (2) [#03]
6190001591 COI #E526HNA-100312 [#05]
Eqv. 6190002480 COI E526HNA-100312 (1) [#05]
L8 6190001591 COI #E526HNA-100312 [#11]
Eqv. 6190002480 COI E526HNA-100312 (1) [#11]
L8 6190001591 COI #E526HNA-100312 [#21]
Eqv. 6190002480 COI E526HNA-100312 (1) [#21]
L8 6190001591 COI #E526HNA-1003122 [#23]
Eqv. 6190002480 COI E526HNA-100312 (1) [#23]
L8 6190001591 COI #E526HNA-100312 [#25]
Eqv. 6190002480 COI E526HNA-100312(1) [#25]
L9 6200010950 S.COI C2520C-1R5G-A (1.5U) [#01] B 78.9/62.5
6200010950 S.COI C2520C-1R5G-A (1.5U) [#02]
6200010440 S.COI C2520C-1R2G-A (1.2U) [#03]
6200010950 S.COI C2520C-1R5G-A (1.5U) [#05]
6200010950 S.COI C2520C-1R5G-A (1.5U) [#11]
6200010950 S.COI C2520C-1R5G-A (1.5U) [#21]
6200010950 S.COI C2520C-1R5G-A (1.5U) [#23]
6200010950 S.COI C2520C-1R5G-A (1.5U) [#25]
L10 6190001591 COI #E526HNA-100312 [#01]
Eqv. 6190002480 COI E526HNA-100312 (1) [#01]
L10 6190001591 COI #E526HNA-100312 [#02]
Eqv. 6190002480 COI E526HNA-100312 (1) [#02]
L10 6190002640 COI E526HNA-100312 (2) [#03]
6190001591 COI #E526HNA-100312 [#05]
Eqv. 6190002480 COI E526HNA-100312 (1) [#05]
L10 6190001591 COI #E526HNA-100312 [#11]
Eqv. 6190002480 COI E526HNA-100312 (1) [#11]
L10 6190001591 COI #E526HNA-100312 [#21]
Eqv. 6190002480 COI E526HNA-100312 (1) [#21]
L10 6190001591 COI #E526HNA-100312 [#23]
Eqv. 6190002480 COI E526HNA-100312 (1) [#23]
L10 6190001591 COI #E526HNA-100312 [#25]
Eqv. 6190002480 COI E526HNA-100312 (1) [#25]
L11 6200010590 S.COI C2520C-22NG-A B 109.2/55.9
L12 6200011210 S.COI C2012C-1R0J-A B 111.0/64.8
L13 6200013240 S.COI C2012C-R68J-A [#01] B 110.8/61.6
6200013240 S.COI C2012C-R68J-A [#02]
6200013240 S.COI C2012C-R68J-A [#03]
6200013240 S.COI C2012C-R68J-A [#05]
6200013240 S.COI C2012C-R68J-A [#11]
6200013240 S.COI C2012C-R68J-A [#23]
6200013240 S.COI C2012C-R68J-A [#25]
L15 6200005011 S.COI NLV25T-100J-PF T 179.4/37.7
L16 6190001690 S.COI ZBFS5105-PT-01 [#01] B 23.1/110.0
6190001690 S.COI ZBFS5105-PT-01 [#02]
6190001690 S.COI ZBFS5105-PT-01 [#05]
6190001690 S.COI ZBFS5105-PT-01 [#11]
6190001690 S.COI ZBFS5105-PT-01 [#21]
6190001690 S.COI ZBFS5105-PT-01 [#23]
6190001690 S.COI ZBFS5105-PT-01 [#25]
L17 6190001690 S.COI ZBFS5105-PT-01 [#01] B 32.1/113.4
6190001690 S.COI ZBFS5105-PT-01 [#02]
6190001690 S.COI ZBFS5105-PT-01 [#05]
6190001690 S.COI ZBFS5105-PT-01 [#11]
6190001690 S.COI ZBFS5105-PT-01 [#21]
6190001690 S.COI ZBFS5105-PT-01 [#23]
6190001690 S.COI ZBFS5105-PT-01 [#25]
L18 6190001790 S.COI 7B12HA-680M-R-0231 T 34.7/113.9
L19 6190001790 S.COI 7B12HA-680M-R-0231 T 49.7/111.0
L20 6200005011 S.COI NLV25T-100J-PF T 183.9/28.4
L21 6190001790 S.COI 7B12HA-680M-R-0231 T 64.9/111.0
L22 6200005011 S.COI NLV25T-100J-PF T 184.8/37.0
L23 6190001760 COI HK-10S080-1210H
L24 6190001780 S.COI 7E08N-330M-RA-0231 T 122.7/124.6
L25 6190001780 S.COI 7E08N-330M-RA-0231 T 147.4/126.0
L26 6190001780 S.COI 7E08N-330M-RA-0231 T 137.5/120.9
L28 6200002041 S.COI NLV25T-101J-PF T 147.8/91.8
L29 6200002041 S.COI NLV25T-101J-PF T 150.0/74.6
L31 6200007001 S.COI ELJRE 82NGFA T 177.0/29.4
The underlined parts have been updated from the addendum of the previous version, or from the original page.
5-3g
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[MAIN UNIT] (for IC-A210 and IC-A210E)
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (for IC-A210 and IC-A210E)
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
(Amended page)
July 2019
L32 6200011050 S.COI C2012C-R12G-A [#01] B 169.6/33.5
6200011050 S.COI C2012C-R12G-A [#02]
6200009920 S.COI C2012C-R10G-A [#03]
6200011050 S.COI C2012C-R12G-A [#05]
6200011050 S.COI C2012C-R12G-A [#11]
6200011050 S.COI C2012C-R12G-A [#21]
6200009920 S.COI C2012C-R10G-A [#23]
6200011050 S.COI C2012C-R12G-A [#25]
L33 6200005011 S.COI NLV25T-100J-PF T 189.9/26.5
L34 6200013220 S.COI C6342A-R13G-A T 189.5/40.7
L35 6200013200 S.COI C1608CB-47NG-A B 167.3/31.2
L36 6200013270 S.COI C6342A-R11G-A T 193.4/31.0
L37 6200005011 S.COI NLV25T-100J-PF T 186.7/48.3
L38 6200005011 S.COI NLV25T-100J-PF T 195.6/39.0
L39 6200005011 S.COI NLV25T-100J-PF T 193.7/48.8
L40 6200005011 S.COI NLV25T-100J-PF T 195.7/45.8
L42 6200011050 S.COI C2012C-R12G-A B 89.6/58.4
L45 6200003960 S.COI MLF1608A 1R0K-T T 181.5/58.5
L47 6200011050 S.COI C2012C-R12G-A T 168.2/23.9
L49 6200010950 S.COI C2520C-1R5G-A (1.5U) T 124.5/63.9
L50 6200011090 S.COI C2012C-R56J-A [#01] T 124.1/57.6
6200011090 S.COI C2012C-R56J-A [#02]
6200011090 S.COI C2012C-R56J-A [#03]
6200011090 S.COI C2012C-R56J-A [#05]
6200011090 S.COI C2012C-R56J-A [#11]
6200011090 S.COI C2012C-R56J-A [#23]
6200011090 S.COI C2012C-R56J-A [#25]
L51 6200013160 S.COI C1608CB-R22G-A B 191.7/56.4
L52 6200013200 S.COI C1608CB-47NG-A B 98.8/55.4
L53 6200013200 S.COI C1608CB-47NG-A B 100.3/57.8
L56 6200013200 S.COI C1608CB-47NG-A B 176.6/47.5
L57 6200013260 S.COI C1608CB-56NG-A B 179.2/51.7
L58 6200004780 S.COI MLF1608A 1R5K-T T 175.9/56.7
L59 6200011210 S.COI C2012C-1R0J-A B 47.5/56.9
L60 6200004780 S.COI MLF1608A 1R5K-T T 133.9/57.8
L61 6200004730 S.COI MLF1608A 1R2K-T T 130.3/60.4
L62 6200004730 S.COI MLF1608A 1R2K-T T 129.0/60.4
L63 6200009930 S.COI C2012C-68NG-A B 31.7/61.9
L64 6200009930 S.COI C2012C-68NG-A B 35.8/61.9
L65 6200010350 S.COI C2012C-R27G-A B 32.5/59.1
L66 6200010350 S.COI C2012C-R27G-A B 37.8/59.4
L67 6190001810 S.COI 7E05NA-820M-RB-0231 T 112.9/129.6
L68 6200011430 S.COI C1608CB-22NG-A B 175.7/31.4
R1 7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#01] B 12.5/81.7
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#02]
7030015130 S.RES RMC1/16-102JTP (1 k) [#03]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#05]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#11]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#21]
7030015130 S.RES RMC1/16-102JTP (1 k) [#23]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#25]
R2 7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#01] B 6.5/80.1
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#02]
7030015130 S.RES RMC1/16-102JTP (1 k) [#03]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#05]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#11]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#21]
7030015130 S.RES RMC1/16-102JTP (1 k) [#23]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#25]
R3 7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#01] B 12.6/72.2
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#02]
7030015130 S.RES RMC1/16-102JTP (1 k) [#03]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#05]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#11]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#21]
7030015130 S.RES RMC1/16-102JTP (1 k) [#23]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#25]
R4 7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#01] B 7.5/58.7
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#02]
7030015130 S.RES RMC1/16-102JTP (1 k) [#03]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#05]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#11]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#21]
7030015130 S.RES RMC1/16-102JTP (1 k) [#23]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#25]
R5 7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#01] B 6.0/75.9
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#02]
7030015130 S.RES RMC1/16-102JTP (1 k) [#03]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#05]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#11]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#21]
7030015130 S.RES RMC1/16-102JTP (1 k) [#23]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#25]
R6 7030003860 S.RES ERJ3GE JPW V [#01] T 146.8/84.8
7030003860 S.RES ERJ3GE JPW V [#02]
7030015520 S.RES RMC1/16JPTP [#03]
7030003860 S.RES ERJ3GE JPW V [#05]
7030003860 S.RES ERJ3GE JPW V [#11]
7030003860 S.RES ERJ3GE JPW V [#21]
7030015520 S.RES RMC1/16JPTP [#23]
7030003860 S.RES ERJ3GE JPW V [#25]
R7 7030003860 S.RES ERJ3GE JPW V [#01] T 135.4/87.1
7030003860 S.RES ERJ3GE JPW V [#02]
7030015520 S.RES RMC1/16JPTP [#03]
7030003860 S.RES ERJ3GE JPW V [#05]
7030003860 S.RES ERJ3GE JPW V [#11]
7030003860 S.RES ERJ3GE JPW V [#21]
7030015520 S.RES RMC1/16JPTP [#23]
7030003860 S.RES ERJ3GE JPW V [#25]
R8 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#01] B 40.6/62.4
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#02]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#03]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#05]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#11]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#21]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#23]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#25]
R9 7030003640 S.RES ERJ3GEYJ 473 V (47 k) [#01] T 81.4/69.9
7030003640 S.RES ERJ3GEYJ 473 V (47 k) [#02]
7030015330 S.RES RMC1/16-473JTP (47 k) [#03]
7030003640 S.RES ERJ3GEYJ 473 V (47 k) [#05]
7030003640 S.RES ERJ3GEYJ 473 V (47 k) [#11]
7030003640 S.RES ERJ3GEYJ 473 V (47 k) [#21]
7030015330 S.RES RMC1/16-473JTP (47 k) [#23]
7030003640 S.RES ERJ3GEYJ 473 V (47 k) [#25]
R10 7030003320 S.RES ERJ3GEYJ 101 V (100) [#01] B 38.7/64.5
7030003320 S.RES ERJ3GEYJ 101 V (100) [#02]
7030015010 S.RES RMC1/16-101JTP (100) [#03]
7030003320 S.RES ERJ3GEYJ 101 V (100) [#05]
7030003320 S.RES ERJ3GEYJ 101 V (100) [#11]
7030003320 S.RES ERJ3GEYJ 101 V (100) [#21]
7030015010 S.RES RMC1/16-101JTP (100) [#23]
7030003320 S.RES ERJ3GEYJ 101 V (100) [#25]
R11 7030003410 S.RES ERJ3GEYJ 561 V (560) [#01] T 17.4/61.4
7030003410 S.RES ERJ3GEYJ 561 V (560) [#02]
7030015100 S.RES RMC1/16-561JTP (560) [#03]
7030003410 S.RES ERJ3GEYJ 561 V (560) [#05]
7030003410 S.RES ERJ3GEYJ 561 V (560) [#11]
7030003410 S.RES ERJ3GEYJ 561 V (560) [#21]
7030015100 S.RES RMC1/16-561JTP (560) [#23]
7030003410 S.RES ERJ3GEYJ 561 V (560) [#25]
R12 7030003320 S.RES ERJ3GEYJ 101 V (100) [#01] T 17.4/59.0
7030003320 S.RES ERJ3GEYJ 101 V (100) [#02]
7030015010 S.RES RMC1/16-101JTP (100) [#03]
7030003320 S.RES ERJ3GEYJ 101 V (100) [#05]
7030003320 S.RES ERJ3GEYJ 101 V (100) [#11]
7030003320 S.RES ERJ3GEYJ 101 V (100) [#21]
7030015010 S.RES RMC1/16-101JTP (100) [#23]
7030003320 S.RES ERJ3GEYJ 101 V (100) [#25]
R13 7030003410 S.RES ERJ3GEYJ 561 V (560) [#01] T 17.4/63.2
7030003410 S.RES ERJ3GEYJ 561 V (560) [#02]
7030015100 S.RES RMC1/16-561JTP (560) [#03]
7030003410 S.RES ERJ3GEYJ 561 V (560) [#05]
7030003410 S.RES ERJ3GEYJ 561 V (560) [#11]
7030003410 S.RES ERJ3GEYJ 561 V (560) [#21]
7030015100 S.RES RMC1/16-561JTP (560) [#23]
7030003410 S.RES ERJ3GEYJ 561 V (560) [#25]
R14 7030003400 S.RES ERJ3GEYJ 471 V (470) [#01] B 45.3/55.0
7030003400 S.RES ERJ3GEYJ 471 V (470) [#02]
7030015090 S.RES RMC1/16-471JTP (470) [#03]
7030003400 S.RES ERJ3GEYJ 471 V (470) [#05]
7030003400 S.RES ERJ3GEYJ 471 V (470) [#11]
7030003400 S.RES ERJ3GEYJ 471 V (470) [#21]
7030015090 S.RES RMC1/16-471JTP (470) [#23]
7030003400 S.RES ERJ3GEYJ 471 V (470) [#25]
R15 7030006060 S.RES ERJ12YJ100U (10) B 39.0/89.1
R16 7030003860 S.RES ERJ3GE JPW V [#01] B 47.1/68.0
7030003860 S.RES ERJ3GE JPW V [#02]
7030015520 S.RES RMC1/16JPTP [#03]
7030003860 S.RES ERJ3GE JPW V [#05]
7030003860 S.RES ERJ3GE JPW V [#11]
7030003860 S.RES ERJ3GE JPW V [#21]
7030015520 S.RES RMC1/16JPTP [#23]
7030003860 S.RES ERJ3GE JPW V [#25]
R17 7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#01] B 49.3/51.0
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#02]
7030015370 S.RES RMC1/16-104JTP (100 k) [#03]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#05]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#11]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#21]
7030015370 S.RES RMC1/16-104JTP (100 k) [#23]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#25]
R18 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#01] B 52.4/49.6
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#02]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#03]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#05]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#11]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#21]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#23]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#25]
R19 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) [#01] B 47.6/91.5
7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) [#02]
7030015540 S.RES RMC1/16-4R7JTP (4.7) [#03]
7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) [#05]
7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) [#11]
7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) [#21]
7030015540 S.RES RMC1/16-4R7JTP (4.7) [#23]
7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) [#25]
R20 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#01] T 23.0/68.4
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#02]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#03]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#05]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#11]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#21]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#23]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#25]
The underlined parts have been updated from the addendum of the previous version, or from the original page.
5-4g
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[MAIN UNIT] (for IC-A210 and IC-A210E)
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (for IC-A210 and IC-A210E)
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
(Amended page)
July 2019
R21 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#01] T 23.1/63.8
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#02]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#03]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#05]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#11]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#21]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#23]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#25]
R22 7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#01] B 57.1/55.6
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#02]
7030015370 S.RES RMC1/16-104JTP (100 k) [#03]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#05]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#11]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#21]
7030015370 S.RES RMC1/16-104JTP (100 k) [#23]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#25]
R23 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#01] B 60.2/53.1
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#02]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#03]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#05]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#11]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#21]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#23]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#25]
R24 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#01] B 90.7/61.9
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#02]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#03]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#05]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#11]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#21]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#23]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#25]
R25 7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#01] B 93.7/61.9
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#02]
7030015370 S.RES RMC1/16-104JTP (100 k) [#03]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#05]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#11]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#21]
7030015370 S.RES RMC1/16-104JTP (100 k) [#23]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#25]
R26 7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#01] T 25.5/68.3
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#02]
7030015130 S.RES RMC1/16-102JTP (1 k) [#03]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#05]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#11]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#21]
7030015130 S.RES RMC1/16-102JTP (1 k) [#23]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#25]
R27 7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#01] T 25.7/62.8
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#02]
7030015130 S.RES RMC1/16-102JTP (1 k) [#03]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#05]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#11]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#21]
7030015130 S.RES RMC1/16-102JTP (1 k) [#23]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#25]
R28 7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#01] T 178.5/104.1
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#02]
7030015250 S.RES RMC1/16-103JTP (10 k) [#03]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#05]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#11]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#21]
7030015250 S.RES RMC1/16-103JTP (10 k) [#23]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#25]
R29 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#01] B 38.8/57.0
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#02]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#03]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#05]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#11]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#21]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#23]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#25]
R31 7030003630 S.RES ERJ3GEYJ 393 V (39 k) [#01] B 22.1/129.1
7030003630 S.RES ERJ3GEYJ 393 V (39 k) [#02]
7030015320 S.RES RMC1/16-393JTP (39 k) [#03]
7030003630 S.RES ERJ3GEYJ 393 V (39 k) [#05]
7030003630 S.RES ERJ3GEYJ 393 V (39 k) [#11]
7030003630 S.RES ERJ3GEYJ 393 V (39 k) [#21]
7030015320 S.RES RMC1/16-393JTP (39 k) [#23]
7030003630 S.RES ERJ3GEYJ 393 V (39 k) [#25]
R32 7030003860 S.RES ERJ3GE JPW V [#01] B 58.2/135.2
7030003860 S.RES ERJ3GE JPW V [#02]
7030015520 S.RES RMC1/16JPTP [#03]
7030003860 S.RES ERJ3GE JPW V [#05]
7030003860 S.RES ERJ3GE JPW V [#11]
7030003860 S.RES ERJ3GE JPW V [#21]
7030015520 S.RES RMC1/16JPTP [#23]
7030003860 S.RES ERJ3GE JPW V [#25]
R33 7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#01] B 25.4/52.0
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#02]
7030015250 S.RES RMC1/16-103JTP (10 k) [#03]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#05]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#11]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#21]
7030015250 S.RES RMC1/16-103JTP (10 k) [#23]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#25]
R34 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#01] B 16.7/48.5
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#02]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#03]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#05]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#11]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#21]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#23]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#25]
R35 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#01] B 18.2/60.4
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#02]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#03]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#05]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#11]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#21]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#23]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#25]
R36 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#01] T 39.9/85.7
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#02]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#03]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#05]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#11]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#21]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#23]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#25]
R37 7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#01] B 24.1/59.6
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#02]
7030015250 S.RES RMC1/16-103JTP (10 k) [#03]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#05]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#11]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#21]
7030015250 S.RES RMC1/16-103JTP (10 k) [#23]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#25]
R39 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#01] T 39.9/76.4
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#02]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#03]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#05]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#11]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#21]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#23]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#25]
R40 7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#01] T 23.1/57.4
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#02]
7030015130 S.RES RMC1/16-102JTP (1 k) [#03]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#05]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#11]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#21]
7030015130 S.RES RMC1/16-102JTP (1 k) [#23]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#25]
R41 7030003740 S.RES ERJ3GEYJ 334 V (330 k) [#01] T 19.5/50.3
7030003740 S.RES ERJ3GEYJ 334 V (330 k) [#02]
7030015430 S.RES RMC1/16-334JTP (330 k) [#03]
7030003740 S.RES ERJ3GEYJ 334 V (330 k) [#05]
7030003740 S.RES ERJ3GEYJ 334 V (330 k) [#11]
7030003740 S.RES ERJ3GEYJ 334 V (330 k) [#21]
7030015430 S.RES RMC1/16-334JTP (330 k) [#23]
7030003740 S.RES ERJ3GEYJ 334 V (330 k) [#25]
R42 7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#01] B 19.8/128.4
7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#02]
7030015310 S.RES RMC1/16-333JTP (33 k) [#03]
7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#05]
7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#11]
7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#21]
7030015310 S.RES RMC1/16-333JTP (33 k) [#23]
7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#25]
R43 7030003740 S.RES ERJ3GEYJ 334 V (330 k) [#01] B 15.3/55.6
7030003740 S.RES ERJ3GEYJ 334 V (330 k) [#02]
7030015430 S.RES RMC1/16-334JTP (330 k) [#03]
7030003740 S.RES ERJ3GEYJ 334 V (330 k) [#05]
7030003740 S.RES ERJ3GEYJ 334 V (330 k) [#11]
7030003740 S.RES ERJ3GEYJ 334 V (330 k) [#21]
7030015430 S.RES RMC1/16-334JTP (330 k) [#23]
7030003740 S.RES ERJ3GEYJ 334 V (330 k) [#25]
R44 7030006220 S.RES ERJ12YJ470U (47) B 74.4/65.4
R45 7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#01] B 72.3/51.8
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#02]
7030015370 S.RES RMC1/16-104JTP (100 k) [#03]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#05]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#11]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#21]
7030015370 S.RES RMC1/16-104JTP (100 k) [#23]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#25]
R46 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#01] B 72.3/47.8
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#02]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#03]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#05]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#11]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#21]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#23]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#25]
R47 7030003790 S.RES ERJ3GEYJ 824 V (820 k) [#01] B 18.7/58.5
7030003790 S.RES ERJ3GEYJ 824 V (820 k) [#02]
7030015470 S.RES RMC1/16-824JTP (820 k) [#03]
7030003790 S.RES ERJ3GEYJ 824 V (820 k) [#05]
7030003790 S.RES ERJ3GEYJ 824 V (820 k) [#11]
7030003790 S.RES ERJ3GEYJ 824 V (820 k) [#21]
7030015470 S.RES RMC1/16-824JTP (820 k) [#23]
7030003790 S.RES ERJ3GEYJ 824 V (820 k) [#25]
The underlined parts have been updated from the addendum of the previous version, or from the original page.
5-5g
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[MAIN UNIT] (for IC-A210 and IC-A210E)
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (for IC-A210 and IC-A210E)
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
(Amended page)
July 2019
R48 7030003790 S.RES ERJ3GEYJ 824 V (820 k) [#01] B 19.4/48.5
7030003790 S.RES ERJ3GEYJ 824 V (820 k) [#02]
7030015470 S.RES RMC1/16-824JTP (820 k) [#03]
7030003790 S.RES ERJ3GEYJ 824 V (820 k) [#05]
7030003790 S.RES ERJ3GEYJ 824 V (820 k) [#11]
7030003790 S.RES ERJ3GEYJ 824 V (820 k) [#21]
7030015470 S.RES RMC1/16-824JTP (820 k) [#23]
7030003790 S.RES ERJ3GEYJ 824 V (820 k) [#25]
R49 7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#01] B 81.8/55.0
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#02]
7030015370 S.RES RMC1/16-104JTP (100 k) [#03]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#05]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#11]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#21]
7030015370 S.RES RMC1/16-104JTP (100 k) [#23]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#25]
R50 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#01] B 85.1/52.8
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#02]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#03]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#05]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#11]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#21]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#23]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#25]
R51 7030003450 S.RES ERJ3GEYJ 122 V (1.2 k) [#01] T 118.9/118.4
7030003450 S.RES ERJ3GEYJ 122 V (1.2 k) [#02]
7030015140 S.RES RMC1/16-122JTP (1.2 k) [#03]
7030003450 S.RES ERJ3GEYJ 122 V (1.2 k) [#05]
7030003450 S.RES ERJ3GEYJ 122 V (1.2 k) [#11]
7030003450 S.RES ERJ3GEYJ 122 V (1.2 k) [#21]
7030015140 S.RES RMC1/16-122JTP (1.2 k) [#23]
7030003450 S.RES ERJ3GEYJ 122 V (1.2 k) [#25]
R52 7030015060 S.RES RMC1/16-271JTP (270) [#03] B 86.2/57.7
7030015060 S.RES RMC1/16-271JTP (270) [#23]
R53 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#01] T 50.6/76.4
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#02]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#03]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#05]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#11]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#21]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#23]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#25]
R54 7030003860 S.RES ERJ3GE JPW V [#01] B 87.0/59.7
7030003860 S.RES ERJ3GE JPW V [#02]
7030014920 S.RES RMC1/16-180JTP (18) [#03]
7030003860 S.RES ERJ3GE JPW V [#05]
7030003860 S.RES ERJ3GE JPW V [#11]
7030003860 S.RES ERJ3GE JPW V [#21]
7030014920 S.RES RMC1/16-180JTP (18) [#23]
7030003860 S.RES ERJ3GE JPW V [#25]
R55 7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#01] T 34.2/66.9
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#02]
7030015130 S.RES RMC1/16-102JTP (1 k) [#03]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#05]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#11]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#21]
7030015130 S.RES RMC1/16-102JTP (1 k) [#23]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#25]
R56 7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#01] T 34.2/68.2
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#02]
7030015130 S.RES RMC1/16-102JTP (1 k) [#03]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#05]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#11]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#21]
7030015130 S.RES RMC1/16-102JTP (1 k) [#23]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#25]
R57 7030015060 S.RES RMC1/16-271JTP (270) [#03] B 87.7/57.7
7030015060 S.RES RMC1/16-271JTP (270) [#23]
R58 7030003380 S.RES ERJ3GEYJ 331 V (330) [#01] B 97.5/50.3
7030003380 S.RES ERJ3GEYJ 331 V (330) [#02]
7030015070 S.RES RMC1/16-331JTP (330) [#03]
7030003380 S.RES ERJ3GEYJ 331 V (330) [#05]
7030003380 S.RES ERJ3GEYJ 331 V (330) [#11]
7030003380 S.RES ERJ3GEYJ 331 V (330) [#21]
7030015070 S.RES RMC1/16-331JTP (330) [#23]
7030003380 S.RES ERJ3GEYJ 331 V (330) [#25]
R59 7030003230 S.RES ERJ3GEYJ 180 V (18) [#01] B 98.8/50.3
7030003230 S.RES ERJ3GEYJ 180 V (18) [#02]
7030014920 S.RES RMC1/16-180JTP (18) [#03]
7030003230 S.RES ERJ3GEYJ 180 V (18) [#05]
7030003230 S.RES ERJ3GEYJ 180 V (18) [#11]
7030003230 S.RES ERJ3GEYJ 180 V (18) [#21]
7030014920 S.RES RMC1/16-180JTP (18) [#23]
7030003230 S.RES ERJ3GEYJ 180 V (18) [#25]
R61 7030003860 S.RES ERJ3GE JPW V [#01] T 96.2/60.8
7030003860 S.RES ERJ3GE JPW V [#02]
7030015520 S.RES RMC1/16JPTP [#03]
7030003860 S.RES ERJ3GE JPW V [#05]
7030003860 S.RES ERJ3GE JPW V [#11]
7030003860 S.RES ERJ3GE JPW V [#21]
7030015520 S.RES RMC1/16JPTP [#23]
7030003860 S.RES ERJ3GE JPW V [#25]
R62 7030003240 S.RES ERJ3GEYJ 220 V (22) [#01] B 112.7/55.2
7030003240 S.RES ERJ3GEYJ 220 V (22) [#02]
7030014930 S.RES RMC1/16-220JTP (22) [#03]
7030003240 S.RES ERJ3GEYJ 220 V (22) [#05]
7030003240 S.RES ERJ3GEYJ 220 V (22) [#11]
7030003240 S.RES ERJ3GEYJ 220 V (22) [#21]
7030014930 S.RES RMC1/16-220JTP (22) [#23]
7030003240 S.RES ERJ3GEYJ 220 V (22) [#25]
R63 7030003510 S.RES ERJ3GEYJ 392 V (3.9 k) [#01] T 38.0/68.8
7030003510 S.RES ERJ3GEYJ 392 V (3.9 k) [#02]
7030015200 S.RES RMC1/16-392JTP (3.9 k) [#03]
7030003510 S.RES ERJ3GEYJ 392 V (3.9 k) [#05]
7030003510 S.RES ERJ3GEYJ 392 V (3.9 k) [#11]
7030003510 S.RES ERJ3GEYJ 392 V (3.9 k) [#21]
7030015200 S.RES RMC1/16-392JTP (3.9 k) [#23]
7030003510 S.RES ERJ3GEYJ 392 V (3.9 k) [#25]
R64 7030003270 S.RES ERJ3GEYJ 390 V (39) [#01] T 46.0/63.5
7030003270 S.RES ERJ3GEYJ 390 V (39) [#02]
7030014960 S.RES RMC1/16-390JTP (39) [#03]
7030003270 S.RES ERJ3GEYJ 390 V (39) [#05]
7030003270 S.RES ERJ3GEYJ 390 V (39) [#11]
7030003270 S.RES ERJ3GEYJ 390 V (39) [#21]
7030014960 S.RES RMC1/16-390JTP (39) [#23]
7030003270 S.RES ERJ3GEYJ 390 V (39) [#25]
R65 7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#01] T 42.1/63.4
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#02]
7030015370 S.RES RMC1/16-104JTP (100 k) [#03]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#05]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#11]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#21]
7030015370 S.RES RMC1/16-104JTP (100 k) [#23]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#25]
R66 7030003380 S.RES ERJ3GEYJ 331 V (330) [#01] B 98.1/52.2
7030003380 S.RES ERJ3GEYJ 331 V (330) [#02]
7030015070 S.RES RMC1/16-331JTP (330) [#03]
7030003380 S.RES ERJ3GEYJ 331 V (330) [#05]
7030003380 S.RES ERJ3GEYJ 331 V (330) [#11]
7030003380 S.RES ERJ3GEYJ 331 V (330) [#21]
7030015070 S.RES RMC1/16-331JTP (330) [#23]
7030003380 S.RES ERJ3GEYJ 331 V (330) [#25]
R68 7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#01] B 19.5/60.4
7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#02]
7030015480 S.RES RMC1/16-105JTP (1 M) [#03]
7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#05]
7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#11]
7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#21]
7030015480 S.RES RMC1/16-105JTP (1 M) [#23]
7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#25]
R69 7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#01] B 25.4/49.6
7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#02]
7030015480 S.RES RMC1/16-105JTP (1 M) [#03]
7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#05]
7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#11]
7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#21]
7030015480 S.RES RMC1/16-105JTP (1 M) [#23]
7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#25]
R70 7030003860 S.RES ERJ3GE JPW V [#01] T 116.9/49.1
7030003860 S.RES ERJ3GE JPW V [#02]
7030015520 S.RES RMC1/16JPTP [#03]
7030003860 S.RES ERJ3GE JPW V [#05]
7030003860 S.RES ERJ3GE JPW V [#11]
7030003860 S.RES ERJ3GE JPW V [#21]
7030015520 S.RES RMC1/16JPTP [#23]
7030003860 S.RES ERJ3GE JPW V [#25]
R71 7030003660 S.RES ERJ3GEYJ 683 V (68 k) [#01] B 57.5/133.3
7030003660 S.RES ERJ3GEYJ 683 V (68 k) [#02]
7030015350 S.RES RMC1/16-683JTP (68 k) [#03]
7030003660 S.RES ERJ3GEYJ 683 V (68 k) [#05]
7030003660 S.RES ERJ3GEYJ 683 V (68 k) [#11]
7030003660 S.RES ERJ3GEYJ 683 V (68 k) [#21]
7030015350 S.RES RMC1/16-683JTP (68 k) [#23]
7030003660 S.RES ERJ3GEYJ 683 V (68 k) [#25]
R72 7030003310 S.RES ERJ3GEYJ 820 V (82) [#01] B 115.8/52.1
7030003310 S.RES ERJ3GEYJ 820 V (82) [#02]
7030015000 S.RES RMC1/16-820JTP (82) [#03]
7030003310 S.RES ERJ3GEYJ 820 V (82) [#05]
7030003310 S.RES ERJ3GEYJ 820 V (82) [#11]
7030003310 S.RES ERJ3GEYJ 820 V (82) [#21]
7030015000 S.RES RMC1/16-820JTP (82) [#23]
7030003310 S.RES ERJ3GEYJ 820 V (82) [#25]
R73 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#01] T 103.5/62.8
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#02]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#03]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#05]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#11]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#21]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#23]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#25]
R74 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#01] B 108.8/66.2
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#02]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#03]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#05]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#11]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#21]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#23]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#25]
R75 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#01] B 56.2/133.3
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#02]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#03]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#05]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#11]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#21]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#23]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#25]
The underlined parts have been updated from the addendum of the previous version, or from the original page.
5-6g
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[MAIN UNIT] (for IC-A210 and IC-A210E)
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (for IC-A210 and IC-A210E)
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
(Amended page)
July 2019
R76 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) [#01] B 43.5/133.0
7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) [#02]
7030015190 S.RES RMC1/16-332JTP (3.3 k) [#03]
7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) [#05]
7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) [#11]
7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) [#21]
7030015190 S.RES RMC1/16-332JTP (3.3 k) [#23]
7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) [#25]
R77 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#01] B 109.8/59.3
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#02]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#03]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#05]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#11]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#23]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#25]
R78 7030003860 S.RES ERJ3GE JPW V [#01] T 102.8/74.4
7030003860 S.RES ERJ3GE JPW V [#02]
7030015520 S.RES RMC1/16JPTP [#03]
7030003860 S.RES ERJ3GE JPW V [#05]
7030003860 S.RES ERJ3GE JPW V [#11]
7030003860 S.RES ERJ3GE JPW V [#21]
7030015520 S.RES RMC1/16JPTP [#23]
7030003860 S.RES ERJ3GE JPW V [#25]
R79 7030003860 S.RES ERJ3GE JPW V [#01] B 164.1/45.8
7030003860 S.RES ERJ3GE JPW V [#02]
7030015520 S.RES RMC1/16JPTP [#03]
7030003860 S.RES ERJ3GE JPW V [#05]
7030003860 S.RES ERJ3GE JPW V [#11]
7030003860 S.RES ERJ3GE JPW V [#21]
7030015520 S.RES RMC1/16JPTP [#23]
7030003860 S.RES ERJ3GE JPW V [#25]
R82 7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#01] T 139.8/108.3
7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#02]
7030015340 S.RES RMC1/16-563JTP (56 k) [#03]
7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#05]
7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#11]
7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#21]
7030015340 S.RES RMC1/16-563JTP (56 k) [#23]
7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#25]
R84 7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#01] T 52.7/71.6
7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#02]
7030015480 S.RES RMC1/16-105JTP (1 M) [#03]
7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#05]
7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#11]
7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#21]
7030015480 S.RES RMC1/16-105JTP (1 M) [#23]
7030003800 S.RES ERJ3GEYJ 105 V (1 M) [#25]
R85 7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#01] T 136.1/106.3
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#02]
7030015270 S.RES RMC1/16-153JTP (15 k) [#03]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#05]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#11]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#21]
7030015270 S.RES RMC1/16-153JTP (15 k) [#23]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#25]
R86 7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#01] T 138.6/109.1
7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#02]
7030015350 S.RES RMC1/16-683JTP (68 k) [#03]
7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#05]
7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#11]
7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#21]
7030015350 S.RES RMC1/16-683JTP (68 k) [#23]
7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#25]
R87 7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#01] T 138.6/111.9
7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#02]
7030015340 S.RES RMC1/16-563JTP (56 k) [#03]
7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#05]
7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#11]
7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#21]
7030015340 S.RES RMC1/16-563JTP (56 k) [#23]
7030003650 S.RES ERJ3GEYJ 563 V (56 k) [#25]
R88 7030003380 S.RES ERJ3GEYJ 331 V (330) [#01] T 177.4/38.2
7030003380 S.RES ERJ3GEYJ 331 V (330) [#02]
7030015070 S.RES RMC1/16-331JTP (330) [#03]
7030003380 S.RES ERJ3GEYJ 331 V (330) [#05]
7030003380 S.RES ERJ3GEYJ 331 V (330) [#11]
7030003380 S.RES ERJ3GEYJ 331 V (330) [#21]
7030015070 S.RES RMC1/16-331JTP (330) [#23]
7030003380 S.RES ERJ3GEYJ 331 V (330) [#25]
R89 7510001571 S.THE NTCG16 4LH 104JT T 39.5/73.0
R90 7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#01] T 40.8/73.0
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#02]
7030015360 S.RES RMC1/16-823JTP (82 k) [#03]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#05]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#11]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#21]
7030015360 S.RES RMC1/16-823JTP (82 k) [#23]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#25]
R91 7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#01] T 129.1/110.2
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#02]
7030015270 S.RES RMC1/16-153JTP (15 k) [#03]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#05]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#11]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#21]
7030015270 S.RES RMC1/16-153JTP (15 k) [#23]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#25]
R92 7030003370 S.RES ERJ3GEYJ 271 V (270) [#01] T 184.6/25.8
7030003370 S.RES ERJ3GEYJ 271 V (270) [#02]
7030015060 S.RES RMC1/16-271JTP (270) [#03]
7030003370 S.RES ERJ3GEYJ 271 V (270) [#05]
7030003370 S.RES ERJ3GEYJ 271 V (270) [#11]
7030003370 S.RES ERJ3GEYJ 271 V (270) [#21]
7030015060 S.RES RMC1/16-271JTP (270) [#23]
7030003370 S.RES ERJ3GEYJ 271 V (270) [#25]
R93 7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#01] B 110.5/120.0
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#02]
7030015370 S.RES RMC1/16-104JTP (100 k) [#03]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#05]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#11]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#21]
7030015370 S.RES RMC1/16-104JTP (100 k) [#23]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#25]
R94 7030003240 S.RES ERJ3GEYJ 220 V (22) [#01] T 93.8/70.8
7030003240 S.RES ERJ3GEYJ 220 V (22) [#02]
7030014930 S.RES RMC1/16-220JTP (22) [#03]
7030003240 S.RES ERJ3GEYJ 220 V (22) [#05]
7030003240 S.RES ERJ3GEYJ 220 V (22) [#11]
7030003240 S.RES ERJ3GEYJ 220 V (22) [#21]
7030014930 S.RES RMC1/16-220JTP (22) [#23]
7030003240 S.RES ERJ3GEYJ 220 V (22) [#25]
R95 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) [#01] T 98.1/83.7
7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) [#02]
7030015190 S.RES RMC1/16-332JTP (3.3 k) [#03]
7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) [#05]
7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) [#11]
7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) [#21]
7030015190 S.RES RMC1/16-332JTP (3.3 k) [#23]
7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) [#25]
R97 7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#01] T 55.6/69.7
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#02]
7030015370 S.RES RMC1/16-104JTP (100 k) [#03]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#05]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#11]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#21]
7030015370 S.RES RMC1/16-104JTP (100 k) [#23]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#25]
R98 7030003730 S.RES ERJ3GEYJ 274 V (270 k) [#01] T 102.5/106.5
7030003730 S.RES ERJ3GEYJ 274 V (270 k) [#02]
7030015410 S.RES RMC1/16-224JTP (220 k) [#03]
7030003730 S.RES ERJ3GEYJ 274 V (270 k) [#05]
7030003730 S.RES ERJ3GEYJ 274 V (270 k) [#11]
7030003730 S.RES ERJ3GEYJ 274 V (270 k) [#21]
7030015420 S.RES RMC1/16-274JTP (270 k) [#23]
7030003730 S.RES ERJ3GEYJ 274 V (270 k) [#25]
R99 7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#01] B 175.6/24.3
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#02]
7030015250 S.RES RMC1/16-103JTP (10 k) [#03]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#05]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#11]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#21]
7030015250 S.RES RMC1/16-103JTP (10 k) [#23]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#25]
R100 7030003730 S.RES ERJ3GEYJ 274 V (270 k) [#01] T 106.6/106.5
7030003730 S.RES ERJ3GEYJ 274 V (270 k) [#02]
7030015410 S.RES RMC1/16-224JTP (220 k) [#03]
7030003730 S.RES ERJ3GEYJ 274 V (270 k) [#05]
7030003730 S.RES ERJ3GEYJ 274 V (270 k) [#11]
7030003730 S.RES ERJ3GEYJ 274 V (270 k) [#21]
7030015420 S.RES RMC1/16-274JTP (270 k) [#23]
7030003730 S.RES ERJ3GEYJ 274 V (270 k) [#25]
R101 7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#01] B 191.5/21.9
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#02]
7030015250 S.RES RMC1/16-103JTP (10 k) [#03]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#05]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#11]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#21]
7030015250 S.RES RMC1/16-103JTP (10 k) [#23]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#25]
R102 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#01] B 92.0/90.4
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#02]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#03]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#05]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#11]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#21]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#23]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#25]
R103 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#01] B 177.5/23.6
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#02]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#03]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#05]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#11]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#21]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#23]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#25]
R104 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#01] B 192.2/23.8
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#02]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#03]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#05]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#11]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#21]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#23]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#25]
The underlined parts have been updated from the addendum of the previous version, or from the original page.
5-7g
Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
[MAIN UNIT] (for IC-A210 and IC-A210E)
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
[MAIN UNIT] (for IC-A210 and IC-A210E)
REF PART DESCRIPTION M. H/V
NO. NO.
LOCATION
(Amended page)
July 2019
R105 7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#01] T 118.4/108.3
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#02]
7030015250 S.RES RMC1/16-103JTP (10 k) [#03]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#05]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#11]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#21]
7030015250 S.RES RMC1/16-103JTP (10 k) [#23]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#25]
R106 7030003420 S.RES ERJ3GEYJ 681 V (680) [#01] T 182.0/34.4
7030003420 S.RES ERJ3GEYJ 681 V (680) [#02]
7030015130 S.RES RMC1/16-102JTP (1 k) [#03]
7030003420 S.RES ERJ3GEYJ 681 V (680) [#05]
7030003420 S.RES ERJ3GEYJ 681 V (680) [#11]
7030003420 S.RES ERJ3GEYJ 681 V (680) [#21]
7030015110 S.RES RMC1/16-681JTP (680) [#23]
7030003420 S.RES ERJ3GEYJ 681 V (680) [#25]
R107 7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#01] T 55.1/72.9
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#02]
7030015270 S.RES RMC1/16-153JTP (15 k) [#03]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#05]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#11]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#21]
7030015270 S.RES RMC1/16-153JTP (15 k) [#23]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#25]
R108 7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#01] T 56.3/71.7
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#02]
7030015250 S.RES RMC1/16-103JTP (10 k) [#03]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#05]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#11]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#21]
7030015250 S.RES RMC1/16-103JTP (10 k) [#23]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#25]
R109 7030003360 S.RES ERJ3GEYJ 221 V (220) [#01] T 189.6/24.5
7030003360 S.RES ERJ3GEYJ 221 V (220) [#02]
7030015090 S.RES RMC1/16-471JTP (470) [#03]
7030003360 S.RES ERJ3GEYJ 221 V (220) [#05]
7030003360 S.RES ERJ3GEYJ 221 V (220) [#11]
7030003360 S.RES ERJ3GEYJ 221 V (220) [#21]
7030015050 S.RES RMC1/16-221JTP (220) [#23]
7030003360 S.RES ERJ3GEYJ 221 V (220) [#25]
R112 7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#01] T 58.7/68.9
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#02]
7030015370 S.RES RMC1/16-104JTP (100 k) [#03]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#05]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#11]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#21]
7030015370 S.RES RMC1/16-104JTP (100 k) [#23]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#25]
R113 7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#01] T 96.1/84.5
7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#02]
7030015310 S.RES RMC1/16-333JTP (33 k) [#03]
7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#05]
7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#11]
7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#21]
7030015310 S.RES RMC1/16-333JTP (33 k) [#23]
7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#25]
R114 7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#01] T 95.2/85.7
7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#02]
7030015310 S.RES RMC1/16-333JTP (33 k) [#03]
7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#05]
7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#11]
7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#21]
7030015310 S.RES RMC1/16-333JTP (33 k) [#23]
7030003620 S.RES ERJ3GEYJ 333 V (33 k) [#25]
R118 7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#01] T 165.3/114.1
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#02]
7030015370 S.RES RMC1/16-104JTP (100 k) [#03]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#05]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#11]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#21]
7030015370 S.RES RMC1/16-104JTP (100 k) [#23]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#25]
R120 7030003860 S.RES ERJ3GE JPW V [#01] T 61.4/68.9
7030003860 S.RES ERJ3GE JPW V [#02]
7030015520 S.RES RMC1/16JPTP [#03]
7030003860 S.RES ERJ3GE JPW V [#05]
7030003860 S.RES ERJ3GE JPW V [#11]
7030003860 S.RES ERJ3GE JPW V [#21]
7030015520 S.RES RMC1/16JPTP [#23]
7030003860 S.RES ERJ3GE JPW V [#25]
R129 7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#01] T 95.4/77.9
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#02]
7030015250 S.RES RMC1/16-103JTP (10 k) [#03]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#05]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#11]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#21]
7030015250 S.RES RMC1/16-103JTP (10 k) [#23]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#25]
R130 7030003240 S.RES ERJ3GEYJ 220 V (22) [#01] T 82.6/79.6
7030003240 S.RES ERJ3GEYJ 220 V (22) [#02]
7030014930 S.RES RMC1/16-220JTP (22) [#03]
7030003240 S.RES ERJ3GEYJ 220 V (22) [#05]
7030003240 S.RES ERJ3GEYJ 220 V (22) [#11]
7030003240 S.RES ERJ3GEYJ 220 V (22) [#21]
7030014930 S.RES RMC1/16-220JTP (22) [#23]
7030003240 S.RES ERJ3GEYJ 220 V (22) [#25]
R131 7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#01] T 88.5/75.5
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#02]
7030015130 S.RES RMC1/16-102JTP (1 k) [#03]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#05]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#11]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#21]
7030015130 S.RES RMC1/16-102JTP (1 k) [#23]
7030003440 S.RES ERJ3GEYJ 102 V (1 k) [#25]
R137 7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#01] T 103.4/79.6
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#02]
7030015250 S.RES RMC1/16-103JTP (10 k) [#03]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#05]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#11]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#21]
7030015250 S.RES RMC1/16-103JTP (10 k) [#23]
7030003560 S.RES ERJ3GEYJ 103 V (10 k) [#25]
R138 7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#01] T 100.8/79.6
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#02]
7030015270 S.RES RMC1/16-153JTP (15 k) [#03]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#05]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#11]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#21]
7030015270 S.RES RMC1/16-153JTP (15 k) [#23]
7030003580 S.RES ERJ3GEYJ 153 V (15 k) [#25]
R141 7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#01] T 97.9/94.0
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#02]
7030015370 S.RES RMC1/16-104JTP (100 k) [#03]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#05]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#11]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#21]
7030015370 S.RES RMC1/16-104JTP (100 k) [#23]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#25]
R144 7030003320 S.RES ERJ3GEYJ 101 V (100) [#01] T 94.6/75.2
7030003320 S.RES ERJ3GEYJ 101 V (100) [#02]
7030015010 S.RES RMC1/16-101JTP (100) [#03]
7030003320 S.RES ERJ3GEYJ 101 V (100) [#05]
7030003320 S.RES ERJ3GEYJ 101 V (100) [#11]
7030003320 S.RES ERJ3GEYJ 101 V (100) [#21]
7030015010 S.RES RMC1/16-101JTP (100) [#23]
7030003320 S.RES ERJ3GEYJ 101 V (100) [#25]
R148 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#01] T 124.5/67.4
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#02]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#03]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#05]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#11]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#21]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#23]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#25]
R149 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#01] T 126.0/59.3
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#02]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#03]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#05]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#11]
7030015210 S.RES RMC1/16-472JTP (4.7 k) [#23]
7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) [#25]
R151 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#01] T 127.5/54.7
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#02]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#03]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#05]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#11]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#21]
7030015170 S.RES RMC1/16-222JTP (2.2 k) [#23]
7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) [#25]
R152 7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#01] T 132.4/126.0
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#02]
7030015370 S.RES RMC1/16-104JTP (100 k) [#03]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#05]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#11]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#21]
7030015370 S.RES RMC1/16-104JTP (100 k) [#23]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#25]
R156 7030003860 S.RES ERJ3GE JPW V [#01] T 133.6/91.6
7030003860 S.RES ERJ3GE JPW V [#02]
7030015520 S.RES RMC1/16JPTP [#03]
7030003860 S.RES ERJ3GE JPW V [#05]
7030003860 S.RES ERJ3GE JPW V [#11]
7030003860 S.RES ERJ3GE JPW V [#21]
7030015520 S.RES RMC1/16JPTP [#23]
7030003860 S.RES ERJ3GE JPW V [#25]
R158 7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#01] T 126.6/89.1
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#02]
7030015370 S.RES RMC1/16-104JTP (100 k) [#03]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#05]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#11]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#21]
7030015370 S.RES RMC1/16-104JTP (100 k) [#23]
7030003680 S.RES ERJ3GEYJ 104 V (100 k) [#25]
R160 7030003600 S.RES ERJ3GEYJ 223 V (22 k) [#01] T 134.4/90.3
7030003600 S.RES ERJ3GEYJ 223 V (22 k) [#02]
7030015290 S.RES RMC1/16-223JTP (22 k) [#03]
7030003600 S.RES ERJ3GEYJ 223 V (22 k) [#05]
7030003600 S.RES ERJ3GEYJ 223 V (22 k) [#11]
7030003600 S.RES ERJ3GEYJ 223 V (22 k) [#21]
7030015290 S.RES RMC1/16-223JTP (22 k) [#23]
7030003600 S.RES ERJ3GEYJ 223 V (22 k) [#25]
Other manuals for IC-A210
9
This manual suits for next models
2
Table of contents
Other Icom Automobile Accessories manuals
Popular Automobile Accessories manuals by other brands
ECS
ECS SZ-002-DB Fitting instructions
Kolpin Outdoors
Kolpin Outdoors 53470 Product instructions
Keba
Keba KeContact P30 x series Configuration manual
Boyo Vision
Boyo Vision VTC500DIY Installation and owner's manual
Directed
Directed MIT4 Firmware Specific Guide
Rugged Ridge
Rugged Ridge 13552.51 quick start guide
Whelen Engineering Company
Whelen Engineering Company Liberty LC installation guide
Cruz
Cruz Evo Rack E37-158 Assembly instructions
Audiovox
Audiovox CAMSBAR Installation & user manual
Overdrive
Overdrive PolyPRO3 instructions
Demco
Demco Stay-In-Play Duo Operator's manual
Ericsson
Ericsson ALLEGRA EDACS installation manual
