I. Introduction
Welcome to your new JETT wireless charging starter
kit, and adventure into wireless charging.
Before using your product, we strongly encourage
you to fully read through this user guide. This guide
will help you operate your new dock and receiver.
Please also familiarize yourself with the functions of
your mobile phone. Last, remember to follow the
safety guidelines at all times.
For best performance, charge fully
before rst use.
II. What’s Inside
1 x Jett Receiver for Samsung Galaxy S5
1 x Jett Dock
1 x USB Cable (micro USB)
1 x User Guide
To go deeper into wireless charging, check out the rest of
our JETT product line-up on www.GetIconQ.com.
4
III. Wireless Charging:
A Primer
At Icon Q, we take pleasure in delivering–and ex-
plaining–the latest technology in our products.
A. HISTORY
Since the 1800s, scientists such as Michael Faraday,
Guglielmo Marconi, and Nikola Tesla have worked on
the idea of wireless power. With the soaring demand
of mobile devices and maturing technology, wireless
charging for everyone is now becoming a reality.
In 2009, the Wireless Power Consortium (WPC)
created Qi, a specic wireless charging standard. Qi
is starting to see wide adoption, being utilized in
products by companies like Samsung and Nokia.
Nikola Tesla
Transmitter
(e.g, Bank, Dock)
Receiver
(e.g, Phone)
5
B. HOW IT WORKS
Qi works through a technology called inductive
charging. Inductive charging uses an electromag-
netic eld, created by two matching coils, to transfer
energy between the two objects.
Qi always involves two devices: one transmitter and
one receiver.
The transmitter sends magnetic energy out. The
receiver receives the magnetic energy and converts it
to electrical energy, which recharges the battery.
Because the charging is wireless, remember that
it can take a little longer than a traditional charger
cable to ll up your battery. Today, Qi is about conve-
nience, not speed.
Transmitter
(e.g, Bank, Dock)
Receiver
(e.g, Phone)
6
C. WHY WIRELESS CHARGING
Technology feels great when it makes your life sim-
pler and easier. At Icon Q, we use JETT and wireless
charging because it does just that.
• Keep your phone mobile – Your phone is meant
to be free to move. With Qi, you can simply drop
your phone on top of the charger to power up,
and pick it up to go whenever you need it.
• Stop carrying around cables – Once you equip
your phone to make it Qi-compatible, you can
forget the wires. As long as you have a Qi charger,
you can power your phone without having to
pack anything extra.
• Share with others – When others have Qi-
enabled phones, they can use your Qi charger,
and vice versa. No more worrying about what to
do when someone has an iPhone 5 but you have
an iPhone 4.
7

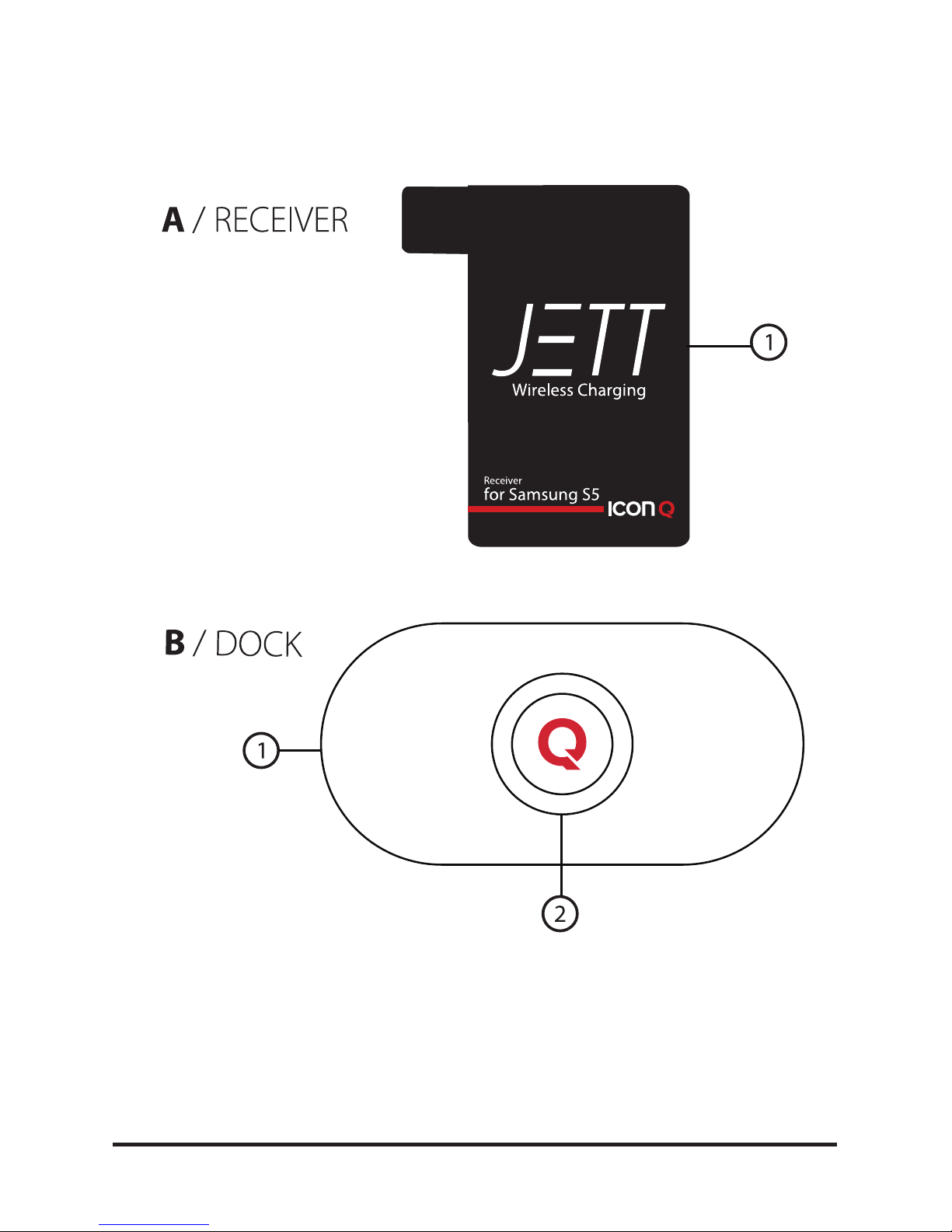

IV. Unit at a Glance
A / RECEIVER
1. Charger coil
B / DOCK
1. Micro USB port (side)
2. Charger coil
8
V. Usage

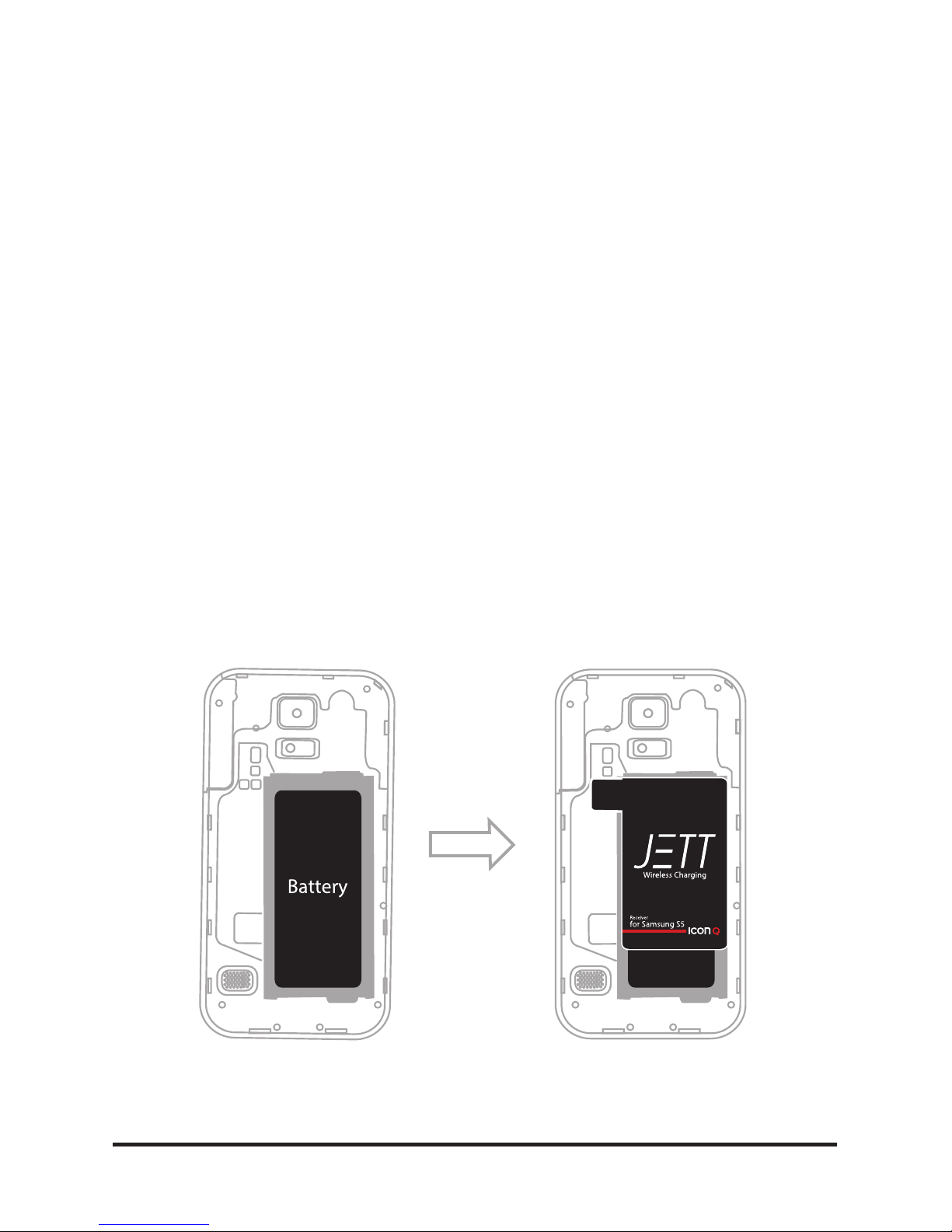

A. ENABLING YOUR PHONE
To begin using Qi wireless charging, you must rst
make your phone Qi-compatible with the receiver.
1. Remove the back of your phone’s battery cover.
2. Align the receiver with the gold metal plate.
Remove any stickers on the receiver and place
securely on the metal plate.
3. Close the back of your battery cover.
9
B. CONNECTING THE DOCK
The dock, a transmitter, charges your Qi-enabled
phone wirelessly. To power the dock, you must keep
it connected and charged. The dock oers conve-
nient charging via a micro USB port.
Steps:
1. Find the USB cable included with this product.
2. Connect the micro connector to the dock’s USB port.
3. Connect the other end to a power source, such as a
computer’s USB port or a power adapter with a USB
port.
IMPORTANT: Use only a USB power adapter with a
rated output that matches the input voltage of your
device.
4. The light on the front of the dock will light red, in-
dicating that the dock is ready to wirelessly charge
any Qi-enabled device.
10
C. CHARGING YOUR QI-COMPATIBLE PHONE
1. Lay your Qi-enabled phone down on the dock.
The dock will light green. Your phone is now
charging.
NOTE: It’s important to create a “sweet spot” so the
coils in the receiver and dock are properly aligned.
The dock’s coils are located in the middle, where
the Q is.
11
VI. Safety Guidelines
Please follow the safety guidelines below at all times
when operating or caring for your device.
• Keep the product away from items with magnetic
stripes or chips.
• Keep the product away from metal objects, which
can cause the product to overheat. If it comes into
contact with such objects, please stop using it for
some period.
• Do not place a receiver directly on top of the
transmitter product, as it can overheat.
• Do not keep the product near any heated object,
as it may cause overheating and potential re.
• Store the product in a dry place. Dampness and
liquid will damage the product’s components. If it
comes into contact with moisture, use a towel to
dry the product.
• Do not drop or cause undue impact to the prod-
uct.
• Do not modify, repair, or dismantle the product on
your own.
12
VII. Specications
Model number: QCQ425
Receiver
Output Voltage: DC 5V, 600mA
Size (L x W x H): 2.6 x 1.3 x 0.04 in.
(67 x 33 x 1.2 mm)
Weight: 0.4 oz (10 g)
Dock
Input Voltage: DC 5V, 1.5A
Output Voltage: DC 5V, 600mA
Size (L x W x H): 4.7 x 2.4 x 0.4 in.
(120 x 60 x 10 mm)
Weight: 1.7 oz (48 g)
VIII. Support
If your device is not functioning correctly, visit www.
GetIconQ.com/pages/productsupport for customer
support, and we will be more than happy to help you.
IX. Limited Warranty
For more information and instructions on how to
get warranty service, visit www.GetIconQ.com/pages/
warranty.
