ICON Space Series User manual

User manual
Space series Cocoon
Professional studio large-diaphragm condenser microphone

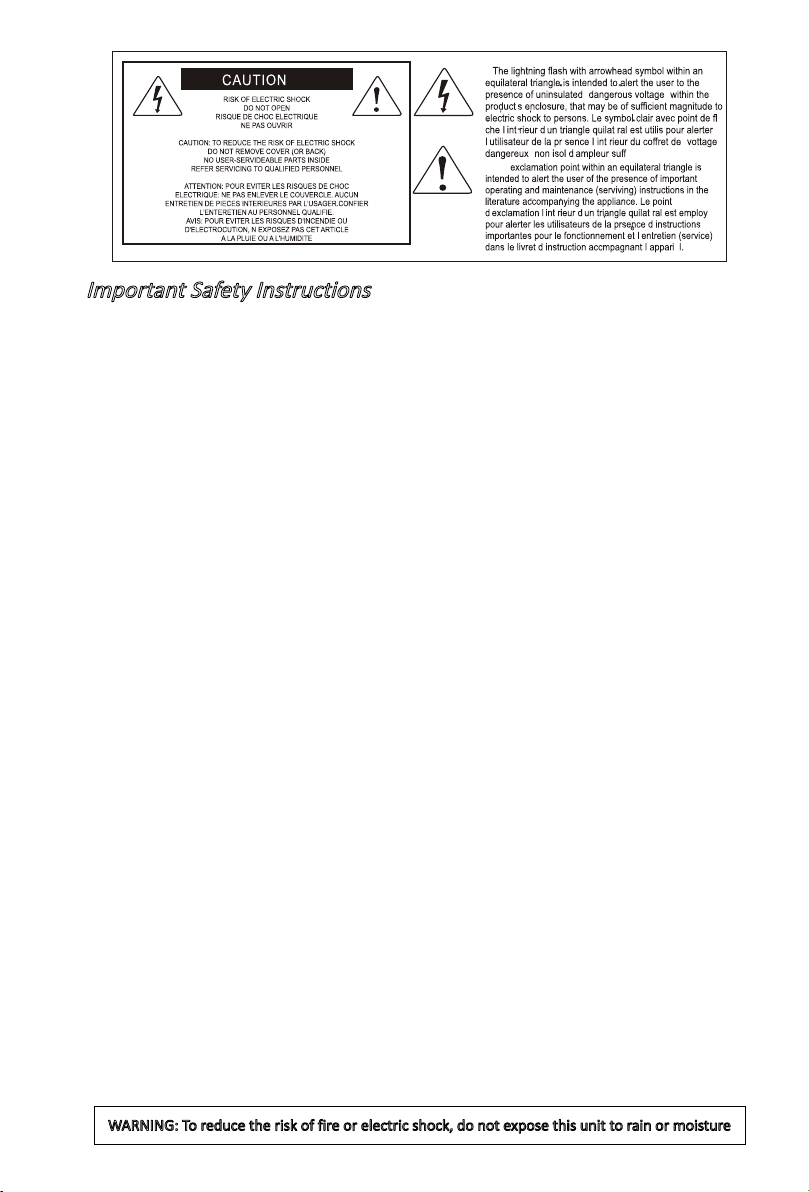

Important Safety Instructions
1. Read this manual thoroughly before using this unit.
2. Keep this manual for future reference.
3. Take notice of and comply with all warnings included in the user's manual or indicated on the
appliance.
4. Follow all instructions included in this manual.
5. Do not expose this unit to rain or moisture. Avoid having water or other liquids spilled on this
unit.
6. When cleaning the cabinet or other parts of this appliance, use only a dry or slightly damp soft
cloth.
7. Do not block any ventilation openings or interfere with the proper ventilation of this unit. Install
in accordance with the manufacturer's instructions.
8. Do not use or store near any heat sources such as radiators, heat registers, stoves, or other heat-
producing appliances.
9. Do not interfere with the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding-type plug has two blades and a third
grounding prong. These are designated for your safety. If the provided plug does not fit into your
outlet, consult an electrician.
10. Protect the power cord from being walked on or otherwise damaged by items placed on or
against them. Particular attention should be given to the plugs, receptacles, and the point where
the cord exits the appliance.
11. To avoid the risk of electrical shock, do not touch any exposed wiring while the unit is in
operation.
12. Only use attachments/accessories specified by the manufacturer.
13. Unplug this unit and all connected electrical equipment during lightning storms or when left
unused a long period of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the appliance has
been damaged in any way or fails to operate normally.
WARNING: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture

Introduction...............................................................................................4
What's in the package? ............................................................................4
Register your ICON ProAudio product to your personal account ...........5
Features ...................................................................................................6
Operating the Cocoon ..............................................................................7
Specications ...........................................................................................9
Services..................................................................................................10
Contents

4
Introduction
Thank you for purchasing the ICON ProAudio pace series Cocoon professional
studio large-diaphragm condenser microphone. We sincerely trust this product
will provide years of satisfactory service, but if anything is not to your complete
satisfaction, we will endeavor to make things right.
In these pages, you'll nd a detailed description of the features of the Cocoon, step-
by-step instructions for its setup and use, and full specications.
Please register the product on our website at the below link www.iconproaudio.
com/registration:
Please follow the step by step procedures starting from input the device’s serial
number to your personal information etc. By registering your product online, you will
entitle to several different services and after-sales supporting at our ACS help center
by visiting our website at www.iconproaudio.com. Also, all the registered products
under your account will be listed on your personal product page where you could
get update information such as rmware/driver upgrade, software bundle and user
manual download etc for your device.
With proper care,your Cocoon will operate without any trouble for many years.
What's in the package?
●Space series Cocoon professional studio large-diaphragm condenser microphone
●This User Manual
●Suspension Shock mount
●Carry case

5
Register your ICON ProAudio product to your
personal account
1. Check serial number of your device
Please go to http:// iconproaudio.com/registration or scan the QR code
below.

Input your device’s serial number and the other information on the screen. Click
“Submit”.

A message will pop up showing your device information such as model name
and its serial number - Click “Register this device to my account” or if you see
any other message, please contact our after-sales service team

2. Log in to your personal account page for existing user or
sign up for new user
Existing user: Please log into your personal user page by inputing your
user name and password.

New user: Please click “Sign Up” and ll in all the information.

3. Download all useful materials
All your registered devices under your account will show on the page. Each
product will be listed along with all its available les such as drivers, rmware,
user manual in different languages and bundled software etc. for download.
Please make sure you have download the necessary les such as driver before
you begin device installation.

6
Features
●Build in Latvia with quality construction
●Unique design with sound quality and performance as well as stylish in mind
●Extended upper clarity with smooth mid-range for any voice or instrument
applications
●Professional hand-build large-diaphragm capsule for full, open-sound and
unsurpassed audio quality
●Ideal as main and support microphone for most differing recording situations
●Cardioid pickup pattern for outstanding sound source separation and feedback
rejection
●Pressure-gradient transducer with shock-mounted capsule
●External 36-52 Volt phantom power operation
●Heavy-duty suspension mount included
●Prefect for vocals and acoustic instruments
●Special designed aluminum case well protect the microphone with stylish
●Durable metal pop-lter included
●Ultra-rugged construction with metal die-cast body
●High-quality components and exceptionally rugged construction ensure long life

7
Operating the Cocoon
1. Powering the Cocoon
The "Cocoon" is a large diaphragm condenser microphone and therefore needs
to be operated by connecting a phantom power supply. Phantom power is
standard on most quality mixers, outboard MIC-pres and hard disk recorders. If
necessary an external phantom power supply can also be used. The "Cocoon"
receives the phantom power directly from a MIC cable when connected to a
mixer or other microphone input that includes a phantom supply. The power is
actually sent OUT of the microphone INPUT, riding silently along with the audio
signal. Most mixers have a switch to engage the phantom power so be sure to
check that the phantom power is on.
2. Setting up the signal level
When connecting the "Cocoon" to a mixer or recorder input, be sure that the
input is of microphone level. Also, be sure that the phantom power is engaged
as explained at the previous section “Powering the Cocoon”. Most mixers and
recorders of reasonable quality will offer a microphone input with MIC trim (usually
called Trim or Gain) control. The purpose of the MIC trim control is to optimize
the amount of good signal to any noise associated with the mixers electronics.
A good MIC pre with trim also will have a Peak or Clip LED. To set a good level
on the MIC, set the "Cocoon" up in front of the desired sound source and slowly
raise the MIC trim control until you see the Peak LED light up. Then, turn the
mix trim control down until the LED does not light any more. On most mixers,
the ideal setting is that the trim control is turned up as much as possible without
lighting the Peak LED.
3. Microphone Placement
In order to maximize the sound quality, you must pay careful attention to
the placement of your "Cocoon" and how it is positioned for the instrument
or vocalist that you are miking. All microphones, especially unidirectional or
cardioid microphones, exhibit a phenomenon know as the “proximity effect”.
Very simply put, proximity effect is a resulting change in the frequency response
of a microphone based on the position of the MIC capsule relative to the sound
source. Specically, when you point a cardioid MIC directly at the sound source
(on-axis) you will get the best frequency response, however, when you start
pointing the microphone slightly away (off-axis) you will notice the low frequency
dropping off and the microphone will start to sound thinner.

For most vocal applications you'll want to position the microphone directly in
front of the artist. The same may be true for miking instruments. However, you
can make some pretty amazing equalization adjustments by slightly changing
the angle of the capsule to the sound source. This can be a very useful
technique in capturing the optimum sound of drum set, acoustic guitar, piano or
other instruments in a live room or sound stage. Experimentation and experience
are the best teachers in getting good sounds, so plug in!

8
4. P-Poping
P-Poping is that annoying pop that you can get when the microphone diaphragm
gets a blast of air from a vocalist pronouncing words with the letter "P" included.

There are a few ways to deal with the problem including using an external pop
lter. Some famous engineers have relied on an old nylon stocking over a bent
clothes hanger, which actually works very well. For a cleaner solution, we have
provided a durable metal pop-lter. You can also try placing the microphone
slightly off axis
(on a slight angle) from the vocalist. This can often solve the problem without
using an external pop lter.

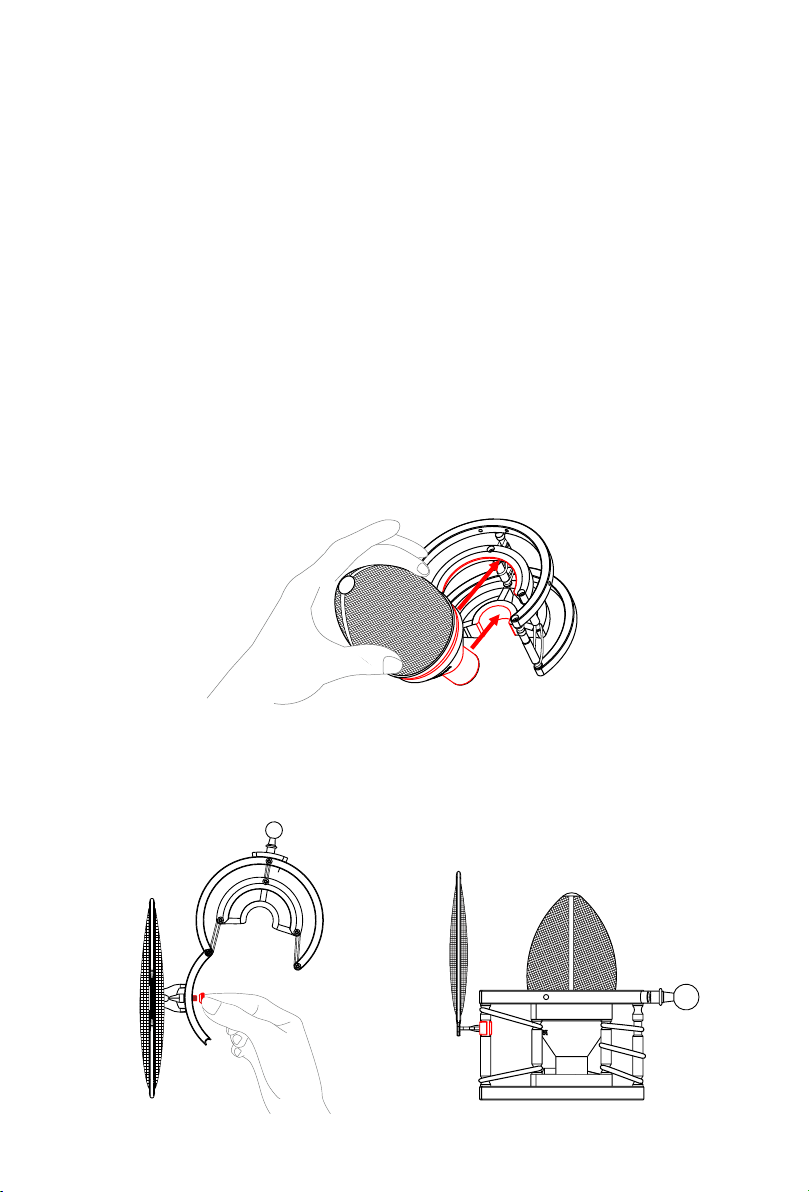

5. Mounting the "Cocoon"
Mount your "Cocoon" into the provided
suspension mount as the diagrams illustrated
below.

Then install the metal pop lter as illustrated below.

9
Specications
Transducer type.........................................................................electrostatic
Operating principle ....................................................................presure gradient
The diaphragms active diameter ...............................................35 mm
Frequency range .......................................................................20 Hz to 20 kHz
Polar pattern..............................................................................unidirectional,cardioid
Sensitivity at 1 kHz into 1000 Ω load.........................................21 mV/Pa
Output impedance .....................................................................50 Ω
Rated load impedance...............................................................1000 Ω
Suggested load impedance.......................................................> 500 Ω
Maximum SPL for 0,5% THD at 1000 Ω load............................138 dB
S/N Ratio DIN/IEC 651 A-weighten ...........................................85 dB-A
Equivalent noise level DIN/IEC A-weighten.............................8dB-A
Dynamic range of the microphone preamplier.........................130 dB
Phantom powering voltage on pin 2&3 of XLR ........................+48V (+/-4V))
Current consumption ..............................................................< 2mA
Output connector.......................................................................3-pin XLR male
Dimension..................................................................................69mmX65mmX150mm
Weight .......................................................................................0.32kg
Pad ............................................................................................no
HPF ...........................................................................................no

10
Services
If your Cocoon needs servicing, follow these instructions.
Check our online Help Center at http://support.iconproaudio.com/hc/en-us, for
information, knowledge, and downloads such as:
1. FAQ
2. Download
3. Learn More
4. Forum
Very often you will nd solutions on these pages. If you don’t nd a solution, create
a support ticket at our online Help Center at the link below, and our technical support
team will assist you as soon as we can.
Navigate to http://support.iconproaudio.com/hc/en-us and then sign in to submit
a ticket.
As soon as you have submitted an inquiry ticket, our support team will assist you to
resolve the problem with your ICON ProAudio device as soon as possible.
To send defective products for service:
1. Ensure the problem is not related to operation error or external system devices.
2. Keep this owner's manual. We don't need it to repair the unit.
3. Pack the unit in its original packaging including end card and box. This is very
important. If you have lost the packaging, please make sure you have packed
the unit properly. ICON is not responsible for any damage that occurs due to
non-factory packing.
4. Ship to the ICON tech support center or the local return authorization. See our
service centers and distributor service points at the link below:

If you are located in US
Send the product to:
North America
Mixware, LLC – U.S. Distributor
11070 Fleetwood Street – Unit F.
Sun Valley, CA 91352; USA
Tel.: [phone]
Contact: www.mixware.net/help

If you are located in Europe
Send the product to:
Sound Service
GmbHEuropean
HeadquarterMoriz-Seeler-Straße
3D-12489 Berlin
Telephone: [phone]
Fax: [phone]
E-Mail: [email protected]
If you are located in Hong Kong
Send the product to:
ASIA OFFICE:
Unit F, 15/F., Fu Cheung Centre,
No. 5-7 Wong Chuk Yueng
Street, Fotan,
Sha Tin, N.T., Hong Kong.
Tel: [phone]
Fax: [phone]
Email: info.asia@icon-global.
com

5. For additional update information please visit our website at:
www.iconproaudio.com

11
www.twier.com/iconproaudiowww.youtube.com/iconproaudiowww.instagram.com/iconproaudio www.facebook.com/iconproaudio
Twier Instagram Facebook Youtube
Website
iconproaudio.com/dashboard/
Dashboard
Support
support.iconproaudio.com
www.iconproaudio.com
中国地区用户
微信号iCON-PRO
微信公众号
4006311312.114.qq.com
官方售后QQ
抖音iCON艾肯
抖音号
B站iCONProAudio
哔哩哔哩
天猫店iconproaudio旗舰店
天猫官方旗舰店
