ICP SAGP-845EV User manual

May 2, 2003
cCopyright 2003 by ICP Electronics Inc. All rights Reserved.
SAGP-845EV
SOCKET 478 PENTIUM 4 with
10/100 Ethernet LAN & AGP4X VGA SBC
PCB Version 1.1
Manual Version 1.1

2
Copyright Notice
Information in this document is subjected to change
without prior notice in order to improve reliability,
design and function and does not represent a
commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct,
indirect, special, incidental, or consequential damages
arising out of the use or inability to use the product or
documentation, even if advised of the possibility of
such damages.
This document contains proprietary information
protected by copyright. All rights are reserved. No part
of this manual may be reproduced by any mechanical,
electronic, or other means in any form without prior
written permission of the manufacturer.
Trademarks
SAGP-845EV is a registered trademark of ICP
Electronics Inc., IBM PC is a registered trademark of
International Business Machines Corporation. Intel is
a registered trademark of Intel Corporation. Award is
registered trademarks of Award Software International,
Inc. Other product names mentioned herein are used
for identification purposes only and may be
trademarks and/or registered trademarks of their
respective companies.
Support
Any questions regarding the content of this manual or
related issues can be e-mailed to us directly at:
[email protected]

3
Table of Contents
1. INTRODUCTION........................................................................................5
1.1 SPECIFICATIONS.........................................................................................6
1.2 PACKAGE CONTENTS.................................................................................9
2. INSTALLATION.......................................................................................10
2.1 SAGP-845EV 'S LAYOUT........................................................................10
2.2 CLEAR CMOS SETUP ..............................................................................12
2.3 KEYBOARD POWER SELECTION...............................................................12
2.4 COMPACT FLASH CARD MASTER/SLAVE MODE SETTING........................12
3. CONNECTION.........................................................................................13
3.1 FLOPPY DISK DRIVE CONNECTOR ...........................................................14
3.2 ULTRA ATA33/66/100 IDE DISK DRIVE CONNECTOR ............................15
3.3 PARALLEL PORT ......................................................................................17
3.4 SERIAL PORTS .........................................................................................18
3.5 KEYBOARD CONNECTOR .........................................................................19
3.6 USB PORT CONNECTOR ..........................................................................19
3.7 IRDA INFRARED INTERFACE PORT..........................................................20
3.8 FAN CONNECTOR.....................................................................................21
3.9 LAN RJ45 CONNECTOR ..........................................................................21
3.10 VGA CONNECTOR.................................................................................22
3.11 AUDIO CONNECTORS ............................................................................22
3.12 COMPACT FLASH STORAGE CARD SOCKET............................................23
3.13 EXTERNAL SWITCHES AND INDICATORS ................................................24
4. AWARD BIOS SETUP..........................................................................25
4.1 INTRODUCTION........................................................................................25
4.2 STARTING SETUP .....................................................................................25
4.3 USING SETUP...........................................................................................26
4.4 MAIN MENU............................................................................................27
4.5 STANDARD CMOS SETUP .......................................................................30
4.6 ADVANCED BIOS FEATURES...................................................................34
4.7 ADVANCED CHIPSET FEATURES ..............................................................38
4.8 INTEGRATED PERIPHERALS......................................................................41
4.9 POWER MANAGEMENT SETUP .................................................................44
4.10 PNP/PCI CONFIGURATION SETUP..........................................................47
4.11 PC HEALTH STATUS ..............................................................................49
4.12 FREQUENCY/VOLTAGE CONTROL..........................................................50

4
4.13 DEFAULTS MENU...................................................................................51
4.14 SUPERVISOR/USER PASSWORD SETTING................................................52
4.15 EXIT SELECTING....................................................................................53
APPENDIX A. WATCHDOG TIMER........................................................54
APPENDIX B. ADDRESS MAPPING.........................................................56
IO ADDRESS MAP............................................................................................56
1ST MB MEMORY ADDRESS MAP....................................................................57
IRQ MAPPING TABLE ......................................................................................57
DMA CHANNEL ASSIGNMENTS .......................................................................57
APPENDIX C. HOW TO UPGRADE A NEW BIOS.................................58
APPENDIX D. AGP SLOT...........................................................................62

5
1. Introduction
SAGP-845EV is a PSB form factor board to work with a high
performance processor. It is equipped with advanced multi-
mode I/O, and designed for system manufacturers,
integrators, or VARs who want to provide all the
performance, reliability, and quality at a reasonable price.
In addition, SAGP-845EV’s onboard Intel 845G MGCH chip
features built-in AGP4X capability which provides 3D
graphics up to 2048x1536x16-bit-color resolution. The
onboard VGA shares 8MB system DDR-SDRAM.
An advanced high performance super AT I/O chip – ITE
IT8712 is used in the SAGP-845EV board. Both on-chip
UARTs are compatible with the NS16C550. The parallel port
and IDE interface are compatible with IBM PC/AT
architecture.
SAGP-845EV’s built-in ICH4 has 10/100 Fast Ethernet LAN
capability. It’s fully integrated 10BASE-T/100BASE-TX LAN
solution with high performance networking functions and low
power features.
SAGP-845EV uses the advanced Intel 845G Chipsets that is
a 100% software-compatible chipset with PCI 2.2 standard.
This PIAGP CPU card must be installed on IEI
PCIAGP/PXAGP series backplanes. If onboard ISA interface
is required, please be sure to install PISA-KIT01 daughter
board on the specific socket on the backplane before ISA
cards are installed to make sure the system works properly.

6
1.1 Specifications
CPU(PGA 478) Intel Pentium 4 Processor, supports 400/533 MHz
FSB
Bus interface PCIAGP golden finger, but only AGP/PCI signal is
provided
Bus speed PCI: 33MHz
DMA channels 7
Interrupt levels 15
Chipset INTEL 845G/GE (GMCH)
Real-time clock INTEL 82801DB (ICH4)
System memory Two 184-pin DIMM sockets support DDR
200/266/333(845GE) SDRAM up to 1GB.
ATA/100
IDE interface
zUp to four PCI Enhanced IDE hard drives
zCan handle data transfer up to 100Mbps
zBackward-compatible with existing ATA-2 IDE
specifications so there is no need to do any
changes to users’ current peripherals
Floppy disk drive
interface Supports up to two floppy disk drives, 5.25” (360KB
and 1.2MB) and/or 3.5” (720KB, 1.44MB, and
2.88MB)
Serial ports
zCOM1 (RS-232) & COM2 (RS-232) with 16C550
UART (or compatible) with 16-byte FIFO buffer
zData transfer up to 115.2Kbps
zEach port can be individually configured to be
COM1, COM2 or disabled
Bi-directional parallel
port
zConfigurable to LPT1, LPT2, LPT3 or disabled
Supports EPP/ECP/SPP
Hardware monitor Monitors power supply voltage and fan speed status

7
IrDA port Supports Serial Infrared (SIR) and Amplitude Shift
Keyed IR (ASKIR) interface
USB port Supports 4 USB2.0 ports for future expansion
Watchdog timer
zProgrammable
zReset generated when CPU does not
periodically trigger the timer
zThe BIOS routine INT15 can be used to control
the watchdog and generate a system reset
VGA controller
zBuilt-in AGP2.0 4X 3D graphics engine
zShare system DDR SDRAM 8M
zScreen Resolution: up to 2048x1536x16 bit
Ethernet
zICH4 Fast Ethernet controller, IEEE 802.3u
Auto-Negotiation support for 10BASET/100BASE-
TX standard
zOne RJ45 connector is located on the mounting
bracket
Keyboard and PS/2
mouse connector
zA 6-pin mini DIN connector is located on the
mounting bracket for easy connection to a
keyboard or PS/2 mouse.
zFor alternative applications, a keyboard and a
PS/2 mouse pin header connectors are also
available on board.
Audio
zCMI8738LX supports 6CH DAC for AC3 5.1
channel purpose
zHRTF-based positional audio,support
Directsound 3D and A3D interface
Compact flash It can be used with a passive adapter (True IDE
Mode ) in a Type I/II Socket.

8
Power consumption
(PENTIUM 4 : 2GHz, 1GB PC2100 DDR SDRAM)
+5V @ 4.46A ,+12V @ 6.55A .
Recommended : 350-watt or higher output power
supply
Operating
temperature
0°~ 60°C
( *CPU needs Cooler & silicone heat sink
compound* )
WARNING ! 1.Never run the processor without a heat sink
(Cooler) properly and firmly attached.
2. Please use ATX-12V power connector (PW2) to
provide power to the CPU.

9
1.2 Package Contents
zOne SAGP-845EV single board computer
zOne FDD cable
zOne ATA/100 IDE cable
zOne ATX-12V cable
zOne PS/2 Y splitter cables for keyboard and mouse connection
zOne printer cable with bracket
zTwo RS-232 serial ports cable with bracket
zOne audio cable with bracket
zOne user manual
If any of these items are missing or damaged, contact the dealer
from whom you purchased this product. Save the shipping
materials and carton in case you want to ship or store the product
in the future.

10
2. Installation
This chapter describes how to install the SAGP-845EV. At first, the layout
of SAGP-845EV is shown, and the unpacking information that you should
be careful with is described. The jumpers and switch settings for the
SAGP-845EV 's configuration, such as CPU type selection, system clock
setting, and watchdog timer, are also included.

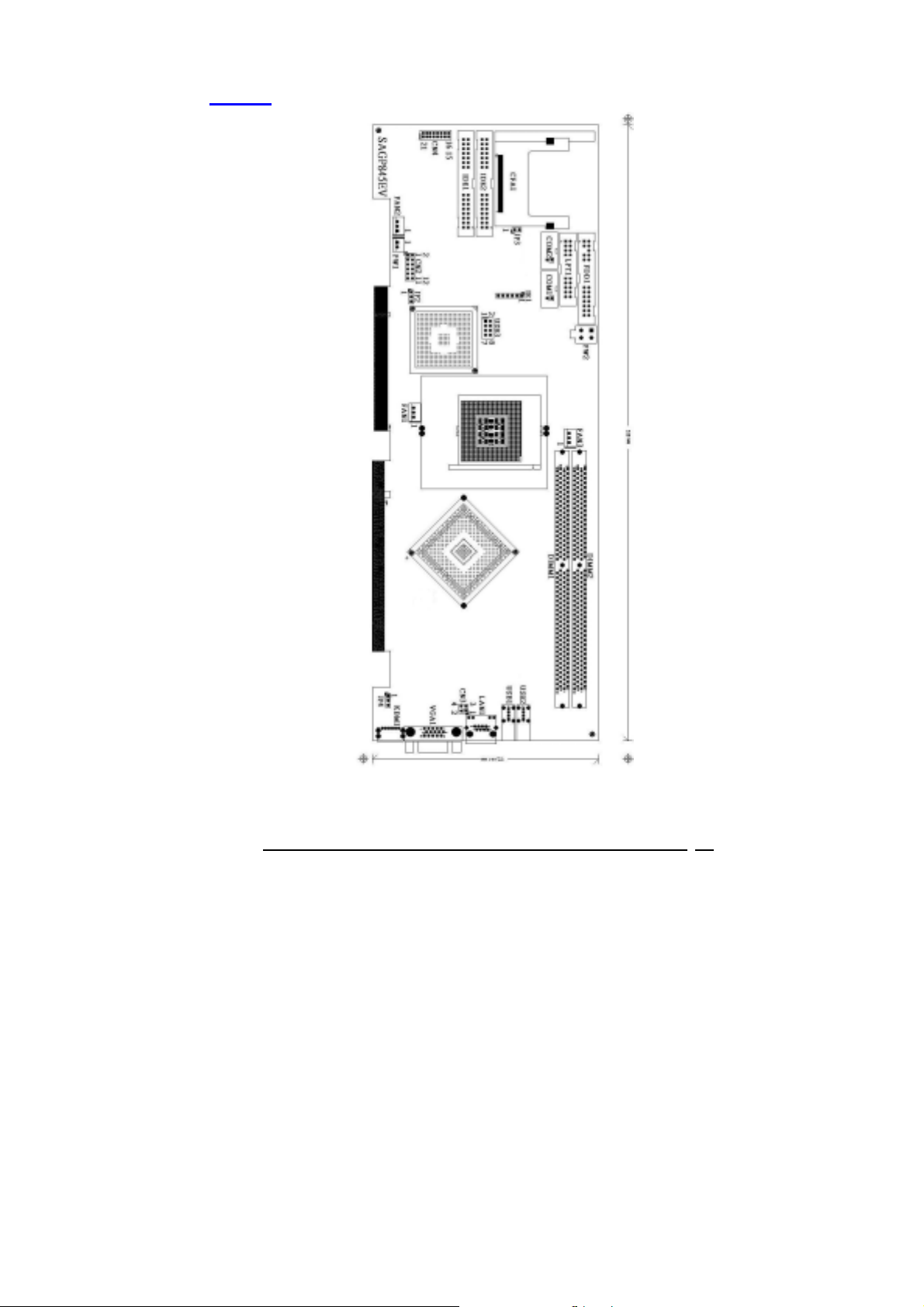

2.1 SAGP-845EV 's Layout
<This area is intentionally left blank>

11
Layout

12
2.2 Clear CMOS Setup
If the user wants to clear the CMOS Setup data (for example, the
user forgot the password and needed to clear the setup data then set
the password again), the user should close the JP2 (set the jumper
to 2-3) about 3 seconds, then open it again. For normal operation,
set the jumper to 1-2 or open JP2.
•JP2: Clear CMOS Setup
JP2 DESCRIPTION
1-2 Keep CMOS Setup
(Normal Operation)
2-3 Clear CMOS Setup
2.3 Keyboard Power Selection
This board can support keyboard wakeup. If the user wants to
use this function, the keyboard has to be supplied with standby
5V by
setting the jumper to 2-3.
•JP4: Keyboard Power Selection
JP4 DESCRIPTION
1-2 VCC
2-3 5VSB
2.4 Compact Flash Card Master/Slave Mode
Setting
•JP3: Master/Slave Mode Setting
JP3 DESCRIPTION
OPEN SLAVE
SHORT MASTER

13
3 . C o n n e c t i o n
This chapter describes how to connect peripherals, switches and
indicators to the SAGP-845EV board.
Table of Connectors
LABEL FUNCTION
FDD1 Floppy Disk Drive Connector
IDE1 Primary IDE Connector
IDE2 Secondary IDE Connector
LPT1 Parallel Port Connector
COM1,COM2 Serial Port Connectors
KBM1 PS/2 MOUSE & KEYBOARD Connector
USB1~USB3 USB Connectors
IR1 IrDA connector
FAN1~FAN3 Fan Connectors
LAN1 LAN RJ45 Connectors
CN3 LAN Status LED Connectors
VGA1 VGA 15-pin Female Connector
CN4 AUDIO Connector
CFA1 Compact Flash Socket
CN2 External Switches and Indicators
PW1 ATX BUTTON (Power ON) Switch
PW2 ATX-12V CPU Power Source

14

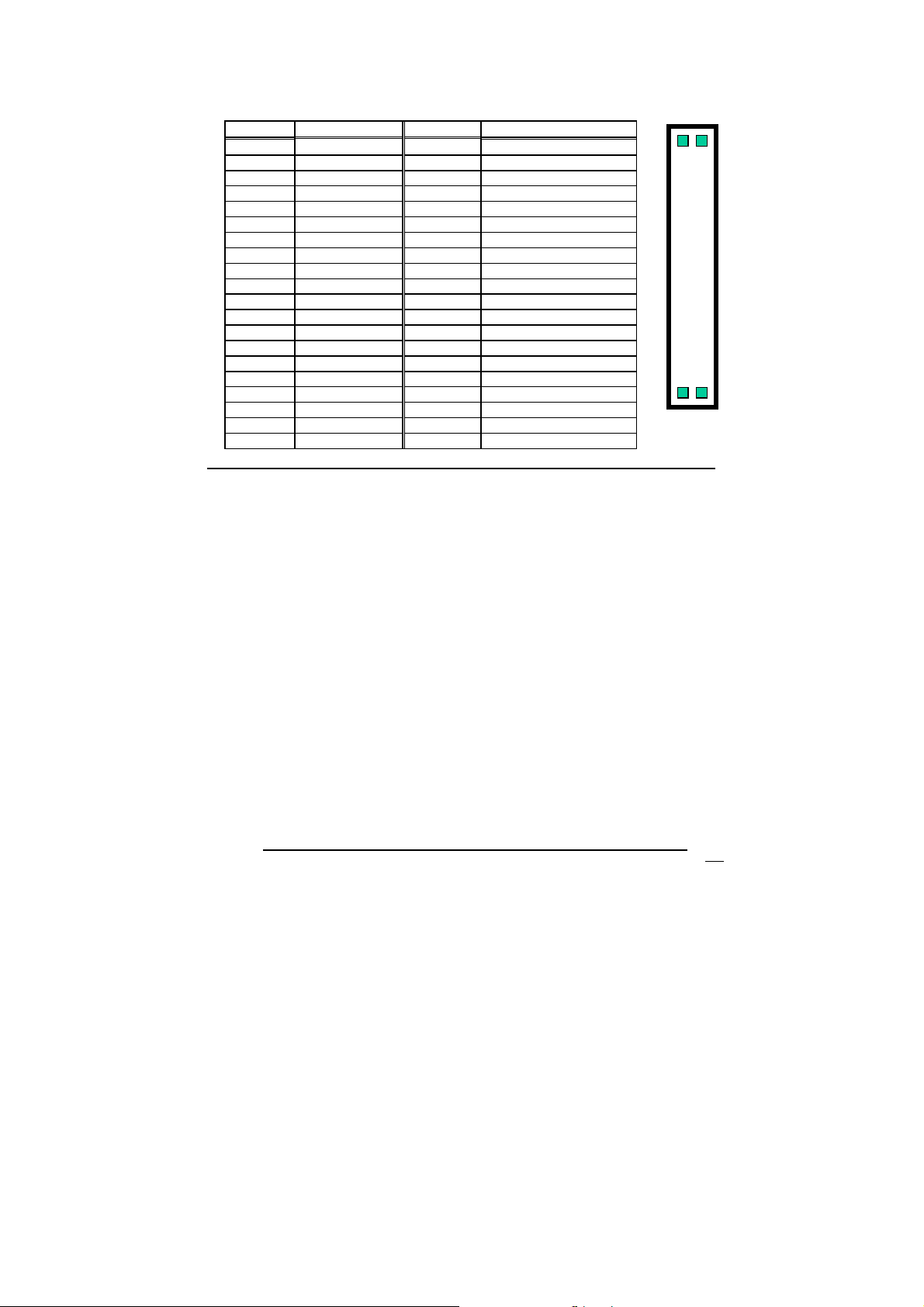

3.1 Floppy Disk Drive Connector
SAGP-845EV board has a 34-pin connector for the floppy drive.
•FDD1: FDC CONNECTOR
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#
9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE GATE#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 N/C 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT#
33 N/C 34 DISK CHANGE#
12
33 34

15
3.2 Ultra ATA33/66/100 IDE Disk Drive
Connector
Each of the SAGP-845EV IDE connectors can have one IDE
(Integrated Device Electronics) attached to it.
IDE1: Primary IDE Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND - DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND
12
39
4
0

16
IDE2: Secondary IDE Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND - DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND
12
39
4
0

17

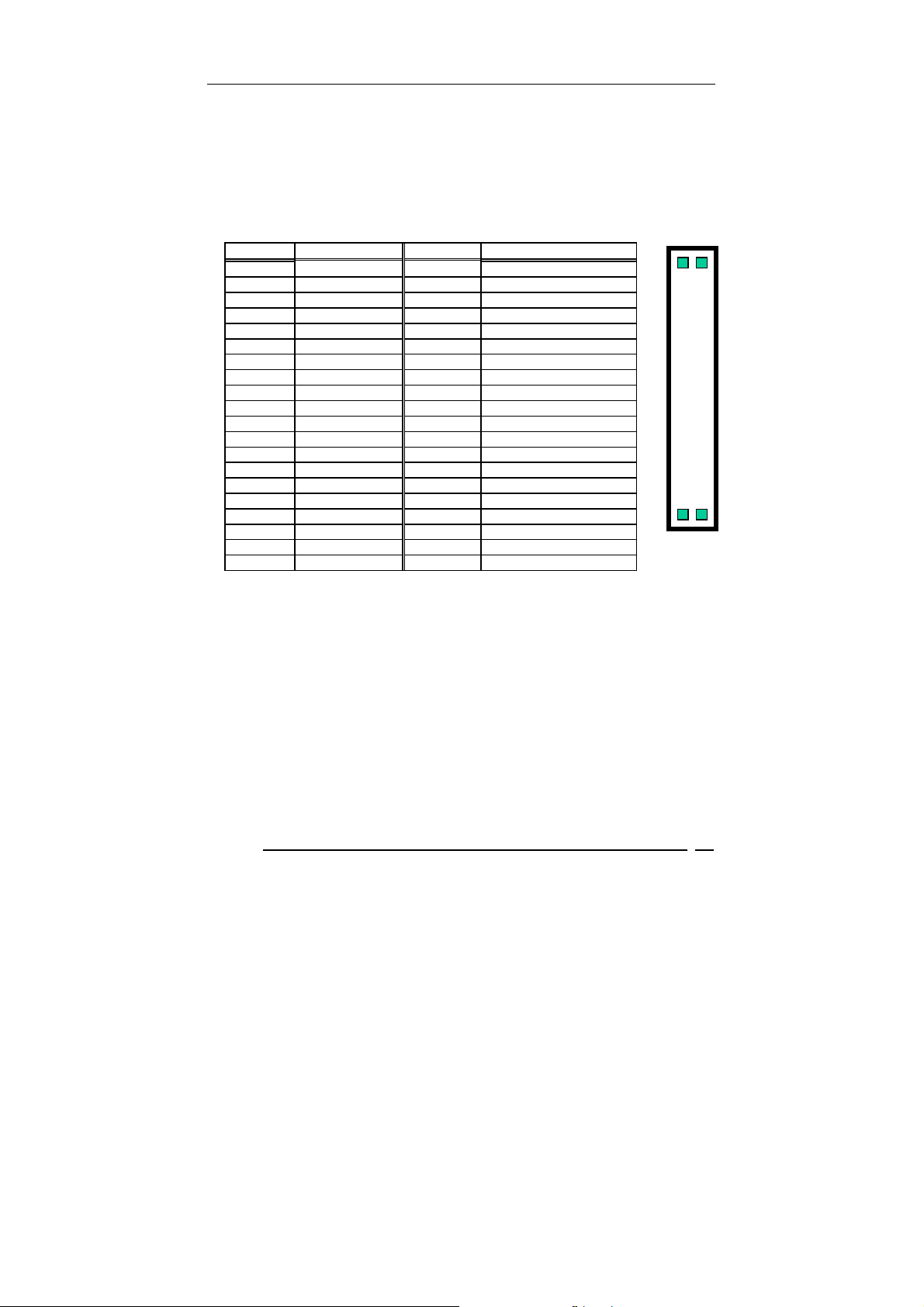

3.3 Parallel Port
This port is usually connected to a printer. SAGP-845EV includes
an on-board parallel port accessed through a 26-pin flat-cable.
Three modes – SPP, EPP and ECP – are supported.
•LPT1: Parallel Port Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 STROBE# 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED #
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 NC
114
13 26

18

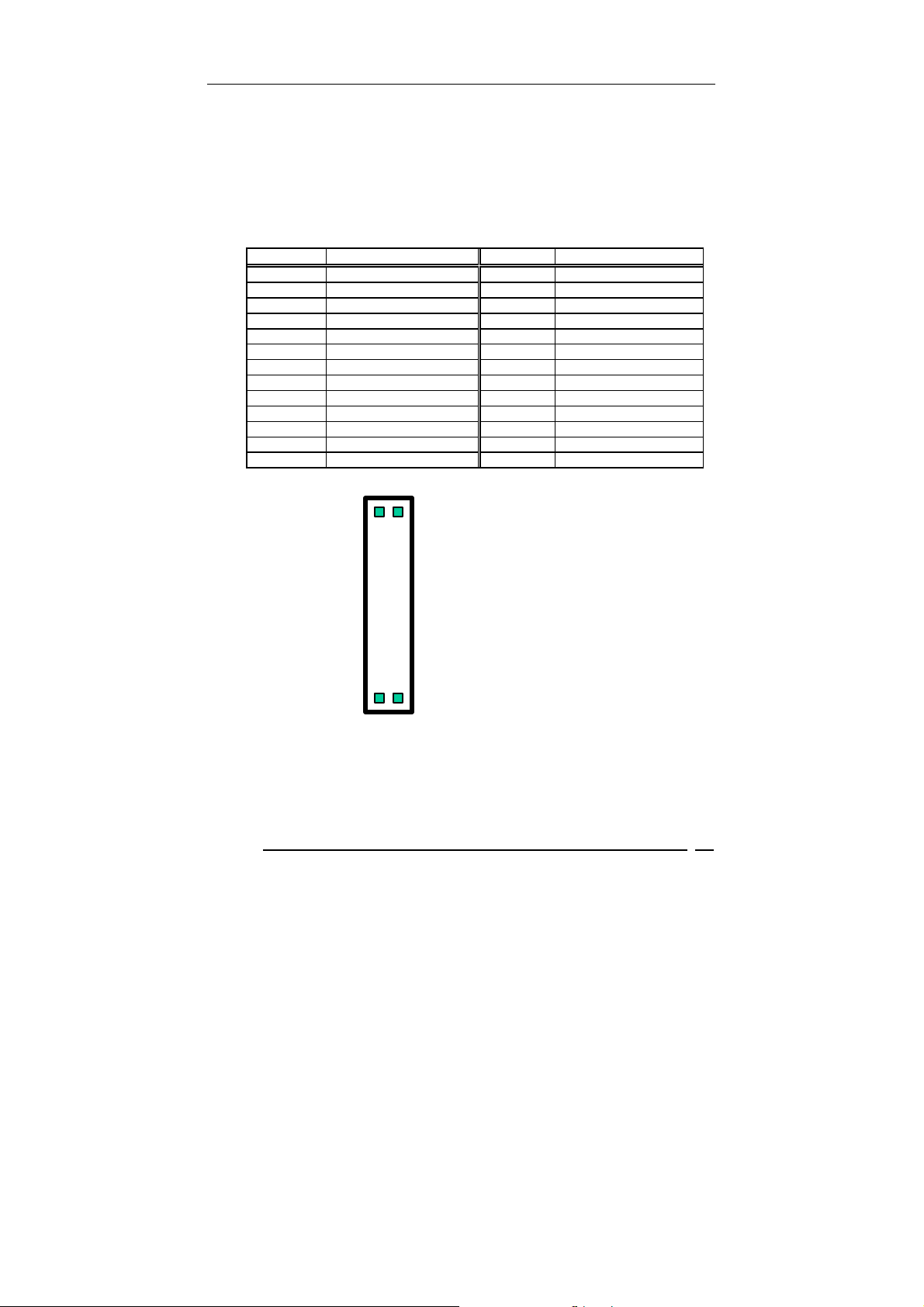

3.4 Serial Ports
SAGP-845EV offers two high speed NS16C550 compatible
UARTs with Read/Receive 16-byte FIFO serial ports.
•COM1 10-pin Connector
PIN NO. DESCRIPTION
1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)
10 NC
1
6
5
1
0

19
•COM2 10-pin Connector
PIN NO. DESCRIPTION
1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)
10 NC
3.5 Keyboard Connector
SAGP-845EV provides a 6-pin keyboard/mouse connector.
•KBM1: 6-pin Mini-DIN Keyboard/Mouse Connector
PIN NO. DESCRIPTION
1 KEYBOARD DATA
2 MOUSE DATA
3 GROUND
4 +5V
5 KEYBOARD CLOCK
6 MOUSE CLOCK
3.6 USB Port Connector
SAGP-845EV provides 4 built-in USB2.0 ports for future I/O bus
expansion.
USB1 & USB2 (single port):
1. VCC
2. DATA-
3. DATA+
4. GROUND
1
6
5
1
0

20
USB3 (dual port):
Provides two sets (pins 1/3/5/7 and 2/4/6/8) of USB connectors.
PIN No. DESCRIPTION PIN No. DESCRIPTION
Port 1 Port 2
1 VCC 2. GROUND
3 DATA- 4. DATA+
5 DATA+ 6. DATA-
7 GROUND 8. VCC
3.7 IrDA Infrared Interface Port
SAGP-845EV has a built-in IrDA port which supports Serial
Infrared (SIR) or Amplitude Shift Keyed IR (ASKIR) interface.
When used, the IrDA port has to be set to SIR or ASKIR model in
the BIOS’s Peripheral Setup’s COM 2. At the same time the
normal RS-232 COM 2 will be disabled.
•IR1: IrDA connector
PIN NO. DESCRIPTION
1 VCC5V
2 N/C
3 IR-RX
4 Ground
5 IR-TX
1
2
3
4
5
7
1
8
2
