Chapter 1. Introduction
The WAFER-5823 is a CPU board equipped with two ethernet
controllers so it is a special design most appropriate for
Network applications. It supports the full functions of an
AT-compatible industrial computer on a single board. The
WAFER-5823 is also equipped with a low-power consumption
and high performance GX1 processor on board moreover
contains an SDRAM SODIMM socket that can support up to
512MB memory.
The WAFER-5823 aside from providing two Ethernet interfaces,
it also has FDD interface, EIDE interface, Compact Flash Type II,
one parallel port, two serial ports RS232, two USB ports, and a
6-pin header PS/2 keyboard/mouse interface. The built-in
SVGA/LCD display controller supports both CRT and LCD display
simultaneously. It offers the resolutions of LCD screen up to
1024 x 768 and CRT resolutions up to 1280 x 1024 @ 256
colors. The Flash ROM contains both the system BIOS and the
VGA BIOS. If necessary, reprogramming the Flash ROM could
do the modification to fit actual need.

7
1.1 Specifications
zNS 233/266/300 MMX 32-Bit x86 Processor:
9Supports Intel MMX instruction set extension for the
acceleration of multi media applications
916 KB unified L1 cache
9Five-stage pipelined integer unit
9Integrated Floating Point Unit（FPU）
zSystem Memory: One 144-pin SODIMM socket support
up to 512 MB SDRAM
zBIOS: AWARD 256 KB Flash memory
zDisplay Controller:
9MediaGx processor has applied the UMA technology
that provides 1.5-4MB display memory, configured
through BIOS Setup
9Support CRT and TFT LCD displays simultaneously
9Support 18-bit TFT LCD panel resolution up to
1024x768 @ 18bpp
9Support non-interlaced CRT monitors resolutions up to
1280x1024 @ 256 colors or 1024x768 @ 16bpp
zIDE Interface: The IDE supports two PCI Enhanced IDE
hard drives
zCompact Flash Disk: The Compact Flash Storage Card
also runs in true IDE mode that is compatible with an IDE
disk drive. It can be used with a passive adapter in a Type
II socket
zFDD Interface: Support up to two floppy disk drives,
5.25”（360KB and 1.2MB）and/or 3.5”（720KB, 1.44MB, and
2.88MB）
zSerial Ports: Two RS232 ports

8
zParallel Port: One Parallel port, supports SPP/EPP/ECP
mode
zPS/2 Mouse/Keyboard connector: A 6-pin header
connector is located on the mounting bracket for easy
connection to a PS/2 keyboard or PS/2 mouse
zUSB interface: Two USB ports, USB 1.0 compliant
zWatchdog timer:
9Can be set by 1-255 seconds period.
9Reset was generated when CPU did not periodically
trigger the timer
z10/100Mbps Ethernet Controller:
9Two Realtek RTL8100B/Intel GD82559 IEEE802.3
10/100M BASE-T standard Dual auto-sensing interface
to 10MBps or 100MBps networks.
9On board RJ45 connectors provide for easy connection
zE2Key: A non-volatile 1Kbit EEPROM is provided to retain
application critical read/write data
zPower supply: +5V(4.75V to 5.25V）@2A（typical）
zOperating temperature: -20-60℃（-4-140℉）
zDimension: 5.9”（L）x 4.2”（W）（145mmx102mm）

9
1.2 Package Contents
Before you begin installing the product, please check that all of
the following materials are included in the package:
z1 WAFER-5823 All-in-one single board computer
z1 CD disk for utility and drivers
z1 2.5" IDE flat cable (44-pin 2.0mm pitch to 40-pin
2.54mm pitch)
z1 floppy cable (for 3.5" FDD only)
z1 serial port cable (RS-232)
z• 1 standard D25 connector for parallel cable
z1 a 6-pin header connector for keyboard and mouse
If any of these items are missing or damaged, please
contact your distributor or sales representative
immediately.

10
SDRAM
1 x S0-DIMM
Socket
RAM YUV Port
Por ( Video )
MediaGX
TM
MMX-
TM
Enhanced
Processor
Serial
Packet
RGB Port
( Graphics )
MD [ 63:0 ]
Clocks
10/100M
Ethernet
CX5530
I/O Companion
System
Clocks
CN12
USB
( 2 Ports )
CN17
RJ45
14.31818
MHz Crystal
WDT
Super I/O
83977
Winbond
CN2
FDD
FDD
Printer
COM2
COM1
CN6
RS-232
CN5
RS-232
CN7
Printer
CN16
VGA
CRT
Graphics Data
Analog Rgb
Video Data
IDE Control
ISA Bus
WAFER-5823 Block diagram
PCI Bus
CN10
IDE1
Award
BIOS
2Mb
CN11
CFA(II)
CN18
RJ45 10/100M Ethernet
CN1
Keyboard/mouse
PS2
CN19
VGA
LCD
Chapter 2. Installation
This chapter gives instructions on how to setup and configure
WAFER-5823 board, including directions on how to set jumpers
as well as connecting peripherals, switches and indicators.
Before installation, please pay attention to the unpacking
precautions on the following page to ensure safety.
2.1 WAFER-5823 Block Diagram & Board
Layout

11

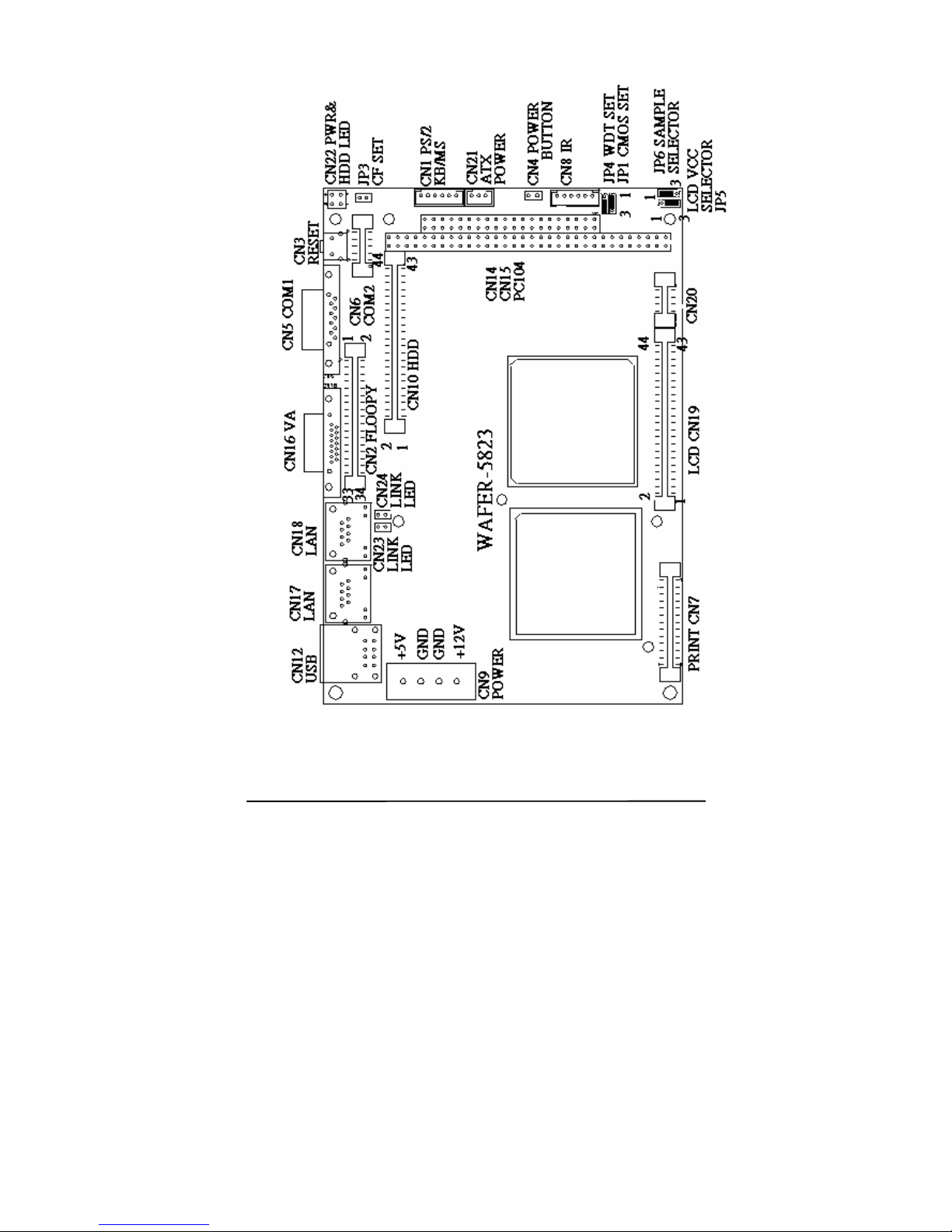

WAFER-5823 Board Jumper Setting

12

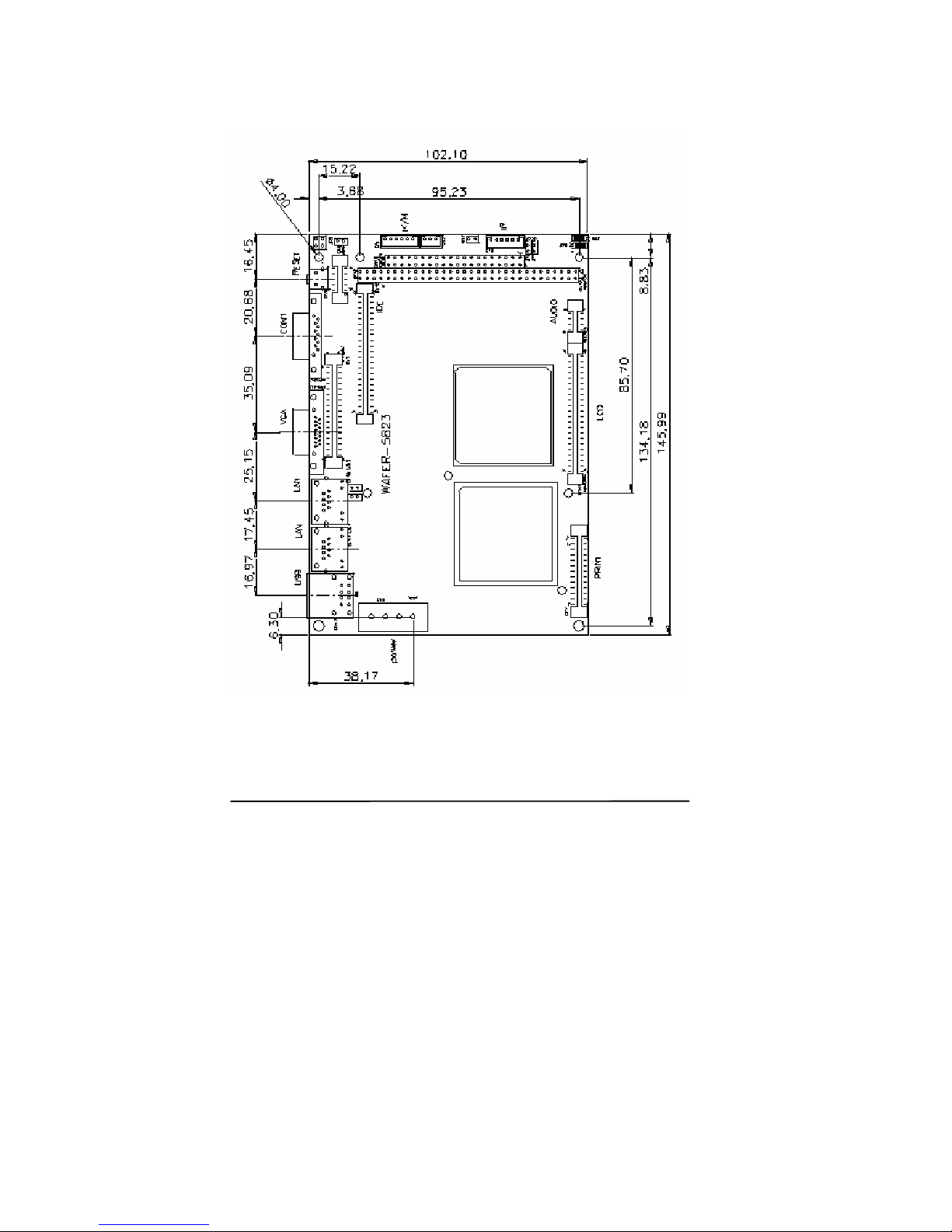

WAFER-5823 Board Dimensions

13
2.2 Unpacking Precautions
Some components of WAFER-5823 SBC are very sensitive to
static electric charges and can be damaged by a sudden rush of
power. To protect it from unintended damage, please be sure to
pay attention to these following precautions:
1. Ground yourself to remove any static charge before
touching the WAFER-5823 SBC. You can do it by using a
grounded wrist strap at all times or by frequently touching
any conducting materials that is connected to the ground.
2. Handle your WAFER-5823 SBC by its edges. Don’t touch IC
chips, leads or circuitry if not necessary.
3. Do not plug any connector or jumper while the power is
on.
2.3 System Memory DRAM
There is one 144-pin SO-DIMM socket that supports 3.3V
non-buffered SDRAM. Maximum memory size is 512MB.
2.4 Watch-Dog Timer Setting
Reading port 443H enables the Watchdog Timer. It should be
triggered before the time-out period ends, otherwise it will
assume the program operation is abnormal and will issue a
reset signal to start again. Reading port 043/843H disables the
Watchdog Timer. Refer to Appendix A for detailed information

14
•JP4: Watchdog Active Type Setting
JP4 DESCRIPTION
1-2 DISABLED WDT
2-3 RESET WHEN WDT TIME-OUT
2.5 Clear CMOS Setup
If you need to clear the CMOS Setup (For example, you have
forgotten the password. Then what you should do is to clear
setup and reset the password.), you should close the JP1 for
about 3 seconds then open it again. Opening JP1 can set
system back to normal operation mode.
•JP1: Clear CMOS Setup (Reserve Function)
JP1 DESCRIPTION
1-2 Normal Operation
2-3 Clear CMOS Setup
2.6 LCD VCC Voltage /Panel Shift Clock
Selector
The LCD interface connector JP5 can provide 5V or 3.3V power
supply by selecting the JP5 to meet the different LCD
requirement.
The Panel Shift Clock Selector interface connector JP6 can
provide are sampled on the rising edge or falling edge by any
different LCD requirement.

15
JP5: LCD VCC Voltage Selector
JP5 DESCRIPTION
1-2 5V
2-3 3.3V
JP6: Panel Shift Clock Selector
JP6 DESCRIPTION
1-2 Rising edge sampling
2-3 Falling edge sampling
2.7 Compact Flash Setting
Set the operating mode of CompactFlash disk. This is similar to
the operation of hard disk.
JP3 DESCRIPTION
OPEN SLAVE
SHORT MASTER

16
Chapter 3. Connection
This chapter describes how to connect peripherals, switches and
indicators to the WAFER-5823 board.
3.1 Floppy Disk Drive Connector (CN2)
WAFER-5823 board is equipped with a 34-pin daisy-chain driver
connector cable.
zCN2: FDC CONNECTOR
PIN NO.
DESCRIPTION
PIN NO.
DESCRIPTION
1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#
9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE GATE#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT#
33 GROUND 34 DISK CHANGE#

17
3.2 PCI E-IDE Disk Drive Connector
(CN10)
For IDE HDD connection. The WAFER-5823 was designed with
one 2.0mm connector (CN10), which could be converted to two
2.54mm standard IDE connector via proprietary cable. Using
this cable you can attach two IDE hard disk drives to the
WAFER-5823.
zCN10: 44-pin Primary Mini-pitched IDE Interface
Connector
zCN10: Primary IDE Interface Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 IDE DRQ 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 IDE CHRDY 28 GROUND
29 IDE DACK 30 GROUND–DEFAULT
31 INTERRUPT 32 N/C
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND
41 VCC 42 VCC
43 GROUND 44 N/C

18
3.3 Compact Flash Connector (CN11)
You can attach one Compact Flash Disk to CN11 that occupy
the Secondary IDE channel. The CN11 supports both the TYPE
II and TYPE I module.
zCN11: Compact Flash Connector (Secondary IDE)
PIN NO.
DESCRIPTION PIN NO.
DESCRIPTION
1 GROUND 26 VCC-IN CHECK1
2 DATA 3 27 DATA 11
3 DATA 4 28 DATA 12
4 DATA 5 29 DATA 13
5 DATA 6 30 DATA 14
6 DATA 7 31 DATA 15
7 HDC_CS0# 32 HDC_CS1
8 N/C 33 N/C
9 GROUND 34 IOR#
10 N/C 35 IOW#
11 N/C 36 N/C
12 N/C 37 INTERRUPT
13 VCC_COM 38 VCC_COM
14 N/C 39 CSEL
15 N/C 40 N/C
16 N/C 41 HDD_RESET
17 N/C 42 IORDY
18 SA2 43 N/C
19 SA1 44 VCC_COM
20 SA0 45 HDD_ACTIVE#
21 DATA 0 46 N/C
22 DATA 1 47 DATA 8
23 DATA 2 48 DAYA 9
24 N/C 49 DATA 10
25 VCC-IN CHECK2 50 GROUND

19
3.4 Parallel Port (CN7)
This port is usually connected to a printer. The WAFER-5823
includes an on-board parallel port (CN7), accessed through a
26-pin flat-cable connector.
zCN7: Parallel Port Connector
PIN
NO. DESCRIPTION PIN
NO.
DESCRIPTION
1 STROBE# 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED #
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 N/C
3.5 Serial Ports (CN5, CN6)
The WAFER-5823 offers two high speeds NS16C550 compatible
UARTs with Read/Receive 16 byte FIFO serial ports. These ports
let you connect to serial devices or a communication network.
One 9-pin D-SUB header and one 10-pin header are provided
by the WAFER-5823. The detailed pin assignment of the
connectors are specified in the following tables:

20
zCN5: Serial Port1 Connector (9-pin D-SUB)
PIN NO. DESCRIPTION PIN NO.
DESCRIPTION
1 DCD 6 DSR
2 RX 7 RTS
3 TX 8 CTS
4 DTR 9 RI
5 GND
zCN6: Serial Port2 Connector (10-pin 2.0mm Header)
PIN NO. DESCRIPTION PIN NO.
DESCRIPTION
1 DCD 2 DSR
3 RX 4 RTS
5 TX 6 CTS
7 DTR 8 RI
9 GND 10 N/C
3.6 Keyboard & PS/2 Mouse Connector
(CN1)
A 6-pin header connector (CN1) is located on the mounting
bracket for easy connection to a keyboard and PS/2 mouse. The
card comes with a cable to convert from the 6-pin mini-DIN
connector to two 6-pin mini-DIN connector for keyboard and
mouse connection
zCN1: 6-pin Header Keyboard & Mouse Connector
PIN NO.
DESCRIPTION
1 +5V
2 MOUSE DATA
3 MOUSE CLOCK
4 KEYBOARD DATA
5 KEYBOARD CLOCK
6 GROUND
