ICS Schneider Messtechnik GA35 User manual

EN
DE
Emissionswächter für SF6-Gas, Typ GA35
Emission monitor for SF6gas, model GA35
®
Emission monitor for SF6gas, model GA35

2
14008241.01 01/2016 EN/DE
WIKA operating instructions emission monitor for SF6gas, model GA35
EN
DE
© 2014 WIKA Alexander Wiegand SE & Co. KG
All rights reserved. / Alle Rechte vorbehalten.
WIKA®is a registered trademark in various countries.
WIKA®ist eine geschützte Marke in verschiedenen Ländern.
Prior to starting any work, read the operating instructions!
Keep for later use!
Vor Beginn aller Arbeiten Betriebsanleitung lesen!
Zum späteren Gebrauch aufbewahren!
Betriebsanleitung Typ GA35 Seite 37 - 70
Operating instructions model GA35 Page 3 - 36
Further languages can be found at www.wika.com

3WIKA operating instructions emission monitor for SF6gas, model GA35
14008241.01 01/2016 EN/DE
EN
Contents
Contents
1. General information ...............................................5
2. Design and function ...............................................6
2.1 Overview .......................................................6
2.2 Scope of delivery.................................................7
3. Safety ...........................................................8
3.1 Explanation of symbols............................................8
3.2 Intended use ....................................................8
3.3 Improper use ....................................................9
3.4 Personnel qualification ...........................................10
3.5 Danger of handling SF6gas .......................................10
3.6 Danger from electrical current .....................................11
3.7 Labelling, safety marks ...........................................11
4. Transport, packaging and storage ..................................13
5. Commissioning ..................................................14
5.1 Requirements for the installation location ............................14
5.2 Wallmounting...................................................14
5.3 Connecting the sampling box......................................16
5.4 Connecting the gas outlet.........................................17
5.5 Electrical mounting ..............................................17
5.6 Switching on ...................................................21
6. System settings .................................................21
6.1 Menu navigation ................................................21
6.2 Activating numerical measured value display .........................22
6.3 Activating graphical measured value display .........................22
6.4 Adjusting graphical measured value display ..........................22
6.5 Setting the alarm ................................................23
6.6 Setting the contrast ..............................................23
6.7 Activating/deactivating the password protection.......................24
6.8 Setting the resolution of the display value............................24
6.9 Resetting to default settings .......................................25

4
EN
7. Faults ..........................................................26
8. Maintenance and cleaning.........................................27
9. Dismounting, return and disposal ..................................30
10. Specifications ...................................................32
11. Accessories.....................................................34
Appendix 1: Menu structure ..........................................35
Contents

5WIKA operating instructions emission monitor for SF6gas, model GA35
14008241.01 01/2016 EN/DE
EN
1. General information
1. General information
■
The emission monitor described in the operating instructions has been designed
and manufactured using state-of-the-art technology. All components are subject
to stringent quality and environmental criteria during production. Our management
systems are certified to ISO 9001 and ISO 14001.
■
These operating instructions contain important information on handling the instru-
ment. Working safely requires that all safety instructions and work instructions are
observed.
■
Observe the relevant local accident prevention regulations and general safety regula-
tions for the instrument's range of use.
■
The operating instructions are part of the product and must be kept in the immediate
vicinity of the instrument and readily accessible to skilled personnel at any time. Pass
the operating instructions onto the next operator or owner of the instrument.
■
Skilled personnel must have carefully read and understood the operating instructions
prior to beginning any work.
■
The general terms and conditions contained in the sales documentation shall apply.
■
Subject to technical modifications.
■
Further information:

6
EN
2. Design and function
2. Design and function
2.1 Overview
SF 6 -IR-Monitor
Alarm High
Alarm Low
Fault
Calibration
ZERO SPAN
++
--
LC display
Navigation
keys
Alarm and fault
indications
Buzzer
Cable gland for power
supply
Cable gland for analogue
output
Cable gland for switching
outputs
Gas inlet Gas outlet
Calibration
keys
Terminal box

7WIKA operating instructions emission monitor for SF6gas, model GA35
14008241.01 01/2016 EN/DE
EN
2. Design and function
2.2 Scope of delivery
■
Emission monitor model GA35
■
Sampling box
■
Replacement filter
■
Operating instructions
Cross-check scope of delivery with delivery note.
Sampling box
Barbed fitting
Closed terminal box
Cover screws
Open terminal box
Cover screws
Voltage supply Relay board

8
EN
3. Safety
3.1 Explanation of symbols
WARNING!
... indicates a potentially dangerous situation that can result in serious
injury or death, if not avoided.
CAUTION!
... indicates a potentially dangerous situation that can result in light injuries
or damage to equipment or the environment, if not avoided.
DANGER!
... identifies hazards caused by electrical power. Should the safety instruc-
tions not be observed, there is a risk of serious or fatal injury.
Information
... points out useful tips, recommendations and information for efficient
and trouble-free operation.
3.2 Intended use
The model GA35 emission monitor is used for the continuous monitoring of the SF6
concentration in the ambient air.The instrument has been designed exclusively for
operation in dry and closed areas.
The emission monitor can be integrated into higher-level or coordinate monitoring
systems by means of the active current loop (4 ... 20 mA). Switching functions can be
triggered or maintained via potential-free, safety-related switching outputs (e.g. when
exceeding or falling below limit values, in case of malfunctions, interruptions of power
supply).
Only use the instrument in applications that lie within its technical specifications (e.g.
max. ambient temperature).
→ Specifications see chapter 10 “Specifications”.
3. Safety

9WIKA operating instructions emission monitor for SF6gas, model GA35
14008241.01 01/2016 EN/DE
EN
3. Safety
This instrument is not permitted to be used in hazardous areas!
The instrument has been designed and built solely for the intended use described here,
and may only be used accordingly.
Handle the emission monitor with the required care (protect from humidity, impacts,
strong magnetic fields, static electricity and extreme temperatures, do not insert any
objects into the instrument or its openings). Plugs and sockets must be protected from
contamination.
The manufacturer shall not be liable for claims of any type based on operation contrary
to the intended use.
3.3 Improper use
WARNING!
Injuries through improper use
Improper use of the instrument can lead to hazardous situations and
injuries.
▶
Refrain from unauthorised modifications to the instrument.
▶
Do not use the instrument within hazardous areas.
Any use beyond or different to the intended use is considered as improper use.

10
EN
3.4 Personnel qualification
WARNING!
Risk of injury should qualification be insufficient
Improper handling can result in considerable injury and damage to equip-
ment.
▶
The activities described in these operating instructions may only be
carried out by skilled personnel who have the qualifications described
below.
Skilled electrical personnel
Skilled electrical personnel are understood to be personnel who, based on their techni-
cal training, know-how and experience as well as their knowledge of country-specific
regulations, current standards and directives, are capable of carrying out work on
electrical systems and independently recognising and avoiding potential hazards.The
skilled electrical personnel have been specifically trained for the work environment they
are working in and know the relevant standards and regulations.The skilled electrical
personnel must comply with current legal accident prevention regulations.
Operating personnel
The personnel trained by the operator are understood to be personnel who, based
on their education, knowledge and experience, are capable of carrying out the work
described and independently recognising potential hazards.
3.5 Danger of handling SF6gas
High concentrations of SF6gas can lead to asphyxiation.
Observe the following safety instructions in order to avoid danger from SF6gas:
■
Read the material safety data sheet of the gas supplier.
■
With large leaks, evacuate the area quickly.
■
Ensure good ventilation.
■
Ensure the leak tightness of the equipment with a leak detector (e.g. model GIR-10).
Valid standards and guidelines
■
BGI 753 (SF6plant and equipment in Germany)
■
TRGS 900 (workplace limit values)
SF6is a colourless and odourless, chemically neutral, inert and
non-inflammable gas which is approx. five times heavier than air, not toxic
and not harmful to the ozone layer. Detailed information is given in IEC
60376 and IEC 61634.
3. Safety

11WIKA operating instructions emission monitor for SF6gas, model GA35
14008241.01 01/2016 EN/DE
EN
3.6 Danger from electrical current
Should the instrument or the cabling be damaged, there exists a danger to life through
electric shock.
Observe the following safety instructions in order to avoid danger from electrical current:
■
Commissioning of the instrument should only be carried out by skilled electrical
personnel.
■
Damaged cables should only be replaced by skilled electrical personnel.
■
Damaged or defective instruments should only be repaired by the manufacturer.
3.7 Labelling, safety marks
Product label
The product label is located on the left edge of the case.
Model
Measuring range
Power
Serial number
Year of manufacture
Power supply
3. Safety
WIKA
Alexander Wiegand SE & Co. KG, 63911 Klingenberg, Germany
Product: GA35, SF6-IR-Monitor
Model: 2000 ppm Supply: 90-260VAC
Power: 13W typical @ 50/60Hz
Serial No: 1100XXYY
Manufacturing Year: 2013
Made in Germany







12
EN
3. Safety

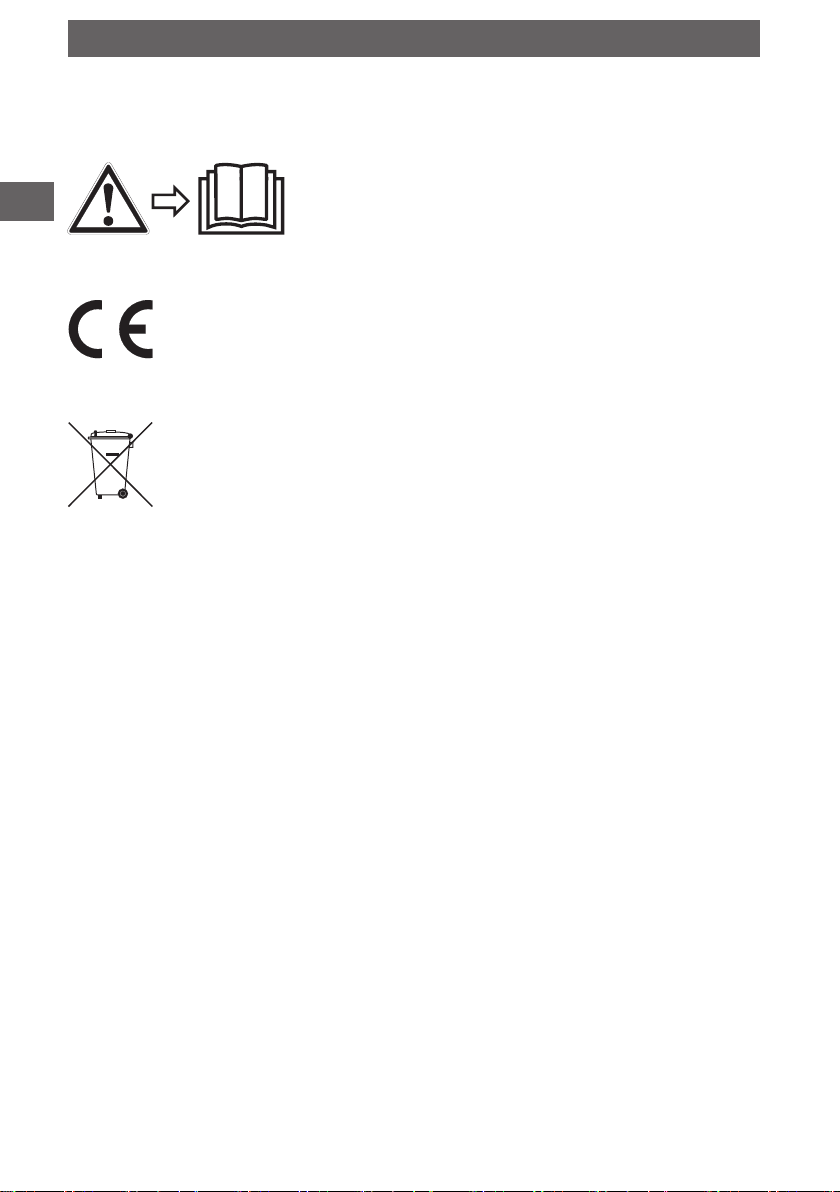

Symbols
Before mounting and commissioning the instrument,
ensure you read the operating instructions!
Instruments bearing this mark comply with the relevant European
directives.
This marking on the instruments indicates that they must not be disposed
of in domestic waste. The disposal is carried out by return to the manufac-
turer or by the corresponding municipal authorities (see EU directive
2002/96/EC).

13WIKA operating instructions emission monitor for SF6gas, model GA35
14008241.01 01/2016 EN/DE
EN
4. Transport, packaging and storage
4.1 Transport
Check the emission monitor for any damage that may have been caused by transport.
Obvious damage must be reported immediately.
CAUTION!
Damage through improper transport
With improper transport, a high level of damage to property can occur.
▶
When unloading packed goods upon delivery as well as during internal
transport, proceed carefully and observe the symbols on the packag-
ing.
▶
With internal transport, observe the instructions in chapter 5.2 “Packag-
ing and storage”.
If the instrument is transported from a cold into a warm environment, the formation of
condensation may result in instrument malfunction. Before putting it back into operation,
wait for the instrument temperature and the room temperature to equalise (12 h).
4.2 Packaging and storage
Do not remove packaging until just before mounting.
Keep the packaging as it will provide optimum protection during transport (e.g. change
in installation site, sending for repair).
Permissible conditions at the place of storage:
Storage temperature: -10 ... +60 °C
Avoid exposure to the following factors:
■
Direct sunlight or proximity to hot objects
■
Mechanical vibration, mechanical shock (putting it down hard)
■
Soot, vapour, dust and corrosive gases
■
Hazardous environments, flammable atmospheres
Store the emission monitor in the original packaging in a location that fulfils the condi-
tions listed above. If the original packaging is not available, pack and store the instru-
ment as described below:
1. Place the instrument, along with the shock-absorbent material, in the packaging.
2. If stored for a prolonged period of time (more than 30 days), place a bag containing a
desiccant inside the packaging.
4. Transport, packaging and storage

14
EN
5. Commissioning
5. Commissioning
Personnel: skilled electrical personnel
5.1 Requirements for the installation location
Hang the emission monitor on a vertical and even wall.
Provide sufficient space around the instrument so that cables and hose connections can
be connected.
5.2 Wallmounting
Required tools
3 screws (4 x 70 mm)
3 dowels (6)
1 drill (6 mm)
1 screwdriver
1. Select the installation location.
→ See chapter 5.1 “Requirements for the installation location”.
2. Mount the hanging screw on the wall.
→ For the position of the hanger, see the following figure “Drilling drawing”.
3. Open the terminal box.
4. Hang on the wall with the hanger.
5. Align the instrument.
6. Mark the drilling holes.
7. Take the instrument down.
8. Drill the holes and fit the dowels into them.
9. Rehang the instrument.
10. Screw the instrument on.
For stone walls, the bore holes always have to be provided with dowels.

15WIKA operating instructions emission monitor for SF6gas, model GA35
14008241.01 01/2016 EN/DE
EN
Drilling drawing
5. Commissioning
(7) 242
(13)
177
15
128
Hanger

16
EN
5.3 Connecting the sampling box
Requirements for the measuring line
Inner diameter: 4 ... 5 mm
Max. length: 30 m
Humidity can cause condensation in the measuring line if the measuring line cools
towards the gas inlet. In this case, a water separator must be used.
The material of the measuring line must be suitable for the application and the environ-
mental conditions.
Recommended materials Non-recommended materials
Standard applications Natural rubber
Neoprene Silicone rubber
PVC
Nylon
Demanding applications
Copper
other metals
Requirements for the installation location
Mount the sampling box 30 cm above the ground as SF6gas collects at the ground.
Procedure
Requirement:
■
Measuring line suitable for the application.
■
Measuring line is cut to the required length.
1. Open the barbed fitting.
2. Slide the measuring line over the barbed fitting, up to the stop.
3. Tighten the barbed fitting.
4. Check they are firmly seated.
5. Slide the measuring line over the gas inlet connecting ports of the emission monitor,
right up to the stops.
6. Check they are firmly seated.
7. Move the sampling box to the installation location.
5. Commissioning

17WIKA operating instructions emission monitor for SF6gas, model GA35
14008241.01 01/2016 EN/DE
EN
5.4 Connecting the gas outlet
Direct gas outlet
The measuring gas can be discharged directly from the gas outlet.
For this, a further operation is needed.
Gas outlet via hose
No pressure > 1,150 mbar abs. should be allowed to exist at the gas outlet. Pressure at
the gas outlet can lead to a measuring error or an alarm (Low Flow).
Procedure
Requirement: Hose inner diameter: 5 mm
1. Slide the hose over the connecting ports right up to the stops.
2. Check they are firmly seated.
5.5 Electrical mounting
DANGER!
Live parts
Upon contact with live parts, there is a direct danger to life.
▶
Commissioning only by skilled electrical personnel.
▶
Before any work, disconnect the instrument from the mains.
The cable glands are suitable for cable diameters from 8 ... 10 mm. For different cable
diameters, replace the cable glands with ones of an appropriate size.
Signal and power cables should be run in separate cable lines.
Do not redistribute power cables within the connection compartment. Only connect one
cable per terminal.
Design the conductor cross-sections in accordance with the currents that are flowing.
5. Commissioning

18
EN
5.5.1 Establishing the voltage supply
CAUTION!
Overvoltage on active current loop
The instrument will be destroyed and the operational safety will no longer
be ensured.
▶
Do not connect external voltage sources to the active current loop.
Operation through a socket
Fuse the socket in accordance with the max. load of the relay. Depending on the set
direction of action of the alarms max 16 ... 24 A.
Operation through the mains supply of a building
Protect the emission monitor via a circuit breaker in accordance with the max. load of
the relay (max. 24 A). The circuit breaker must cut all power to the emission monitor and
the relay contacts.
Procedure
Requirement:
■
Cable gland matches the cable used.
■
Voltage supply is properly fused.
■
All cables should be isolated from power.
1. Open the terminal box.
2. Pass the cable through the cable gland into the terminal box.
3. Connect the cables in accordance with the layout diagram (see fig. “PCB voltage
supply”).
4. Tighten the cable glands.
5. Check whether the glands are tight and provide strain relief.
6. Close the terminal box.
5. Commissioning
PCB voltage supply
L = Phase
N = Neutral line
G = Protection line, GND
O/P = Signal+
0V = Signal-
Microfuse
(max. 3 A)
Mains voltage
LNG
Active current
loop
O/P 0V

19WIKA operating instructions emission monitor for SF6gas, model GA35
14008241.01 01/2016 EN/DE
EN
5.5.2 Connecting an active current loop
CAUTION!
Overvoltage on active current loop
The instrument will be destroyed and the operational safety will no longer
be ensured.
▶
Do not connect external voltage sources to the active current loop.
Requirement:
■
Cable gland matches the cable used.
■
All cables should be isolated from power.
1. Open the terminal box.
»The PCB for voltage supply is on the left-hand side.
2. Pass the cable through the cable gland into the terminal box.
3. Connect the cables in accordance with the layout diagram (see fig. “PCB voltage
supply”).
4. Tighten the cable glands.
5. Check whether the glands are tight and provide strain relief.
6. Close the terminal box.
PCB voltage supply
L = Phase
N = Neutral line
G = Protection line, GND
O/P = Signal+
0V = Signal-
Microfuse
(max. 3 A)
Mains voltage
LNG
Active current
loop
O/P 0V
5. Commissioning

20
EN
5.5.3 Connecting the relay board
The GA35 features two alarm relays and one error relay.The relays can be connected to
external control and warning systems. The relays are suitable for small signals and high
loads.
→ Connected load see chapter 10 “Specifications”.
Requirement:
■
Cable gland matches the cable used.
■
All cables should be isolated from power.
1. Open the terminal box.
»The relay board is found on the right-hand side.
2. Pass the cable through the cable gland into the terminal box.
3. Connect the cables in accordance with the layout diagram (see fig. “Relay board”).
4. Tighten the cable glands.
5. Check whether the glands are tight and provide strain relief.
6. Close the terminal box.
Relay board
T2 = normally open (NO)
T1 = normally closed (NC)
P = common contact
(COM)
Fault Alarm Low Alarm High
T2 P T1 T2 P T1 T2 P T1
5. Commissioning
It is recommended to realise the electrical redistribution via an external
terminal box.
