ICS Schneider Messtechnik HYDROTECHNIK MultiHandy 2025 User manual

EN
MultiHandy 2025
Operating Instructions

OPERATING INSTRUCTIONS
1 Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2 Description of the measuring instrument . . . . 2
2.1 Measuring instrument case . . . . . . . . . . . . . . 2
2.2 Measuring instrument . . . . . . . . . . . . . . . . . . 2
2.3 Rear side . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.4 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.5 Operating keys. . . . . . . . . . . . . . . . . . . . . . . . 4
2.6 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.7 Keys, icons and functions . . . . . . . . . . . . . . . 5
3 Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.1 Charging measuring instrument. . . . . . . . . . . 5
3.2 Basic settings. . . . . . . . . . . . . . . . . . . . . . . . . 6
3.3 Time and date . . . . . . . . . . . . . . . . . . . . . . . . 7

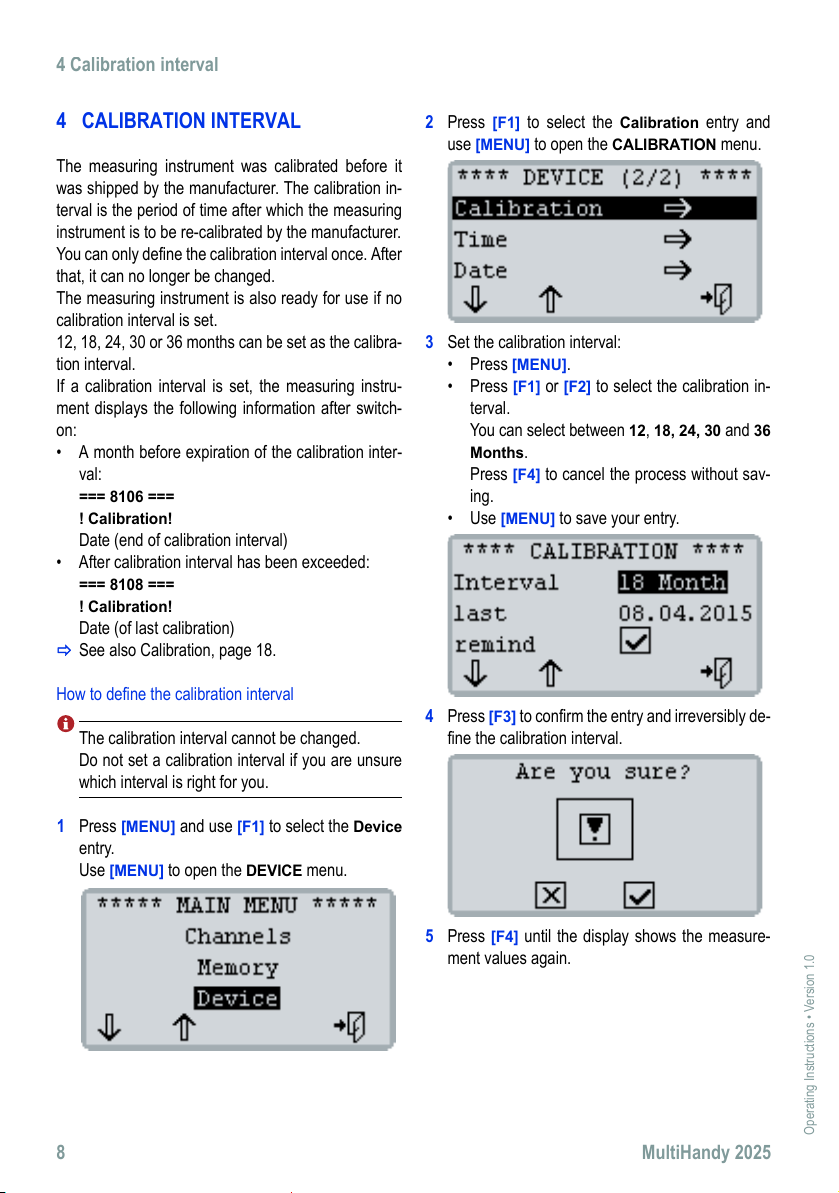

4 Calibration interval . . . . . . . . . . . . . . . . . . . . . 8
5 HYDROcenter . . . . . . . . . . . . . . . . . . . . . . . . 9

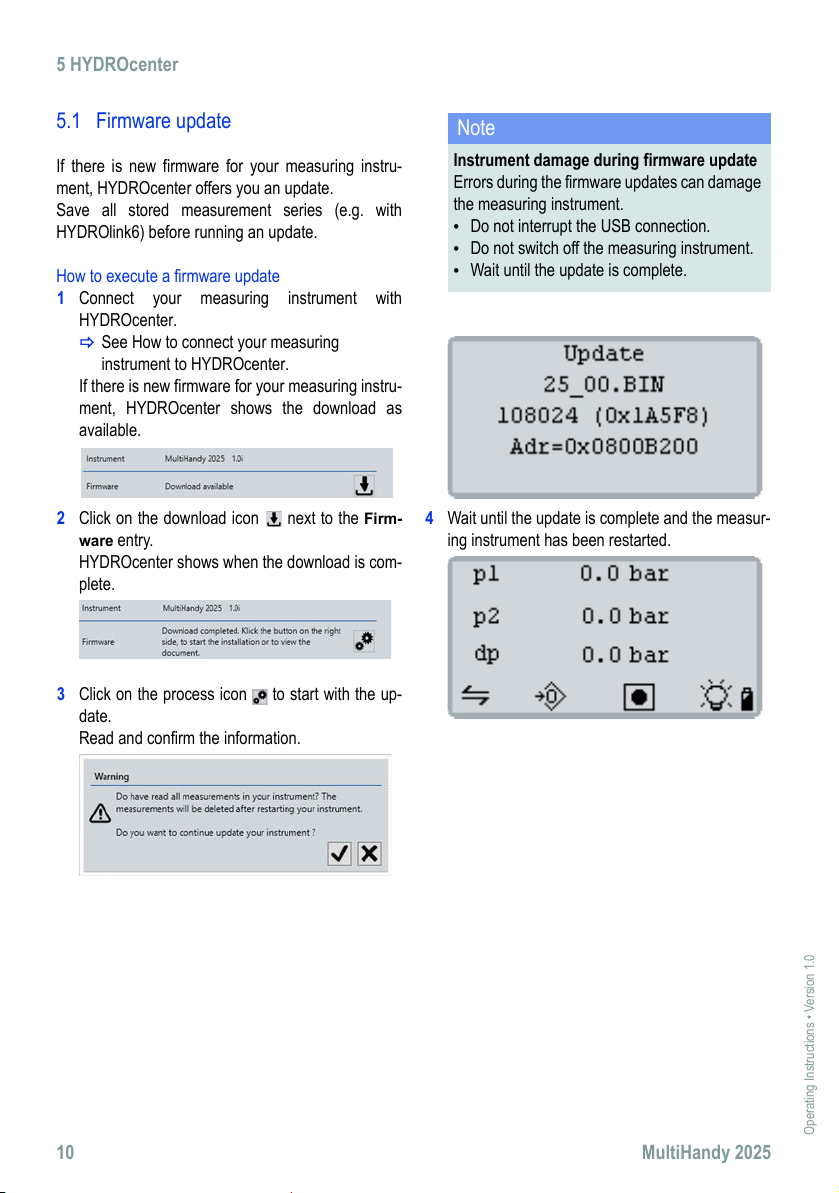

5.1 Firmware update . . . . . . . . . . . . . . . . . . . . . 10
6 Measurement . . . . . . . . . . . . . . . . . . . . . . . . 11
6.1 Measurement with ISDS sensors. . . . . . . . . 11

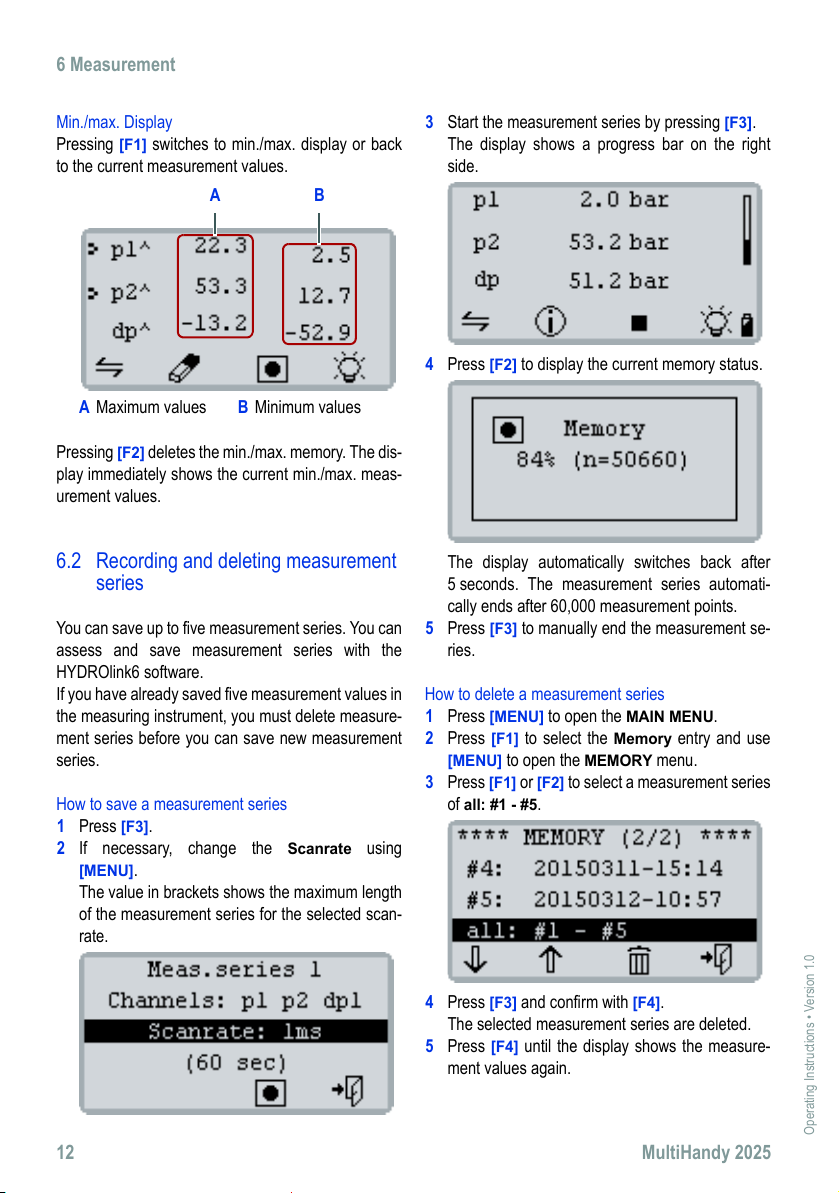

6.2 Recording and deleting
measurement series . . . . . . . . . . . . . . . . . . 12
7 Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7.1 Displaying/hiding channels . . . . . . . . . . . . . 13

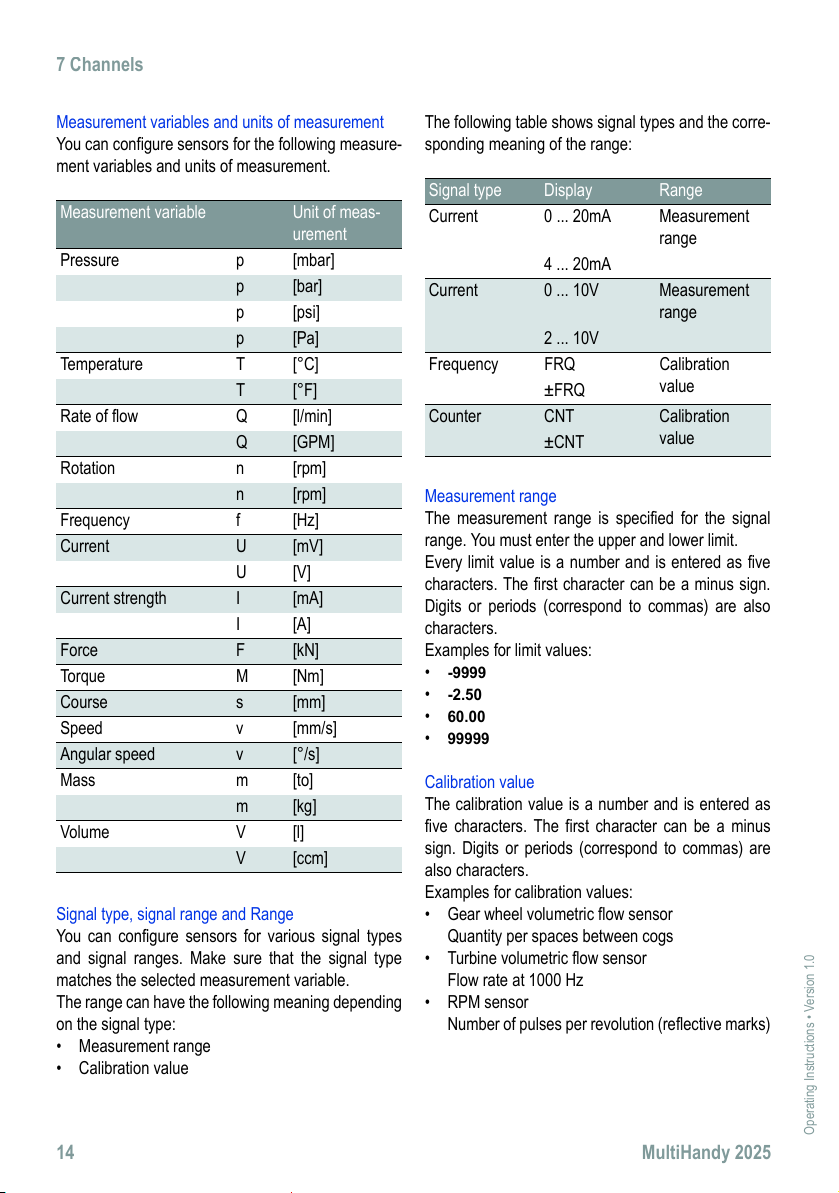

7.2 Configuring channel . . . . . . . . . . . . . . . . . . . 13

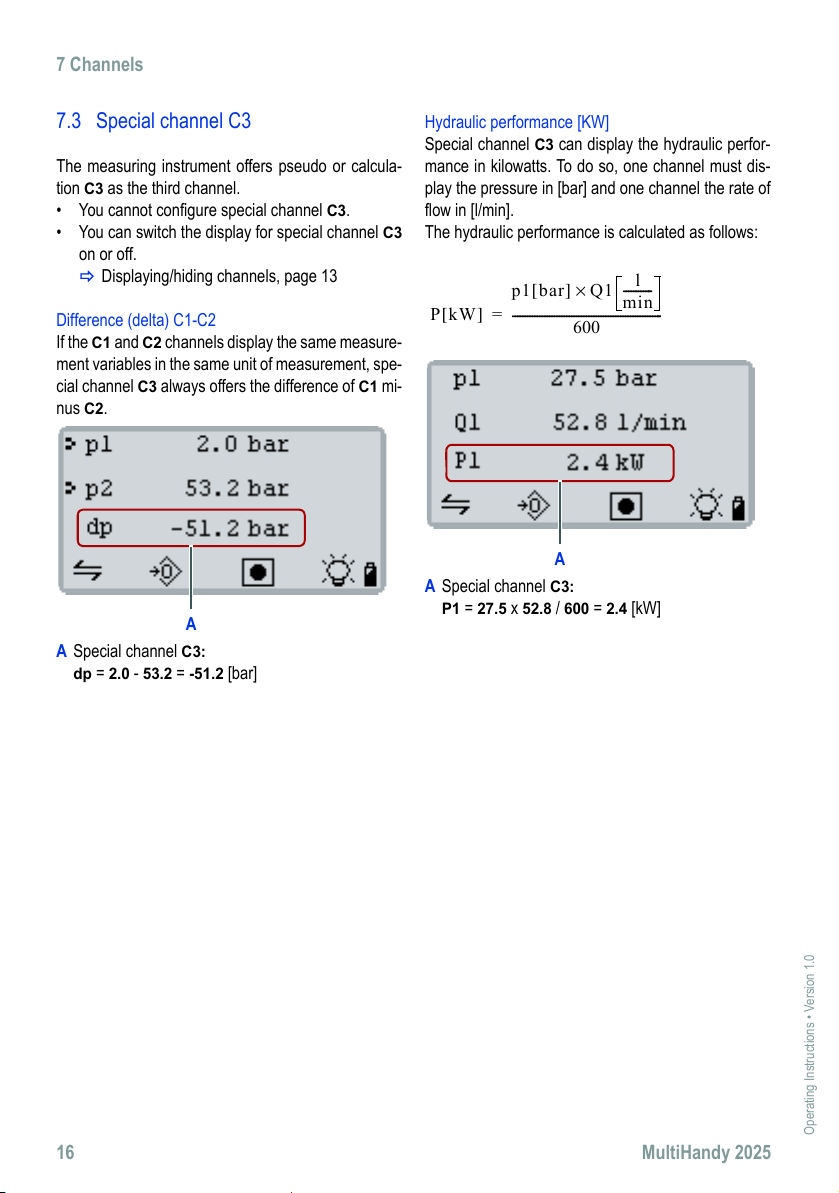

7.3 Special channel C3 . . . . . . . . . . . . . . . . . . . 16

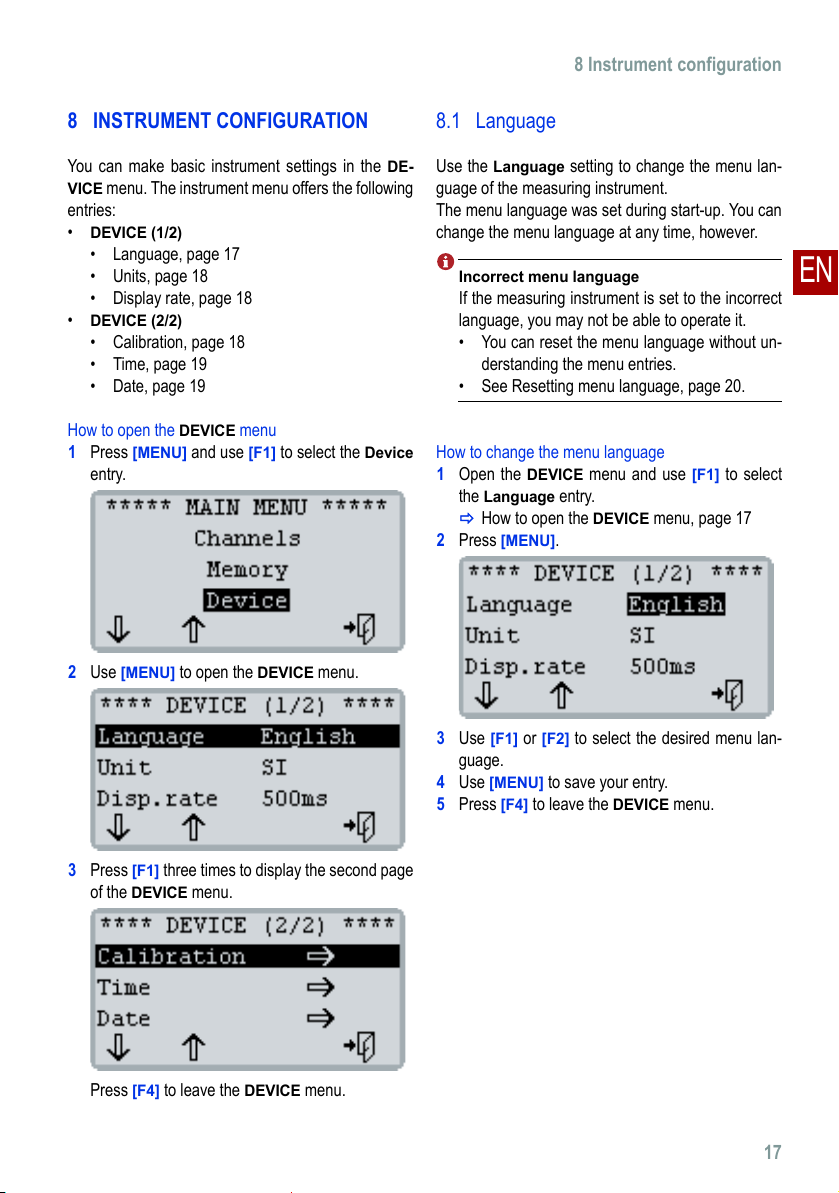

8 Instrument configuration . . . . . . . . . . . . . . . 17
8.1 Language . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

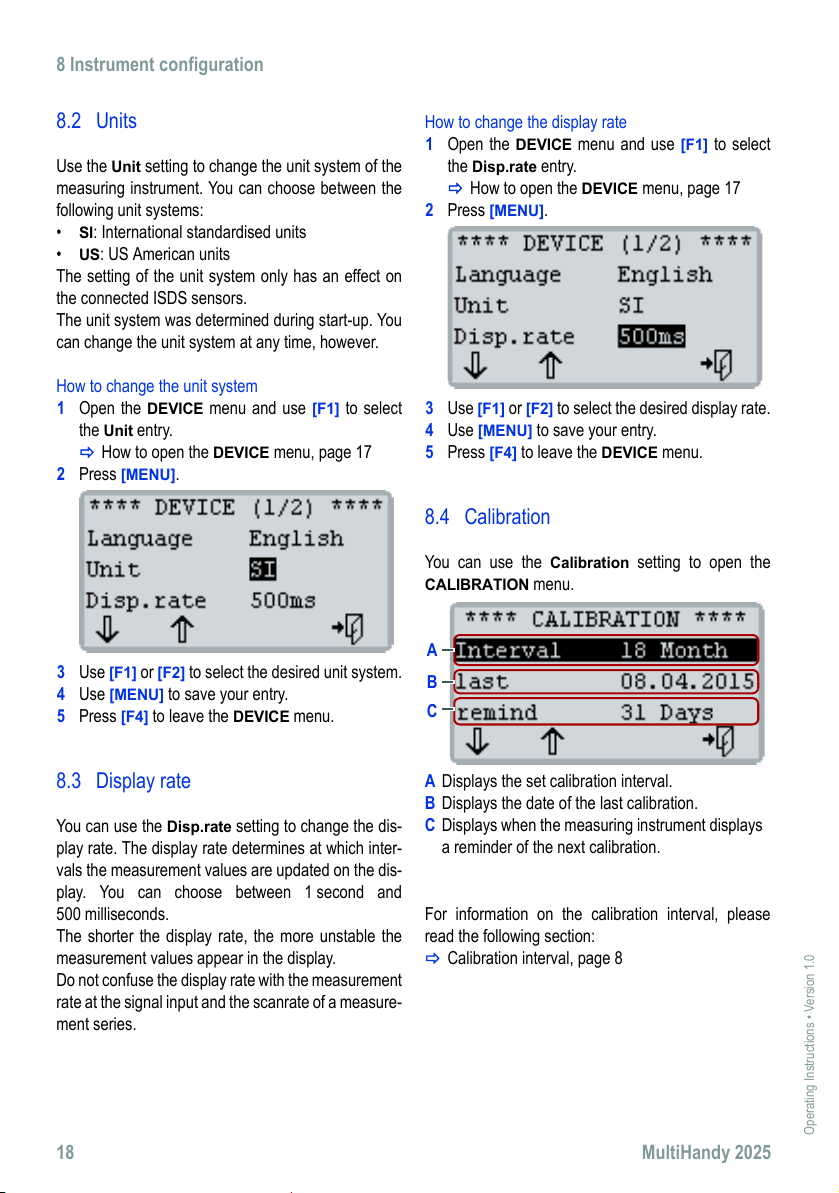

8.2 Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8.3 Display rate . . . . . . . . . . . . . . . . . . . . . . . . . 18
8.4 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8.5 Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8.6 Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
9 Resetting menu language . . . . . . . . . . . . . . 20
10 Resetting measuring instrument . . . . . . . . . 20
11 Error codes . . . . . . . . . . . . . . . . . . . . . . . . . 21
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . 21

EN

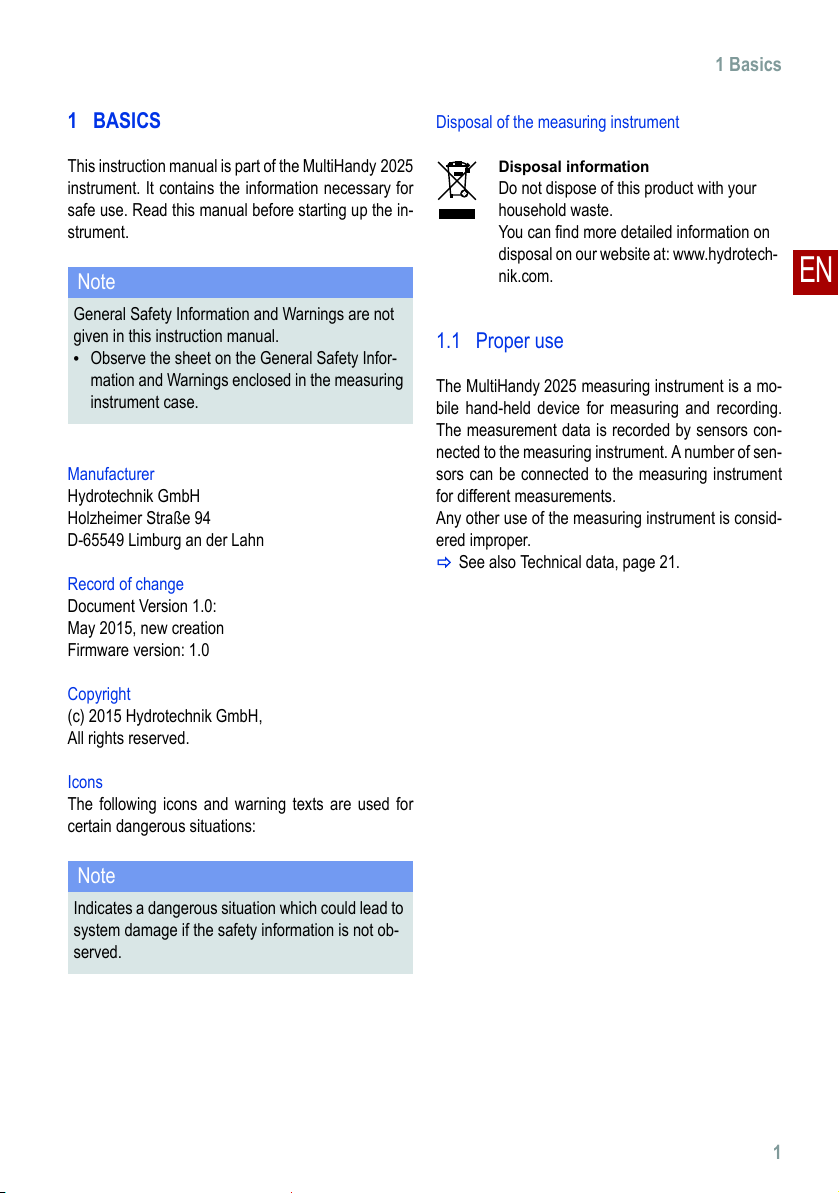

1 Basics
1
1BASICS
This instruction manual is part of the MultiHandy 2025
instrument. It contains the information necessary for
safe use. Read this manual before starting up the in-
strument.
Manufacturer
Hydrotechnik GmbH
Holzheimer Straße 94
D-65549 Limburg an der Lahn
Record of change
Document Version 1.0:
May 2015, new creation
Firmware version: 1.0
Copyright
(c) 2015 Hydrotechnik GmbH,
All rights reserved.
Icons
The following icons and warning texts are used for
certain dangerous situations:
Disposal of the measuring instrument
1.1 Proper use
The MultiHandy 2025 measuring instrument is a mo-
bile hand-held device for measuring and recording.
The measurement data is recorded by sensors con-
nected to the measuring instrument. A number of sen-
sors can be connected to the measuring instrument
for different measurements.
Any other use of the measuring instrument is consid-
ered improper.
See also Technical data, page 21.
Note
General Safety Information and Warnings are not
given in this instruction manual.
• Observe the sheet on the General Safety Infor-
mation and Warnings enclosed in the measuring
instrument case.
Note
Indicates a dangerous situation which could lead to
system damage if the safety information is not ob-
served.
Disposal information
Do not dispose of this product with your
household waste.
You can find more detailed information on
disposal on our website at: www.hydrotech-
nik.com.

2 Description of the measuring instrument
2 MultiHandy 2025
Operating Instructions • Version 1.0
2 DESCRIPTION OF THE MEASURING
INSTRUMENT
This section describes the scope of delivery, connec-
tions, keys and the display of the measuring instru-
ment.
2.1 Measuring instrument case
Measuring instrument case:
• 1 MultiHandy 2025
• 1 USB cable
• 1 power supply for USB cable with country adapter
• 2 ISDS pressure sensors with 2.5 m cable
• 2 MINIMESS direct connections
• 1 carrying strap set (including fastening eyelets)
• 1 Quick Guide
• 1 General Safety Informations and Warnings
2.2 Measuring instrument
The MultiHandy 2025 is a dual-channel measuring in-
strument which provides the user with all functions
needed for professional and challenging metrology.
When using sensors with ISDS (intelligent sensor de-
tection), the measuring instrument automatically iden-
tifies the connected sensors during switch-on and
adopts all parameters: Measurement range, physical
measurement variables, unit of measurement, output
signal and characteristic curve (linearisation).
This prevents sensors from getting mixed up. Manual
entry of a variety of data is unnecessary.
When using sensors without ISDS, sensor parame-
ters must be entered manually.
The measuring instrument is operated via 4 function
keys and a menu key.
Up to two sensors can be connected simultaneously
on one measuring instrument. Moreover, a special
channel provides the option of making calculations.
ADisplay
BFunction keys
CMenu key
DOn/off button (F4)
A
B
C
D

EN
2 Description of the measuring instrument
3

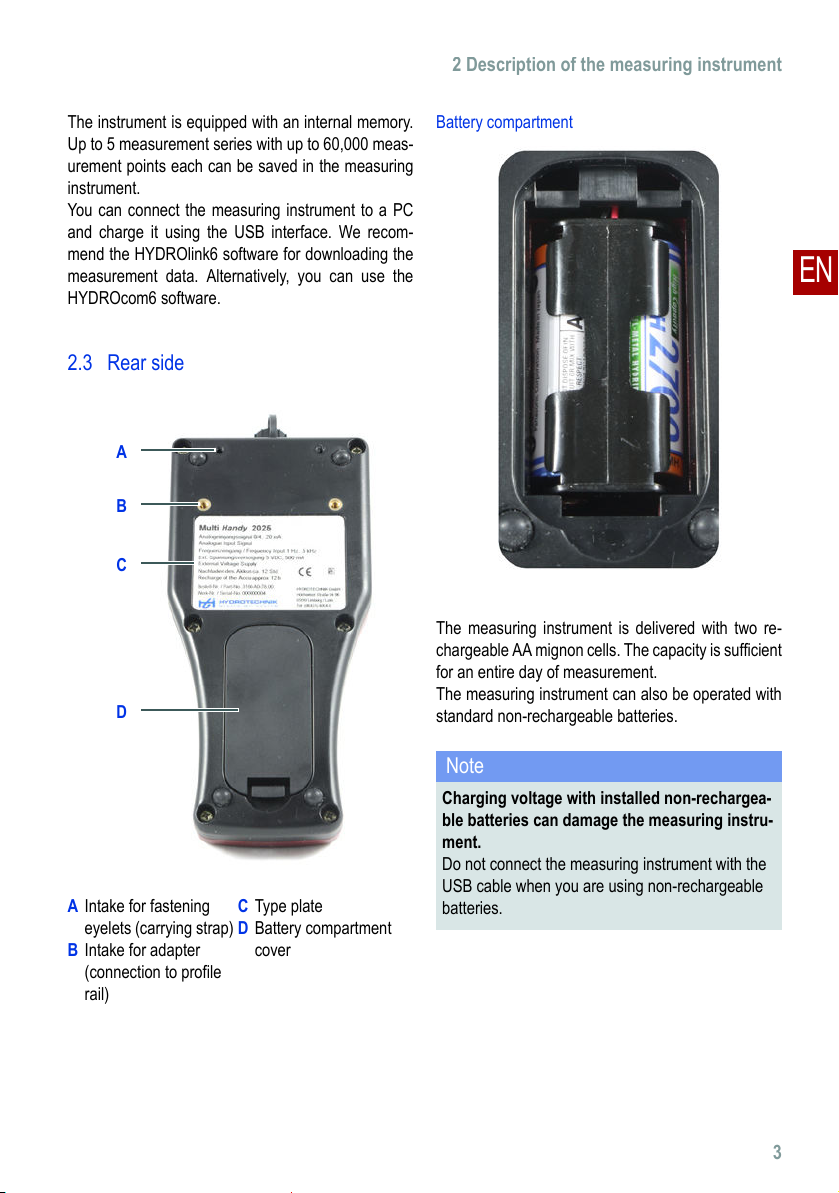

The instrument is equipped with an internal memory.
Up to 5 measurement series with up to 60,000 meas-
urement points each can be saved in the measuring
instrument.
You can connect the measuring instrument to a PC
and charge it using the USB interface. We recom-
mend the HYDROlink6 software for downloading the
measurement data. Alternatively, you can use the
HYDROcom6 software.
2.3 Rear side
Battery compartment
The measuring instrument is delivered with two re-
chargeable AA mignon cells. The capacity is sufficient
for an entire day of measurement.
The measuring instrument can also be operated with
standard non-rechargeable batteries.
AIntake for fastening
eyelets (carrying strap)
BIntake for adapter
(connection to profile
rail)
CType plate
DBattery compartment
cover
A
B
C
D
Note
Charging voltage with installed non-rechargea-
ble batteries can damage the measuring instru-
ment.
Do not connect the measuring instrument with the
USB cable when you are using non-rechargeable
batteries.

2 Description of the measuring instrument
4 MultiHandy 2025
Operating Instructions • Version 1.0

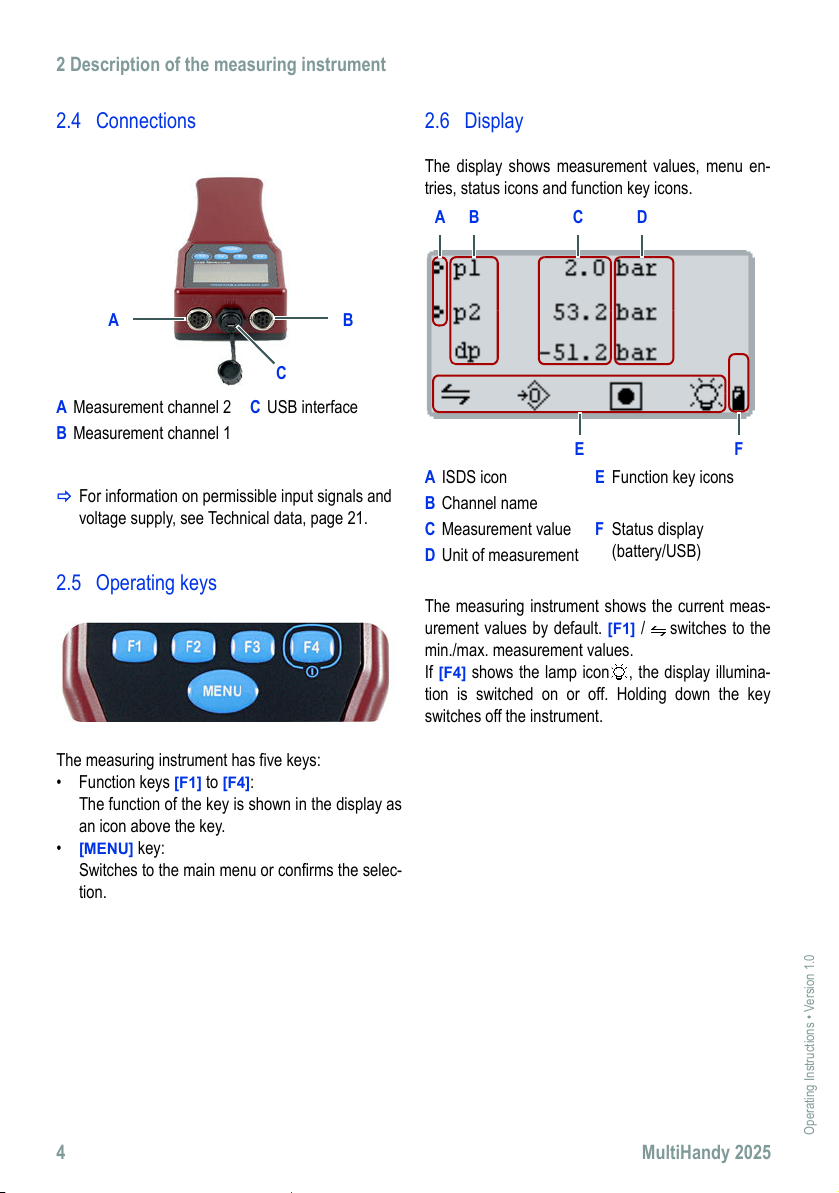

2.4 Connections
For information on permissible input signals and
voltage supply, see Technical data, page 21.
2.5 Operating keys
The measuring instrument has five keys:
• Function keys [F1] to [F4] :
The function of the key is shown in the display as
an icon above the key.
•
[MENU] key:
Switches to the main menu or confirms the selec-
tion.
2.6 Display
The display shows measurement values, menu en-
tries, status icons and function key icons.
The measuring instrument shows the current meas-
urement values by default.
[F1] / switches to the
min./max. measurement values.
If [F4] shows the lamp icon , the display illumina-
tion is switched on or off. Holding down the key
switches off the instrument.
AMeasurement channel 2 CUSB interface
BMeasurement channel 1
AB
C
AISDS icon EFunction key icons
BChannel name
CMeasurement value FStatus display
(battery/USB)
DUnit of measurement
A B C D
E F

EN
3 Start-up
5
2.7 Keys, icons and functions 3START-UP
3.1 Charging measuring instrument
The batteries of the measuring instrument must be
charged before it is switched on for the first time.
How to charge the measuring instrument
1Remove the battery protective strips from the bat-
tery compartment.
2Connect the country adapter for the respective
country to the USB power supply.
3Connect the USB cable to the power supply.
4Plug the power supply into a socket.
5Connect the USB cable to the measuring instru-
ment.
6Let the measuring instrument battery charge unin-
terrupted for 12 hours.
7Remove the USB cable from the measuring in-
strument.
8Remove the power supply from the socket.
You can charge the measuring instrument with
any USB connection (e.g. on a notebook).
The measuring instrument is ready for use during
the charging process.
Switches instrument on.
Opens main menu.
Selects marked entry.
Switches display illumination on/off.
Switches instrument off (press for
2 seconds).
Changes view:
- Current measurement values
- Min./max. Measurement values
Sets zero point for all displayed chan-
nels.
Deletes all current min./max. measure-
ment values.
Starts the recording of a measurement
series.
Stops the recording of a measurement
series.
Displays the memory status during re-
cording of measurements.
Scrolls down.
Scrolls up.
Selects the next entry.
Confirms the entry.
Interrupts the current process.
Exits the menu.
Interrupts the current process.
Opens the menu for deleting measure-
ment series.
Switches the view of the selected meas-
urement or special channel on or off.
Displays USB status:
• Instrument connected with USB.
• Instrument is communicating via USB.
Displays battery status:
Full, half-full, empty.

3 Start-up
6 MultiHandy 2025
Operating Instructions • Version 1.0
3.2 Basic settings
After you have charged the measuring instrument,
you can switch it on. When you switch on the measur-
ing instrument for the first time, you are requested to
define the basic settings.
How to define the basic settings
1Press
[F4] to switch on the measuring instrument.
2Use [F1] or [F2] to select the desired menu lan-
guage.
Save your entry by pressing [F4] .
3Confirm your selection with [F3] .
4Use [F1] to select your desired units of measure-
ment.
Save your entry by pressing [F4] .
The display shows the firmware version number
and serial number of the measuring instrument.
The display then shows the calibration notice.
5Use [F4] to exit the calibration notice.
The calibration notice is only displayed if no cali-
bration interval is defined.
Calibration interval, page 8
The measuring instrument is ready.

EN
3 Start-up
7
3.3 Time and date
How to set the time and date
1Press
[MENU] and use [F1] to select the Device
entry.
Use
[MENU] to open the DEVICE menu.
2Keep pressing [F1] until the Time entry is se-
lected.
Use [MENU] to open the CLOCK MENU .
3Set the time format and time:
•Use
[F1] to select format or time and press
[MENU] .
•Press [F1] or [F2] to change the selected
value.
•Press
[MENU] to save your entry.
4Press [F4] to return to the DEVICE menu.
5Press [F1] to select Date .
Use [MENU] to open the DATE MENU .
6Set the date format and date:
•Use
[F1] to select format or date and press
[MENU] .
•Press
[F1] or [F2] to change the selected
value.
•Use [MENU] to save your entry.
7Press [F4] until the display shows the measure-
ment values again.

4 Calibration interval
8 MultiHandy 2025
Operating Instructions • Version 1.0
4 CALIBRATION INTERVAL
The measuring instrument was calibrated before it
was shipped by the manufacturer. The calibration in-
terval is the period of time after which the measuring
instrument is to be re-calibrated by the manufacturer.
You can only define the calibration interval once. After
that, it can no longer be changed.
The measuring instrument is also ready for use if no
calibration interval is set.
12, 18, 24, 30 or 36 months can be set as the calibra-
tion interval.
If a calibration interval is set, the measuring instru-
ment displays the following information after switch-
on:
• A month before expiration of the calibration inter-
val:
=== 8106 ===
! Calibration!
Date (end of calibration interval)
• After calibration interval has been exceeded:
=== 8108 ===
! Calibration!
Date (of last calibration)
See also Calibration, page 18.
How to define the calibration interval
The calibration interval cannot be changed.
Do not set a calibration interval if you are unsure
which interval is right for you.
1Press
[MENU] and use [F1] to select the Device
entry.
Use [MENU] to open the DEVICE menu.
2Press
[F1] to select the Calibration entry and
use [MENU] to open the CALIBRATION menu.
3Set the calibration interval:
•Press
[MENU] .
•Press [F1] or [F2] to select the calibration in-
terval.
You can select between
12 , 18, 24, 30 and 36
Months .
Press [F4] to cancel the process without sav-
ing.
•Use
[MENU] to save your entry.
4Press [F3] to confirm the entry and irreversibly de-
fine the calibration interval.
5Press [F4] until the display shows the measure-
ment values again.

EN
5 HYDROcenter
9
5 HYDROCENTER
HYDROcenter is a program for Windows.
HYDROcenter is your centre for all instruments and
software from HYDROTECHNIK.
Install HYDROcenter to receive automatic updates for
your measuring instrument as well as other software
(e.g. HYDROlink6).
System requirements
You need a PC or notebook with Internet connection
and an operating system of Windows 7 or higher.
This is how you install the HYDROcenter software
1Enter the following text into the address bar of
your Internet browser (e.g. Internet Explorer):
http://hydrotechnik.com/hydrocenter
2Follow the instructions displayed there.
The installation file will be downloaded.
3Run the installation file.
Confirm the confirmation prompts if applicable.
4Follow the installation instructions.
The installation is complete when the link is dis-
played on the desktop.
How to connect your measuring instrument to
HYDROcenter
1Connect the USB cable to the USB interface of the
measuring instrument.
2Connect the other end of the USB cable to your
PC or notebook.
3Switch the measuring instrument on by pressing
[F4] .
4Start the HYDROcenter program.
HYDROcenter detects the connected measuring
instrument and offers suitable downloads.
How to open the Operating Instructions
1Click on the download icon next to the
Manual
entry.
When the Operating Instructions are done down-
loading, it changes to the icon.
2Click on the open icon .
The Operating Instructions are opened in your
PDF viewer.
You can save the Operating Instructions on your
PC or notebook.

5 HYDROcenter
10 MultiHandy 2025
Operating Instructions • Version 1.0
5.1 Firmware update
If there is new firmware for your measuring instru-
ment, HYDROcenter offers you an update.
Save all stored measurement series (e.g. with
HYDROlink6) before running an update.
How to execute a firmware update
1Connect your measuring instrument with
HYDROcenter.
See How to connect your measuring
instrument to HYDROcenter.
If there is new firmware for your measuring instru-
ment, HYDROcenter shows the download as
available.
2Click on the download icon next to the
Firm-
ware entry.
HYDROcenter shows when the download is com-
plete.
3Click on the process icon to start with the up-
date.
Read and confirm the information.
4Wait until the update is complete and the measur-
ing instrument has been restarted.
Note
Instrument damage during firmware update
Errors during the firmware updates can damage
the measuring instrument.
• Do not interrupt the USB connection.
• Do not switch off the measuring instrument.
• Wait until the update is complete.

EN
6 Measurement
11
6MEASUREMENT
You can begin measurement immediately after start-
ing up the measuring instrument.
6.1 Measurement with ISDS sensors
How to perform measurements
1Find the MINIMESS testing point on your hydrau-
lic system.
Remove the protective caps from the MINIMESS
testing points you want to use to make measure-
ments.
2Connect the ISDS sensors to the measuring in-
strument with the instrument switched off.
3Connect the ISDS sensors with the MINIMESS di-
rect connections.
If necessary, remove the protective plastic cover-
ing from the MINIMESS direct connections.
Only tighten the thread manually. Do not use a
tool.
4Connect the MINIMESS direct connections of the
ISDS sensors to the selected MINIMESS testing
points.
5Switch the measuring instrument on by pressing
[F4] .
If applicable, use
[F4] to confirm the calibration
notice.
The ISDS sensors are detected by the measuring
instrument. The display shows the current meas-
urement values.
p1 displays the measurement value of the sensor
from channel 1 ( CH1 ). Measurement unit [bar]
follows.
p2 stands for channel 2 ( CH2 ).
dp (special channel) shows the difference be-
tween
p1 and p2 .
Zero adjustment
Press
[F2] to execute a zero adjustment. The current
measurement values are set to zero.
Observe the following rules:
• Zero adjustment is applied to all displayed chan-
nels.
• Zero adjustment cannot be undone.
• Zero adjustment is only deactivated when you
switch off the measuring instrument.
• For safety reasons, a zero adjustment can only be
executed up to values of 1% of the maximum
measurement range.
With larger values, the display shows code
8110
and the maximum permissible values.
• A zero adjustment cannot be executed for chan-
nels showing a frequency.
• Measurement values are set to zero for channels
configured as counters.

6 Measurement
12 MultiHandy 2025
Operating Instructions • Version 1.0
Min./max. Display
Pressing [F1] switches to min./max. display or back
to the current measurement values.
Pressing [F2] deletes the min./max. memory. The dis-
play immediately shows the current min./max. meas-
urement values.
6.2 Recording and deleting measurement
series
You can save up to five measurement series. You can
assess and save measurement series with the
HYDROlink6 software.
If you have already saved five measurement values in
the measuring instrument, you must delete measure-
ment series before you can save new measurement
series.
How to save a measurement series
1Press
[F3] .
2If necessary, change the Scanrate using
[MENU] .
The value in brackets shows the maximum length
of the measurement series for the selected scan-
rate.
3Start the measurement series by pressing
[F3] .
The display shows a progress bar on the right
side.
4Press
[F2] to display the current memory status.
The display automatically switches back after
5 seconds. The measurement series automati-
cally ends after 60,000 measurement points.
5Press
[F3] to manually end the measurement se-
ries.
How to delete a measurement series
1Press
[MENU] to open the MAIN MENU .
2Press [F1] to select the Memory entry and use
[MENU] to open the MEMORY menu.
3Press [F1] or [F2] to select a measurement series
of all: #1 - #5 .
4Press [F3] and confirm with [F4] .
The selected measurement series are deleted.
5Press
[F4] until the display shows the measure-
ment values again.
AMaximum values BMinimum values
A B

EN
7Channels
13
7 CHANNELS
The measuring instrument has three channels:
•
C1 and C2 for sensors at connections CH1 and
CH2.
•
C3 as a special channel for calculations from
measurement values C1 and C2 .
7.1 Displaying/hiding channels
You can switch the display for every channel on or off.
How to switch the display for a channel on or off
1Press
[MENU] to open the MAIN MENU .
2Use the [MENU] to open the CHANNELS menu.
3Use [F1] to select the desired channel.
4Press
[F3] to switch the display on or off.
The eye icon is shown when the display is
switched on for a channel.
5Press
[F4] until the display shows the measure-
ment values again.
7.2 Configuring channel
If you are using a sensor without ISDS, you have to
configure a channel. You need a corresponding pa-
rameter for the sensor. They are on the sensor or in
the sensor data sheet.
The measuring instrument only detects ISDS sensors
when the measuring instrument is being switched on.
You can configure an ISDS sensor manually if you do
not connect it until the measuring instrument is
switched on.
You must define the following parameters during the
configuration:
•
C1/2 : Measurement variables and unit of meas-
urement
•
Signal : Signal type and range, if applicable
• Range : Measurement range or calibration value
AChannel
BMeasurement varia-
bles and unit of
measurement
CIcon for display
A B C

7Channels
14 MultiHandy 2025
Operating Instructions • Version 1.0
Measurement variables and units of measurement
You can configure sensors for the following measure-
ment variables and units of measurement.
Signal type, signal range and Range
You can configure sensors for various signal types
and signal ranges. Make sure that the signal type
matches the selected measurement variable.
The range can have the following meaning depending
on the signal type:
• Measurement range
• Calibration value
The following table shows signal types and the corre-
sponding meaning of the range:
Measurement range
The measurement range is specified for the signal
range. You must enter the upper and lower limit.
Every limit value is a number and is entered as five
characters. The first character can be a minus sign.
Digits or periods (correspond to commas) are also
characters.
Examples for limit values:
•
-9999
• -2.50
• 60.00
• 99999
Calibration value
The calibration value is a number and is entered as
five characters. The first character can be a minus
sign. Digits or periods (correspond to commas) are
also characters.
Examples for calibration values:
• Gear wheel volumetric flow sensor
Quantity per spaces between cogs
• Turbine volumetric flow sensor
Flow rate at 1000 Hz
• RPM sensor
Number of pulses per revolution (reflective marks)
Measurement variable Unit of meas-
urement
Pressure p [mbar]
p[bar]
p[psi]
p[Pa]
Temperature T [°C]
T[°F]
Rate of flow Q [l/min]
Q[GPM]
Rotation n [rpm]
n[rpm]
Frequency f [Hz]
Current U[mV]
U[V]
Current strength I[mA]
I[A]
Force F[kN]
Torque M [Nm ]
Course s[mm]
Speed v [mm/s]
Angular speed v[°/s]
Mass m [to]
m[kg]
Volume V [l]
V[ccm]
Signal type Display Range
Current 0 ... 20mA Measurement
range
4 ... 20mA
Current 0 ... 10V Measurement
range
2 ... 10V
Frequency FRQ Calibration
value
±FRQ
Counter CNT Calibration
value
±CNT

EN
7Channels
15
How to configure a channel
1Press [MENU] to open the MAIN MENU .
2Use the [MENU] to open the CHANNELS menu.
3Use [F1] to select the desired channel.
Use the
[MENU] to open the CHANNELS menu.
4Configure the measurement variables:
•Press [MENU] .
•Press
[F1] or [F2] to change the measure-
ment variable and unit of measurement.
•Use [MENU] to save your entry.
5Configure the signal type:
•Press
[F1] to select Signal .
•Press [MENU] .
•Press [F1] or [F2] to change the signal.
•Use
[MENU] to save your entry.
6Configure the measurement range or K value:
•Press [F1] to select Range .
•Press [MENU] .
•Press
[F1] or [F2] to change the first digit.
•Press [F3] to select the next digit.
• Repeat the last two steps until you have en-
tered the lower measurement area or the K
value.
•Use
[MENU] to save your entry.
7When you configure the measurement area, you
can enter the upper measurement range.
To do so, repeat Step 6 .
8Press
[F4] until the display shows the measure-
ment values again.

7Channels
16 MultiHandy 2025
Operating Instructions • Version 1.0
7.3 Special channel C3
The measuring instrument offers pseudo or calcula-
tion
C3 as the third channel.
• You cannot configure special channel C3 .
• You can switch the display for special channel
C3
on or off.
Displaying/hiding channels, page 13
Difference (delta) C1-C2
If the
C1 and C2 channels display the same measure-
ment variables in the same unit of measurement, spe-
cial channel
C3 always offers the difference of C1 mi-
nus C2 .
Hydraulic performance [KW]
Special channel C3 can display the hydraulic perfor-
mance in kilowatts. To do so, one channel must dis-
play the pressure in [bar] and one channel the rate of
flow in [l/min].
The hydraulic performance is calculated as follows:
ASpecial channel
C3:
dp = 2.0 - 53.2 = -51.2 [bar]
A
ASpecial channel C3:
P1
= 27.5 x 52.8 / 600 = 2.4 [kW]
PkW[]
p1 bar[]Q1 l
min
------------
×
600
-------------------------------------------------------------
=
A

EN
8 Instrument configuration
17
8 INSTRUMENT CONFIGURATION
You can make basic instrument settings in the DE-
VICE
menu. The instrument menu offers the following
entries:
•
DEVICE (1/2)
• Language, page 17
• Units, page 18
• Display rate, page 18
• DEVICE (2/2)
• Calibration, page 18
• Time, page 19
• Date, page 19
How to open the
DEVICE menu
1Press [MENU] and use [F1] to select the Device
entry.
2Use [MENU] to open the DEVICE menu.
3Press [F1] three times to display the second page
of the
DEVICE menu.
Press [F4] to leave the DEVICE menu.
8.1 Language
Use the Language setting to change the menu lan-
guage of the measuring instrument.
The menu language was set during start-up. You can
change the menu language at any time, however.
Incorrect menu language
If the measuring instrument is set to the incorrect
language, you may not be able to operate it.
• You can reset the menu language without un-
derstanding the menu entries.
• See Resetting menu language, page 20.
How to change the menu language
1Open the
DEVICE menu and use [F1] to select
the
Language entry.
How to open the DEVICE menu, page 17
2Press [MENU] .
3Use [F1] or [F2] to select the desired menu lan-
guage.
4Use
[MENU] to save your entry.
5Press [F4] to leave the DEVICE menu.

8 Instrument configuration
18 MultiHandy 2025
Operating Instructions • Version 1.0
8.2 Units
Use the Unit setting to change the unit system of the
measuring instrument. You can choose between the
following unit systems:
•
SI : International standardised units
• US : US American units
The setting of the unit system only has an effect on
the connected ISDS sensors.
The unit system was determined during start-up. You
can change the unit system at any time, however.
How to change the unit system
1Open the
DEVICE menu and use [F1] to select
the
Unit entry.
How to open the DEVICE menu, page 17
2Press [MENU] .
3Use [F1] or [F2] to select the desired unit system.
4Use
[MENU] to save your entry.
5Press [F4] to leave the DEVICE menu.
8.3 Display rate
You can use the Disp.rate setting to change the dis-
play rate. The display rate determines at which inter-
vals the measurement values are updated on the dis-
play. You can choose between 1 second and
500 milliseconds.
The shorter the display rate, the more unstable the
measurement values appear in the display.
Do not confuse the display rate with the measurement
rate at the signal input and the scanrate of a measure-
ment series.
How to change the display rate
1Open the
DEVICE menu and use [F1] to select
the Disp.rate entry.
How to open the
DEVICE menu, page 17
2Press [MENU] .
3Use [F1] or [F2] to select the desired display rate.
4Use
[MENU] to save your entry.
5Press [F4] to leave the DEVICE menu.
8.4 Calibration
You can use the Calibration setting to open the
CALIBRATION menu.
For information on the calibration interval, please
read the following section:
Calibration interval, page 8
ADisplays the set calibration interval.
BDisplays the date of the last calibration.
CDisplays when the measuring instrument displays
a reminder of the next calibration.
A
B
C
