ICT 1500W Sine Wave Series User manual

1500W Sine Wave Series
Inverter
INSTRUCTION MANUAL
855-151-000
Innovative Circuit
Technology Ltd.
Models:
ICT1500-12SWTC ICT1500A-12SWTC
ICT1500-24SWTC ICT1500A-24SWTC
ICT1500-48SWTC ICT1500A-48SWTC

2 Innovative Circuit Technology Ltd.
WARNING
Risk of serious personal injury or damage to equipment and property! Always
observe the following:
•Use an appropriately rated over-current protection device in line with the
main battery connection to the inverter.
•Use an appropriately rated over-current protection device in line with the AC
input connection to the inverter.
•Use an appropriately rated disconnect switch or circuit breaker in line with the
inverter DC and AC inputs to enable installation and service with the battery
and ac power source disconnected.
•Connecting the inverter to the output of a DC distribution panel is not
recommended as the inverter input’s inrush may exceed the rating of the
device, potentially causing damage to internal circuitry.
•Shut off or disconnect the DC and AC power sources before connecting or
disconnecting wiring.
•Use wire and connectors rated for the maximum load current and size of fuse
or circuit breaker, and keep cable lengths as short as practical.
•Ensure battery voltage matches the rating of the model of inverter in use.
•Carefully observe wiring polarity when making input connections.
•Securely tighten all connections.
•Use appropriate wiring strain relief devices on all wires when using the
optional wiring box and cover.
•Ensure the rear AC input is connected to an external AC source (grid or
generator) as the neutral line is NOT internally bonded to the chassis.
•Ensure chassis is connected to earth ground before use.
•Batteries can explode or arc! Wear suitable face and hand protection and use
insulated tools when working with batteries.
•Do not attempt to service any internal parts. Refer all product service to an
authorized ICT Ltd. service facility.
CAUTION
Risk of personal injury or damage to equipment! Always observe the following:
•Install in a protected environment, keep sources of moisture away from unit.
•Ensure the total power consumption of the load does not exceed the rated
load capacity of the inverter.
•Do not block air inlet or outlet openings in the inverter
•Do not connect inverter output to an external AC transfer switch that may
momentarily connect the output to an external AC source.
Rev 2.8 2022
Copyright © 2022 Innovative Circuit Technology Ltd. All rights reserved. No part of
this publication may be reproduced, stored in a retrieval system or transmitted in any
form or by any means, electronic, mechanical, photocopying, recording or otherwise,
without the prior written consent of Innovative Circuit Technology Ltd.

Innovative Circuit Technology Ltd. 3
Contents
INTRODUCTION ................................................................................. 4
INSTALLATION ................................................................................... 4
OPERATION........................................................................................ 8
Status Indicators and Alarms......................................................... 9
AC Transfer Switch ...................................................................... 10

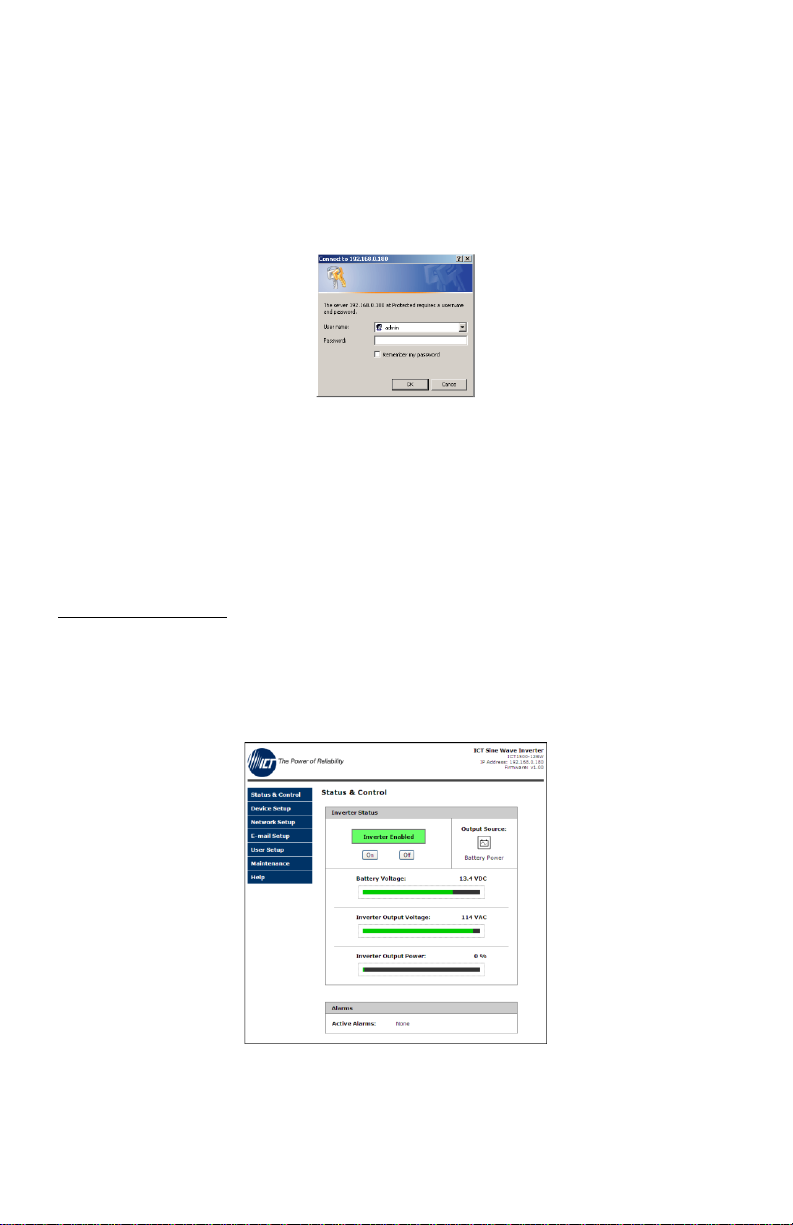

TCP/IP WEB-BASED UTILITY OPTION............................................... 11
Status and Control....................................................................... 12
Device Setup................................................................................ 13
Network setup............................................................................. 14
E-mail Setup................................................................................. 17
User Setup ................................................................................... 18
Maintenance ............................................................................... 19
MOBILE WEB APP............................................................................ 20
PASSWORD and IP ADDRESS RESET ................................................ 21
ROUTER CONFIGURATION............................................................... 22
TEXT MESSAGE ALARM NOTIFICATIONS......................................... 24
TROUBLESHOOTING ........................................................................ 24
PRODUCT SPECIFICATIONS.............................................................. 25
LIMITED WARRANTY........................................................................ 28

4 Innovative Circuit Technology Ltd.
INTRODUCTION
The ICT1500 Sine Wave Series is a compact high efficiency true sine wave output
DC to AC inverter with features optimized for commercial applications.
•Unparalleled power density at 1500W, with 3000W surge capability
•115Vac 60Hz and 230Vac 50Hz models, with 93% peak efficiency
•Includes TCP/IP Ethernet port with built in web-server, and support for
SNMP v1/v2 management systems for remote control and monitoring
•Includes automatic transfer switch with user definable trip levels
•Includes convenient front AC outlet(s) and/or hardwired rear AC terminal
block
•Form C alarm contacts for remote notification of alarms
•Low EMI, FCC Class A compliance
•Temperature controlled variable speed fan for low noise and long life
•Optional 19" dual inverter rack mounting for installing 2 units side by side
in a 1.5U rack space
•Optional DC wiring box for code compliant standalone installations
Model Numbers:
115Vac 60Hz Models
230Vac 50Hz Models1
Battery Voltage
ICT1500-12SWTC
ICT1500-24SWTC
ICT1500-48SWTC
ICT1500A-12SWTC
ICT1500A-24SWTC
ICT1500A-48SWTC
12
24
48
Optional Accessories:
19” Rack Mount Tray (mount up to 2 inverters): ICT-RM2U
Wiring Junction Box (attaches to back of inverter): ICT-DCWB
INSTALLATION
Installation must only be done by technical personnel familiar with local electrical
authority wiring requirements.
Perform a quick physical check of the unit as it is being taken out of the box to
ensure it has not been damaged during shipping. Check for the included parts and
accessories shipped with your unit:
•3 pin Form-C alarm connector plug
•Wall mounting bracket, with mounting screws (4), installed
•Instruction Manual
•Bus bar (with 5/16 inch holes) hardware: 1/4 inch bolt, nut, and washer
set (2)
1
These models have the rear terminal block only. Add suffix “/AUS” to the model numbers for a single
front AU1-10P and rear terminal block.

Innovative Circuit Technology Ltd. 5
Mount the optional wiring junction box base (part of the Wiring Junction Box kit
ICT-DCWB) to the back of the inverter with 4 supplied screws, as shown in Figure 1.
Knockout the plugs and install conduit fittings or wire strain relief clamps in the
wiring box openings being used for the installation, as required. When not using
the back panel wiring junction box the inverter must be installed in a restricted
access environment such as an enclosed equipment rack, in a location where
unintentional bridging of the dc input connectors is unlikely.
Figure 1: Wiring Junction Box Installation
Mount the inverter using the wall mount bracket (included) or the optional 19 inch
Rack Mount Tray (ICT-RM2U) using the 4 mounting screws on the bottom of the
inverter as illustrated in Figure 2. Keep the distance to the battery bank as short as
practical to minimize power loss in the high current wiring.
Figure 2: Inverter Wall Bracket Mounting
The inverter may be mounted horizontally on a shelf or the ICT rack tray, or in a
vertical wall mounted orientation with either side located on top (as shown in
Figure 3). Ensure front, sides, and rear air vents are not obstructed, to allow for

6 Innovative Circuit Technology Ltd.
proper cooling and long term safe operation of the inverter (Mounting hardware
not included).
Figure 3: Approved Mounting Orientations
Connect the chassis Protective Earth (PE) ground stud on the back panel to a
reliable earth ground point using suitable wire with ring tongue termination.
CAUTION
Risk of personal injury or damage to equipment!
The Protective Earth (PE) terminal must be connected to ground due to possible
high touch current.
Ensure the nominal battery voltage is correct for the model of inverter, and that
the battery polarity is correct. Reverse dc polarity will permanently damage the
inverter.

Innovative Circuit Technology Ltd. 7
Table 1: DC Input Sizing Guide, Recommended Minimum Battery Size
Model:
12V input
24V input
48V input
Min Battery Size
200Ahr
100Ahr
50Ahr
Max Bat Current
150A
75A
35A
Use Fuse/Breaker
175A
80A
40A
Ensure the inverter switch is in the off position, then connect the DC input wiring
from a suitable deep-cycle lead-acid battery to the inverter back panel input bus
bars using appropriately rated high current wire (as required by your local
Authority Having Jurisdiction) with an in line Branch Rated over current protection
fuse or circuit breaker in the non-grounded battery lead (Maximum rating as
shown in Table 1). Terminate the wires with the appropriate size of crimp-on ring
tongues to fit the 5/16” (7.9mm) input bus bar mounting holes. Connect the
battery wiring with the input fuse removed, or with the battery circuit breaker
switched to the “Off” position.
Figure 4: Back Panel Connections
Connect the AC loads to be powered by the inverter to the AC OUT wire clamp
connector (Line, Neutral and Ground) located on the back panel (see Figure 4)
using suitably rated wire. Alternatively, cord connected devices may be directly
plugged in to the AC outlets located on the inverter front panel.
Connect an external AC power source (grid power or AC generator) to the AC IN
wire clamp connector on the back panel of the inverter using suitably rated wire.
This must be done before turning on the inverter as the neutral line is NOT
internally bonded to the chassis. Ensure the external AC power source is switched
off before making any connections. Branch rated overcurrent protection (fuse or
AC Output to load
L-N-G
External AC Input
L-N-G
Alarm Contacts
C-NC-NO
10/100 Base-T Ethernet Port
NEG Input from Battery
POS Input from Battery
AC Transfer V Setting Switch
Output Circuit Breaker
Protective Earthing (PE) stud

8 Innovative Circuit Technology Ltd.
circuit breaker) must be provided in the external AC wiring source with rating as
shown in Table 2.
Table 2: AC Input Over-Current Protection
Inverter Type:
External AC input Over Current Protection
115Vac 60Hz
115V 15A Max
230Vac 50Hz
230V 10A Max
CAUTION
Risk of personal injury or damage to equipment!
AC input wiring from the grid or other power source to the inverter must be
protected using a branch rated circuit breaker as shown in Table 2.
Do not use any external AC transfer switch that may momentarily connect the
inverter output to an external AC source. This will damage the inverter!
Connect the external alarm monitoring wiring to the Form-C alarm contact output
if desired (See Alarm Output Contacts table below). Plug the Ethernet network
(CAT-5) cable in to the Network port on the back panel, routing the alarm and
network cable through the plastic bushing immediately adjacent to the connector
on the side of the optional wiring box tray.
Table 3: Alarm Output Contacts
Alarm Pin
Name
Description
1
C
Alarm output common
2
NC
Alarm output Normally Closed contact
3
NO
Alarm output Normally Open contact
Check that all connections to the inverter are correct and tight, then tighten the
wire strain relief clamps in the wiring junction box (if used), and install the wiring
box cover. When not using the inverter wiring junction box all power wiring must
be fixed to the rack or shelf to prevent any wire movement relative to the
inverter connectors.
OPERATION
With the unit mounted, wired, and powered as described in the INSTALLATION
section, install the external battery fuse or set the battery circuit breaker to “on”,
and move the front panel power switch to the “on” position. Check that the green
AC indicator on the front panel is flashing slowly, indicating the inverter battery
powered AC output is on.

Innovative Circuit Technology Ltd. 9
Switch the external AC source disconnect device to ON and observe that the green
AC indicator on the front panel is now on continuously, indicating the external AC
source is present and powering the load. The inverter output will now be powered
directly from the external AC source.
The connected AC loads should now be operating normally, powered with up to
1500W (3000W momentary peak) of battery backed AC power.
Figure 5: Front Panel
Status Indicators and Alarms
The 3 LEDs on the front panel and the Form-C alarm contacts on the back indicate
the status of the inverter.
Alarm or
Notification
Trigger Condition
Inverter
Output
Red
FAULT
LED
Yellow
WARN
LED
Green
AC
LED
Inverter AC
Output OK
(Battery Backup
Mode)
Normal operation,
output above 90VAC
(or 180Vac, 230V
models)
Enabled
-
-
BLINK
External AC
Voltage OK
AC input is above set
limit, and is powering
the output
Enabled
-
-
ON
DC Undervoltage
Warning
Triggers when input
voltage drops below
11.0/22.0/44.0VDC for
1 s. Clears when input
is above 11.2/ 22.4/
44.8V for 1s.
Enabled
-
ON
-
Green AC Indicator
- Inverter on (flash)
- Grid power (solid)
Yellow - Low Battery Warning
Red - Fault
AC Outlets:
2 x NEMA 5-15R (115V) or
1 x IEC type I (230V “/AUS”)
Inverter On/Off Switch

10 Innovative Circuit Technology Ltd.
Remote
Shutdown
Triggers when remote
shutdown is activated
over Ethernet, or
remote panel switch
OFF
BLINK
-
OFF
System Fault
Indicates internal
circuit fault - clears
when all fault
conditions are cleared.
OFF
ON
-
OFF
DC Undervoltage
Shutdown
Triggers when input
voltage drops below
10.5/21.0/42.0VDC for
1 s. Clears when input
voltage rises above
warning level for 1 s.
OFF
ON
-
OFF
DC Overvoltage
Shutdown
Triggers when input
voltage rises above
16.5/33/66VDC for 1 s.
Clears when input
voltage drops below
16.0/32/64VDC for 1 s.
OFF
ON
-
OFF
Over-
temperature
Shutdown
Triggers when internal
temperature is too
high. Clears when back
to normal range.
OFF
ON
-
OFF
AC Output Failure
Triggers when inverter
output problem
detected. Must be
cleared manually by
toggling the power
switch.
OFF
ON
-
OFF
The form-C alarm contact will be triggered for any condition that lights the red
FAULT LED, or shuts down the output of the inverter.
AC Transfer Switch
The automatic AC transfer switch ensures that your load is primarily powered from
the AC grid or generator when available, and is quickly transferred to the battery
powered inverter output should the AC power source fail. Transfer time is typically
less than 1 AC cycle, and the voltage transfer thresholds may be adjusted using the
back panel DIP switch settings shown in Table 4. The output will be supplied by the
inverter when the external line voltage is less than the Vac-Low setting, and will be
transferred back to the external AC source when the voltage rises above the Vac-
High setting.

Innovative Circuit Technology Ltd. 11
Table 4: AC Transfer Switch Threshold Setting (factory default in bold)
Vac-Low
Transfer
Vac-High
Transfer
Switch settings (1 = “on”, or down)
SW-1
SW-2
SW-3
SW-4
88 (190)
100 (206)
0
0
0
0
92 (197)
105 (215)
1
0
0
0
96 (205)
110 (224)
0
1
0
0
100 (214)
115 (233)
1
1
0
0
86 (188)
104 (212)
0
0
1
1
91 (197)
109 (222)
1
0
1
1
94 (204)
114 (230)
0
1
1
1
99 (212)
120 (240)
1
1
1
1
The 15A (7A on 230V models) circuit breaker located on the back panel is a
supplementary overcurrent protection device to limit the potential fault currents
when operating from an external AC source. If this breaker trips it is indicating that
the connected load is drawing excessive current from the unit, or that there is a
fault with the AC wiring.
NOTE:
Disabling the inverter output will not cut power to the load if AC is being supplied
by an external source via the internal transfer relay.
TCP/IP WEB-BASED UTILITY
Connecting the inverter to the internet using the TCP/IP communication port
enables full remote monitoring and control of the inverter via the on-board
graphical web interface using any standard web browser, such Microsoft Explorer,
Google Chrome, or Mozilla Firefox.
To connect with your networked inverter, do the following:
•Start your browser
•Enter the IP address of the inverter in the address field of your browser as
shown:
If the inverter is connected to a network with a DHCP server it will be assigned an
IP address automatically. To find the current IP address of the inverter you will
need to run the IP Address Discovery Utility (available on the Tools download
section of the ICT Web page http://www.ict-power.com/tools-utilities/ ) to locate
the connected inverter and see the assigned IP address. Run the utility on a

12 Innovative Circuit Technology Ltd.
Windows computer connected to the same network as the inverter, and it will
report the IP addresses of all ICT units connected to that network.
The inverter will otherwise use the factory default IP address of 192.168.0.180, as
shown above.
•Enter your username and password once you are connected to the unit.
The default Administrator user name is admin, with no password.
Figure 6: Typical Inverter Login Screen
Your browser will then be logged in to the inverter and the Status and Control page
for the unit will be displayed as shown below. See the following section for
descriptions on how to use the various monitoring and control features available
through the inverter’s graphical web interface.
Status and Control
This page provides information on the input battery voltage, the inverter output
voltage and power, whether the AC output is provided by the inverter or an
external AC source and alarm status for the inverter. The inverter output may be
enabled or disabled by clicking the on screen On or Off push button.
Figure 7: Status and Control Page

Innovative Circuit Technology Ltd. 13
NOTE:
Disabling the inverter output will not cut power to the load if AC is being supplied
by an external source via the internal transfer relay.
Device Setup
Use this page to configure the inverter settings. Click on the Save Settings button
when finished to save and implement all new changes.
Figure 8: Device Setup Page
Device Info:
Device Name: Enter a custom descriptive name for the inverter, if desired.
Model: Displays the ICT model number for the inverter.
Hardware: Displays the hardware version of the inverter.
Network Watchdog:
Watchdog Enabled: Check this box to enable the watchdog feature, which will
cause the unit to periodically ping up to two remote IP addresses to verify the
network connection status. If there is no response from either address the
unit will cycle the inverter output power. This feature is useful for rebooting a
modem or other network device that is powered by the inverter, to help
recover the network IP connection when one of these devices has crashed.
The inverter output will be held in the off state for the duration set by the
Reset Delay time, and then will be turned back on.
NOTE:
Disabling the inverter output will not cut power to the load if AC is being supplied
by an external source via the internal transfer relay.
Primary IP Address: Enter the remote IP address you would like the inverter to
monitor. If left blank the unit will monitor the Gateway IP address listed in the
Network Setup page.

14 Innovative Circuit Technology Ltd.
Secondary IP Address: Enter an optional second IP address that the unit can
monitor to verify network status. The network watchdog will only trigger if
both the primary and secondary IP addresses fail to respond.
Watchdog Timeout: Enter the time (1 to 80 minutes) that the remote IP
address must stop responding to ping requests from the inverter, before the
network watchdog will trigger an inverter output power cycle. Ensure this time
is greater than the normal start-up time for the network hardware to prevent
nuisance power cycle events at system start up.
Reset Delay: Enter the time (10 to 240 seconds) that the inverter will wait
before re-enabling its output after a watchdog timeout. This delay must be
long enough for any external networking equipment powered by the inverter
to fully shut off, to force the equipment to re-boot when AC power is restored.
Network Setup
Use this page to configure the network settings. Click on the Save Settings button
when finished to save and implement all new changes.
Figure 9: Network Setup Page
NOTE:
Saving any changes to the network settings will cause the inverter to reboot,
cycling power to the output.

Innovative Circuit Technology Ltd. 15
Network:
MAC Address: Displays the MAC address assigned to the inverter.
Enable DHCP: Check this box (default) to turn on this setting if your network
uses a DHCP server to automatically assign IP addresses. To manually assign a
static IP address to the unit, uncheck this box and then set the following
parameters.
IP Address: Enter a unique IP address for the unit.
Subnet Mask: Enter the mask for the subnet the inverter is located on.
Gateway: Enter the IP address of the default router (Gateway) used for
connecting attached devices to different networks.
Primary DNS: Enter the IP address of the Primary DNS Server for your
network.
Secondary DNS: Enter the IP address of the Secondary DNS Server for your
network.
Web Server:
CAUTION:
Changing the web server port numbers may cause loss of communication with
the inverter.
The following ports may be changed within a range of 1 to 65565, if required.
HTTP Port: Enter an HTTP port within the range of 1 to 65565. This port is used
for HTTP traffic between the inverter and your browser. The default HTTP port
is 80, and if you change this, the new HTTP port number must be appended to
the URL used to access the inverter (e.g. use URL http://192.168.0.180:8000
for IP address 192.168.0.180, port 8000).
HTTPS Port: Enter an HTTPS (HTTP Secure) port within the range of 1 to 65565.
This port is used for HTTPS traffic between the panel and the browser. This
protocol uses encrypted data transfer between the panel and browser for
higher security. The default HTTPS port is 443. If a new HTTPS port is selected
then the new HTTPS port number must be appended to the URL used to access
the panel (e.g. use URL https://192.168.0.180:8888 for IP address
192.168.0.180, port 8888).

16 Innovative Circuit Technology Ltd.
UDP Port: Enter a UDP port within the range of 1 to 65565 to be used for
applying firmware upgrades to the inverter. The default UDP port is 9393.
SNMP:
Configure these settings if you would like to use SNMP based monitoring. SNMP
(Simple Network Management Protocol) is an industry standard protocol for
network management software. Enabling the SNMP function on the inverter will
allow standard SNMP management software to connect to the SNMP agent
running on the inverter and read real time system information such as battery
voltage, and output power. The inverter can send SNMP traps to the external
management software when an alarm or fault occurs.
The information available from the SNMP agent is described in a MIB
(Management Information Base) file, which can be downloaded from the inverter’s
Help page. The unique inverter MIB file must then be imported into your external
SNMP management software.
Enable SNMP: Check this box to enable the SNMP agent.
Read Community: Enter the community string/password for read-only SNMP
access. The default read community string is “public”.
Trap Community: Enter the community string/password that will be sent with
all traps. Some trap receivers are able to filter based on Trap Community. The
default trap community string is “public”.
Trap IP Addresses: Enter the IP address for up to two devices that will receive
SNMP traps from the inverter.
Enable SNMP Write Access: Check this box to allow remote SNMP control of
the inverter output. If this box is unchecked information from the unit will be
read-only.
Write Community: Enter the community string/password for read-write SNMP
access. The default write community is “write”.
NOTE:
The community strings should be changed to unique passwords before enabling
SNMP as the defaults are well known.
SNMP Contact Information: Enter contact information such as an operator
name and phone number for the inverter, which can be read via SNMP
queries. This information is optional.

Innovative Circuit Technology Ltd. 17
E-mail Setup
Use this page to configure the email settings. The information required for this is
available from your Network Administrator, or Internet Service Provider (ISP). Click
on the Save Settings button when finished to save and implement all new changes.
Figure 10: E-mail Setup Page
E-mail:
SMTP Server: Enter the name or the IP address of your SMTP server used for
sending outgoing e-mail (e.g. “smtp.gmail.com”).
SMTP Port: Enter the port used by your SMTP server (Normally 25).
SMTP Server requires SSL: Check this box if your SMTP server requires an
encrypted SSL connection.
Sender E-mail Address: Enter an e-mail address that will appear as the sender
for all e-mail notifications sent from the inverter.
Recipient E-mail Addresses: Enter one or more e-mail addresses that are to
receive all e-mail notifications from the inverter. Use commas to separate
multiple addresses. This field can also be used to send a text message
notification to a phone; see the Text Message Alarm Notifications section for
further information.
SMTP User Name: Enter an SMTP user name here, if required by your SMTP
server. Leave this field blank if the server does not require authentication.
SMTP Password: Enter an SMTP password here, if required by your SMTP
server. Leave this field blank if the server does not require authentication.

18 Innovative Circuit Technology Ltd.
Minimum E-mail Interval: Enter a minimum interval required between e-mail
notifications. Default is 0 and the range is 0 to 60 minutes. This time interval is
used to prevent an un-intended flood of e-mail alarm notifications that could
occur when an alarm limit is incorrectly configured, for example.
E-mail Notifications:
Select these options to receive an e-mail when one or more of these events occurs.
An inverter failure occurs: Check this box to receive an e-mail notification
when the inverter has an internal fault.
Inverter Communications reset: Check this box to receive an e-mail
notification when the inverter communications processor resets, normally due
to either unit start-up or remote reset.
The Network Watchdog triggers: Check this box to receive an e-mail
notification after the network watchdog triggers due to a loss of the network
connection and the network has then come back online.
The Output switches between Inverter and Grid power: Check this box to
receive an e-mail notification if there is a transition in the internal AC transfer
relay due to the loss of the external AC source, or when it returns within the
acceptable AC voltage range.
User Setup
Use this page to configure passwords for limiting access to the inverter settings.
Click on the Save Settings button when finished to save and implement all new
changes.
Figure 11: User Setup Page

Innovative Circuit Technology Ltd. 19
The unit has no password assigned by default so an Administrator password should
be assigned to your inverter for improved security.
NOTE:
Record your new password for future access! If the administrator password is
lost, the unit must be reset to return the password to the blank default setting
which will also cause a reset to all the other settings. See the Password Reset
section for more details.
Select a User to edit:
Select which of the two user accounts to edit.
Administrator (username: admin): This account has full access to the inverter
settings.
Standard User (username: user): This account has read-only access to the
inverter, and cannot enable or disable the outputs, or change any of the
inverter settings.
New Password:
Use these fields to change the password of the selected user.
New Password: Enter the new password for the chosen user.
Confirm New Password: Re-enter the new password to confirm the entry.
Confirm Changes:
Administrator Password: Enter the current password prior to saving the
settings to confirm the new password changes.
Maintenance
Use this page to reset the inverter communications port (soft reset), restore its
factory default settings, or send a test e-mail to verify e-mail functionality.

20 Innovative Circuit Technology Ltd.
Figure 12: Maintenance Page
Reset Communications:
Click the Reset button to restart the communication processor which will reset the
Ethernet communication port without interrupting the AC output. All other
settings are maintained.
Restore Factory Default Settings:
Click the Restore button to restore ALL settings to the original factory default
values including the user passwords. To only restore the network settings and
passwords see the Password Reset section.
Send Test E-mail:
Click the Send Test E-mail button to send a test e-mail to the listed e-mail
recipients using the e-mail settings on the E-mail Setup page.
Ping Diagnostics Tool:
Use this feature to verify connectivity of any network connected device. Enter the
hostname or IP address of the target device, and then click the Ping button.
MOBILE WEB APP
Use the mobile version of the Status and Control page to monitor and control the
inverter with a smartphone web browser.
Access the Mobile Web App by entering the address of the inverter in the address
field of your browser, followed by “/m” (e.g. https://192.168.0.180/m). You will
then be prompted for your username and password, and logged into the following
Status and Control screen:
