iDataLink maestro Rr User manual

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in
are the properties of their respective owners.
WARNING
Pressing the printer icon or “quick printing” this document will print
all of the guides in this compilation.
Open the Bookmarks menu and find your vehicle OR scroll
down until you find the install guide for your vehicle.
Print only the pages for your vehicle using the advanced
options in the Print menu.
Install your Maestro RR according to the guide for your vehicle.
HOW TO USE THIS INSTALL GUIDE
1
2
3
SELECT VEHICLE
PRINT PAGES NEEDED
ELECTRONICS
Click here for:
Radar Installation Guides

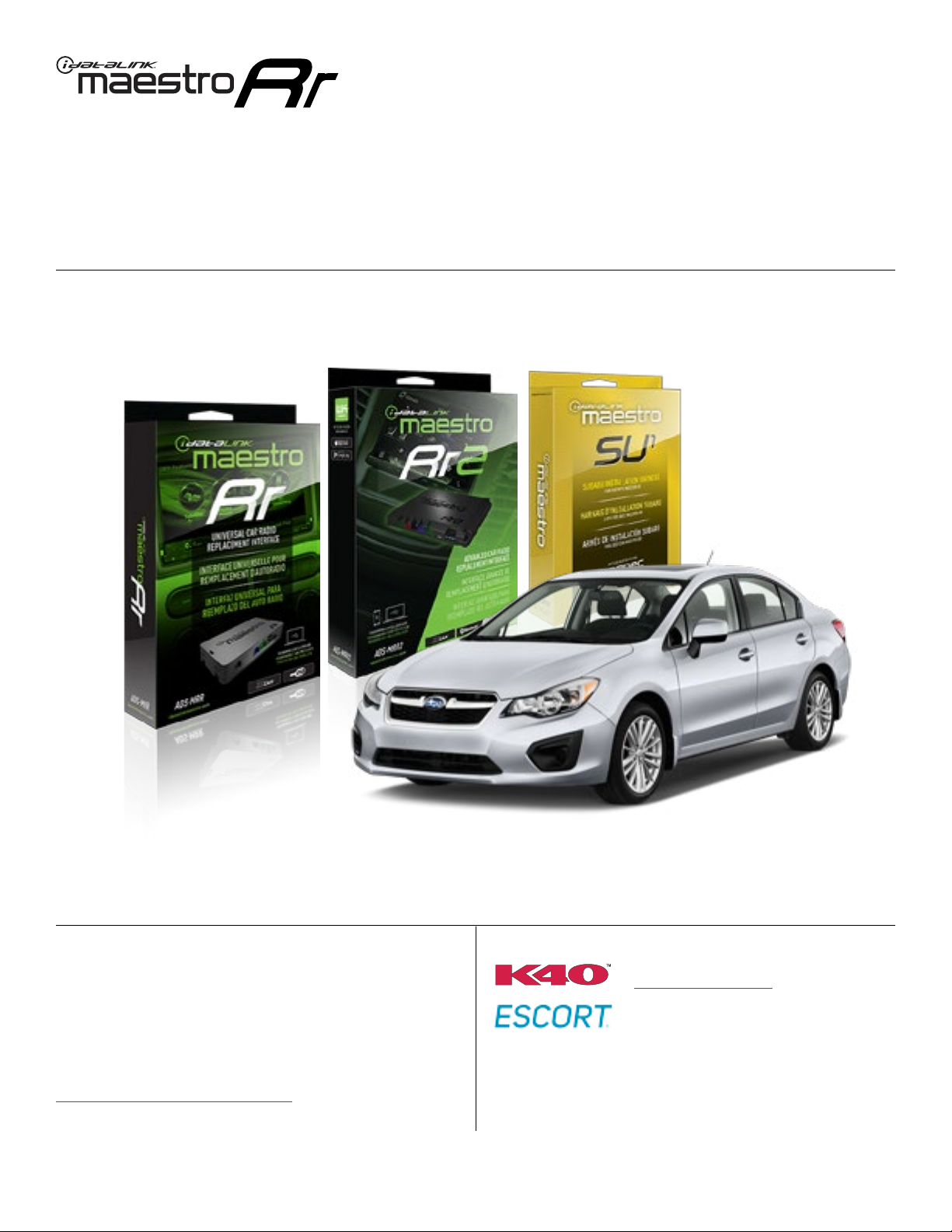

2013-2014
Subaru CroSStrek
without NaV
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, AMPLIFIER, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro HRN-RR-SU1 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-SUB2-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES
ACC-uSU1
ADS-RR(SR)-SUB02A-DS-IG-EN maestro.idatalink.com
Subaru CroSStrek without NaV 2013-2014
Automotive Data Solutions Inc. © 2019 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Troubleshooting Table 6
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]
ADS-RR(SR)-SUB02A-DS-IG-EN maestro.idatalink.com
Subaru CroSStrek without NaV 2013-2014
Automotive Data Solutions Inc. © 2019 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Cut the WHITE, GRAY, GREEN and PURPLE RCA tips.
• Connect the wires from aftermarket radio main harness to
the SU1 T-harness and match the wire functions.
• Remove the factory radio.
STEP 2
• Assemble the SU1 T-harness and connect it to the factory
radio harness.
STEP 3
• Plug the OBDII connector into the OBDII of the vehicle,
under driver dash.
STEP 4
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio jack
of the aftermarket radio (If there is no iDatalink audio input,
connect to AUX).
Note: On Pioneer radio, ensure that there is nothing plugged
into the W/R port.
STEP 5
• Connect all the harnesses to the Maestro RR module then
test your installation.
1
ADS-RR(SR)-SUB02A-DS-IG-EN maestro.idatalink.com
Subaru CroSStrek without NaV 2013-2014
Automotive Data Solutions Inc. © 2019 4
1
BACKUP CAMBACKUP CAM
CC
BB
D
SUB INSUB IN
AA
MAESTRO RR MODULE
CUT AND REMOVE
THE RCA JACKS
STEP 1
MAIN
HARNESS
RCA CABLES
SU1 T-HARNESS
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE - RR SPEAKER (+)
STEP 4
STEP 5
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE - POWER ANTENNA
PINK - VEHICLE SPEED
WIRING DIAGRAM
WIRES FROM
VEHICLE
FACTORY RADIO HARNESS
STEP 2
STEP 3 OBDII CONNECTOR
SEE RADIO WIRE
REFERENCE
CHART
FOR RADIO WIRE
COLORS
DATA
CABLE
AUDIO
CABLE
CONNECT TO
AFTERMARKET RADIO
RED
BLUE
PURPLE/WHITE (NC)
YELLOW
NOT REQUIRED
STEERING WHEEL
CONTROL CABLE
PIONEER RADIO: ENSURE
THAT NOTHING IS PLUGGED
IN W/R PORT.
ADS-RR(SR)-SUB02A-DS-IG-EN maestro.idatalink.com
Subaru CroSStrek without NaV 2013-2014
Automotive Data Solutions Inc. © 2019 5
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness Wire Color on Alpine cable Wire Color on Kenwood cable Wire Color on Pioneer cable
Illumination (+) Orange N/A Orange/White Orange/White
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink
Power Antenna (+) Blue Blue Blue N/A
ADS-RR(SR)-SUB02A-DS-IG-EN maestro.idatalink.com
Subaru CroSStrek without NaV 2013-2014
Automotive Data Solutions Inc. © 2019 6
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure OBDII connector is securely attached to the OBD2 connector of the
vehicle.
If you hardwired connections at the OBDII, check connections at the OBDII
connector. Make sure the RED/BROWN wire is on PIN 6 and the YELLOW/
BROWN wire is connected to PIN 14 of the OBDII connector. Do not use
T-Taps. Soldering or military splicing methods are recommended.
Reset the RR.
The light on the Maestro is blinking RED TWICE. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
The light on the Maestro is flashing RED ONCE. There is no firmware on the module; flash the RR module.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: 1-866-427-2999
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.
ELECTRONICS
Click here for:
Radar Installation Guides

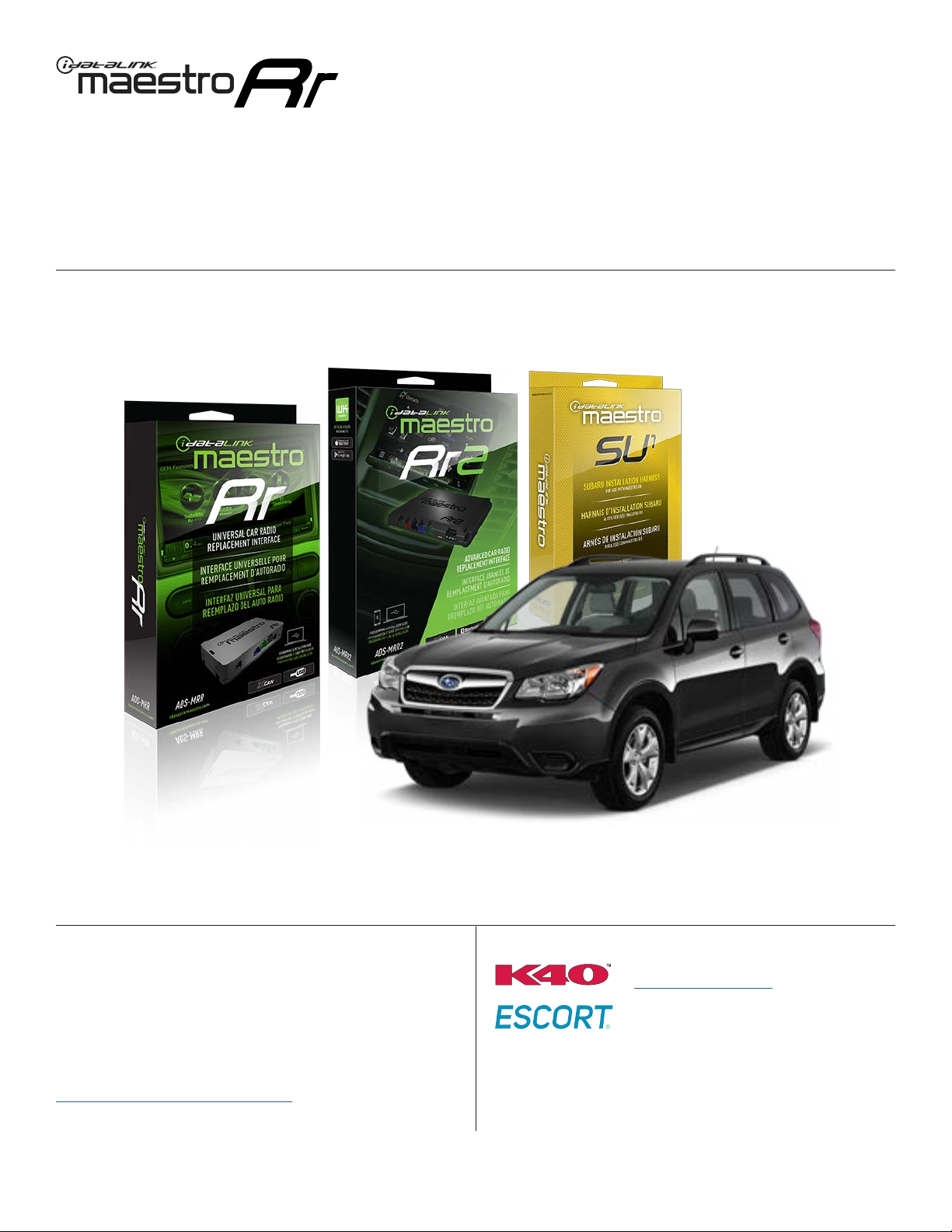

2014-2015
Subaru ForeSter
with harman Kardon
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, AMPLIFIER, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro HRN-RR-SU1 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-SUB2-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES
ADS-RR(SR)-SUB02A-DS-IG-EN maestro.idatalink.com
Subaru ForeSter with harmaN kardoN 2014-2015
Automotive Data Solutions Inc. © 2019 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Troubleshooting Table 6
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]
ADS-RR(SR)-SUB02A-DS-IG-EN maestro.idatalink.com
Subaru ForeSter with harmaN kardoN 2014-2015
Automotive Data Solutions Inc. © 2019 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Connect the wires from aftermarket radio main harness to
the SU1 T-harness and match the wire functions.
• Remove the factory radio.
STEP 2
• Assemble the SU1 T-harness and connect it to the factory
radio harness.
STEP 3
• Plug the OBDII connector into the OBDII of the vehicle,
under driver dash.
STEP 4
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the RCA cables to the aftermarket radio.
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio jack
of the aftermarket radio (If there is no iDatalink audio input,
connect to AUX).
Note: On Pioneer radio, ensure that there is nothing plugged
into the W/R port.
STEP 5
• Connect all the harnesses to the Maestro RR module then
test your installation.
3
ADS-RR(SR)-SUB02A-DS-IG-EN maestro.idatalink.com
Subaru ForeSter with harmaN kardoN 2014-2015
Automotive Data Solutions Inc. © 2019 4
SUB INSUB IN
AA
3
D
BACKUP CAMBACKUP CAM
BB
BACKUP CAMBACKUP CAM
CC
MAESTRO RR MODULE
STEP 1
RCA CABLES
STEP 4
STEP 5
WIRING DIAGRAM
WIRES FROM
VEHICLE
FACTORY RADIO HARNESS
STEP 2
STEP 3 OBDII CONNECTOR
DATA
CABLE
AUDIO
CABLE
CONNECT TO
AFTERMARKET RADIO
RED
RED
PURPLE/WHITE (NC)
SECONDARY SCREEN
HARNESS
YELLOW
BLUE (NC)
NC
WHITE
MAIN
HARNESS
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE - POWER ANTENNA
PINK - VEHICLE SPEED
SEE RADIO WIRE
REFERENCE
CHART
FOR RADIO WIRE
COLORS
WHITE
WHITE/BLACK
GRAY
GRAY/BLACK
GREEN
GREEN/BLACK
PURPLE/BLACK
PURPLE
LF RCA INPUT
RF RCA INPUT
LR RCA INPUT
RR RCA INPUT
RCA CABLES
SU1 T-HARNESS
NOT REQUIRED
STEERING WHEEL
CONTROL CABLE
PIONEER RADIO: ENSURE
THAT NOTHING IS PLUGGED
IN W/R PORT.
ADS-RR(SR)-SUB02A-DS-IG-EN maestro.idatalink.com
Subaru ForeSter with harmaN kardoN 2014-2015
Automotive Data Solutions Inc. © 2019 5
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness Wire Color on Alpine cable Wire Color on Kenwood cable Wire Color on Pioneer cable
Illumination (+) Orange N/A Orange/White Orange/White
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink
Power Antenna (+) Blue Blue Blue N/A
ADS-RR(SR)-SUB02A-DS-IG-EN maestro.idatalink.com
Subaru ForeSter with harmaN kardoN 2014-2015
Automotive Data Solutions Inc. © 2019 6
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure OBDII connector is securely attached to the OBD2 connector of the
vehicle.
If you hardwired connections at the OBDII, check connections at the OBDII
connector. Make sure the RED/BROWN wire is on PIN 6 and the YELLOW/
BROWN wire is connected to PIN 14 of the OBDII connector. Do not use
T-Taps. Soldering or military splicing methods are recommended.
Reset the RR.
The light on the Maestro is blinking RED TWICE. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
The light on the Maestro is flashing RED ONCE. There is no firmware on the module; flash the RR module.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: 1-866-427-2999
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.
ELECTRONICS
Click here for:
Radar Installation Guides
2014-2015
Subaru ForeSter
without NaV
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, AMPLIFIER, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro HRN-RR-SU1 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-SUB2-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES
ADS-RR(SR)-SUB02A-DS-IG-EN maestro.idatalink.com
Subaru ForeSter without NaV 2014-2015
Automotive Data Solutions Inc. © 2019 2
WELCOME
NEED HELP?
Congratulations on the purchase
of your iDatalink Maestro RR Radio
replacement solution. You are
now a few simple steps away from
enjoying your new car radio with
enhanced features.
Before starting your installation,
please ensure that your iDatalink
Maestro module is programmed
with the correct firmware for your
vehicle and that you carefully review
the install guide.
Please note that Maestro RR will
only retain functionalities that
were originally available in the
vehicle.
TABLE OF CONTENTS
Installation Instructions 3
Wiring Diagram 4
Radio Wire Reference Chart 5
Troubleshooting Table 6
1 866 427-2999
maestro.idatalink.com/support
www.12voltdata.com/forum
[email protected]
ADS-RR(SR)-SUB02A-DS-IG-EN maestro.idatalink.com
Subaru ForeSter without NaV 2014-2015
Automotive Data Solutions Inc. © 2019 3
INSTALLATION INSTRUCTIONS
STEP 1
• Unbox the aftermarket radio and locate its main harness.
• Cut the WHITE, GRAY, GREEN and PURPLE RCA tips.
• Connect the wires from aftermarket radio main harness to
the SU1 T-harness and match the wire functions.
• Remove the factory radio.
STEP 2
• Assemble the SU1 T-harness and connect it to the factory
radio harness.
STEP 3
• Plug the OBDII connector into the OBDII of the vehicle,
under driver dash.
STEP 4
• Plug the aftermarket radio harnesses into the aftermarket
radio.
• Plug the Data cable to the data port of the aftermarket
radio.
• Insert the Audio cable into the iDatalink 3.5 mm audio jack
of the aftermarket radio (If there is no iDatalink audio input,
connect to AUX).
Note: On Pioneer radio, ensure that there is nothing plugged
into the W/R port.
STEP 5
• Connect all the harnesses to the Maestro RR module then
test your installation.
2
ADS-RR(SR)-SUB02A-DS-IG-EN maestro.idatalink.com
Subaru ForeSter without NaV 2014-2015
Automotive Data Solutions Inc. © 2019 4
2
D
BACKUP CAMBACKUP CAM
BB
SUB INSUB IN
AA
BACKUP CAMBACKUP CAM
CC
MAESTRO RR MODULE
CUT AND REMOVE
THE RCA JACKS
STEP 1
MAIN
HARNESS
RCA CABLES
SU1 T-HARNESS
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE - RR SPEAKER (+)
STEP 4
STEP 5
ORANGE - ILLUMINATION (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
BLUE - POWER ANTENNA
PINK - VEHICLE SPEED
WIRING DIAGRAM
WIRES FROM
VEHICLE
FACTORY RADIO HARNESS
STEP 2
STEP 3 OBDII CONNECTOR
SEE RADIO WIRE
REFERENCE
CHART
FOR RADIO WIRE
COLORS
DATA
CABLE
AUDIO
CABLE
CONNECT TO
AFTERMARKET RADIO
RED
RED
PURPLE/WHITE (NC)
SECONDARY SCREEN
HARNESS
YELLOW
BLUE (NC)
WHITE (NC)
NOT REQUIRED
STEERING WHEEL
CONTROL CABLE
PIONEER RADIO: ENSURE
THAT NOTHING IS PLUGGED
IN W/R PORT.
ADS-RR(SR)-SUB02A-DS-IG-EN maestro.idatalink.com
Subaru ForeSter without NaV 2014-2015
Automotive Data Solutions Inc. © 2019 5
RADIO WIRE REFERENCE CHART
Wire
Description Polarity Wire Color on Maestro
T-Harness Wire Color on Alpine cable Wire Color on Kenwood cable Wire Color on Pioneer cable
Illumination (+) Orange N/A Orange/White Orange/White
Reverse Light (+) Purple/White Orange/White Purple/White Purple/White
E-Brake (-) Lt Green Yellow/Blue Lt Green Lt Green
VSS (vehicle speed sensor) (DATA) Pink Green/White Pink Pink
Power Antenna (+) Blue Blue Blue N/A
ADS-RR(SR)-SUB02A-DS-IG-EN maestro.idatalink.com
Subaru ForeSter without NaV 2014-2015
Automotive Data Solutions Inc. © 2019 6
TROUBLESHOOTING TABLE
PROBLEM SOLUTION
Gauges do not work, radio shows OBD2 Error 1 or Error 2. Ensure OBDII connector is securely attached to the OBD2 connector of the
vehicle.
If you hardwired connections at the OBDII, check connections at the OBDII
connector. Make sure the RED/BROWN wire is on PIN 6 and the YELLOW/
BROWN wire is connected to PIN 14 of the OBDII connector. Do not use
T-Taps. Soldering or military splicing methods are recommended.
Reset the RR.
The light on the Maestro is blinking RED TWICE. Ensure the 4-pin data cable is connected between the radio and the RR, and
that it is plugged into the black port on the Maestro RR. The red and blue
ports on the RR should be empty.
Make sure the correct radio model and serial number were entered during
the flash. Verify the radio’s serial number entered during the flash matches
what is listed on the radio screen. This can be found in the settings of the
radio, listed as Device Id, Device Number, or Serial Number.
The light on the Maestro is flashing RED ONCE. There is no firmware on the module; flash the RR module.
MAESTRO RR RESET PROCEDURE:
Turn the key to the OFF position, then disconnect all connectors from the module.
Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will flash RED rapidly (this may
take up to 10 seconds).
Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.
TECHNICAL ASSISTANCE
Phone: 1-866-427-2999
Email: maestr[email protected]
Web: maestro.idatalink.com/support add www.12voltdata.com/forum/
IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest firmware from the manufacturer. Please visit the radio
manufacturer’s website and look for any updates pertaining to your radio.
ELECTRONICS
Click here for:
Radar Installation Guides
2012-2014
Subaru impreza
baSe
INSTALL GUIDE
RETAINS STEERING WHEEL CONTROLS, AMPLIFIER, AND MORE!
NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here
in are the properties of their respective owners.
PRODUCTS REQUIRED
iDatalink Maestro RR or RR2 Radio Replacement Interface
iDatalink Maestro HRN-RR-SU1 Installation Harness
PROGRAMMED FIRMWARE
ADS-RR(SR)-SUB2-DS
ADDITIONAL RESOURCES
Maestro RR2 Programmable Outputs Guide
OR
OPTIONAL ACCESSORIES
ACC-uSU1

Other manuals for maestro Rr

48

Other iDataLink Recording Equipment manuals

iDataLink maestro Rr User manual

iDataLink

iDataLink maestro Rr User manual

iDataLink Maestro AR User manual

iDataLink

iDataLink Maestro AR User manual

iDataLink maestro Rr User manual

iDataLink

iDataLink maestro Rr User manual

Popular Recording Equipment manuals by other brands

Niles HDL-6 Installation & operation guide

Niles

Niles HDL-6 Installation & operation guide

Roland V-Drums TD-8 Turbostart

Roland

Roland V-Drums TD-8 Turbostart

SRA IST16 user manual

SRA

SRA IST16 user manual

Focusrite Clarett 4 Pre USB user guide

Focusrite

Focusrite Clarett 4 Pre USB user guide

Neumann.Berlin DMI-8 Specifications

Neumann.Berlin

Neumann.Berlin DMI-8 Specifications

PTI SENTRY Supervisor Installation, Operation and Serial Communication Programmer's Guide

PTI

PTI SENTRY Supervisor Installation, Operation and Serial Communication Programmer's Guide

Bosch M 60 manual

Bosch

Bosch M 60 manual

Toshiba Black Pear Installation and user guide

Toshiba

Toshiba Black Pear Installation and user guide

Harris TVS-D 660 Operator's manual

Harris

Harris TVS-D 660 Operator's manual

ELECRAFT KFL1-4 Assembly and operating instructions

ELECRAFT

ELECRAFT KFL1-4 Assembly and operating instructions

Maple Systems HMI5043Lv2 installation guide

Maple Systems

Maple Systems HMI5043Lv2 installation guide

Marantz professional AVS user guide

Marantz professional

Marantz professional AVS user guide

Alesis Studio 32 Service manual

Alesis

Alesis Studio 32 Service manual

Zennio DALIBOX Interface 64/32 user manual

Zennio

Zennio DALIBOX Interface 64/32 user manual

MFJ MFJ-9232 instruction manual

MFJ

MFJ MFJ-9232 instruction manual

Valeo WMI2-W167 user manual

Valeo

Valeo WMI2-W167 user manual

Abtus PWR-DA06C User's operation guide

Abtus

Abtus PWR-DA06C User's operation guide

Biamp VOCIA LSI-16 Operation manual

Biamp

Biamp VOCIA LSI-16 Operation manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
