EVO88-P
Dual-8” Passive Line-Array system QuickStart Guide
EVO88-P is a professional line-array system that can serve as a
portable or installed FOH solution for medium to large venues
and as ancillary side/down ll for lager PA systems, with a
coherent, natural sound within the coverage area and superior
power delivery in its category
The HF assembly mounts a 3” compression driver and an IDEA
proprietary Hi-Q waveguide allowing for minimum vertical gap
between array elements providing optimum element coupling
and reducing artifacts and DSP adjustments while providing
optimum directivity control. For LMF section, EVO88-P mounts
dual very high-performance 8” woofers.
The active version EVO88-M features a 1,2 kW Class-D
Powersoft power module. One unit of self-powered EVO88-M
feeds one passive EVO88-P, integrating a straightforward active
system that optimises costs, setup and logistics.

2
QS_EVO88-P_EN_v3.5
TECHNICAL DATA

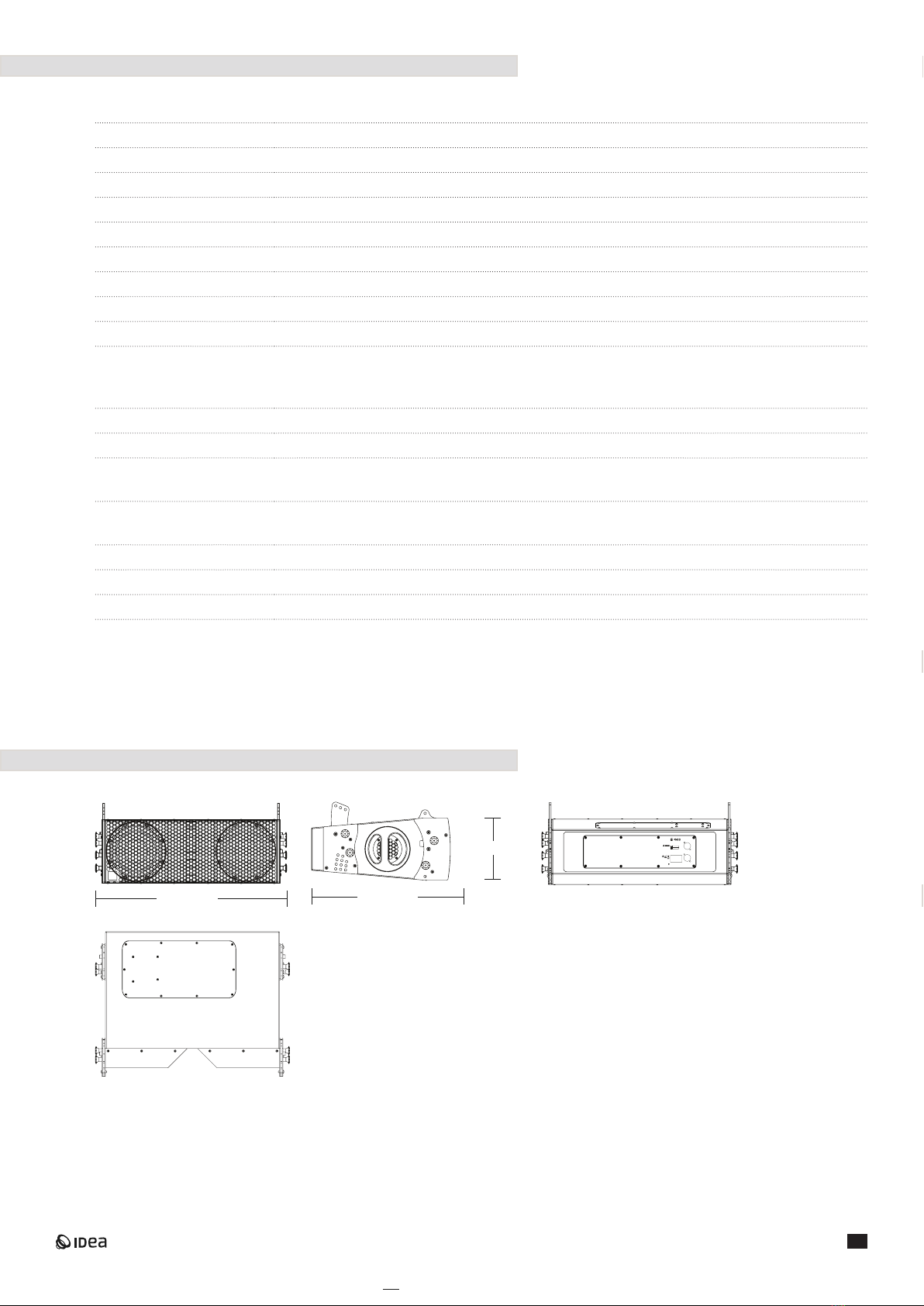

TECHNICAL DRAWINGS
624 mm 499 mm
223 mm
INPUT
INPUT
LINK
LINK
NominalImpedance:
NominalImpedance:
16Ohm
16Ohm
RecommendedAmp Power:
RecommendedAmp Power:
600/1200W
600/1200W
InputSignal
ParallelSignal
NL-4PINOUT
NL-4PINOUT
EVO88-P
Suspensionofthis product should
Suspensionofthis product should
beimplementedby qualified
beimplementedby qualified
professionalsfollowingsafe rigging
professionalsfollowingsafe rigging
practicesandlo calregulations.
practicesandlocal re gulations.
Refertothe owner's manuals for
Refertothe owner's manuals for
rigginginstructions,system
rigginginstructions,system
componentsandsuspension
componentsandsuspension
hardwareintendedfor this product.
hardwareintendedfor this product.
Designed,engineered
Designed,engineered
andmanufacturedby IDEA
andmanufacturedby IDEA
inCedeira (Galicia)
inCedeira (Galicia)
PRODUCTOF EUROPE
PRODUCTOF EUROPE
Enclosure design 10˚ Trapezoidal
LF Transducers 2 × 8'' High performance woofers
HF Transducers 3" Voice coil Compression Driver
Power Handling (RMS) 500 W
Nominal Impedance 16 Ohm
SPL (Continuous/Peak) 130/136 dB SPL
Frequency Range (-10 dB) 50 - 23000 Hz
Frequency Range (-3 dB) 72 - 21000 Hz
Aiming/Prediction Software EASE FOCUS
Coverage 90˚ Horizontal
Connectors
+/-1
+/-2
2 x Neutrik speakON® NL-4 in parallel
Input
Link
Cabinet Construction 15/18 mm Birch Plywood
Grille 1.5 mm perforated weatherised steel with protective foam
Finish Durable IDEA proprietary Aquaforce High Resistance
paint coating process
Rigging Hardware High-resistance, coated steel integrated 4-point rigging hardware
10 angulation points (0˚-10˚ internal splay angles in 1˚steps)
Dimensions (WxHxD) 624 x 223 x 499 mm (24.6 x 8.8 x 19.6 in)
Weight 34.4 kg (75.8 lb)
Handles 2 integrated handles
Accessories Rigging frame (RF 600)
Rigging frame stack (RF 600 STK)
Transport cart (CRT EVO88)
Rain cover for 4 x EVO88 (COV-EV88-4)

3
QS_EVO88-P_EN_v3.5
• All IDEA products are guaranteed against any manufacturing defect for a period of 5 years from date of purchase for acoustical
parts and 2 years from date of purchase for electronic devices.
• The guarantee excludes damage from incorrect use of the product.
• Any guarantee repair, replacement and servicing must be exclusively done by the factory or any of authorized service centres.
• Do not open or intend to repair the product; otherwise servicing and replacement will not be applicable for guarantee repair.
• Return the damaged unit, at shipper’s risk and freight prepaid, to the nearest service centre with a copy of the purchase invoice in
order to claim guarantee service or replacement.
WARNINGS & SAFETY GUIDELINES
WARRANTY
DECLARATIONS OF CONFORMITY
!
• Read this document thoroughly, follow all safety warnings and keep it for future reference.
• The exclamation mark inside a triangle indicates that whatever repairing and component replacement operations must be done by
qualied and authorized personnel.
• No user serviceable parts inside.
• Only use accessories tested and approved by IDEA and supplied by the manufacturer or an authorized dealer.
• Installations, rigging and suspension operations must be done by qualied personnel.
• Only use accessories specied by IDEA, complying with maximum loads specications and following local safety regulations.
• Read the specications and connection instructions before proceeding to connect the system and use only cabling supplied or re-
commended by IDEA. Connection of the system should be done by qualied personnel.
• Professional sound reinforcement systems can deliver high SPL levels that may result in hearing damage. Do not stand close to the
system while in use.
• Loudspeaker produce magnetic eld even while they are not in use or even when disconnected. Do not place or expose loudspeakers
to any device that is sensitive to magnetic elds such as television monitors or data storage magnetic material.
• Disconnect the equipment during lightning storms and when it is not to be used for a long time.
• Do not expose this device to rain or moisture.
• Do not place any objects containing liquids, such as bottles or glasses, on the top of the unit. Do not splash liquids on the unit.
• Clean with a wet cloth. Do not use solvent-based cleaners.
• Regularly check the loudspeaker housings and accessories for visible signs of wear and tear, and replace them when necessary.
• Refer all servicing to qualied service personnel.
• This symbol on the product indicates that this product should not be treated as household waste. Follow local regulation for recy-
cling of electronic devices.
• IDEA declines any responsibility from misuse that may result in malfunction or damage of the equipment.
I MAS D ELECTROACÚSTICA SL
POL. A TRABE 19-20 15350 CEDEIRA (GALICIA - SPAIN)
DECLARES THAT: EVO88-P
COMPLIES WITH THE FOLLOWING EU DIRECTIVES:
ROHS (2002/95/CE) RESTRICTION OF HAZARDOUS SUBSTANCES
LVD (2006/95/CE) LOW VOLTAGE DIRECTIVE
EMC (2004/108/CE) ELECTRO-MAGNETIC COMPATIBILITY
WEEE (2002/96/CE) WASTE OF ELECTRIC AND ELECTRONIC EQUIPMENT
EN 60065: 2002 AUDIO, VIDEO AND SIMILAR ELECTRONIC APPARATUS. SAFETY REQUIRE-
MENTS.
EN 55103-1: 1996 ELECTROMAGNETIC COMPATIBILITY: EMISSION
EN 55103-2: 1996 ELECTROMAGNETIC COMPATIBILITY: IMMUNITY

4
QS_EVO88-P_EN_v3.5
For further information scan the QR Code
or refer to the following web address: www.ideaproaudio.com/product-detail/evo88-p
