HALO HEAT & SYSTEM RF
UIN: 222141
Wireless single zone Heat & System Programmable Room Thermostat (PRT)
Compatible with the following boilers: Logic Heat
H, Logic Heat H IE, Logic System S, Logic System S
IE, Logic+ Heat H, Logic+ System S, Logic Max Heat
H, Logic Max Heat H IE, Logic Max System S, Logic
Max System S IE Keston System, Vogue System,
Vogue GEN2 System, Vogue Max System, Vogue
Max System IE.
To install Halo with older boilers further details can
be found at idealheating.com
The Ideal Halo Heat & System RF is a wireless
PRT that is paired with the Halo Smart Interface
installed alongside the boiler. The Smart Interface
is fitted into the Smart Interface Bracket and is
wired directly to the boiler and communicates to
the boiler via OpenTherm. A Smart Wiring Centre
is provided to control central heating components
(zone valves, cylinder thermostat, circulating
pump). The Halo unit is powered by 4 AA batteries.
Communication from the Smart Interface to
the PRT is through Zigbee, a local RF protocol.
Communication between the Smart Interface and
Smart Wiring Centre is also via Zigbee removing
the need to wire the Smart Wiring Centre directly
to the boiler.
The Halo Heat & System, including the Smart
Wiring Centre and Smart Interface bracket, must
be installed by a competent person with the
appropriate safety qualifications. Please read
the instructions carefully. Failure to follow these
instructions can damage the product or cause a
hazardous condition.
These instructions are applicable to the Ideal
boiler models stated and must not be used with
any other make or model of boiler. This product
must be installed to all applicable standards.
Always isolate the mains supply before
installing or working on any components that
require a 230V ac supply.

A. KIT CONTENTS
1. Halo Combi PRT display unit
4. Desk stand
2. PRT rear housing
5. Smart Wiring Centre 6. Smart Interface
5. Smart wiring centre
10. Screws & RawlplugsTM
9. 4 AA Batteries
3. Trim plate
id
e
a
lh
e
a
ti
n
g.
c
o
m
H
a
lo
H
e
a
t
&
S
y
st
e
m
In
s
ta
ll
at
io
n
G
ui
d
e
Zone 1
Zone 1
Zone 2
Zone 2
7. Smart Interface bracket
8. Install/user guides, wiring diagrams
and zone valve labels
id
e
a
lh
e
a
ti
n
g.
c
o
m
H
a
lo
H
e
a
t
&
S
y
st
e
m
In
s
ta
ll
at
io
n
G
ui
d
e

B. LOCATION
GUIDELINES
The Halo Heat & System uses
wireless Zigbee communication
from the Smart Interface to the
Smart Wiring Centre and Halo
PRT up to a maximum distance
of 30 meters. Occasionally house
constructions and materials
can reduce this communication
range and it is advisable, where
possible, to try and avoid
directing communications
through metal frames or solid
concrete walls.
If the distance between the
Halo PRT and Smart Interface
or the Smart Wiring Centre
and Smart Interface is greater
than 30 meters or the install
location is challenging, consider
using the Zigbee Booster (UIN
221132, further details available at
idealheating.com)

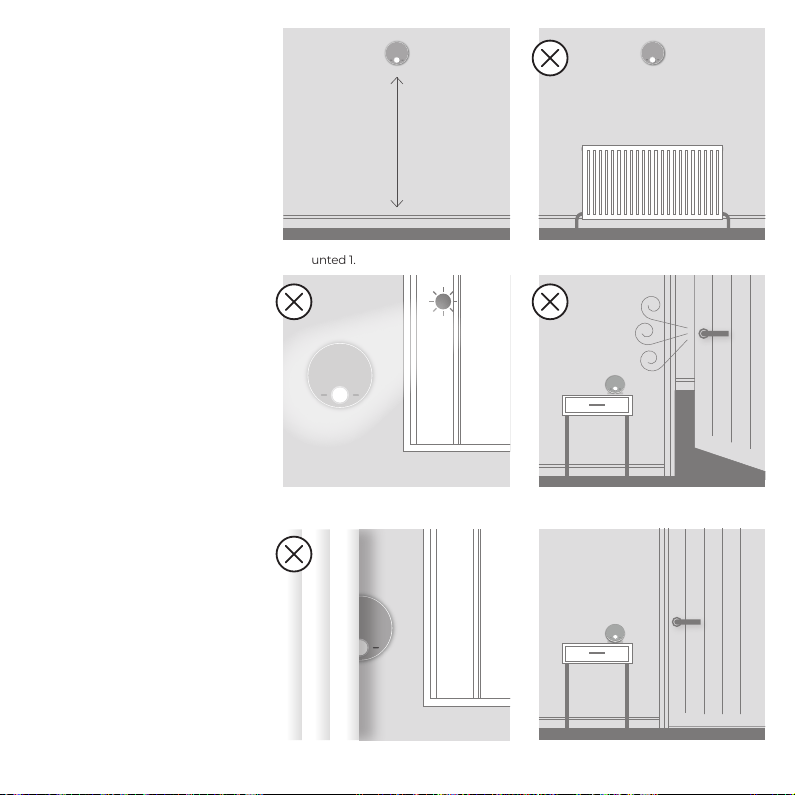

1.2-1.5m
1. Mounted 1.2-1.5m above the floor 2. Not above a radiator/heat source
3. Not in direct sunlight 4. Away from any drafts
5. Not fitted behind curtains 6. Internal use only

C. SYSTEM OVERVIEW
This is a simplified diagram of how the Halo units, Smart Wiring Centre and Smart
Interface communicate. Some wiring and pipework has been omitted for clarity.
HALO PRT
SI Smart Interface
Pipework
RF Connection
Wiring
TOP TIP: For a robust signal between units, where possible, ensure that the
line of communication between the Smart Interface and other units is not
through any stone or metallic object.
Cylinder
with
cylinder
stat
Smart
Interface in
bracket
30m*
30m*
*solid and metallic objects will reduce maximum distance
System components
Pump
3-port
or 2-port
valve

1. The Halo can be installed with or without the provided
trim plate.
3. Insert the 4 AA batteries provided into the front housing
of the Halo. Pay close attention that the orientation of the
batteries is as indicated in the housing.
4. Locate the front housing (display) in position
perpendicular to the rear housing and clip into place.
2. If no trim plate is required, use the rear housing of the
Halo to position the unit on the wall, alternatively secure
rear housing to trim plate. Take care not to overtighten
the screws.
D. INSTALLING THE HALO PRT
The Halo can be either wall mounted or desk mounted.
WALL MOUNTING THE HALO
If there are any concerns regarding signal strength and location of the wall mounted PRT it is advisable to
pair the control and check the signal strength before fixing to the wall.

1. The Halo has an integrated rear housing and desk stand.
3. Clip the combined rear housing and desk stand
into place.
2. Insert the 4 AA batteries provided into the front housing
of the Halo. Pay close attention that the orientation of
the batteries is as indicated in the housing.
DESK MOUNTING THE HALO

E. INSTALLING THE SMART WIRING CENTRE
The Smart Wiring Centre controls the operation of the zone valves for the central heating system. The Smart
Wiring Centre communicates wirelessly to the Smart Interface via the Zigbee RF protocol. The Smart Wiring
Centre must be mounted to a fixed surface before installation.

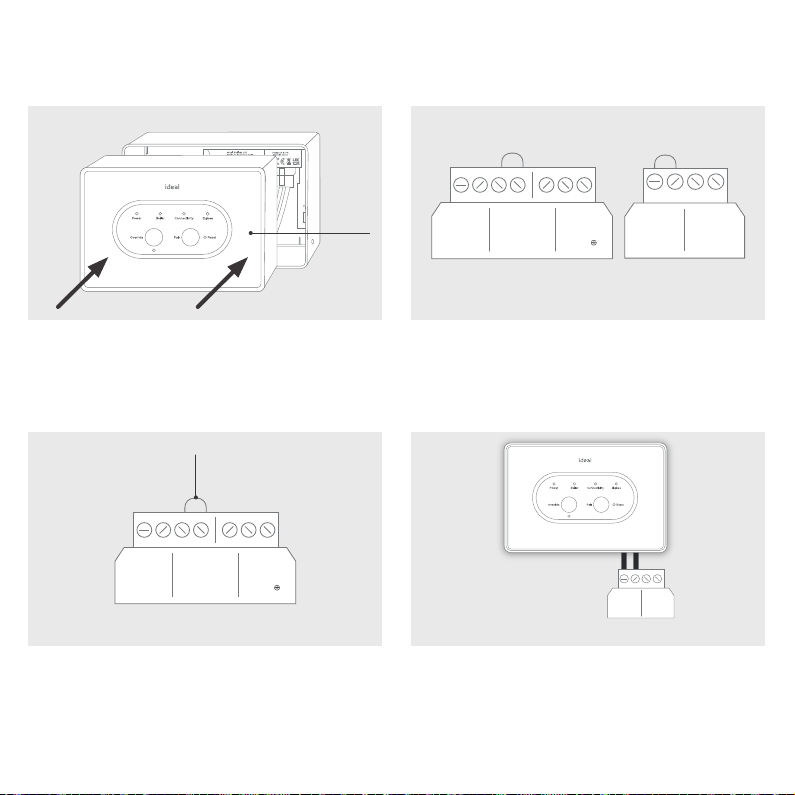

Removing the cover
Using a suitable screwdriver turn the locking key
one quarter turn anticlockwise to the [UNLOCK]
position. Remove the front panel by lifting the left
hand edge first. Assemble in reverse order. Always
remember to lock the front panel to the Smart
Wiring Centre.
Wall mounting the Smart Wiring Centre
Please refer to the location guidelines before fixing
the Smart Wiring Centre to the wall.
Using the 4 fixing locations on the Smart Wiring
Centre secure to the Wall with adequate fixings
for the wall type.
Do not remove the cover unless you are qualified to do so.

F. WIRING THE SMART INTERFACE
The Smart Wiring Centre must be installed by a competent person with the appropriate safety qualifications.
All wiring must be adequately sheathed and insulated.
Isolate any 230V ac mains supply to the Smart Wiring Centre and any other linked components before
commencing works.
For detailed wiring instructions please refer to the wiring diagram fold-out in the kit. This gives detailed
wiring on S-plan and Y-plan systems. Ensure selector switch is in the correct position for the installed
system. Wiring can either be installed from the rear of the device through the back housing cut outs or
surface mounted. When surface mounting any wiring, use the reversible omega clamps provided. Remove
all appropriate cut outs on front cover for wiring.
TOP TIP: This kit comes with labels to identify
heating zones. Fix one to the zone valve and
the other to the inside cover of the smart
wiring centre to easily identify each zone.
Do not reinstate power once wiring is complete.

G. INSTALLATION OF THE SMART INTERFACE BRACKET AND
THE SMART INTERFACE
To install the Smart Interface into a new boiler follow the steps below. For further details on the
compatibility of older boilers please visit idealheating.com.
The Smart Interface Bracket can be mounted straight to the wall or onto an existing single gang wall box.
1. Locate the Smart interface bracket in a suitable location
close to the boiler and fuse spur as the bracket is hard
wired to both.
2b. To mount over the electrical box, place the bracket over
the electrical box and fix into place.
3. Isolate the mains supply.
2a.
To mount directly onto the wall, mark and drill 2
mounting holes and fix the bracket to the wall using
suitable fixings for the wall type.
OFF

4a. Rear cable mounting; From the fuse spur wire the
Live, Neutral and Earth connections into the left
hand side connections in the Smart Interface Bracket
marked L, N, (E).
5. Wire the low voltage connection into the OpenTherm
Master terminals located in the central position.
Rear or surface mount options are available.
6. Install the Smart Interface by connecting the plug on
the Smart Interface to the connector in the bracket.
4b. Surface cable mounting; From the fuse spur wire
the Live, Neutral and Earth into the left hand side
connections in the Smart Interface Bracket marked
L, N, (E). Using the cable clamp provided.
G. INSTALLATION OF THE SMART INTERFACE BRACKET AND
THE SMART INTERFACE (CONT.)
Remove knock outs as required
Remove bottom knock outRemove rear knock out

7. Carefully push the Smart Interface into the bracket.
9. If an existing 230V signal is already installed remove any
existing wiring from the 230V connections and add the
link wire into the SL1 connections
10. Take the cable that is wired into the bracket
OpenTherm Master terminals and connect into the
OpenTherm connections in the boiler ensuring it is run
through the strain relief (in new boilers remove the link
positioned here before wiring).
G. INSTALLATION OF THE SMART INTERFACE BRACKET AND
THE SMART INTERFACE (CONT.)
8. Locate the wiring terminal within the boiler control box
(230V connections are on the left and low voltage on
the right).
Low voltage
connections
OpenTherm Weather
compensation
R
230V connections
L
SL2
IN L
SL1
IN L
Mains
IN
L N
Smart
Interface
Link wire in SL1
connection
230V connections
SL2
IN L
SL1
IN L
Mains
IN
L N
Low voltage connections
Do not connect
to the 230V ac
connections

H. PAIRING OF THE SMART INTERFACE TO THE SMART WIRING CENTRE
To pair the Smart Wiring Centre to the Halo Smart Interface follow the steps below.
1. Turn the power back on to the boiler and
Smart Wiring Centre.
2a. The Smart Wiring Centre will power up and
automatically enter into pairing mode shown by the
pairing LED flashing red, this mode will be active for 10
minutes. If further time is required after 10 minutes hold
the pair button until the pair light flashes red.
ON
2b. The Halo Smart Interface will power up and begin setup,
this can take up to 90 seconds. Once setup is complete
the green Power LED should be the only LED illuminated.

3. Check the Smart Interface connection to the boiler by
pressing the override button. The override LED should be
green and the boiler will fire. Press the override button
again to switch off the boiler, the override LED should
now go out*
4. Press and hold the Pair button on the Smart interface
until the Zigbee LED flashes red.
5. Pairing will now
commence between
the units. To show
a successful pairing
process the Pair LED on
the Smart Wiring Centre
will turn Solid Green.

Zigbee icon
I. PAIRING OF THE HALO
The Halo PRT will now need to be paired with the
Smart Interface installed by the boiler. Ensure the
Smart Interface is still in pairing mode with the
Zigbee LED flashing red.
1. When the batteries are inserted, the Halo PRT
will power up automatically.
2. The device will prompt pairing with the Smart
Interface using an easy step-by-step process.
3. Simply follow the on-screen guide to select the
type of boiler, Heat & System, and the system
type, heating and hot water.
4. The Halo PRT screen will show “Pairing in
Progress”, then “Synchronisation in Progress” and
then “Pairing Complete” when the Halo PRT has
successfully connected to the Smart Interface.
5. The device will automatically prompt set up of
the time and date.
6. There is the opportunity to add an installer
contact phone number into the device at this
stage, if not changed this will default to the
Ideal Heating Customer Service number.
7. The home screen will be displayed showing
the current and target temperature and the
temperature bar. The Zigbee communication
icon will also be visible on the display.
8. Once the Halo PRT is paired to the Smart
Interface press and hold the pair button on
the Smart Interface until the Zigbee LED
goes to solid green.
For multizone systems please see the
installation guide in the Halo Heat & System
2-Zone Upgrade kit for step 3 selections.

ADVANCED SETTINGS
Description Factory setting New setting
Optimised start
Boiler starts heating in advance of schedule so heating reaches the required
temperature at the time specified.
OFF
Optimised stop
Boiler stops heating in advance of schedule so heating reaches the required
temperature at the time specified.
OFF
Delayed start
If the room temperature is close to target temperature the heating start time
is delayed to save energy.
OFF
Display tolerance
Select the display tolerance of the room temperature, this can be set at
increments of 0.5 or 0.1°C.
0.1°C
Temperature offset
Fine tune the room temperature display -2.5 to 2.5°C. 0°C
Daylight saving time
Automatically move to daylight saving. ON
Frost protection
The temperature that will be used to protect your home when the
thermostat is off. Can be set 5°C.
50C
Service phone number
Opportunity to input Installer contact number for service reminders.
Ideal Heating
number
HALO FEATURES AND CONFIGURATION
To enter the settings menu press the menu button.
Menu options Action
Holiday Holiday mode allows the device to be switched off for a predefined period of time then
automatically returns to the pre-programmed heating schedule.
Timed heating schedule Set a heating schedule with up to 6 periods per day.
Timed hot water schedule Set a hot water schedule with up to 6 periods per day.
Support Includes information such as software version and key contact numbers.
Fault page Shows the latest fault code and fault description.
Time and date Time and date are set on power up and can be adjusted via the menu.
Advanced settings Advanced features of the device setup should be set by a competent person.
Landlord settings Specific settings for landlords.

*Override and Failsafe only active when
communication is lost between the Halo PRT and
Smart Interface. See Halo User Guide for more
information.
*Override and Failsafe only active when
communication is lost between the Smart Wiring
Centre and Smart Interface. This allows for manual
opening and closing of the zone valves.
SMART INTERFACE LED KEY
LED Status
Power Green - Power ON
No illumination - No power
Boiler Green - Demand
No illumination - No demand
Connectivity Not used
Zigbee
No illumination - No Zigbee network
Green - Zigbee network active
Green flashing - Identify function
Red flashing - Pairing
Red flashing then orange - Zigbee
network deletion
Orange for 30s - Factory reset
Override
Green - Override active*
Green flashing - Failsafe active*
No illumination - Override OFF*
SMART WIRING CENTRE LED KEY
LED Status
Power
Green - Power ON
Red Flashing - Override
No illumination - No power
Pair
No illumination - No Zigbee network
Green - Zigbee network active
Green flashing - Identify function
Red flashing - Pairing
Orange then flashing red - Smart Wiring
Centre deleted from Zigbee network
Heating
Zone 1
Green - Demand
No illumination - No demand
Heating
Zone 2 Not used
Hot Water Green - Demand
No illumination - No Demand

Description Confirmed
Use the “Identify” function to confirm successful
pairing has taken place. Short press on the Pair
button on the Smart Interface. Press Pair button
again to exit “Identify” function.
Zigbee LED on Smart Interface
flashes green
Halo home screen flashes to indicate
successful pairing
Zigbee LED on Smart Wiring Centre
flashes green
Halo is positioned in the homeowners chosen location if desk mounted.
Check RSSI (Received Signal Strength Indication) of
the Zigbee wireless connection via support page on
the PRT (access via the menu).
Target RSSI between 0 and -65
and text green
On the Halo set the mode to AUTO then increase the
temperature to 30°C
Note: Boiler will (turn on) once zone valve is in fully
open position
Flame icon ON
Heating zone on Smart Wiring Centre OFF
Boiler ON
Boiler LED on Smart Interface ON (Green)
On the Halo set the heating mode to AUTO then
decrease the temperature to 5°.
Flame OFF
Heating zone on Smart Wiring Centre OFF
Boiler OFF
Boiler LED on Smart Interface OFF
On the Halo set the hot water mode to ON.
Note: Boiler will (turn on) once zone valve is in fully
open position
Hot water ON (icon turns orange)
Hot water zone on Smart Wiring Centre ON
Boiler ON
Boiler LED on Smart Interface ON (Green)
On the Halo set the hot water mode to OFF.
Hot water OFF (icon turns white)
Hot water zone on Smart Wiring Centre OFF
Boiler OFF
Boiler LED on Smart Interface OFF
COMMISSIONING CHECKLIST
When the Halo is set up use this commissioning checklist to check and complete the install.

Confirmed
Description Zone 1 Hot Water
Check the Smart Interface indication is correct.
Power LED green
Zigbee LED green
Connectivity LED green
Check the Smart Wiring Centre indication is correct. Power LED green
Pair LED green
Full battery level indication on Halo home screen.
Zigbee network icon is present on the Halo
home screen.
Cloud network icon is present on Halo home screen.
*Halo Combi Wi-Fi only
Time and date correct.
Zone valves labelled using provided labels.
Installer contact details inputted if required.
Suitable schedule has been entered for the user.
*remember to set both heating and hot water back to users desired mode
General overview of operation provided to user - refer to user guide.
Any advanced settings changes have been recorded.
Remember to leave this guide with the householder.
COMMISSIONING CHECKLIST (CONT.)
