COBALT (SCA14000)
OPERATION MANUAL
Read the manual thoroughly before
operation and retain for future reference.
REV SCA14000-OM-01

1
TABLE OF CONTENTS
DISCLAIMER ---------------------------------------------------------------------- 2
SAFETY PRECAUTIONS --------------------------------------------------- 3-8
HOW IT WORKS ----------------------------------------------------------------- 9
FEATURES AND SPECIFICATIONS -------------------------------------- 10
PART NAMES ------------------------------------------------------------------- 11
INSTALLATION REMARKS --------------------------------------------- 12-14
UNIT OPERATION --------------------------------------------------------- 15-18
REMOTE CONTROL ---------------------------------------------- 18
CARE AND MAINTENANCE -------------------------------------------- 19-28
REPLACING THE FILTERS --------------------------------- 20-25
CLEANING THE UNIT ---------------------------------------- 26-28
TROUBLESHOOTING ---------------------------------------------------- 29-30
SCA14000 Cobalt Operation Manual

SCA14000 Cobalt Operation Manual
2
DISCLAIMER
A printed copy of all the electronic materials is included in the unit packaging.
Read the label on the unit and operating manual before use and make sure to follow all the precautions outlined in
the manual.
The manufacturer disclaims all liability for damage or injury incurred by disregarding the instructions in this
document, negligence in the installation, use, maintenance, or repair of the product identified in this document, or
by failure to strictly abide by these safety precautions and instructions.
The product's user is always totally responsible for adhering to any local safety laws and regulations that may be
in effect.
INTENDED USE
The SCA14000 Air Purifier is intended to remove particles from the air.
Using attachments, filters and/or any other components not recommended and approved by Surgically Clean Air™
will void the warranty.
For Commercial or Industrial Use Only.
DIRECTIONS FOR USE
Follow the instructions to ensure proper installation. The display panel will turn on and the “Surgically Clean Air™”
LED will light up if the unit is powered on.
DISPOSAL INSTRUCTIONS
Dispose of filters according to local regulations based on the location of use (e.g., medical waste if used in a medical
setting such as dental clinics, laboratories, etc.).

3
SAFETY PRECAUTIONS
FIRST AID INSTRUCTIONS
In case of injury, clean the area using soap and warm water, apply antibiotic ointment and a bandage, and seek
immediate medical attention.
FCC Warning Statements
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
commercial and residential installations. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate
the equipment.
This equipment complies with relevant RF radiation exposure limits set forth for a public/uncontrolled environment.
This equipment should be installed and/or operated with a minimum distance as below between the unit and your
body: 20cm.
This product will be mounted on the ceiling and is for fixed use only. The fixed operation requirement of Section
15.255(a)(2) is satisfied.
SCA14000 Cobalt Operation Manual

4
SAFETY PRECAUTIONS
ISED Warning Statements
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the
device.
This equipment complies with relevant RF radiation exposure limits set forth for a public/uncontrolled environment.
This equipment should be installed and/or operated with a minimum distance as below between the radiator and
your body: 20cm.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
Cet équipement est conforme aux limites d'exposition aux radiofréquences pertinentes établies pour un
environnement public ou non contrôlé. Cet équipement doit être installé et utilisé à une distance minimale telle que
précisée ci-dessous entre le radiateur et votre corps 20cm.
Group Installations
Any transmitter that is certified under this RSS may be mounted in a group installation for simultaneous operation
with one or more certified transmitters, without any additional equipment authorization. However, no transmitter
operating under the provisions of this section shall be equipped with external phase-locking inputs that permit
beam-forming arrays to be realized.
SCA14000 Cobalt Operation Manual

5
SAFETY PRECAUTIONS
OPERATING ENVIRONMENT CAUTIONS
•DO NOT place in rooms with high heat, damp, or wet places.
•DO NOT use outdoors.
•DO NOT use extension cord with this fan.
•Not for use in kitchens.
•DO NOT remove (or attempt to remove) any part of the unit except for the filters.
•Best operating environment is 50 -104 °F or 10 – 40 °C.
•Ensure the unit is level. Never use when it is tilted.
•Use only a 120-volt outlet with a grounding wire receptacle.
•To reduce the risk of electric shock, this equipment has a grounding-type plug that has a third (grounding) pin.
This plug will only fit into a grounding-type power outlet. If the plug does not fit into the outlet, contact qualified
personnel to install the proper outlet. DO NOT alter the plug in any way.
WARNING
–TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
a) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
b) Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. When the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as a tag, to the service panel.
SCA14000 Cobalt Operation Manual

6
SAFETY PRECAUTIONS
WARNING–THIS DEVICE SHOULD NOT BE USED IN A CONSTRUCTION ZONE. Extensive amounts of
particulates such as construction dust and debris will clog up the filter and impact the efficiency of the unit. If
construction needs to be conducted in an area where Cobalt units are installed, it is recommended that the unit is
turned off. After the construction is concluded in the area, units are to be vacuumed and filters replaced.
UNIT OPERATION CAUTIONS
•This manual's contents must be thoroughly understood by anyone working on or with the product. Operators and
personnel must adhere to the contents of this manual.
•Never change the sequence of the operations to be carried out.
•Always keep the manual in the vicinity of the product.
•DO NOT insert fingers or foreign objects into the intake or air outlet.
•Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
•In the event the machine starts to make excessive vibrations or noise, overheats, or starts to smell, stop using the
equipment immediately. Turn off the machine, disconnect the power and contact the manufacturer.
•DO NOT use the air purifier if the power cord or plug is damaged or the connection to the outlet is loose.
•When removing the plug, always hold the plug and never pull by the cord.
•DO NOT use the unit near hot objects, or where it may be exposed to steam or open flame.
•DO NOT obstruct the air inlets or outlets of the unit.
•To avoid the risk of fire, shock, and injury, DO NOT disassemble the unit. Contact a certified technician for service.
SCA14000 Cobalt Operation Manual

7
SAFETY PRECAUTIONS
WARNING
– TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT expose to water or rain.
– RISK OF FIRE OR ELECTRIC SHOCK, DO NOT use this equipment with any solid-state speed control device.
– TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, DO NOT use replacement part s
that have not been recommended by the manufacturer.
–TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND INJURY TO PERSONS, Cobalt unit must be installed
with brackets and screws that are marked in the installation manual to indicate the suitability with this model. Other
types of brackets and fasteners cannot be substituted.
–TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT bend the blade brackets when installing the brackets,
balancing the blades, or cleaning the fan. DO NOT insert foreign objects in between rotating fan blades.
–This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they DO
NOT play with the appliance.
–If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons
in order to avoid a hazard.
SCA14000 Cobalt Operation Manual

8
SAFETY PRECAUTIONS
CARE AND MAINTENANCE/ SERVICING CAUTIONS
WARNING
–RISK OF FIRE. Never operate the air purifier in a space that contains flammable gases. Never use the equipment
to extract or filter flammable, blazing or burning particles, chemicals, or liquids. Never use the unit to extract or filter
hostile vapors or sharp particles.
–RISK OF ELECTRIC SHOCK. These servicing instructions are for use by qualified personnel only. DO NOT perform
any servicing other than that contained in the operating instructions unless you are qualified to do so.
–HIGH VOLTAGE INSIDE. Disconnect power before installation, servicing or replacing filters.
CAUTION – AUTOMATICALLY OPERATED DEVICE –To reduce the risk of injury disconnect from power supply
before servicing.
SCA14000 Cobalt Operation Manual

9
HOW IT WORKS
When the fan motors are running, the indoor air will be drawn through the front of the unit. The air will then pass
through the Filters. The purified air is then released through the outlet on both ends of the unit.
TWO FILTRATION STAGES
1. PRE-FILTER
2. PARTICULATE FILTERS
SCA14000 Cobalt Operation Manual

10
FEATURES AND SPECIFICATIONS
This device features:
-Automatic Proximity Sensor On/Off
-Automatic Timer
-Remote Control
Model No . SCA14000–2x4
Power Requirement 120 VAC, 60 Hz
Rated Power 250 W, 2.1 A
Fan Motor 310 VDC, 0.98 A, 113 W
Dimensions (L) 1245.0 mm x (W) 636.0 mm x (H) 360.0 mm
Weight 45 kg
Model No . SCA14000–2x2
Power Requirement 120 VAC, 60 Hz
Rated Power 75 W, 1.1 A
Fan Motor 24 VDC, 1.14 A, 27.5 W
Dimensions (L) 636.0 mm x (W) 636.0 mm x (H) 255.0 mm
Weight 20.5 kg
SCA14000 Cobalt Operation Manual

11

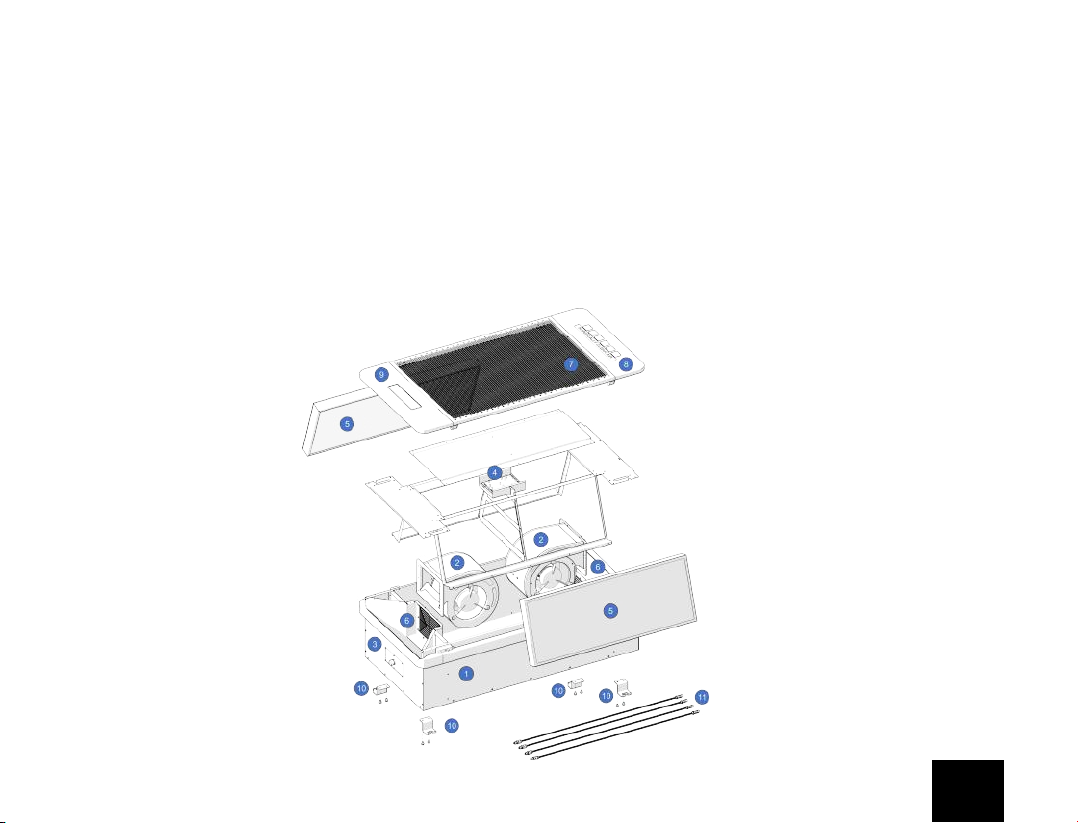

PART NAMES
1. Main Body
2. Motor and Fan
3. Electrical Power Box
4. PCB Board
5. Pre-Filter + HEPA Filter
6. Outlet Vents
7. Front Access Panel & Inlet Vent
8. "Surgically Clean Air™” Logo and LED
9. User Interface/ Display and
Touch Panel
10. Mount Bracket and Screws
11. Mounting Accessories
SCA14000 Cobalt Operation Manual

12
INSTALLATION REMARKS
The SCA14000 is designed to be installed as a fixed built-in unit by a qualified installer. In addition to the following
instructions the SCA14000 shall be installed:
•In the United States, in accordance with the National Electric Code/State, ANSI/NFPA 70 and Municipal codes
and/or local codes.
•In Canada, in accordance with the Canadian Electric Code C22.1 - latest edition/Provincial and Municipal codes
and/or local codes.
UNPACKING
While unpacking the product please follow the instructions and markings on the packaging.
INSPECTION
After unpacking the air purifier and prior to installation, thoroughly inspect the unit for freight or cosmetic damage.
Report any damage immediately.
SCA14000 Cobalt Operation Manual

13
INSTALLATION REMARKS
•The Cobalt unit can be hoisted from the concrete ceiling or the I-beam.
Please refer to the Installation Guide for detailed instructions.
•Ensure the unit is being installed level in both directions.
•A lubricant should not be used on any mounting screw.
•Follow ceiling tile system manufacturer instructions for integration
compatibility.
•Install the filters after the building is completely clean of construction
debris and dust.
•Be sure to remove any plastic wrapping from the HEPA filters
prior to installing them in the unit and operating the equipment.
ELECTRICAL SUPPLY
•The customer has the responsibility to ensure that the unit installation is in compliance with all national and
local electrical and building codes and ordinances including but not limited to ANSI/NFPA 70. The unit shall be
installed by a qualified electrician and properly grounded. The electrical supply which the unit is designed for is
120VAC, 60 Hz.
•The receptacle shall be accessible and connected to an external electrical circuit with a fuse or breaker rated
for 15.0 Amps. Receptacles shall be located to avoid physical damage to the power cord.
•No other appliances should be connected to the air purifier supply circuit.
SCA14000 Cobalt Operation Manual

14
INSTALLATION REMARKS
CHOOSING THE LOCATION
•Choose a location with the following conditions:
A. Indoor Space
B. Operating Temperature: 50 -104 °F (10 – 40 °C), Relative Humidity: <75%
•Built-in fixed units must be enclosed at the posterior and unobstructed from the front and all sides.
•For new installation, the work must be performed by a qualified installer.
•It is recommended that Cobalt unit is positioned centrally within a room. It is important that the intake side of
the unit is away from the supply of the HVAC system. To improve air quality in the room, the unit should circulate
and filter the existing air in the room, not the fresh air supplied by the HVAC system. Likewise, the position of
the output side of the unit should be away from the return ducts of the HVAC system. This is to ensure that the
clean air coming from the unit is not immediately taken out of the room by the HVAC system.
WARNING
–SUPPORT DIRECTLY FROM THE BUILDING STRUCTURE IF INSTALLED IN THE CEILING.
–TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS OBSERVE THE
FOLLOWING:
a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction.
b) When cutting or drilling into a wall or ceiling, DO NOT damage electrical wiring and other hidden utilities.
–MAKE SURE THE POWER IS OFF BEFORE ATTEMPTING INSTALLATION.
SCA14000 Cobalt Operation Manual

15
UNIT OPERATION
The power button light and “Surgically Clean Air™” LED will turn on when power button is pressed.
Use the button to adjust the fan speed.
When the unit is first turned on the fan speed is by default on Turbo. The display indicator will show the unit
speed.
(Press button after the unit is first turned on) the proximity sensor will be activated.
On Proximity Mode the unit will operate on a set speed and will turn itself on/off depending on movements
and motions in the vicinity of the unit.
(Press to turn on the unit) Fan speed is on Turbo
(Press one time) Fan speed is on 'Low'
(Press second time) Fan speed is on 'Medium'
(Press
third time) Fan speed is on 'High'
(Press fourth time) Fan speed is on 'Turbo'
button for 5 seconds will lock the control panel at the selected settings.
button for 5 seconds will lock the proximity sensor operation.
button for 10 seconds will reset the filter timer and flashing “Surgically Clean Air™” LED.
Pressing and holding the
Pressing and holding the
Pressing and holding the
SCA14000 Cobalt Operation Manual

16
UNIT OPERATION
Pressing the will turn the control panel and “Surgically Clean Air™” LED on/off.
Pressing the will activate the timer, the unit will shut off after set time is passed, set time is shown on the
control panel. The timer can cycle between 2, 6, 12, and 24 hours.
(Press one time to set the timer) Timer is to ‘2 hours’
(Press second time) Timer is set to '6 hours'
(Press third time) Timer is set to '12 hours'
(Press
fourth time) Timer is set to '24 hours'
SCA14000 Cobalt Operation Manual

17

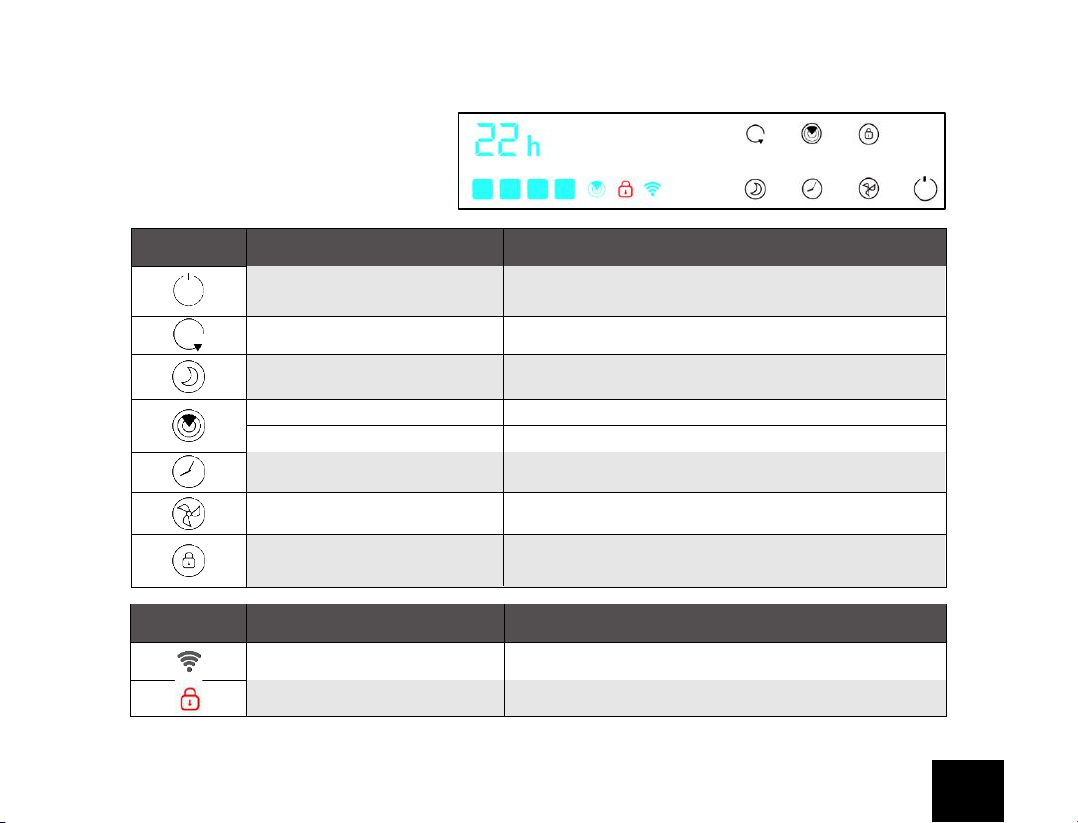

UNIT OPERATION
ICON INDICATORS STATUS
Solid Light Proximity Sensor Detected Movement/ Motion
Solid Light Control Panel is Locked
ICON ACTION RESPONSE
Press ON/OFF
Press and hold for 10 seconds Reset Filter Timer After Replacement
Press Turn Control Panel and “
Surgically Clean Air™”
LED
ON/OFF.
Press Proximity Sensor is ON
Press and hold for 5 seconds Proximity Sensor Stays ON as Default
Press Activate and Cycle Through Timer
Press Activate and Cycle Through Fan Speed
Press and hold for 5 seconds Lock Control Panel at the Selected Settings
SCA14000 Cobalt Operation Manual

18
UNIT OPERATION
REMOTE CONTROL
The unit is supplied with a Remote Control that operates similar to the unit’s control panel.
ICON ACTION RESPONSE
Press ON/OFF
2 | 6 | 12 | 24 Press Activate Timer for 2, 6, 12, 24 hours
Press Turn Control Panel and “Surgically Clean Air™”
LED ON/OFF
Press Proximity Sensor is ON
Press Set Default Fan Speed
Press Set Timer ON/OFF
Press Reduce Fan Speed
Press Increase Fan Speed
Press and hold for 5 seconds Lock Control Panel at the Selected Settings
SCA14000 Cobalt Operation Manual

19
CARE AND MAINTENANCE
To maintain optimum performance of this air purifier, the filters need to be replaced when “Surgically Clean
Air™” LED flashes (Breathing Flash). If the device is operating in an atmosphere with heavy dust,
particulate, or pet dander, you may need to periodically vacuum the pre-filters for optimal performance.
CAUTION
•DO NOT clean the filters and any other parts with liquid, especially alcohol, gasoline, paint thinner, etc.
It may cause a risk of fire!
•Make sure all the filters are installed properly before operating the unit.
•When conducting maintenance on the unit, be sure the unit is turned off and the plug is disconnected
from the outlet.
•Never handle the plug with wet hands. If so, electrical shock and bodily injury may occur as a result.
SCA14000 Cobalt Operation Manual
