Contents:
1. Introduction........................................................................................ 6
1.1 Bluetooth technology.................................................................... 6
1.2 Bluetooth Handsfree speaker....................................................... 6
1.3 Product features........................................................................... 6
1.4 Package content .......................................................................... 7
1.5 Overview ...................................................................................... 7
1.6 Key press duration definitions...................................................... 7
2. Using your handsfree ........................................................................ 8
2.1 Battery charging and usage ......................................................... 8
2.1.1 Battery Charging................................................................ 8
2.1.2 Battery Information ............................................................ 8
2.2 Mounting your Handsfree.................................................................... 8
2.3 Turn on/off handsfree.......................................................................... 9
2.4 Pairing/connecting your handsfree with bluetooth equipment ..... 9
2.4.1 Pairing your Handsfree with Bluetooth handset................ 10
2.4.2 Pairing your Handsfree with Other Bluetooth Equipment.. 11
2.4.3 Erase all paired profiles..................................................... 11
2.4.4 Connecting/Disconnecting your Handsfree with Bluetooth
Equipment ......................................................................... 11
2.5 Call functions....................................................................................... 12
2.5.1 Call..................................................................................... 12
2.5.2 Adjusting Handsfree Volume............................................. 12
2.5.3 Mute................................................................................... 12
2.5.4 Transferring Calls to/from Your Handset........................... 12
2.5.5 Voice Dialing...................................................................... 12
2.5.6 Advanced Call Functions .................................................. 12
3. Maintenance ..................................................................................... 13
4. Important messages and frequently asked questions ................. 14
5. Waranty terms ................................................................................... 15
6. USA waranty terms ........................................................................... 16
Fonexion Manual VV900.indd 5 4/7/07 12:03:47

VV900
6
1. Introduction
1.1 Bluetooth Technology
Bluetooth is an internationally standardized technology supporting short
distance wireless communications. Any two Bluetooth-compatible equipments,
such as mobile phone, PDA PC, headset, mouse, keyboard, printer, etc. can
wirelessly communicate with each other via Bluetooth connection. To ensure
worldwide compatibility, Bluetooth operates on the globally available ISM
(Industrial Scientific and Medical) frequency band. Within 2.4 GHz and 2.48
GHz, Bluetooth transmits data up to either 10 meters (CLASS II mode) or 100
meters (CLASS I mode) using 79 frequency hopping channels.
Though line-of-sight is not required, Bluetooth connections could be subject
to interferences from obstructions such as walls, human bodies, and other
electronic devices. In addition, due to variations on product implementation,
it is likely that Bluetooth equipments from different manufactures have
interoperability issues. In that case, you may consult with manufactures to
check product compatibility.
Note that, there could be some restrictions imposing on using Bluetooth devices
in some countries. Please check with your local authorities.
1.2 Bluetooth Handsfree Speaker
This Bluetooth product is a specially designed BlueToneTM series product
allowing car drivers to make and receive calls without holding a mobile phone.
It provides a clean wireless audio connection with your Bluetooth mobile phone
and PDA. The product can also be used in the office or home, besides of vehicle
environment.
In addition to vehicle environment applications, this portable equipment,
supported by an internal rechargeable Li-ion battery, can also be used in office
environment as a normal handsfree equipment to make/receive phone calls
without bothering holding the mobile handset. It can also be placed beside a
Bluetooth-enabled PC to make voice calls over the Internet.
1.3 Product Features
Bluetooth v1.2 compliant, interference-tolerable with WLAN devices
Class II, operation range up to 10 meters
Best-in-class voice quality ensured by cutting-edge noise suppression and
echo cancellation techniques
Voice dialing and user friendly operation keys ideal for car drivers to make/
=
=
=
=
Fonexion Manual VV900.indd 6 4/7/07 12:03:48

VV900
7
receive calls
Supports call waiting/conference functions
Voice security ensured by using 128-bit encryption
Better portability with internal rechargeable Li-ion battery
Talk/standby time up to 5.5/500 hours with internal battery
Easy-to-mount with stylish mounting dock, Sun-visor Clip, hang-strip, and
Double-side Sticker
Robust performance, fast connection, accurate and sensible search of
devices in range
Stylish, portable, lightweight, mini-sized, suitable for vehicle and office
environment
1.4 Package Content
VV900 1
Mounting dock(Optional) 1
Double-side Sticker 1
Sun-visor Clip(Optional) 1
12/24V Car Charger USB Charging cable 1
Hanging Strip(Optional) 1
User Manual 1
1.5 Overview
1. Speaker
2. Red/Blue LED: for indicating device status
3. Button K1: for turning on/off device
4. Button K2: for receive/end call
5. Button K3: for adjusting speaker volume up
6. Button K4: for adjusting speaker volume down
7. Microphone: for picking up your voice
8. Charging Port: for connecting to the travel (or car) charger to charge the
battery of device
=
=
=
=
=
=
=
1. Speaker
Figure 1. VV900 Overview
2. Red/Blue LED
3. Button K4
4. Button K3 5. Button K2
6. Button K1
7. Microphone
8. Charging Port
Fonexion Manual VV900.indd 7 4/7/07 12:03:48

VV900
8
1.6 Key Press Duration Denitions
Short press (SP): press and release a button quickly.
Long press (LP): press and hold a button for at least 3 seconds, then
release.
Very long press (VP): press and hold a button for at least 6 seconds, then
release.
2. Using Your Handsfree
2.1 Battery Charging and Usage
2.1.1 Battery Charging
This device contains a rechargeable Li-Polymer battery. First-time charging
time is about 4 hours. Later-on recharging time is around 2-3 hours. Detailed
charging procedures as follows:
1. Connect the car charger to the cigarette lighter.
2. Referring to Figure 2, plug the connector of the charger to handsfree’s
charging port to start charging. Both the Red and Blue LEDs will be on during
charging. Once the Red LED turns off, the battery is fully charged and you
should disconnect the charger from the handsfree and the power outlet.

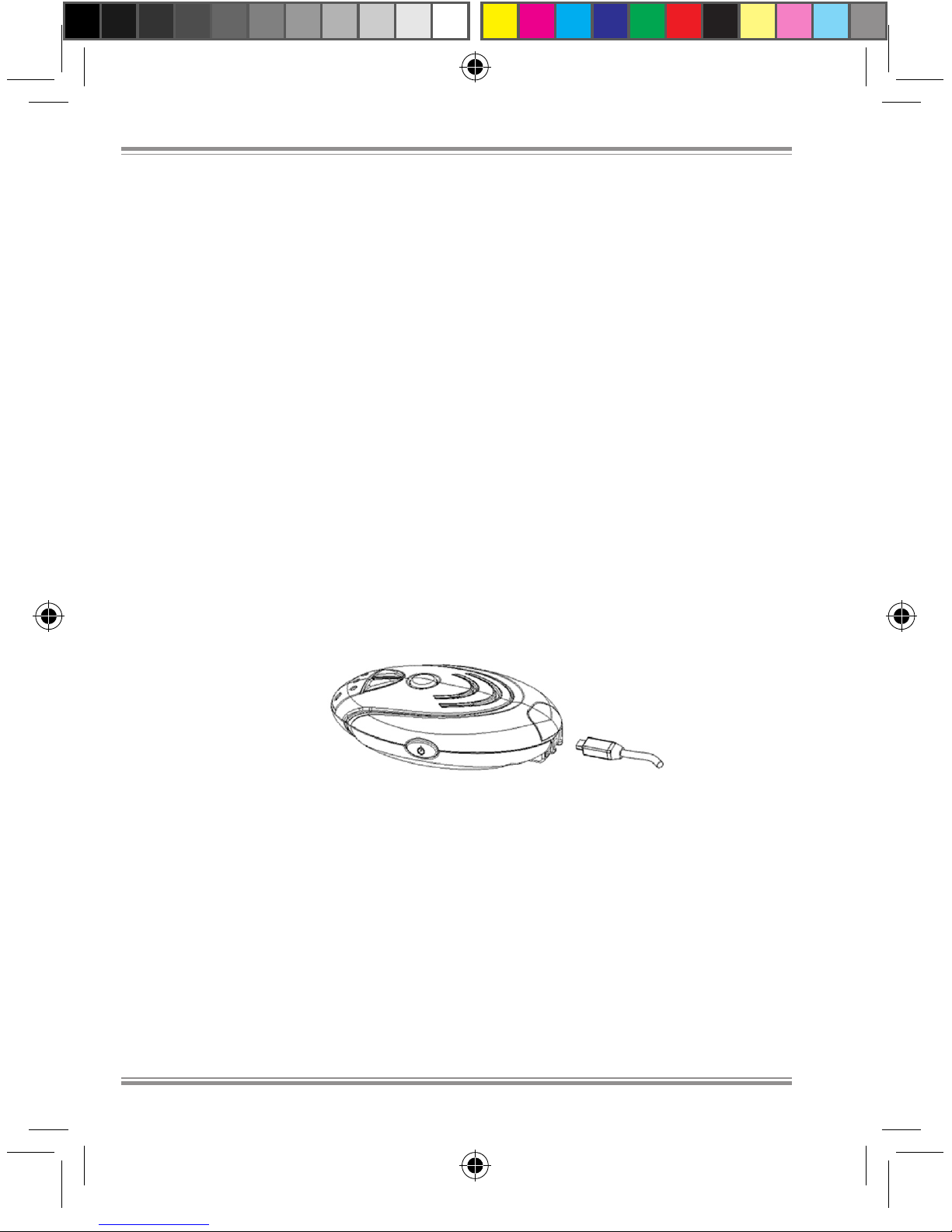

Figure 2. Battery Charging
2.1.2 Battery Information
1. Once fully charged, the battery supports continuous talk time up to 5.5 hours
and standby (i.e. the device is power on but without connection) time about
500 hours.
2. When the battery is low, the device beeps once every 20 seconds and
the Blue and Red LEDs alternate every 3 seconds, charge the battery as
described above.
Note that, over-charging will reduce battery life. If a fully charged battery is left
unused, it will lose power over time. Extreme temperature (either too hot or too
could) will also affect its ability to charge, capacity, and life time.
=
=
=
Fonexion Manual VV900.indd 8 4/7/07 12:03:49

VV900
9
2.2 Mounting your Handsfree
It is easily to mount on the dash board of the car with mounting dock and double-
side sticker, or use Sun-visor Clip to fix the Handsfree device on the sun-visor
over driver’s seat. It can be more flexible to use the Handsfree in the car or
carry out to the office and home
Fixing VV900.
1. Plug the part 1 to the inlet, then tear the paper off the Double-side Sticker,
paste the mounting dock on the right place on the vehicle. Put the device in
the mounting dock. Note that, the charging port which is on the device and
the gap which is on the mounting dock must at the same direction. (Referring
to Figure 3).
2. If using the Air conditioner Clip, insert the clip in the air conditioner air outlet
in the car. Note that, the microphone of the Handsfree can’t aim at the air
conditioner air outlet to avoid noise in talking mode. (Referring to Figure 4).
3. Referring to Figure 8, fix the mounting dock and the Sun-visor Clip, then clip
to the sun visor in your car. Note that, the microphone of the Handsfree must
aim at the sound bearing. (Referring to Figure 5).

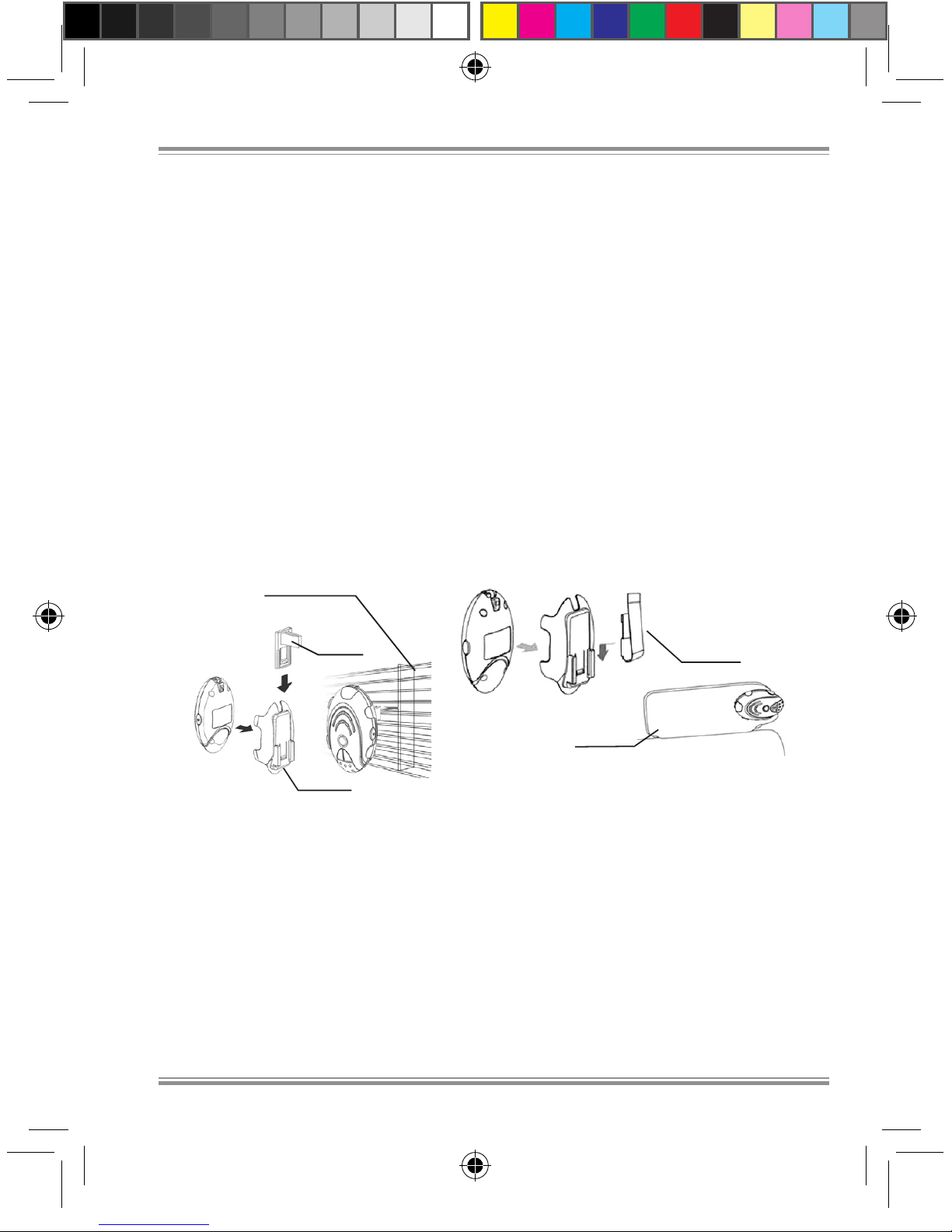

Figure 4. Fixing the Clamp Figure 5. Fixing the Sun-visor Clip
2.3 Turn On/Off Handsfree
Turn on the Handsfree: Long press K1, you will hear 2 power-up tones, Blue
LED gives 3 quick blinks then Blue LED gives 1 blink per 3 seconds; Red LED
is off. This indicates the handsfree is power on.
Turn off the Handsfree: Long press K1, you will hear 2 power-down tones, Red
LED will blink 3 times then all LEDs are off. This indicates the handsfree is
power off.
Sun visor
clip
Sun visor
Air conditioner air
outlet
Mounting
dock
Fonexion Manual VV900.indd 9 4/7/07 12:03:50

VV900
10
2.4 Pairing/connecting your handsfree with bluetooth equipment
2.4.1 Pairing your Handsfree with Bluetooth handset
Before making and answering calls, you must pair your handsfree and phone.
Paring sets up a unique relationship between your handsfree and your handset.
The handset will memorize the handsfree’s unique ID (or passkey). This ensures
that a unique and encrypted wireless link between your handsfree and handset
will be used during calls.
Detailed operation procedures are as follows:
1. Place your handsfree close to your Bluetooth handset, and ensure your
handsfree is power off, your handset is power on
2. Press and hold K1 for at least 6 seconds until the Blue and Red LEDs
alternate continuously. You will hear 2 power-up tones and a pairing tone to
indicate that the handsfree has successfully entered the paring mode
3. Following your phone user guide to active Bluetooth device search on the
phone side, on your phone screen you will see a list of Bluetooth equipment
found by the phone at the end of the searching process.
4. Select this Bluetooth Handsfree ’VV900’ from the list and initiate pairing
following handset’s on-screen prompts.
5. Continue to follow on-screen prompts to enter passkey “0000”and confirm
to pair the handsfree with your handset. Once the pairing procedure is
completed, you will hear a connecting tone, and then Blue LED gives 3
quick blinks per 2 seconds. This indicates that the handsfree device and the
handset are paired and connected.
Note:
1. If pairing is successful, handsfree’s Red LED is off. The Blue LED gives 3
quick blinks per 2 seconds. If paring is failed the Blue and Red LEDs alternate
continuously (for about 2 minutes). You need to go back to above steps 3-5
to repeat the paring process.
2. Your handsfree will remain in the pairing mode for about 2 minutes. If paring
cannot be finished within 2 minutes, the handsfree will enter into the standby
mode (without Bluetooth connection in this case). You need to repeat the
above steps 2-5 to restart the pairing process.
2.4.2 Pairing your Handsfree with Other Bluetooth Equipment
In addition to Bluetooth phone, your handsfree can also pair with other Bluetooth
equipment for realizing short distance wireless communications. Similar pairing
procedures described in the previous Section can be used. You can follow the
user guide of the Bluetooth equipment to complete paring operations on the
equipment side.
Fonexion Manual VV900.indd 10 4/7/07 12:03:50

VV900
11
This handsfree can paired with up to 8 Bluetooth equipments (including mobile
handsets). The corresponding 8 sets of pairing information are recorded by
the handsfree. Each paired equipment can wireless communicated with the
handsfree after setting up a Bluetooth connection. Please check Section 2.4.4
on procedures to set up a Bluetooth connection.
2.4.3 Erase all paired proles
This handsfree can paired with up to 8 Bluetooth equipments. When Handsfree
in the Paring Mode, long press K4, it will erase all paired profiles and quit pairing
mode. At this time, Blue LED gives 1 blink per 3 seconds.
2.4.4 Connecting/Disconnecting your Handsfree with Bluetooth
Equipment
When working with a bluetooth equipment using HFP, your handsfree cannot
communicate with the equipment without bluetooth connection established in
advance.
Connecting your Handsfree with Bluetooth Handset:
Bluetooth connection can be set up by initiating request from either the
handsfree or the handset, detailed operations are as follows:
1. Initiating connection request from the Handsfree: Place the handsfree close
to the Bluetooth handset and then short press K2.
2. Initiating connection request from the Bluetooth handset: Place the handsfree
close to the Bluetooth handset and then follow the handset user guide to find
the handsfree and send connection request.
After connecting, you will hear a connecting tone, and then Blue LED gives 3
quick blinks per 2 seconds
Disconnecting your Handsfree with Bluetooth Handset:
When handsfree connected with bluetooth handset, you can disconnect them
as follows:
1. Long press K2.
2. Refer to handset’s manual to initiate the connection from the handset side.
After disconnecting, you will hear a disconnecting tone, and then Blue LED
gives 1 blink per 3 seconds.
Fonexion Manual VV900.indd 11 4/7/07 12:03:51

VV900
12
2.5 Call Functions
2.5.1 Call
Before dialing, both your handsfree and handset must be power on. And you
also need to ensure your handsfree and handset has been linked with Bluetooth
connection.
Answer Call: Short press K2.
Reject Call: Long press K4.
End Call: Short press K2.
Redial: Long press K3.
The Blue LED gives 3 quick blinks per 2 seconds and the Red LED is off.
2.5.2 Adjusting Handsfree Volume
In the talking mode, you can short press K3/K4 to increase/decrease your
speaker volume, and the Blue LED gives 3 quick blinks per 2 seconds; Red
LED is off. You can repeat the above operation to speaker volume to a desirable
level.
Note: For most Bluetooth headset, handsfree volume control will synchronize
with the handset. That is, your handsfree volume can also be controlled your
handset, vice versa. However, this may not be always true due to variations on
handset implementations chosen by different manufactures.
2.5.3 Mute
You can mute or un-mute an ongoing call by simultaneously quick pressing K3
and K4. The Blue LED gives 3 quick blinks per 2 seconds and the Red LED is
off.
2.5.4 Transferring Calls to/from Your Handset
Transferring calls to your handset: long press K2, Blue LED gives 1 blink per 3
seconds; Red LED is off.
Transferring calls from your handset: short press K2, and Blue LED gives 3
quick blinks per 2 seconds; Red LED is off.
2.5.5 Voice Dialing
If your mobile phone supports voice dialing, you can make a call via voice
dialing from your Handsfree:
Voice Dialing: Long press K4 you will hear key tone and Blue LED gives 3
quick blinks per 2 seconds, then follow your handset user guide to complete
voice dialing.
Cancel Voice: Dialing Short press K4. The Blue LED gives 3 quick blinks per 2
seconds and the Red LED is off.
Fonexion Manual VV900.indd 12 4/7/07 12:03:51

VV900
13
2.5.6 Advanced Call Functions
If your mobile phone has call waiting/conference functions, this Bluetooth
Handsfree can support the function by following operations:
1. A new call comes in, While you are in talk:
1) Long press K3, to hold active call and accept incoming call.
2) Short press K2, to end active call and answer new call.
2. When two calls come in, one is active and the other is on hold:
1) Long press K3, to toggle hold call and active call.
2) Short press K2, to end active call and accept hold call.
3) Long press K4, to make conference.
The Blue LED gives 3 quick blinks per 2 seconds and the Red LED is off.
3. Maintenance
VV900 are well-designed communications devices, careful maintenance and
proper use will extend the product life and keep their elite performance in
delivering voice. Following maintenance procedures may be helpful to you：.
Always turn off power and keep your device in a safe place when it is not
in use.
Keep the device dry, away from water, precipitation, humidity, moisture, and
various liquids which may corrode electronic circuits. If your device gets wet,
turn it off immediately and wait until the device gets dry completely before
using it.
Keep the device away from dusty and dirty places. Otherwise, the mechanic
and electronic parts could be damaged.
Do not store the device in high temperatures (above 85 or 185) or in direct
sunlight. Extreme high temperature could degrade performance, reduce
battery lifetime, and wrap or melt the certain plastics.
Do not store the device in too cold place (under -40 or 40). Moisture could
form inside the device when you take it to a warm place. This could damage
the internal electronic circuits.
Avoid dropping, knocking, and shaking the device. The mechanical parts and
the internal electronic circuits could be broken.
Avoid using hash chemicals, cleaning solvents, and any other strong
detergent to clean the device. You may use a clean and slightly damp cloth
to clean the device.
Always take to device to the nearest authorized service facility for repairing
if it is malfunctioning. disassembling, modifying, and replacing components
yourself could degrade product performance, cause damages, and terminate
warranty.
=
=
=
=
=
=
=
=
Fonexion Manual VV900.indd 13 4/7/07 12:03:51

VV900
14
4. Important Messages and Frequently Asked Questions
1. Except handsets, what kind of devices can the handsfree communicate
with?
Besides pairing with a handset for receiving and making phone calls, the
handsfree can also communicate with PDA and computer that equipped with
Bluetooth. For examples, when communicating with a computer (through a USB
Dongle) users can chat and/or listen music over the internet.
2. Red LED blinking
Low battery indicator; please recharge your battery as soon as possible.
3. Can’t power up the device after charging more than 20 minutes:
For the first time, the device should be charged at least 40 minute prior tuning
on, it is recommended that the battery should be fully charged before using the
device.
4. Without charging indicator:
When the battery runs off or the handsfree has not been used for a while, the
Red LED may take a while to light up after the charger connected.
5. Can’t hear anything on handsfree you should check the followings
Handsfree is power on
Handsfree has paired with a handset
Handsfree should connected with a handset (except the handset only
supports Handsfree Profile
Handsfree and handset are within 10m
Handsfree and handset should have good single strength
6. How many devices can a handsfree pair with?
Handsfree can pair with up to 8 devices, please refer section 2.4.2 for details.
7. Handsfree can not be found when a handset tries to pair with it?
Your handsfree may not be in the pairing mode, please refer section 2.4.1 for
details.
8. Do the paired handsfree or the paired handset need to be repaired
power off?
No. Please note that for the handset supports handsfree profile, the handsfree
and the handset must be connected first, refer section 2.4.4 for details
9. Voice dialing does not work
First check the handset supports voice dialing function; make sure you have
recorded the voice tag. Please note that noisy environment will affect voice
dialing
=
=
=
=
=
Fonexion Manual VV900.indd 14 4/7/07 12:03:52

VV900
15
10. Can’t realize any functions
In the course of using, sometimes the Handsfree can not work property by some
wrong operations. At this time, connect the charger to the power outlet, plug the
mini USB connector of the charger to handsfree’s charging port to start charging
for a few seconds. Then release the charger from the handsfree and the power
outlet, and turn on the handsfree to restart.
5. WARRANTY TERMS
This product has a 24 month warranty* starting from the date of purchase. Only
warranty applications which are accompanied by the sales invoice shall be
taken into consideration.
* Or the warranty which is legally applicable in each country.
The warranty shall not be valid in the following cases:
·Documents which are illegible or voluntarily modified.
·Where the series number has been modified or is illegible.
·Where the product has been misused or modified by unauthorised personnel.
·Where the product has been damaged owing to misuse or negligence, in
addition to any damage deriving from storage or shipment thereof.
·In the event of force majeure.
Other warranty terms.
Any shipment costs attached to this warranty shall be met by the consumer.
This item is NOT waterproof
The warranty does not cover damaged caused by immersion in water or
other liquids
Fonexion Manual VV900.indd 15 4/7/07 12:03:52

VV900
16
WARRANTY CERTIFICATE
Only valid if accompanied by receipt of purchase N.�N.�
MODEL
Series No.
Date of purchase:
STAMP OF THE PLACE OF PURCHASE
Name and surnames: ....................................................................................: ....................................................................................
Address: ........................................................................................................: ........................................................................................................
Postcode: ....................................... City: .......................................................: ....................................... City: .......................................................City: .......................................................: .......................................................
Province: ......................................... Tel.: .......................................................: ......................................... Tel.: .......................................................Tel.: ........................................................: .......................................................
This certificate must be stamped within 8 days following purchase.
Fonexion USA
3820 SW 30th Ave
Ft.Lauderdale, FL 33312
USA
Fonexion SPAIN
C/Idorsolo 1
48160 Derio - Vizcaya
SPAIN
Fonexion Manual VV900.indd 16 4/7/07 12:03:52

VV900
17
Fonexion Manual VV900.indd 17 4/7/07 12:03:53

VV900
18
Fonexion Manual VV900.indd 18 4/7/07 12:03:54

VV900
19
Manos Libres con Bluetooth
Manual de usuario
Modelo
Fonexion Manual VV900.indd 19 4/7/07 12:03:55

VV900
20
Declaración:
La empresa se reserva el derecho a realizar cualquier cambio y mejora en el
producto descrito en este documento sin previo aviso.
Nota:
Por favor, asegúrese que su teléfono móvil soporta perles Bluetooth, y que su operador de
telefonía soporta las funciones descritas en este manual. De otro modo no se podrán realizar
funciones en este aparato.
Certicado y aprobaciones de seguridad
Este producto ha sido probado y certificado de acuerdo con los requisitos del
organismo de cualificación Bluetooth (BQB), la sección 15 de las normas de la
FCC, la Directiva R&TTE (99/5/CE) o los requisitos del marcado CE.
Advertencia: Los usuarios no deberán realizar cambios en el aparato ni
modificarlo en modo alguno. Los cambios o modificaciones realizados sin la
aprobación expresa del fabricante original, anularán la facultad del usuario para
utilizar el aparato.
Seguridad
Utilice el cargador suministrado con este equipo.
Compruebe las leyes y reglamentos sobre el uso de teléfonos móviles y
equipos de manos libres en las zonas donde conduzca. Preste siempre
una atención absoluta a la conducción; y hágase a un lado de la carretera
y estacione antes de realizar o contestar una llamada si las condiciones de
tráfico así lo exigen.
No permita a los niños jugar con el manos libres Bluetooth para coche, ya
que contiene piezas pequeñas que podrían desprenderse y constituir peligro
de asfixia.
Este aparato contiene una batería de polímero de litio. Por favor, manténgala
alejada del fuego en todo momento (incluso al deshacerse del aparato), ya
que de lo contrario la batería podría explotar.
El manos libres, y en especial la batería incorporada, deben ser correctamente
desechados o reciclados. Diríjase a los centros de reciclado locales para
conocer las formas de desecharlos.
=
=
=
=
=
Fonexion Manual VV900.indd 20 4/7/07 12:03:55
