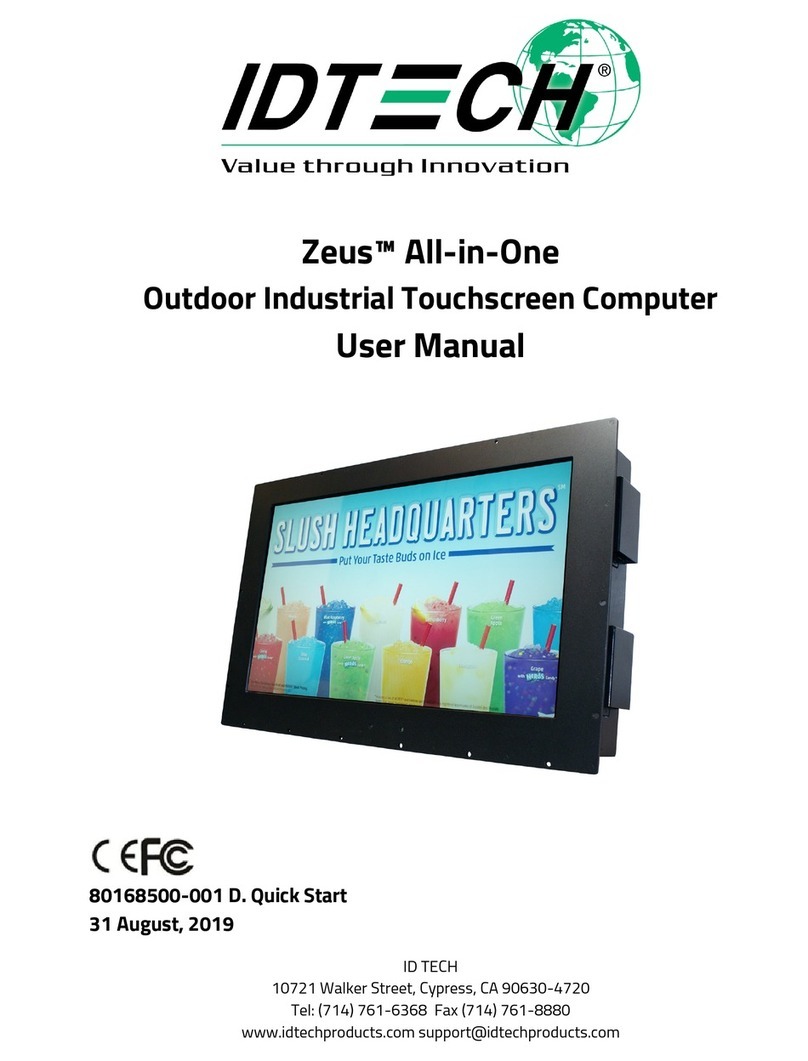

IDTECH ZEUS IDDD-21520 Instruction manual

Zeus™
Outdoor Touchscreen Computer
Quick Start Manual

2
FCC WARNING STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
FCC COMPLIANCE STATEMENT
This device complies with Part 15 of the FCC Rules. Operation of this device is subject
to the following conditions: this device may not cause harmful interference and this
device must accept any interference received, including interference that may cause
undesired operation.
CE STANDARDS
An independent laboratory performed testing for compliance to CE requirements. The
unit under test was found compliant to Class B.
ID TECH is a registered trademark of International Technologies & Systems
Corporation. Zeus and Value through Innovation are trademarks of International
Technologies & Systems Corporation.
USB (Universal Serial Bus) Specification is Copyright by Compaq Computer
Corporation, Intel Corporation, Microsoft Corporation, and NEC Corporation.

3
LIMITED WARRANTY
ID TECH warrants to the original purchaser for a period of 12 months from the date of
invoice that this product is in good working order and free from defects in material and
workmanship under normal use and service. ID TECH’s obligation under this warranty
is limited to, at its option, replacing, repairing, or giving credit for any product which has,
within the warranty period, been returned to the factory of origin, transportation charges
and insurance prepaid, and which is, after examination, disclosed to ID TECH’s
satisfaction to be thus defective. The expense of removal and reinstallation of any item
or items of equipment is not included in this warranty. No person, firm, or corporation is
authorized to assume for ID TECH any other liabilities in connection with the sales of
any product. In no event shall ID TECH be liable for any special, incidental or
consequential damages to purchaser or any third party caused by any defective item of
equipment, whether that defect is warranted against or not. Purchaser’s sole and
exclusive remedy for defective equipment, which does not conform to the requirements
of sales, is to have such equipment replaced or repaired by ID TECH. For limited
warranty service during the warranty period, please contact ID TECH to obtain a Return
Material Authorization (RMA) number & instructions for returning the product.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE. THERE ARE NO
OTHER WARRANTIES OR GUARANTEES, EXPRESS OR IMPLIED, OTHER THAN
THOSE HEREIN STATED. THIS PRODUCT IS SOLD AS IS. IN NO EVENT SHALL
ID TECH BE LIABLE FOR CLAIMS BASED UPON BREACH OF EXPRESS OR
IMPLIED WARRANTY OF NEGLIGENCE OF ANY OTHER DAMAGES WHETHER
DIRECT, IMMEDIATE, FORESEEABLE, CONSEQUENTIAL OR SPECIAL OR FOR
ANY EXPENSE INCURRED BY REASON OF THE USE OR MISUSE, SALE OR
FABRICATIONS OF PRODUCTS WHICH DO NOT CONFORM TO THE TERMS AND
CONDITIONS OF THE CONTRACT.
The information contained herein is provided to the user as a convenience. While every
effort has been made to ensure accuracy, ID TECH is not responsible for damages that
might occur because of errors or omissions, including any loss of profit or other
commercial damage, nor for any infringements or patents or other rights of third parties
that may result from its use. The specifications described herein were current at the
time of publication, but are subject to change at any time without prior notice.
ID TECH
10721 Walker Street
Cypress, CA 90630
[phone]
www.idtechproducts.com

4
1.0 Introduction
ID TECH’s Zeus Digital Display is an outdoor all-in-one touchscreen computer that is
built to withstand harsh outdoor environments. The touchscreen uses infrared
technology to support operation by virtually any type of physical touch, whether it is a
finger, stylus, or even a gloved hand, and the built-in webcam offers additional
opportunities for customer interactions. With an array of different options such as Dual-
Band WiFi, LAN, USB, RS232, and Bluetooth, the Zeus Digital Display is an ideal
solution for a variety of applications.
Model Number designation
Zeus IDDD-21520
2.0 Default System Settings
Default System Settings
Language
English
Time and Currency Format
English (United States)
Keyboard/ Input Method
United States
User Name
Administrator
Computer Name*
IDDD-21520
Account Password
No Password
Windows Update Preferences
Automatic updated turned off
Time Zone, Date & Time
UTC-08:00, Pacific Time
All parameters can be changed through the Control Panel.
* To change the Computer Name, go to the Control Panel and select System. Under
Computer Name, Domain, and Workgroup Settings select Change Settings. Under the
Computer Name tab type in the new computer name in the Computer Description field
and then click OK.

5
3.0 Specifications
Screen
Active Screen Size: 21.5 inches
Display Area: 18.77 inches x 10.56 inches (476.64mm x 268.11mm)
Display Colors: 16.7M colors
Resolution: 1920 x 1080 max
System Brightness: 1,000 nits, sunlight readable
Backlight: LED
Touch Screen: Infrared
Electrical
Operating System: Windows
Processor: Intel Atom Processor N2800
Speed: 1.86 GHz
Memory: 2GB RAM (4GB maximum)
Storage: 60GB Solid-State Drive
Webcam: 2.0 megapixel
I/O: USB 2.0 (x3), RS232 COM Port, 1 Gigabit Ethernet
Port, Dual-Band WiFi, Bluetooth 4.0
Environmental
Operating Temperature: -40° F to 140° F ( -40° C to 60° C ) with built-in heater
Humidity: 5-90% non-condensing
Reliability
Warranty: One year, Optional extended warranty up to four
years
Approvals: FCC, CE, UL
Mechanical
Dimension (L)x(W)x(H): 22.60 in. (574mm) x 3.27 in. (83mm) x 14.06 in.
(357mm)
Weight: 16.53 lbs (7.5 KG)
Color: Black
IP Rating: IP 65 (front)
Mounting: VESA 200
Software
OS: Windows Embedded POSReady 7
Warning: There are no serviceable components inside the Zeus. Opening up the Zeus
device voids the warranty.

6
ID TECH
10721 Walker Street
Cypress, CA 90630
[phone]
80168500-001-A www.idtechproducts.com R02/15
