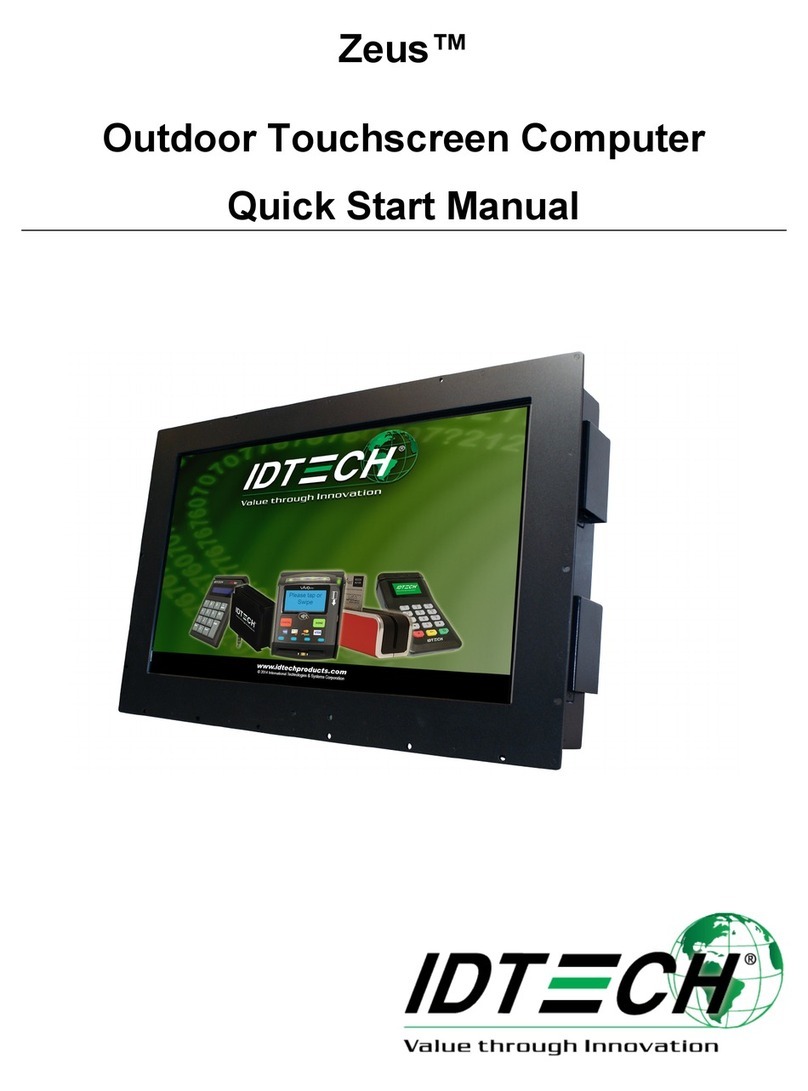

Zeus™ All-in-One
Outdoor Industrial Touchscreen Computer
User Manual
80168500-001 D. Quick Start
31 August, 2019

Zeus All-In-One User Manual
Page | 2
ID TECH
10721 Walker Street
Cypress, CA 90630
(714) 761-6368
www.idtechproducts.com
LIMITED WARRANTY
ID TECH warrants to the original purchaser for a period of 12 months from the date of invoice that
this product is in good working order and free from defects in material and workmanship under
normal use and service. ID TECH’s obligation under this warranty is limited to, at its option, replacing,
repairing, or giving credit for any product which has, within the warranty period, been returned to the
factory of origin, transportation charges and insurance prepaid, and which is, after examination,
disclosed to ID TECH’s satisfaction to be thus defective. The expense of removal and reinstallation of
any item or items of equipment is not included in this warranty. No person, firm, or corporation is
authorized to assume for ID TECH any other liabilities in connection with the sales of any product. In
no event shall ID TECH be liable for any special, incidental or consequential damages to purchaser or
any third party caused by any defective item of equipment, whether that defect is warranted against
or not. Purchaser’s sole and exclusive remedy for defective equipment, which does not conform to
the requirements of sales, is to have such equipment replaced or repaired by ID TECH. For limited
warranty service during the warranty period, please contact ID TECH to obtain a Return Material
Authorization (RMA) number & instructions for returning the product.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
PARTICULAR PURPOSE. THERE ARE NO OTHER WARRANTIES OR GUARANTEES, EXPRESS OR
IMPLIED, OTHER THAN THOSE HEREIN STATED. THIS PRODUCT IS SOLD AS IS. IN NO EVENT SHALL
ID TECH BE LIABLE FOR CLAIMS BASED UPON BREACH OF EXPRESS OR IMPLIED WARRANTY OF
NEGLIGENCE OF ANY OTHER DAMAGES WHETHER DIRECT, IMMEDIATE, FORESEEABLE,
CONSEQUENTIAL OR SPECIAL OR FOR ANY EXPENSE INCURRED BY REASON OF THE USE OR
MISUSE, SALE OR FABRICATIONS OF PRODUCTS WHICH DO NOT CONFORM TO THE TERMS AND
CONDITIONS OF THE CONTRACT.
The information contained herein is provided to the user as a convenience. While every effort has
been made to ensure accuracy, ID TECH is not responsible for damages that might occur because of
errors or omissions, including any loss of profit or other commercial damage, nor for any
infringements or patents or other rights of third parties that may result from its use. The
specifications described herein were current at the time of publication, but are subject to change at
any time without prior notice.

Zeus All-In-One User Manual
Page | 3
ID TECH
IDDD-21520
Model: 6235ANHMW
FCC ID: PD96235ANH
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Compliance Statement
This device complies with part 15 of the FCC rule. Operation is subject to the following two conditions:
This device may not cause harmful interference, and This device must accept any interference received,
including interference that may cause undesired operation.
Important: Changes or modifications to this product not authorized by manufacturer could void the EMC
compliance and negate your authority to operate the product.
This device and its antennas must not be co-located or operating in conjunction with any other antenna or
transmitter.
This product has demonstrated EMC compliance under conditions that included the use of compliant peripheral
devices and shielded cables (including Ethernet network cables) between system components. It is important
that you use compliant peripheral devices and shielded cables between system components to reduce the
possibility of causing interference to radios, television sets, and other electronic devices.
For product available in USA/Canada market, only channel 1~11 can be operated. Selection of other channels is
not possible.
CE STANDARDS
An independent laboratory performed testing for compliance to CE requirements. The unit under test was found
compliant to Class B.
ID TECH is a registered trademark of International Technologies & Systems Corporation. Zeus and Value
through Innovation are trademarks of International Technologies & Systems Corporation.
USB (Universal Serial Bus) Specification is Copyright by Compaq Computer Corporation, Intel Corporation,
Microsoft Corporation, and NEC Corporation.

Zeus All-In-One User Manual
Page | 4
Table of Contents
1. Introduction ...................................................................................................................................................... 5
2. Features............................................................................................................................................................. 5
3. System Recovery ............................................................................................................................................. 5
4. Specifications ................................................................................................................................................... 6
5. Internal Specifications..................................................................................................................................... 7

Zeus All-In-One User Manual
Page | 5
1. Introduction
ID TECH’s Zeus is an all-in-one industrial touchscreen computer built to withstand harsh outdoor
environments. Zeus has features such as a versatile touch screen and a built-in webcam for customer
interactions. Zeus has options such as Dual-Band WiFi, LAN, USB, RS232, and Bluetooth, and is an
ideal solution for a variety of applications.
Model Number designation
Zeus IDDD-21520
2. Features
Language
English
Time and Currency Format
English (United States)
Keyboard/ Input Method
United States
User Name
Administrator
Computer Name*
IDDD-21520
Account Password
No Password
Windows Update Preferences
Automatic updated turned off
Time Zone, Date & Time
UTC-08:00, Pacific Time
All parameters can be changed through the Control Panel.
1. To change the Computer Name, click Control Panel > System.
2. Find Computer Name, click Domain > Workgroup Settings > Change Settings.
3. Under the Computer Name tab type the new computer name in the Computer Description
field.
4. Click OK.
3. System Recovery
To reset the Zeus to factory default using System Recovery, follow these steps:
1. Power on the Zeus unit.
2. Press F9 when BIOS information appears.
3. Zeus will recover to factory default. (DO NOT UNPLUG THE POWER WHILE RECOVERY IS
RUNNING.)
4. When recovery is complete, system will restart
CAUTION: Zeus files will delete after System Recovery.

Zeus All-In-One User Manual
Page | 6
4. Specifications
Screen
Active Screen Size
21.5 inches
Display Area
18.77 inches x 10.56 inches (476.64mm x 268.11mm)
Display Colors
16.7M colors
Resolution
1920 x 1080 max
System Brightness
1,000 nits, sunlight readable
Backlight
LED
Touch Screen
Infrared
Electrical
Operating System
Windows
Processor
Intel Atom Processor N2807
Speed
1.86 GHz
Memory/ Storage
2GB RAM (4GB maximum)/ 60GB Solid-State Drive
Webcam
2.0 megapixel
I/O
USB 2.0 (x3), RS232 COM Port, 1 Gigabit Ethernet Port, Dual-Band
WiFi, Bluetooth 4.0
Environmental
Operating
Temperature
-40° F to 140° F ( -40° C to 60° C ) with built-in heater
Humidity
5-90% non-condensing
Reliability
Warranty
One year, Optional extended warranty up to four years
Approvals
FCC, CE, UL
Mechanical
Dimension (L)x(W)x(H)
22.60 in. (574mm) x 3.27 in. (83mm) x 14.06 in. (357mm)
Weight
16.53 lbs (7.5 KG)
Color
Black
IP Rating
IP 65 (front)
Mounting
VESA 200
Software
OS
Windows Embedded POS Ready/Ind Pro Retail

Zeus All-In-One User Manual
Page | 7
5. Internal Specifications
Zeus has an internal heater with a 4-temperature sensor monitored by a Micro-Controller Unit (MCU).
When Zeus is off and the ambient temperature is below -20°C, the MCU will hold the power button,
activate the heater, and heat the device until it is above -20 °C. A powered-on MCU will monitor for
high temperatures. When the temperature is over 40 °C, the MCU will start the FANs of the system.
WARNING: Zeus has no internal serviceable components and opening it voids the warranty.
