IDTECK 100RV User manual

User Manual
100RV
Standalone RFID Access Controller

Table of contents
p.ii
Table of contents
1 Safety Information
1 IMPORTANT SAFETY INSTRUCTIONS
2 Product introduction
1 Features
1.1 Single Door Access Control
1.2 User Registration
1.3 Keypad Registration
1.4 Buzzer On/Off
1.5 External I/O Pins
1.6 Duress Alarm
1.7 Limited Access Tries for an Unregistered Card
2 What's included
3 At a glance

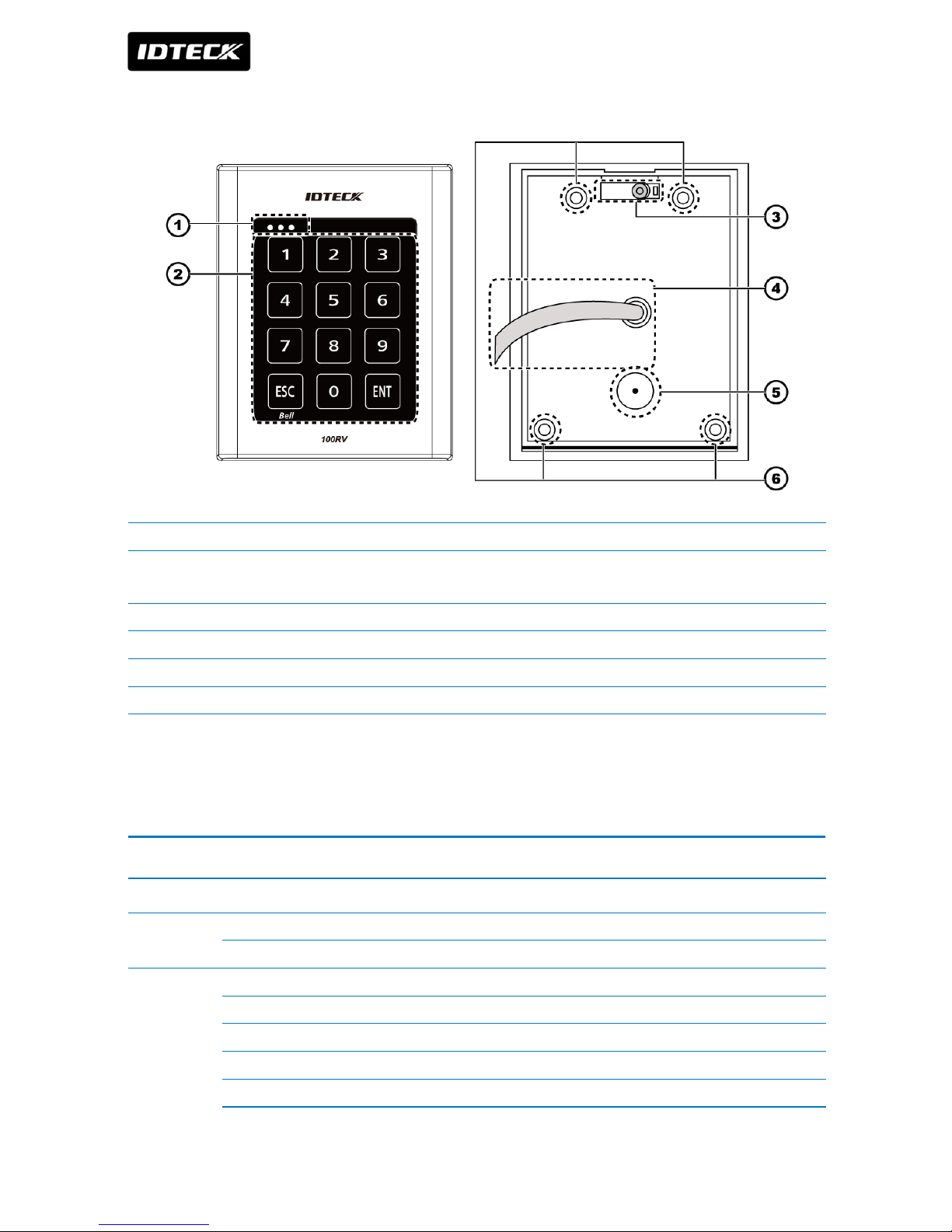

3.1 Front / Rear
4 Cable color scheme
3 Installation and external connection
1 Cable selection

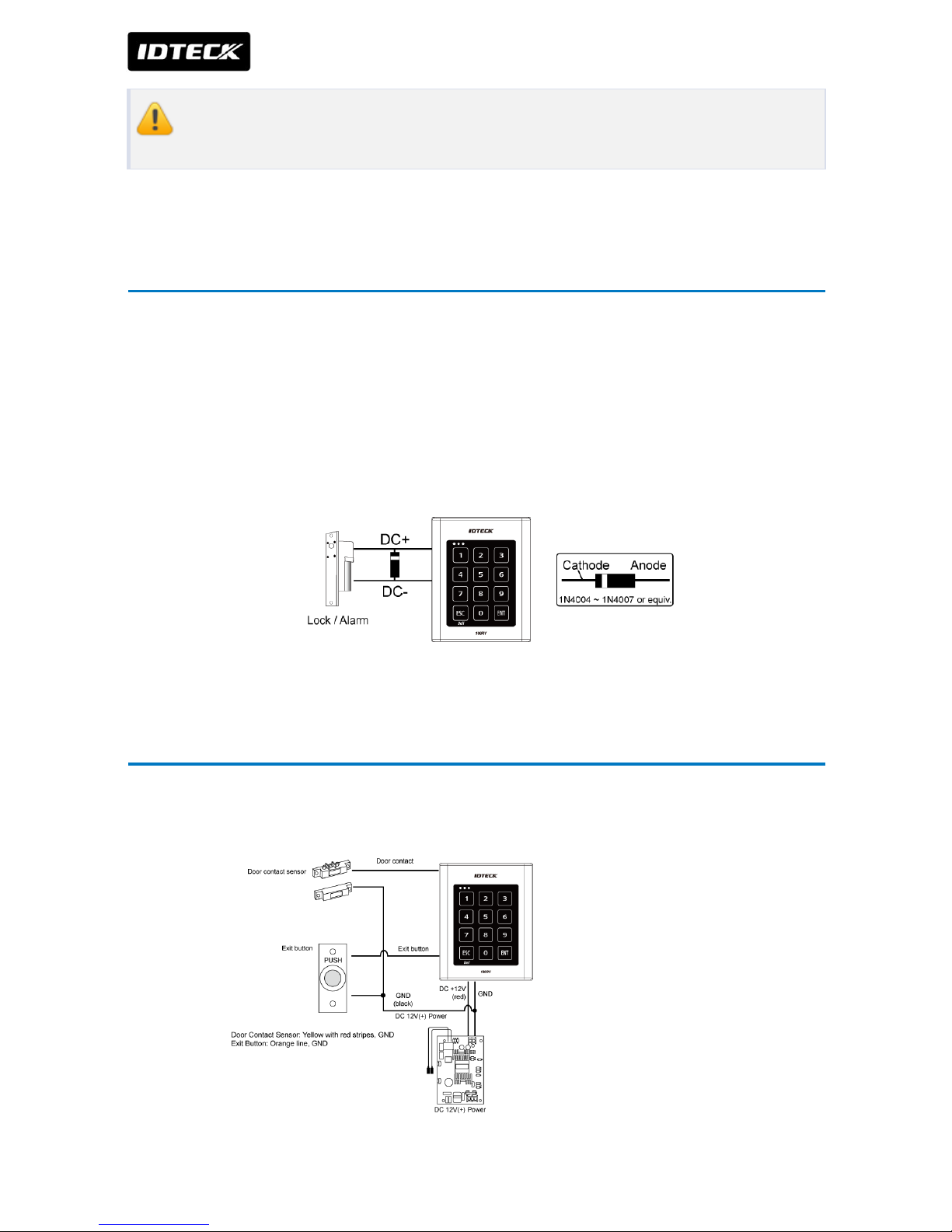

2 Bypass diode connection
3 I/O connection
3.1 Input Connection
Exit Button Connection
Door Contact Sensor Connection
Auxiliary Input Device Connection (AUX 1 (green), AUX 2 (green with white stripes),
AUX 3 (green with red stripes)
3.2 Output Connection
Door open (POWER FAIL SAFE) when the power is disconnected from the door lock
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

p.iii Table of contents
100RV
(Door Relay)
Door close (POWER FAIL SECURE) when the power is disconnected from the door lock
(Door Relay)
Alarm Connection (Alarm Relay)
Chime Bell Connection (the chime bell operated by TTL-level signal must be installed in
advance.)
4 External reader connection
4.1 Proximity Reader Connection
4 Initialization
1 Basic operations
1.1 Initial state
1.2 Predefi ned Operation for a Registered Card
1.3 Exit Button Operation
1.4 Predefined Operation for an Unregistered Card
1.5 Secure Mode Operation
1.6 Duress Alarm
1.7 How to use the chime bell
2 Initialization
3 Forced initialization with external line
5 Reader mode setup
1 Reader mode setup (RF only)
2 Reader mode setup (RF + P/W)
3 Reader mode setup (PIN only)
4 Reader mode setup (RF/PIN combination mode)
5 Enabling keypad input for the card number
6 User management
1 To register cards in RF only mode
2 Registering cards in a combination of RF and P/W modes
3 To register cards in PIN mode
4 Registering cards in RF card / PIN combination mode
5 To delete a registered card or PIN number
7 Basic setup
1 DURESS alarm
2 To specify the retry count for an unregistered ID
3 To specify the keypad input suspension time if the retry count with an unregistered ID
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
. . . . . . . . . . . . . . . . . . . . . . . . . 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table of contents
100RV
p.iv
exceed the limit
4 To specify the delayed start time in secure mode
5 To specify the operation time of the door contact sensor
6 To specify the limited time for the keypad input
7 To specify the alarm output port for the dismantled device
8 To open or close the entry door
9 To set or release the quick mode
10 To set or release the toggle mode for the door relay
8 I/O time setup
1 To specify the output time if the card is authenticated
2 To specify the output time if the card is not authenticated
3 To specify the DURESS TTL output
4 To specify the alarm output for an input error of the door contact sensor
5 To specify the alarm operation time for AUX 1
6 To specify the alarm operation time for AUX 2
7 To specify the alarm operation time for AUX 3
8 To activate or deactivate the door relay by the door contact sensor
9 Advanced setting
1 To specify the TTL output operation mode
2 To set the chime bell function
3 To specify the chime bell operation time
4 To specify the input mode for AUX 1
5 To specify the input mode for AUX 2
6 To specify the input mode for AUX 3
7 To specify the input mode for the exit button
8 To specify the input mode for the door contact sensor
10 Additional features
1 MUTE
2 To specify the use of the tamper alarm
3 To check the output specified for a registered card user
4 To check the output specified for an unregistered card user
5 To check the output specified for the door contact sensor alarm
6 To check the output specified for AUX 1
7 To check the output specified for AUX 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
. . . . . . . . . . . . . . . . . . . . . . . . . 26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
. . . . . . . . . . . . . . . . . . . . . . . . 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . 30
. . . . . . . . . . . . . . . . . . . . . . . . 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
. . . . . . . . . . . . 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
. . . . . . . . . . . . . . . . . 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
. . . . . . . . . . . . . . . . . . . . . . . . . . 41
. . . . . . . . . . . . . . . . . . . . . . . 41
. . . . . . . . . . . . . . . . . . . 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

p.v Table of contents
100RV
8 To check the output specified for AUX 3
11 Other information
1 Initial values
2 Function codes
12 Troubleshooting
1 Troubleshooting
13 Product specifications
1 Product specifications
14 RMA Request
15 Warranty Policy and Limitation of Liability
Back cover
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Safety Information 1
p.1
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric shock is
present within this unit.
This exclamation point symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.
WARNING
To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
WARNING
1. Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire,
electric shock, or damage to the product.
3. Do not connect multiple controllers to a single adapter. Exceeding the capacity may
cause abnormal heat generation or fire.
4. Securely plug the power cord into the power receptacle. Insecure connection may
cause fire.

p.2 Safety Information
100RV
5. When installing the controller, fasten it securely and firmly. The fall of controller may
cause personal injury.
6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or
containers filled with water on top of the controller. Doing so may cause personal injury
due to fire, electric shock, or falling objects.
7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or
electric shock.
8. If any unusual smells or smoke come from the unit, stop using the product. In such
case, immediately disconnect the power source and contact the service center.
Continued use in such a condition may cause fire or electric shock.
9. If this product fails to operate normally, contact the nearest service center. Never
disassemble or modify this product in any way. (SAMSUNG is not liable for problems
caused by unauthorized modifications or attempted repair.)
10. When cleaning, do not spray water directly onto parts of the product. Doing so may
cause fire or electric shock.
CAUTION
1. Do not drop objects on the product or apply strong blows to it. Keep away from a
location subject to excessive vibration or magnetic interference.
2. Do not install in a location subject to high temperature (over 50°C), low temperature
(below -30°C), or high humidity. Doing so may cause fire or electric shock.
3. If you want to relocate the already installed product, be sure to turn off the power and
then move or reinstall it.
4. Remove the power plug from the outlet when there is a lighting storm. Neglecting to
do so may cause fire or damage to the product.
5. Keep out of direct sunlight and heat radiation sources. It may cause fire.
6. Install it in a place with good ventilation.
7. Avoid aiming the controller directly towards extremely bright objects such as sun.
8. Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
9. The Mains plug is used as a disconnect device and shall stay readily operable at any
time.

Safety Information
100RV
p.3
1IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong is provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus.
13. Unplug this apparatus when a card is used. Use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.

Product introduction 2
p.4
1Features
This controller is best designed for a single entry door control (single door access control).
This product can save up to 512 cards including the master card, with which you can make
an effective management (such as adding, deleting or changing the settings) of the cards.
Its epoxy adhesion and aluminium case guarantees shock-resistance and stable operation in
a challenging environment.
This product features 5 external ports that can be connected to the Exit button, Door
Contact Sensor, Motion Sensor, and Fire Sensor. It also has 2 relay outputs that can control
the door lock and alarm relay. The dual tamper switch triggers an alert if the product is
forcibly disassembled.
You can use the keypad to confi gure all settings as necessary.
This product is designed for a standalone system.
1.1 Single Door Access Control
You can use the RF card to control a single door.
1.2 User Registration
You can register a total of 512 cards including the Master Card.
1.3 Keypad Registration
100RV is equipped with the built-in keypad that you can use to register, delete cards or
confi gure various settings independently.

Product introduction
100RV
p.5
1.4 Buzzer On/Off
With the help of various buzzer tones, you can check the operation status and the current
settings and results of the product.
1.5 External I/O Pins
100RV has 5 input ports and 4 output ports installed (2 relay and 2 TTL outputs).
The input ports can receive signals from the Exit button and the Door Contact sensor, while
the two relays can be connected to the door lock and the alarm device. One of the TTL
output ports can function as a chime bell in connection with the door bell.
1.6 Duress Alarm
This is used in a situation where you should open the door inevitably by a robber insisting to
do so. Entering the two-digit duress alarm password with pressing the button and
recognizing the registered card (or card number) can open the door normally, while you can
set to produce the TTL signal notifying the door is forcibly opened.
1.7 Limited Access Tries for an Unregistered Card
You can specify the limit of times to try accessing the door, and the suspended operation
time of the keypad for an improper access.
2What's included
Check if the following items are included in the product package.

p.6 Product introduction
100RV
3At a glance

Product introduction
100RV
p.7
3.1 Front / Rear
1. System Status LED Indicates the operation status of the system.
2. Keypad Use this to confi gure or release settings as appropriate, or enter a card
number.
3. TAMPER SWITCH A tamper switch to detect falling from the wall.
4. 17-PIN Connector Used to connect to the power source or I/O cable.
5. Buzzer Piezo buzzer.
6. Fixing Hole Fixing hole for wall-mounting.
4Cable color scheme
Item Cable color Signal Line Description
Power Red DC + 12V Power (+12V)
Black GND Earth-grounding for power
Output Blue with white stripes NC(RL1) Door Relay NC Terminal
Gray with red stripes COM(RL1) Door Control Relay (COM) Port
White with red stripes NO(RL1) Door Relay NO port
Purple with white stripes NC(RL2) Alarm Relay (NC) Port
White COM(RL2) Alarm Relay (COM) Port

p.8 Product introduction
100RV
Purple NO(RL2) Alarm Relay (NO) Port
Orange with white stripes TTL TTL Output Port
Brown with white stripes CHI Chime Bell Output
Input Orange EXIT Exit button connection port
Yellow with red stripes CONTACT Door Contact Sensor Connection Port
Green AUX IN 1 Aux Input #1
Green with white stripes AUX IN 2 Aux Input #2
Green with red stripes AUX IN 3 Aux Input #3
Pink DATA_0 Wiegand Data 0 Input Port
Sky blue DATA_1 Wiegand Data 1 Input Port
Item Cable color Signal Line Description

Installation and external connection 3
p.9
1Cable selection
Number Item Cable type
Power (DC12V)
DC Power → This Product
Belden #9409, 18 AWG 2 Conductor, Unshielded
Reader (power and data)
External Reader → This Product
Belden #9512, 22 AWG 4 Conductor, Shielded
Belden #9514, 22 AWG 8 Conductor, Shielded
Door Contact Sensor
Exit Button
Sensor Input
Input → This Product
Belden #9512, 22 AWG 4 Conductor, Shielded
Belden #9514, 22 AWG 8 Conductor, Shielded
Door Lock,
Alarm Device
Lock (Alarm) → This Product
Belden #9409, 18 AWG 2 Conductor, Unshielded

p.10 Installation and external connection
100RV
The cables should be thick enough to allow the maximum current consumed by
the reader.
2Bypass diode connection
If you connected an inductor (door locks or alarm device) to the output relay, there should
occur a voltage surge while the inductor is turning on and off. If you do not connect a
reverse diode to the relay, the surge voltage will cause damage to the electric circuit of the
controller. To reduce this surge, it is recommended to connect a reverse diode between the
devices.
Figure 3-1 100RV_bypass_diode_connection
3I/O connection
3.1 Input Connection

Installation and external connection
100RV
p.11
1. Connect the DC 12V(+) of the power supply unit to the red line.
2. Connect the GND(-) of the power supply unit to the black line.
Exit Button Connection
1. Connect one line of the Exit button to the orange line.
2. Connect the other line of the Exit button to GND.
Door Contact Sensor Connection
1. Connect one line of the door contact sensor to the yellow with red stripes.
2. Connect the other line of the door contact sensor to GND.
Auxiliary Input Device Connection (AUX 1 (green), AUX 2 (green with white
stripes), AUX 3 (green with red stripes)
1. Connect one line of the external input device to AUX 1, AUX 2, or AUX 3.
2. Connect the other line of the external input device to GND(-).
3.2 Output Connection
Figure 3-2 100RV_outputconnection

p.12 Installation and external connection
100RV
Door open (POWER FAIL SAFE) when the power is disconnected from the door lock
(Door Relay)
1. Connect the relay COM line (gray with red stripes for locking the door) to DC +12V.
2. Connect the relay NC line (blue with white stripes for locking the door) to the plus(+)
line of the door lock.
3. Connect the minus (-) line of the door lock to GND (-).
Door close (POWER FAIL SECURE) when the power is disconnected from the door
lock (Door Relay)
1. Connect the relay COM line (gray with red stripes for locking the door) to DC +12V.
2. Connect the relay NO line (white with red stripes for locking the door) to the plus (+)
line of the door lock.
3. Connect the minus (-) line of the door lock to GND (-).
Alarm Connection (Alarm Relay)
1. Connect the relay COM (white for the alarm device) to DC +12V.
2. Connect the relay NO line (purple for the alarm device) to the plus (+) line of the alarm
device.
3. Connect the minus (-) line of the alarm device to GND (-).
Chime Bell Connection (the chime bell operated by TTL-level signal must be installed
in advance.)
1. Connect the chime bell line (brown with white stripes) of the controller to DC +5V.
2. Connect the GND line of the power supply unit to GND (-) of the chime bell.
3. Press to activate EthNeT chime bell.

Installation and external connection
100RV
p.13
4External reader connection
4.1 Proximity Reader Connection
1. Connect the DC 12V(+) of the power supply unit to the plus (+) line of the reader.
2. Connect the GND(-) line of the power supply unit to the minus (-) line of the reader.
3. Connect the Wiegand data input line 0 of the proximity reader to the purple line.
4. Connect the Wiegand data input line 1 of the proximity reader to the sky blue line.
For a list of compliant readers (external readers), see the followings:
- Standard 26bit Wiegand format proximity reader
- Proximity/keypad readers of 4-/8-bit burst format are not supported.

Initialization 4
p.14
1Basic operations
1.1 Initial state
While the product is working normally, the orange LED indicator blinks every one second.
1.2 Predefi ned Operation for a Registered Card
When reading a registered card, it opens the door with the melody.
1.3 Exit Button Operation
If you press the Exit button, the door will be opened.
1.4 Predefined Operation for an Unregistered Card
When reading an unregistered card, it produces an alarm with the melody for two seconds.
You can specify the use of the alarm and change the operation time.
1.5 Secure Mode Operation
The person who exits the last can set the secure mode using the keypad.
Set Secure mode: Press the button twice and press .
Release secure mode: Present and authenticate a registered card or the Master Card to the
reader. You can use the keypad to specify the delayed start time for the Secure mode. (Refer
to the delayed start time in Secure mode on page 24.)

Initialization
100RV
p.15
For effective security purposes, you can set to activate the sensors (via auxiliary
input ports) only in Secure mode.
1.6 Duress Alarm
If you are forced to open the door under a robber’s control, enter the Duress password and
press with the number of your registered card (or PIN). (See page 23.)
1.7 How to use the chime bell
When you have connected and set the chime bell, press to ring the chime bell. (See
page 33.)
2Initialization
If you have the Master Card registered, you can use it to initialize the device.
1. Present the Master Card to the device.
2. Press the button twice and press .
3. The system will restore the factory default settings with all LED indicators blinking.
Initializing the system will lose all data.
If the product works abnormally, use initialization to restore the default settings.
