IEI Technology POCm-DOCKING-6BAY User manual

POCm-DOCKING-6BAY
Battery charging docking station
for the POCm series
Quick Installation Guide
Version 1.01
Package List
1 x POCm-DOCKING-6BAY battery charging docking station
1 x Power adapter
1 x Power cord

1
Safety Instructions
Warning! Read the installation guide before connecting the system to the power
source.
Warning! To prevent the device from overheating, do not operate it in an area that
exceeds the maximum operating temperature described in this guide.
Warning! Ultimate disposal of this product should be handled according to all
national laws and regulations.
Overview
The POCM-DOCKING-6BAY is a 6-bay docking station designed for charging the
batteries of the POCm-W22C/W24C-ULT3 series system.

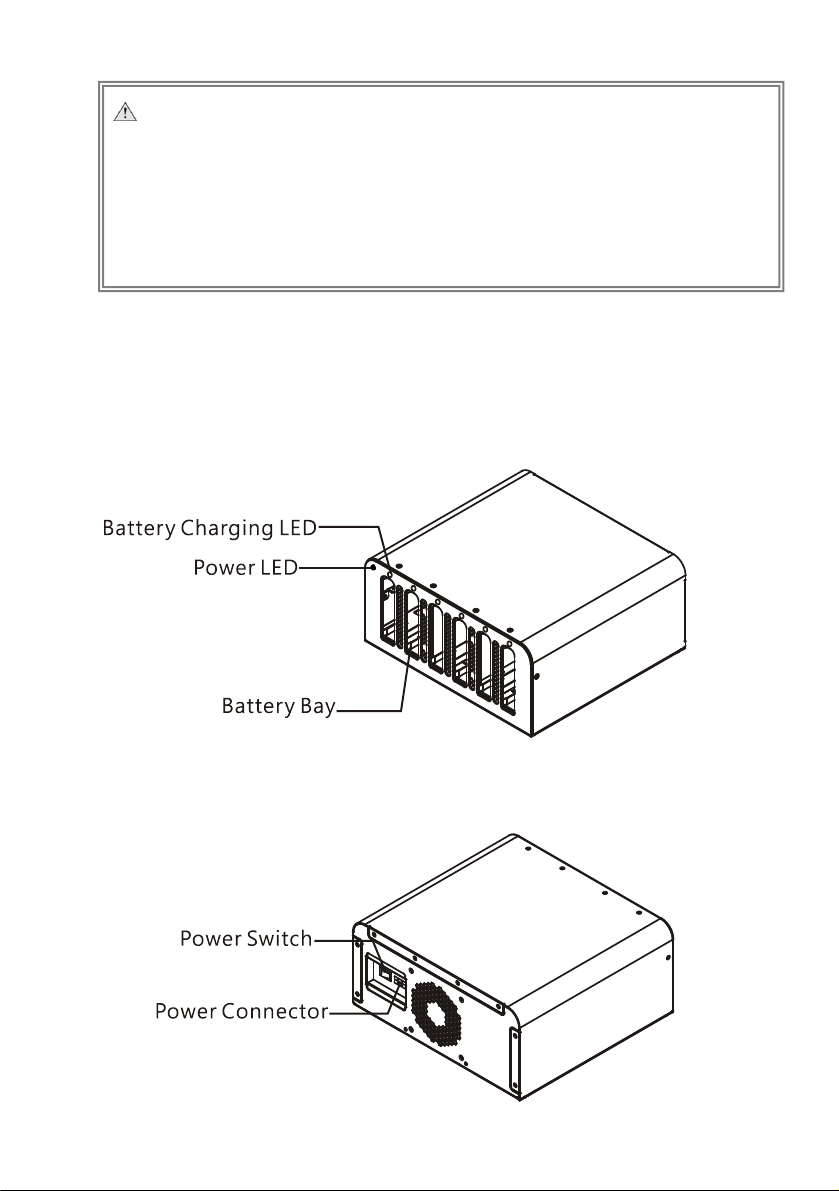

Front Panel
Rear Panel

2
Specifications
Battery Bay 6
Battery
TC-202 (7800mAh)
Maximum charge voltage: 12.6 V
Maximum charge current: 2.2 A/ bay
Battery Charge Time 3~3.5 hours from 0 to 100% (TC-202)
Power Supply 255 W power adapter
Vin=100 ~240 VAC, Vout=15 VDC
LED Indicators 1 x Power LED (orange)
6 x Battery LED (green/red)
Power Switch AT power switch
Power Connector 6-pin Molex power connector
Thermal
2 x Active fan
- Without battery: 20% fan speed
- With battery: 55% fan speed
- Temperature ≥ 48°C: 70% fan speed
Color White
Operating Temperature 0°C ~40°C (32°F~104°F)
Storage Temperature -20°C ~60°C (-4°F~140°F)
Operating Humidity 20%~90%, non-condensing
Storage Humidity 10%~95%, non-condensing
Chassis Construction NCT metal housing
Battery LED Indicator Behavior
Good Battery
Charging: solid red
Fully charged: solid green
Weak Battery
(FCC < 50%)
Charging: blinking orange
Fully charged: solid orange
Error Blinking red
No Battery or Non-IEI Battery LED off

3
Battery Charging
To charge battery, follow the steps below:
Step 1: Connect the supplied power adapter to the power connector on the rear of
the docking station.
Step 2: Connect the supplied power cord to the power adapter. Plug the power cord
into any standard power outlet.
Step 3: Turn on the docking station by using the power switch on the rear panel.
The power LED on the front panel lights up in orange.

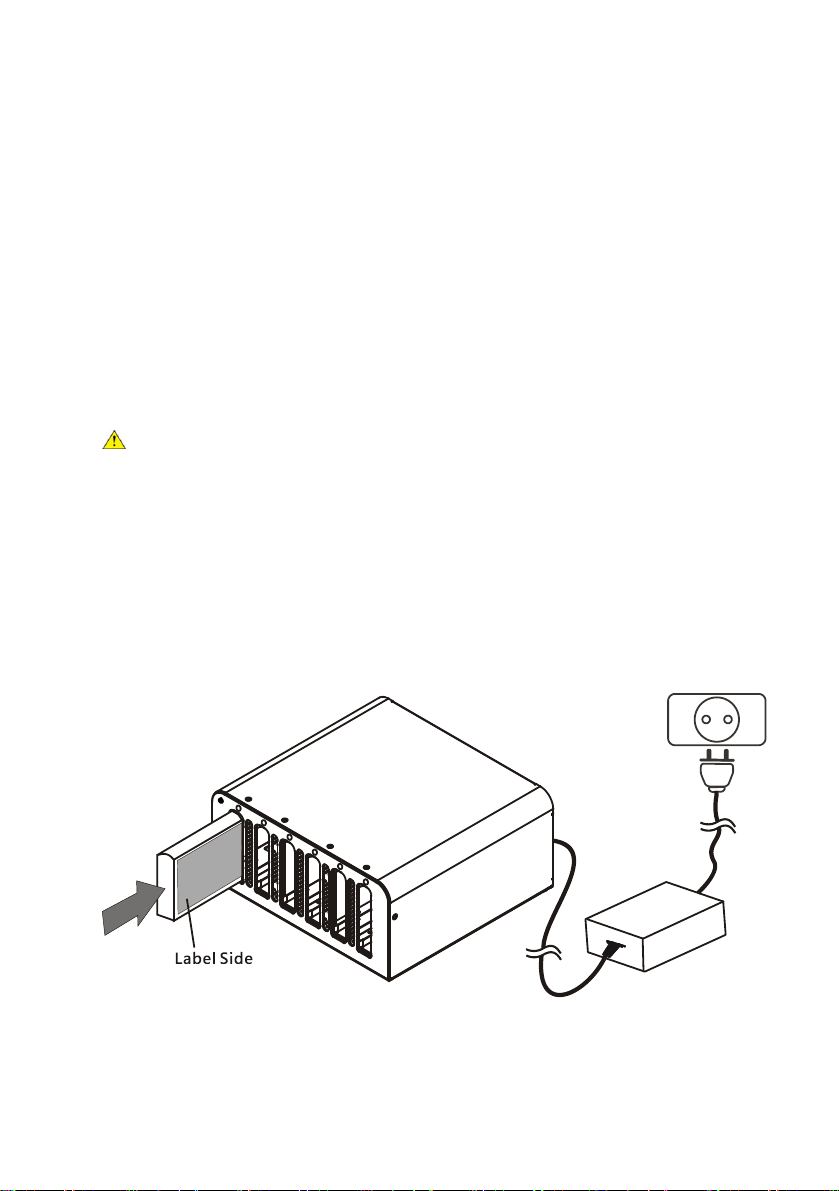

Step 4: Insert a battery into a battery bay as shown below. The LED indicator lights
on in red indicating the battery is being charged. The LED will turn to green when the
battery is fully charged.
-----------------------------------------------------------------------------------------------------------------
Warning!
–Use only the power adapter approved for this device. Use of another type of
adapter may risk fire or explosion;
–Do not apply voltage levels that exceed the specified voltage range. Doing so may
cause fire and/or an electrical shock. Use a power cord that matches the voltage of
the power outlet, which has been approved and complies with the safety standard of
your particular country.
-----------------------------------------------------------------------------------------------------------------

4
Dimensions (Unit: mm)
IEI Support URL
http://new.ieiworld.com/tw/online_support_form
Compliance
This equipment has been tested and found to comply with specifications for CE marking. If the user modifies
and/or installs other devices in the equipment, the CE conformity declaration may no longer apply.
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
According to the requirement of the WEEE legislation the following user information is provided to customers
for all branded IEI Electronics products subject to the WEEE directive.
This symbol on the product or on its packaging indicates that this product must not be disposed of with your
other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over
to a designated collection point for the recycling of waste electrical and electronic equipment. The separate
collection and recycling of your waste equipment at the time of disposal will help to conserve natural
resources and ensure that it is recycled in a manner that protects human health and the environment. For
more information about where you can drop o- your waste equipment for recycling, please contact your local
city office, your household waste disposal service or the shop where you purchased the product.
