IGM Laguna CFlux 1 User manual

Producer:
Laguna Tools Inc
744 Refuge Way, Suite 200
Grand Prairie, Texas 75050
USA
Phone: [phone]
Website: www.lagunatools.com
Distributor:
IGM nástroje a stroje s.r.o.
Ke Kopanině 560, 252 67, Tuchoměřice
Czech Republic, EU
Phone: [phone]
E-mail: [email protected]
Website: www.igmtools.com
2022-11-02
151-CFlux1 LAGUNA Cyclone Dust Collector Manual EN v1.1.02 A4ob
www.igmtools.info
PDF ONLINE
CFlux 1
Cyclone Dust Collector
Operating Instructions

-2-www.igmtools.com

-3-www.igmtools.com
Contents
1. Declaration of conformity
1.1 Warranty - 2
2. CFlux 1 Specications - 3
3. General Safety Rules and Instructions
3.1 Important Safety Instructions - 3
3.2 General Safety Rules - 3
3.3 Additional Safety Intructions - 4
3.4 Motor Specications - 5
3.5 Grounding Instructions - 5
4. Parts Description
4.1 Functions - 6
5. Assembly
5.1 Unpacking - 6
5.2 General Tool Assembling - 6
6. Maintenance - 10
7. Troubleshooting guide - 11

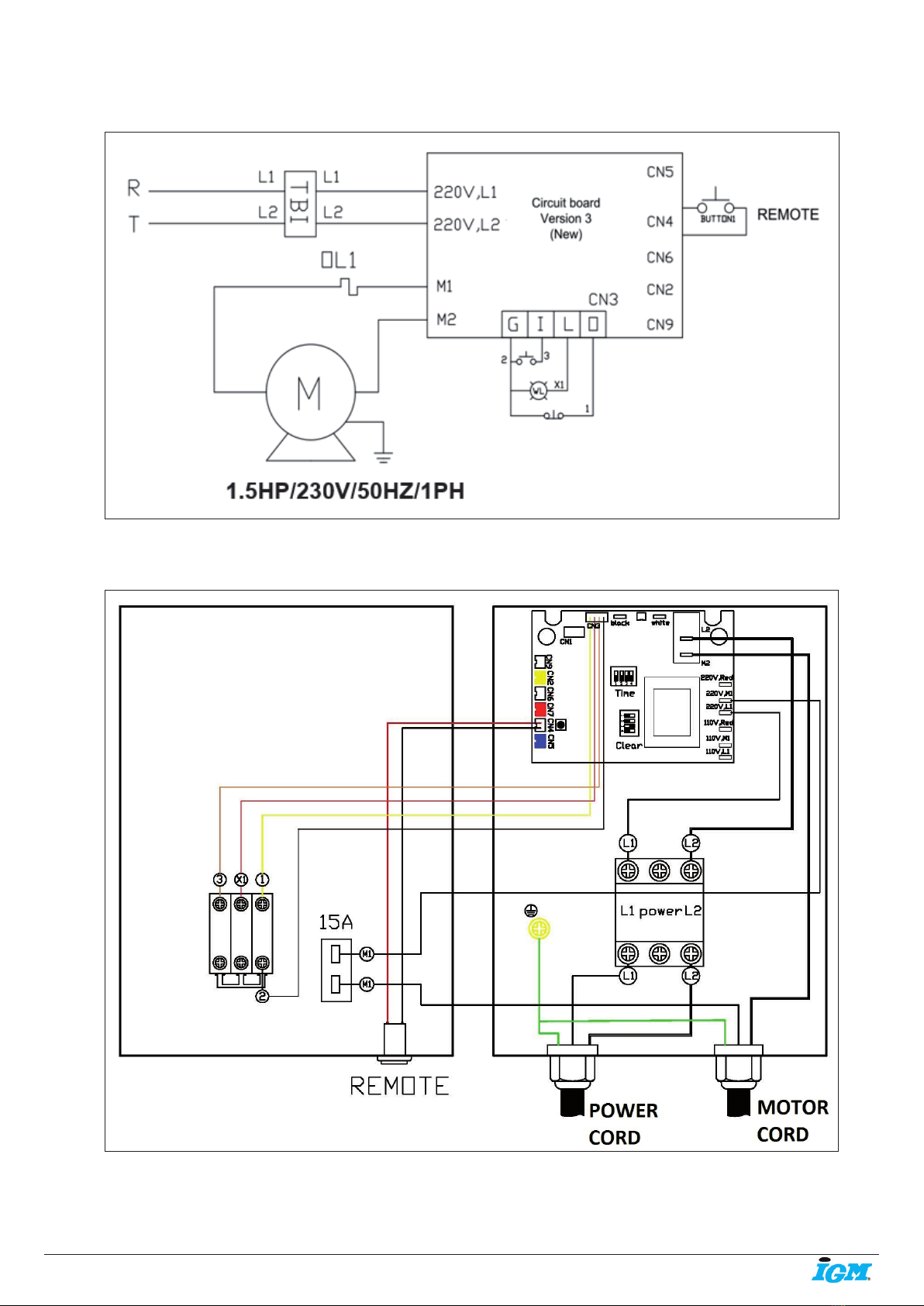

8. Power Connections & Wiring Diagrams - 12

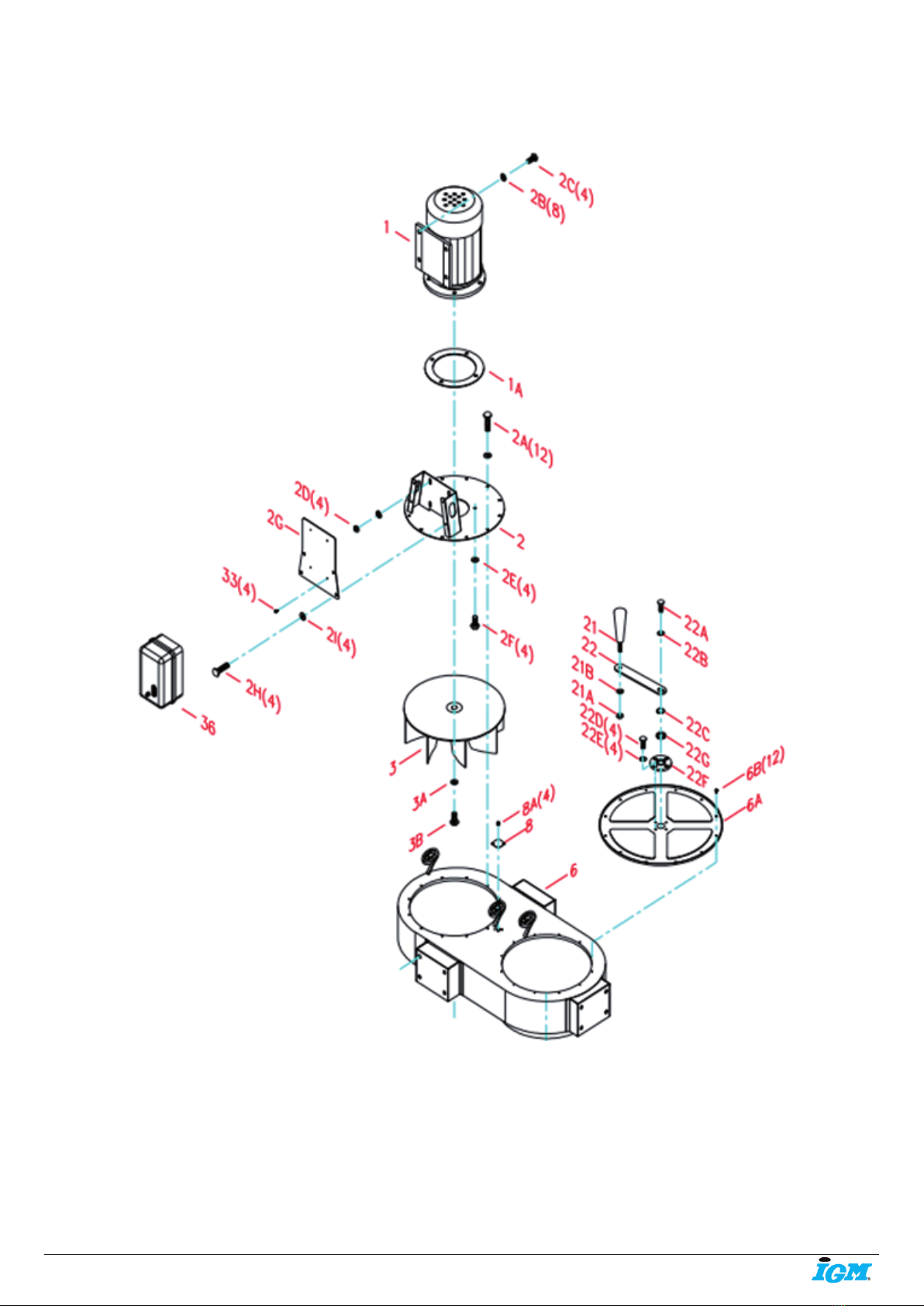

9. Parts Breakdown / Exploded Views - 13
10. Parts List - 16

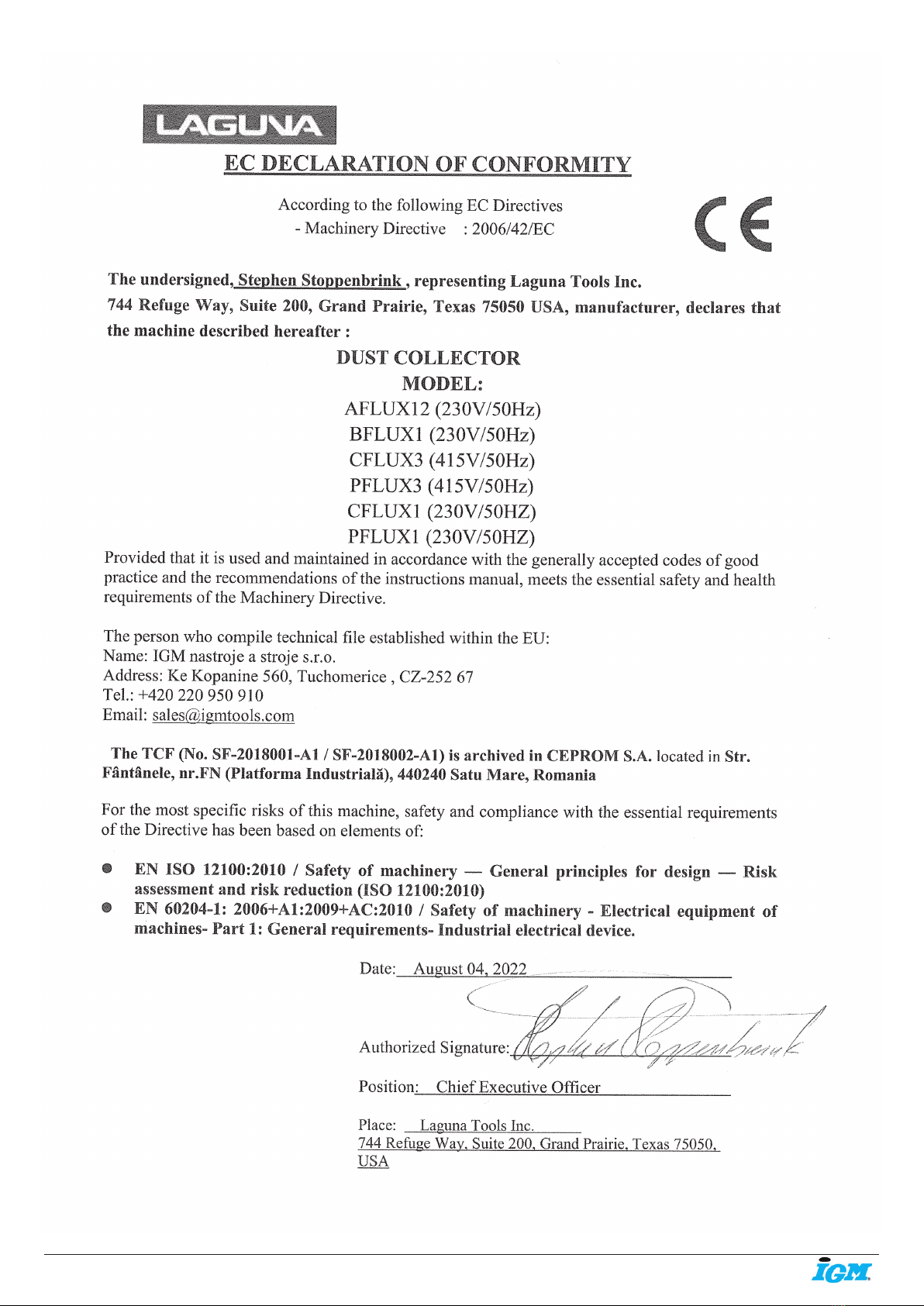

1. Declaration of conformity
We declare that this product is in compliance with the directive and the
standard mentioned on the previous page of this manual.
1.1 Warranty
IGM Tools & Machinery strives to always deliver high-quality machinery.
The warranty is governed by the valid terms and conditions of IGM Tools &
Machinery available at www.igmtools.com.
2. Specications
Motor 1100 W (1.5Hp)
Power 230V / 50Hz / 1PH
Recommended Breaker 9A @ 230V
Airow (traditional method) 1786m3/hour (1051cfm)
Airow (realistic method) 1224m3/hour (720cfm)
Max. Static Pressure 256mm in water
Fan Diameter 340mm
Inlet Diameter 1x 150mm or 2 x 100mm
Switch High frequency remote control switch
Noise Level 82 dB(A) @ 3 m
Drum Collection 95 Litre octagonal drum
Packing Size (WxDxH) 1150 x 720 x 1225mm
Weight 105 kg
Shipping Weight 140 kg
Filter
Filtering Area: 4,5 m2
Cartridge Filter diameter 400mm diameter x 500mm height
Filtration Size 99.7% @1 Micron
Drum Collection Bag Layat Size 960 x 1200 mm
Filter Collection Bag Layat Size 660 x 620 mm
3. General Safety Rules and Instructions
3.1 Important Safety Instructions
Read and understand all warnings and operating instructions before using
this equipment. Failure to follow all instructions listed below, may result in
electric shock, re, and/or serious personal injury or property damage.
Woodworking can be dangerous if safe and proper operating procedures
are not followed. As with all machinery, there are certain hazards involved
with the operation of the product. Using the machine with respect and
caution will considerably lessen the possibility of personal injury. However,
if normal safety precautions are overlooked or ignored, personal injury
to the operator may result. Safety equipment such as guards, push
sticks, hold-downs, feather boards, goggles, dust masks and hearing
protection can reduce your potential for injury. But even the best guard
won’t make up for poor judgment, carelessness or inattention. Always use
common sense and exercise caution in the workshop. If a procedure feels
dangerous, don’t try it. Figure out an alternative procedure that feels safer.
REMEMBER: Your personal safety is your responsibility.
This machine was designed for certain applications only. We strongly
recommend that this machine not be modied and/or used for any
application other than that for which it was designed. If you have any
questions relative to a particular application, do not use the machine until
you have rst contacted the manufacturer to determine if it can or should
be performed on the product.
If you have any questions relative to its application do not use the product
until you have contacted the manufacturer and we have advised you.
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE)
To reduce the risk of re, electric shock, or injury:
• Do not leave appliance when plugged in. Unplug from outlet when not in
use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when
used by or near children.
• Use only as described in this manual. Use only manufacturer’s
recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it
should, has been dropped, damaged, left outdoors, or dropped into water,
return it to a service centre.
• Do not pull or carry by cord, use cord as a handle, close a door on cord,
or pull cord around sharp edges or corners. Do not run appliance over
cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
EN - English
Operating Instructions (translation of the original instructions)
Dear Woodworker,
Thank you for your purchase and welcome to the Laguna Tools group of discerning woodworkers. We understand that you have a
choice of where to purchase your machines and appreciate the condence you have in the Laguna Tools brand.
Every machine manufactured by Laguna Tools has been carefully designed and well thought through from a woodworker’s perspective.
Through hands-on experience, Laguna Tools is constantly working hard to make innovative, precision products. Products that inspire
you to create works of art, are a joy to run and work on, and encourage your performance.

-4-www.igmtools.com
• Do not put any object into openings. Do not use with any opening
blocked; keep free of dust, lint, hair, and anything that may reduce air ow.
• Keep hair, loose clothing, ngers, and all parts of body away from
openings and moving parts.
• Turn o󰀨 all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up ammable or combustible liquids, such as
gasoline, or use in areas where they may be present.
• Connect to a properly grounded outlet only. See Grounding Instructions
SAVE THESE INSTRUCTIONS
• Read and understand the warnings posted on the machine and in this
manual. Failure to comply with all of these warnings may cause serious
injury.
• Replace the warning labels if they become obscured or removed.
• This 3HP Portable Cyclone Dust Collector is designed and intended for
use by properly trained and experienced personnel only. If you are not
familiar with the proper and safe operation of this type of dust collector, do
not use until proper training and knowledge have been obtained.
• Do not use this machine for other than its intended use. If used for other
purposes, LAGUNA TOOLS INC., disclaims any real or implied warranty
and holds itself harmless from any injury that may result from that use.
• Always wear approved safety glasses/face shields while using this
machine.
• Before operating this dust collector, remove tie, rings, watches and other
jewelry, and roll sleeves up past the elbows. Remove all loose clothing
and conne long hair. Non-slip footwear or anti-skid oor strips are
recommended. Do not wear gloves.
• Wear ear protectors (plugs or mu󰀨s) during extended periods of
operation.
• Some dust created by power sanding, sawing, grinding, drilling and other
construction activities contain chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals
are:
• Lead from lead based paint.
• Crystalline silica from bricks, cement and masonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals, work in a well-
ventilated area and work with approved safety equipment, such as face or
dust masks that are specically designed to lter out microscopic particles.
• Do not operate this machine while tired or under the inuence of drugs,
alcohol or any medication.
• Make certain the switch is in the OFF position before connecting the
machine to the power source.
• Make certain the machine is properly grounded.
• Make all machine adjustments or maintenance with the machine
unplugged from the power source.
• Form a habit of checking to see that all extra equipment such as
adjusting keys, wrenches, scrap, stock, and cleaning rags are removed
away from the machine before turning on.
• Keep safety guards in place at all times when the machine is in use. If
removed for maintenance purposes, use extreme caution and replace the
guards immediately when maintenance is complete.
• Make sure the dust collector is on a at even surface and the wheels
locked in place before use.
• Check damaged parts. Before further use of the machine, a guard or
other part that is damaged should be carefully checked to determine
that it will operate properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts, breakage of parts,
mounting and any other conditions that may a󰀨ect its operation. A guard or
other part that is damaged should be properly repaired or replaced.
• Provide for adequate space surrounding work area and non-glare,
overhead lighting.
• Keep the oor around the machine clean and free of scrap material, oil
and grease.
• Keep visitors a safe distance from the work area. Keep children away.
• Make your workshop child proof with padlocks, master switches or by
removing starter keys.
• Give your work undivided attention. Looking around, carrying on a
conversation and “horse-play” are careless acts that can result in serious
injury.
• Maintain a balanced stance at all times so that you do not fall or lean
against the dust collector. Do not overreach or use excessive force to
perform any machine operation.
• Use the right tool at the correct speed and feed rate. Do not force a tool
or attachment to do a job for which it was not designed. The right tool will
do the job better and safer.
• Use recommended accessories; improper accessories may be
hazardous.
• Maintain machinery with care. Follow instructions for lubricating and
changing accessories.
• Turn o󰀨 the machine before cleaning. Use a brush or compressed air to
remove dust or debris — do not use your hands.
• Do not stand on the machine. Serious injury could occur if the machine
tips over.
• Never leave the machine running unattended. Turn the power o󰀨 and do
not leave the machine until it comes to a complete stop.
• Never operate or run the machine without closing the drum up against
the lid. Failure to do so will result in the machine amperage increasing and
may trip your circuit.
3.2 General safety rules
WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN
SERIOUS PERSONAL INJURY.
CHECK DAMAGED PARTS. Before further use of the unit, properly repair
or replace any part that is damaged.
FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE
INSTRUCTION MANUAL BEFORE OPERATING THE MACHINE.
Learn the unit’s application and limitations as well as the specic hazards
peculiar to it.
KEEP WORK AREA CLEAN. Cluttered areas and benches invite
accidents.
DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use this unit in
damp or wet locations, or expose it to rain. Keep work area well-lighted.
KEEP CHILDREN AND VISITORS AWAY. All children and visitors should
be kept a safe distance from work area.
DISCONNECT UNIT before servicing.
CHECK DAMAGED PARTS. Before further use of the unit, properly repair
or replace any part that is damaged.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS
INJURY.
3.3 Additional Safety Instructions
Additional safety for dust collectors
Intended use. This dust collector is only intended for collecting wood dust
and chips from woodworking machines. Do not use this dust collector to
collect metal, dirt, pebbles, drywall, asbestos, lead paint, silica, liquids,
aerosols, or any ammable, combustible, or hazardous materials.
Hazardous dust. Dust created while using machinery may cause cancer,
birth defects, or long-term respiratory damage. Be aware of dust hazards

-5-www.igmtools.com
associated with each work piece material, and always wear a NIOSH-
approved respirator to reduce your risk.
Dust allergies. Dust from certain woods may cause an allergic reaction in
people and animals. Make sure you know what type of wood dust you will
be exposed to in case there is a possibility of an allergic reaction.
Wear respirator. Fine dust that is too small to be caught in the lter will
be blown into the ambient air during operation. Always wear a NIOSH-
approved respirator during operation and for a short time after to reduce
your risk of permanent respiratory damage.
Emptying dust. When emptying dust from the collection container, wear a
respirator and safety glasses. Empty dust away from ignition sources and
into an approved container.
Disconnecting power supply. Turn the switch o󰀨, disconnect the
dust collector from the power supply, and allow the impeller to come to
a complete stop before leaving the machine unattended or doing any
service, cleaning, maintenance, or adjustments.
Suspended dust particles and ignition sources. Do not operate the
dust collector in areas were explosion risks are high. Areas of high risk
include, but are not limited to, areas near pilot lights, open ames, or other
ignition sources.
Fire suppression. Only operate the dust collector in locations that contain
a re suppression system or have a re extinguisher nearby.
Impeller hazards. Do not place your hands or tools near the open inlet
during operation for any reason. The powerful suction could easily cause
accidental contact with the impeller, which will cause serious personal
injury or damage to the machine. Always keep small animals and children
away from open dust collection inlets.
Avoiding sparks. Do not allow steel or rocks to strike the impeller—this
may produce sparks. Sparks can smolder in wood dust for a long time
before a re is detected. If you accidentally cut Into wood containing tramp
metal (nails, staples, spikes, etc.), immediately turn o󰀨 the dust collector,
disconnect it from power, and wait for the impeller to stop—then empty the
collection container into an approved airtight metal container.
Operating location. To reduce respiratory exposure to ne dust, locate
permanently installed dust collectors away from the working area, or in
another room that is equipped with a smoke detector. Do not operate the
dust collector in rainy or wet locations—exposure to water may create a
shock hazard or decrease the life of the machine.
Static electricity. Plastic dust lines generate high amounts of static
electricity as dust chips pass through them. Although rare, sparks caused
by static electricity can cause explosions or re. To reduce this risk, make
sure all dust lines are thoroughly grounded by using a grounding wire.
Regular cleaning. Regularly check/empty the collection bags or drum to
avoid the buildup of ne dust that can increase the risk of re. Make sure
to regularly clean the surrounding area where the machine is operated—
excessive dust buildup on overhead lights, heaters, electrical panels, or
other heat sources will increase the risk of re.
Warning: If precautions are not heeded, it may result in minor injury and/or
possible machine damage.
Warning: If precautions are not heeded, it may result in serious injury or
possibly even death.
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.
3.4 Motor Specications
Your machine is wired for 230 volts, 50 HZ alternating current. Before
connecting the machine to the power source, make sure the switch is in
the “OFF” position.
3.5 Grounding Instructions
DANGER: THIS MACHINE MUST BE GROUNDED WHILE IN USE TO
PROTECT THE OPERATOR FROM ELECTRIC SHOCK.
1. This appliance must be connected to a grounded metal, permanent
wiring system; or an equipment-grounding conductor must be run with the
circuit conductors and connected to the equipment-grounding terminal or
lead on the appliance.
The installer, such as a qualied electrician, cut (or bend over) and
insulate the grounding conductor from a eld wiring supply cable.
In the event of certain types of malfunctions or breakdowns, grounding
provides a path of least resistance for electric current—in order to reduce
the risk of electric shock.
Improper connection of the equipment-grounding wire can result in a
risk of electric shock. The wire with green insulation (with or without
yellow stripes) is the equipment-grounding wire. If repair or replacement
of the power cord or plug is necessary, do not connect the equipment-
grounding wire to a live (current carrying) terminal. Check with a qualied
electrician or service personnel if you do not understand these grounding
requirements, or if you are in doubt about whether the tool is properly
grounded. If you ever notice that a cord or plug is damaged or worn,
disconnect it from power, and immediately replace it with a new one.
Full Load Amperage
Amp draw at 230V (prewired) 9 A
Electrical Circuit Requirements
You should use a separate electrical circuit for the Laguna CFlux. The
circuit should be protected by a 16A circuit breaker with a tripping
characteristic C (16/3 / C). The power cable of the machine is factory
tted with 230V industrial plug. The machine must be connected to an
appropriate industrial socket or the machine can be connected to a
terminal board and the wiring corresponding to the recommended fuse.
ATTENTION! WIRING MAY BE CARRIED OUT BY A QUALIFIED
ELECTRICIAN ONLY.
Recommended circuit breaker: 16A (16/3/C), tripping characteristic C.
WARNING: MAKE SURE THE SOCKET IS EARTHED. IF YOU ARE
NOT SURE, HAVE THE SOCKET CHECKED BY A QUALIFIED
ELECTRICIAN.
4. Parts Description
4.1 Functional Description

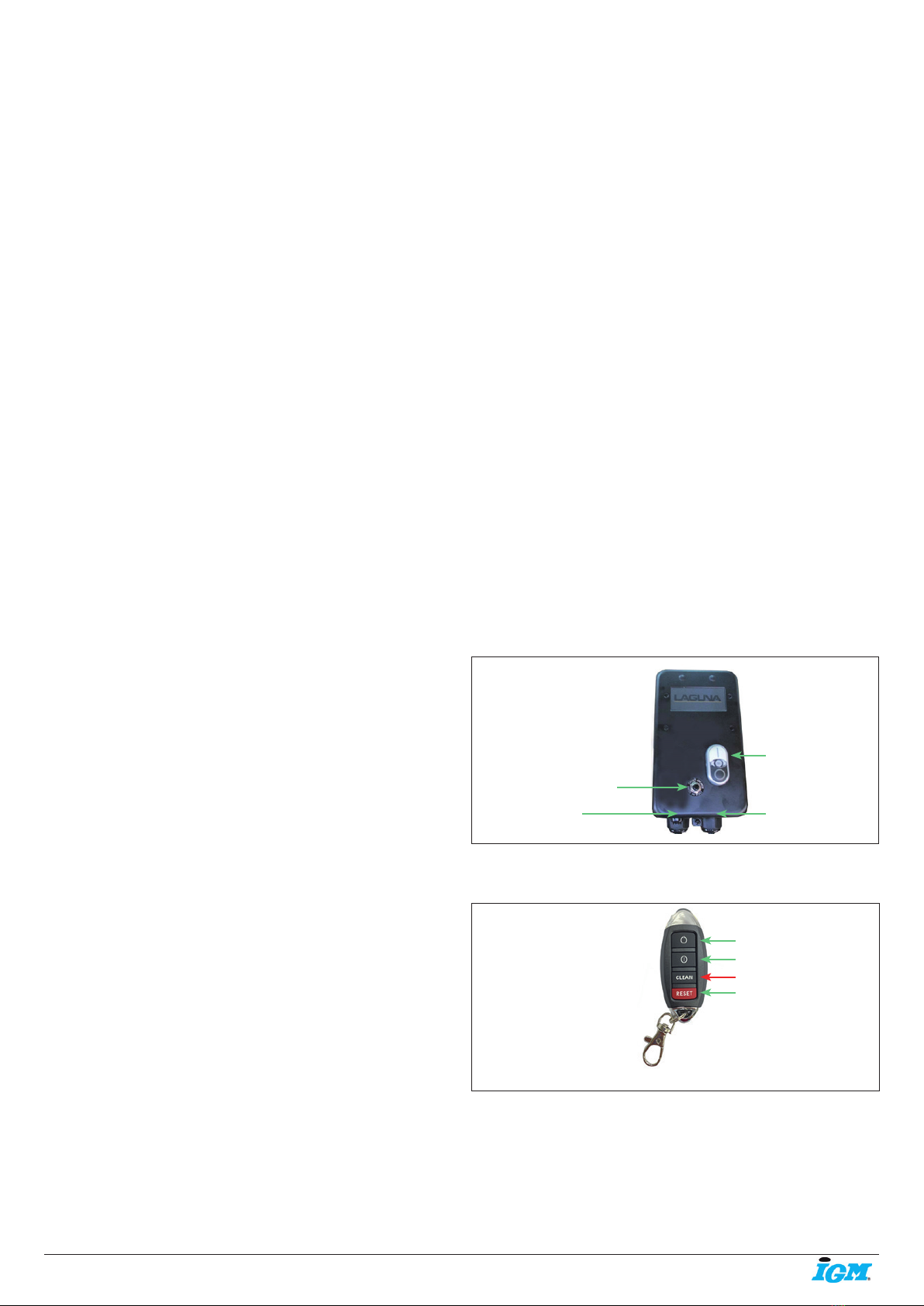

High frequency remote control switch
Hand held remote controller
PROGRAMMING THE REMOTE CONTROL
1. Conrm the machine is connected to a working outlet before
programming the remote control.
2. Press and hold the Receiver “set” button on the bottom of the ON/OFF
control box until you hear beeping.
3. Press the remote control “Reset” button simultaneously with the
receiver “set” button until you hear beeping. Release both buttons to
complete the set up.
On board circuit breaker
Power
Cord
ON/OFF
Switch
Motor Cord
ON button
OFF button
Remote set button*
CLEAN button (only for PFlux)
*Used to match up a new hand held
controller with the remote switch

-6-www.igmtools.com

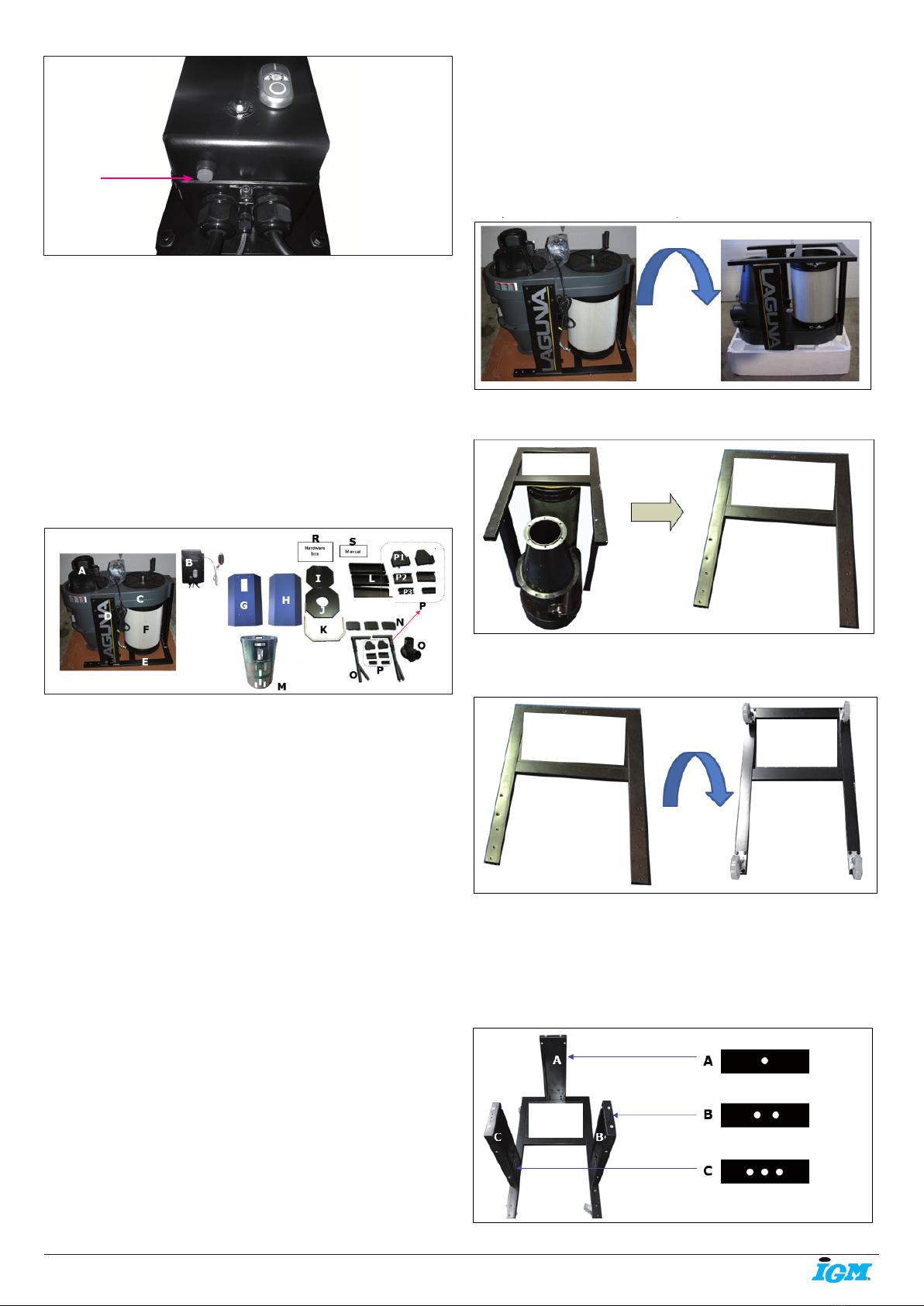

5. Assembly
5.1 Unpacking
Your 1,5HP Mobile Dust Cyclone comes packed in a single box.
Before attempting to assemble this machine, follow these directions for
unpacking:
1. Carefully cut the banding straps and remove them from the box.
2.Cut along the tape line at the top of the box.
3.Remove all parts from the top of the foam and set aside.
4.Remove the foam packing material from the top of the machine and set
aside for further use, during assembly.
5.Cut the cardboard box (top to bottom) in the four corners for easy
removal of the box.
6.Carefully take out the machine components from the box and set aside.
7.Using the diagram below, ensure that all parts are present and in good
condition.
Description
A. Motor
B. Switch and remote control
C. Dust chute
D. Top upright supports (3)
E. Base frame
F. Canister lter
G. Octagon drum front panel
H. Octagon drum back panel
I. Octagon drum base panel
J. Octagon drum lid
K. Octagon drum foot pedal
L. Lower upright supports (3)
M. Drum insert
N. Upright support reinforcement plate (3)
O. Foot pedal bar (left & right)
P. Foot pedal assembly ttings
P1. Lower triangular support plate (2)
P2. Foot pedal bar support (2)
P3. Lower support plate (2)
Q. Inlet adapter
R. Hardware box (Casters, hardware)
S. Operating and Parts Manual
Report any missing or damaged parts to your dealer or distributor. Prior to
tool assembly and use, read this manual thoroughly to familiarize yourself
with proper assembly, maintenance and safety procedures.
5.2 General Tool Assembly
This step requires two adults. This 3HP Mobile Dust Cyclone is heavy,
be careful when lifting and handling it! Failure to comply may cause
serious injury and/or damage to the machine and/or property!
Tools Required
10 mm wrench / 12 mm wrench / 14 mm wrench
Phillips screwdriver. 4 mm hex wrench / 5 mm hex wrench
To assemble your dust cyclone, follow these steps:
For your own safety, do not connect the machine to the power source until
the machine is completely assembled. Please also make sure that you
read and understand the entire instruction manual.
ASSEMBLY TIME ESTIMATE 4-5 hours
Step 1: Place the empty, top, foam packing insert (which contained the
individual parts) upside-down on the oor. Place the main unit into the
styrofoam insert upside-down. Make sure the unit is centered properly
and resting solidly in the foam insert for the next steps.
Step 2: Remove the base which has been bolted to the (3) top upright
supports.
Step 3: Turn base upside-down and attach the (4) 3” casters to the
underside of the base using (16) 5/16” x 3/4” hex bolts and (16) 5/16” x 18
at washers.
Step 4. Turn the base over with it standing on the (4) 4” casters and
secure the three lower upright support panels using (6) 3/8” x 3/4” hex
bolts and (6) 3/8” x 7/8” at washers.
Each lower upright support panel is identied for its specic location.
A – shown with one dot is located on the canister side.
B – shown with two dots is located on the front side
C – shown with three dots is located on the opposite end.
Receiver set
button

-7-www.igmtools.com

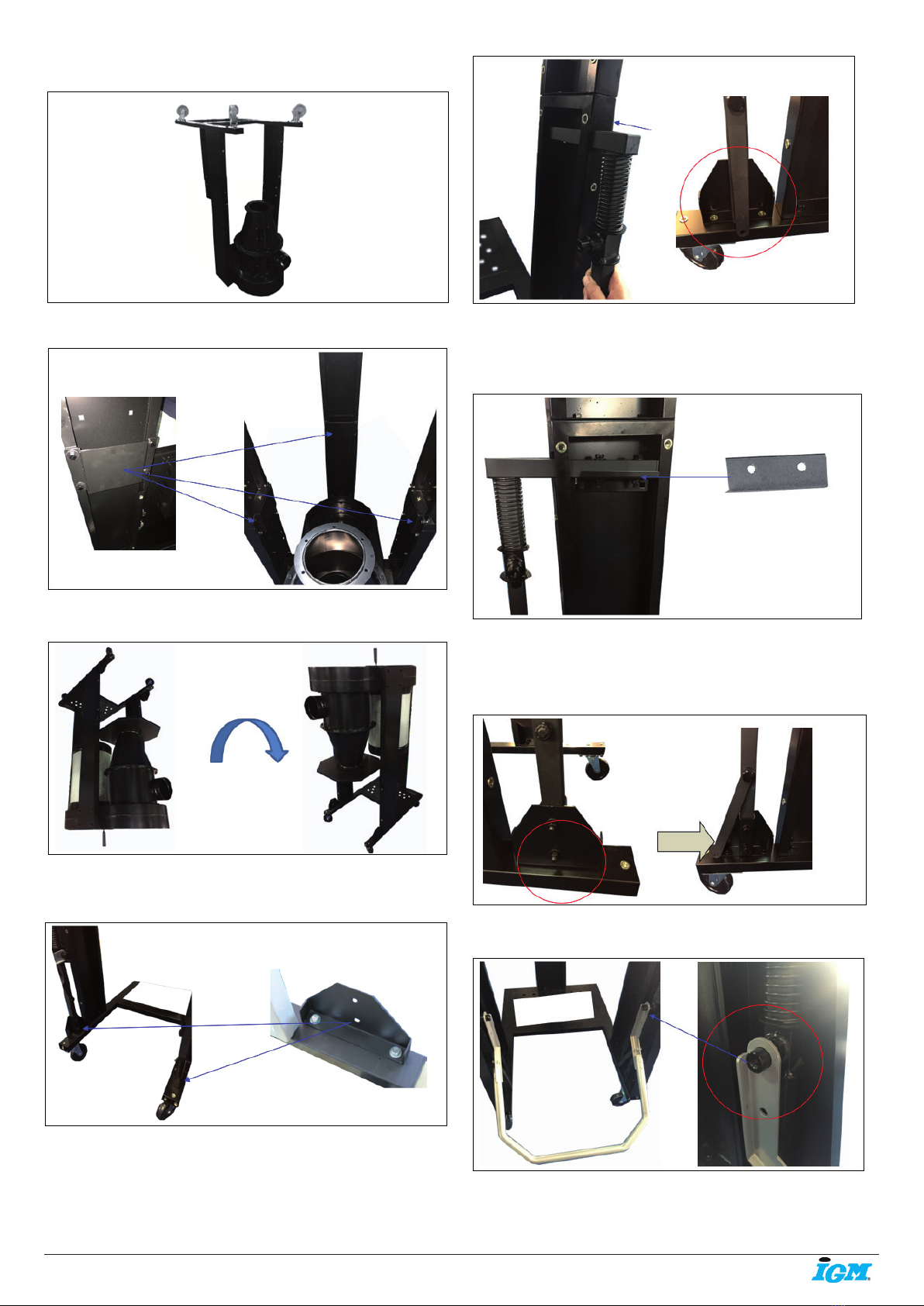

Step 5: Secure the base with (3) lower upright support panels to the unit
using (6) 5/16” x 3/4” hex bolts and (6) 5/16” x 1” at washers.
Step 6. Secure the (3) upright support reinforcement plates using (12)
5/16” x 3/4” hex bolts and (12) 5/16” x 1” at washers.
Step 7: With the help of another person, lift the unit up carefully and rotate
to the right-side-up with the motor on top and the wheels at the bottom.
Step 8. Secure the lower triangular support plate to the base using (2)
5/16” x 3/4” hex bolts and (2) 5/16” x 1” at washers. Follow the same
steps for the opposite side.
Step 9. Slide the Foot pedal bar into the opening on the lower upright
support panel. Make sure the end of the bar is on the inside of the
triangular support plate. Follow the same steps for the opposite side.
Step 10. Secure the foot pedal support to the lower upright support panel
using (4) 5/16” x 1/2” carriage bolts, (8) 5/16” x 1” at washers and (4)
5/16” hex nuts. Next secure the foot pedal bar to this support using (4)
5/16” x 1-3/4” hex bolts, (8)5/16” x 1” at washers and (4) 5/16” hex nuts.
Follow the same steps for the opposite side.
Step 11: Secure the base of the foot pedal bar to the triangular support
plate by holding the lower support plate vertically up against the foot
pedal bar using (2) 5/16” x 3/4” hex bolts, (4) 5/16” x 3/4” at washers
and (2) 5/16” hex nuts from the inside out. Follow the same steps for the
opposite side.
Step 12. Attach the two ends of the Octagon foot pedal to the nut on the
foot peddle bar.
Step 13. Secure the topping to the nut on the foot pedal bar. Follow this
step on the opposite side.

-8-www.igmtools.com
Step 14: Secure the topping with (2) M8 x 30mm hex bolts.
Step 15. Align the bolt hole on the movable supporting brace on the foot
pedal bar with the bolt hole on the octagon foot pedal.
Step 16. Secure the movable supporting brace on the foot pedal bar with
the octagon foot pedal using (2) 3/8” x 13/16” hex bolts. Make sure the
bolt head is on the inside of the octagon handle. Adjust the tightness of
this bolt accordingly. If this bolt is too tight, the Octagon foot pedal will not
work smoothly. When too loose it will not pick up the Octagon drum.
Step 17. Attach the crossbar to the drum lid and tighten using the two
bolts removed in the previous step. It does not matter which position you
attach the crossbar.
Step 18. Apply foam tape to the cone ange before attaching the drum lid.
Secure the Octagon drum lid to the cyclone funnel using (6) 5/16” x 3/4”
hex bolts, (12) 5/16” x 1” at washers and (6) 5/16” hex nuts. Make sure to
rst attach all the bolts before tightening. NOTE: The lid will turn when the
bolts have not been tightened for alignment. Failure to do will result in the
drum lid not being able to align with the drum.
Step 19. Locate the drum base panel, (it does not matter which side
faces inside), and secure the (4) casters using (16) 5/16” x 3/4” hex bolts,
(32) 5/16” x 1” at washers and (16) 5/16” hex nuts.

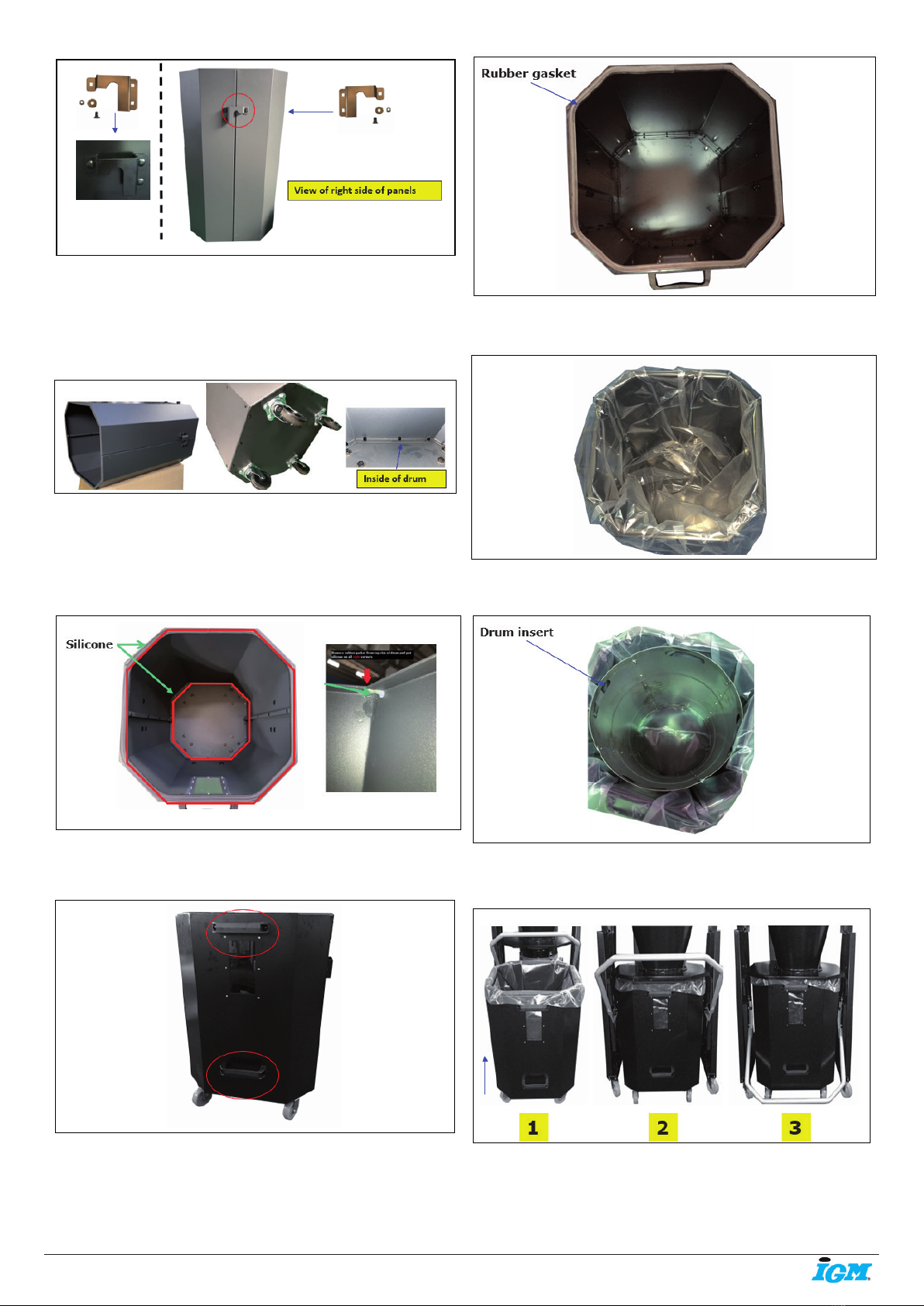

Step 20. Assemble the Octagon drum by connecting the two panels with
(12) M4 x 12mm sheet metal screws.
Step 21. Attach each of the two side plates to the drum by fastening with
three ¼” x ½” carriage bolts. Insert the bolt from the inside of the drum
with the washer and nut on the outside of the drum. Secure both brackets
by tightening all six carriage bolts.

-9-www.igmtools.com
Step 22. Place the Octagon base panel with casters on the bottom of the
drum and secure using Secure the Octagon base panel to the bottom of
the drum using (22) M5 Sheet metal screws to secure tightly, make sure
the head of the sheet metal screw is on the outside of the drum. Take the
plastic bolt end caps to cover all the bolt ends on the inside of the Octagon
drum base. This step is necessary to prevent any injuries caused by the
sharp end of the bolts.
Step 23. Once completing the assembly, keep the drum laying on its
side to apply silicone to the inside of the drum including the base and the
top rim of the drum before the rubber seal has been attached to seal and
prevent air leakages. You will need to use a caulking gun (not supplied).
NOTE: Sealing the perimeters with silicone is imperative for proper
operation of dust collector and e󰀩cient operation!
Step 24. Attach the handles to the top and bottom end on the front panel
with the window display using (4) at head Philip bolt, (4) 5/16” x 7/8” at
washers and (4) 5/16” hex nuts.
Step 25: Attach the rubber gasket to the top inner edges of the Octagon
drum. The wider end of the gasket goes up. Use tin snips to trim any
excess rubber gasket after completing the seal.
Step 26. Insert the plastic debris collection bag inside the Octagon drum.
Open and spread out the plastic bag to the corners and edges.
Step 27. Assemble drum insert and place it inside over the plastic bag in
the Octagon drum.
Step 28. Lift the foot pedal bar. Align the Octagon drum window to the
center point of the drum lid and push the drum in. Lower the foot pedal bar
to seal the drum for normal machine operation.
Step 29. Conrm when aligning the drum that both the left and right side
lift plates are over the top of the foot peddle bar assembly before lifting
the foot pedal bar. If not aligned, the drum will not be fully sealed and will
interfere with air ow.

-10-www.igmtools.com
Step 30. Take the switch box, open it by removing the bolt at the bottom
of the switch box to mount to the switch base plate using (4) 3/8”*1” hex
bolts, (8) 3/8” at washers and (4) 3/8” hex nuts.
Step 31. Install the Switch Box to the switch plate on the motor using (4)
1/4” x 3/4” hex bolts, (4) 1/4” x 1” at washers and (4) 3/8” lock washers.
Step 32. All the assembly steps have been completed.
6. Maintenance procedures
CLEANING THE FILTER
To ensure proper operation of this Mobile Dust Cyclone, the HEPA
canister lter must have adequate air ow. This means the lter must be
regularly maintained by carefully blowing the lter clean using compressed
air and an air gun to release built-up particulates trapped between the
lter pleats.
For heavy duty users, it is recommended to use compressed air on a
regular basis to maintain maximum ltration e󰀩ciency and longer life span
of the lter.
Using the Filter Cleaner Crank and Compressed Air
DISCONNECT MACHINE FROM POWER!
The lter cleaner crank knocks dust particulate and small debris from
the pleated lter and into the lter bag. To improve the e󰀨ectiveness
of the paddles, slowly rotate the handle while simultaneously blowing
(from outside – in) into the pleats. This will assist the release of ne dust
from the inside of the pleats. NOTE: using the blowing function (hose
connected to exhaust port) of a vacuum can also help dislodge dust.
To keep your machine in good working condition, it is recommended to
use the lter cleaner crank to clean the lter after every use.
To clean the lter using the crank simply rotate the crank handle clockwise
four or ve rotations.
NOTE: Excessive turning of the lter cleaner crank or fast turning will
prematurely wear the interior of the pleated lter.
REMOVING THE CANISTER FILTER
1. Release the spring-loaded band clamp at the bottom of the canister
lter and remove the plastic debris bag.
2. Remove the bolt and washer from the bottom, center of the ap pivot
assembly using a 12mm wrench.
3. While supporting the canister lter assembly from the bottom, release
the spring-loaded band clamp from the top of the canister lter assembly.
Hold canister from bottom when releasing clamp (top)
Disassembling canister for cleaning
4. Remove the canister lter by carefully lowering the canister. Be careful
to tilt the top of canister, if necessary, to clear the paddle branches.
5. With the canister lter removed use a compressed air gun to thoroughly
clean between the pleats, both inside and outside.

-11-www.igmtools.com
RE-ASSEMBLING THE CANISTER FILTER AFTER CLEANING
1. With the aid of another person, carefully re-insert the canister lter
repeating step 1,2,3 and 4 in reverse.
EMPTYING OR REPLACING THE FILTER BAG
Periodically check the lter bag, if it is more than one third full, it is
recommended that you empty it.
NOTE: If the lter bag gets too full, the weight may force it to pull away
from the band clamp, exposing the user to potentially harmful particulates.
1. Release the spring-loaded band clamp at the bottom of the lter and
remove the lter bag.
2. Empty or replace the lter bag and re-attach using the spring-loaded
band clamp.
EMPTYING THE DRUM
Periodically inspect the contents of the drum and empty as needed. To
inspect the contents of the drum:
1. Raise the drum foot peddle bar to lower the drum to the oor.
2. Roll it away from the machine, inspect and empty as needed.
ROUTINE INSPECTION
It is a good idea to routinely inspect all quality woodworking tools in order
to keep them in optimum condition. This includes inspecting all hardware
for tightness, ensuring lters are clean, and cleaning debris and grime
from any surfaces and moving parts.
7. Troubleshooting guide
Machine does not start or a breaker trips.
Possible Cause
1. Power supply switched OFF or is faulty.
2. Wall fuse/circuit breaker is blown/tripped.
3. Faulty remote control.
4. Remote receiver is faulty.
5. Incorrectly wired motor connection.
6. On-board circuit breaker is tripped.
7. Wiring is open/has high resistance.
8. Faulty power switch.
9. Motor is at fault.
Possible Solution
1. Ensure power supply is ON and has the correct voltage.
2. Ensure adequate circuit size; install inlet restrictor, replace weak breaker.
3. Replace batteries; ensure unobstructed line-of-sight and signal range.
4. Inspect receiver circuit board; replace if faulty.
5. Rewire or call certied service technician or electrician.
6. Allow motor to cool, improve ventilation, press reset button.
7. Check for broken wires or poor connections, repair as necessary.
8. Replace switch.
9. Test/repair/replace.
Excessive vibration or noise during operation.
Possible Cause
1. Loose component.
2. Loose or broken motor mount.
3. Motor fan hitting fan cover.
4. Bad motor bearings.
Possible Solution
1. Inspect and tighten all bolts/nuts.
2. Tighten or replace as needed.
3. Check fan and cover; replace as needed.
4. Rotate shaft manually, check for grinding or loose shaft, replace bearings
if needed.
Loud, repetitive noise, or excessive vibration coming from
cyclone
Possible Cause
1. Machine is on uneven surface.
2. Damaged/Unbalanced impeller.
3. Loose connections.
4. Impeller is loose.
5. Motor fan hitting fan cover.
Possible Solution
1. Stabilize on a at surface.
2. Inspect impeller for dents, bends, loose ns. Replace if needed.
3. Check and re-tighten all fasteners.
4. Replace the motor and impeller.
5. Check fan and cover; replace as needed.
Dust cyclone does not adequately collect dust or chips;
poor performance.
Possible Cause
1. Canister end cap is full.
2. Filter is dirty.
3. Restricted duct line.
4. Suction route is too long or has too many sharp bends.
5. Wet lumber is clogging ducts.
6. Leaks in the duct work or too many open ports.
7. Inadequate velocity in the main suction line.
8. Wrong size ducting/ports used.
Possible Solution
1. Empty canister end cap.
2. Clean lter.
3. Clean inlet splitter.
4. Move machine closer to the point of suction, and rerun ducts to eliminate
sharp bends.
5. Use lumber with less than 20% moisture content.
6. Repair all duct leaks and close any ports not being used.
7. Increase velocity by opening 1 or 2 more blast gates to di󰀨erent branch
lines.
8. Re-size and re-install ducts and ttings.
Sawdust being blown into the air from the dust cyclone.
Possible Cause
1. Band clamp or end cap is not secure.
2. Loose or damaged seals.
Possible Solution
1. Re-install ensuring a tight t.
2. Replace seals and gaskets.

-12-www.igmtools.com
8. POWER CONNECTIONS & WIRING DIAGRAMS

-13-www.igmtools.com
9. PARTS BREAKDOWN / EXPLODED VIEWS
FAN, MOTOR & SWITCH

-14-www.igmtools.com
CYCLONE, CANISTER & BARREL

-15-www.igmtools.com
PANELS & LOCK
BARREL & INSERT

10. Parts list
IGM nástroje a stroje s.r.o., Ke Kopanině 560,
Tuchoměřice, 252 67, Czech Republic, E.U.
[phone],www.igm.cz
© 2022 IGM nástroje a stroje s.r.o.
REF # PART NUMBER PART NAME DESCRIPTION QTY
16U PDCCF15110-16U HEX BOLT 5/16” x 3/4” 16
16F PDCCF15110-16F FLAT WASHER 5/16” x 3/4” 32
16G PDCCF15110-16G HEX NUT 5/16” 16
16H PDCCF15110-16HV2 OCTAGON DRUM BACK PANEL 1
16K PDCCF15110-16K LEFT SIDE PLATE 1
16L PDCCF15110-16L RIGHT SIDE PLATE 1
16M PDCCF15110-16M CARRIAGE BOLT 1/4” x 1/2” 6
16N PDCCF15110-16N FLAT WASHER 1/4” x 1” 6
16O PDCCF15110-16O HEX NUT 1/4” 6
16P PDCCF15110-16PV2 OCTAGON DRUM BASE PANEL 1
16R PDCCF15110-16R WINDOW 1
16S PDCCF15110-16SV2 SHEET METAL SCREWS M5 22
16T PDCCF15110-16TV2 PLASTIC BOLT END CAP M5 22
16Q PDCCF15110-16Q THREAD BOLT M4 x 12mm 10
17 PDCCF15110-17 INTAKE CYLINDER 1
17A PDCCF15110-17A HEX BOLT 5/16” x 5/8” 4
17B PDCCF15110-17B FLAT WASHER 5/16” x 3/4” 4
18 PDCCF15110-18 CYCLONE BARREL 5/16” x 3/4” 1
18A PDCCF15110-18A HEX BOLT 5/16” x 3/4” 12
18B PDCCF15110-18B FOAM TAPE 3 x 6mm x 10M 1
18D PDCCF15110-18D CYCLONE FUNNEL 1
18E PDCCF15110-18E FLAT WASHER 5/16” x 3/4” 12
18F PDCCF15110-18F HEX BOLT 5/16” x 3/4” 12
18G PDCCF15110-18G FLAT WASHER 5/16” x 3/4” 24
18H PDCCF15110-18H HEX NUT 5/16” 12
19 PDCCF15110-19 OCTAGON DRUM LID 1
19A PDCCF15110-19A HEX BOLT 5/16” x 3/4” 6
19B PDCCF15110-19B FLAT WASHER 5/16” x 3/4” 12
19C PDCCF15110-19C HEX NUT 5/16” 6
19D PDCCF15110-19D PLUG MSP-16 1
19E PDCCF15110-19E NUT AGL-16 1
19F PDCCF15110-19F RUBBER GASKET 1400mm 1
20 PDCCF15110-20 BAND CLAMP Ø 400mm 1
20A PDCCF15110-20A SPRING BAND CLAMP Ø 400mm 1
21 PDCCF15110-21 ROTATION HANDLE 1
21A PDCCF15110-21A HEX LOCK NUT 3/8” 1
21B PDCCF15110-21B FLAT WASHER 3/8” x 7/8” 1
22 PDCCF15110-22 ROTATION CRANK 210, 35, 4.5t 1
22A PDCCF15110-22A HEX BOLT 5/16” x 3/4” 1
22B PDCCF15110-22B FLAT WASHER 5/16” x 1-3/16” 1
22C PDCCF15110-22C GEAR Ø20mm 1
22D PDCCF15110-22D HEX BOLT 1/4” x 3/4” 4
22E PDCCF15110-22E FLAT WASHER 1/4” x 3/4” 4
22F PDCCF15110-22F BEARING Ø70, Ø20.5, 7t 1
22G PDCCF15110-22G SEAL 1
23 PDCCF15110-23V2 ROTATION SHAFT 1
23A PDCCF15110-23A HEX BOLT 1/4” x 5/8” 8
23B PDCCF15110-23B FLAT WASHER 1/4” x 1/2” 16
23C PDCCF15110-23C PADDLE 2
23D PDCCF15110-23D PADDLE BRANCH 4
23E PDCCF15110-23E HEX LOCK NUT 1/4” 8
23F PDCCF15110-23F ROTATION SHAFT CONNECTION 1
23G PDCCF15110-23G HEX BOLT 5/16” x 1-1/2” 1
23H PDCCF15110-23H FLAT WASHER 5/16” x 3/4” 2
23I PDCCF15110-23I HEX LOCK NUT 5/16” 1
24 PDCCF15110-24 CANISTER FILTER Ø 400x500mm L 1
24A PDCCF15110-24A ROTATION SHAFT BASE 1
24B PDCCF15110-24B SHEET METAL PHILIPS BOLT 3/16” x 3/4” 4
24C PDCCF15110-24C HEX BOLT 5/16” x 3/4” 1
24D PDCCF15110-24D FLAT WASHER 5/16” x 7/8” 1
24E PDCCF15110-24E FOAM TAPE 3 x 25mm x 1.5M 1
25 PDCCF15110-25 PLASTIC BAG Ø 400 x 600mm 3
27 PDCCF15110-27 INTAKE MANIFOLD 6”X1 / 4”X2 ports 1
27A PDCCF15110-27A SHEET METAL BOLT M4 x 12mm 3
28 PDCCF15110-28 RUBBER CAP 4” 1
32 PDCCF15110-32 DRUM INSERT 4
33 PDCCF15110-33 FLAT HEAD BOLT M4 x 6mm 4
34 PDCCF15110-34 RIVET 03.II 10
34A PDCCF15110-34A FLAT WASHER 1/8” x 5/16” 6
34C PDCCF15110-34C RIVET NUT 1/4” 8
34D PDCCF15110-34D RIVET NUT 5/16” 18
35 PDCCF15110-35 ROUND HD BOLT 3/16”x 1/2” 24
35A PDCCF15110-35A NUT 3/16” 24
36 PDCCF15110-36V2 FREQUENCY REMOTE SWITCH 1
44 PDCCF15110-44 RUBBER PLUG 30 x 60mm 4
45 PDCCF15110-45 RUBBER HANDLE FOR DRUM INSERT 4
46 PDCCF15110-46 SILICONE Tube 1
47 PDCCF15110-47 CROSSBAR 1
