IGM Laguna CFlux3Tv2 User manual

Producer:
Laguna Tools Inc
744 Refuge Way, Suite 200
Grand Prairie, Texas 75050
USA
Phone: [phone]
Website: www.lagunatools.com
Distributor:
IGM nástroje a stroje s.r.o.
Ke Kopanině 560, 252 67, Tuchoměřice
Czech Republic, EU
Phone: [phone]
E-mail: [email protected]
Website: www.igmtools.com
2022-03-22
151-CFlux3Tv2 LAGUNA Cyclone Dust Collector Manual EN v1 A4ob
www.igmtools.info
PDF ONLINE
CFlux3Tv2 mod.2022
Cyclone Dust Collector
Operating Instructions

-2-www.igmtools.com


 

       












 




  

   I        

          
  

/
 �.
 
 
 



-3-www.igmtools.com
Contents
1. Declaration of conformity
1.1 Warranty - 2
2. CFlux3 Specications - 3
3. General Safety Rules and Instructions
3.1 Important Safety Instructions - 3
3.2 General Safety Rules - 4
3.3 Additional Safety Intructions - 4
3.4 Motor Specications - 5
3.5 Grounding Instructions - 5
4. Parts Description
4.1 Functions - 5
5. Assembly
5.1 Unpacking - 6

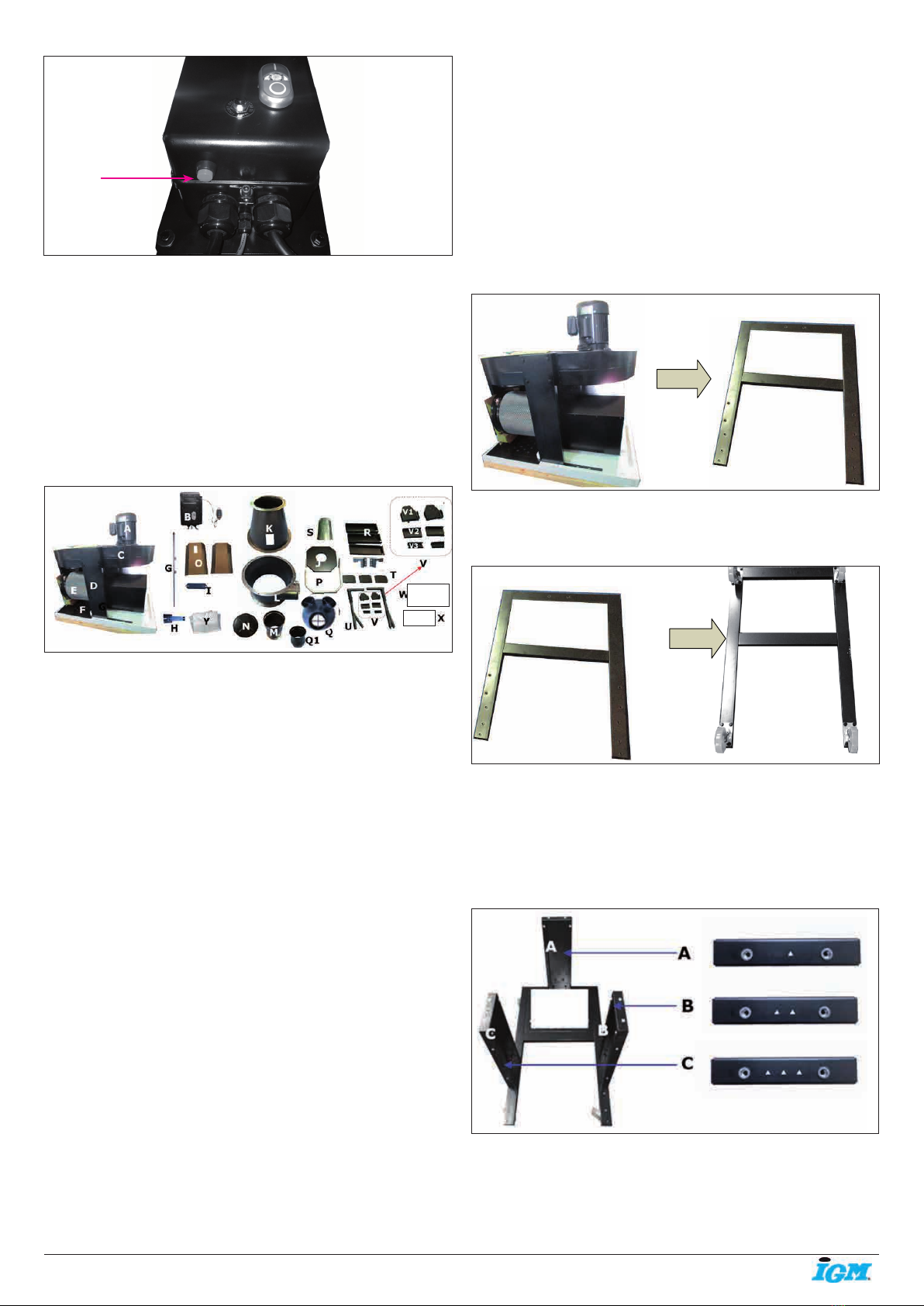

5.2 General Tool Assembling - 6
6. Maintenance - 11
7. Troubleshooting guide - 12

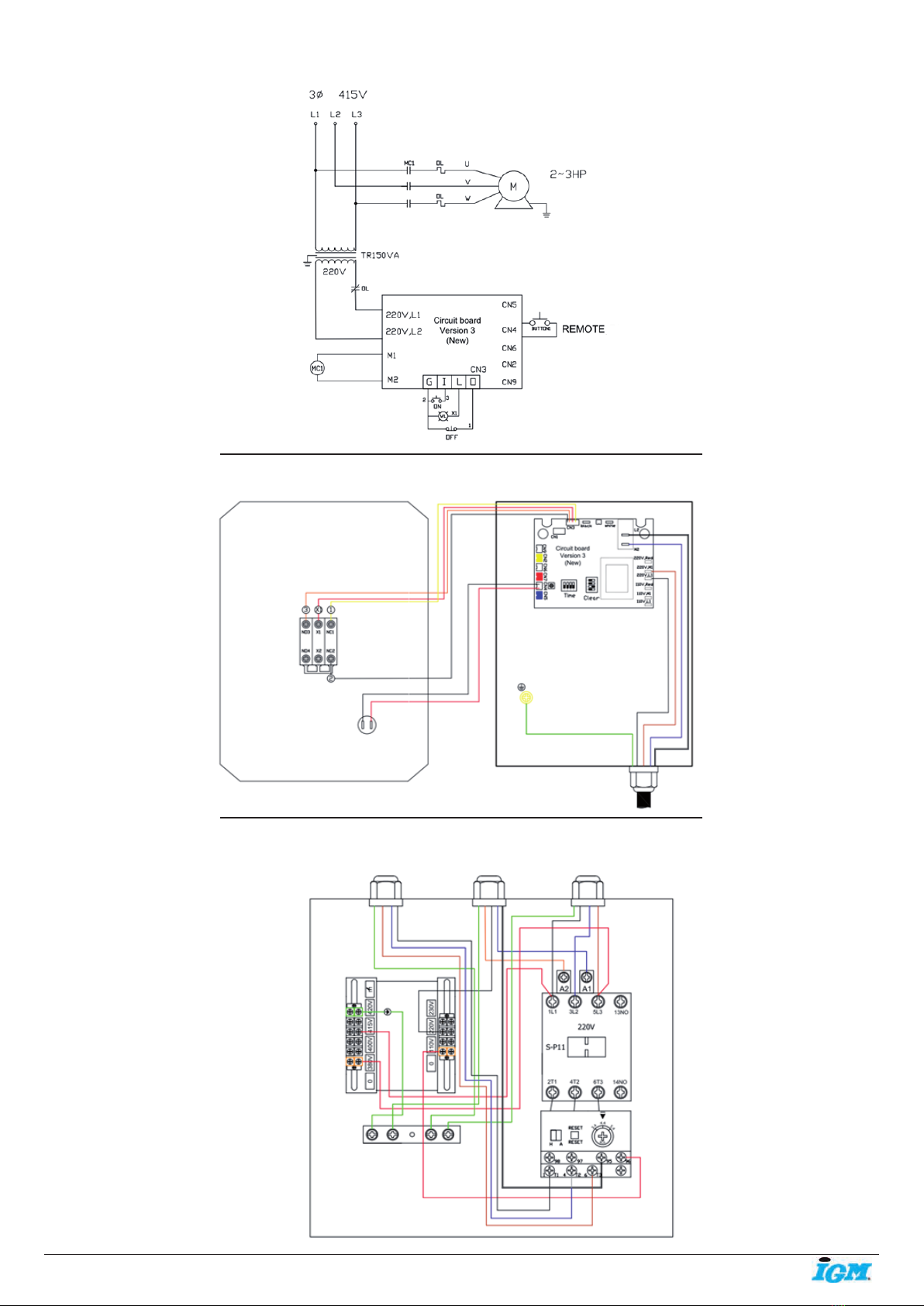

8. Power Connections & Wiring Diagrams - 13

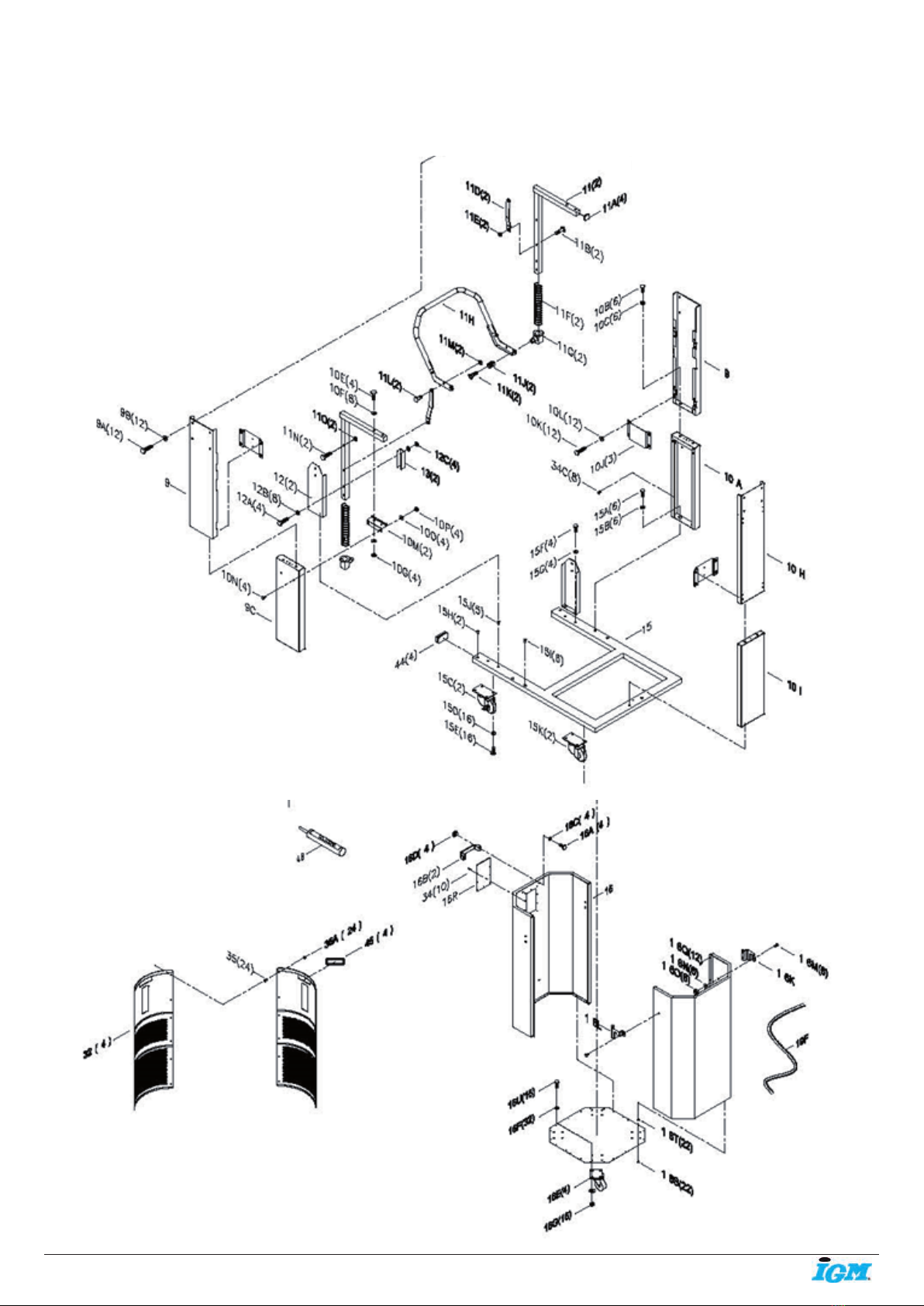

9. Parts Breakdown / Exploded Views
9.1 Section A - 15
9.2 Section B - 16
9.3 Section C - 17
9.4 Section D - 17
10. Parts List - 18
1. Declaration of conformity
We declare that this product is in compliance with the directive and the
standard mentioned on the previous page of this manual.
1.1 Warranty
IGM Tools & Machinery strives to always deliver high-quality machinery.
The warranty is governed by the valid terms and conditions of IGM Tools &
Machinery available at www.igmtools.com.
2. Specications
Motor 2200 W (3Hp)
Power 400V / 50Hz / 3PH
Recommended Breaker 20 Amps (Type D)
Airow (traditional method) 3831 m3/hour (2253 CFM)
Airow (realistic method) 2209 m3/hour (1299 CFM)
Max. Static Pressure 285 mm in water
Fan Diameter 390 mm
Inlet Diameter 1x 200 mm or 3 x 100 mm

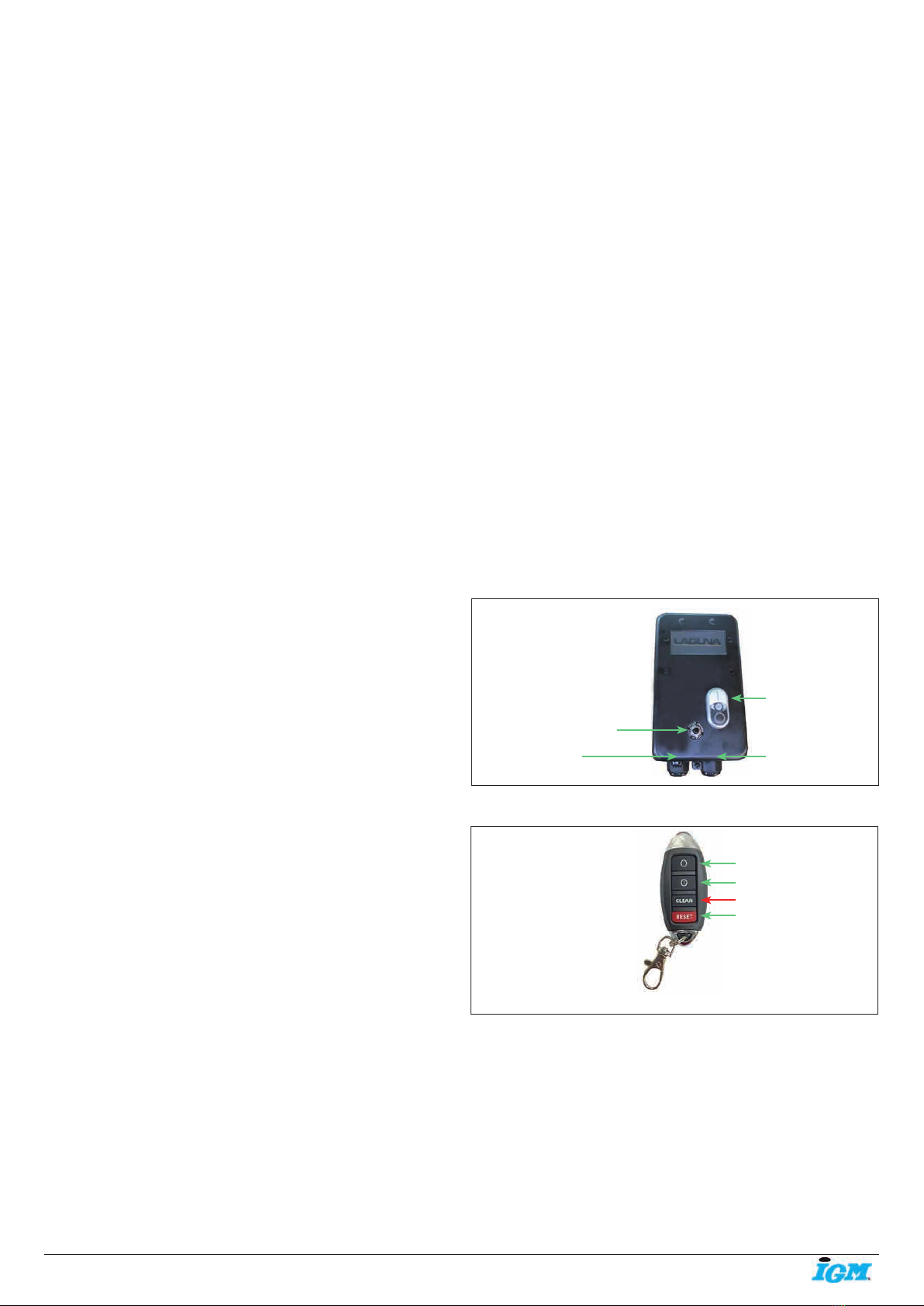

Switch High frequency remote control switch
Noise Level 82 dB(A) @ 3 m
Drum Collection Capacity 174 l, octagonal drum
Packing Size (WxDxH) 1260 x 770 x 1250 mm
Weight 169 kg
Shipping Weight 200 kg
Filter
Filtering Area: 9,5 m2
Cartridge Filter diameter 400 mm x height 900 mm
Filtration Size 1 Micron, 99.7 %
Drum Collection Bag Layat Size 960 x 1200 mm
Filter Collection Bag Layat Size 660 x 620 mm
3. General Safety Rules and Instructions
3.1 Important Safety Instructions
Read and understand all warnings and operating instructions before using
this equipment. Failure to follow all instructions listed below, may result in
electric shock, re, and/or serious personal injury or property damage.
Woodworking can be dangerous if safe and proper operating procedures
are not followed. As with all machinery, there are certain hazards involved
with the operation of the product. Using the machine with respect and
caution will considerably lessen the possibility of personal injury. However,
if normal safety precautions are overlooked or ignored, personal injury
to the operator may result. Safety equipment such as guards, push
sticks, hold-downs, feather boards, goggles, dust masks and hearing
protection can reduce your potential for injury. But even the best guard
won’t make up for poor judgment, carelessness or inattention. Always use
common sense and exercise caution in the workshop. If a procedure feels
dangerous, don’t try it. Figure out an alternative procedure that feels safer.
REMEMBER: Your personal safety is your responsibility.
This machine was designed for certain applications only. We strongly
recommend that this machine not be modied and/or used for any
application other than that for which it was designed. If you have any
questions relative to a particular application, do not use the machine until
you have rst contacted the manufacturer to determine if it can or should
be performed on the product.
If you have any questions relative to its application do not use the product
until you have contacted the manufacturer and we have advised you.
When using an electrical appliance, basic precautions should always be
followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE)
To reduce the risk of re, electric shock, or injury:
• Do not leave appliance when plugged in. Unplug from outlet when not in
use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when
used by or near children.
• Use only as described in this manual. Use only manufacturer’s
recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it
should, has been dropped, damaged, left outdoors, or dropped into water,
return it to a service centre.
• Do not pull or carry by cord, use cord as a handle, close a door on cord,
or pull cord around sharp edges or corners. Do not run appliance over
cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
EN - English
Operating Instructions (translation of the original instructions)
Dear Woodworker,
Thank you for your purchase and welcome to the Laguna Tools group of discerning woodworkers. We understand that you have a
choice of where to purchase your machines and appreciate the condence you have in the Laguna Tools brand.
Every machine manufactured by Laguna Tools has been carefully designed and well thought through from a woodworker’s perspective.
Through hands-on experience, Laguna Tools is constantly working hard to make innovative, precision products. Products that inspire
you to create works of art, are a joy to run and work on, and encourage your performance.

-4-www.igmtools.com
• Do not put any object into openings. Do not use with any opening
blocked; keep free of dust, lint, hair, and anything that may reduce air ow.
• Keep hair, loose clothing, ngers, and all parts of body away from
openings and moving parts.
• Turn o󰀨 all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up ammable or combustible liquids, such as
gasoline, or use in areas where they may be present.
• Connect to a properly grounded outlet only. See Grounding Instructions
SAVE THESE INSTRUCTIONS
• Read and understand the warnings posted on the machine and in this
manual. Failure to comply with all of these warnings may cause serious
injury.
• Replace the warning labels if they become obscured or removed.
• This 3HP Portable Cyclone Dust Collector is designed and intended for
use by properly trained and experienced personnel only. If you are not
familiar with the proper and safe operation of this type of dust collector, do
not use until proper training and knowledge have been obtained.
• Do not use this machine for other than its intended use. If used for other
purposes, LAGUNA TOOLS INC., disclaims any real or implied warranty
and holds itself harmless from any injury that may result from that use.
• Always wear approved safety glasses/face shields while using this
machine.
• Before operating this dust collector, remove tie, rings, watches and other
jewelry, and roll sleeves up past the elbows. Remove all loose clothing
and conne long hair. Non-slip footwear or anti-skid oor strips are
recommended. Do not wear gloves.
• Wear ear protectors (plugs or mu󰀨s) during extended periods of
operation.
• Some dust created by power sanding, sawing, grinding, drilling and other
construction activities contain chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals
are:
• Lead from lead based paint.
• Crystalline silica from bricks, cement and masonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals, work in a well-
ventilated area and work with approved safety equipment, such as face or
dust masks that are specically designed to lter out microscopic particles.
• Do not operate this machine while tired or under the inuence of drugs,
alcohol or any medication.
• Make certain the switch is in the OFF position before connecting the
machine to the power source.
• Make certain the machine is properly grounded.
• Make all machine adjustments or maintenance with the machine
unplugged from the power source.
• Form a habit of checking to see that all extra equipment such as
adjusting keys, wrenches, scrap, stock, and cleaning rags are removed
away from the machine before turning on.
• Keep safety guards in place at all times when the machine is in use. If
removed for maintenance purposes, use extreme caution and replace the
guards immediately when maintenance is complete.
• Make sure the dust collector is on a at even surface and the wheels
locked in place before use.
• Check damaged parts. Before further use of the machine, a guard or
other part that is damaged should be carefully checked to determine
that it will operate properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts, breakage of parts,
mounting and any other conditions that may a󰀨ect its operation. A guard or
other part that is damaged should be properly repaired or replaced.
• Provide for adequate space surrounding work area and non-glare,
overhead lighting.
• Keep the oor around the machine clean and free of scrap material, oil
and grease.
• Keep visitors a safe distance from the work area. Keep children away.
• Make your workshop child proof with padlocks, master switches or by
removing starter keys.
• Give your work undivided attention. Looking around, carrying on a
conversation and “horse-play” are careless acts that can result in serious
injury.
• Maintain a balanced stance at all times so that you do not fall or lean
against the dust collector. Do not overreach or use excessive force to
perform any machine operation.
• Use the right tool at the correct speed and feed rate. Do not force a tool
or attachment to do a job for which it was not designed. The right tool will
do the job better and safer.
• Use recommended accessories; improper accessories may be
hazardous.
• Maintain machinery with care. Follow instructions for lubricating and
changing accessories.
• Turn o󰀨 the machine before cleaning. Use a brush or compressed air to
remove dust or debris — do not use your hands.
• Do not stand on the machine. Serious injury could occur if the machine
tips over.
• Never leave the machine running unattended. Turn the power o󰀨 and do
not leave the machine until it comes to a complete stop.
3.2 General safety rules
WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN
SERIOUS PERSONAL INJURY.
CHECK DAMAGED PARTS. Before further use of the unit, properly repair
or replace any part that is damaged.
FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE
INSTRUCTION MANUAL BEFORE OPERATING THE MACHINE.
Learn the unit’s application and limitations as well as the specic hazards
peculiar to it.
KEEP WORK AREA CLEAN. Cluttered areas and benches invite
accidents.
DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use this unit in
damp or wet locations, or expose it to rain. Keep work area well-lighted.
KEEP CHILDREN AND VISITORS AWAY. All children and visitors should
be kept a safe distance from work area.
DISCONNECT UNIT before servicing.
CHECK DAMAGED PARTS. Before further use of the unit, properly repair
or replace any part that is damaged.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS
INJURY.
3.3 Additional Safety Instructions
Additional safety for dust collectors
Intended use. This dust collector is only intended for collecting wood dust
and chips from woodworking machines. Do not use this dust collector to
collect metal, dirt, pebbles, drywall, asbestos, lead paint, silica, liquids,
aerosols, or any ammable, combustible, or hazardous materials.
Hazardous dust. Dust created while using machinery may cause cancer,
birth defects, or long-term respiratory damage. Be aware of dust hazards
associated with each work piece material, and always wear a NIOSH-
approved respirator to reduce your risk.
Dust allergies. Dust from certain woods may cause an allergic reaction in

-5-www.igmtools.com
people and animals. Make sure you know what type of wood dust you will
be exposed to in case there is a possibility of an allergic reaction.
Wear respirator. Fine dust that is too small to be caught in the lter will
be blown into the ambient air during operation. Always wear a NIOSH-
approved respirator during operation and for a short time after to reduce
your risk of permanent respiratory damage.
Emptying dust. When emptying dust from the collection container, wear a
respirator and safety glasses. Empty dust away from ignition sources and
into an approved container.
Disconnecting power supply. Turn the switch o󰀨, disconnect the
dust collector from the power supply, and allow the impeller to come to
a complete stop before leaving the machine unattended or doing any
service, cleaning, maintenance, or adjustments.
Suspended dust particles and ignition sources. Do not operate the
dust collector in areas were explosion risks are high. Areas of high risk
include, but are not limited to, areas near pilot lights, open ames, or other
ignition sources.
Fire suppression. Only operate the dust collector in locations that contain
a re suppression system or have a re extinguisher nearby.
Impeller hazards. Do not place your hands or tools near the open inlet
during operation for any reason. The powerful suction could easily cause
accidental contact with the impeller, which will cause serious personal
injury or damage to the machine. Always keep small animals and children
away from open dust collection inlets.
Avoiding sparks. Do not allow steel or rocks to strike the impeller—this
may produce sparks. Sparks can smolder in wood dust for a long time
before a re is detected. If you accidentally cut Into wood containing tramp
metal (nails, staples, spikes, etc.), immediately turn o󰀨 the dust collector,
disconnect it from power, and wait for the impeller to stop—then empty the
collection container into an approved airtight metal container.
Operating location. To reduce respiratory exposure to ne dust, locate
permanently installed dust collectors away from the working area, or in
another room that is equipped with a smoke detector. Do not operate the
dust collector in rainy or wet locations—exposure to water may create a
shock hazard or decrease the life of the machine.
Static electricity. Plastic dust lines generate high amounts of static
electricity as dust chips pass through them. Although rare, sparks caused
by static electricity can cause explosions or re. To reduce this risk, make
sure all dust lines are thoroughly grounded by using a grounding wire.
Regular cleaning. Regularly check/empty the collection bags or drum to
avoid the buildup of ne dust that can increase the risk of re. Make sure
to regularly clean the surrounding area where the machine is operated—
excessive dust buildup on overhead lights, heaters, electrical panels, or
other heat sources will increase the risk of re.
Warning: If precautions are not heeded, it may result in minor injury and/or
possible machine damage.
Warning: If precautions are not heeded, it may result in serious injury or
possibly even death.
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.
3.4 Motor Specications
Your machine is wired for 400 volts, 50 HZ alternating current. Before
connecting the machine to the power source, make sure the switch is in
the “OFF” position.
3.5 Grounding Instructions
DANGER: THIS MACHINE MUST BE GROUNDED WHILE IN USE TO
PROTECT THE OPERATOR FROM ELECTRIC SHOCK.
1. This appliance must be connected to a grounded metal, permanent
wiring system; or an equipment-grounding conductor must be run with the
circuit conductors and connected to the equipment-grounding terminal or
lead on the appliance.
The installer, such as a qualied electrician, cut (or bend over) and
insulate the grounding conductor from a eld wiring supply cable.
In the event of certain types of malfunctions or breakdowns, grounding
provides a path of least resistance for electric current—in order to reduce
the risk of electric shock.
Improper connection of the equipment-grounding wire can result in a
risk of electric shock. The wire with green insulation (with or without
yellow stripes) is the equipment-grounding wire. If repair or replacement
of the power cord or plug is necessary, do not connect the equipment-
grounding wire to a live (current carrying) terminal. Check with a qualied
electrician or service personnel if you do not understand these grounding
requirements, or if you are in doubt about whether the tool is properly
grounded. If you ever notice that a cord or plug is damaged or worn,
disconnect it from power, and immediately replace it with a new one.
Full Load Amperage
Amp draw at 230V (prewired) 17 A
Electrical Circuit Requirements
You should use a separate electrical circuit for the Laguna CFlux. The
circuit should be protected by a 16A circuit breaker with a tripping
characteristic C (16/3 / C). The power cable of the machine is factory
tted with 400V industrial plug. The machine must be connected to an
appropriate industrial socket or the machine can be connected to a
terminal board and the wiring corresponding to the recommended fuse.
ATTENTION! WIRING MAY BE CARRIED OUT BY A QUALIFIED
ELECTRICIAN ONLY.
Recommended circuit breaker: 16A (16/3/C), tripping characteristic C.
WARNING: MAKE SURE THE SOCKET IS EARTHED. IF YOU ARE
NOT SURE, HAVE THE SOCKET CHECKED BY A QUALIFIED
ELECTRICIAN.
4. Parts Description
4.1 Functional Description
High frequency remote control switch
Hand held remote controller
PROGRAMMING THE REMOTE CONTROL
1. Ensure the machine is ON before programming the remote control.
2. Press the BLACK set button on the bottom of the remote switch until
you hear two beeps.
3. Press the Remote set button on your hand held controller
simultaneously with the BLACK button until you hear three beeps to
complete the set up.
On board circuit breaker
Power
Cord
ON/OFF
Switch
Motor Cord
ON button
OFF button
Remote set button*
CLEAN button (only for PFlux)
*Used to match up a new hand held
controller with the remote switch

-6-www.igmtools.com
5. Assembly
5.1 Unpacking
Your 3HP Mobile Dust Cyclone comes packed in a single box. Before
attempting to assemble this machine, follow these directions for
unpacking:
1. Carefully cut the banding straps and remove them from the box.
2. Cut along the tape line at the top of the box.
3. Remove all parts from the top of the styrofoam and set aside.
4. Remove the styrofoam packing material from the top of the machine.
5. Carefully take out the machine components from the box and set aside.
6. Using the diagram below, ensure that all parts are present and in good
condition.
Description
A. Motor
B. Switch and remote controller
C. Dust chute
D. Top upright supports (3)
E. Canister 1 Micron
F. Base frame
G. Rotation shaft
H. Rotation paddle (2)
I. Crossbar
J. Octagon drum lid
K. Cyclone funnel
L. Cyclone barrel
M. Intake cylinder
N. Canister cover plate
O. Octagon front and back panel
P. Octagon drum foot pedal
Q. Inlet adapter
R. Lower upright supports (3)
S. Drum insert
T. Upright support reinforcement plate (3)
U. Foot pedal bar (left and right)
V. Foot pedal assembly ttings
V1. Lower triangular support plate (2)
V2. Foot pedal bar support (2)
V3. Lower support plate (2)
W. Hardware box
X. Operating and Parts Manual
Y. Dust bags
Report any missing or damaged parts to your dealer or distributor. Prior to
tool assembly and use, read this manual thoroughly to familiarize yourself
with proper assembly, maintenance and safety procedures.
5.2 General Tool Assembly
This step requires two adults. This 3HP Mobile Dust Cyclone is heavy,
be careful when lifting and handling it! Failure to comply may cause
serious injury and/or damage to the machine and/or property!
Tools Required
10 mm wrench / 12 mm wrench / 14 mm wrench
Phillips screwdriver. 4 mm hex wrench / 5 mm hex wrench
To assemble your dust cyclone, follow these steps:
For your own safety, do not connect the machine to the power source until
the machine is completely assembled. Please also make sure that you
read and understand the entire instruction manual.
ASSEMBLY TIME ESTIMATE 4-5 hours
Step 1: Turn the unit upside down. Make sure you use a cushion under
the canister top side to even out the unit to the same height as the motor.
Do not have the unit lopsided. Remove the base (G) which has been
fastened to the (3) top upright supports (E).
Step 2: Secure the (4) 76 mm wheels to the underside of the base (F)
using (16) 8 mm*19 mm hex bolts and (16) 8 mm*OD18*2T at washers.
Step 3: Turn the base (F) around with it standing on the 4 red
wheels and secure the three lower upright support panels (P) using hex
bolts (6) 9 mm*19 mm and at washers (6) 9 mm*OD23*2T.
Each lower upright support panels (P) numbered for its specic location.
A – shown with one dot is located on the canister side. B – shown with two
dots with extension on left is located on the front side. C – shown with two
dots with extension on right is located on opposite end.

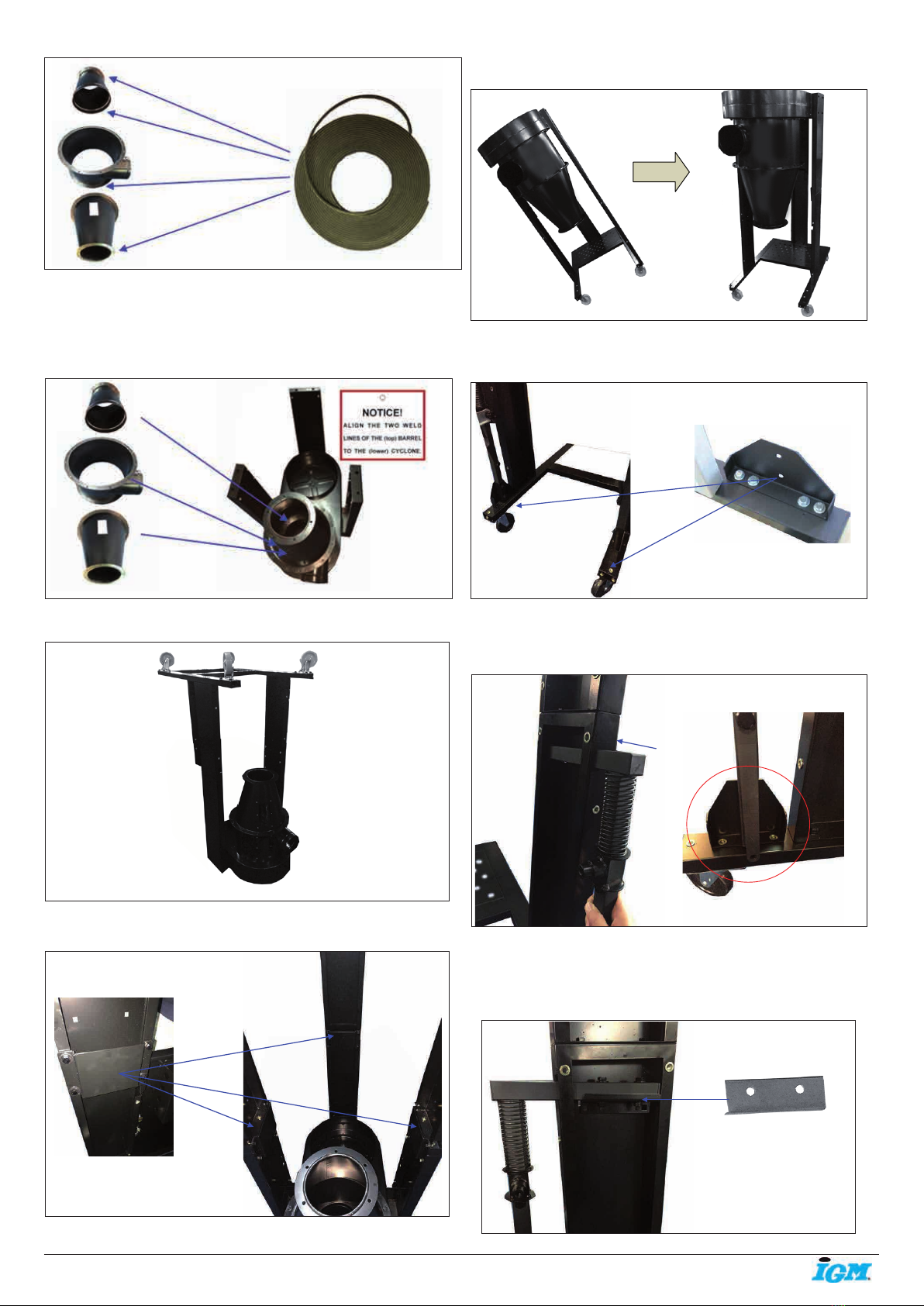

Step 4: Install the foam tape to the upper and lower rims of the three
components listed, Cyclone funnel, Cyclone barrel, and Intake cylinder.
Receiver set
button
Hardware
box
Manual

-7-www.igmtools.com
Step 5: Attach the intake cylinder to the dust chute using hex
spring bolts (4) 8 mm*16 mm. Then, attach the cyclone barrel onto the
dust chute using hex bolts (12) 8 mm*19 mm and at washers (12) 8
mm*OD18*2T. Followed by attaching the cyclone funnel to the barrel using
hex bolts (12) 8 mm*19 mm, at washers (24) 8 mm*OD18*2T and hex
nuts (12) 8 mm.
Step 6: Secure the base with (3) lower upright support panels to the unit
using hex bolts (6) 8 mm*19 mm and at washers (6) 8 mm*OD18*2T.
Step 7: Secure the 3 (T) upright support reinforcement plates using hex
bolts (12) 8 mm*19 mm and at washers (12) 8 mm*OD18*2T.
Step 8: With the help of another person, lift the unit up carefully to the
right side up with the motor on top and the wheels at the bottom.
Step 9: Secure the lower triangular support plate to the base using (4) hex
bolts 8 mm*19 mm and at washers (4) 8 mm*OD18*2T. Follow the same
steps for the opposite side.
Step 10: Slide the Foot pedal bar into the opening on the lower upright
support panel (R). Make sure the end of the bar is on the inside of the
triangular support plate. Follow the same steps for the opposite side.
Step 11: Secure the foot pedal support to the lower upright support panel
using carriage bolts (4) 8 mm*13 mm, at washers (4) 8 mm*OD18*2T
and hex nuts (4) 8 mm. Then secure the foot pedal bar to this support
using hex bolts (4) 8 mm*44 mm, at washers (8) 8 mm*OD18*2T and
hex nuts (4) 8 mm. Same for the opposite side.
3HP Mobile Dust Cyclone Manual
17
Step Six: Secure the base with (3) lower upright support panels to the unit
using (6) 5/16”*3/4”hex bolts and (6) 5/16”*OD18*2t flat washers.
Step Seven: Secure the (3) upright support reinforcement plates (T) using (12)
5/16”*3/4” hex bolts and (12) 5/16”*OD18*2t flat washers.
3HP Mobile Dust Cyclone Manual
18
Step Eight: With the help of another person, lift the unit up carefully to the
right side up with the motor on top and the wheels at the bottom.
Step Nine: Secure the lower triangular support plate to the base using (4)
5/16”*3/4” hex bolts and (4) 5/16”*OD18*2t flat washers..Follow the same steps
for the opposite side.
19

-8-www.igmtools.com
Step 12: Secure the base of the foot pedal bar to the triangular support
plate by holding the lower support plate vertically up against the foot pedal
bar using hex bolts (2) 8 mm*1,9 mm, at washers (4) 8 mm*OD18*2T
and hex nuts (2) 8 mm. Follow the same steps for the opposite side.
Step 13: Attach the two ends of the Octagon foot pedal to the nut on the
foot pedal bar.
Step 14: Secure the topping to the nut on the foot pedal bar. Follow this
step on the opposite side.
Step 15: Secure the topping with (2) M8*30mm hex bolts.
Step 16: Align the bolt hole on the movable supporting brace on the foot
peddle bar with the bolt hole on the octagon foot peddle.
Step 17: Secure the movable supporting brace on the foot pedal bar with
the octagon foot pedal using (2) 9 mm*21 mm. Make sure the bolt
head is on the inside of the octagon handle. Adjust the tightness of this
bolt accordingly. If this bolt is too tight, the Octagon foot pedal will not
work
smoothly. When too loose it will not pick up the Octagon drum.
Step 18: Secure the Octagon drum lid to the cyclone funnel using hex
bolts (8) 8 mm*19 mm, at washers (16) 8 mm*OD18*2T and hex nuts (8)
8 mm. Make sure to rst attach all the bolts on before tightening the bolts.
Step 19: Assemble the wheels to the Octagon drum. Take the four 7,6 mm
wheels and secure to Octagon drum base panel (N) using at washers
(8) 9 mm*OD23*2T and hex nuts (4) 9 mm.
3HP Mobile Dust Cyclone Manual
21
Step Fourteen: Secure the topping to the nut on the foot pedal bar. Follow this
step on the opposite side.
Step Fifteen: Secure the topping with (2) M8*30mm hex bolts
3HP Mobile Dust Cyclone Manual
23
Step Eighteen: Secure the Octagon drum lid to the cyclone funnel using (8)
5/16”*3/4” hex bolts, (16) 5/16”*OD18*2t flat washers and (8) 5/16” hex nuts..
Make sure to first attach all the bolts on before tightening the bolts. Failure to do
will result in the drum lid not being able to align with the drum.
Step Nineteen: Assemble the wheels to the Octagon drum. Take the (4) 3”
wheels and secure to Octagon drum base panel (N) using (8) 3/8”*OD23*2t
flat washers and (4) 3/8” hex nuts.Use the flat wrench provided to fasten tightly.
You will find a tag on the cone with
the following warning. Take note
and remove tag when you have
completed this step.
You will nd a tag on the cone with the
following warning. Take note
and remove tag when you have
completed this step.

-9-www.igmtools.com

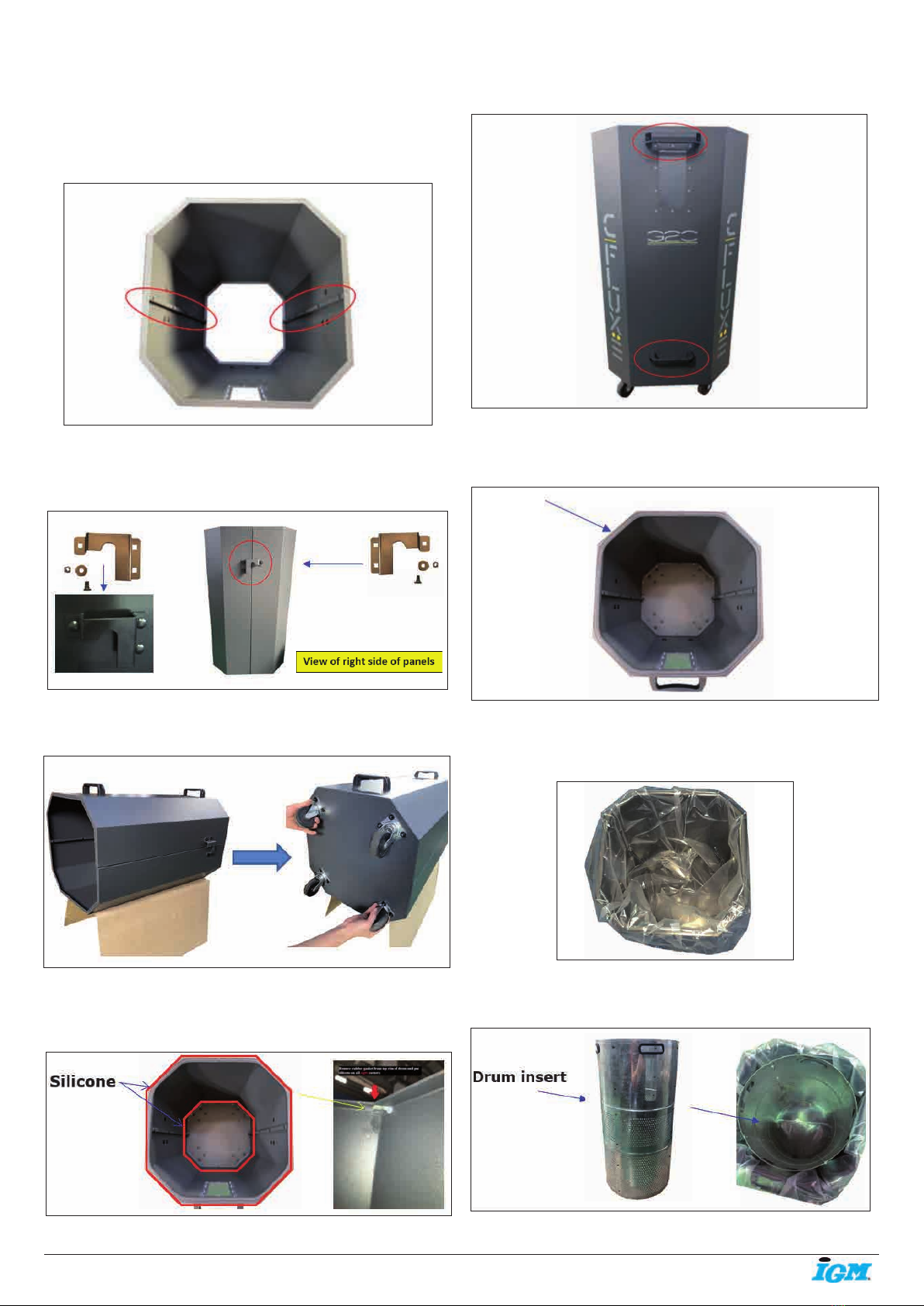

Step 20: Take the Octagon drum side panels and assemble together,
secure with (40) M4*12mm sheet metal thread bolts. Take note of the left
and right panels; do not assemble the incorrect sides. Refer to the next
step.
Step 21: Front and back panels of the Octagon should be bolted together
to prevent any confusion. Please assemble them together per photo
below.
Step 22: Both the left and right side lift panels have three bolt holes on
them. Take the matching side plate and secure to the outside of the
panel. (Photo shown is the inside of the panel) using carriage bolts (6) 6
mm*12,7 mm, at washers (6) 6 mm*OD19*2T and hex nuts (6) 6 mm.
Step 23: Take the Octagon base panel with wheels and secure on to the
bottom of the drum using M4*12mm sheet metal thread bolts.
Step 24: Once completing the assembly, apply silicone to the inside of the
drum including the base to seal and prevent air leakages and air ow loss.
Step 25: Attach the handles to the top and bottom end on the front
panel with the window display using (4) at head Philip bolts, (4) at
washers 8 mm*OD23*2T and hex nuts (4) 8 mm.
Step 26: Attach the rubber gasket to the top inner edges of the
Octagon drum. The wider end of the gasket goes up. You will need tin
snips to trim any excess rubber gasket after completing the seal.
Step 27: Insert the plastic bag inside the Octagon drum. Open and
spread out the plastic bag to the corners and edges.
Step 28: Place the drum insert inside over the plastic bag in the
Octagon drum.
Rubber gasket

-10-www.igmtools.com

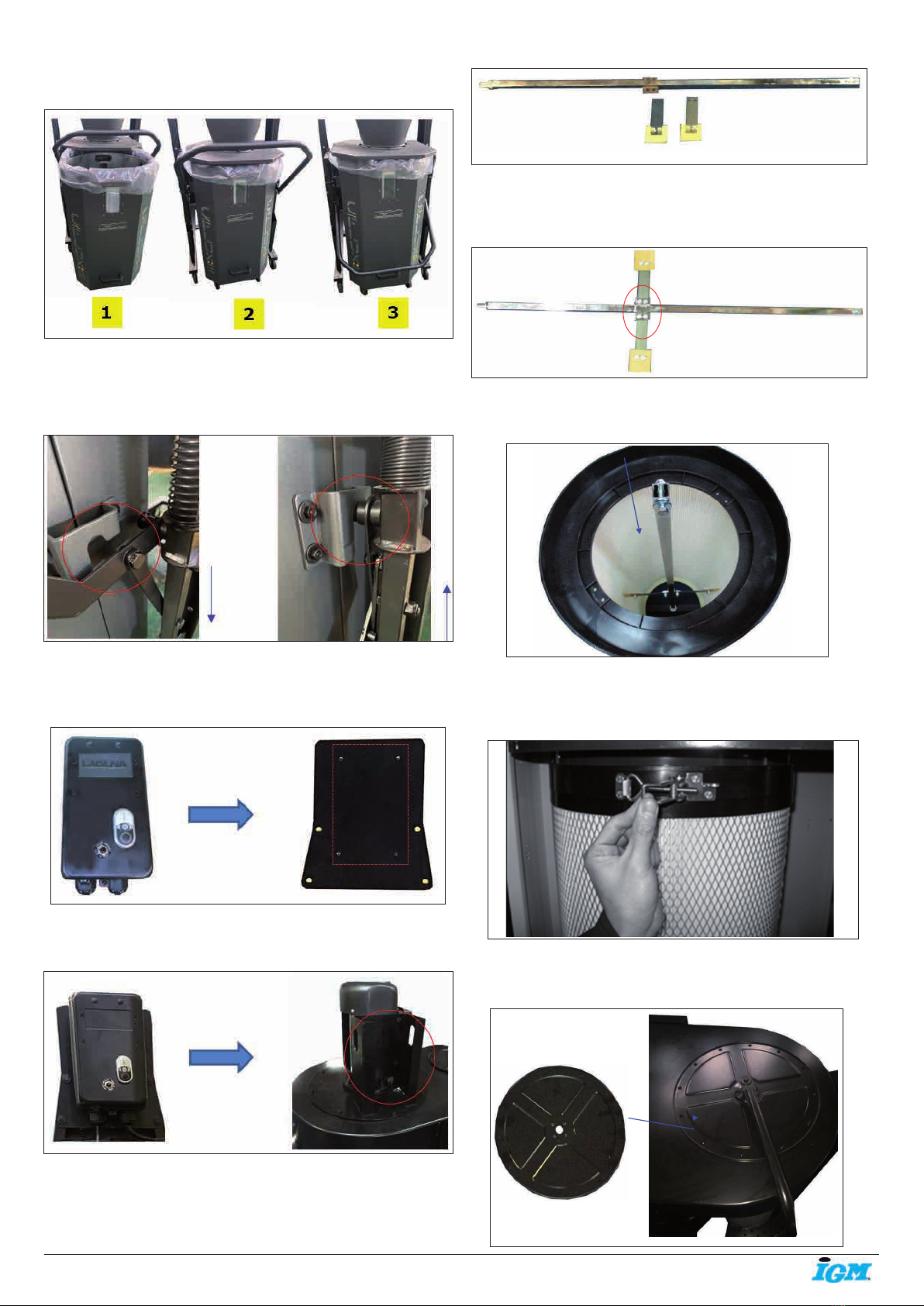

Step 29: Lift the foot peddle bar. Align the Octagon drum window to the
center point of the drum lid and push the drum in. Lower the foot peddle
bar (s) to seal the drum tight for normal machine operation.
Step 30: Make sure when aligning the drum that both the left and right
side lift plates are over the topping on the foot peddle bar assembly before
lifting the foot peddle bar up. When not aligned, the drum will not be fully
sealed and will interfere with the air ow.
Step 31: Take the switch box, open it by removing the bolt at the bottom of
the switch box to mount to the switch base plate using (4) M4 x 6mm at
head bolts.
Step 32: Install the Remote Switch Box to the switch plate on the motor
using hex bolts (4) 6 mm*19 mm and at washers (4) 6 mm*OD19*2T.
Step 33: Take the paddle and paddle branch and assemble together
using hex bolts (4) 6 mm*16 mm, at washers (4) 6 mm*OD19*1T and
nuts (4) 6 mm.
Step 34: Assemble the two paddle and paddle branch assemblies to the
rotation shaft using hex bolts (4) 6 mm*16 mm, at washers (4) 6
mm*OD19*1T and nuts (4) 6 mm.
Step 35: Insert the rotation shaft assembly into the canister lter. Slightly
bend the paddles to get them into the canister lter.
Step 36: Assemble the canister lter to the dust chute. Tighten the band
clamp and adjust the tightness accordingly to ensure the canister lter is
tightly tted onto the dust chute.
Step 37: Attach the canister cover plate to the dust chute using (12) 5
mm*13 sheet metal thread bolts.
3HP Mobile Dust Cyclone Manual
30
Step Thirty Two: Install the Remote Switch Box to the switch plate on the motor
using (4) 1/4”*3/4” hex bolts and (4) 1/4”*OD19*2t flat washers.
Step Thirty Three: Take the paddle and paddle branch and assemble together
using (4) 1/4”*5/8” hex bolts, (8) 1/4”*OD13*1t flat washers and (4) 1/4” hex nuts.
Step Thirty Four: Assemble the two paddle and paddle branch assemblies to the
rotation shaft using (4) 1/4”*5/8” hex bolts, (8) 1/4”*OD13*1t flat washers and (4)
1/4” hex nuts.
3HP Mobile Dust Cyclone Manual
30
Step Thirty Two: Install the Remote Switch Box to the switch plate on the motor
using (4) 1/4”*3/4” hex bolts and (4) 1/4”*OD19*2t flat washers.
Step Thirty Three: Take the paddle and paddle branch and assemble together
using (4) 1/4”*5/8” hex bolts, (8) 1/4”*OD13*1t flat washers and (4) 1/4” hex nuts.
Step Thirty Four: Assemble the two paddle and paddle branch assemblies to the
rotation shaft using (4) 1/4”*5/8” hex bolts, (8) 1/4”*OD13*1t flat washers and (4)
1/4” hex nuts.
3HP Mobile Dust Cyclone Manual
31
Step Thirty Five: Insert the rotation shaft assembly into the canister filter. Slightly
bend the paddles to get them into the canister filter.
Step Thirty Six: Assemble the canister filter to the dust chute. Tighten the band
clamp and adjust the tightness accordingly to ensure the canister filter is tightly
fitted onto the dust chute.

-11-www.igmtools.com

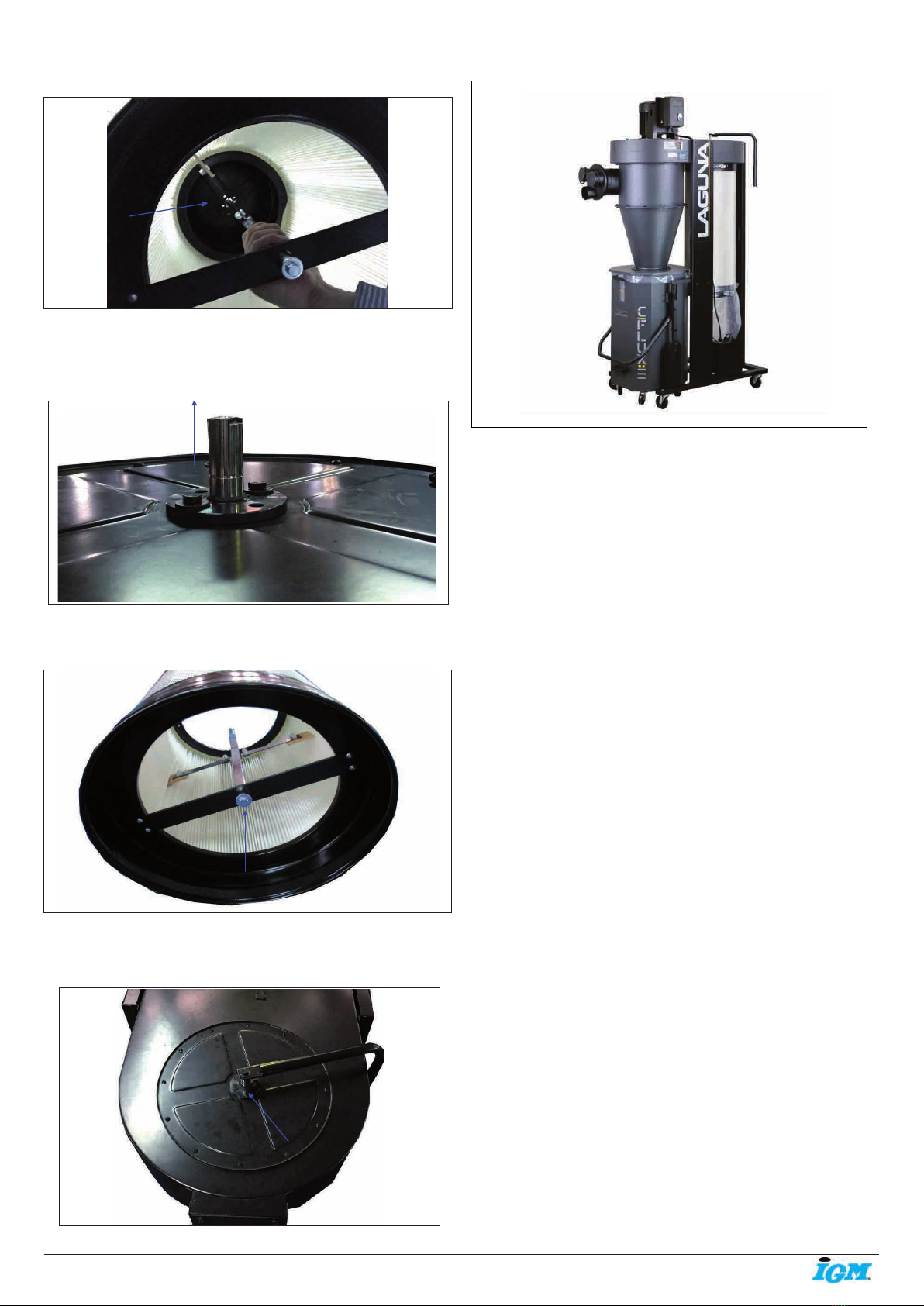

Step 38: From the bottom of the canister lter, push the rotation shaft
through the hole in the middle of the canister cover plate.
Step 39: While holding the rotation shaft above the hole, insert the
bearing onto the shaft. This will x the rotation shaft in place and you
will not need to keep holding it up. Secure the bearing using bolts (4) 6
mm*19 mm and washers (4) 6 mm*OD19*2T.
Step 40: Secure and tighten the (1) 8 mm*19 mm and (1) 8 mm*OD23*2T
at washer on the rotation shaft base.
Step 41: Attach and secure the rotation crank to the top of the rotation
shaft using a hex bolt (1) 8 mm*19 mm and a at washer (1) 8
mm*OD30*3T.
Step 42: All the assembly steps have been completed.
6. Maintenance procedures
CLEANING THE FILTER
To ensure proper operation of this Mobile Dust Cyclone, the HEPA
canister lter must have adequate air ow. This means the lter must
be regularly maintained by carefully blowing the lter clean using
compressed air and an air gun to release built-up particulates trapped
between the lter pleats.
For heavy duty users, it is recommended to use compressed air on a
regular basis to maintain maximum ltration e󰀩ciency and longer life span
of the lter.
Using the Filter Cleaner Crank
The lter cleaner crank knocks dust particulate and small debris from the
pleated lter and into the lter bag.
To keep your machine in good working condition, it is recommended that
you use the lter cleaner crank to clean the lter after every use.
To clean the lter using the crank simply rotate the crank handle clockwise
four or ve rotations.
Using Compressed Air
Disconnect machine from power!
For heavy duty users, it is recommended to use compressed air on a
weekly basis to maintain maximum ltration e󰀩ciency and longer life span
of the lter.
REMOVING THE CANISTER FILTER
1. Follow the steps 29 to 34 in reverse to remove the canister lter.
2. With the canister lter removed use a compressed air gun to thoroughly
clean between the pleats, both inside and outside.
RE-ASSEMBLING THE CANISTER FILTER AFTER CLEANING
1. With the aid of another person, carefully re-insert the canister lter
repeating steps twenty nine to thirty four.
EMPTYING OR REPLACING THE FILTER BAG
Periodically check the lter bag, if it is more than one third full, it is
recommended that you empty it.
Pozn.: If the lter bag gets too full, the weight may force it to pull away
from the band clamp, exposing the user to potentially harmful particulates.
1. Release the spring-loaded band clamp at the bottom of the lter and
remove the lter bag.
2. Empty or replace the lter bag and re-attach using the spring-loaded
band clamp.
EMPTYING THE DRUM
Periodically inspect the contents of the drum and empty as needed. To
inspect the contents of the drum:
1. Raise the drum foot peddle bar to lower the drum to the oor.
2. Roll it away from the machine, inspect and empty as needed.
3HP Mobile Dust Cyclone Manual
32
Step Thirty Seven: Attach the canister cover plate to the dust chute using (12)
3/16”*1/2” sheet metal thread bolts.
Step Thirty Eight: From the bottom of the canister filter, push the rotation shaft
through the hole in the middle of the canister cover plate.
3HP Mobile Dust Cyclone Manual
33
Step Thirty Nine: While holding the rotation shaft above the hole, insert the
bearing onto the rotation shaft and pushing it down to the canister cover plate.
This will fix the rotation shaft in place and you will not need to keep holding it up.
Secure the bearing using (4) 1/4”*3/4” hex bolts and (4) 1/4”*OD19*2t flat
washers.
Step Forty: Secure and tighten the (1) 5/16”*3/4” and (1) 5/16”*OD23*2t flat
washer on the rotation shaft base.

-12-www.igmtools.com
ROUTINE INSPECTION
It is a good idea to routinely inspect any quality woodworking tool in order
to keep it in optimum condition. This includes inspecting all hardware for
tightness, ensuring the lter is clean, and cleaning debris and grime from
any surfaces and moving parts.
7. Troubleshooting guide
Machine does not start or a breaker trips.
Possible Cause
1. Power supply switched OFF or is faulty.
2. Wall fuse/circuit breaker is blown/tripped.
3. Faulty remote control.
4. Remote receiver is faulty.
5. Incorrectly wired motor connection.
6. On-board circuit breaker is tripped.
7. Wiring is open/has high resistance.
8. Faulty power switch.
9. Motor is at fault.
Possible Solution
1. Ensure power supply is ON and has the correct voltage.
2. Ensure adequate circuit size; install inlet restrictor, replace weak breaker.
3. Replace batteries; ensure unobstructed line-of-sight and signal range.
4. Inspect receiver circuit board; replace if faulty.
5. Rewire or call certied service technician or electrician.
6. Allow motor to cool, improve ventilation, press reset button.
7. Check for broken wires or poor connections, repair as necessary.
8. Replace switch.
9. Test/repair/replace.
Excessive vibration or noise during operation.
Possible Cause
1. Loose component.
2. Loose or broken motor mount.
3. Motor fan hitting fan cover.
4. Bad motor bearings.
Possible Solution
1. Inspect and tighten all bolts/nuts.
2. Tighten or replace as needed.
3. Check fan and cover; replace as needed.
4. Rotate shaft manually, check for grinding or loose shaft, replace bearings
if needed.
Loud, repetitive noise, or excessive vibration coming from
cyclone
Possible Cause
1. Machine is on uneven surface.
2. Damaged/Unbalanced impeller.
3. Loose connections.
4. Impeller is loose.
5. Motor fan hitting fan cover.
Possible Solution
1. Stabilize on a at surface.
2. Inspect impeller for dents, bends, loose ns. Replace if needed.
3. Check and re-tighten all fasteners.
4. Replace the motor and impeller.
5. Check fan and cover; replace as needed.
Dust cyclone does not adequately collect dust or chips;
poor performance.
Possible Cause
1. Canister end cap is full.
2. Filter is dirty.
3. Restricted duct line.
4. Suction route is too long or has too many sharp bends.
5. Wet lumber is clogging ducts.
6. Leaks in the duct work or too many open ports.
7. Inadequate velocity in the main suction line.
8. Wrong size ducting/ports used.
Possible Solution
1. Empty canister end cap.
2. Clean lter.
3. Clean inlet splitter.
4. Move machine closer to the point of suction, and rerun ducts to eliminate
sharp bends.
5. Use lumber with less than 20% moisture content.
6. Repair all duct leaks and close any ports not being used.
7. Increase velocity by opening 1 or 2 more blast gates to di󰀨erent branch
lines.
8. Re-size and re-install ducts and ttings.
Sawdust being blown into the air from the dust cyclone.
Possible Cause
1. Band clamp or end cap is not secure.
2. Loose or damaged seals.
Possible Solution
1. Re-install ensuring a tight t.
2. Replace seals and gaskets.

-13-www.igmtools.com
8. POWER CONNECTIONS & WIRING DIAGRAMS
Power Connections & Wiring
Secondary control box internal wiring
Internal Wiring

-14-www.igmtools.com
9. Parts breakdown / Exploded Views

-15-www.igmtools.com
9.1 SECTION A
(Close up view)

-16-www.igmtools.com
9.2 SECTION B
(Close up view)

-17-www.igmtools.com
9.3 SECTION C
(Close up view)
9.4 SECTION D
(Close up view)

10. Parts list
1 PDCCF32201-1 MOTOR 3HP 1
1A PDCCF32201-1A MOTOR GASKET 1
2 PDCCF32201-2 MOTOR SUPPORT BASE 1
2A PDCCF32201-2A HEX LOCK BOLT 5/16” x 5/8” 12
2B PDCCF32201-2B FLAT WASHER 3/8”x23x2t” 8
2C PDCCF32201-2C HEX BOLT 3/8”x 1” 4
2D PDCCF32201-2D HEX NUT 3/8” 4
2E PDCCF32201-2E FLAT WASHER 3/8”x23x2mm 4
2F PDCCF32201-2F HEX BOLT 3/8” x 1-1/4” 4
2G PDCCF32201-2G SWITCH PLATE 1
2H PDCCF32201-2H HEX BOLT 1/4” x 3/4” 4
2I PDCCF32201-2I FLAT WASHER 1/4”x19x1mm 4
3 PDCCF32201-3 FAN 15.5” 1
3A PDCCF32201-3A FLAT WASHER 3/8”x45x3t 1
3B PDCCF32201-3B HEX BOLT 3/8” x 1” 1
6 PDCCF32201-6 DUST CHUTE 1
6A PDCCF32201-6A CANISTER COVER PLATE 1
6B PDCCF32201-6B SHEET METAL THREAD BOLT 3/16”x 1/2” 12
8 PDCCF32201-8 COVER PLATE 1
8A PDCCF32201-8A SHEET METAL THREAD BOLT M4x12mm 4
9 PDCCF32201-9V2 TOP UPRIGHT SUPPORT V2.2021 2
9A PDCCF32201-9A HEX BOLT 5/16” x 3/4” 12
9B PDCCF32201-9A FLAT WASHER 5/16”x18x2mm 12
9C PDCCF32201-9CV2 LOWER UPRIGHT SUPPORT TWO DOT (3B)235 V2.2021 1
10A PDCCF32201-10AV2 LOWER UPRIGHT SUPPORT THREE DOT (2B) 235 V2.2021 1
11M PDCCF32201-11M HEX LOCK NUT 3/8” 2
11N PDCCF32201-11N HEX BOLT 3/8” x 1-1/2” 2
11O PDCCF32201-11O HEX LOCK NUT 3/8” 2
12 PDCCF32201-12V2 TRIANGULAR SUPPORT PLATE V2.2021 2
12A PDCCF32201-12A HEX BOLT 5/16” x 1-3/4” 4
12B PDCCF32201-12B FLAT WASHER 5/16”x18x2mm 8
12C PDCCF32201-12C HEX NUT 5/16” 4
13 PDCCF32201-13 LOWER SUPPORT PLATE 2
14 PDCCF32201-14V2 PLASTIC BAG Ø610 x 1200mm 3
15 PDCCF32201-15 BASE 1
15A PDCCF32201-15A HEX BOLT 3/8” x 3/4” 6
15B PDCCF32201-15B FLAT WASHER 3/8”x 23 x 2mm 6
15C PDCCF32201-15C SWIVEL CASTER 4” 2
15D PDCCF32201-15D FLAT WASHER 5/16”x18x2mm 16
15E PDCCF32201-15E HEX BOLT 5/16” x 3/4” 16
15F PDCCF32201-15F HEX BOLT 5/16” x 3/4” 4
15G PDCCF32201-15G FLAT WASHER 5/16”x18x2mm 4
15H PDCCF32201-15H RIVET NUT 1/4” 2
15I PDCCF32201-15I RIVET NUT 3/8” 6
15J PDCCF32201-15J RIVET NUT 5/16” 5
15K PDCCF32201-15K SWIVEL CASTER W/BRAKES 4” 2
16 PDCCF32201-16V2 OCTAGON DRUM FRONT PANEL V2.2021 1
16A PDCCF32201-16A FLAT HEAD PHILIP BOLT 5/16”x3/4” 4
16B PDCCF32201-16B HANDLE 2
16C PDCCF32201-16C FLAT WASHER 5/16”x23x2mm 4
16D PDCCF32201-16D HEX NUT 5/16” 4
18J PDCCF32201-18J FOAM TAPE 3x15mm x 80CM 1
19 PDCCF32201-19V2 OCTAGON DRUM LID V2.2021 1
19A PDCCF32201-19A HEX BOLT 5/16” x 3/4” 6
19B PDCCF32201-19B FLAT WASHER 5/16”x18x2mm 12
19C PDCCF32201-19C HEX NUT 5/16” 6
19D PDCCF32201-19D PLUG MSP-16 1
19E PDCCF32201-19E NUT AGL-16 1
19F PDCCF32201-19F RUBBER GASKET 1650mm 1
20 PDCCF32201-20 BAND CLAMP Ø400mm 1
20A PDCCF32201-20A SPRING BAND CLAMP Ø400mm 1
22 PDCCF32201-22 ROTATION CRANK 1
22A PDCCF32201-22A HEX BOLT 5/16” x 3/4” 1
22B PDCCF32201-22B FLAT WASHER 5/16”x30x3mm 1
22C PDCCF32201-22C GEAR Ø20mm 1
22D PDCCF32201-22D HEX BOLT 1/4” x 3/4” 4
22E PDCCF32201-22E FLAT WASHER 1/4” x 19 x 2mm 4
22F PDCCF32201-22F BEARING 1
22G PDCCF32201-22G SEAL 1
23 PDCCF32201-23V2 ROTATION SHAFT V2.2021 1
23A PDCCF32201-23A HEX BOLT 1/4” x 5/8” 8
23B PDCCF32201-23B FLAT WASHER 1/4”x 13 x 1mm 16
23C PDCCF32201-23C PADDLE 2
23D PDCCF32201-23D PADDLE BRANCH 4
23E PDCCF32201-23E HEX LOCK NUT 1/4” 8
23F PDCCF32201-23F ROTATION SHAFT CONNECTION 1
23G PDCCF32201-23G HEX BOLT 5/16” x 1-1/2” 1
10B PDCCF32201-10B HEX BOLT 5/16” x 3/4” 6
10C PDCCF32201-10C FLAT WASHER 5/16”x18x2t 6
10E PDCCF32201-10E HEX BOLT 5/16” x 1-3/4” 4
10F PDCCF32201-10F FLAT WASHER 5/16”x18x2t 8
10G PDCCF32201-10G HEX NUT 5/16” 4
10H PDCCF32201-10H TOP UPRIGHT SUPPORT ONE DOT (1A) 1
10I PDCCF32201-10IV2 LOWER UPRIGHT SUPPORT ONE DOT (1B) 235V2.2021 1
10J PDCCF32201-10J UPRIGHT SUPPORT REINFORCEMENT PLATE 3
10K PDCCF32201-10K HEX BOLT 5/16” x 3/4” 12
10L PDCCF32201-10L FLAT WASHER 5/16”x18x2mm 12
10M PDCCF32201-10M FOOT-PEDAL BAR SUPPORT 2
10N PDCCF32201-10N CARRIAGE BOLT 5/16”x1/2” 4
10O PDCCF32201-10O CARRIAGE BOLT 5/16”x18x2mm 4
10P PDCCF32201-10P HEX NUT 5/16” 4
11 PDCCF32201-11 FOOT PEDDLE BAR 2
11A PDCCF32201-11A PLUG 25, 25 4
11B PDCCF32201-11B HEX BOLT 3/8” 2
11D PDCCF32201-11D MOVEABLE SUPPORT BRACE 2
11E PDCCF32201-11E HEX LOCK NUT 3/8” 2
11F PDCCF32201-11F SPRING Ø42mm x 242mm 2
11G PDCCF32201-11G SKID BLOCK 2
11H PDCCF32201-11H OCTAGON DRUM FOOT- PEDAL 1
11J PDCCF32201-11J TOPPING Ø24mmx30mm 2
11K PDCCF32201-11K HEX BOLT M8 x 30mm 2
11L PDCCF32201-11L HEX BOLT 3/8” 2
16E PDCCF32201-16E DRUM CASTER 3” 4
16U PDCCF32201-16U HEX BOLT 5/16” x 3/4” 16
16F PDCCF32201-16F FLAT WASHER 5/16”x18x2mm 32
16G PDCCF32201-16G HEX NUT 5/16” 16
16H PDCCF32201-16HV2 OCTAGON DRUM BACK PANEL V2.2021 1
16K PDCCF32201-16K LEFT SIDE PLATE 1
16L PDCCF32201-16L RIGHT SIDE PLATE 1
16M PDCCF32201-16M CARRIAGE BOLT 1/4” x 1/2” 6
16N PDCCF32201-16N FLAT WASHER 1/4”x19x2mm 6
16O PDCCF32201-16O HEX NUT 1/4” 6
16P PDCCF32201-16PV2 OCTAGON DRUM BASE PANEL V2.2021 1
16R PDCCF32201-16RV2 WINDOW V2.2021 1
16S PDCCF32201-16S TRUSS HEAD PHILIPS FLAT POINT SCREWS M3 x 6mm 22
16T PDCCF32201-16T CAP NUT M3 22
16Q PDCCF32201-16Q THREAD BOLT M4 x 12mm 10
17 PDCCF32201-17 INTAKE CYLINDER 1
17A PDCCF32201-17A HEX BOLT 5/16” x 5/8” 4
17B PDCCF32201-17B FLAT WASHER 5/16”x18x2mm 4
18 PDCCF32201-18 CYCLONE BARREL 1
18A PDCCF32201-18A HEX BOLT 5/16” x 3/4” 12
18B PDCCF32201-18B FOAM TAPE 3 x 6mm x 10M 1
18D PDCCF32201-18D CYCLONE FUNNEL 1
18E PDCCF32201-18E FLAT WASHER 5/16”x18x2mm 12
18F PDCCF32201-18F HEX BOLT 5/16” x 3/4” 12
18G PDCCF32201-18G FLAT WASHER 5/16”x18x2mm 24
18H PDCCF32201-18H HEX NUT 5/16” 12
23H PDCCF32201-23H FLAT WASHER 5/16”x 18x 2mm 2
23I PDCCF32201-23I HEX LOCK NUT 5/16” 1
24 PDCCF32201-24 CANISTER FILTER Ø400mm x 900mm 1
24A PDCCF32201-24A ROTATION SHAFT BASE 1
24B PDCCF32201-24B SHEET METAL PHILIP BOLT 3/16” x 3/4” 4
24C PDCCF32201-24C HEX BOLT 5/16” x 3/4” 1
24D PDCCF32201-24D FLAT WASHER 5/16” x 23 x 2mm 1
24E PDCCF32201-24E FOAM TAPE 3 x 25mm x 1.5M 1
25 PDCCF32201-25 PLASTIC BAG Ø400mm x 600mm 3
27A PDCCF32201-27A SHEET METAL BOLT M4 x 12mm 3
27C PDCCF32201-27C INTAKE SPLITTER 8” x 4” X 3 1
32 PDCCF32201-32V2 DRUM INSERT V2.2021 4
33 PDCCF32201-33 FLAT HEAD BOLT M4 x 6mm 4
34 PDCCF32201-34 RIVET 3-2 10
34C PDCCF32201-34C RIVET NUT 1/4” 8
34D PDCCF32201-34D RIVET NUT 5/16” 18
35 PDCCF32201-35 ROUND HD BOLT 3/16” x 1/2” 24
35A PDCCF32201-35A NUT 3/16” 24
36 PDCCF32201-36V2 FREQUENCY REMOTE SWITCH V2.2021 1
44 PDCCF32201-44 RUBBER PLUG 30mm x 60mm 4
47 PDCCF32201-47 CROSSBAR 1
48 PDCCF32201-48 SILICONE 1
Ref No Part Number Part Name & Description QTY Ref No Part Number Part Name & Description QTY
IGM nástroje a stroje s.r.o., Ke Kopanině 560,
Tuchoměřice, 252 67, Czech Republic, E.U.
[phone],www.igm.cz
© 2022 IGM nástroje a stroje s.r.o.
