Oneida Air Systems Supercell XSK000014 User manual

Supercell®
High-Pressure
Dust Collector
14 Gallon
# XSK000014
Rev: 07/20/2020 Doc. #ZBM000037
Appearance may vary slightly
OWNER’S MANUAL

oneida-air.com 1
Table of Contents
System Start-Up Information 2
System Specications 4
System Dimensions 5
System Contents 6
Assembly Instructions 8
Maintenance 20
Troubleshooting 24
F.A.Q. 25
Recommended Accessories 26
Warranty Information 28
Notes 29

Oneida Air Systems, Inc.2
System Start-Up Information
1. Install ductwork/ex hose completely before operating collector.
a. Seal ductwork with silicone sealant or duct tape if leaks are found.
b. Have dust drum in place and sealed.
2. DO NOT operate without lter in place. Debris will cause damage to the motor!
3. THIS UNIT IS NOT RATED FOR USE IN COMBUSTIBLE ENVIRONMENTS.
4. is equipment incorporates parts such as switches, motors or the like that tend to produce arcs or sparks that can cause an
explosion.
5. To reduce the risk of Electric Shock, DO NOT use outdoors or on wet surfaces.
6. Exhaust air should not be vented into a wall, a ceiling, or a concealed space of a building.
7. To reduce the risk of injury from moving parts - unplug BEFORE servicing.
8. Ensure that your dust collector is turned o and unplugged during installation.
9. Use this equipment for dry material collection only. DO NOT use for liquid collection.
 WARNING 
 FIRE HAZARDS 
1. Wood shaping and cutting processes generate wood chips, shavings and dust. ese materials are considered combustible.
Air borne wood dust below 420 microns in size (0.017 of an inch) in certain concentration ranges when ignited can
deagrate (burn quickly). An ignition source such as a spark or ember can ignite a dust mixture resulting in an expanding
ame front, which can cause an explosion if tightly contained. A disturbance that raises a cloud of accumulated ne dust can
raise additional dust clouds, which can cause a series of explosions that can level an entire building. Until this type of re has
been witnessed, it is dicult to believe the devastation. is type of re is rare but worth safeguarding against.
2. e best way to avoid a wood shop re is to keep the shop clean. A shop ankle deep in dust with layers of ne dust
everywhere is an accident waiting to happen. A good dust collection system reduces overall re hazards but also adds new
concerns. A re hazard is still present. Combustible material is now in the dust collector and storage container.
3. e following points are worth heeding:
a. It is the buyer’s responsibility to follow all applicable federal, state, local, OSHA, NFPA, or authorities having jurisdiction
codes and regulations when installing and operating this dust collector.
b. Fire Marshals may want the unit located outside of the building. If the collector is located inside the facility, controls
such as spark detection, suppression, or explosion venting may be required.
c. Most local jurisdictions consult or adopt NFPA (National Fire Protection Agency) codes. However, other codes may
apply. Local codes may vary from jurisdiction to jurisdiction.
d. NFPA664 Code book, “Standard for the Prevention of Fires and Explosions in Wood Processing and Woodworking
Facilities”, applies to woodworking operations that occupy areas of more than 5,000 sq. . or to areas where dust
producing equipment requires an aggregate dust collection ow rate of more than 1,500 cfm (cubic feet per minute).
is exempts some small operators from the NFPA code 664, but other codes may apply in your jurisdiction. Consult
MAKE SURE TO READ AND UNDERSTAND THE INSTALLATION AND MAINTENANCE INSTRUCTIONS AS
WELL AS ALL RECOMMENDED SAFETY PRACTICES.

oneida-air.com 3
System Start-Up Information (Continued)
your local Fire Marshal for help. Additional information can be found in NFPA Code Book 664.
4. e customer assumes the responsibility for contacting their insurance underwriter regarding specic application
requirements of explosion venting or if additional re protection and safety equipment may be required.
5. DO NOT use this product to collect ammable dust or ammable vapors! - Fire or explosion may occur!
6. NEVER collect sparks from a bench grinder into a wood dust collector.
7. NEVER introduce sparks or sources of ignition into the dust collector.
8. Check dust bin frequently for smoldering material and before leaving the shop.
9. Keep portable re extinguishers handy.
a. e ABC type (dry chemical) is generally a good choice for small wood shops.
b. Additional information on portable extinguishers can be found in NFPA 10 (Standard for Portable Fire Extinguishers).
10. Be especially careful with sanding units. ey can produce concentrations of dust in the combustible range. Make certain
enough air volume is at the suction point to capture all the particulate generated.
11. is high air volume will dilute the mixture below the lower limit of ammability. Be careful not to generate sparks into the
sanding dust.
12. Empty dust bin and clean lter oen, especially when sanding.
13. DO NOT overload woodworking equipment, especially sanders. Excessive frictional heat can spontaneously ignite dust.
14. Sparks can be generated in several ways:
a. High speed sanders and abrasive planers may strike foreign material.
b. Saws and edgers may strike foreign material and create a red-hot metal fragment.
c. Knots in hardwood can create frictional sparks.
d. Trapped metal when drawn into the collector can spark against ductwork.
e. Check wood stock for old nails and screws which can create red hot metal fragments.
15. Avoid using excessively large wood waste bins.
16. ALWAYS check storage bins for smoldering material before leaving for the day.
17. Electrically ground all equipment and ducting. Static sparks can ignite wood dust. (Avoid using PVC drain pipe.)
18. DO NOT allow accumulation of layers of ne dust on horizontal surfaces (especially overhead lights, electrical boxes and
fuse panels which can ignite dust.)
19. UNPLUG UNIT BEFORE SERVICING OR CLEANING
Customer Service Dept.
1-866-387-8822 • [e-mail]

Oneida Air Systems, Inc.4
System Specications
OPERATION
Maximum Suction Rating 97.8" WC
MOTOR AND ELECTRICAL
Motor Type 3x 1300W Modular Motors
Horsepower 5HP Total
Motor Speed 48,880 RPM
Phase 1-Phase
Voltage 208-230V
Cycle 60HZ
Listed FLA 18A
On/O Switch Magnetic Starter with On-O Switch and RF Remote
Power Cord Length 10 feet
Power Connector NEMA 6-20
Recommended Circuit Size 20A
Recommended Circuit Type HACR
Sound Emission 80 dBA @ 10 ft
CARTRIDGE FILTER
Filter Media Type HEPA Certied
Filter Eciency 99.97% @ 0.3 microns
Filter Surface Area 40 sq ft
SYSTEM DIMENSIONS AND CONSTRUCTION
Primary Build Materials Cold Rolled Steel, Static Dissipative Polyethylene
Inlet 4" O.D.
Discharge to Drum 5" O.D.
Overall Height 14 Gallon: 61"
Overall Weight 14 Gallon: 76 lbs
e Supercell requires a 20 Amp
outlet receptacle to be installed by a
licensed electrician.

20
23.119
oneida-air.com 5
Nominal dimensions shown. Dimensions subject to slight variations in manufacturing. Mounting dimensions
allow for 13/16" clearance when removing and emptying the drum
Allow for an additional 24" of clearance above the Motor Assembly to allow for its removal during lter
replacement and other maintenance. Allow for an additional 3" of clearance around the system for ease of access
to the latches.
System Dimensions
13/16"
21 mm
36-13/16"
935 mm
Floor
21-9/16"
548 mm
20"
508mm
23"
587mm
24-1/4"
616 mm
61"
1,549 mm

Oneida Air Systems, Inc.6
System Contents
Please unpack the parts carefully and conrm you have received each item listed here.
* Some components are pre-installed at the factory and are listed here for your convenience.
ID Part number Part description Qty
A BXI001501 Supercell Motor Assembly 1
B FPX040001 Filter Hold Down Plate 1
C FCS131040H 13" x 13" Conical HEPA Cartridge Filter 1
D GCZ150000 15" Ring Clamp 1
E SCX040000 Cyclone 1
E1* DGA040000 4" Aluminum Blast Gate 1
E2* DAB040000 4" Male Duct Adapter 1
E3* AFR316066 Rivets 5
F SMS040001 Supercell Wall Bracket 1
G AHX000021 Supercell 14 Gal. Model Hardware Pack 1
G1 ZBT040001 Supercell Wall Bracket Template 1
G2 RGF000015 15" Barrel Gasket 1
G3 RGZ051820 Supercell Flange Gasket 1
G4 AFS015920 1/4"-20 x 3/4" Hex Head Bolt 6
G5 AFW025000 1/4" Flat Washer 6
G6 AFT900006 1/4"-20 Nylock Nut 6
G7 AFB155180 5/16-18 x 2-1/2" Hex Head Bolt 4
G8 AFW180000 5/16" Flat Washer 4
G9 AFW180516 5/16” Rubber Washer 4
G10 AFT155175 5/16 "Whiz-Lock Nut 4
G11 AFT900516 5/16" - 18 Nylock Nut 4
G12 AFW516075 5/16x 3/4" Nylon Spacer 1
G13 SMS040000 Rear Support Brace 1
G14 AFL990001 Latches 2
G15 AFS501032 10-32 1/2" Phillips Pan Head Screws 4
G16 AFT901032 10-32 Nylock Nut 4
ID Part number Part description Qty
G17 AFB155180 5/16-18 x 2-1/2" Hex Head Bolt 2
G18 VRV050500 1/2" ID Clear Vinyl Tubing 7
G19 AHX000018 Quick Disconnect Kit 1
G19A RLH000006 1/4" NPT Nylon Elbow 1
G19B RLH000005 3/8”Socket 1
G19C RLH000004 3/8" Male Plug 1
G19D RLH000002 Nylon Washer 1
G19E RLH000003 Rubber O Ring 1
G19F RLH000007 Nylon Nut 1
G19G RLH000008 Round Tapered Plug 1
G20 AXD600300 9-17 Gallon Drum Liner Bag 5
G21 RLH000023 23 mm Button Plug 1
G22 ACB640000 4-1/2" Turn-Key Band Clamp 2
G23 RGZ470114 Bin Gasket 4
G24 AMR000000 Remote Control Key Fob 1
H DHF042502 4" x 25' Vacuum Pressure Rated Flex-Hose 1
I AXB999110B Dust Sentry Automatic Bin Level Indicator 1
J SMD140400 Drum Assembly 1
J1 SDS140000 14 Gallon Molded Drum 1
J2* RHL000604 Drum Window 1
J3* AFS103258 10-32 5/8" Phillips Pan Head Screws 4
J4* AFT901032 10-32 Nylock Nuts 4
J5 RHC000012 3" Caster with 5/16"-18 x 3/4" Stems 5
If you cannot find an item on the list, examine the packaging materials very carefully for nested items. Please
note that certain components have been pre-installed. There may be hardware leftover.

oneida-air.com 7
G7
G8
G9
G10
G11
G12
G13
System Contents (Continued)
G1
A
C
E
J
G19
G19A
G19E G19F
G19G
G19B G19C
G19D
G20
D
F
J5
I
G2
SHEET 1 OF 1
NAME:
14Ga Galv
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
Oneida Air Systems Inc. AND SHALL
NOT BE USED OR DISCLOSED TO
OTHERS, IN WHOLE OR IN PART,
WITHOUT THE WRITTEN AUTHORIZATION
OF Oneida Air Systems Inc.
5 4
3
2
1
PART NO.
SIZE
A
DO NOT SCALE
DRAWN DATE: 7/18/2019
ONEIDA AIR SYSTEMS INC.
1001 WEST FAYETTE STREET
SYRACUSE, NEW YORK 13204
1-800-732-4065
MFG APP:
DRAWN BY:
ENG APP:
TOL:
.XX
.10
.XXX .015
PROPRIETARY AND CONFIDENTIAL
MATERIAL: FINISH:
DIMENSIONS
ARE IN
INCHES
REV:
FPX040001
3RD ANGLE
FPX040001 - Filter Hold Down 14ga rev 3
3
KWG
B
G14 G15
G16
G18
G21
G23
G4
G5
G6
G3
Thewall bracket should be installed to a sturdy, reinforced surface e.g. concrete wall, brick
wall,drywall with wooden studs.The wall bracket is designed to work with standard 16” stud
spacing.This template indicates the proper drill holes and the full, assembled size of the wall
bracket.
Wall Bracket Template
.5"
13mm
.5"
13mm
16"
406mm
8"
203mm
8"
203mm
4"
102mm
4"
102mm
SupercellWall Bracket Template
#ZBT040001
DrillHere DrillHere
DrillHere DrillHere
LEVEL THIS LINE
TheCyclone can be rotated in 90-degree increments so that the inlet is facing parallel or
perpendicularto the wall. Decide how you want your system oriented during installation to
bestmeet your shop’s needs. Other positions will not work as they will hinder installation of
theRear Support Brace.
Cyclone Mounting Positions
RIGHTFORWARD LEFT
G24
G22
H
G17
Filter Hardware
Wall Bracket Hardware
Wall Bracket Hardware
Drum Hardware
Drum Hardware
Wall Bracket Hardware
Filter Hardware
Filter Hardware

Oneida Air Systems, Inc.8
Assembly Instructions
1Installing the Bin Gasket (G23) onto the Wall
Bracket (F).
a. Turn the Wall Bracket (F) upside down
[FIG. 1a].
b. Lay out the four Bin Gasket segments
(G23). DO NOT REMOVE THE BACKER
TAPE [FIG. 1b].
c. Arrange the Bin Gasket segments (G23)
in a circle with the ends interlocking and
aligning to the rounded front edge of the
wall bracket [FIG. 1c].
d. Carefully mark a circle around the inside
of the arranged Bin Gasket segments
(G23) with a marker to create a reference
line [FIG. 1d].
e. Peel the backer tape o of the Bin Gasket
segments (G23) and adhere them to the
Wall Bracket (F), lining them up with your
reference line [FIG. 1e].
Note: Press each gasket piece rmly onto the
bracket to ensure a long-lasting, airtight seal.
FIG. 1a FIG. 1b
FIG. 1c
FIG. 1e
FIG. 1d
You will need the following tools:
WALL MOUNTING BRACKET CYCLONE BODY DRUM LATCHES
Stud Finder Light Adhesive Tape 7/16" Wrench 3/8" Wrench
Tack / Center Punch / Nail Tape Measure / Ruler 7/16" Socket Wrench #2 Phillips-Head Screw Driver
Wall Mounting Fasteners * Level 1/2" Wrench
Power Drill Pencil / Marker 1/2" Socket Wrench
Drill Bit (for your wall fastener)
*You will need to supply your own wall mounting hardware. Use appropriate fasteners for the wall type you are
installing your system onto (e.g. lag bolts, drywall anchors, etc.).
G23
F

oneida-air.com 9
Assembly Instructions (Continued)
FIG. 2
2Align the Latches (G14) onto the holes on
either side of the Wall Bracket (F) and secure
them in place using two Pan-Head Screws
(G15) and Nylock Nuts (G16) [FIG 2].
Note: Firmly tighten this hardware. You may
need to open the latch to access the screw holes
for mounting.
G16 G14 G15
The wall bracket should be installed to a sturdy,reinforced surface e.g. concrete wall, brick
wall,drywall with wooden studs. The wall bracket is designed to work with standard 16”stud
spacing.This template indicates the proper drill holes and the full, assembled size of the wall
bracket.
Wall Bracket Template
.5"
13mm
.5"
13mm
16"
406mm
8"
203mm
8"
203mm
4"
102mm
4"
102mm
Supercell Wall Bracket Template
#ZBT040001
Drill Here Drill Here
Drill Here Drill Here
LEVEL THIS LINE
The Cyclone can be rotated in 90-degree increments so that the inlet is facing parallel or
perpendicular to the wall. Decide how youwant your system oriented during installation to
best meet your shop’s needs.Other positions will not work as they will hinder installation of
the Rear Support Brace.
Cyclone Mounting Positions
RIGHTFORWARD LEFT
3Identify where you will install the Supercell
in your shop. It must mount to a reinforced
wall (studs, concrete, etc.) and is designed to
accommodate standard 16" stud spacing.
Center the wall bracket Template (G1)
between your wall studs [FIG. 3].
FIG. 3
16"
406 mm
G1
Thewallbracket should be installed to a sturdy,reinforced surface e.g. concrete wall, brick
wall,drywallwithwoodenstuds. The wall bracket is designed to work with standard 16” stud
spacing.Thistemplateindicatesthe proper drill holes and the full, assembled size of the wall
bracket.
WallBracket Template
.5"
13mm
.5"
13mm
16"
406mm
8"
203mm
8"
203mm
4"
102mm
4"
102mm
SupercellWallBracketTemplate
#ZBT040001
DrillHere DrillHere
DrillHere DrillHere
LEVELTHIS LINE
TheCyclonecanbe rotated in 90-degree increments so that the inlet is facing parallel or
perpendiculartothewall. Decide how you want your system oriented during installation to
bestmeetyourshop’s needs. Other positions will not work as they will hinder installation of
theRearSupportBrace.
CycloneMounting Positions
RIGHTFORWARD LEFT
4Mark a straight level line 26-5/8" from the
ground. Align the top of the Template (G1)
with the marked line [FIG. 4] and temporarily
secure the Template (G1) to the wall with a
tack or non-marking tape.
FIG. 4
26-5/8"
676 mm
G1

Oneida Air Systems, Inc.10
16"
406 mm
4"
89 mm
1/2"
13 mm
Assembly Instructions (Continued)
6Using appropriate fasteners for the wall type
you are installing your system onto, drill into
and install fasteners into the wall at all marked
locations [FIG. 6].
a. Maximum Fastener Size: 5/16" diameter
for the 4 keyholes
b. Maximum Fastener Size: #12 screw for the
rear support brace holes
c. Maximum Washer Size: 3/4" outside
diameter
7Place washers onto each fastener and thread
the fasteners into all four holes, leaving at least
1/2" outside of the hole to t the Wall Bracket
(F) and Rear Support Brace (G13) [FIG. 7].
FIG. 6
FIG. 7
Wall
5Place a mark through the Template's (G1)
paper at each indicated crosshair (four keyway
holes and one center hole), then remove the
Template (G1) from the wall [FIG. 5a].
Measure 15-1/4" straight up from the center
hole mark and mark a straight level line to
help with the install of the Rear Support Brace
(G13) [FIG. 5b].
Mark
Here
Mark
Here
FIG. 5a
FIG. 5b

oneida-air.com 11
Assembly Instructions (Continued)

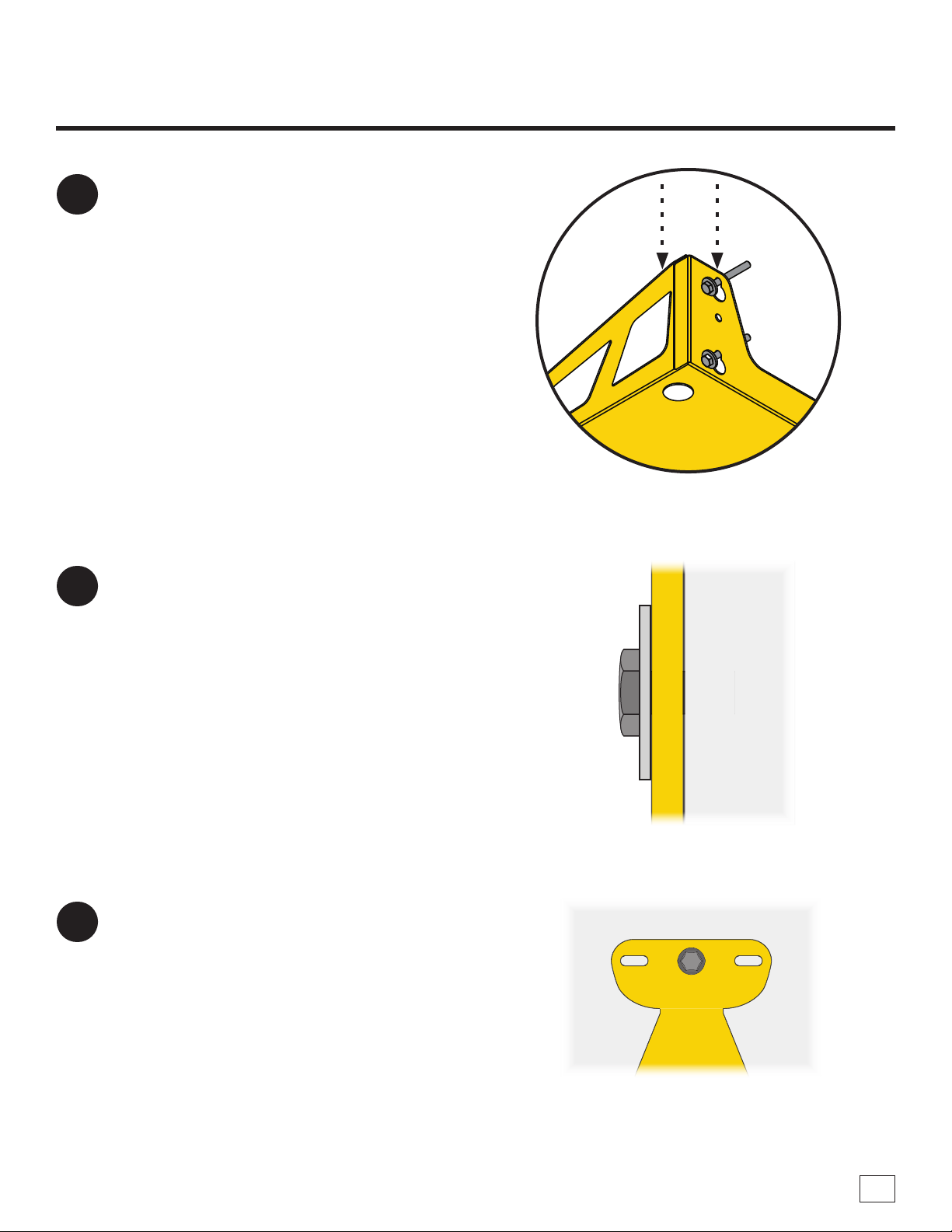

8Li the Wall Bracket (F) up and over the
fasteners so that the washer is on the inside of
the bracket. Slide the Wall Bracket (F) down
so that the fastener is snugly inside the smaller
section of each keyhole [FIG. 8].
9Tighten these four fasteners to secure the Wall
Bracket (F) to the wall [FIG. 9].
Note: If installing over drywall, avoid
overtightening as it may damage the wall.
10 Fasten the Rear Support Brace (G13) to the
wall using your own suitable hardware [FIG.
10]. Refer to the previously marked line for
the suitable mounting location of this Brace.
Note: is hardware is not load bearing and
only needs to connect the brace to the wall to
add additional support to the system during
operation. Fasten through at least one hole.
FIG. 8
FIG. 10
FIG. 9
Wall

Oneida Air Systems, Inc.12
Assembly Instructions (Continued)
Inlet
Facing
Right
Inlet
Facing
Forward
Inlet
Facing
Left
Wall
FIG. 13
G10
G9
G12
G13
E
G8
G7
Wall
FIG. 12
E
G13
FIG. 11
11 e Cyclone (E) can be rotated so that the inlet
is facing parallel or perpendicular to the wall.
Decide how you want your system oriented
[FIG. 11].
Note: e cone’s inlet can be rotated in
90-degree increments to best connect to your
ductwork and/or tools. Other positions will not
work as they will hinder installation of the Rear
Support Brace.
12 Align the Rear Support Brace (G13)
underneath the hole closest to the wall on the
upper ange of the Cyclone (E) [FIG. 12].
13 Secure the Rear Support Brace (G13) to the
Cyclone (E) using a 2-1/2" Hex Head Bolt
(G7), Flat Washer (G8), Nylon Spacer (G12),
Rubber Washer (G9), and Whiz-Lock Nut
(G10) as shown in [FIG. 13].
Note: Ensure that the Whiz-Lock Nuts are
torqued down so that the rubber washers are
rmly compressed - this will prevent air leaks.

oneida-air.com 13
Assembly Instructions (Continued)
FIG. 14
FIG. 15
G10
G4
G3
G5
G6
E
G9
E
G8
G7
14 Install the three remaining Hex Head Bolts
(G7), Flat Washers (G8), Rubber Washers
(G9), and Whiz-Lock Nuts (G10) to the three
remaining holes in the Cyclone’s (E) upper
ange [FIG. 14].
Note: Ensure that the Whiz-Lock Nuts are
torqued down so that the rubber washers are
rmly compressed - this will prevent air leaks.
15 Place the Flange Gasket (G3) and the Cyclone
(E) onto the Wall Bracket (F) and align
the hole patterns on all three items. Secure
together using six Hex Head Bolts (G4), six
Flat Washers (G5), and six Nylock Nuts (G6)
[FIG. 15].

Oneida Air Systems, Inc.14
Assembly Instructions (Continued)
FIG. 17
FIG. 18
FIG. 16
G11
B
C
C
C
E
E
D
G7
16 Place the Filter (C) on top of the Cyclone (E)
with the open side facing down [FIG. 16].
Note: Position the Filter (C) on the Cyclone (E)
so that is centered between all four Hex Head
Bolts (G8).
17 Slide the Filter Hold-Down Ring (B) over the
Filter (C) and the previously installed bolts
(G7) and secure in place using four Nylock
Nuts (G11) [FIG. 17].
Note: Tighten hardware so that the Filter's pre-
installed foam gasket is rmly compressed (by
roughly 50%).
18 Open and slide the Ring Clamp (D) over the
assembly so that it rests outside the upper
ange of the Cyclone (E) [FIG. 18].

oneida-air.com 15
Assembly Instructions (Continued)
Pulse Bar
FIG. 20
FIG. 19
G18
G2
A
A
19 Install the Barrel Gasket (G2) onto the
rounded, bottom edge of the Motor Assembly
(A). e Barrel Gasket (G2) should be oriented
so that the "ribbed" side is facing downwards
[FIG. 19].
20 Attach one end of the Vinyl Tubing (G18) onto
the hose tting located underneath the Motor
Assembly's (A) plastic cowl. e tting will
be on the side opposite to the pulse bar. Push
the hose onto the tting so that all of barbs are
covered [FIG. 20].
Note: e Motor Assembly's (A) plastic cowling
can be temporarily removed for easier access
to this tting during installation. Li the
foam placed at the top of the cowl to access
the retaining nut. Replace the foam and the
hardware when you have nished attaching
the Vinyl Tubing (G18). Refer to Maintenance
section as shown on page 24.
DO NOT TURN ON OR PLUG IN YOUR DUST COLLECTOR UNTIL INSTALLATION IS COMPLETED.
NEVER RUN THE SYSTEM WITHOUT THE MOTOR COWLING IN PLACE.

Either Hole
Oneida Air Systems, Inc.16
Assembly Instructions (Continued)
THE MOTOR ASSEMBLY IS HEAVY AND CUMBERSOME; BE SURE TO HAVE ADEQUATE HELP WHEN LIFTING!
21 Carefully li the Motor Assembly (A) up
and over the Filter (C) and down onto the
Cyclone's (E) upper ange. Align the Motor
Assembly so its perimeter is ush with the
Cyclone's (E) ange below it [FIG. 21].
Note: e Motor Assembly can be freely rotated
to best position the Magnetic Starter and Pulse
Bar to suit your needs. Some positions will not
work as these items may impact with the wall.
22 Li and close the Ring Clamp (D) over the
Barrel Gasket (G2) and the Cyclone's (E)
upper ange.
Secure the Ring Clamp (D) using the Clamp's
cotter pin [FIG. 22].
23 Take the Vinyl Tubing (G18) and route it
through the closest retaining hole located in
the back corner of the Wall Bracket (F) [FIG.
23].
Note: Which hole you use will be determined
by the orientation of your Motor Assembly (A).
Use whichever hole is closest to ensure adequate
length for the Vinyl Tubing (G18) to connect to
the Drum (J1).
G18
F
E
A
C
G18
FIG. 21
FIG. 22
FIG. 23
Pulse Bar
Magnetic
Starter

oneida-air.com 17
24 Connect the Dust Sentry's power adapter (I)
to the small cord next to the Motor Assembly's
(A) magnetic starter [FIG. 24]. e Dust
Sentry's strobe light (I) should be mounted in
a highly visible area using adhesive strips or
the two mounting holes.
Note: Your dust sentry comes with a 110V
power cable, this can be discarded if you're using
the cord pre-installed on your unit.
Assembly Instructions (Continued)
A
FIG. 24
Infrared
Sensor
Vinyl
Hose
Discharge
25 Install the Dust Sentry's (I) infrared sensor (I)
to the pre-cut hole on the Wall Bracket (F).
FIG. 25].
• Refer to the Dust Sentry Installation Sheet
for more information.
FIG. 25
Threaded
Inserts
26 Insert 2 Hex Head Bolts (G17) down through
the threaded inserts on the Wall Bracket (F).
Finger tighten only [FIG. 26].
Note: ese will protrude down from the Wall
Bracket and help position the 14-gallon bin
directly underneath the cyclone.
FIG. 26
I

Oneida Air Systems, Inc.18
Assembly Instructions (Continued)
27 Install the Quick-Disconnect Kit (G19) onto
the pre-drilled hole near the bottom section of
the Drum (J1) [FIG. 27].
• Refer to the Quick Disconnect Installation
Sheet for more information.
FIG. 27
G19F
G19E
G19DG19CG19BG19A
J5
J1
28 Take each of the ve Casters (J5) and thread
them into the holes located underneath the
Drum (J1) [FIG. 28].
FIG. 28
G20
J1
29 Place a Liner Bag (G20) inside the Drum
(J1). Take care to ensure that the bag is fully
expanded to the inside of the Drum (J1) and
that the upper edge of the Liner Bag (G20) is
folded out and over the lip of the Drum (J1)
[FIG. 29].
Note: If you do not wish to use a liner bag you
must insert Round Tapered Plug (G19G) into
the Quick Disconnect Kit (G19) from inside the
Drum (J1).
FIG. 29
G19G
