Oneida Air Systems XXK050100 User manual

5 & 7.5 HP
Direct Drive Cyclonic
Dust Collectors
Oneida Air Systems, Inc. 1001 West Fayette St., Syracuse, N.Y. 13204
Ph ne 1-800-732-4065 315-476-5151 Fax [phone] www. neida-air.c m
Owners Manual
10_08

Thank You for Choosing an Oneida Air Systems Product!
OAS manufactures and sells dust collection equipment only. Our qualified technicians and
sales staff are available 7 30am - 6 00pm EST Mon. - Thur. and 7 30am - 5 00pm EST Fri. to
answer any questions concerning OAS products and dust collection. Call for ductwork design
and ductwork quotes, including system pricing and shipping cost.
Table of Contents
Page
Read the entire Owners Manua before insta ing or operating system!
I.
II.
III.
IV.
V.
VI.
VII.
VIII.
IX.
X.
XI.
XII.
XIII.
XIV.
XV.
XVI.
2
3
4
5
6
7 - 8
9
10
11
12
13
14
15
16
17
18 - 20
System Start-Up Information
Direct Drive Configurations
General Specifications & Fan Performance Curve
Dimensions
Stand Assembly
General Assembly Instructions
Fan / Blower Maintenance
Filter Maintenance
Wire Diagram

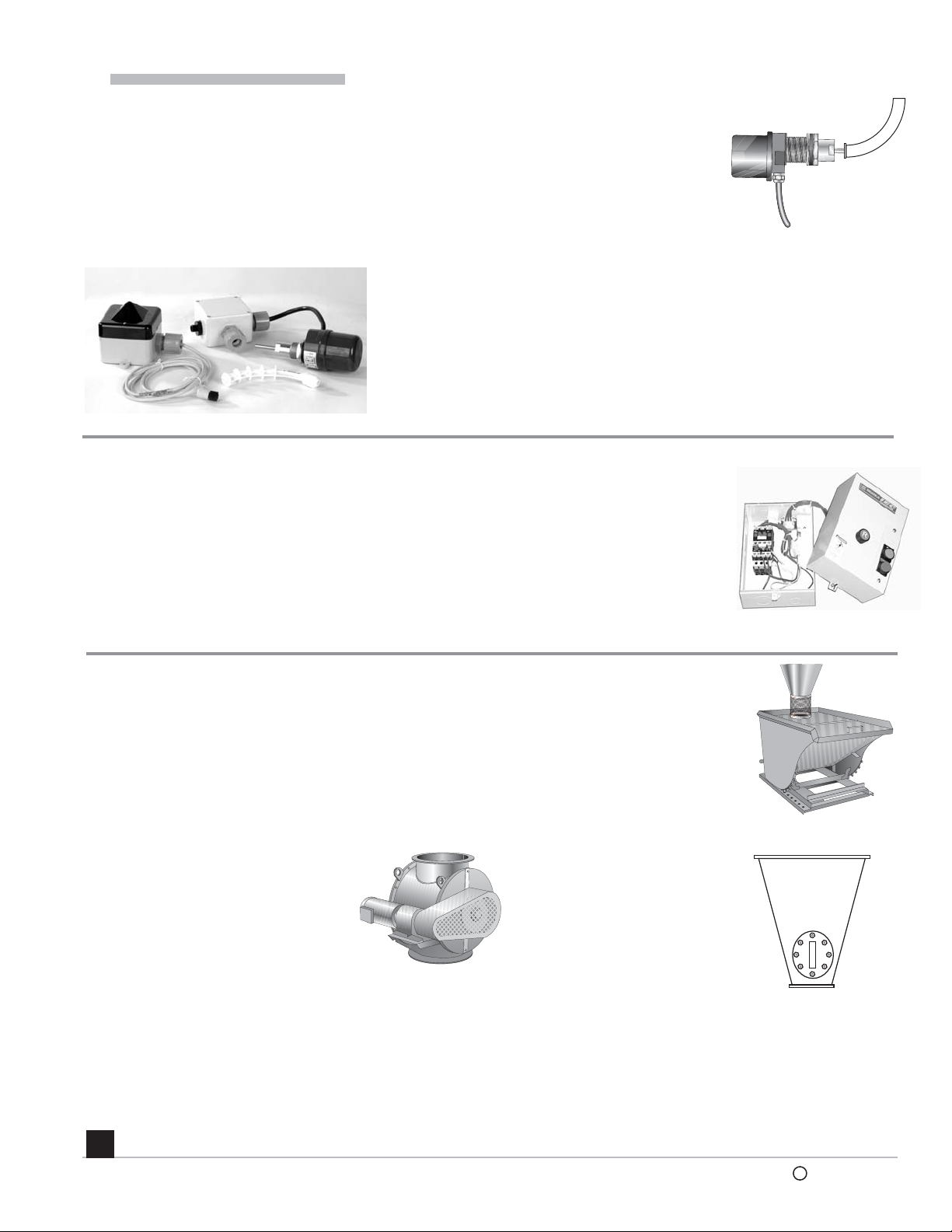

Accessories
Troubleshooting
Fire Hazards - Read Bef re Installing System
Terms and Conditions
Filter Efficiency Gauge Instructions
Fan Motor Lubrication
Supplemental Instructions for Magnetic Starters
1
Proudly
Made in
the U.S.A.
O.A.S. 2008
c
5 - 7.5 HP Direct Drive Owners Manual

2
O.A.S. 2008
c
5 - 7.5 HP Direct Drive Owners Manual
I. System Start- p Information
1. Read the installation and maintenance instructions as well as the recommended
safety practices in this manual.
2. Install Ductwork completely
A.) Seal ductwork with silicone sealant or duct tape.
B.) Have Dust Bin in place and sealed.
3. Have licensed electrician wire Fan / Blower according to wire diagram in this
owners manual.
4. Have licensed electrician check current draw on motor with all gates open. Current
draw should not exceed maximum motor amperage. (OAS is not responsible for
destroyed motors due to improper wiring or incorrect installation.)
Caution
The Dust C llect r & Fan/Bl wer is heavy. Handling and
installati n sh uld always be perf rmed by experienced and
trained pers nnel wh have experience with r tary equipment.
In additi n t the f ll wing instructi nal manual, care sh uld
be taken t ensure c mpliance with specific safety
requirements mandated by federal, state and l cal c des.
Warning
D n t perate Fan / Bl wer with ut c nnecting dustbin.
Keep clear f exhaust. Keep hands and bjects clear f inlet
and utlet.
Warning
Check amperage draw during perati n with all blast gates
pen. Make certain amperage is n t utside perating limit
indicated n m t r plate! If amperage is t high - shut d wn
immediately! (See Tr ublesh ting secti n.)

O.A.S. 2008
c
5 - 7.5 HP Direct Drive Owners Manual
3

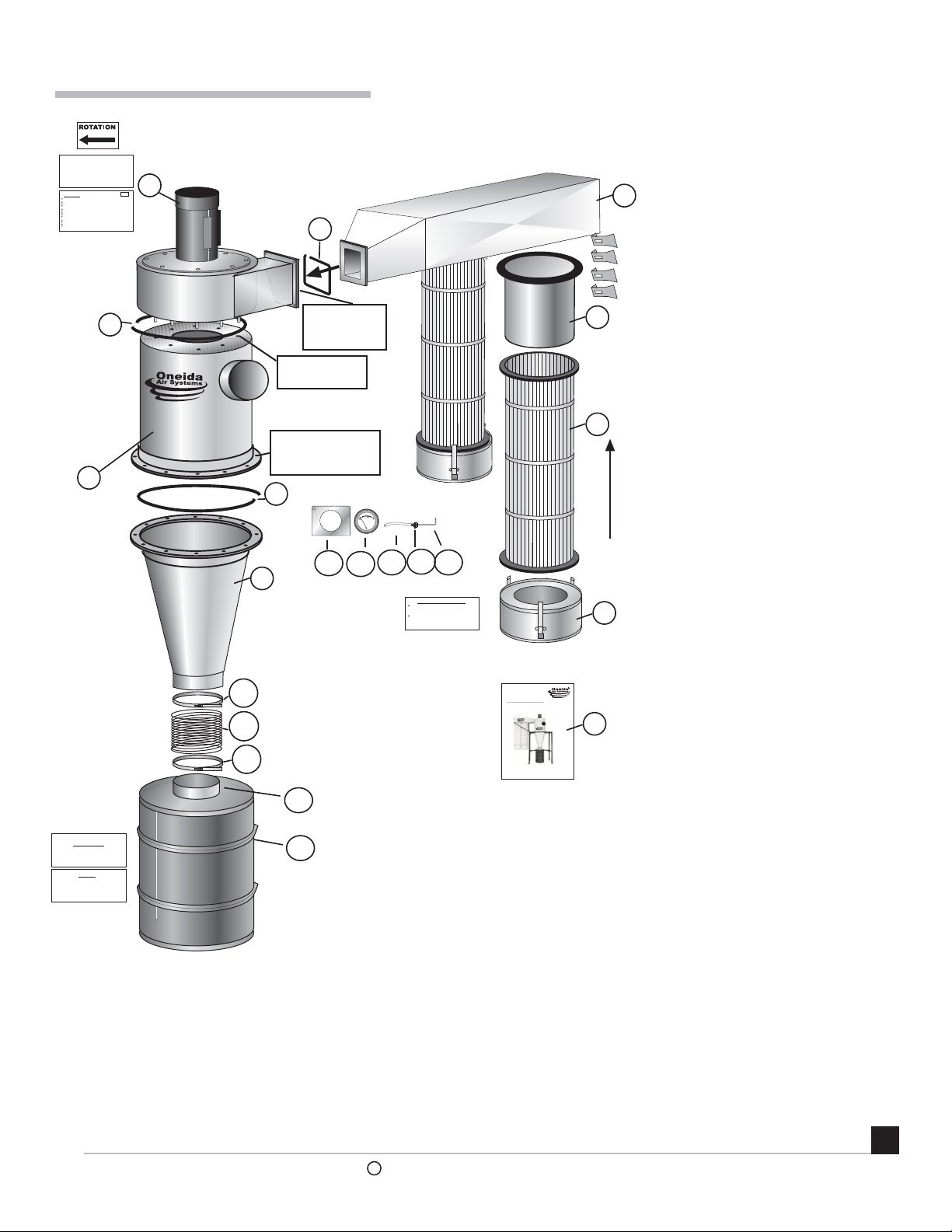

II. General Assembly
1
5
5
5
2
3
9b
9e
9b
9c
(12) 5/16 x 1 Bolts
(12) 5/16 Washers
(12) 5/16 Nuts
(4) 3/8 x 1 Bolts
(4) 3/8 Washers
(4) 3/8 Nuts
Caution
Check Dust Bin Frequently For
Smoldering Materials. Empty Bin Before
Lea ing Shop.
Drum co er must be in place when system
is operating to pre ent motor o erheating!
An airtight seal between the cyclone and
drum will pro ide the necessary resistance
needed to pre ent motor o erheating!
Caution
Caution:
If exhaust air is ented outside you must pro ide
make up/return air.
Flue gases (carbon monoxide) can be drawn into
the shop from furnaces, water heaters or other
appliances.
To avoid personal injury or property damage, read owners manual thoroughly before
installing and operating system. (Read section on collector location and fire hazards.)
This collector is for use with WOOD DUST ONLY!
Keep fire extinguishers handy at all times.
Do not use this product to collect other types of dusts or fumes.
(Fire or explosion may occur!)
Do not introduce sparks or sources of ignition into collector.
Personnel should stay at least 20 ft. away from operating system.
(Deflagration Hazard)
Empty and check dust bin frequently for possible smoldering materials.
Rotating blades inside. Keep hands and objects away.
Do not operate system unless COMPLETELY assembled with dustbin.
(Personal injury or motor damage may occur!)
Consult local fire marshal before installing.
Follow all Federal, State, Local and NFPA codes when installing system.
To reduce the risk of injury from mo ing parts - unplug before ser icing.
To reduce the risk of electric shock - unplug before cleaning or ser icing.
Read Before Insta ing and Operating!
For All
Systems
Caution
(8) 5/16 Washers
(8) 5/16 Nuts
Filter Maintenance
Fai ure to fo ow fi ter maintenance instructions
in owners manua wi cause fi ter to be
damaged.
B ow down fi ter at end of day with compressed
air per owners manua or b ow down when back
pressure reaches 3 water gauge - whichever
comes first. Never a ow gauge to reach 5.
- XXK050100 - 1 phase - XXK070300- 3 phase
9a
0
1234
5
INCHES W.C.
8a 8b 8c
8e 8d
7 5 hp Direct Drive System - XXK070300 3 phase
1 Motor/Blower Assembly BXI050100-1ph -BXI070300 - 3ph
1a Motor -1 ph / BMZ070370-7 5 hp 3 phase 3 ph
1b Fan Housing5 & 7 5 hp 16 - BHX070000
1c Fan Wheel - BWX160000
1d 7 5 hp Shaft Spacer - BBS070001
1e Bolt 5/16 - 24x1 Left Thread - AFB155160
1f Motor Plate - RMP000000
1g 5/16 Washer - AFW155160
1h Bolt 1/2-13x3/4 HH (4) - AFB155200
1j Fender Washer 5/16 x 1 1/2 (2) - AFW170000
1k Washer Flat 3/8 (8) - AFW190000
1l Whiz Lock Nut 3/8 GR5 (4) - AFT000004
1m Bolts 3/8 - 16x1 HHGR% (4) - AFS015100
2 Cyclone Barrel - SXI070000
3 Cyclone Cone 5-7 5 HP 27 - SCX070000
4 Bolts 3/8 16x1 (16) - AFS015100
Washers 3/8 (32) - AFW190000
3/8 Wiz Lock Nuts (16) - AFT000004
5/16 Wiz Lock Nuts (16) - AFT155175
5 Neoprene Gasket (30) - RGZ000000
6 Owners Manual - ZBM000006
7 Plenum Filter Assembly - FXK020100
7a Plenum Assembly 2 Filters 5-7 5 hp DD - FPX020700
7b Dust Bin 16 Dia x 12 high (2) - FPZ016000
7c Filter Cartrigde 130 sq ft 18dia x 62 L (2) - FCS186200
7d Internal Silencer - BSC180000
8 Filter Efficiency Gauge Kit - FXK000000
8a Filter Efficiency Gauge 0-5 H20 - VRG001005
8b Vinyl Tubing Clear 5/16 O D - VRV003125 (8)
8c Static Pressure Tip - VRP001875
8d Mounting Flange for Pitot Tube - VRP010000
8e Filter Efficiency Gauge Bracket - FXX000000
9 55 Gal Steel Drum Kit - SEK551001 Standard
9a Drum Lid w/ 10 Ring - SEX551000
9b Hose Clamps (2) - ACB120000
9c 55 Gal Steel Drum - SES550000
9e Flex Hose (10 dia x 1) - DHF100000
10 Stand Standard with Plenum Support - STZ070000
Hardware for stand
10a (38) 3/8 16 x 1 Bolts - AFS015100
10b (38) 3/8 Flat Washers - AFW190000
10c (38) 3/8 Wiz Lock Nuts - AFT000004
11 Decal - (1) Oneida Logo - ZBC000015
12 Labels
12a Rotation Label - ZBC000029
12b Caution / Exhaust Label - ZBS000004
12c General Caution Label - ZBS000001
12d Filter Maintenance Label - ZBS000007
12e Caution / Check Frequently Label - ZBS000006
12f Caution / Drum Cover Label - ZBS000005
7
7d
7a
7b
5 & 7.5 HP
Direct Drive Cyclonic
Dust Collectors
Oneida Air Systems, Inc. 1001 West Fayette St., Syracuse, N.Y. 13204
Ph ne 1-800-732-4065 315-476-5151 Fax [phone] www. neida-air.c m
Owners Manual
6

III. General Specifications & Fan Performance Curves
4
O.A.S. 2008
c
Physica and E ectrica Data for 5 and 7.5hp Direct Drive Systems.
5hp 2686 max cfm @ 1.65 S.P.
7.5hp 2725 max cfm @ 1.7 S.P.
System Performance
Height w/ 55 Gal. Drum 132
Footprint 8.5 x 3
Fan Wheel diameter 16 Air Foil design
Cyclone Inlet 10
System Dimensions
TEFC 60 Hz Motor - Single Phase
Insulation Class F4
Voltage 230
Amperage 19.8
Made in U.S.A.
Integral Fan Blower - 5hp
TEFC 60 Hz Motor - Three Phase
Insulation Class F4
Voltage 208 - 230 / 460
Amperage 19.6 - 18.4 / 9.2
Made in U.S.A.
Integral Fan Blower - 7.5hp
2 Pleated Cartridges - 260 sq. ft.
Spun Bonded polyester BIA ZH1 / 487 test - Rated C
Captures 99.99% of test material over 20 microns
Captures 99.9% of test material between 0.2 - 2.0 microns
@ 11fpm
External Cartridge Filters (2)
55 Gal. Steel Drums
Large dust bins available
Dust Bin
Angle iron stand for free-standing unit
Silencers available
Magnetic Motor Starters
Tube Filters & Tube Filter Plenum
Options
5 - 7.5 HP Direct Drive Owners Manual

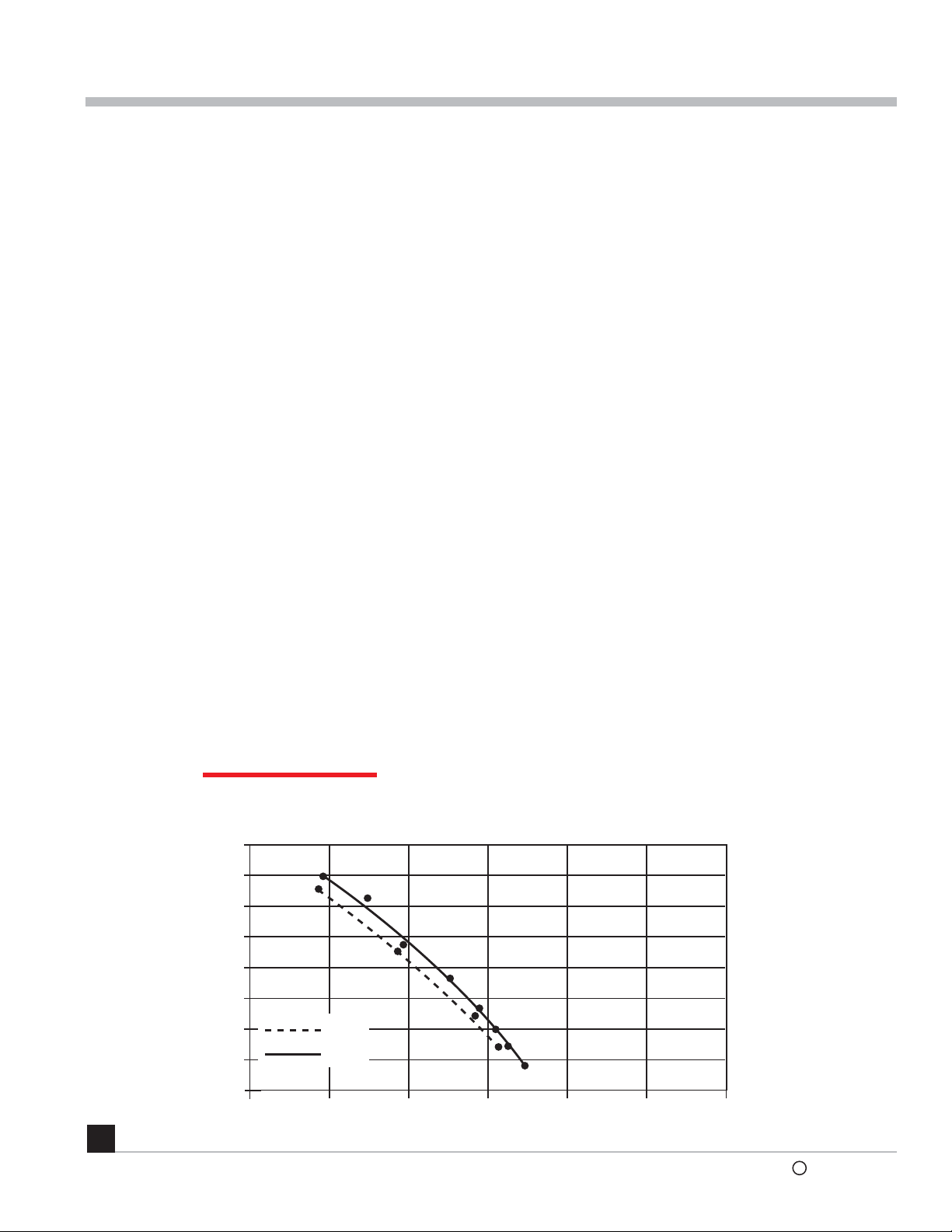

System Curves
5 & 7.5hp Fan Performance Cur e
Fan Static Pressure (in. wg.)
14
12
10
8
6
0
1000 2000 3000 4000
CFM
- 5hp
- 7.5hp
1500 2500 3500
16
4
2

IV. Dimensions
O.A.S. 2008
c
5 - 7.5 HP Direct Drive Owners Manual
5
10.031
I.D.
7.64
I.D.
1.25
Flange
52.25
82
or
106
for
Twin
Drum
60
134.25
or
158.25
33
Approx.
100
33
56
105
or
129
122
or
146

6
O.A.S. 2008
c
5 - 7.5 HP Direct Drive Owners Manual
V. Angle Iron Stand
Stand Hardware:
1. (28) 3/8 x 1 1/4 bolts for Stand Assembly
2. (28) 3/8 flat Washers
3. (28) 3/8 serrated Nuts
4. (4) Vertical Angle Iron Legs
5. (4) Cross Braces
6. (1) Cross Brace w/ Plenum Connection
7. Square Cross Brace - A.) Front B.) Back
Requires Fork Truck for insta ation.
1. Bolt stand together laying down.
Orient square cross brace (7).
Cross brace (6) must be oriented
to face plenum.
Note There will be NO lower
brace on front so drum or
hopper can be moved.
2. Stand must be set on a
stable base capable of
supporting fan blower /
cyclone / stand / dust bins
when full.
3. Anchor stand in place
with appropriate fasteners.
(Fasteners not provided.)
4
4
4
4
6
5
5
5
5
7
A
B
Wall Bracket
installation
instructions are
on pg.9.

VI. Assembly Instructions
O.A.S. 2008
c
5 - 7.5 HP Direct Drive Owners Manual
1.
1. Orient the blower housing to match the stand
configuration and the desired angle for the cyclone inlet.
Bolt the fan / blower to the cyclone barrel using the
hardware taped on the motor.
Bolts are already welded on Fan/Blower unit. Check
underneath Fan/Blower for self-stick gasket, then put
bolts through holes in barrel. Put flat washer on bolt.
then lock washer, then hex nut.
2.
2. Place self-stick gasket around cyclone flange. Bolt
the fan housing and cyclone barrel to the cyclone cone
using hardware taped to cyclone barrel. Note the fan
/ blower and the cyclone barrel are very heavy. The
system will be top heavy. One method is to lay the stand
down, then bolt the cyclone with the fan / blower to the
stand. The iron ring will be on top of the cross bars of
the stand. Then put bolt through flat washer, then bolt
through holes in both flanges, thenput lock washer on
bolt, then attach hex nut.
Tip the fan housing and cone upright. The system is
very top heavy.
Cycl ne Inlet and Fan / Bl wer are independent.
Filters can be t the right r left f the unit.
7
Bolt
Flat Washer
Flange
Lock Washer
Hex Nut
16 ea. 3/8 Flat Washers, Lock Washers and Hex Nuts
16 ea. 3/8 Flat Washers,
Lock Washers, Hex Nuts
and 3/8 x 1 Bolts
Fan / B ower is shipped strapped to Cyc one Barre . It
is NOT attached to the unit. You must bo t them together.
Fo ow the instructions be ow.
3. Attach front and rear braces to plenum using bolts,
washers and nuts. Loosly bolt the braces to the plenum
stand using one bolt. The plenum will hang down vertically
next to the system. See i ustration (3). Cantilever the
plenum up into position and bolt the fan outlet to the
plenum inlet with supplied bolts, washers and nuts.
Tighten front and rear brace bolts.
Cyclone
Barrel
Air Inlet
Fan / Blower
Air
Outlet
Self-Stick
Gasket
Cyclone
Barrel
Cyclone
Cone
Outlet
Plenum
Stand
Dust Bins
Cartridge
Filters
4.
3.
Plenum
Stand
One bolt, leave loose
Oneida Air recommends having at east two
peop e for assemb y. System is heavy.
Self-Stick
Gasket
(C nt.)

Silencer
4. Clamp Cartridge Filters to the Plenum. Clamp
the Dust Bins to the bottom of the Filter Cartridges.
See I . 5. (L-Clamps are packed separately with
hardware.)
VI. Assembly Instructions (Cont.)
5. Attach flex hose to bottom of collector and to lid of dust
bin. Securely fasten hose clamps. There must be an air
tight seal between the collector and dust bin.
6. Make sure the dust bin lid sits securely and the rubber
gasket on the bin lid is in place on the barrel. Maintain an
air tight seal between cyclone and dust bin to prevent motor
from overloading.
IMPORTANT:
D n t perate the c llect r until the dust bin is in place and
the c nnect r is air tight r m t r damage c uld result!
Stay clear f fan exhaust while c llect r is perating.
Collector
Hose Clamp
Hose Clamp
Flex Hose
Dust Bin
6.
7. Attach the ductwork from the woodworking machines to the inlet of the collector.
8. On external filter models, attach the Plenum Assembly or connect to your own plenum box.
9. Attach feet of Angle Iron Stand to floor.
N te: Assembly with Tube Filters - N te plenum height requirements f Tube Filters - 6 tubes - 8 plenum / 8 tubes -
10 plenum / 10 tubes - 12 plenum. Adjust system height acc rdingly.
O.A.S. 2008
c
5 - 7.5 HP Direct Drive Owners Manual
8
5.
Hook Lever
Clamps to
bottom of filter
130 Sq. Ft.
Filter
Hold Filters on
plenum assembly
level then tighten
nut against
(4) L-Clamps.
L - Clamps
Pat Pending
11/413,728
Silencer easily drops
into Filter. Hold filter
up to Flange Plate
and clamp.

O.A.S. 2008
c
5 - 7.5 HP Direct Drive Owners Manual
9
VII. Fan / Blower Maintenance
A high pressure blower requires a certain amount of resistance which will prevent motor
over amperage.
Make sure power source matches wire voltage configurations.
Check set screw and key in fan wheel, make sure fan wheel is secure. Fan blower should
not vibrate.
1. E ectrica - Failure to follow instructions and safe electrical procedures could result in serious injury or death.
Disconnect all power and discharge all capacitors before servicing. Install and ground per local and national
codes. Consult a licensed electrician with questions or if repairs are required.
Electrical Connections -
A.) All wiring, fusing, and grounding must comply with National Electrical Codes and local codes.
B.) To determine proper rotation and voltage connections, refer to the Wire Diagram of this manual.
C.) Use the proper size of line current protection and motor controls as required by the National Electrical Code
and local codes. Recommended use is 125% of full load amps as shown on the nameplate for motors with
40 degrees Celsius ambient and a service factor over 1.0. Recommended use is 115% of full load amps as
shown on the nameplate for all other motors. Do not use protection with larger capacities than recommended.
Three phase motors must have all three phases protected.
2. C ean iness - Keep both the interior and exterior of the motor free from dirt, water, oil, and grease.
3. Safety - Motors should be installed, protected and fused in accordance with latest issue of National Electrical
Code, NEMA Standard Publication No. MG 2 and local codes. Rotating parts such as pulleys, coupling, external
fans, and unusual shaft extensions should be permanently guarded. Keep hands and clothing away from
moving parts. Electrical repairs should be made by trained, qualified personnel only.
4. Service - Notice - If lubrication instructions are shown on the motor nameplate, they will supercede this
general instruction.
Warning Rotating Fan Blades. Keep Objects Clear of Inlet and Outlet.
82 for single
55 gal drum
or 106 for
twin drums
30 3/8
Mount to wall using apprpriate
hardware and methods for your
situation.
Position Cone on Brackets
making sure that gasket material
is in position.
Making sure that cyclone barrel
and fan / blower housing is
correctly oriented for your set-
up, position corresponding bolt
holes over cone holes and
fasten with supplied hardware.
Be very careful with this part of
procedure. Unit is very top
heavy. Make sure you have
appropriate help.
Wall Bracket Mounting Instructions

10
VII. External Filter Maintenance
5 - 7.5 HP Direct Drive Owners Manual O.A.S. 2008
c
Do not
remove fabric
straps around
pleated
cartridge.
Caution: Fine dust collected in filter is hazardous
to your health! Do not breathe!
The External Filter can be cleaned using the following methods:
Wait a few minutes for internal dust to settle in
dust pans or 55 gal. drum, then unclip and
carefully empty dust bin.
All steps should be done with a dust mask and eye protection and System off.
1. Compressed air from outside.
Blast air along pleats of the filter at about a 20
angle. Blast air out and away from you or anyone
in the general area. DO NOT remove dust pan
before blowing.
Keep air nozzle at least 6 from filter. Closer
blasts may damage filter material. 6
Filter must be cleaned regularly or filter
damage may result. If gauge reaches 3,
it is time to clean your filter. Never allow
gauge to reach 5. You could destroy your
filter. See page 16.

O.A.S. 2008
c
5 - 7.5 HP Direct Drive Owners Manual
11
VIII. Single and Three Phase Wire Diagram
Use wiring diagram on motor p ate if different from be ow.
- Electrically insulate all connections.
- For counter-clockwise rotation, looking from top of motor down.
5hp Single Phase
Baldor Motor / 230 / 19.5 amps / TEFC / C Face / 3450 rpm
7.5hp Three Phase
Baldor Motor / 208 - 230/460 / 19 - 17/8.6 amps / TEFC / C Face /
3450 rpm
L1
L2
L3
4
5
6
Tie together
Wiring shou d a ways be done by a icensed e ectrician!
Ground Connect house ground
wire to green chassis screw in
motor wire housing box.
M t r
Wire
B x
Green
Chassis
Screw
Top View
Outlet
Inlet
1 - Blue
8 - Red
J - Brown
5 - Black
Power Line 1*
Tie together and insulate with
a wire nut (do NOT connect
to any house wiring)
* Power Line 1 and 2 are interchangeable
208 / 230 Volts
1 & 7
2 & 8
3 & 9
L1
L2
L3
7 & 4
8 & 5
9 & 6
Tie together
460 Volts
1
2
3
Tie together
Tie together
To reverse rotation interchange any two line leads
Check r tati n after wiring.
Wire f r c unter-cl ckwise r tati n.
4 - Yellow Power Line 2*
Note This Dust Collector is
pre-wired at the factory and
need only be plugged into a
NEMA 6020R dedicated
electrical receptacle. 5hp
single phase only.

O.A.S. 2008
c
5 - 7.5 HP Direct Drive Owners Manual
12
IX. Accessories
Dust Bin Options - (May require Custom Mounting Stand.)
1. Hoppers -
Large capacity hoppers from .5 cu. yd. to 3 cu. yd.
3/16 reinforcing angle for added support - 3/16 plate body is 100% continuously
MIG welded on inside - 3/8 rear cross brace angle (not 3/16) - three 3 base
channel - All angles are structural not formed.
Supplied stand will accomodate up to a 2 yd. hopper w/o modification. Larger
stands available.
2. Air Locks -
Rotary air locks provide an
alternative to an air tight dust bin
for larger volume capacity and
less maintenance.
Magnetic Motor Starters - The 7.5hp Direct Drive dust collectors do not come
wired or with an on/off switch. Because of the voltage and amperage requirements
of the system, an industrial switch must be used.
OAS offers Square D Full Voltage Non-Reversing across the Line Starters,
Nema Type 1 Enclosure with Start/Stop in cover, and class 10 overload. Industrial
switches can also be purchased through your local electrician. Due to varying
electrical codes, OAS cannot specify exact wiring requirements. When wiring
the collector you should always hire a licensed electrician.
Bin Le el Monitor - AIB000000 - Provides level sensing for dry bulk solids.
The monitor operates by using a 1 rpm synchronous motor to rotate a paddle.
When paddle rotation is impeded by material surrounding it, the motor is de-
energized and triggers a SPDT snap switch. The snap switch can be used in
conjunction with a motor starter to turn equipment off or provide alarm functions.
Bin Le el Sensor Assembly w/ Strobe Light
- AXB000000
Pre-assembled package Includes
- Bin-level sensor, pre-wired to junction box
- Blue strobe light
- Modular cord connections from strobe light to junction box
- Junction box with pigtail wires to connect 110V supply power
3. Cone w/ Clean Out -
Optional cone with clean
out plate for use with
airlocks..

X. Troubleshooting
Motor Overheating
The m t rs internal circuit breaker will trip if the m t r is verheating.
Air leaks between the collector and dust bin
- The lid of the dust bin and the cyclone must be in place and sealed when operating the dust collector.
- Make sure flex hose is not torn and the hose clamps are tight.
- Check drum lid; cover should have a foam seal and be well seated.
- Check for holes or leaks in the dust bin barrel.
Caused By
Motor not properly wired. Check wire connections.
- Check motor rotation - See wire diagram
Check breaker box. Make sure power supply is 110V if wiring 110V or 220V if wiring for 220V.
Poor Dust Pick-Up at Woodworking Machines
Caused By
Check length of duct runs and duct diameters compared to ductwork design guideline.
Make sure all ductwork is sealed. Large air losses will occur even through small cracks in the
ductwork. Use silicone, duct tape or duct mastic compound as a sealant.
Check for air leaks between collector and dust bin.
Close all unused blast gates at your woodworking machines.
Examine hood design for weaknesses according to the ductwork guide.
Check for a restricted pipe, too small a hood port or too small a branch line. See branch line
diameter chart in ductwork guide.
Be sure that your filters are clean. See filter cleaning directions.
Fi ters fi ing with arge chips and excessive dust
Caused By
Air leakage between cyclone and dust bin. Cyclone and dust bin must be air tight. Even small leaks will cause
poor preseparation in the cyclone.
- Check drum for any leaks.
- Make sure drum lid forms a good air tight seal with the drum.
- Check flex hose connection. Make sure hose clamps are tight. Seal with silicone.
- Make sure dust bin has not over filled. Dust bin should be emptied before the dust reaches
top of the container.
- Make sure clamp around cyclone is tight and sealed with silicone.
- If there is not enough air entering system, open more blast gates.
- Minimum 4 diameter pick up at tool location. Less than 4 will restrict air flow into collector and
will increase filter maintenance.
O.A.S. 2008
c
5 - 7.5 HP Direct Drive Owners Manual
13
Improper motor rotation - Running backwards wi reduce suction by 30%.
Excessive vibration
Caused By
Loose mounting bolts, set screws, bearings or couplings.
Bent shaft due to mishandling or material impact.
Accumulation of foreign material on the fan wheel.
Excessive system pressure or restriction of airflow due to closed blast gates.
Inadequate support structure.

XI. Fire Hazards -
Read Before Insta ing and Operating
Do not use this product to collect other types of dust or flammable apors.
Fire or explosion may occur!
Never collect sparks from a bench grinder into a wood dust collector.
Never introduce sparks or sources of ignition into the dust collector.
Personnel should keep at least 20 feet away from unit.
Check dust bin frequently and before leaving the shop for smoldering material.
Keep portable Fire Extinguishers handy.
The ABC type (dry chemical) is generally a good choice for small wood shops.
Additional information on portable extinguishers can be found in NFPA 10 (Standard for Portable Fire Extinguishers).
Be especially careful with sanding units. They can produce concentrations of dust in the combustible range. Make
certain enough air volume is at the suction point to capture all the particulate generated.
This high air volume will dilute the mixture below the lower limit of flammability. Be careful not to generate sparks into
the sanding dust.
Empty dust bin and clean filter often, especially when sanding.
Dont overload woodworking equipment, especially sanders. Excessive frictional heat can spontaneously ignite dust.
Sparks can be generated in several ways
High-speed sanders and abrasive planers may strike foreign material
Saws and edgers may strike foreign material and create a red hot metal fragment.
Knots in hardwood can create frictional sparks.
Tramp metal when drawn into the collector can spark against ductwork.
Check wood stock for old nails and screws which can create red hot metal fragments.
Avoid using excessively large wood waste storage bins.
Always check storage bins for smoldering material before leaving for the day.
Electrically ground all equipment and ducting. Static sparks can ignite wood dust. (Avoid using PVC drainpipe)
Dont allow accumulation of layers of fine dust on horizontal surfaces. (Especially overhead lights, electrical boxes,
and fuse panels which can ignite dust)
Oneida Collectors are designed for WOOD DUST only!!
Wood shaping and cutting processes generate wood chips, shavings, and dust. These materials are considered
combustible. Air borne wood dust below 420 microns in size (.017 of an inch) in certain concentration ranges when
ignited can deflagrate (burn quickly).
An ignition source such as a spark, or ember, can ignite a dust mixture resulting in an expanding flame front, which
can cause an explosion if tightly contained. A disturbance that raises a cloud of accumulated fine dust can raise additional
dust clouds, which can cause a series of explosions that can level an entire building. Until this type f fire has been
witnessed, it is difficult t believe the devastati n. This type f fire is rare but w rth safeguarding against.
The best way to avoid a wood shop fire is to keep the shop clean. A shop ankle deep in dust with layers of fine dust
everywhere is an accident waiting to happen. A good dust collection system reduces overall fire hazards but also adds
new concerns. A fire hazard is still present. Combustible material is now in the dust collector and storage container.
It is the buyers responsibility to follow all applicable federal, state, local, OSHA, NFPA, or authorities having
jurisdiction codes and regulations when installing and operating this dust collector.
Fire Marshalls may want the unit located outside of the building. If the collector is located inside the facility,
controls such as spark detection, suppression, or explosion venting may be required.
Most local jurisdictions consult or adopt NFPA ( National Fire Protection Agency) codes. However, other codes
may apply. Local codes may vary from jurisdiction to jurisdiction.
NFPA 664 Code book, Standard for the Prevention of Fires and Explosions in Wood Processing and Woodworking
Facilities, applies to woodworking operations that occupy areas of more than 5,000 sq. ft. or to areas where
dust producing equipment requires an aggregate dust collection flow rate of more than 1500 cfm (Cubic Feet
per Minute). This exempts some small operators from the NFPA code 664, but other codes may apply in your
jurisdiction. Consult your local Fire Marshall for help. Additional information can be found in NFPA Code Book
664.
The f ll wing p ints are w rth heeding:
O.A.S. 2008
c
5 - 7.5 HP Direct Drive Owners Manual
The cust mer assumes the resp nsibility f r c ntacting their insurance underwriter with regard t specific
applicati n requirements f expl si n venting r if additi nal fire pr tecti n and safety equipment may be
required.
14

XIII. Terms and Conditions
Please look over the shipped order very carefully in the presence of the delivery person for damage or
incomplete shipment before signing the delivery receipt. Please note any tears or irregularities in shipping
packaging, however slight, on the shipping delivery receipt. This could be an indication of extensive concealed
damage. The shipping company will not take responsibility if the damage is not noted on the delivery receipt.
In the event of shipping damage, call O.A.S. immediately so we can expedite replacements. Please check
in all parts within 3 days from receiving order. Notify O.A.S. immediately of any missing or incorrect parts.
O.A.S. does not accept any claims for damage or shortage after 3 days from date of delivery.
Checking in Order
Oneida Air Systems warrants products it manufactures for a period of 2 years to the original purchaser from
the date of purchase. Items not manufactured by O.A.S. are limited to their own manufacturers warranties.
All electrical items such as magnetic starters, remotes, sensors, pumps and accessories are limited to 90
days. This warranty does not apply to defects due directly or indirectly to misuse, negligence, accidents,
abuse, repairs, or alterations or lack of maintenance. This is Oneida Air Systems sole written warranty and
any and all warranties that may be implied by law, including any merchantability or fitness, for any particular
purpose, are hereby limited to the duration of this written warranty. O.A.S. does not warrant or represent that
the merchandise complies with the provisions of any law or acts unless the manufacturer so warrants. In no
event shall O.A.S.s liability under this warranty exceed the purchase price paid for the product and any legal
actions brought against Oneida Air Systems shall be tried in the State of New York, County of Onondaga.
Oneida Air Systems shall in no event be liable for death, injuries to persons or property or for incidental,
contingent, special, or consequential damages arising from the use of our product.
Oneida Air Systems does not warrant or authorize use of wood dust collectors for other purposes. This
includes wood products that are treated, coated, or otherwise altered from their natural state.
Limited Warranty
Products will be shipped to Buyers single destination. Title and risk of loss shall pass to the Buyer upon
delivery to such destination. Buyer pays transportation expenses. Dates of shipment are advisory and O.A.S.
will make reasonable efforts to ship on or before the date states for shipment, however, O.A.S. shall not incur
any liability for failure to ship on that date.
De ivery Risk of Loss
Buyer must inform O.A.S. of any shortage or damage, by so noting in writing, on the freight delivery bill prior
to signing to indicate receipt of shipment. All claims, including claims covered under the limited warranty, are
subject to inspection and investigation by O.A.S.. O.A.S. reserves the right to inspect and investigate all
returned products before Buyers claim is settled. All products returned for a cash refund must be unused,
resaleable and purchased within the last 30 days. There are no refunds on flex hose or custom made
components. There will be a 25% rest cking fee applied t any returned items. Buyer must ca and get
an RMA# (Return Authorization number). A merchandise must be shipped prepaid.
Returned Goods Po icy
O.A.S. 2008
c
5 - 7.5 HP Direct Drive Owners Manual
15
*Note: Motors shou d be protected from extreme weather to pro ong motor ife.
Sing e phase motors shou d on y be started and stopped up to 4 - 10 times per
hour. Starting sing e phase motors more frequent y can cause heat bui d up
and can cause the motor over oad to trip or cause motor damage. In genera ,
motors shou d be started and stopped as itt e as possib e for maximum
ifespan and best economy (e ectrica use).
Installing a dust collection system will greatly reduce airborne dust levels in your shop. However, NIOSH recommends that
respirators must be worn if the ambient concentration of wood dust e ceeds the prescribed e posure limit. If in doubt wear
a NIOSH mask.

XIV. Filter Efficiency Gauge Mounting Instructions
Can be
attached
up to 8
away
OR
Air Flow
to Filter
Mounting Instructions
1. Mount brass static pressure tube in plenum with tip pointed into the air stream
Use mounting bracket and sheet metal screws if interior of plenum is not
accessible Refer to drawings for location of brass static pressure tube
Gauge Reading Instructions
1. Gauge may need to be zeroed Follow the instructions provided with
pressure gauge
3. Mount gauge up to 8 away, mounting it closer will not affect reading
4. Connect clear tubing from brass static pressure tube to the port labeled
+ on the back of the pressure gauge
5. Make sure the tubing is not crushed or kinked along its entire length, cut
shorter if necessary
4. When the gauge rises to 3, its time to clean your filter(s)
2. Take the initial reading with cleaned filter(s) and the typical number of blast
gates open in normal operation
3. Always read the gauge with the same number of gates open The more
gates open, the higher the pressure reading on the gauge
Elbow Plenum
Side View)
2. Refer to instructions provided with gauge for mounting to bracket
After many c eaning cyc es, a fi ters pressure wi rise after each c eaning. An o der fi ter does
not get as c ean as a new fi ter.
Rectangular Plenum
Air Flow
to Filter
0
1234
5
INCHES W.C.
5 - 7.5HP Direct Drive Owners Manual
16
O.A.S. 2008

5 - 7.5HP Direct Drive Owners Manual
17
O.A.S. 2008
Per Baldor specifications, their 2 pole motors (3600 RPM) motors are to be relubricated every 5500 hours.
Table 1 - Service Conditions
Table 2 - Lubrication Interval Multiplier
Per Baldor specifications, add 30 ounces (8 4 grams) of Mobil Polyrex grease by weight or 6 cubic inches (2 teaspoons)
of Mobil Polyrex grease by volume
XV. Fan Motor Lubrication

P ease see comp ete manufacturer instructions for more information.
This supplement is designed to aid Oneida Air Systems customers with frequently asked questions.
You must have this product installed by a qualified and licensed electrician.
Improper installation is very dangerous and will void your warranty.
Follow all local & national electrical codes when installing this product.
This starter can be used in single or 3 phase applications. When used in 1 phase it
requires a jumper wire that connects T2 and L3. (See attached wiring diagram.) This
tricks the overload into thinking it has 3 phase power. This jumper must be installed by
a licensed electrician. The jumper is not required if you are using 3 phase power.
Remove the blank plate and install the start
/ stop pushbutton into the starter cover.
YoumustmounttheOverloadProtectortothe
contactor. The Overload comes in the small
white box. It mounts to the three terminals at
the bottom of the contactor. See the comp ete
instructions for more information.
After mounting the overload, connect (2) brown
wires marked 95 &96 to their respective
numbered terminals on the overload.
Important!
The gauge of the Jumper wire must match the gauge
of the wire bringing power to the motor thru the Starter.
Start / Stop
Pushbutton
XVI. Supplemental Instructions for Magnetic Motor Starters with
Oneida Air Systems Dust Collectors
5 - 7.5HP Direct Drive Owners Manual O.A.S. 2008
18

Open access cover on the overload, then set
theoverloadamperagedialtomatchtheFLA
amperage of your motor. The FLA value can
be found on your motor nameplate.
Be sure you have the proper voltage available for your Starters Power & Control
Circuit (Control circuit controls Contactor Coil in Starter). Coil voltage is/can be
independent from the line voltage that runs your motor. Customers may desire an
alternative Contactor Coil voltage to connect a Starter to a low voltage control circuit.
Most OAS Starters are shipped with 240v coils.
Plug the Start/Stop Push-Button Assembly into keyed receptacle. (As shown below.)
Run power to the starter and from the starter to your motor. See the manufacturer
instructions for more details.
The Power Circuit connected to the Starter should be fed from a dedicated circuit
breaker or disconnect with fuses. Dont connect any branch circuits to the Mag Starter
Power Circuit. The overcurrent protection (circuit breaker or fuse*) for the Starter
Power Circuit is to be sized per Article 430.32 of the NEC.
*Use time delay fuses rated for motor circuits.
Overload
Amperage
Dial
5 - 7.5HP Direct Drive Owners Manual O.A.S. 2008
19
